How to: Replace Coolant Temperature Sensor


  • Please log in to reply
9 replies to this topic

#1 BigJakk

BigJakk

    Member

  • Members
  • PipPipPip
  • 355 posts
  • Location:North East
  • Car:MkI Octavia 1.8T vRS - 2004

Posted 21 July 2012 - 12:34

Following is a short tutorial on how to replace the Coolant Temperature Sensor on the MkI Octavia vRS - I believe that the process is similar on all of the MkIV Golf based VAG platforms though.

Note that the job should be carried out when the engine is stone cold, as during the process a small dribble of coolant will be forced out of the system under pressure and the last thing we want is for this to be boiling hot and scald you!

The job takes about 10-15mins total and the only tools that are required are a flat headed screwdriver. If i can do it, so can you.


Issues with the coolant temperature sensor are fairly common on our cars and can often result to poor running when cold, fluctuating idle rpm and ultimately a check engine light.

There are to versions of the sensor available, the original "black" version which are prone to failure, and an updated green version. The part number for the newest version of 059 919 501 A. A plastic retaining clip as well as a rubber O-Ring are also required for fitting the sensor, these will often be included, but be advised to check

The OEM part will cost about £25-35 from VW, however in this instance i purchased a Febi-Bilstein sensor for about £10 - they are OEM manufacturers after all so shouldn't be any issues with quality. One word of warning, there are a lot of "no name" versions of the sensor available on Ebay - I would be inclined to avoid these.

On with the show:

1) Remove both the upper and lower engine covers (the two large lumps of plastic covering the engine area under the bonnet) The larger top cover is held in place by four press screws in each corner, apply a little downward pressure and a quarter turn will loosen them off. After removing the top cover, do the same with the lower cover, which runs along the bottom of the engine and alongside the cylinder head, same type of screws, but this time only three to be undone (the third screw is only visible with the top cover removed).

Posted Image

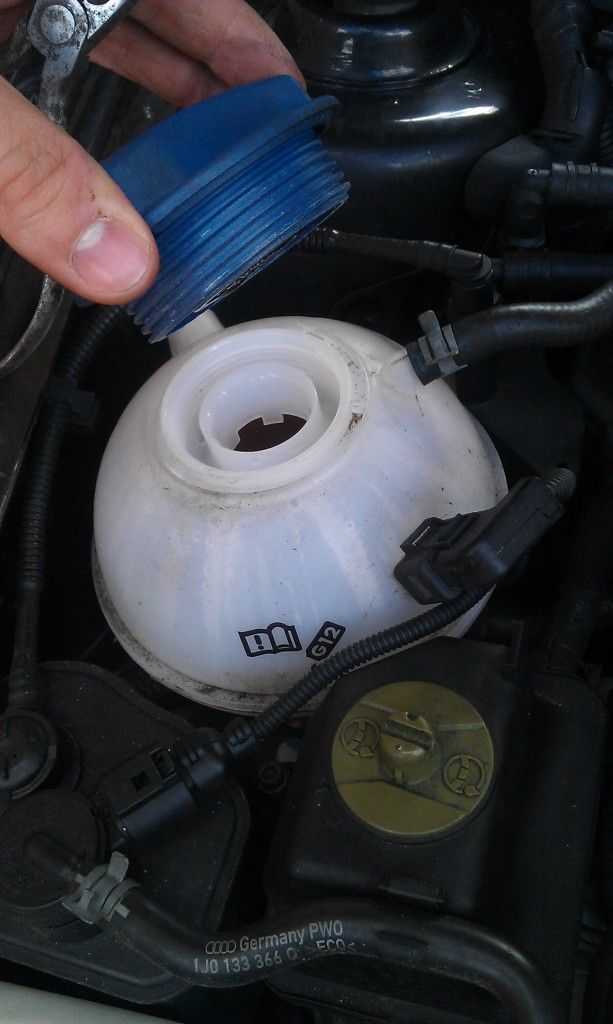

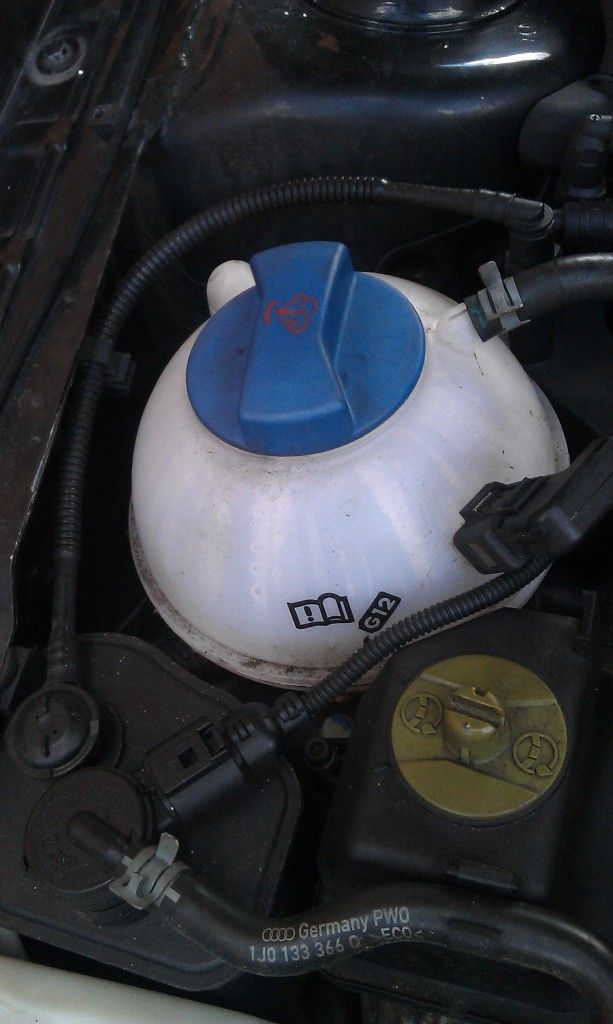

2) As the sensor we are replacing is on one of the coolant lines, we don't want all of our coolant to splosh out when we remove it. To prevent this, remove the cap from the coolant reservoir on the drivers side of the engine bay in order to release any pressure, then replace the cap to create a vaccum.

Posted Image

Posted Image

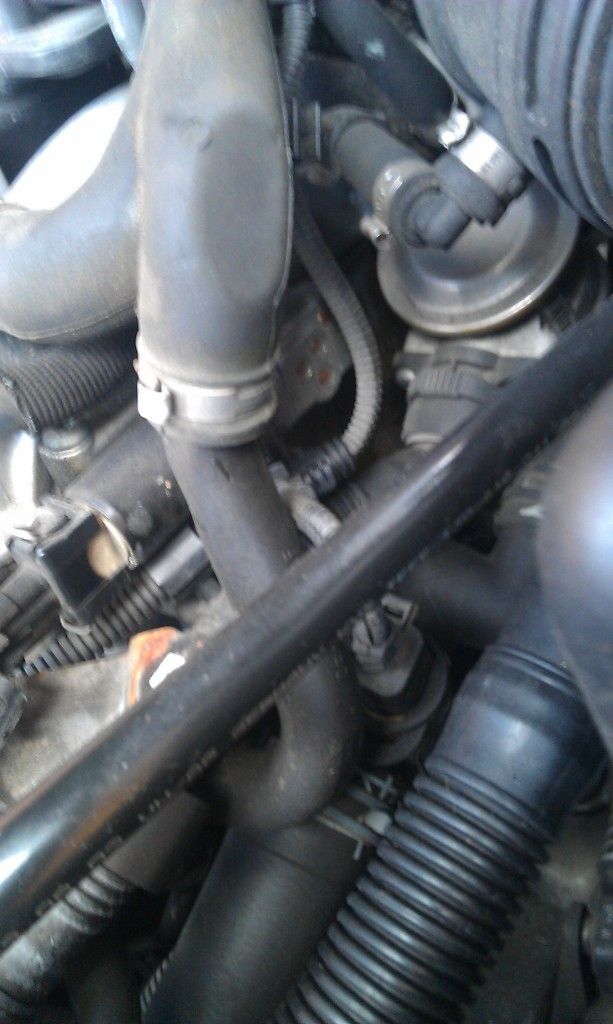

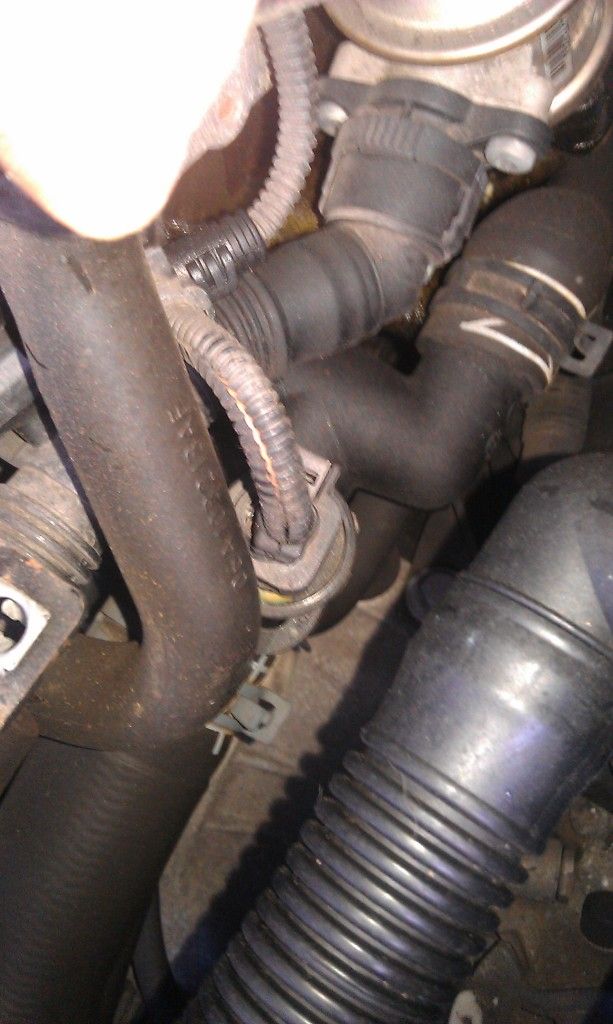

3) Locate the coolant temperature sensor, this is just to the right of the cylinder head. It is positioned at a 90 degree angle from one of the coolant lines. It is only really visible with the lower engine cover off:

Posted Image

Posted Image

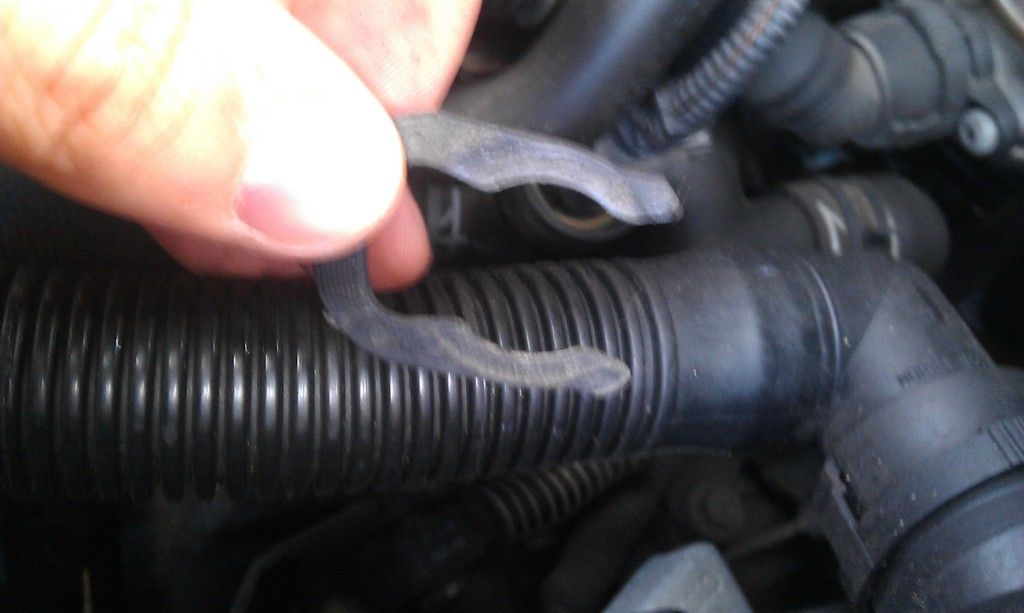

4) As you can see, the sensor is held in place with a small plastic "U" shaped clip, this will need to be removed. There should be sufficient daylight for you to slip a small flathead screwdriver between the clip and the pipe and just ease it off. Apparently these are prone to snapping and breaking, however mine came out without issue.

Posted Image

5) Prepare your new sensor, by placing the rubber o-ring on the end. Some advised greasing this ring up with petroleum jelly, however i didn't have any to hand on the day.

Posted Image

6) With the retaining clip off the old sensor, pull up gently on the electrical connector and the sensor should come free. There will be a small amount of coolant that will spill forth when you do so, but if you followed the advice re: the coolant cap it should be an insubstantial amount.

Posted Image

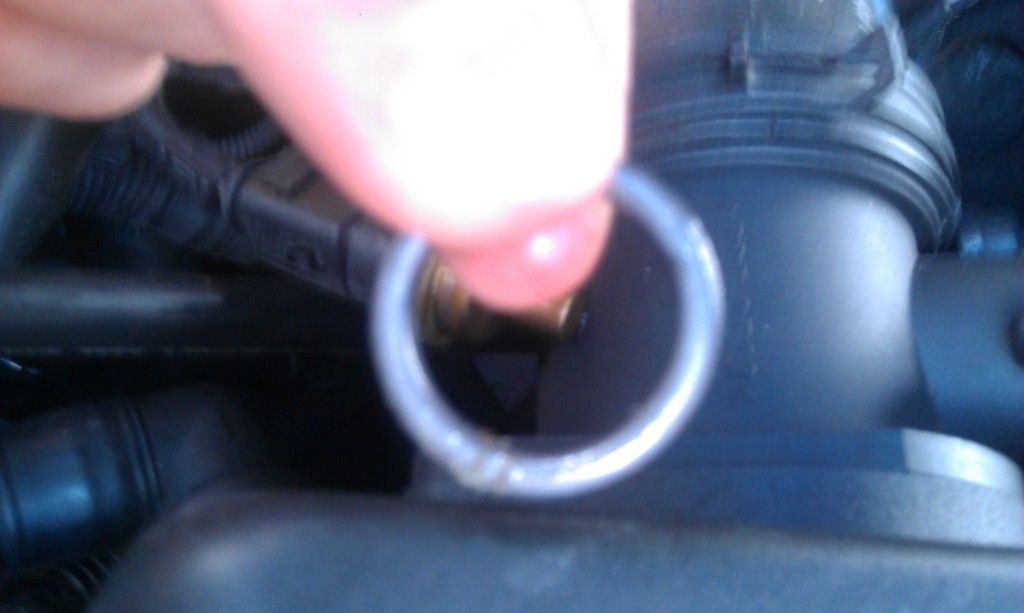

7) Typically, like mine did, when removing the old sensor the old rubber O-Ring will be left inside of the socket you have removed the old sensor from. Reach inside and hook it out with a finger

Posted Image

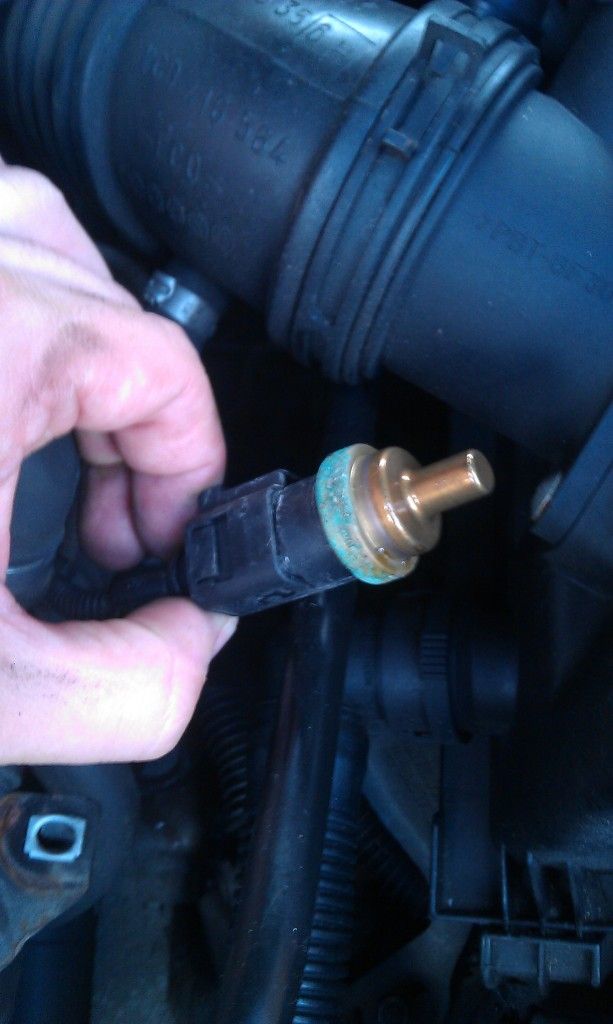

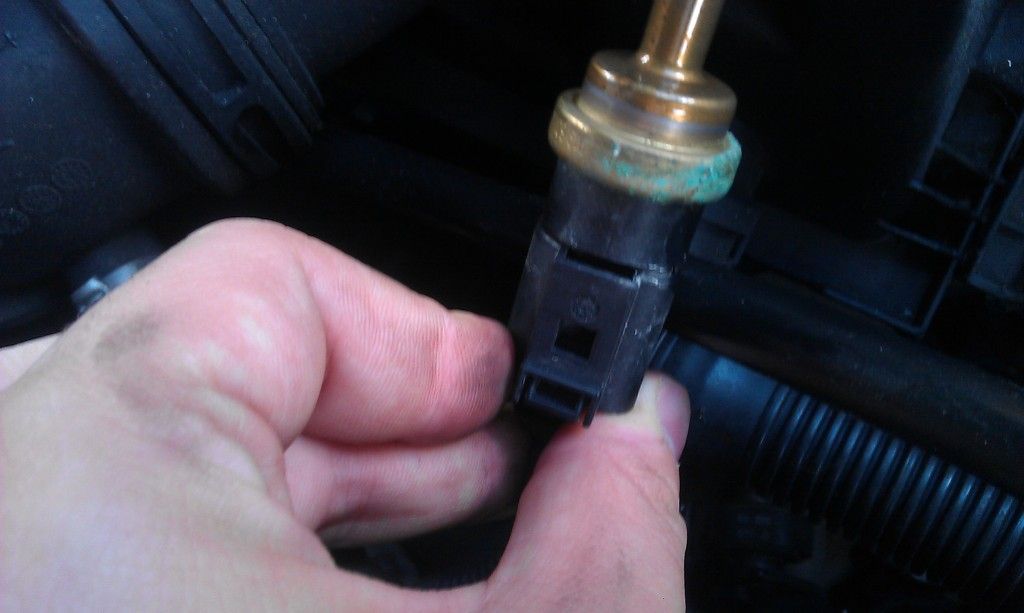

8) Examine the sensor and you will see that it is connected to a an electrical connector, with a retaining function. To release the old sensor, use your flathead screwdriver to gently lever the small square tab at the rear of the connector. There should be a light click to let you know it has released. A gentle pull on the sensor should pull it free of the connector.

Posted Image

Posted Image

9) The rest of the process is just a reversal of the above procedure. Insert the new sensor into the electrical harness, again there should be a soft click to let you know it is locked in.

Replace the new sensor with O Ring back into the socket (the small clip on the electrical connector should face towards the rear of the engine bay). Again there will be a small click to let you know it is properly inserted.

Reinsert the U Clip to retain the sensor, there are a couple of holes through which to insert the clip into, the closed end of the U should face towards the front of the engine bay.

Replace engine covers

Job Done! Fire up the car and take it for a short test drive to check all is well!

Edited by BigJakk, 23 July 2012 - 00:23.

  • cheshire cat likes this

#2 wallace272

wallace272

    Newbie

  • Members
  • Pip
  • 25 posts
  • Location:uk
  • Car:octavia

Posted 07 January 2013 - 20:17

Don't suppose you would know if it is in the same place on a 2.0L engine as well thanks

#3 Bowders1

Bowders1

    Briskodian

  • FREEDOM
  • PipPipPipPipPipPip
  • 6,205 posts

Posted 09 January 2013 - 15:35

Don't suppose you would know if it is in the same place on a 2.0L engine as well thanks


Probably is as the temp sensor is normally found the gearbox side of the engine and up towards the cam over. As the sensor is the same, would not take you long to find it.

#4 wallace272

wallace272

    Newbie

  • Members
  • Pip
  • 25 posts
  • Location:uk
  • Car:octavia

Posted 11 January 2013 - 20:41

cheers i'll have a peek tomorrow

#5 amusingduck

amusingduck

    Newbie

  • Members
  • Pip
  • 21 posts
  • Location:Dudley
  • Car:2004 Octavia vRS mk1

Posted 13 May 2013 - 12:30

This might be common sense, but perhaps it will help some people

The clip came out quite easily for me, I used a large flathead screwdriver to lever it out slightly, then used my hands to wiggle it free.

There was a little spurt of coolant, having a rag handy to catch it would be helpful!

Also, the sensor didn't look like it was seated deep enough. It was actually seated fine, it just looked odd before I replaced the clip.

#6 FabRed

FabRed

    Newbie

  • Members
  • Pip
  • 48 posts
  • Car:Skoda Fabia VRS

Posted 24 May 2013 - 13:55

Did you bleed the system of air after? I.e leave the cap off the coolant reservoir bottle and rev the engine until the fan kicks in and circulates the coolant removing any air locked in the system?

#7 octestatlad

octestatlad

    Newbie

  • Members
  • Pip
  • 6 posts
  • Car:2004 Octavia 1.9TDI estate

Posted 01 June 2013 - 15:07

Like to say, excellent description, ended up being an easy job!

I noticed after I fitted the new sensor, the engine light was still on. Is this normal, thus requiring a diagnostic tool to remove, or does this mean the sensor is still not securely fastened? Or could it even be a different problem? Although last time I checked it was a p0118 fault code that appeared.

#8 amusingduck

amusingduck

    Newbie

  • Members
  • Pip
  • 21 posts
  • Location:Dudley
  • Car:2004 Octavia vRS mk1

Posted 01 June 2013 - 16:32

Like to say, excellent description, ended up being an easy job!

I noticed after I fitted the new sensor, the engine light was still on. Is this normal, thus requiring a diagnostic tool to remove, or does this mean the sensor is still not securely fastened? Or could it even be a different problem? Although last time I checked it was a p0118 fault code that appeared.


Took it for a drive yet? It clears itself after a few miles

#9 akmodi

akmodi

    Newbie

  • Members
  • Pip
  • 6 posts

Posted 11 September 2013 - 06:31

HI, Do you know where I can buy them? Thanks



#10 RichVRS777

RichVRS777

    FNG

  • FREEDOM
  • PipPip
  • 79 posts
  • Location:Hull
  • Car:Octavia VRS

Posted 03 October 2013 - 15:13

Don't suppose you would know if it is in the same place on a 2.0L engine as well thanks


Did you find the sensor on the 2.0 TFSi?

Mine is displaying symptoms and I'd like to change it
