will rcd330gplus be complatibel with skoda rapid 2015 make

[Sandesh0259]

Hello,

i came across a seller who says that the rcd330gplus is compatible with the skodarapid & it needs a canbus connector for the multifunction steering wheel to work.

can some one help me in this regard.

the part number is 6RD 035 187 A.



Thanks & Regards.

[Rustynuts]

I have a similar unit here. It needs an adapter to make it physically fit the Quadlock connector in the car, it may or may not work with the steering wheels controls, but it needs the Component Protection sorting out. When connected to the car it doesn't work because it's designed to work with a specific car and reads critical information from the car it's coded to fit into. If it doesn't read the info required, it doesn't work. Think of it like a security code, but bigger and harder.

[Sandesh0259]

& this seller is from Aliexpress

[Sandesh0259]

other than the steering wheel controls will the rest of the system work fine in case there is an issue like the one you have mentioned?



& thank you for replying

[Rustynuts]

The system won't work if Component Protection is active on the head unit. It comes on, but there's no sound and the functions are limited, and it states "Component Protection Active" on the screen. After that, I'm not sure if making the steering wheel controls work is relevant.



Knowing Aliexpress, the stuff you buy from there is exactly what you expect it to be or worse. If you're happy with what you're buying and it's cheap, and you're aware of any possible pitfalls (like sellers chinglish translated assertions that it'll work, import tax and suchlike), then go ahead and buy it. If you have any doubts and need to as questions like this, I wouldn't bother.



If you absoutely have to buy one, UK seller on Ebay would be a much better bet. That way you have Paypal and Ebay on your side if it falls over.

[softscoop]

Are you sure that it will have component protection Rusty?



https://www.aliexpress.com/item/Car-6-5-MIB-UI-Radio-Bluetooth-RCD330-PLUS-RCD330G-RCD510-RCN210-USB-SD-For-VW/32738855544.html



Looks like someone has fitted it straight into a mk5 Golf.



I'm sure that I've read that these don't even have a code.

[Rustynuts]

No I'm not sure. All I know is the one I have has CP on it, but it's not from China.

[spiz]

I have a VW 6RD 035 187B currently fitted in my Rapid.



Plugs directly in & no code required. ( just needs a 2 into 1 antenna lead apapter.)

This one has Apple Carplay and green back lit buttons & also the Skoda logo on start up.



Multi function steering wheel works with it.

Supports rear vision camera too. (default on.. to code off set byte 3 to 00 [40 is on])

[Sandesh0259]

Hi,
thanks fro the info & could you kindly point me to the source from where you procured it & if possible the price!



& did you not a canbus simulator for the swap?



thanks

[luke300586]

How good are these units as I'm thinking of getting one for my 2009 Octavia mainly for the CarPlay, will they just plug straight in and are the buttons correct as ive heard on some units the buttons can be different to what they say?

[spiz]

On 3/23/2017 at 04:56, Sandesh0259 said:

Hi,
thanks fro the info & could you kindly point me to the source from where you procured it & if possible the price!



& did you not a canbus simulator for the swap?



thanks



Purchased from local seller (AU).

Is the type you can source from Aliexpress.. with the "APP" button on the right hand side centre.

No canbus simulator required as my car has canbus standard.

[spiz]

On 4/30/2017 at 01:38, luke300586 said:

How good are these units as I'm thinking of getting one for my 2009 Octavia mainly for the CarPlay, will they just plug straight in and are the buttons correct as ive heard on some units the buttons can be different to what they say?

The unit performs well via carplay. Bluetooth via the cars original module will not work ... use the bluetooth connection via the RCD330.

AM radio reception is poor due to the loss of the phantom power from the original deck. You'll need to fit a dual fakra to single fakra phantom power antenna adapter if you wish decent AM reception again.



If the unit has the "APP" button on the right hand side centre there is no issue with the buttons. That occurs to the ones with the "SETUP" button in that centre position.

Check with the seller if it plugs straight in. I'd assume yes if your Octy has canbus.



[spiz]

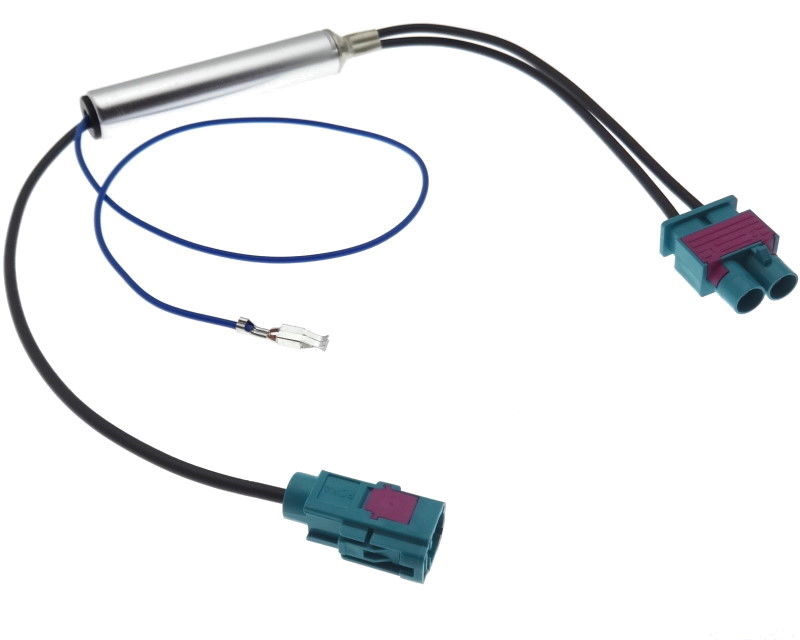

I have this antenna adapter / phantom power lead fitted and it restored AM reception.

[Manoj1135]

On 2016-12-22 at 19:01, Sandesh0259 said:

Hello,

i came across a seller who says that the rcd330gplus is compatible with the skodarapid & it needs a canbus connector for the multifunction steering wheel to work.

can some one help me in this regard.

the part number is 6RD 035 187 A.



Thanks & Regards.

Yes Sandesh RCD330g plus can be installed on Skoda Rapid. I've done for mine.

Simple steps

1. You need

        RCD330g plus HU

        Quadlock ISO connector (without simulator)



2. Plug in Quadlock to HU and other Balck and Red harnesses.

3. You will be left out with 2 long cables from the IS) - quadlock. These 2 should be connected to your BCM pin 20(can+) 21(can-) in PQ25 series BCM







A - Onboard supply control unit -J519- , low-line
B - 73-pin connector -T73a- black
1 - Not assigned
2 - Left dipped beam output signal
3 - Not assigned
4 - Interior lighting out put signal, door contact switch
5 - Not assigned
6 - Rear fog lamp output signal
7 - Fog light switch input signal
8 - Not assigned
9 - Not assigned
10 - Rear lid release motor output signal
11 - Central locking motor "lock" output signal for all doors
12 - Central locking motor output signal for driver's door
13 - Central locking motor "Safe" output signal for all doors
14 - Central locking earth input signal (31)
15 - Central locking motor output signal for front passenger door and rear doors
16 - Central locking supply input signal (30)
17 - Central locking lock unit input signal for rear left door
18 - Central locking lock unit input signal for rear right door
19 - Driver side door contact switch input signal
20 - Front passenger side door contact switch input signal
21 - Central locking lock unit input signal for front passenger door
22 - Central locking lock unit input signal for driver's door
23 - Rear lid handle release button input signal
24 - Central locking input signal, driver door
25 - Interior locking button input signal
26 - Door contact switch input signal for rear right door
27 - Bonnet contact switch -F266- bonnet contact switch input signal
28 - Hazard warning lights button -E229- hazard warning lights button input signal
29 - Horn plate input signal
30 - Rear lid lock position 2 input signal
31 - Rear lid lock position 1 input signal
32 - Right turn signal switch input signal
33 - Left turn signal switch input signal
34 - Door contact switch input signal for rear left door
35 - Not assigned
36 - Switch-off signal for heated seat
37 - Not assigned
38 - Driver side heated exterior mirror -Z4- , front passenger side heated exterior mirror -Z5- heated exterior mirrors output signal
39 - Earth input signal (31)
40 - Rear right side light bulb output signal
41 - Rear left side light bulb output signal
42 - Supply input signal (86s) for ignition/starter switch
43 - Brake pedal position sender input signal
44 - Supply input signal (15) for ignition/starter switch
45 - Side light switch input signal
46 - Not assigned
47 - Not assigned
48 - Not assigned
49 - Headlight washer system relay output signal
50 - Not assigned
51 - Not assigned
52 - Fuel supply relay output signal
53 - Alarm horn relay -J641-
54 - Supply input signal (75a) for ignition/starter switch
55 - Starter inhibitor relay output signal (only models with automatic gearbox)
56 - Hazard warning light button -E229- hazard warning light system warning lamp output signal
57 - Interior monitoring "off" warning lamp output signal
58 - Central locking SAFE function warning lamp output signal
59 - Interior locking warning lamp output signal
60 - Heated rear window warning lamp output signal
61 - Not assigned
62 - Main beam output signal
63 - Supply input signal (30), left headlight
64 - Supply input signal (30), heated exterior mirrors
65 - Supply input signal (30), interior lights
66 - Supply input signal (30), interior lights
67 - Not assigned
68 - Supply input signal (30), window wiper
69 - Window wiper position 1 output signal
70 - Window wiper earth input signal
71 - Window wiper position 2 output signal
72 - Horn output signal
73 - Horn supply input signal (30)

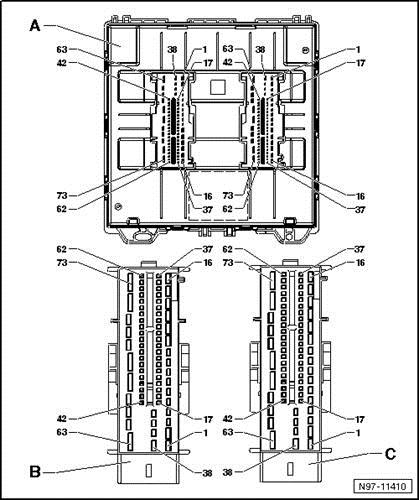

C - 73-pin connector -T73b- , white


Connector assignment:

73-pin connector -T73b- black -C-

A - Onboard supply control unit -J519- , low-line
B - 73-pin connector -T73a- black
C - 73-pin connector -T73b- , white
1 - Not assigned
2 - Right dip beam output signal
3 - Not assigned
4 - Not assigned
5 - Not assigned
6 - Not assigned
7 - Not assigned
8 - Not assigned
9 - Left fog light bulb output signal
10 - Right fog light bulb output signal
11 - Fog light bulb supply input signal (30)
12 - Reversing light output signal (only models with automatic gearbox)
13 - Turn signal and brake light supply input signal (30)
14 - Left turn signal output signal
15 - Right turn signal output signal
16 - Brake lights output signal
17 - LIN bus, door control unit and switches in steering wheel
18 - Powertrain CAN, low
19 - Powertrain CAN, high
20 - Convenience CAN, high
21 - Convenience CAN, low
22 - Diagnosis CAN, low
23 - Diagnosis CAN, high
24 - LIN bus, sliding sunroof adjustment control unit, rain and light detector sensor, interior monitoring sensor,
25 - Not assigned
26 - Not assigned
27 - Window wiper position 1 input signal
28 - Central locking input signal, front passenger door
29 - Not assigned
30 - Interior monitoring deactivation switch input signal
31 - Heated rear window button input signal
32 - Wiper limit switch input signal
33 - Not assigned
34 - Switch and Instrument Illumination (58d) Output Signal
35 - Not assigned
36 - LIN bus, alarm horn
37 - Signal (K), diagnosis
38 - Earth input signal (31) for electronics
39 - Supply input signal (30) for electronics
40 - Not assigned
41 - Not assigned
42 - Brake contact switch input signal
43 - Not assigned
44 - Cruise control system "Set" input signal
45 - Cruise control system "On/Off" input signal
46 - Cruise control system "Reset" input signal
47 - Cruise control system "Cancel" input signal
48 - Reversing light switch input signal
49 - Signal (L) alternator
50 - Starter relay input signal
51 - Supply input signal (75a) for ignition/starter switch
52 - Window washer pump supply input signal
53 - Window wiper position 2 input signal
54 - Not assigned
55 - Starter inhibitor signal (only models with automatic gearbox)
56 - Not assigned
57 - Not assigned
58 - Heated exterior mirror switch input signal
59 - Input signal for reference voltage (30)
60 - Input signal for earth - reference voltage (31)
61 - Washer pump motor and rear window wiper motor output signal
62 - Windscreen wiper intermittent operation input signal
63 - Heated rear window output signal
64 - Not assigned
65 - Not assigned
66 - Not assigned
67 - Heated rear window supply input signal (30)
68 - Supply input signal (30), right headlight
69 - Not assigned
70 - Not assigned
71 - Not assigned
72 - Not assigned
73 - Not assigned





That's all.. you head unit functions very wel. Even steering controls will work as before

[Manoj1135]

On 2017-3-22 at 23:26, Sandesh0259 said:

Hi,
thanks fro the info & could you kindly point me to the source from where you procured it & if possible the price!



& did you not a canbus simulator for the swap?



thanks

You dont need simulator

[aromal]

Hi Manoj ,



Thank you for the excellent info.  I have been searching a way to install RCD 330 Plus on my Rapid 2014 Elegance. So far no luck. I tried with multiple adapter . Quadlock and with simulator. but none of them able to detect the ACC position and thus no Bluetooth etc. I bought it from aliexpress.  Someone told me that indian Version do no support it.  Could you share more details about how to reach the BCM module do the connections ?

On 6/26/2017 at 10:35, Manoj1135 said:

Yes Sandesh RCD330g plus can be installed on Skoda Rapid. I've done for mine.

Simple steps

1. You need

        RCD330g plus HU

        Quadlock ISO connector (without simulator)



2. Plug in Quadlock to HU and other Balck and Red harnesses.

3. You will be left out with 2 long cables from the IS) - quadlock. These 2 should be connected to your BCM pin 20(can+) 21(can-) in PQ25 series BCM









[Manoj1135]

10 minutes ago, aromal said:

Hi Manoj ,



Thank you for the excellent info.  I have been searching a way to install RCD 330 Plus on my Rapid 2014 Elegance. So far no luck. I tried with multiple adapter . Quadlock and with simulator. but none of them able to detect the ACC position and thus no Bluetooth etc. I bought it from aliexpress.  Someone told me that indian Version do no support it.  Could you share more details about how to reach the BCM module do the connections ?





Hi aromal



Only quadlock is enough for the connection. Simulator you don't need.

This is complete DIY. do it with care. As precaution you can disconnect battery.



1. Locate your BCM

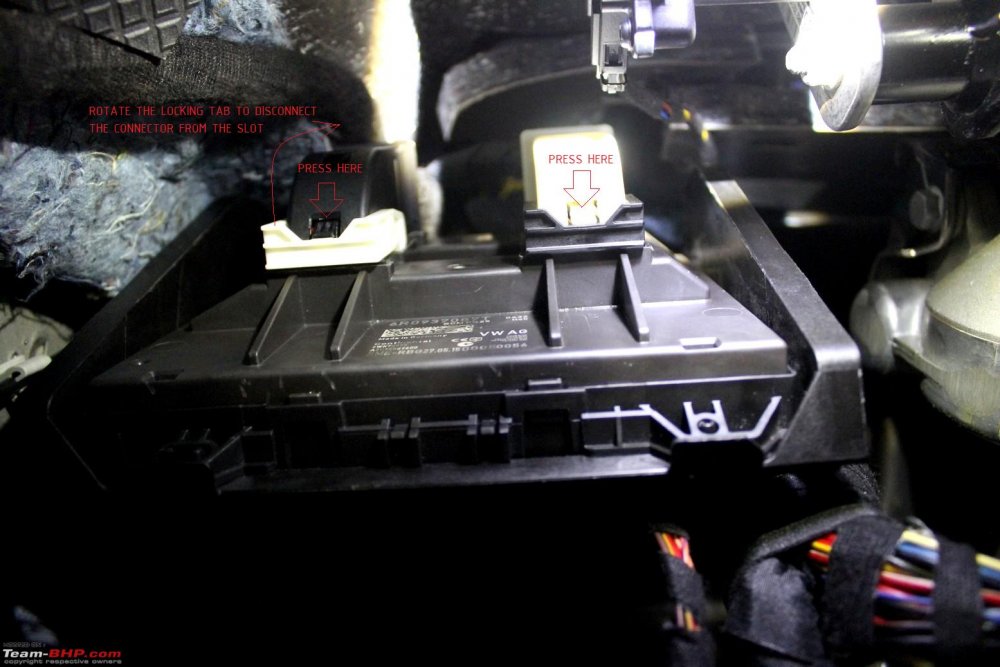

       Under steering wheel you can find BCM (pic 1)



2. You need to work on the white one

      Press the harness lock and lift black lock.

      Detach from BCM



3. Now open the notch of white cap and pull out the harness (be gentle while removing)

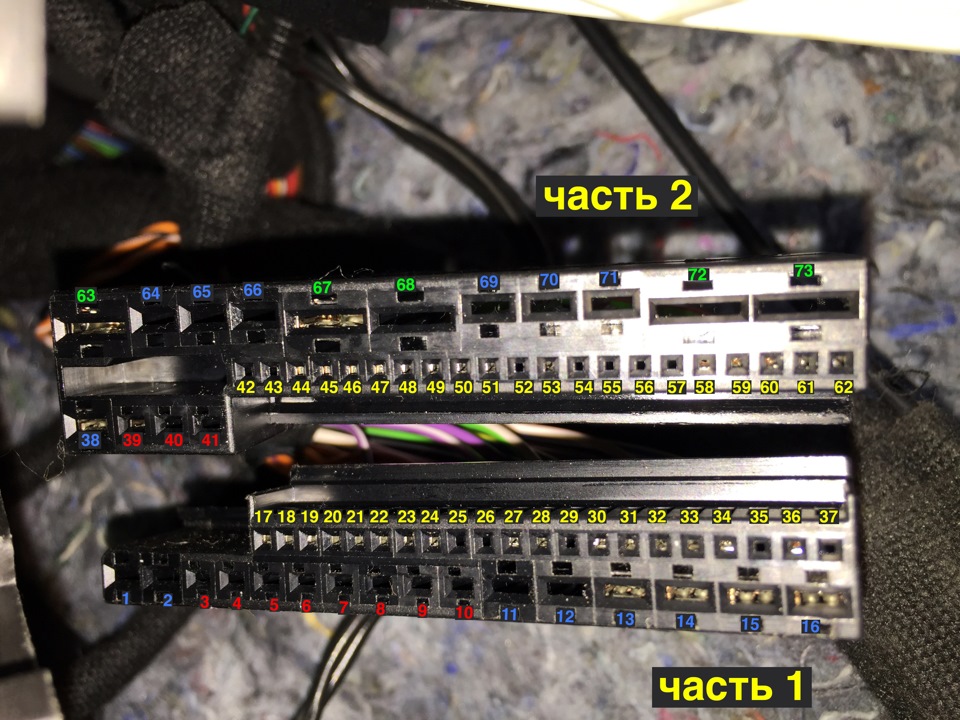

4. Now connect 2 cables from ISO -Quadlock to the harness at pin 20(+) and 21(-)

    Hope you can identify + and - in the two cables (one with black lining is -ive )

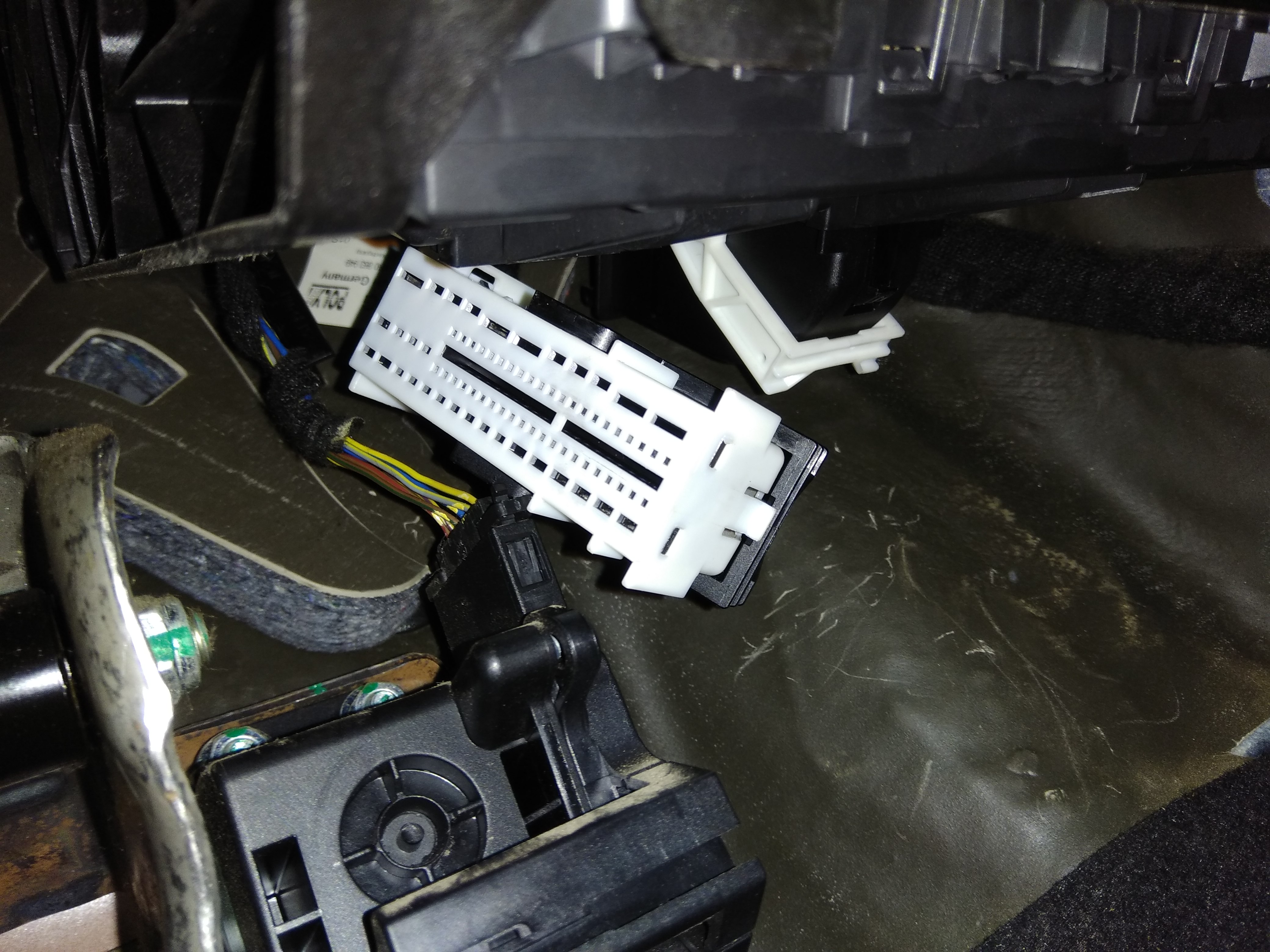

    Refer 2nd pic from my previous post.

    (These cable pins are one time push so make sure you are plugging in appropriate slots. Also consider your cables path from where you can pass through)



Now plug back everything and you can use the radio.

Bluetooth will work

MFSW controls will work

[aromal]

Hi manoj,

Thanks for the detailed steps. I will try this and update.



[aromal]

Hi manoj,



Any idea where we can source the bcm connector pins?

[Manoj1135]

10 hours ago, aromal said:

Hi manoj,



Any idea where we can source the bcm connector pins?



Do you need pin details? I have already shared in my previous post. You can refer C - 73-pin connector -T73b- , white

[aromal]

On 6/29/2017 at 08:14, Manoj1135 said:



Do you need pin details? I have already shared in my previous post. You can refer C - 73-pin connector -T73b- , white



I have opened the white connector. now struggling to find out how to open the notch to locate the back side of connector. the harness will not move down an inch. sorry for the noob questions.



could you help  ?

[Manoj1135]

2 hours ago, aromal said:



I have opened the white connector. now struggling to find out how to open the notch to locate the back side of connector. the harness will not move down an inch. sorry for the noob questions.



could you help  ?



You need to open notch from top (where the wire enters harness) you can see one notch on either side just pull them together to take connector out

[Sandesh0259]

Hi Manoj,

Thanks for replying to my queries.

Is your HU desay or no name & can you direct me to a vendor on Ali express?

Mine is the DSG ambition variant, Do you think it would work fine with mine?



Thanks again.

[aromal]

BCM connection did not work out and finally my BCM got short circuit. . The car is in Skoda Service center and they rectified the problem.  I will check with vagtune to see if they can install it properly.

[Manoj1135]

55 minutes ago, aromal said:

BCM connection did not work out and finally my BCM got short circuit. . The car is in Skoda Service center and they rectified the problem.  I will check with vagtune to see if they can install it properly.

OMG short circuit ? there is guy called Nikhil from pune He might help you in detail. Let me check with him and share his detail with you

Edited 3 July, 2017 by Manoj1135
issue resolver changed
