AMUNDSEN SAT NAV SPEAKER CABLE INFO

[Yewcourt]

I'm trying to install an underseat subwoofer into my 2015 Yeti, fitted with Amundsen Sat Nat, part number: 5L0 035 680C.



I've searched the internet extensively and can't find a wiring diagram relating to this exact model.

There is no wiring diagram on the sat nav unit itself, as there used to be on on older Skoda's/VW's.

Before I start cutting into the speaker wires to install an RCD converter, given the age of the car, I'd prefer to know what wire goes where...

Can anyone help?

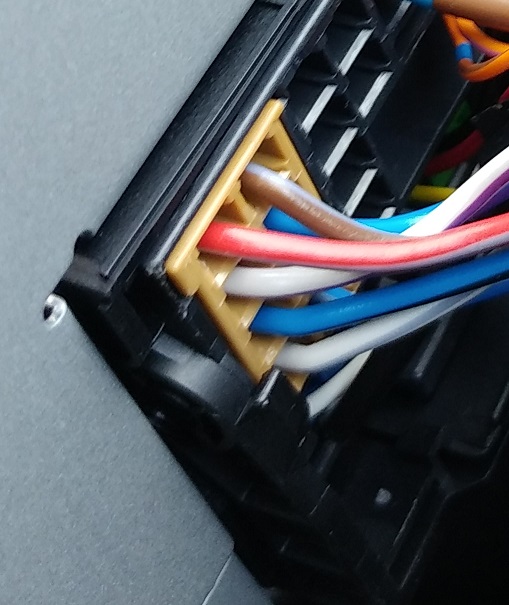

Pic of speakers wire into the Amundsen below:



Second question - can I completely disconnect/remove the unit and reconnect it without a code?

I'm hoping the canbus will recognise the same unit and reconnect automatically.

Many thanks.

[Urrell]

The car will recognise the unit when refitting.

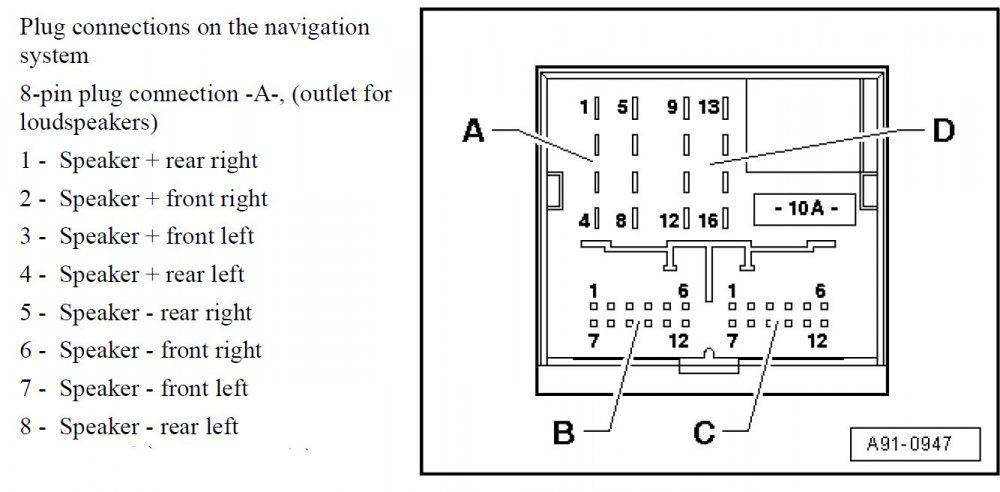

Does this help?


Edited 14 June, 2017 by Urrell
Added picture
