Yeti Brake Disc & Calliper General Technical Guide

[The Plumber]

Yeti Brake Disc Sizes and calliper type denomination for Production Years 2009 to 2012 are:

Front Wheel Drive

110 CR TDI

Front disc = 280 x 22

Front calliper = 15" FS-III

Rear disc = 253 x 10

Rear calliper = 15" C 38

1,2 TSI (plus DSG)

Front = 280 x 22

Front calliper = 15" FS-III

Rear = 253 x 10

Rear calliper = 15" C 38

1,4 TSI

Front disc = 280 x 22

Front calliper = 15" FS-III

Rear disc = 272 x 10

Rear calliper = 15" Bosch BIRIII

Four Wheel Drive

110 CR TDI 4x4

Front disc = 280 x 22

Front calliper = 15" FS-III

Rear disc = 272 x 10

Rear calliper = 15" Bosch BIRIII

140 CR TDI 4x4 (plus DSG)

Front disc = 288 x 25

Front calliper = 15" FN3

Rear disc = 286 x 12 pre week 45

Rear calliper = 16" CII 41 pre week 45

Rear disc = 272 x 10 week 45 to date

Rear calliper = 15" Bosch BIRIII week 45 to date

170 CR TDI 4x4

Front = 312 x 25

Front calliper = 16" FN3

Rear = 272 x 10

Rear calliper = 15" Bosch BIRIII

Note: Seen one Elegance 170 (WK47/09 build) with the pre WK45 rear break system :wonder:

Rear disc = 286 x 12

Rear calliper = 16" CII 41

1,8 TSI 4x4

Front = 288 x 25

Front calliper = 15" FN3

Rear = 286 x 12 to pre week 45

Rear calliper = 16" CII 41 pre week 45

Rear = 272 x 10 week 45 to date

Rear calliper = 15" Bosch BIRIII week 45 to date

Disc information kindly provided by JonA

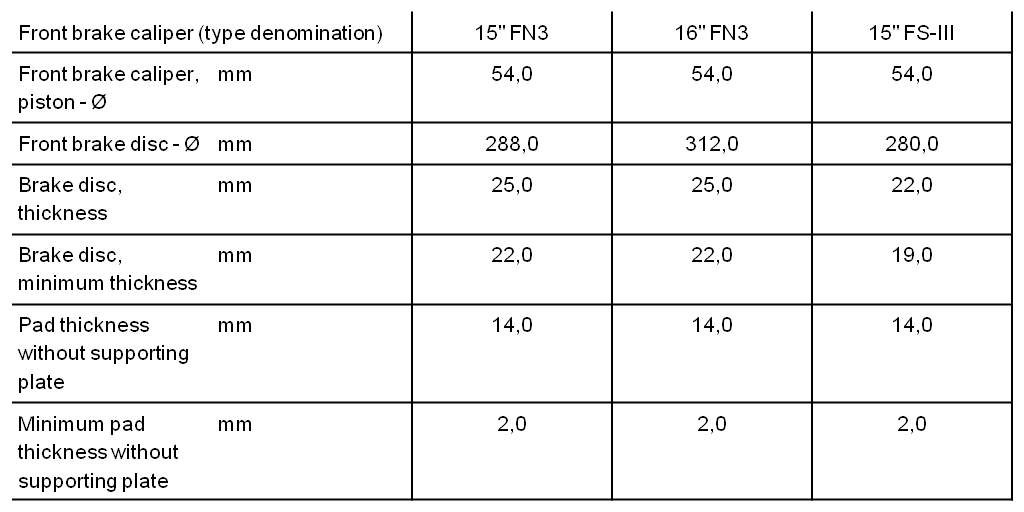

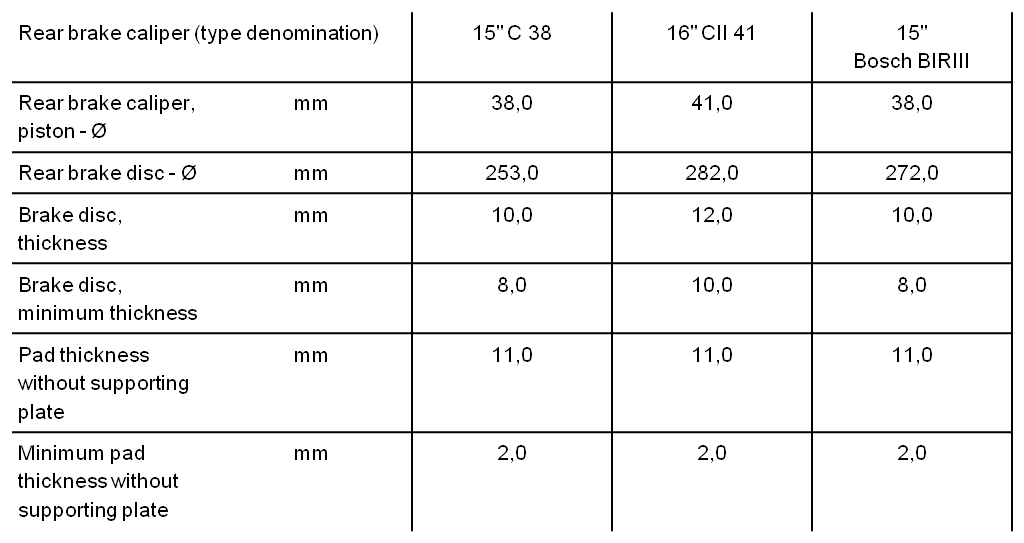

Further Technical information see photo's;

TP

[bahnstormer vrs]

Thanks for this; just what I wanted to know. I'm puzzled though as I had searched the Yeti forum on '312' and nothing came up; hmm.

Nevertheless, good to know the CR170 has 312s, probably due to the weight; but surprised that the 1.8TSI doesn't have them as it ought to for the performance available.

[bahnstormer vrs]

Have you got any info on whether there are any changes for MY 2011, particularly the brake spec on the 140 CR 4x4 with DSG?

[rockhopper]

Elsie has approx. 294mm dia front discs. (CR140DSG)

Mike

Edited 7 January, 2011 by rockhopper

[bahnstormer vrs]

Elsie has approx. 294mm dia front discs. (CR140DSG)

Mike

Presuming you measured them whilst on Elsie, 294mm is pretty close to the OE spec 288mm as in posts above and as stated on my dealer's EKTA. I'd be surprised if a new size is being used.

Knowing that the CR170s are using 312mm front discs I'm having Kevin's converted to these.

Edited 7 January, 2011 by bahnstormer vrs

[Shahoff]

Do anybody know is the HUBs are the same or different between 280mil disk brakes and 288/312 ? If yes , where I can get part numbers?

[The Plumber]

Do anybody know is the HUBs are the same or different between 280mil disk brakes and 288/312 ? If yes , where I can get part numbers?

For parts lists try the Russian vagcats site; they publish the Skoda parts 'book';

http://vagcats.info/base/sk/3

TP

[RobinFalkirk]

Can anyone tell me the correct bit spec for removing Yeti 4x4 rear brake caliper carrier. I am replacing corroded discs and pads. Looks like bolt heads are 12 point 3 square M10. Is this correct? Would a hex bit do the job?

[RobinFalkirk]

Bit required is 14mm Triple Square code XZN. Beware spline bits from Halfords. They are different, probably double Hex.

[175GDY]

Partnumbers may also be found here:

http://www.partsbase.org/
