Useful Part numbers - 5J


fabdavrav

Recommended Posts

This should be list of the main replacement/upgrade part numbers that people usually ask for. B)

Please double check with your dealer the correct part numbers! Although I am 98% that these are correct, VAG can change them and the info that I have could be wrong!

KDA 770 001 = Set of 4 door sill kick plates, plain black plastic.

KDA 770 003 = Set of 4 door sill kick plates, black plastic with stainless steel inserts.

FCA 000 001 = Set of 3 stainless steel pedal covers (fitted as standard to Scout).

FFA 700 010 = Leather handbrake handle

AZO 700 001 = Facia adaptor with cubby hole to fit a single DIN aftermarket stereo into the OEM double DIN slot

KCD 779 001 = Set of 2 wind & Rain deflectors for front windows.

KCD 779 002 = Set of 2 wind & Rain deflectors for rear windows.

KEA 700 001 = Set of 2 front mudflaps.

KEA 770 002 = Set of 2 rear mudflaps.

KEA 770 003 = Set of 2 rear mudflaps for Scout.

ZGB 5J0 072 100 = Headlight protectors pre face lift only.

DCC 770 101A = Set of 4 rubber floor mats

DAC 770 102 = Set of 4 textile floor mats

DAC 770 103A = Set of 4 deep textile floor mats

GCA 700 001 = Under seat fire extinguisher holder.

GCA 000 001 = Fire extinguisher.

K1Z 086 856 5FY20 = sunglasses holder in roof???.

1Z0 868 565 EY20 = sunglasses holder in roof???.

6Y0 881 577 A47H = Left side under seat storage box fits all old & new Fabias & Roomster.

6Y0 881 578 A47H = Right side under seat storage box fits all old & new Fabias & Roomster.

8P0 802 847 = Plastic Jack Pad Plugs (from Audi S3) projecting 15mm from buffer, 4 required.

8N0 803 855 = Plastic jack pad plugs (from Audi TT) flush fit to buffer, 4 required

8N0 804 583 = Rubber Buffers - (from Audi), 4 required

5J0 071 606 = Front bumper spoiler

FAA 770 002 = Rear bumper diffuser

KDA 609 002A = Chrome effect boot strip

KGA 770 001 = Protective side strips

FDC 779 001 = Chrome effect exhaust trim for 1.2HTP, 1.4 16v, 1.6 16v, 1.2TSI

FDC 779 002 = Chrome effect exhaust trim for 1.4 TDI, 1.9 TDI, 1.2TDI CR, 1.6TDI CR

I am ADDing to this at the momemet as I have a big list of stuff!.. B)

  • Like 2
  • Love it! 2
Link to comment
Share on other sites

  • 1 year later...

As the title suggests a thread for owners to list part numbers that they have bought/learnt/discovered for the benefit of other members/owners. Pictures too if you can manage them.

My contribution today:

Projector headlights rubber cover for rear - 5J0 941 607

Rubber covers for rear of sidelights - 5J0 941 607A

Link to comment
Share on other sites

Rear Bumper : 5J7 807 421 D

Rear Bumper Reinforcement (Traverse Bar. The metal bar that fits on chassis and bumper covers it) - 5J7 807 305 C

Rear Bumper Holder Center Right - 5J7 807 394

Rear Bumper Holder Center Left - 5J7 807 863

Side Rear Bumper Holder Right - 5J7 807 394

Side Rear Bumper Holder Left - 5J7 807 393

Link to comment
Share on other sites

  • 4 months later...

Engine's valve cover : 03F 103 475 K

Ignition Coil Pack : 032 905 106 B

Oil Filter : 03C 115 561 B (1.2, 1.4 Tsi CBZB, CAXA, CAXC, CAVE, CAVD) Disclaimer : Engine codes as referred on other sites.

Air Conditioner Condenser : 6R0 820 411

Air Filter's Housing : 6R0 129 607 (code 6R0 129 620 A is also stamped on my housing)

Please keep in mind that all part numbers above are taken from my own car.

Link to comment
Share on other sites

  • 2 years later...
  • 4 months later...
  • 7 months later...
  • 4 weeks later...
  • 1 year later...
  • 1 year later...

These are for suspension for 2008 1.9 Scout.

Standard. Front- 6Q 041 303 1BL

                   Rear- 1J9 512 011



KW ST Coilover. Ref, 132 82 020

                             Front- 800 1011

                             Rear-  800 1104



Bilstein B6 sport. These will raise the car, just a bit compared to standard.

                              Front- 35 052173

                              Rear- 24 064095

Edited by NZ100
  • Thanks 1
Link to comment
Share on other sites

  • 3 years later...
44 minutes ago, EmmaWil said:

Does anyone have a part number for the cover under the glove box on the passenger side? Just noticed mine is missing!

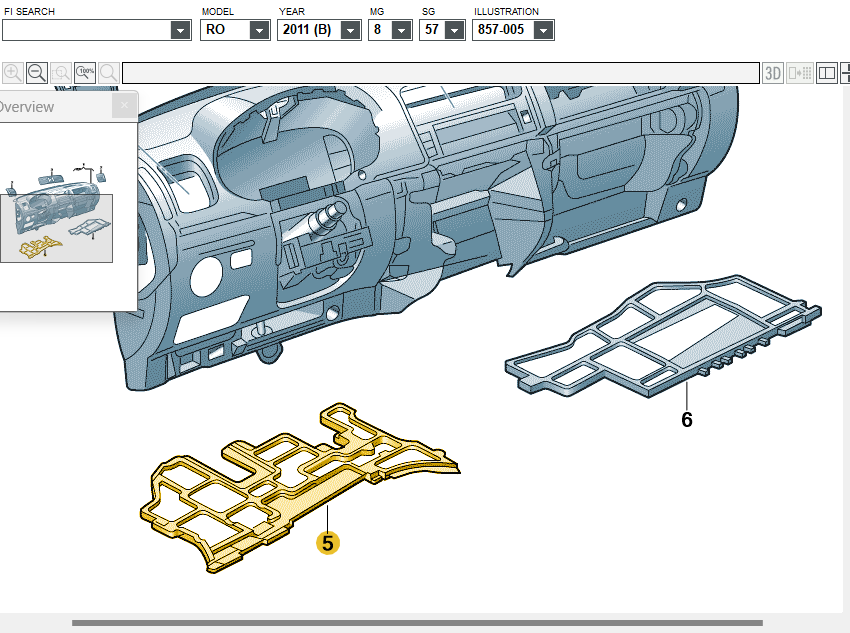

See if you can look at these two diagrams and let me know the part number you see.



These go at the very bottom of the dash

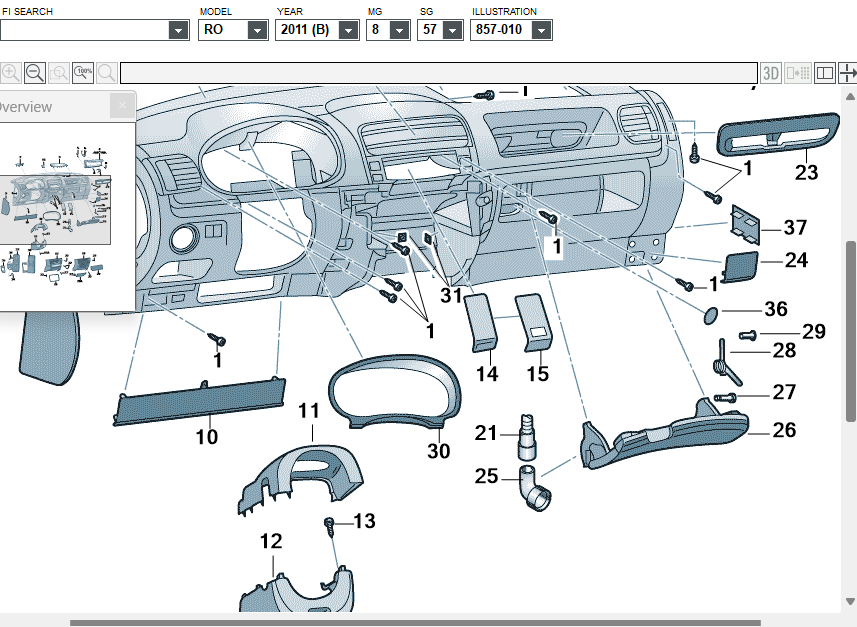

or you have these to look at as well


  • Like 1
Link to comment
Share on other sites

19 minutes ago, EmmaWil said:

Hi Varoom!

Thank you for this!

It's the "carpeted" bit that goes under the glove box, covers the cabin filter. (I'm crap at explaining it!)

Part 5, of first picture.

Just to help make sure, if your 10th character of your VIN a "B"

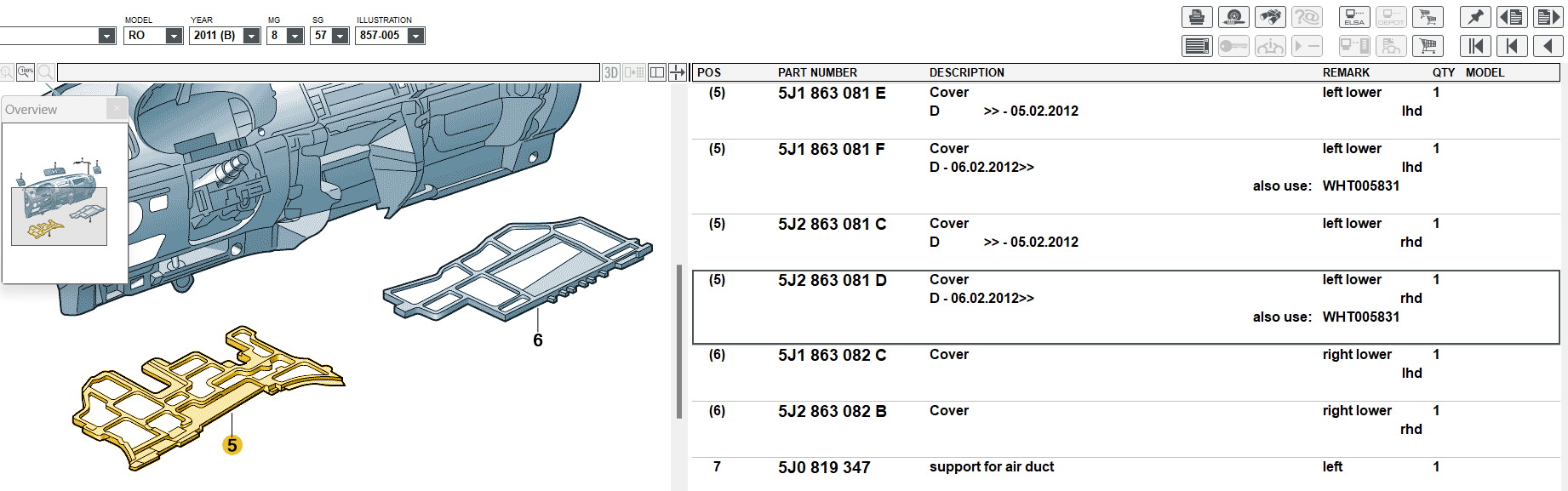

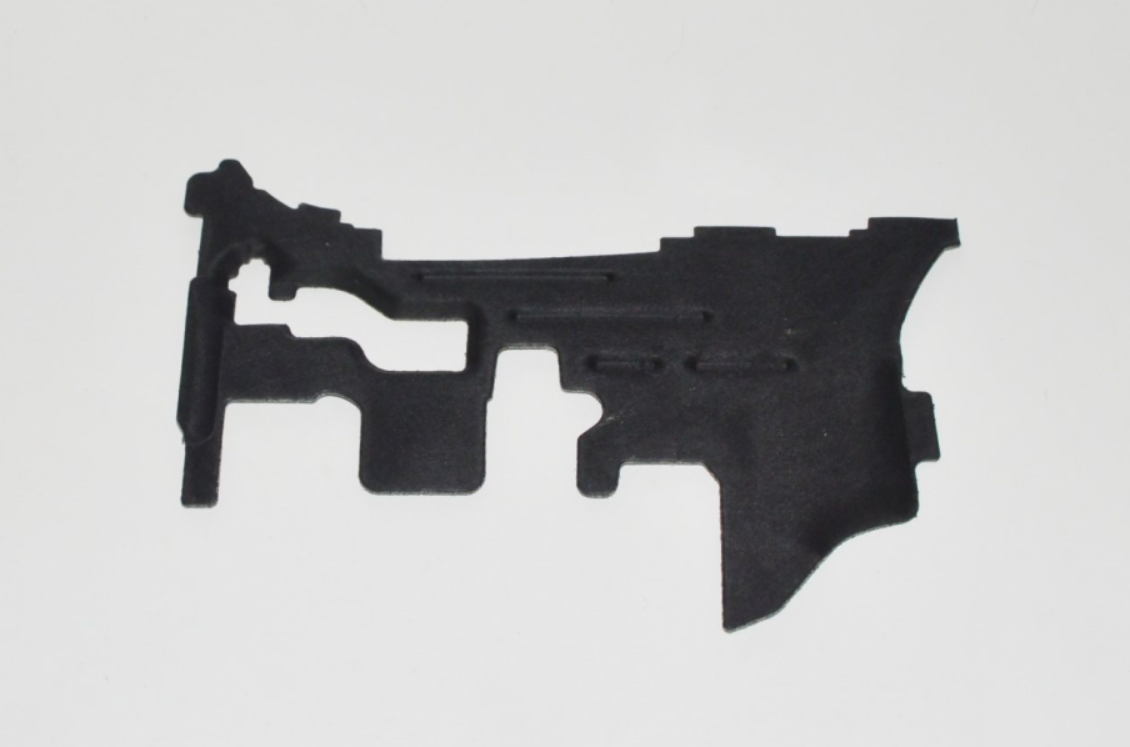

This should be the part number 5J2 863 081D  RHD Left Lower Cover

1690835331_5J2863081DRHDLeftLowerCover.thumb.png.7983bb75e74446ff5ce83827b6c5896f.png




Edited by varooom
Additional Information
  • Love it! 1
Link to comment
Share on other sites

6 minutes ago, EmmaWil said:

The L shaped bit? No I've got that. It's the panel he pulls off first

Gotcha, well as far as I can see, the solid fabric cover has been dropped for the above shaped ones.  I looked and one had been replaced 5x.

This might be a look around on eBay (I tried to find with PN, but no dice) and Roomster parts.  The other is to visit scrap yard if they have same year as you.

  • Thanks 1
Link to comment
Share on other sites

  • 2 months later...

Anyone found a suitable compatible parking sensor for the Skoda Roomster? I've got two faulty sensors and just spoke to dealer (bristol, UK) who says the part is listed as obsolete with no compatible replacement available (from VW in netherlands)

Edited by Tyeth
improve grammar
Link to comment
Share on other sites
