Hello fellow Skoda owners does anyone have any clue on the fabia 1.2 htp 2008 engine Ignition coil wire harnesses 1. 2. 3. 4. What contains



POSITIVE AND NEGATIVE



thanks

3 cyl or 4 cyl engine ?







If its a 3 cyl then it differs from each cylinder....depending on engine.....

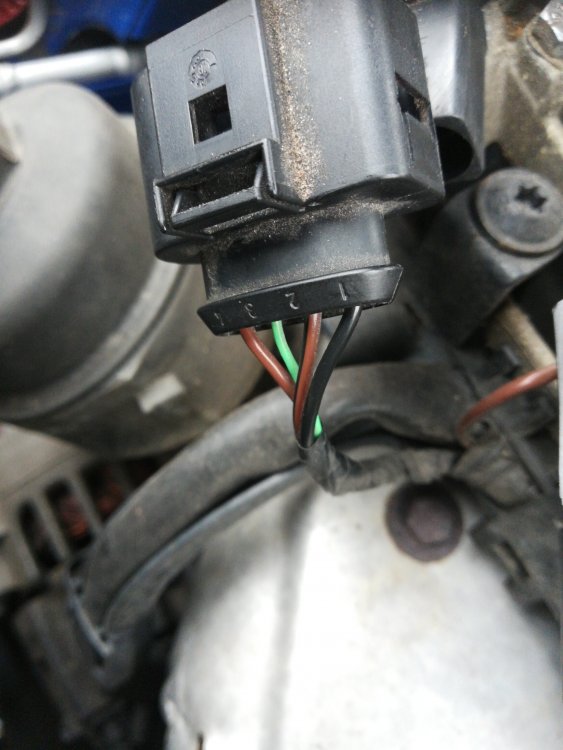

PS found it...To me (you need to confirm) this is coil pack 1 Plug ??? if so.....then



PIN 1--- Black---- Positive connection 87a ignition live

PIN 2 ---Brown / black trace --- Earth

PIN 3 --- Green  ---- Engine ECU connection

PIN 4 --- Brown --- Earth





Edited 27 January, 20197 yr by UrbanPanzer

Black will be +12V with ignition on, I think; brown and brown/black are earths; green is from engine ECU to control coil.

Mines a 3 cyl that coil was coil 3
