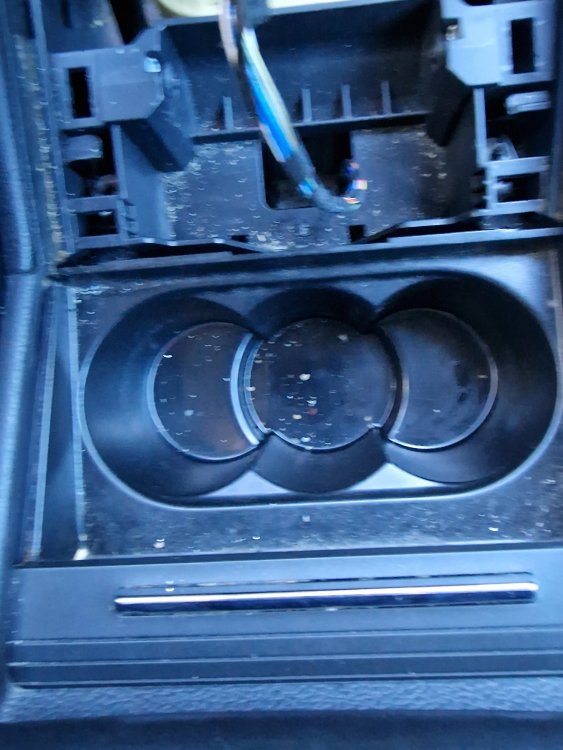

Hi guys i have a 2016 skoda superb with a annoying cup holder The cup holder is loose for some reason and the plastic is creaking when i go around turns

Did not do that I’m having problems with headlights to dull

OBDeleven vehicle history log Date: 2021-08-03 13:11:12 VIN: TMBAH7NP2H7009796 Car: nvm20 Year: 2017 Body type: Saloon Engine: CRLB kW ( hp) l Mileage: 372899 km --------------------------------------------------------------- 09 Central Electrics System description: BCM MQBAB M+ Software number: 5Q0937084CF Software version: 0236 Hardware number: 5Q0937084CF Hardware version: H34 Serial number: 02001614101021 Faults: B11FF01 - Footwell lighting Electrical error static I put everything back and do I have the wrong bulbs it’s set to 20-4/5w

And how do I know if my car came with features that the previous owner disabled bought second hand an as far as I know he took out the centre speaker so I think he did more

Is my coding and adaptions for things like engine kessy central electronics and things like that correct

I’ll try this tomorrow and let you know

Don’t have the camera and not the sla headlights but have bi-xenons

And do you know central electric adaptions

The weird thing is the a5 is that the camera and I don’t have that in the control units is that something I should have

Rlhs:00084D Leimo rechts:b20 00 00 same for leimo links

OBDeleven vehicle history log Date: 2021-08-01 19:32:18 VIN: TMBAH7NP2H7009796 Car: nvm20 Year: 2017 Body type: Saloon Engine: CRLB kW ( hp) l Mileage: 372624 km --------------------------------------------------------------- Backup 01 Engine System description: R4 2.0l TDI Software number: 04L906026ET Software version: 1990 Hardware number: 04L907309R Hardware version: H23 Backup name: Engine Long coding 011D0012032405087000 Adaptations Injector 1 correction value --- 8IZH817 Injector 3 correction value --- 888GAEA Injector 4 correction value --- BAIAFEB Injector 2 correction value --- 8RZEBI7 Adaptation of ash mass --- 0.00 g Service regeneration of particulate filter while driving --- 0 Initialization of NOx catalyst accumulator --- 0 s Blocking of particle filter regeneration Blocking of particle filter regeneration not active Individually adjustable maximum speed limit --- 300.0 km/h Idle RPM correction --- 0.0 1/min Activation of start-stop function --- active Bleeding of coolant circuit --- not active Production mode --- 000000 Deactivate production mode --- 000000 Protective function --- Enabled Roller test bench mode, functional --- Not activated Engine run-in oil pressure Engine run-in oil pressure not active Advanced identification Vehicle history data --- eAiAfFaBnBmHcAiLnNhEcHnFaBkBcDnJpJhDkEbDnFoBeDnNgHjFbBgIjAaGdBpImAnBjOpGfPdBoCfFdEpPpJnEaOlFnFgNfLmDcBjHhPhIdPmLeKmAjAnEgNkDlMmBeNoDlBlMcPeGcKpNlNcDlAbBiDmAcJcGfNhLpNcFiDaKgHkLoHmJeEpDeCeMfGnIcGbGbHeGkPbBkNcAbKeDjLiLlNoPlEeGfGoJkNcKhCkFmFdGbIhCdChCgNjOlEoNaBcC Number of programming attempts Bootloader 2 Application 2 Application 2 2 Application 3 2 Data record 2 Maximum number of possible update programming Bootloader 100 Application 100 Application 2 100 Application 3 100 Data record 100 ISO TP block size in bootloader --- 0 Coding length --- 10 Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 60933 Importer number 3 Dealership number 12289 Programming status Correct result Year 0 Month 0 Day 0 Device number 60933 Importer number 3 Dealership number 12289 Programming status Correct result Year 0 Month 0 Day 0 Device number 60933 Importer number 3 Dealership number 12289 Programming status Correct result Year 0 Month 0 Day 0 Device number 60933 Importer number 3 Dealership number 12289 Programming status Correct result Year 0 Month 0 Day 0 Device number 60933 Importer number 3 Dealership number 12289 Programming status Correct result FAZIT-identification Manufacture location index RB8-658 Day of manufacture 27.05.16 Manufacturer- test stand number 1409 Running manufacturer number 0121 Manufacturer modification status Control module family B Decoration variant 5 Construction version H23 Manufacture version --- Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 04L906026ET SoftwareVersion --- 1990 Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Hardware part number --- 04L907309R System description --- R4 2.0l TDI ASAM/ODX file identification --- EV ECM20TDI01104L906026ET ASAM/ODX file version --- 002002 HardwareVersion --- H23 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 System abbreviation --- J623 Versions of software module Bootloader 0002 Application 0003 Application 2 0003 Application 3 0003 Data record 0006 Engine code --- CRLB Programmability status Programmability programmable Program consistency Program present Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 02 Transmission System description: DQ250-6F MQB Software number: 0D9300041H Software version: 4905 Hardware number: 02E927770AQ Hardware version: H53 Serial number: TFK01604240015 Backup name: Transmission Long coding 0014 Adaptations Roller test bench mode, functional --- Not activated Advanced identification Number of programming attempts Bootloader 1 Application 2 Data record 3 Maximum number of possible update programming Bootloader 1 Application 1000 Data record 1000 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 16 Month 5 Day 31 Device number 10 Importer number 2 Dealership number 4864 Programming status Correct result Year 16 Month 6 Day 7 Device number 20 Importer number 770 Dealership number 73216 Programming status Correct result FAZIT-identification Manufacture location index TFK-053 Day of manufacture 24.04.16 Manufacturer- test stand number 80A5 Running manufacturer number 0015 Manufacturer modification status Control module family 0 Decoration variant 6 Construction version 253 Manufacture version 104 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 0D9300041H SoftwareVersion --- 4905 Hardware part number --- 02E927770AQ System description --- DQ250-6F MQB ASAM/ODX file identification --- EV TCMDQ250021 ASAM/ODX file version --- 001001 HardwareVersion --- H53 Coding workshop code Device number 31 Importer number 770 Dealership number 33281 System abbreviation --- J743 Versions of software module Bootloader 0008 Application 0049 Data record 4905 Programmability status Programmability programmable Program consistency Program present Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Serial number --- TFK01604240015 Vehicle equipment code --- FFFFFFFFFFFFFFFFFFFFFFFF ISO TP block size in bootloader --- F Adaptation workshop code Device number 20 Importer number 770 Dealership number 73216 Number of possible access authorizations Number Of Logins 1 Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 03 Brakes System description: ESC Software number: 5Q0614517BJ Software version: 0636 Hardware number: 5Q0614517AG Hardware version: H62 Serial number: 61546000001673 Backup name: Brakes Long coding 1D076A9C34200B75477E060941C949B8562CD0E2608292751061F078C20202 Adaptations Tire pressure monitoring display Warning thresholds, tire pressure monitoring system 2 Roller test bench mode --- Manual activation, possible Running manufacturer number Status activated Engine drag torque control --- activated Activating and deactivating all development messages --- 0 OFFROAD Offroad portion electronic differential lock 0 Brake system vacuum pump Offset 5 Hydraulic brake booster Offset 8 Brake prefill Brake prefill activated Braking torque boost for distance regulation Braking torque boost for distance regulation 3 Brake booster Brake booster 4 Hydraulic brake assistant Hydraulic brake assistant normal Electronic Stability Program Speed-dependent activation Not activated Brake disk drying Brake disk drying medium Hill-start assistant Hill-start assistant normal Straight ahead brake stabilization Straight ahead brake stabilization activated Brake pedal evaluation Brake pedal evaluation activated Seat belt buckle scan Seat belt buckle scan activated Dynamic starting assist Dynamic starting assist normal Driver door status Driver door status activated Automatic application during engine stalling Automatic application during engine stalling activated Starting vibration reduction Starting vibration reduction Strong Torque limitation Deactivated AUTO HOLD functionality AUTO HOLD functionality Not activated AUTO HOLD increase threshold, reduced tensioning force AUTO HOLD increase threshold, reduced tensioning force 0 % AUTO HOLD increase threshold, full tensioning force AUTO HOLD increase threshold, full tensioning force 10 % Developer_Function_108 Fall-back level 0 Developer_Function_1 Developer Function 1 0 Developer_Function_2 Developer Function 2 activated Monitoring of functional lights Indicator light in the button for electromech. parking brake 7 Indicator light in AUTO HOLD button 7 Vehicle and trailer stabilization Trailer information evaluation Not activated Roller test bench mode, functional --- Not activated AUTO HOLD slippage recognition AUTO HOLD slippage recognition activated Overboost in brake system Overboost in brake system activated Electromechanical parking brake Driver presence recognition via brake pedal Not activated AUTO HOLD functional status Personalized settings Last setting Tire pressure monitoring display, tire selection Tire pressure monitoring display, tire selection 1 Developer_Function_3 Developer Function 3 Not activated ABS in lower speed range ABS in lower speed range activated Developer_Function_4 Developer Function 4 5 Thresholds for brake performance Thresholds for brake performance activated XCP calibration protocol XCP calibration protocol Not activated Monitoring infotainment control unit --- Not activated Developer_Function_100 Monitoring VIN activated Developer_Function_101 Anti-slip regulation (ASR) activated Developer_Function_102 ASR and ESP function deactivation activated Developer_Function_104 Delay interface for adaptive cruise control activated Plausibility check Reverse gear activated Neutral gear sensor activated Clutch movement activated Developer_Function_110 AutoHold minimum pressure threshold 4 Expanded electronic differential lock Electronic Differential Lock Standard Production mode --- not active Electromechanical parking brake, emergency braking Electromechanical parking brake, emergency braking activated Developer_Function_5 Developer Function 5 Not activated dimming_characteristic_1 X1 0 Y1 6 X2 10 Y2 6 X3 50 Y3 8 X4 100 Y4 12 X5 220 Y5 80 X6 253 Y6 100 dimming_characteristic_2 X1 0 Y1 6 X2 10 Y2 6 X3 50 Y3 8 X4 100 Y4 12 X5 220 Y5 80 X6 253 Y6 100 Dimming dimming activated Deactivate production mode --- Deactivating Developer_Function_121 Tyre pressure control monitoring tour mode Not activated Electromechanical parking brake, delay level Electromechanical parking brake, delay level 6 Developer_Function_105 Delay interface for electro-mechanical parking brake activated Rough road optimization --- activated Brake pre-filling --- not completed successfully Advanced identification Number of programming attempts Bootloader 0 Application 0 Maximum number of possible update programming Bootloader 100 Application 1000 Identification of connected components ID number 3 subsystem name Brakes 1 Bus message/node address 13 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Subassembly and series number --- 1673 Date of last coding Year 0 Month 0 Day 0 FAZIT-identification Manufacture location index TT1-0CB Day of manufacture 02.06.16 Manufacturer- test stand number 0302 Running manufacturer number 0689 Manufacturer's test stand number --- 0302 Manufacturer code --- TT1 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q0614517BJ SoftwareVersion --- 0636 Supplier identification --- 436F6E74696E656E74616C2054657665732C204775657269636B657374722E20372C203630343838204672616E6B66757274 Date of manufacture Year 16 Month 6 Day 2 Serial number --- 61546000001673 Hardware part number --- 5Q0614517AG System description --- ESC Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 0 Month 0 Day 0 ASAM/ODX file identification --- EV Brake1UDSContiMK100IPB Parameter set part number --- ----------- Parameter set version --- ---- ASAM/ODX file version --- 035019 HardwareVersion --- H62 Vehicle equipment code --- FFFFFFFFFFFFFFFFFFFFFFFF Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 System abbreviation --- J104 Versions of software module Bootloader 0005 Application 0636 Number of possible access authorizations --- 1 Programmability status Programmability programmable Program consistency Program present Coding --- 1D076A9C34200B75477E060941C949B8562CD0E2608292751061F078C20202 ISO TP block size in bootloader --- F Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 08 Air Conditioning System description: AC Automat Software number: 3V0907044BC Software version: 4001 Hardware number: 3V0907044BC Hardware version: H34 Serial number: 00000B00119216 Backup name: Air Conditioning Long coding 11010104002110011005100000101102 Adaptations Runtime for compressor run-in basic setting --- 60 s Duration of compressor run in --- 60 s Retention of driver's seat heater level --- active for 10 minutes Retention of frt.pass. seat heater level --- not active Deactivation of start-stop function --- not active Stop release for start-stop function --- According to function requirements Window condensation exterior reduction at high humidity --- Matching coding Blower logic for manual adjustment --- Matching coding Ignore compressor switch-off by Engine Control Module --- Do not ignore Blower voltage for voice operation --- Not activated Post-heating of parking heater --- 0 min Retrofitting of parking heater without CAN --- not installed Air quality sensor sensitivity --- Maximum Reset all counters --- Not activated Production mode --- Deactivating Deactivate production mode --- Deactivating dimming_characteristic_1 X1 0 Y1 0 % X2 6 Y2 6 % X3 40 Y3 40 % X4 60 Y4 60 % X5 80 Y5 80 % X6 100 Y6 100 % dimming_characteristic_2 X1 0 Y1 2 % X2 10 Y2 2 % X3 50 Y3 10 % X4 100 Y4 21 % X5 220 Y5 85 % X6 253 Y6 100 % dimming_characteristic_3 X1 0 Y1 2 % X2 10 Y2 2 % X3 50 Y3 5 % X4 100 Y4 10 % X5 220 Y5 85 % X6 253 Y6 100 % dimming_characteristic_4 X1 0 Y1 2 % X2 10 Y2 2 % X3 50 Y3 5 % X4 100 Y4 10 % X5 220 Y5 85 % X6 253 Y6 100 % dimming_characteristic_5 X1 0 Y1 2 % X2 10 Y2 2 % X3 50 Y3 5 % X4 100 Y4 10 % X5 220 Y5 85 % X6 253 Y6 100 % Automatic Activation of front windshield heater at MAX-Defrost --- not active Control module switch-off, switch-off time Control module 20 min Data bus 30 min Climate modes --- Matching coding Remote start function, activation of seat ventilation --- activated Rem. start funct., activat.temper. of seat heating --- 15 °C Rem. start funct., activat.temper. of seat ventilation --- 30 °C Remote start function, activation stage of seat heating --- --- Remote start function, activation stage of seat ventilation --- --- Rem.start funct.,activ.temper. of windshield defrost.heat. --- 4 Remote start function, interior climate control status --- Remote start function with last set value active Target temperature of A/C - heater function via remote control --- 22.0 °C Filtering of interior air, store Filtering of interior air, store Service life-dependent store Advanced identification Number of programming attempts Bootloader 1 Application 0 Data record 0 ISO TP block size in bootloader --- F Maximum number of possible update programming Bootloader 1 Application 0 Data record 0 Known subsystems Subsystem designation Reserved segment number 1 subsystem present No subsystem coded No reserved (VW 80127 3.0) 1 Subsystem number 0 Subsystem designation Rear Climatronic Operating And Display Unit segment number 1 subsystem present Yes subsystem coded Yes reserved (VW 80127 3.0) 1 Subsystem number 101 Table of Class 0 subsystems LIN Product - ID 9600010101 LIN Segment Number LIN Segment 1 LIN node- address 1A LIN Product - ID 2500002144 LIN Segment Number LIN Segment 1 LIN node- address 60 Identification of bus master/sub bus master ECU ID 8 ECU Name Air Conditioning LOGICAL-LINK SHORT-NAME Air Conditioning Identification of connected components ID number 8 subsystem name Air Conditioning Bus message/node address 46 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Subassembly and series number --- 0295 Date of last coding Year 0 Month 0 Day 0 FAZIT-identification Manufacture location index PR6-044 Day of manufacture 07.05.16 Manufacturer- test stand number 0003 Running manufacturer number 0295 Manufacturer's test stand number --- 0003 Manufacturer modification status Control module family 2 Decoration variant 0 Construction version K05 Manufacture version 000 Manufacturer code --- PR6 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 3V0907044BC SoftwareVersion --- 4001 Supplier identification --- Preh GmbH, Schweinfurter Str. 5 - 9, D-97616 Bad Neustadt a. d. Saale Date of manufacture Year 16 Month 5 Day 7 Serial number --- 00000B00119216 Hardware part number --- 3V0907044BC Hardware part number for suppliers --- 80626-371 Hardware version for suppliers --- 0000 Software version of suppliers --- 05553-274 Software version for suppliers --- 0014 System description --- AC Automat Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 7 Day 1 ASAM/ODX file identification --- EV ACClimaPrehVW37X Parameter set part number --- ----------- Parameter set version --- 0000 ASAM/ODX file version --- 002014 HardwareVersion --- H34 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 System abbreviation --- E87 Versions of software module Bootloader X408 Application 4001 Data record 4001 Number of possible access authorizations Number Of Logins 1 AUTOSAR Standard application software identification Standard software module BAP Software manufacturer ID --- Primary version number 1 Secondary version number 6 Revision number 8 Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 16 Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 4 Secondary version number 1 Revision number 21 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 45 Revision number 0 Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 6 Standard software module OSEK - operating system Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 4 Secondary version number 5 Revision number 0 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 3 Revision number 0 Standard software module LIN 2.0 Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 2 Secondary version number 0 Revision number 11 Standard software module Standard diagnostic services for UDS Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 2 Revision number 8 Standard software module Flash EEPROM emulation Software manufacturer ID --- Primary version number 1 Secondary version number 1 Revision number 2 Standard software module Bootloader/flasher (TP2.0/ISO TP) Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 4 Revision number 5 --- Unknown Software manufacturer ID --- Primary version number 0 Secondary version number 0 Revision number 0 Standard software module SPI driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 3 Standard software module Flash driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 2 Standard software module GPT driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 2 Standard software module MCU driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 3 Standard software module DIO driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 2 Standard software module PWM driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 2 Standard software module ICU driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 2 Standard software module ADC driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 3 Standard software module Port driver Software manufacturer ID Fujitsu Ltd. Primary version number 2 Secondary version number 3 Revision number 3 Programmability status Programmability programmable Program consistency Program present Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 09 Central Electrics System description: BCM MQBAB M+ Software number: 5Q0937084CF Software version: 0236 Hardware number: 5Q0937084CF Hardware version: H34 Serial number: 02001614101021 Backup name: Central Electrics Long coding 000000000000000000000000000000000000000000000000000000000000 Adaptations Leuchte 0 BLK VL B36 Lasttyp 0 33 - LED-Modul Blinkleuchten Lampendefektbit Position 0 34 Fehlerort mittleres Byte DTC-DFCC 0 14 Lichtfunktion A 0 Blinken links Hellphase Lichtfunktion B 0 nicht aktiv Dimmwert AB 0 127 Lichtansteuerung HD AB 0 always Lichtfunktion C 0 nicht aktiv Lichtfunktion D 0 nicht aktiv Dimmwert CD 0 0 Dimming Direction CD 0 maximize Lichtfunktion E 0 nicht aktiv Lichtfunktion F 0 nicht aktiv Dimmwert EF 0 0 Dimming Direction EF 0 maximize Lichtfunktion H 0 nicht aktiv Dimmwert GH 0 0 Dimming Direction GH 0 maximize Lichtfunktion G 0 nicht aktiv Leuchte1BLK VRB20 Lasttyp 1 33 - LED-Modul Blinkleuchten Lampendefektbitposition 1 3E Fehlerort mittleres Byte DTC-DFCC 1 15 Lichtfunktion A 1 Blinken rechts Hellphase Lichtfunktion B 1 nicht aktiv Dimmwert AB 1 127 Lichtansteuerung HD AB 1 always Lichtfunktion C 1 nicht aktiv Lichtfunktion D 1 nicht aktiv Dimmwert CD 1 0 Dimming Direction CD 1 maximize Lichtfunktion E 1 nicht aktiv Lichtfunktion F 1 nicht aktiv Dimmwert EF 1 0 Dimming Direction EF 1 maximize Lichtfunktion G 1 nicht aktiv Lichtfunktion H 1 nicht aktiv Dimmwert GH 1 0 Dimming Direction GH 1 maximize Leuchte2SL VLB10 Lasttyp 2 4 - LED Tagfahrlichtmodul Signal Lampendefektbitposition 2 48 Fehlerort mittleres Byte DTC-DFCC 2 4A Lichtfunktion A 2 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion B 2 Parklicht links (beidseitiges Parklicht aktiviert li & re) Dimmwert AB 2 27 Lichtansteuerung HD AB 2 always Lichtfunktion C 2 Tagfahrlicht Lichtfunktion D 2 nicht aktiv Dimmwert CD 2 100 Dimming Direction CD 2 maximize Lichtfunktion E 2 Blinken links aktiv (beide Phasen) Lichtfunktion F 2 nicht aktiv Dimmwert EF 2 0 Dimming Direction EF 2 minimize Lichtfunktion G 2 nicht aktiv Lichtfunktion H 2 nicht aktiv Dimmwert GH 2 0 Dimming Direction GH 2 maximize Leuchte3SL VRB21 Lasttyp 3 4 - LED Tagfahrlichtmodul Signal Lampendefektbitposition 3 4C Fehlerort mittleres Byte DTC-DFCC 3 4C Lichtfunktion A 3 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion B 3 Parklicht rechts Dimmwert AB 3 27 Lichtansteuerung HD AB 3 always Lichtfunktion C 3 Tagfahrlicht Lichtfunktion D 3 nicht aktiv Dimmwert CD 3 100 Dimming Direction CD 3 maximize Lichtfunktion E 3 Blinken rechts aktiv (beide Phasen) Lichtfunktion F 3 nicht aktiv Dimmwert EF 3 0 Dimming Direction EF 3 minimize Lichtfunktion G 3 nicht aktiv Lichtfunktion H 3 nicht aktiv Dimmwert GH 3 0 Dimming Direction GH 3 maximize Leuchte4TFL LB4 Lasttyp 4 1 - LED Tagfahrlichtmodul Versorgung Lampendefektbitposition 4 48 Fehlerort mittleres Byte DTC-DFCC 4 49 Lichtfunktion A 4 Tagfahrlicht Lichtfunktion B 4 nicht aktiv Dimmwert AB 4 127 Lichtansteuerung HD AB 4 always Lichtfunktion C 4 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion D 4 Parklicht links (beidseitiges Parklicht aktiviert li & re) Dimmwert CD 4 127 Dimming Direction CD 4 maximize Lichtfunktion E 4 Blinken links aktiv (beide Phasen) Lichtfunktion F 4 nicht aktiv Dimmwert EF 4 0 Dimming Direction EF 4 minimize Lichtfunktion G 4 nicht aktiv Lichtfunktion H 4 nicht aktiv Dimmwert GH 4 0 Dimming Direction GH 4 maximize Leuchte5 TFL RB32 Lasttyp 5 1 - LED Tagfahrlichtmodul Versorgung Lampendefektbitposition 5 4C Fehlerort mittleres Byte DTC-DFCC 5 4B Lichtfunktion A 5 Tagfahrlicht Lichtfunktion B 5 nicht aktiv Dimmwert AB 5 127 Lichtansteuerung HD AB 5 always Lichtfunktion C 5 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion D 5 Parklicht rechts Dimmwert CD 5 127 Dimming Direction CD 5 maximize Lichtfunktion E 5 Blinken rechts aktiv (beide Phasen) Lichtfunktion F 5 nicht aktiv Dimmwert EF 5 0 Dimming Direction EF 5 minimize Lichtfunktion G 5 nicht aktiv Lichtfunktion H 5 nicht aktiv Dimmwert GH 5 0 Dimming Direction GH 5 maximize Leuchte6ABL LC5 Lasttyp 6 3 - Xenon Abblendlicht Lampendefektbitposition 6 36 Fehlerort mittleres Byte DTC-DFCC 6 1A Lichtfunktion A 6 Abblendlicht links Lichtfunktion B 6 Lichthupe generell Dimmwert AB 6 127 Lichtansteuerung HD AB 6 always Lichtfunktion C 6 nicht aktiv Lichtfunktion D 6 nicht aktiv Dimmwert CD 6 0 Dimming Direction CD 6 maximize Lichtfunktion E 6 nicht aktiv Lichtfunktion F 6 nicht aktiv Dimmwert EF 6 0 Dimming Direction EF 6 maximize Lichtfunktion G 6 nicht aktiv Lichtfunktion H 6 nicht aktiv Dimmwert GH 6 0 Dimming Direction GH 6 maximize Leuchte7ABL RB1 Lasttyp 7 3 - Xenon Abblendlicht Lampendefektbitposition 7 40 Fehlerort mittleres Byte DTC-DFCC 7 1B Lichtfunktion A 7 Abblendlicht rechts Lichtfunktion B 7 Lichthupe generell Dimmwert AB 7 127 Lichtansteuerung HD AB 7 always Lichtfunktion C 7 nicht aktiv Lichtfunktion D 7 nicht aktiv Dimmwert CD 7 0 Dimming Direction CD 7 maximize Lichtfunktion E 7 nicht aktiv Lichtfunktion F 7 nicht aktiv Dimmwert EF 7 0 Dimming Direction EF 7 maximize Lichtfunktion G 7 nicht aktiv Lichtfunktion H 7 nicht aktiv Dimmwert GH 7 0 Dimming Direction GH 7 maximize Leuchte8FL LB39 Lasttyp 8 not active Lampendefektbitposition 8 0 Fehlerort mittleres Byte DTC-DFCC 8 0 Lichtfunktion A 8 nicht aktiv Lichtfunktion B 8 nicht aktiv Dimmwert AB 8 0 Lichtansteuerung HD AB 8 always Lichtfunktion C 8 nicht aktiv Lichtfunktion D 8 nicht aktiv Dimmwert CD 8 0 Dimming Direction CD 8 maximize Lichtfunktion E 8 nicht aktiv Lichtfunktion F 8 nicht aktiv Dimmwert EF 8 0 Dimming Direction EF 8 maximize Lichtfunktion G 8 nicht aktiv Lichtfunktion H 8 nicht aktiv Dimmwert GH 8 0 Dimming Direction GH 8 maximize Leuchte9FL RB2 Lasttyp 9 not active Lampendefektbitposition 9 0 Fehlerort mittleres Byte DTC-DFCC 9 0 Lichtfunktion A 9 nicht aktiv Lichtfunktion B 9 nicht aktiv Dimmwert AB 9 0 Lichtansteuerung HD AB 9 always Lichtfunktion C 9 nicht aktiv Lichtfunktion D 9 nicht aktiv Dimmwert CD 9 0 Dimming Direction CD 9 maximize Lichtfunktion E 9 nicht aktiv Lichtfunktion F 9 nicht aktiv Dimmwert EF 9 0 Dimming Direction EF 9 maximize Lichtfunktion G 9 nicht aktiv Lichtfunktion H 9 nicht aktiv Dimmwert GH 9 0 Dimming Direction GH 9 maximize Leuchte10SHUTTER LB23 Lasttyp 10 2 - Shutter, Diagnosesensierung für 'LED low' Lampendefektbitposition 10 37 Fehlerort mittleres Byte DTC-DFCC 10 1E Lichtfunktion A 10 Fernlicht links Lichtfunktion B 10 Lichthupe generell Dimmwert AB 10 127 Lichtansteuerung HD AB 10 always Lichtfunktion C 10 nicht aktiv Lichtfunktion D 10 nicht aktiv Dimmwert CD 10 0 Dimming Direction CD 10 maximize Lichtfunktion E 10 nicht aktiv Lichtfunktion F 10 nicht aktiv Dimmwert EF 10 0 Dimming Direction EF 10 maximize Lichtfunktion G 10 nicht aktiv Lichtfunktion H 10 nicht aktiv Dimmwert GH 10 0 Dimming Direction GH 10 maximize Leuchte11SHUTTER RB22 Lasttyp 11 2 - Shutter, Diagnosesensierung für 'LED low' Lampendefektbitposition 11 41 Fehlerort mittleres Byte DTC-DFCC 11 1F Lichtfunktion A 11 Fernlicht rechts Lichtfunktion B 11 Lichthupe generell Dimmwert AB 11 127 Lichtansteuerung HD AB 11 always Lichtfunktion C 11 nicht aktiv Lichtfunktion D 11 nicht aktiv Dimmwert CD 11 0 Dimming Direction CD 11 maximize Lichtfunktion E 11 nicht aktiv Lichtfunktion F 11 nicht aktiv Dimmwert EF 11 0 Dimming Direction EF 11 maximize Lichtfunktion G 11 nicht aktiv Lichtfunktion H 11 nicht aktiv Dimmwert GH 11 0 Dimming Direction GH 11 maximize Leuchte12NL LB45 Lasttyp 12 10 - allgemeine Scheinwerfer Lampendefektbitposition 12 38 Fehlerort mittleres Byte DTC-DFCC 12 22 Lichtfunktion A 12 Nebellicht links Lichtfunktion B 12 Abbiegelicht links Dimmwert AB 12 100 Lichtansteuerung HD AB 12 always Lichtfunktion C 12 nicht aktiv Lichtfunktion D 12 nicht aktiv Dimmwert CD 12 0 Dimming Direction CD 12 maximize Lichtfunktion E 12 nicht aktiv Lichtfunktion F 12 nicht aktiv Dimmwert EF 12 0 Dimming Direction EF 12 maximize Lichtfunktion G 12 nicht aktiv Lichtfunktion H 12 nicht aktiv Dimmwert GH 12 0 Dimming Direction GH 12 maximize Leuchte13NL RB5 Lasttyp 13 10 - allgemeine Scheinwerfer Lampendefektbitposition 13 42 Fehlerort mittleres Byte DTC-DFCC 13 23 Lichtfunktion A 13 Nebellicht rechts Lichtfunktion B 13 Abbiegelicht rechts Dimmwert AB 13 100 Lichtansteuerung HD AB 13 always Lichtfunktion C 13 nicht aktiv Lichtfunktion D 13 nicht aktiv Dimmwert CD 13 0 Dimming Direction CD 13 maximize Lichtfunktion E 13 nicht aktiv Lichtfunktion F 13 nicht aktiv Dimmwert EF 13 0 Dimming Direction EF 13 maximize Lichtfunktion G 13 nicht aktiv Lichtfunktion H 13 nicht aktiv Dimmwert GH 13 0 Dimming Direction GH 13 maximize Leuchte 35 LED Warnblinktaster C48 Lasttyp 15 36 - LED Kleinleistung Lampendefektbitposition 15 0 Fehlerort mittleres Byte DTC-DFCC 15 0 Lichtfunktion A 15 nicht definiert 4C Lichtfunktion B 15 nicht aktiv Dimmwert AB 15 100 Lichtansteuerung HD AB 15 always Lichtfunktion C 15 nicht aktiv Lichtfunktion D 15 nicht aktiv Dimmwert CD 15 0 Dimming Direction CD 15 maximize Lichtfunktion E 15 nicht aktiv Lichtfunktion F 15 nicht aktiv Dimmwert EF 15 0 Dimming Direction EF 15 maximize Lichtfunktion G 15 nicht aktiv Lichtfunktion H 15 nicht aktiv Dimmwert GH 15 0 Dimming Direction GH 15 maximize Leuchte16BLK SLB35BLK SL KC9 Lasttyp 16 not active Lampendefektbitposition 16 0 Fehlerort mittleres Byte DTC-DFCC 16 0 Lichtfunktion A 16 nicht aktiv Lichtfunktion B 16 nicht aktiv Dimmwert AB 16 0 Lichtansteuerung HD AB 16 always Lichtfunktion C 16 nicht aktiv Lichtfunktion D 16 nicht aktiv Dimmwert CD 16 0 Dimming Direction CD 16 maximize Lichtfunktion E 16 nicht aktiv Lichtfunktion F 16 nicht aktiv Dimmwert EF 16 0 Dimming Direction EF 16 maximize Lichtfunktion G 16 nicht aktiv Lichtfunktion H 16 nicht aktiv Dimmwert GH 16 0 Dimming Direction GH 16 maximize Leuchte17TFL R BLK SRB3TFL R BLK SR KC3 Lasttyp 17 not active Lampendefektbitposition 17 0 Fehlerort mittleres Byte DTC-DFCC 17 0 Lichtfunktion A 17 nicht aktiv Lichtfunktion B 17 nicht aktiv Dimmwert AB 17 0 Lichtansteuerung HD AB 17 always Lichtfunktion C 17 nicht aktiv Lichtfunktion D 17 nicht aktiv Dimmwert CD 17 0 Dimming Direction CD 17 maximize Lichtfunktion E 17 nicht aktiv Lichtfunktion F 17 nicht aktiv Dimmwert EF 17 0 Dimming Direction EF 17 maximize Lichtfunktion G 17 nicht aktiv Lichtfunktion H 17 nicht aktiv Dimmwert GH 17 0 Dimming Direction GH 17 maximize Leuchte18BLK HLA60 Lasttyp 18 12 - Blinkleuchten Lampendefektbitposition 18 8 Fehlerort mittleres Byte DTC-DFCC 18 16 Lichtfunktion A 18 Blinken links Hellphase Lichtfunktion B 18 nicht aktiv Dimmwert AB 18 100 Lichtansteuerung HD AB 18 always Lichtfunktion C 18 nicht aktiv Lichtfunktion D 18 nicht aktiv Dimmwert CD 18 0 Dimming Direction CD 18 maximize Lichtfunktion E 18 nicht aktiv Lichtfunktion F 18 nicht aktiv Dimmwert EF 18 0 Dimming Direction EF 18 maximize Lichtfunktion G 18 nicht aktiv Lichtfunktion H 18 nicht aktiv Dimmwert GH 18 0 Dimming Direction GH 18 maximize Leuchte19BLK HRC31 Lasttyp 19 12 - Blinkleuchten Lampendefektbitposition 19 18 Fehlerort mittleres Byte DTC-DFCC 19 18 Lichtfunktion A 19 Blinken rechts Hellphase Lichtfunktion B 19 nicht aktiv Dimmwert AB 19 100 Lichtansteuerung HD AB 19 always Lichtfunktion C 19 nicht aktiv Lichtfunktion D 19 nicht aktiv Dimmwert CD 19 0 Dimming Direction CD 19 maximize Lichtfunktion E 19 nicht aktiv Lichtfunktion F 19 nicht aktiv Dimmwert EF 19 0 Dimming Direction EF 19 maximize Lichtfunktion G 19 nicht aktiv Lichtfunktion H 19 nicht aktiv Dimmwert GH 19 0 Dimming Direction GH 19 maximize Leuchte20BR LA71 Lasttyp 20 34 - LED Bremsleuchten Lampendefektbitposition 20 9 Fehlerort mittleres Byte DTC-DFCC 20 2B Lichtfunktion A 20 Bremslicht Lichtfunktion B 20 nicht aktiv Dimmwert AB 20 100 Lichtansteuerung HD AB 20 always Lichtfunktion C 20 nicht aktiv Lichtfunktion D 20 nicht aktiv Dimmwert CD 20 0 Dimming Direction CD 20 maximize Lichtfunktion E 20 nicht aktiv Lichtfunktion F 20 nicht aktiv Dimmwert EF 20 0 Dimming Direction EF 20 maximize Lichtfunktion G 20 nicht aktiv Lichtfunktion H 20 nicht aktiv Dimmwert GH 20 0 Dimming Direction GH 20 maximize Leuchte21BR RC8 Lasttyp 21 34 - LED Bremsleuchten Lampendefektbitposition 21 19 Fehlerort mittleres Byte DTC-DFCC 21 2D Lichtfunktion A 21 Bremslicht Lichtfunktion B 21 nicht aktiv Dimmwert AB 21 100 Lichtansteuerung HD AB 21 always Lichtfunktion C 21 nicht aktiv Lichtfunktion D 21 nicht aktiv Dimmwert CD 21 0 Dimming Direction CD 21 maximize Lichtfunktion E 21 nicht aktiv Lichtfunktion F 21 nicht aktiv Dimmwert EF 21 0 Dimming Direction EF 21 maximize Lichtfunktion G 21 nicht aktiv Lichtfunktion H 21 nicht aktiv Dimmwert GH 21 0 Dimming Direction GH 21 maximize Leuchte22BR MA57 Lasttyp 22 34 - LED Bremsleuchten Lampendefektbitposition 22 29 Fehlerort mittleres Byte DTC-DFCC 22 2C Lichtfunktion A 22 Bremslicht Lichtfunktion B 22 nicht aktiv Dimmwert AB 22 100 Lichtansteuerung HD AB 22 always Lichtfunktion C 22 Quittierungsfunktion 1 Lichtfunktion D 22 nicht aktiv Dimmwert CD 22 32 Dimming Direction CD 22 maximize Lichtfunktion E 22 nicht aktiv Lichtfunktion F 22 nicht aktiv Dimmwert EF 22 0 Dimming Direction EF 22 maximize Lichtfunktion G 22 nicht aktiv Lichtfunktion H 22 nicht aktiv Dimmwert GH 22 0 Dimming Direction GH 22 maximize Leuchte23SL HLC10 Lasttyp 23 32 - allgemeine LED bis 12W Lampendefektbitposition 23 A Fehlerort mittleres Byte DTC-DFCC 23 29 Lichtfunktion A 23 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion B 23 Parklicht links (beidseitiges Parklicht aktiviert li & re) Dimmwert AB 23 100 Lichtansteuerung HD AB 23 always Lichtfunktion C 23 nicht aktiv Lichtfunktion D 23 nicht aktiv Dimmwert CD 23 0 Dimming Direction CD 23 maximize Lichtfunktion E 23 nicht aktiv Lichtfunktion F 23 nicht aktiv Dimmwert EF 23 0 Dimming Direction EF 23 maximize Lichtfunktion G 23 nicht aktiv Lichtfunktion H 23 nicht aktiv Dimmwert GH 23 0 Dimming Direction GH 23 maximize Leuchte24SL HRA65 Lasttyp 24 32 - allgemeine LED bis 12W Lampendefektbitposition 24 1A Fehlerort mittleres Byte DTC-DFCC 24 2A Lichtfunktion A 24 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion B 24 Parklicht rechts Dimmwert AB 24 100 Lichtansteuerung HD AB 24 always Lichtfunktion C 24 nicht aktiv Lichtfunktion D 24 nicht aktiv Dimmwert CD 24 0 Dimming Direction CD 24 maximize Lichtfunktion E 24 nicht aktiv Lichtfunktion F 24 nicht aktiv Dimmwert EF 24 0 Dimming Direction EF 24 maximize Lichtfunktion G 24 nicht aktiv Lichtfunktion H 24 nicht aktiv Dimmwert GH 24 0 Dimming Direction GH 24 maximize Leuchte25KZL HA59 Lasttyp 25 43 - allgemeine LED Lampendefektbitposition 25 28 Fehlerort mittleres Byte DTC-DFCC 25 30 Lichtfunktion A 25 Standlicht allgemein (Schlusslicht, Positionslicht, Begrenzungslicht) Lichtfunktion B 25 nicht aktiv Dimmwert AB 25 127 Lichtansteuerung HD AB 25 always Lichtfunktion C 25 nicht aktiv Lichtfunktion D 25 nicht aktiv Dimmwert CD 25 0 Dimming Direction CD 25 maximize Lichtfunktion E 25 nicht aktiv Lichtfunktion F 25 nicht aktiv Dimmwert EF 25 0 Dimming Direction EF 25 maximize Lichtfunktion G 25 nicht aktiv Lichtfunktion H 25 nicht aktiv Dimmwert GH 25 0 Dimming Direction GH 25 maximize Leuchte26NSL LA72 Lasttyp 26 9 - allgemeine Glühlampe 27W, auch H15 Lampendefektbitposition 26 C Fehlerort mittleres Byte DTC-DFCC 26 2E Lichtfunktion A 26 Nebelschlusslicht wenn kein Anhaenger gesteckt Lichtfunktion B 26 nicht aktiv Dimmwert AB 26 100 Lichtansteuerung HD AB 26 only if closed Lichtfunktion C 26 nicht aktiv Lichtfunktion D 26 nicht aktiv Dimmwert CD 26 0 Dimming Direction CD 26 maximize Lichtfunktion E 26 nicht aktiv Lichtfunktion F 26 nicht aktiv Dimmwert EF 26 0 Dimming Direction EF 26 maximize Lichtfunktion G 26 nicht aktiv Lichtfunktion H 26 nicht aktiv Dimmwert GH 26 0 Dimming Direction GH 26 maximize Leuchte27NSL RC6 Lasttyp 27 not active Lampendefektbitposition 27 0 Fehlerort mittleres Byte DTC-DFCC 27 0 Lichtfunktion A 27 nicht aktiv Lichtfunktion B 27 nicht aktiv Dimmwert AB 27 0 Lichtansteuerung HD AB 27 always Lichtfunktion C 27 nicht aktiv Lichtfunktion D 27 nicht aktiv Dimmwert CD 27 0 Dimming Direction CD 27 maximize Lichtfunktion E 27 nicht aktiv Lichtfunktion F 27 nicht aktiv Dimmwert EF 27 0 Dimming Direction EF 27 maximize Lichtfunktion G 27 nicht aktiv Lichtfunktion H 27 nicht aktiv Dimmwert GH 27 0 Dimming Direction GH 27 maximize Leuchte28RFL LC11 Lasttyp 28 9 - allgemeine Glühlampe 27W, auch H15 Lampendefektbitposition 28 B Fehlerort mittleres Byte DTC-DFCC 28 31 Lichtfunktion A 28 Rueckfahrlicht Lichtfunktion B 28 nicht aktiv Dimmwert AB 28 100 Lichtansteuerung HD AB 28 always Lichtfunktion C 28 nicht aktiv Lichtfunktion D 28 nicht aktiv Dimmwert CD 28 0 Dimming Direction CD 28 maximize Lichtfunktion E 28 nicht aktiv Lichtfunktion F 28 nicht aktiv Dimmwert EF 28 0 Dimming Direction EF 28 maximize Lichtfunktion G 28 nicht aktiv Lichtfunktion H 28 nicht aktiv Dimmwert GH 28 0 Dimming Direction GH 28 maximize Leuchte29RFL RA64 Lasttyp 29 9 - allgemeine Glühlampe 27W, auch H15 Lampendefektbitposition 29 1B Fehlerort mittleres Byte DTC-DFCC 29 32 Lichtfunktion A 29 Rueckfahrlicht Lichtfunktion B 29 nicht aktiv Dimmwert AB 29 100 Lichtansteuerung HD AB 29 always Lichtfunktion C 29 nicht aktiv Lichtfunktion D 29 nicht aktiv Dimmwert CD 29 0 Dimming Direction CD 29 maximize Lichtfunktion E 29 nicht aktiv Lichtfunktion F 29 nicht aktiv Dimmwert EF 29 0 Dimming Direction EF 29 maximize Lichtfunktion G 29 nicht aktiv Lichtfunktion H 29 nicht aktiv Dimmwert GH 29 0 Dimming Direction GH 29 maximize Leuchte30FR LC72 Lasttyp 30 36 - LED Kleinleistung Lampendefektbitposition 30 0 Fehlerort mittleres Byte DTC-DFCC 30 2 Lichtfunktion A 30 Fussraumlicht Lichtfunktion B 30 nicht aktiv Dimmwert AB 30 100 Lichtansteuerung HD AB 30 always Lichtfunktion C 30 nicht aktiv Lichtfunktion D 30 nicht aktiv Dimmwert CD 30 0 Dimming Direction CD 30 maximize Lichtfunktion E 30 nicht aktiv Lichtfunktion F 30 nicht aktiv Dimmwert EF 30 0 Dimming Direction EF 30 maximize Lichtfunktion G 30 nicht aktiv Lichtfunktion H 30 nicht aktiv Dimmwert GH 30 0 Dimming Direction GH 30 maximize Leuchte31AMBL 1C61 Lasttyp 31 not active Lampendefektbitposition 31 0 Fehlerort mittleres Byte DTC-DFCC 31 3 Lichtfunktion A 31 Ambientelicht 1 Lichtfunktion B 31 nicht aktiv Dimmwert AB 31 0 Lichtansteuerung HD AB 31 always Lichtfunktion C 31 nicht aktiv Lichtfunktion D 31 nicht aktiv Dimmwert CD 31 0 Dimming Direction CD 31 maximize Lichtfunktion E 31 nicht aktiv Lichtfunktion F 31 nicht aktiv Dimmwert EF 31 0 Dimming Direction EF 31 maximize Lichtfunktion G 31 nicht aktiv Lichtfunktion H 31 nicht aktiv Dimmwert GH 31 0 Dimming Direction GH 31 maximize Leuchte32AMBL 2C35 Lasttyp 32 not active Lampendefektbitposition 32 0 Fehlerort mittleres Byte DTC-DFCC 32 4 Lichtfunktion A 32 Ambientelicht 2 Lichtfunktion B 32 nicht aktiv Dimmwert AB 32 0 Lichtansteuerung HD AB 32 always Lichtfunktion C 32 nicht aktiv Lichtfunktion D 32 nicht aktiv Dimmwert CD 32 0 Dimming Direction CD 32 maximize Lichtfunktion E 32 nicht aktiv Lichtfunktion F 32 nicht aktiv Dimmwert EF 32 0 Dimming Direction EF 32 maximize Lichtfunktion G 32 nicht aktiv Lichtfunktion H 32 nicht aktiv Dimmwert GH 32 0 Dimming Direction GH 32 maximize Leuchte33AMBL 3C36 Lasttyp 33 not active Lampendefektbitposition 33 0 Fehlerort mittleres Byte DTC-DFCC 33 5 Lichtfunktion A 33 Ambientelicht 3 Lichtfunktion B 33 nicht aktiv Dimmwert AB 33 0 Lichtansteuerung HD AB 33 always Lichtfunktion C 33 nicht aktiv Lichtfunktion D 33 nicht aktiv Dimmwert CD 33 0 Dimming Direction CD 33 maximize Lichtfunktion E 33 nicht aktiv Lichtfunktion F 33 nicht aktiv Dimmwert EF 33 0 Dimming Direction EF 33 maximize Lichtfunktion G 33 nicht aktiv Lichtfunktion H 33 nicht aktiv Dimmwert GH 33 0 Dimming Direction GH 33 maximize Leuchte34AMBL 4C37 Lasttyp 34 not active Lampendefektbitposition 34 0 Fehlerort mittleres Byte DTC-DFCC 34 6 Lichtfunktion A 34 Ambientelicht 4 Lichtfunktion B 34 nicht aktiv Dimmwert AB 34 0 Lichtansteuerung HD AB 34 always Lichtfunktion C 34 nicht aktiv Lichtfunktion D 34 nicht aktiv Dimmwert CD 34 0 Dimming Direction CD 34 maximize Lichtfunktion E 34 nicht aktiv Lichtfunktion F 34 nicht aktiv Dimmwert EF 34 0 Dimming Direction EF 34 maximize Lichtfunktion G 34 nicht aktiv Lichtfunktion H 34 nicht aktiv Dimmwert GH 34 0 Dimming Direction GH 34 maximize Vernetzung Klimaelektronik installed Anhaengeranschlussgeraet not installed Bremsen Steuergeraet installed Getriebesteuergeraet installed Kunden spezifisches Funktions SG not installed Kopfraumheizung not installed UGDO not installed HW_Verbau Aussentemperatursensor installed Brake pad wear installed PTC Zuheizer not installed Insufficient brake fluid installed Insufficient coolant installed Insufficient washer fluid installed Kontaktschalter fuer Motorhaube installed Status Tankdeckelverriegelung not active Druckklappe not installed Ladesteckerverriegelung not installed Signalhorn ohne KL15 active Elektrische Laderaumabdeckung not installed Elektrische Laderaumabdeckung aktiv not active Querschnitts_funktionen Lenkungsanordnung Left Verkehrsseite Right Brand Skoda Personalisierungsuebernahme not installed Bedien und Anzeigeprotokoll active Schnittstelle TrackingSystem not active Codierungsabsicherung not active CAN Wecken bei Softtouchbetaetigung active Hardware Eingang Drucktankklappenstatus Pin 31 Klemmenfehler auf CAN ausgeben active Fahrgeschwindigkeit aus ESP 21 not active Aussenlicht_uebergreifend Light Control Module not installed Kontrollleuchte fuer Begrenzungslicht integriert in Suchbeleuchtung Standlicht aus active Parklicht ueber LSS aktiviert One-sided Standlichtreduzierung mit beidseitigem Parklicht active Menueeinstellung CHO LHO Menuesteuerung Zeit aktivieren Faktor fuer Verfügbarkeitstimer Faktor fuer x5 Minuten Umfeldleuchte als Manoevrierleuchte not active Fahrlichtwarnung Hinweis Konfig kein Hinweis Fahrlicht Hinweis mehrfach not active Bedingungen zur Standlichtbegrenzung abschaltbar über Energiemanagement Standlicht-Verfügbarkeit 24 s bewusstes Standlicht Aktive Begrenzung Bedingungen zur Parklichtbegrenzung abschaltbar über Energiemanagement Lichtwarnungsverhalten klemmenabhaengig Coming Home Verbaustatus automatic Menuesteuerung Coming Home Werkseinstellung active Coming home Leuchten Low beam Menueeinstellung Cominghome 10 seconds Coming-home Einschaltereignis driver door Helligkeitsschwelle Infrarot-Messung 12 lx Leaving-Home Verbausstatus Enabled Menuesteuerung Leaving-home Freischaltung per BAP active LDS mit Nebellicht Yes Lichtdrehschalter (LDS) discrete Menueeinstellung Leaving-home Zeit per BAP 10 seconds Helligkeitsschwelle Forward-Messung 46400 lx LDS mit Nebel Schlusslicht Yes LDS mit AFL Yes LDS mit Standlichtstellung Yes HVLM Ladezustandsanzeige No LCM blinker FALSE Allwetterlicht not installed Aussenlicht_Front Abblendlicht Leuchtentyp GDL Zahl der aktiven Scheinwerfer auf 2 limitieren in Betrieb lassen Lichthupe bei Zuendung aus moeglich active Allwetterlicht Einschaltgrenze 50 km/h Allwetterlicht Ausschaltgrenze 50 km/h Scheinwerferferreinigungsansteuerung und Abblendlichtanzeige bei Dauerfahrlicht not active Tagfahrlicht Aktivierung durch BAP oder Bedienfolge moeglich not active Werkseinstellung fuer Tagfahrlicht Freischaltung BAP / Bedienfolge active Standlicht aktiviert zusaetzlich Tagfahrlicht active Tagfahrlicht Dauerfahrlicht bei Handbremse abschalten not active Tagfahrlicht-Dauerfahrlicht aktiviert zusaetzlich Standlicht not active Tagfahrlichtkontrollleuchte not active Fahrlicht bei Tag Daytime running lights Tagfahrlicht nur in Schalterstellung AUTO not active Signaturlicht verbaut not installed Signaturlicht HMI-default Anzeige im Kombiinstrument not active TFL Abschaltung ueber Geschwindigkeit not active Geschwindigkeitsabhaengiges TFL 5 km/h Aussenlicht_Heck Bremslicht ist auch Blinklicht No Schlusslicht mit Bremslichtfunktion not active Notbremsanzeige NBA active Umgreifende Heckklappe not installed Nebelschlusslicht Warngeschwindigkeit 0 km/h Aussenlicht_Blinker Warnblinken durch Fahrerassistenz not active Komfortblinken Blinkzyklen 3 Abbruch Komfortblinken active Komfortblinken active Blinkkontrolleuchte fuer Anhaenger separte Schluessel Anlern Blinken not active UGDO Anlern Blinken not active ZV Blinken zu not active ZV Blinken auf not active Telematikblinken1 STS Blinken Telematikblinken2 OCU Blinken not active DWA Schaerfungsquittung not active DWA Alarm Blinken not active Taxialarmblinken not active Panikblinken not active Multi kollisions Blinken not active Emergency alert blinken not active Notwarn blinken NBA Phase 2 not active dynamisch blinken 10 not active Richtungs blinken rechts not active Richtungs blinken links not active ABBA Blinken not active Crashblinken not active Warnblinken Zuendung EIN not active Warnblinken Zuendung AUS not active Dynamische Blink Delay 50 ms Static AFS light bei Rueckwaertsfahrt both sides Zeitwert Einschaltzeit Abbiegelicht 15 min Vorschrift ECE R119 Untere Geschwindigkeitsschwelle 0.0 km/h Obere Geschwindigkeitsschwelle 40.0 km/h Steering wheel angle, offset -0.2 ° Unterer Lenkradwinkel 30 ° Oberer Lenkradwinkel 90 ° Abdimmgeschwindigkeit 50.0 %/s Maximaltemperatur 100.0 °C obere Grenztemperatur 95.0 °C untere Grenztemperatur 80.0 °C Sonderfunktionen Sonderfunktionen 1 not installed Sonderfunktionen not enabled Signalprioritaet fuer Blinker SMLS Fernlicht_assistent Erweiterte Fernlichtsteuerung AFS, BCM-Fernlicht Menuesteuerung Fernlichtassistent Not present Fernlichtassistent Reset active Menuesteuerung Fernlichtassistent Werkseinstellung Not present Will Beam assistant, responsivity adjustable via BAP Present Leuchtweitenregulierung sensor headlight range control installed not installed sLWR verbaut not installed 1 Sensor LWR 1-Sensor LWR Fahrwerk Variante Verbundlenkerhinterachse sLWR bei Abblendlicht active Quelle Hoehenwerte BCM Aktivierung LWR Fehlerlampe not active Logik PWM Signal Negative sLWR nach Motorstart not active Entprellung Fehlerlampe 10.0 s Fail Safe sLWR 62.0 % Zyklus sLWR 0.00 s sLWR Touristenlicht 0.0 % sLWR SW Grad 1000.0 %/s sLWR Hysterese 0.0 % diagnose soll toleranz 15 % Ansteuerung untere grenze 0.0 % Ansteuerung obere grenze 100.0 % Lineare Abbildung 0 fac Pwm Zu Hoehe V 1 3.00 mm/% fac Pwm Zu Hoehe H 1 5.00 mm/% fac Pwm Zu Hoehe V 2 3.00 mm/% fac Pwm Zu Hoehe H 2 5.00 mm/% Achssensor PWM Wert Einfederung Sensor vorn 3.00 mm/% Achssensor PWM Wert Einfederung Sensor H4 5.00 mm/% Achsabstand des Fahrzeuges 2700 mm lwr lFzg Sw Abstand 550 mm lwr lFzg Sw Hoehe 680 mm pa fDynFiltStatLwr 100 Hz fFiltEinf 0.03 Hz pa fFiltSwNeigung 0.03 Hz lwr pwm untere schwelle 5.0 % lwr pwm obere schwelle 95.0 % max v slwr 255 km/h lwr lEinfOffsHFahrw 1 0 mm lwr lEinfOffsHFahrw 2 0 mm lwr lEinfOffsHFahrw 3 0 mm lwr lEinfOffsHFahrw 4 0 mm lwr_ofs_RSw_Ah1S x0 -3.71 % x1 -2.96 % x2 -2.04 % x3 -1.48 % x4 -0.37 % y0 -0.20 y1 -0.10 y2 -0.05 y3 -0.01 y4 0.00 Kennlinie_sLWR_Soll x0 -100.00 % x1 -83.00 % x2 -67.00 % x3 -50.00 % x4 -33.00 % x5 -17.00 % x6 0.00 % x7 0.00 x8 0.00 % x9 0.00 % y0 20.0 % y1 30.0 % y2 41.0 % y3 48.0 % y4 55.0 % y5 58.0 % y6 62.0 % y7 62.0 % y8 62.0 % y9 62.0 % Activate left/right hand drive switch-over --- not active Assistance light functions Regen Lichtsensor LIN Regen Licht Sensor Feuchtesensor installed Assistenzfahrlicht bei Regen active Sonnensensor not installed LS Error Ausgabe not active Maskierung Regenfunktion not active Lichtsensorempfindlichkeit normal Light sensor Einschaltgrenze CHO LHO 600 lx Daemmerungsgrenze, Hysterese obergrenze 1200 lx Daemmerungsgrenze Hysterese untergrenze 2200 lx Helligkeitsgrenze sehr hell 2000 lx Helligkeitsgrenze Licht einschalten 1200 lx Helligkeitsgrenze Licht ausschalten 2200 lx Minimale Beleuchtungsstaerke 0 lx Maximale Beleuchtungsstaerke 225300 lx Minimale Ausgangsspannung 53255 mV Maximale Ausgangsspannung 37905 mV Tunnel einschalt verzoegerung 2 ECE Lichteinschaltschwelle 59395 lx Helligkeitsgrenze Licht ausschalten red 5000 HMI Wiper Comfort Rain Sensor OFF not active HMI Exterior light on highway not active HMI Exterior light on rain not active LS Error Ausgabe not active HMI exterior light sensitivity frueh LuB Lichtrouter Kennlinie 1 x0 0.0 % x1 5.0 % x2 50.0 % x3 75.0 % x4 110.0 x5 126.5 y0 0.0 % y1 6.0 % y2 16.0 % y3 30.0 % y4 60.0 % y5 100.0 % Light configuration --- 2134001402007F000000000000000000213E001504007F0000000000000000000448004A08091B140064060080000000044C004C080A1B1400640700800000000148004914007F08097F060080000000014C004B14007F080A7F0700800000000336001A0B0F7F0000000000000000000340001B0C0F7F00000000000000000000000000000000000000000000000000000000000000000000000000000000000237001E0D0F7F0000000000000000000241001F0E0F7F0000000000000000000A3800221216640000000000000000000A420023131764000000000000000000 Leuchtenkonfiguration_Aussenlich_Heck --- 0C0800160200640000000000000000000C1800180400640000000000000000002209002B1800640000000000000000002219002D1800640000000000000000002229002C180064240020000000000000200A0029080964000000000000000000201A002A080A640000000000000000002B28003008007F000000000000000000090C002E1A00E400000000000000000000000000000000000000000000000000090B0031190064000000000000000000091B0032190064000000000000000000 Leuchtenkonfiguration_Sonstiges --- 0000000000000000000000000000000000000000000000000000000000000000240000022B0064000000000000000000000000032D0000000000000000000000000000042E0000000000000000000000000000052F000000000000000000000000000006300000000000000000000000240000004C0064000000000000000000 debug_light_function Adresse 0 Bitmask 0 Offset 0 Divisor 0 Polaritaet 0 Aktivierung 0 Int. light, 2nd generation Aufloesung Dimmzeit 0.25 s weicher Farbwechsel not active Tuertafelbeleuchtung mehrfarbig active Instrumententafelbeleuchtung mehrfarbig not active Cockpitbeleuchtung mehrfarbig not active Lautsprecherbeleuchtung mehrfarbig not active Mittelkonsolenbeleuchtung mehrfarbig not active Dachbeleuchtung mehrfarbig not active Panoramaschiebedachbeleuchtung mehrfarbig not active Panoramaschiebedachbeleuchtung bei geoeffnetem Rollo deaktivieren not active BAP Farbwert Farbe 1 2 BAP Farbwert Farbe 2 3 BAP Farbwert Farbe 3 1 Defaultwert Ambienteprofil Mittelkonsole 80 % Defaultwert Ambienteprofil Dach 80 % Defaultwert Ambienteprofil Farbe 2 Defaultwert Ambienteprofil Fussraum 20 % Defaultwert Ambienteprofil Tuer 0 % Defaultwert Ambienteprofil Vorn 0 % Helligkeit Tuertafelbeleuchtung nicht berechnen active Helligkeit Instrumententafelbeleuchtung nicht berechnen active Helligkeit Cockpitbeleuchtung nicht berechnen active Helligkeit Lautsprecherbeleuchtung nicht berechnen active Helligkeit Mittelkonsolenbeleuchtung nicht berechnen active Helligkeit Dachbeleuchtung nicht berechnen active Helligkeit Panoramaschiebedachbeleuchtung nicht berechnen active Farbausgabe Tuertafelbeleuchtung nicht berechnen active Farbausgabe Instrumententafelbeleuchtung nicht berechnen active Farbausgabe Cockpitbeleuchtung nicht berechnen active Farbausgabe Lautsprecherbeleuchtung nicht berechnen active Farbausgabe Mittelkonsolenbeleuchtung nicht berechnen active Farbausgabe Dachbeleuchtung nicht berechnen active Farbausgabe Panoramaschiebedachbeleuchtung nicht berechnen active Innenlicht bei offenem Heckdeckel einschalten active KL30G ohne PWM not active Weckfaehigkeit klemme 30G not installed LIN-Dachkonsole mit Flaechenlicht not installed Tuerinnengriffbeleuchtung mit I-Tafel not installed Tuerinnengriff mit Tuertafel not installed Interior light, light configuration Ambiente Applikationsleisten in Tuertafel not installed Ambiente Lautsprecher not installed Ambiente Applikationsleisten in Instrumententafel not installed Cockpitbeleuchtung not installed Mittelkonsolenbeleuchtung not installed Dachbeleuchtung not installed Panoramaschiebedachbeleuchtung not installed Fussraumbeleuchtung installed Farbwahl ueber HMI not installed Farbwahl ueber Fahrprofil not installed LIN-Dachkonsole lokal aktivierbar not active Ambientemenue mit globalem aus not active Ambientemenue mit alle Zonen not active Ambient Farbliste HMI not active Frei Farbwahl ueber HMI not active Interior lighting, parameter p t verzoegerung einstieg innenlicht 0.0 s p t verzoegerung ausstieg innenlicht 0.0 s p t verzoegerung oeffnen innenlicht 0.0 s p t verzoegerung entriegelt innenlicht 0.0 s p t verzoegerung schliessen innenlicht 0.0 s p t verzoegerung schluessel ab innenlicht 0.0 s p t verzoegerung verriegelt innenlicht 0.0 s p t verzoegerung einstieg tueren 0.0 s p t verzoegerung ausstieg tueren 0.0 s p t verzoegerung oeffnen tueren 0.0 s p t verzoegerung entriegelt tueren 0.0 s p t verzoegerung schliessen tueren 0.0 s p t verzoegerung schluessel ab tueren 0.0 s p t verzoegerung verriegelt tueren 0.0 s p t verzoegerung einstieg fussraum 1.0 s p t verzoegerung ausstieg fussraum 0.0 s p t verzoegerung oeffnen fussraum 0.0 s p t verzoegerung entriegelt fussraum 0.0 s p t verzoegerung schliessen fussraum 0.0 s p t verzoegerung schluessel ab fussraum 0.0 s p t verzoegerung verriegelt fussraum 0.0 s p t verzoegerung einstieg cockpit 0.0 s p t verzoegerung ausstieg cockpit 0.0 s p t verzoegerung oeffnen cockpit 0.0 s p t verzoegerung entriegelt cockpit 0.0 s p t verzoegerung schliessen cockpit 0.0 s p t verzoegerung schluessel ab cockpit 0.0 s p t verzoegerung verriegelt cockpit 0.0 s p t verzoegerung einstieg miko 0.0 s p t verzoegerung ausstieg miko 0.0 s p t verzoegerung oeffnen miko 0.0 s p t verzoegerung entriegelt miko 0.0 s p t verzoegerung schliessen miko 0.0 s p t verzoegerung schluessel ab miko 0.0 s p t verzoegerung verriegelt miko 0.0 s p t verzoegerung einstieg dach 0.0 s p t verzoegerung ausstieg dach 0.0 s p t verzoegerung oeffnen dach 0.0 s p t verzoegerung entriegelt dach 0.0 s p t verzoegerung schliessen dach 0.0 s p t verzoegerung schluessel ab dach 0.0 s p t verzoegerung verriegelt dach 0.0 s p helligkeit entriegelt innenlicht 100 % p helligkeit max innenlicht 100 % p helligkeit HD auf zuendung ein innenlicht 100 % p helligkeit HD auf zuendung aus innenlicht 100 % p helligkeit dieseTuer auf zuendung ein innenlicht 100 % p helligkeit andereTuer auf zuendung ein innenlicht 100 % p helligkeit Fzg geschlossen zuendung ein innenlicht 0 % p helligkeit dieseTuer auf zuendung aus innenlicht 100 % p helligkeit andereTuer auf zuendung aus innenlicht 100 % p helligkeit einausstieg innenlicht 100 % p helligkeit Fzg geschlossen zuendung aus innenlicht 100 % p helligkeit Tueren geschlossen HD auf zuendung aus innenlicht 100 % p helligkeit Tueren geschlossen HD zu zuendung aus innenlicht 100 % p helligkeit Tueren geschlossen schluessel ab innenlicht 100 % p helligkeit Fzg geschlossen schluessel ab innenlicht 100 % p adaption kundenwunsch tuer 0.00 p helligkeit entriegelt tueren 0 % p helligkeit max tueren 100 % p helligkeit HD auf zuendung ein tueren 126 % p helligkeit HD auf zuendung aus tueren 127 % p helligkeit dieseTuer auf zuendung ein tueren 100 % p helligkeit andereTuer auf zuendung ein tueren 100 % p helligkeit Fzg geschlossen zuendung ein tueren 126 % p helligkeit dieseTuer auf zuendung aus tueren 100 % p helligkeit andereTuer auf zuendung aus tueren 100 % p helligkeit einausstieg tueren 100 % p helligkeit Fzg geschlossen zuendung aus tueren 127 % p helligkeit Tueren geschlossen HD auf zuendung aus tueren 100 % p helligkeit Tueren geschlossen HD zu zuendung aus tueren 100 % p helligkeit Tueren geschlossen schluessel ab tueren 100 % p helligkeit Fzg geschlossen schluessel ab tueren 100 % p adaption kundenwunsch fussraum 1.00 p helligkeit entriegelt fussraum 100 % p helligkeit max fussraum 100 % p helligkeit HD auf zuendung ein fussraum 126 % p helligkeit HD auf zuendung aus fussraum 127 % p helligkeit dieseTuer auf zuendung ein fussraum 100 % p helligkeit andereTuer auf zuendung ein fussraum 100 % p helligkeit Fzg geschlossen zuendung ein fussraum 126 % p helligkeit dieseTuer auf zuendung aus fussraum 100 % p helligkeit andereTuer auf zuendung aus fussraum 100 % p helligkeit einausstieg fussraum 100 % p helligkeit Fzg geschlossen zuendung aus fussraum 127 % p helligkeit Tueren geschlossen HD auf zuendung aus fussraum 127 % p helligkeit Tueren geschlossen HD zu zuendung aus fussraum 127 % p helligkeit Tueren geschlossen schluessel ab fussraum 100 % p helligkeit Fzg geschlossen schluessel ab fussraum 100 % p adaption kundenwunsch lautsprecher 1.00 p helligkeit entriegelt lautsprecher 100 % p helligkeit max lautsprecher 100 % p helligkeit HD auf zuendung ein lautsprecher 100 % p helligkeit HD auf zuendung aus lautsprecher 100 % p helligkeit dieseTuer auf zuendung ein lautsprecher 100 % p helligkeit andereTuer auf zuendung ein lautsprecher 100 % p helligkeit Fzg geschlossen zuendung ein lautsprecher 126 % p helligkeit dieseTuer auf zuendung aus lautsprecher 100 % p helligkeit andereTuer auf zuendung aus lautsprecher 100 % p helligkeit einausstieg lautsprecher 100 % p helligkeit Fzg geschlossen zuendung aus lautsprecher 100 % p helligkeit Tueren geschlossen HD auf zuendung aus lautsprecher 100 % p helligkeit Tueren geschlossen HD zu zuendung aus lautsprecher 100 % p helligkeit Tueren geschlossen schluessel ab lautsprecher 100 % p helligkeit Fzg geschlossen schluessel ab lautsprecher 100 % p adaption kundenwunsch itafel 1.00 p helligkeit entriegelt itafel 100 % p helligkeit max itafel 100 % p helligkeit HD auf zuendung ein itafel 100 % p helligkeit HD auf zuendung aus itafel 100 % p helligkeit dieseTuer auf zuendung ein itafel 100 % p helligkeit andereTuer auf zuendung ein itafel 100 % p helligkeit Fzg geschlossen zuendung ein itafel 126 % p helligkeit dieseTuer auf zuendung aus itafel 100 % p helligkeit andereTuer auf zuendung aus itafel 100 % p helligkeit einausstieg itafel 100 % p helligkeit Fzg geschlossen zuendung aus itafel 100 % p helligkeit Tueren geschlossen HD auf zuendung aus itafel 100 % p helligkeit Tueren geschlossen HD zu zuendung aus itafel 100 % p helligkeit Tueren geschlossen schluessel ab itafel 100 % p helligkeit Fzg geschlossen schluessel ab itafel 100 % p adaption kundenwunsch cockpit 1.00 p helligkeit entriegelt cockpit 100 % p helligkeit max cockpit 100 % p helligkeit HD auf zuendung ein cockpit 100 % p helligkeit HD auf zuendung aus cockpit 100 % p helligkeit dieseTuer auf zuendung ein cockpit 100 % p helligkeit andereTuer auf zuendung ein cockpit 100 % p helligkeit Fzg geschlossen zuendung ein cockpit 126 % p helligkeit dieseTuer auf zuendung aus cockpit 100 % p helligkeit andereTuer auf zuendung aus cockpit 100 % p helligkeit einausstieg cockpit 100 % p helligkeit Fzg geschlossen zuendung aus cockpit 100 % p helligkeit Tueren geschlossen HD auf zuendung aus cockpit 100 % p helligkeit Tueren geschlossen HD zu zuendung aus cockpit 100 % p helligkeit Tueren geschlossen schluessel ab cockpit 100 % p helligkeit Fzg geschlossen schluessel ab cockpit 100 % p adaption kundenwunsch miko 1.00 p helligkeit entriegelt miko 100 % p helligkeit max miko 100 % p helligkeit HD auf zuendung ein miko 100 % p helligkeit HD auf zuendung aus miko 100 % p helligkeit dieseTuer auf zuendung ein miko 100 % p helligkeit andereTuer auf zuendung ein miko 100 % p helligkeit Fzg geschlossen zuendung ein miko 126 % p helligkeit dieseTuer auf zuendung aus miko 100 % p helligkeit andereTuer auf zuendung aus miko 100 % p helligkeit einausstieg miko 100 % p helligkeit Fzg geschlossen zuendung aus miko 100 % p helligkeit Tueren geschlossen HD auf zuendung aus miko 100 % p helligkeit Tueren geschlossen HD zu zuendung aus miko 100 % p helligkeit Tueren geschlossen schluessel ab miko 100 % p helligkeit Fzg geschlossen schluessel ab miko 100 % p adaption kundenwunsch dach 0.00 p helligkeit entriegelt dach 0 % p helligkeit max dach 0 % p helligkeit HD auf zuendung ein dach 0 % p helligkeit HD auf zuendung aus dach 0 % p helligkeit dieseTuer auf zuendung ein dach 0 % p helligkeit andereTuer auf zuendung ein dach 0 % p helligkeit Fzg geschlossen zuendung ein dach 0 % p helligkeit dieseTuer auf zuendung aus dach 0 % p helligkeit andereTuer auf zuendung aus dach 0 % p helligkeit einausstieg dach 0 % p helligkeit Fzg geschlossen zuendung aus dach 0 % p helligkeit Tueren geschlossen HD auf zuendung aus dach 0 % p helligkeit Tueren geschlossen HD zu zuendung aus dach 0 % p helligkeit Tueren geschlossen schluessel ab dach 0 % p helligkeit Fzg geschlossen schluessel ab dach 0 % p adaption kundenwunsch psd 1.00 p helligkeit entriegelt psd 100 % p helligkeit max psd 100 % p helligkeit HD auf zuendung ein psd 100 % p helligkeit HD auf zuendung aus psd 100 % p helligkeit dieseTuer auf zuendung ein psd 100 % p helligkeit andereTuer auf zuendung ein psd 100 % p helligkeit Fzg geschlossen zuendung ein psd 126 % p helligkeit dieseTuer auf zuendung aus psd 100 % p helligkeit andereTuer auf zuendung aus psd 100 % p helligkeit einausstieg psd 100 % p helligkeit Fzg geschlossen zuendung aus psd 100 % p helligkeit Tueren geschlossen HD auf zuendung aus psd 100 % p helligkeit Tueren geschlossen HD zu zuendung aus psd 100 % p helligkeit Tueren geschlossen schluessel ab psd 100 % p helligkeit Fzg geschlossen schluessel ab psd 100 % p dimmfaktor farbwechsel auf 1 p dimmfaktor farbwechsel ab 1 p farbwechsel delay 0 p farbauswahl HMI 0 p ambienteumfang mehrfarbig HMI 0 p ambienteumfang mehrfarbig HMI 2 0 p ambienteumfang mehrfarbig HMI 3 0 p ambienteumfang mehrfarbig HMI 4 0 p ambientelicht verbauinformation HMI 0 p ambientelicht verbauinformation HMI 2 0 p ambientelicht verbauinformation HMI 3 0 p ambientelicht verbauinformation HMI 4 0 p verzoegerung berechnen 0 p t HMI verzoegerung helligkeitswerte 200 ms Ambient light color list Rotwert Farbe 1 1 Gruenwert Farbe 1 0 Blauwert Farbe 1 0 Rotwert Farbe 2 0 Gruenwert Farbe 2 0 Blauwert Farbe 2 0 Rotwert Farbe 3 0 Gruenwert Farbe 3 0 Blauwert Farbe 3 0 Rotwert Farbe 4 0 Gruenwert Farbe 4 0 Blauwert Farbe 4 0 Rotwert Farbe 5 0 Gruenwert Farbe 5 0 Blauwert Farbe 5 0 Rotwert Farbe 6 0 Gruenwert Farbe 6 0 Blauwert Farbe 6 0 Rotwert Farbe 7 0 Gruenwert Farbe 7 0 Blauwert Farbe 7 0 Rotwert Farbe 8 0 Gruenwert Farbe 8 0 Blauwert Farbe 8 0 Rotwert Farbe 9 0 Gruenwert Farbe 9 0 Blauwert Farbe 9 0 Rotwert Farbe 10 0 Gruenwert Farbe 10 0 Blauwert Farbe 10 0 ambient_lighting_lin_slaves_modules pa einzeladresse slave 1 0 pa verbauinfo slave 1 not installed pa fehlerort slave 1 0 pa einzeladresse slave 2 0 pa verbauinfo slave 2 not installed pa fehlerort slave 2 0 pa einzeladresse slave 3 0 pa verbauinfo slave 3 not installed pa fehlerort slave 3 0 pa einzeladresse slave 4 0 pa verbauinfo slave 4 not installed pa fehlerort slave 4 0 pa einzeladresse slave 5 0 pa verbauinfo slave 5 not installed pa fehlerort slave 5 0 pa einzeladresse slave 6 0 pa verbauinfo slave 6 not installed pa fehlerort slave 6 0 pa einzeladresse slave 7 0 pa verbauinfo slave 7 not installed pa fehlerort slave 7 0 pa einzeladresse slave 8 0 pa verbauinfo slave8 not installed pa fehlerort slave8 0 pa einzeladresse slave 9 0 pa verbauinfo slave 9 not installed pa fehlerort slave 9 0 pa einzeladresse slave 10 0 pa verbauinfo slave 10 not installed pa fehlerort slave 10 0 pa einzeladresse slave 11 0 pa verbauinfo slave 11 not installed pa fehlerort slave 11 0 pa einzeladresse slave :12 0 pa verbauinfo slave 12 not installed pa fehlerort slave 12 0 pa einzeladresse slave 13 0 pa verbauinfo slave 13 not installed pa fehlerort slave 13 0 pa einzeladresse slave 14 0 pa verbauinfo slave 14 not installed pa fehlerort slave 14 0 pa einzeladresse slave 15 0 pa verbauinfo slave 15 not installed pa fehlerort slave 15 0 pa einzeladresse slave 16 0 pa verbauinfo slave 16 not installed pa fehlerort slave 16 0 pa einzeladresse slave 17 0 pa verbauinfo slave 17 not installed pa fehlerort slave 17 0 pa einzeladresse slave 18 0 pa verbauinfo slave 18 not installed pa fehlerort slave 18 0 pa einzeladresse slave 19 0 pa verbauinfo slave 19 not installed pa fehlerort slave 19 0 pa einzeladresse slave 20 0 pa verbauinfo slave 20 not installed pa fehlerort slave 20 0 ambient_lighting_lin_slaves_groups pa verbauinfo gruppe 1 not installed pa lichtfunktion gruppe 1 Door pa korrekturfaktor gruppe 1 1.00 pa verbauinfo gruppe 2 not installed pa lichtfunktion gruppe 2 Door pa korrekturfaktor gruppe 2 1.00 pa verbauinfo gruppe 3 not installed pa lichtfunktion gruppe 3 Door pa korrekturfaktor gruppe 3 1.00 pa verbauinfo gruppe 4 not installed pa lichtfunktion gruppe 4 Door pa korrekturfaktor gruppe 4 1.00 pa verbauinfo gruppe 5 not installed pa lichtfunktion gruppe 5 Door pa korrekturfaktor gruppe 5 1.00 pa verbauinfo gruppe 6 not installed pa lichtfunktion gruppe 6 Door pa korrekturfaktor gruppe 6 1.00 pa verbauinfo gruppe 7 not installed pa lichtfunktion gruppe 7 Door pa korrekturfaktor gruppe 7 1.00 pa verbauinfo gruppe 8 not installed pa lichtfunktion gruppe 8 Door pa korrekturfaktor gruppe 8 1.00 pa verbauinfo gruppe 9 not installed pa lichtfunktion gruppe 9 Door pa korrekturfaktor gruppe 9 1.00 pa verbauinfo gruppe 10 not installed pa lichtfunktion gruppe 10 Door pa korrekturfaktor gruppe 10 1.00 pa verbauinfo gruppe 11 not installed pa lichtfunktion gruppe 11 Door pa korrekturfaktor gruppe 11 1.00 pa verbauinfo gruppe 12 not installed pa lichtfunktion gruppe 12 Door pa korrekturfaktor gruppe 12 1.00 pa verbauinfo gruppe 13 not installed pa lichtfunktion gruppe 13 Door pa korrekturfaktor gruppe 13 1.00 pa verbauinfo gruppe 14 not installed pa lichtfunktion gruppe 14 Door pa korrekturfaktor gruppe 14 1.00 pa verbauinfo gruppe 15 not installed pa lichtfunktion gruppe 15 Door pa korrekturfaktor gruppe 15 1.00 Suchbeleuchtung_allgemein Warnblinktastersuchbeleuchtung Aktivierung always active Eingabemedium Suchbeleuchtung HMI Umgebungs helligkeit auswahl Fotosensor Kombi Warnblinktastersuchbeleuchtung Grundwert 20.0 % Warnblinktastersuchbeleuchtung Faktor 0.100 KL58 Einschalten mit Rampe not active KL58 Verriegelungsausschalten not active Lichtsensor wirkt auf Suchbeleuchtung active Suchbeleuchtung Festwert 100 % PWM Daempfung Aufdimmen KL58xs PWM 0.00 s Daempfung Abdimmen KL 58xs PWM 0.00 s Daempfung Aufdimmen KL 58xt PWM 0.00 s Daempfung Abdimmen KL 58xt PWM 0.00 s Daempfung Aufdimmen KL 58xd PWM 0.00 s Daempfung Abdimmen KL 58xd PWM 0.00 s Helligkeit RLS Daempfung Aufdimmen 0.0 s Helligkeit RLS Daempfung Abdimmen 0.0 s pa Hysterese RLS 0 Suchbeleuchtung_Tasterdimmung tasterdimmung x0 0 ms tasterdimmung x1 2000 ms tasterdimmung x2 3000 ms tasterdimmung x3 4000 ms tasterdimmung x4 5100 ms tasterdimmung y0 1.0 % tasterdimmung y1 5.0 tasterdimmung y2 15.0 tasterdimmung y3 40.0 tasterdimmung y4 100.0 Suchbeleuchtung_Hochdimmen x0 0 ms x1 100 ms x2 200 ms x3 300 ms x4 400 ms x5 500 ms x6 600 ms x7 700 ms x8 800 ms x9 900 ms x10 1000 ms y0 0.0 % y1 3.0 % y2 7.0 % y3 12.0 % y4 17.0 % y5 24.0 % y6 33.0 % y7 44.0 % y8 59.0 % y9 78.0 % y10 100.0 % Suchbeleuchtung_Abdimmen x0 0 ms x1 100 ms x2 200 ms x3 300 ms x4 400 ms x5 500 ms x6 600 ms x7 700 ms x8 800 ms x9 900 ms x10 1000 ms y0 100.0 % y1 78.0 % y2 59.0 % y3 44.0 % y4 33.0 % y5 24.0 % y6 17.0 % y7 12.0 % y8 7.0 % y9 3.0 % y10 0.0 % Suchbeleuchtung_Fotosensor x0 0 x1 50 x2 100 x3 200 x4 253 x5 0 x6 0 x7 0 x8 0 x9 0 x10 0 y0 0 lx y1 50 lx y2 100 lx y3 200 y4 500 y5 0 y6 0 lx y7 0 lx y8 0 lx y9 0 lx y10 0 lx Suchbeleuchtung_KL 58xs min x0 0 lx x1 8 lx x2 50 lx x3 510 lx y0 6.0 y1 6.0 y2 100.0 y3 100.0 Suchbeleuchtung_KL 58xs max x0 0 lx x1 8 lx x2 50 lx x3 500 lx y0 100.0 y1 100.0 y2 100.0 y3 100.0 Suchbeleuchtung_KL_58xt min x0 0 lx x1 8 lx x2 50 lx x3 500 lx y0 6.0 y1 6.0 y2 100.0 y3 100.0 Suchbeleuchtung_KL_58xt_max x0 0 lx x1 8 lx x2 50 lx x3 500 lx y0 100.0 y1 100.0 y2 100.0 y3 100.0 Suchbeleuchtung_KL_58xd_min x0 0 lx x1 8 lx x2 220 lx x3 300 lx x4 500 lx y0 6.0 y1 6.0 y2 100.0 y3 100.0 y4 100.0 Suchbeleuchtung_KL_58xd_max x0 0 lx x1 8 lx x2 200 lx x3 300 lx x4 500 lx y0 16.0 y1 16.0 y2 100.0 y3 100.0 y4 100.0 Suchbeleuchtung_KL_58xd_log_Bus x0 0.0 % x1 6.0 % x2 16.0 % x3 30.0 % x4 60.0 % x5 100.0 % y0 10 y1 10 y2 100 y3 150 y4 220 y5 253 Dimmunt_KL_58xs_PWM x0 0.0 % x1 50.0 % x2 100.0 % y0 0.0 % y1 50.0 % y2 100.0 % Suchbeleuchtung_KL_58xt_PWM x0 0.0 % x1 50.0 % x2 100.0 % y0 0.0 % y1 50.0 % y2 100.0 % Suchbeleuchtung_KL_58xd_PWM x0 0 x1 10 x2 50 x3 100 x4 220 x5 253 y0 2.0 % y1 2.0 % y2 6.0 % y3 10.0 % y4 80.0 % y5 100.0 % Suchbeleuchtung_58_xs_Bus_Kennlinie x0 0.0 lx x1 8.0 lx x2 50.0 lx x3 80.0 lx x4 100.0 lx y0 6.0 y1 6.0 y2 20.0 y3 50.0 y4 100.0 Suchbeleuchtung_58xt_Bus_Kennlinie x0 0.0 lx x1 8.0 lx x2 50.0 lx x3 80.0 lx x4 100.0 lx y0 6.0 y1 6.0 y2 20.0 y3 50.0 y4 100.0 Suchbeleuchtung_Regen_Licht_Sensor_Mapping_Kennlinie x0 0 lx x1 200 lx x2 400 lx x3 600 lx x4 800 lx x5 1020 lx y0 0 y1 84 y2 166 y3 250 y4 370 y5 500 ZV allgemein Notschliessfunktion active Funkfrequenz 434,42MHz Funk bei Klemme 15 ein not active ZV ohne Safe Funktion installed Deaktivierung SAFE ueber DWA Deaktivierungstaster active Entsafen mit autorisierte Klemme 15 Ein not active Bewusstes Safe mit 2. Betaetigung der FFB not active Lock Unlock Taster direkt installed Lock Unlock Toggle Taster installed ZV Tuerentriegelung Globale Entriegelung Menuesteuerung Tuerentriegelung active LS Taster Togglefunktion not active Deaktivierung Laderaumschliessung extern not active Nutzfahrzeug Schliessung not active Wiederverriegelung Laderaum Freigabe Softtouch Tankschloss bidirectional ZV Türkonfiguration Viertuerer Yes Fond Schloss 2-Motorenschloesser Schlosstyp NAR Yes Schiebetueren Crafter not installed Schiebetuerschloss direkt BCM Driver side Schiebetuer Kontaktmodul Fahrerseite not installed Schiebetuer Kontaktmodul Beifahrerseite not installed Schiebetuer links No Schiebetuer rechts No Schliessung der Schiebetuer bei geoeffneter Tankklappe not active HFT Invertierung Drehfallensignal nicht invertiert ZV Heck Tausch Tank Hecktreiberausgang No ZV Heck Schlosstyp 1- oder 2-Rasten-Hecksteller Heckschloss mit Vorraste Yes Heckschloss Steuerung Kontaktsteuerung mit Mindestansteuerzeit Entriegelungwunsch verzoegert waehrend Zuziehvorgang not active Heckdeckelentriegelung HDF Innentaster via pin ZV entriegelt auch Heckdeckel active Direkter Auswurf des Heckdeckels active Heckfreigabe Ohne Verzoegerung not active ZV Heck nur direkt auswerfen not active Freigabenachlauf Heck nach Einzeloeffnung ueber HDF-Funktaster not active Nach externer Verriegelung ist Heck noch zeitbegrenzt entriegelt not active Mindestbetaetigung HDF Innentaster 0.6 s Heckoeffnung ueber 2 Bedienhandlungen not active Acknowledgement signals Optical feedback during locking Decelerate Optische Rueckmeldung Komfortschliessen not active Optische Rueckmeldung 3.Bremsleuchte not active Akustische Rueckmeldung global not active Akustische Rueckmeldung entriegeln not active Quittierton bei zweitem ZV-AUF-Befehl not active Akustische Rueckmeldung verriegeln not active Quittierton bei zweitem ZV-ZU-Befehl not active Menuesteuerung akustische Rueckmeldung not active Dauer der Akustischen Rueckmeldung vom Einfachhorn normal Akustische Rueckmeldung Signalhorn not active ZV-Blinken Hellzeit 200 ms ZV-Blinken Dunkelzeit 200 ms ZV-Blinken Abschluss Dunkelzeit 200 ms ZV Komfort Freigabenachlauf FH bei Kl 15 aus active Freigabenachlauf FH bei Tueroeffnen abbrechen active Komfortbedienung global active Comfort opening active Komfortoeffnen nur FH Fahrertuer not active Schliesszylinder Komfort oeffnen active Funk Komfort oeffnen active Fahrertuerbedienung Fensterheber oeffnen active FH SAD Kl15Aus Freigabezeit 600 s Comfort closing active Schliesszylinder Komfort schliessen active Funk Komfort schliessen active Fahrertuerbedienung Fensterheber schliessen active Menuesteuerung Komfortbedienung einstellbar adjustable Regenschliessen ein aus not active Regenschliessen art once Menuesteuerung Regenschliessen not active elektrischer Fensterheber hinten Yes ZV Autolock Automatisches Verriegeln bei Geschwindigkeit active automatisches Entriegeln active Autounlock NAR not active Autolock Autounlock wirkt auf Heck active Geschwindigkeitsabhaengige Tankdeckelverriegelung not active Menuesteuerung ZV Autolock-Unlock adjustable Schiebedach SAD Richtung Komfortoeffnen tilting SAD Komfort schliessen not active SAD Komfort oeffnen not active Schiebedachmodul MD 1 not installed Schiebedachmodul MD 3 not installed Schiebedachmodul MD Rollo not installed Verortung Schiebedachmodule LIN Spiegelverstellung Spiegelabsenkung bei Rueckwaertsfahrt active Spiegelverstellung Synchron active Menuesteuerung Spiegelabsenkung active Funk Spiegelanklappen active Funk Spiegelanklappung Modus by look command via remote control key Menuesteuerung synchrone Spiegelverstellung active Menuesteuerung Funk Spiegel anklappen active Profilfunktion fuer Anklappung der Aussenspiegel not active Signalisierung Spiegelanklappung active Spiegelanklappen bei Wiederverriegelung active ZV Crash Heckdeckel-Bedienstellen nachCrash temporaer sperren active ZV-Entriegelung nach Seitencrash not active SAD PreCrash Konturschliessen not active Anti-theft device Alarmsignal frequency modulated Verzoegerung Panikalarm 2 sekunden verzoegerung DWA Alarmverzoegerung not active DWA Camper Modus not active Ueberwachung Innenentriegelungshebel not active Sirenen Alarmzahl 10 Alarme Akustischer Alarm Signalhorn not active IRUE NGS Deaktivierungstaster direkt am BCM verdrahtet No Diebstahlwarnanlage not active Heckscheibenbruchsensor not installed DWA Einfachhorn oder Sounder not installed tilt sensor No Schliesszylinder in Richtung Oeffnen aktiv (Thatcham inaktiv) No Sensor fuer Innenraumueberwachung No Parking heater not installed OBD Alarm activ After-run for park light Bedingungen zur Beendigung des Standlichtnachlaufs abschalten nach der Nachlaufzeit ZV verriegeln bei Klemme 15 Ein active Standlicht-Nachlaufzeit 30 min Front_wiper Frontwischertyp LIN Frontwischer Referenzlauf active Variable Regensensoraktivierung active Wischer stop bei KL15 aus active Wischer abparken bei Oeffnen der Motorhaube not active Regensensor aktivieren Deactivating Menuesteuerung Frontwischer not active Frontwischer Notlaufprogramm active Tippwischen mit erhoehter Wischfrequenz active Geschwindigkeitsabhaengige Wischstufenrueckschaltung active Traenenwischen Front Status not active Washer Tipwiping Variant not active Adaptives Nachwischen bei SRA not active Wischer Stopp bei Oeffnen der Motorhaube not active Frontwischer Abtauposition not active Anfahrzeit servicestellung 800 ms Mindestwaschzeit Frontwischer 0 ms Timer DWP SRA delay 0 ms Rear Window Wiper Heckwischer not installed Komfortwischen Heck not active Menuesteuerung Komfortwischen HW not active Automatisches Heckwischen not active Traenenwischen Heck not active Heckwischer Weiterlauf not active Komofortwischen Heck Intervallpausenzeit Stufe Intervall 7 s Komofortwischen Heck Intervallpausenzeit Stufe Automatik 7 s Komofortwischen Heck Intervallpausenzeit Stufe 1 5 s Komofortwischen Heck Intervallpausenzeit Stufe 2 3 s Einzelansteuerung Heckintervallwischen Zeitintervall 1 8 s Einzelansteuerung Heckintervallwischen Zeitintervall 2 16 s Einzelansteuerung Heckintervallwischen not active Zeit wasch min heck 0 ms Scheinwerferreinigung Scheinwerferreinigungsanlage installed SRA bei Waschwassermangel active Anzahl Betaetigungen Frontwaschanlage pro SRA Aktivierung 10 SRA Verzoegerungszeit 0 ms SRA Waschzeit 800 ms SRA Einweichpausenzeit 1000 ms SRA Nachwaschzeit 1000 ms SRA Pausenzeit 0 ms Button in center console Function of button 1 Start-stop Function of button 2 not coded/not installed Function of button 3 0 not defined Function of button 4 not coded/not installed Zusatzcodierung Fahrprofiltaster hat keine LED LED installed Seat heater level current consumption allocation Sitzheizung Filterkonstante fuer Waermefluss 1 s Sitzheizung Regeltemperaturkorrektur bei Waermefluss 0.00 °C Sitzheizung Stufe 1 untere Schaltschwelle 22.00 °C Sitzheizung Stufe 1 obere Schaltschwelle 23.00 °C Sitzheizung Stufe 2 untere Schaltschwelle 22.00 °C Sitzheizung Stufe 2 obere Schaltschwelle 23.00 °C Sitzheizung Stufe 3 untere Schaltschwelle 35.50 °C Sitzheizung Stufe 3 obere Schaltschwelle 36.00 °C Sitzheizung Stufe 4 untere Schaltschwelle 35.50 °C Sitzheizung Stufe 4 obere Schaltschwelle 36.00 °C Sitzheizung Stufe 5 untere Schaltschwelle 40.00 °C Sitzheizung Stufe 5 obere Schaltschwelle 41.00 °C Sitzheizung Stufe 6 untere Schaltschwelle 40.00 °C Sitzheizung Stufe 6 obere Schaltschwelle 41.00 °C Sitzheitzung CAN Heizmatten am BCM Sitzheizungsfreigabe not installed Seat fan charac. curve Level 1 Sitz 40 % Level 1 Lehne 40 % Level 2 Sitz 40 % Level 2 Lehne 40 % Level 3 Sitz 40 % Level 3 Lehne 40 % Level 4 Sitz 70 % Level 4 Lehne 70 % Level 5 Sitz 40 % Level 5 Lehne 40 % Level 6 Sitz 100 % Level 6 Lehne 100 % Sitzlueftung not installed Sitzlueftung reduzierbar installed Sitzpneumatik not installed Window heater Heizbare Frontscheibe not installed Heizbare Heckscheibe installed Waschduesenheizung not installed Frontscheibenheizung LED direkt not installed Frontscheibenheizungsansteuerung direkt von externem Algorithmus not installed Temperaturabhaengige Einschaltzeit HSH not active Temperaturabhaengige Einschaltzeit FSH not active FSH Automatik active Heckscheibenheizung Zeitwert 600 s Running time of heated front window 600 s Abschalttemperatur fuer Heckscheibenheizung 35.0 °C Abschalttemperatur fuer Frontscheibenheizung 35.0 °C Frontscheibenheizung maximale Dauer 0 s window heating front activation time pause 240 s A/C heater function via remote control Remotestart not installed Rueckmeldung bei Aktivierung not active Kombi Fahrerhinweis m Uebernahme RSt not active Abbruch Hupen RSt not active Abbruch d Warnblinker moeglich not active Kombi Fahrerhinweis m Akustik not active Aktivierung Drehzahlanzeige not active Characteristics in production mode Headlamp washer system 2000 ms Roller test bench mode, functional --- not active Transport mode --- active Production mode Scheinwerferreinigung not active Heckwischer not active Innenbeleuchtung not active Aussenbeleuchtung not active Zugangskontrolle not active Virtuel pedal not active Deactivate production mode --- not active Keyless access and start authorization Kessy installed Elektische Lenkradverriegelung installed Kessy Komfort oeffnen active Kessy Komfort schliessen active Oeffnung Heckdeckel bei Wiederentriegelung active Kessy Komfortbedienung Reichweitenbegrenzung active Read parameter address Parameter address 0 Vernetzungs- Diagnosefunktionen can msg 1 0 can msg 2 0 can msg 3 0 can msg 4 0 lin msg 1 0 lin msg 2 0 lin msg 3 0 lin msg 4 0 lin msg 5 0 lin msg 6 0 LIN-Mirrormode mirror mode typ not active Data bus LIN 1 not active Data bus LIN 2 not active Data bus LIN 3 not active Data bus LIN 4 not active Data bus LIN 5 not active Data bus LIN 6 not active Activating and deactivating all development messages --- not active Energy management Hybridfahrzeug No Recuperation active Energiemanagement Abschaltung active Zweitbatterie not installed Energy Management Adaptation Energy management active Praediktives Energiemanagement not active Hochvoltfahrzeug not installed Personalisierung Personalisierung Profilfunkion profiles inactive Profil Variante Schluessel Personalisierung aktiv not active Aktivierungsoption im HMI-Menue sichtbar not active Benutzerkontenverwaltung in HMI-Menue sichtbar not active Personalisierungsfunktionen in HMI-Menue sichtbar not active Anzahl Benutzerkonten 4 Automatische Schluesselzuordnung not active PSO FSG Setup2 Bit 1 not active PSO FSG Setup2 Bit 2 not active PSO FSG Setup2 Bit 3 active PSO FSG Setup2 Bit 4 not active Verdecksteuergeraet Nachsaven nach Verdecklauf not active Komfortbedienung Verdeck global active Komfortbedienung Verdeck oeffnen active Komfortbedienung Verdeck schliessen active Verdeck oeffnen via Schliesszylinder active Verdeck schliessen via Schliesszylinder active Verdeck oeffnen via Funkfernbedienung active Verdeck schliessen via Funkfernbedienung active Verdeck oeffnen via Kessy active Verdeck schliessen via Kessy active Doppelpuls nur Verdeck active Verdeck mit Schiebedach not active Heckdeckel sperren bei Verdeckbetrieb not active Softtouch-Betaetigung senden immer Servoheck Schlossansteuerung nur wenn mind. 1 Raste zu Reichweitenbegrenzung fuer Servoheck schliessen active Cabrio Verdeck not installed trunk lid conrol unit installed Virtuelles Pedal Verbau not installed Virtuelles Pedal not active Virtuelles Pedal HMI einstellba not active easycloselight aktiv not active Kick and close not installed OCU OCU not installed DWA push not active Remote Unlock Lock not active Honk DWA Ausgabe Fanfare not active Remote Lock Unlock Timer s3 20.0 ms Remote Lock Unlock Timer s1 80 s Remote HuF Abbruch 20 km/h Remote HuF Hupfrequenz 3 Allwetterlicht_Spoiler tt spoiler not installed Spoiler Komfortsenken des Spoiler ueber Schliesszylinder FT active Spoiler Einfahrunterdrueckung nach manuellem Ausfahren active Slave_systems_identification Control Unit For Wiper Motor Not available Rain Light Recognition Sensor Not available Light Switch Not available Garage Door Opener Control Module Not available Garage Door Opener Operating Unit Not available Sensor For Anti Theft Alarm System Not available Alarm Horn Not available Sun Roof Not available Ceiling Light Module Not available Roof Blind Not available Relative Air Humidity Interior Sender Not available Neck Heating Left Not available Neck Heating Right Not available Seat Backrest Fan 1 Front Left Not available Seat Cushion Fan 1 Front Left Not available Seat Backrest Fan 1 Front Right Not available Seat Cushion Fan 1 Front Right Not available RLS_wiper_position_parking --- 15 s RLS_close_glazing --- 2.0 s RLS_lights_for_autobahn p v autobahn on 140 km/h p v autobahn off 65 km/h p t autobahn delay on 10 s p t autobahn delay off 120 s RLS_Washer_Front --- 15 s RLS_LIN_Communication --- 4 s RLS_tunel_gateway_recognize --- 5 s RLS_Lights_on_at_Rain p n regenlichtschwelle high 12 p n regenlichtschwelle low 6 p lx regenlichtschwelle 6000 lx p t regenlicht 30 s RLS_Night_Sensitivity p lx rs day 500 lx p lx rs dawn 200 lx upper turn position --- 157.494348 ° lower turn position --- 29.999970 ° Position during interval mode --- 29.999970 ° Alternating park position 1 --- 19.999980 ° Alternating park position 2 --- 24.494481 ° Service position --- 157.395447 ° Wischgeschwindigkeiten Dauerwischen Stufe 1 Zyklen pro Minute 40 Dauerwischen Stufe 2 Zyklen pro Minute 60 Reduzierte Wischgeschwindigkeit Zyklen pro Minute 30 Front_wash_function factor washing delay 17 erase_error_table --- 0 Wischer_Fehlermaske_Mitsuba_Entw error mask 0 bit Kopfraumheizung blower speed 1 temperature -2 LIN Ambient light color list Rotwert Farbe 1 lin 255 Gruenwert Farbe 1 lin 0 Blauwert Farbe 1 lin 0 Rotwert Farbe 2 lin 0 Gruenwert Farbe 2 lin 0 Blauwert Farbe 2 lin 0 Rotwert Farbe 3 lin 0 Gruenwert Farbe 3 lin 0 Blauwert Farbe 3 lin 0 Rotwert Farbe 4 lin 0 Gruenwert Farbe 4 lin 0 Blauwert Farbe 4 lin 0 Rotwert Farbe 5 lin 0 Gruenwert Farbe 5 lin 0 Blauwert Farbe 5 lin 0 Rotwert Farbe 6 lin 0 Gruenwert Farbe 6 lin 0 Blauwert Farbe 6 lin 0 Rotwert Farbe 7 lin 0 Gruenwert Farbe 7 lin 0 Blauwert Farbe 7 lin 0 Rotwert Farbe 8 lin 0 Gruenwert Farbe 8 lin 0 Blauwert Farbe 8 lin 0 Rotwert Farbe 9 lin 0 Gruenwert Farbe 9 lin 0 Blauwert Farbe 9 lin 0 Rotwert Farbe 10 lin 0 Gruenwert Farbe 10 lin 0 Blauwert Farbe 10 lin 0 Advanced identification Diagnostic mode --- VW - diagnostic mode ASAM/ODX file identification --- EV BCMMQB ASAM/ODX file version --- 017001 AUTOSAR Standard application software identification Standard software module Component protection on ISO TP Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 2 Secondary version number 0 Revision number 1 Standard software module BAP Software manufacturer ID Volkswagen AG Primary version number 1 Secondary version number 5 Revision number 2 Standard software module UDS - protocol Software manufacturer ID Volkswagen AG Primary version number 2 Secondary version number 0 Revision number 6 Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 2 Secondary version number 2 Revision number 2 Standard software module ISO15765-2 Software manufacturer ID Volkswagen AG Primary version number 2 Secondary version number 0 Revision number 2 Standard software module Operating system Software manufacturer ID NXP Semiconductors N.V. (Freescale Semiconductor Inc.) Primary version number 2 Secondary version number 1 Revision number 0 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 2 Identification of bus master/sub bus master ECU ID 9 ECU Name Central Electrics LOGICAL-LINK SHORT-NAME Central Electrics Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Programmability status Programmability programmable Program consistency Program present Serial number --- 02001614101021 Flash data security Hash value Not available Key enable mechanism Not available Key No Key type Series Project ID 00000433 Hash value --- Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Number of possible access authorizations --- 2 Software version for suppliers --- 45355F312E3F2030352E30342E31362046424C30342E303120505045352E3133204D4C46422D2D2D2D2D2D2D2D2D2048574D48333442205041526060 Vehicle equipment code --- 00000000094D35C8E67B68B9 Identification of parameterization Version number 00 SoftwareVersion --- 0236 Date of last adaptation Year 21 Month 7 Day 30 Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last coding Year 21 Month 7 Day 24 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Parameter set part number --- V03935242KL Parameterization date Year 16 Month 6 Day 7 Parameterization workshop code Device number 31 Importer number 770 Dealership number 73216 Parameter set version --- 0001 Hardware part number --- 5Q0937084CF HardwareVersion --- H34 FAZIT-identification Manufacture location index SME-RBG Day of manufacture 24.05.16 Manufacturer- test stand number 0011 Running manufacturer number 1832 Number of programming attempts Bootloader 0 Application 0 Data record 0 Maximum number of possible update programming Bootloader 65535 Application 65535 Data record 65535 Versions of software module Bootloader 0401 Application 0236 Data record 0236 VW/Audi part number --- 5Q0937084CF System description --- BCM MQBAB M+ System abbreviation --- J519 Known subsystems Subsystem designation Control Unit For Wiper Motor Subsystem number 1 Subsystem designation Rain Light Recognition Sensor Subsystem number 2 Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF FAZIT identification test sum CRC32 Checksum of FAZIT Identification String par 81F0FBFB26 Function Software Identification Standard software module Energiemanagment Software manufacturer ID AEV Audi Electronics Venture GmbH Version number 1101 Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 13 Adaptive Cruise Control System description: ACC BOSCH MQB Software number: 3Q0907572B Software version: 0194 Hardware number: 3Q0907572B Hardware version: H04 Backup name: Adaptive Cruise Control Long coding 3200600151FFC428949C8045 Adaptations Roller test bench mode, functional --- Not activated Deactivate production mode --- Deactivating Production mode --- Deactivating Heated lens --- On Activating and deactivating all development messages Development Message S100 Off Development Message S101 Off Development Message S102 Off Development Message ECU specific Off XCP on FlexRay Off Distance basic setting option --- On Expanded restart function --- Off Presentation mode --- not active Distance change via speed adjustment --- On Prioritized target object display --- On Sail function --- Deactivating Constant delay after transfer request --- Yes Selection of release codes for a SWaP function --- FFFFFFFF Transfer of release code for a SWaP function --- 00 Advanced identification Number of programming attempts Bootloader 0 Application 0 Maximum number of possible update programming Bootloader 10000 Application 10000 ISO TP block size in bootloader --- F Identification of connected components ID number 13 subsystem name Adaptive Cruise Control Bus message/node address 57 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Date of last coding Year 21 Month 7 Day 29 FAZIT-identification Manufacture location index RB8-658 Day of manufacture 17.05.16 Manufacturer- test stand number 0439 Running manufacturer number 0846 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 3Q0907572B SoftwareVersion --- 0194 Hardware part number --- 3Q0907572B System description --- ACC BOSCH MQB Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 2 Day 2 ASAM/ODX file identification --- EV ACCBOSCHVW48X Parameter set part number --- V03935242JJ Parameter set version --- 0001 ASAM/ODX file version --- 001009 HardwareVersion --- H04 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 31 Importer number 770 Dealership number 33281 Parameterization date Year 16 Month 6 Day 7 System abbreviation --- J428 Versions of software module Bootloader 0127 Application 0194 AUTOSAR Standard application software identification Standard software module E2E Library Software manufacturer ID TTTech Automotive GmbH Primary version number 1 Secondary version number 0 Revision number 5 Standard software module Component protection on ISO TP Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 2 Secondary version number 0 Revision number 1 Standard software module BAP Software manufacturer ID ICT Software Engineering GmbH Primary version number 1 Secondary version number 6 Revision number 7 Standard software module Software as Product (SWaP) Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 6 Secondary version number 2 Revision number 0 Identification of data sets Data set ID 7200 Data set version: V001 data set used by application Yes data set plausible Yes data set valid Yes Flash data security Hash value Not available Key enable mechanism Not available Key No Key type Series Project ID 00000525 Hash value --- --- 00 --- --- --- 2500000000 Programmability status Programmability programmable Program consistency Program present Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 15 Airbag System description: AirbagVW21 Software number: 5Q0959655AK Software version: 0130 Hardware number: 5Q0959655AK Hardware version: 005 Serial number: 003Q5R1TPBZX Backup name: Airbag Long coding 98CCC0C0000000005C5400CF004800000065 Adaptations Airbag adaptations Passenger airbag igniter activated Driver airbag igniter activated Front passenger side airbag igniter activated Driver thorax airbag igniter activated Front passenger rear thorax airbag igniter not defined Driver side rear thorax airbag igniter not defined Front passenger head curtain airbag igniter activated Driver head curtain airbag igniter activated Front passenger knee airbag igniter not defined Driver knee airbag igniter activated Reserved not defined Reserved activated Pedestrian protection igniter engine hood not defined Front passenger side seat belt tension igniter activated Driver side seat belt tension igniter activated Passenger side rear safety belt tension igniter activated Driver side rear safety belt tension igniter activated Igniter for battery interrupt not defined Rollover protection system not defined Key switch Airbag deactivation key switch installed Seat occupied recognition activated Reserved activated Reserved not defined Reserved activated Reserved activated Reserved activated Reserved not defined Reserved activated Reserved not defined Reserved activated Igniter for battery interrupt, high voltage battery not defined Reserved activated Calibration data, pre-crash Raw-Data 000000000000000000000000000000000000 Advanced identification Diagnostic mode --- VW - diagnostic mode ASAM/ODX file identification --- EV AirbaVW20SMEVW37X ASAM/ODX file version --- 002146 AUTOSAR Standard application software identification Standard software module BAP Software manufacturer ID Volkswagen AG Primary version number 1 Secondary version number 5 Revision number 0 Standard software module UDS - protocol Software manufacturer ID Continental AG Primary version number 1 Secondary version number 7 Revision number 0 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 29 Revision number 1 Standard software module ISO15765-2 Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 4 Revision number 19 Standard software module LIN 2.0 Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 68 Revision number 0 Standard software module Component protection on ISO TP Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 6 Secondary version number 0 Revision number 4 Identification of bus master/sub bus master ECU ID 15 ECU Name Airbag LOGICAL-LINK SHORT-NAME Airbag Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Date of manufacture Year 16 Month 6 Day 2 Manufacturer's test stand number --- 1568 Programmability status Programmability programmable Program consistency Program present Serial number --- 003Q5R1TPBZX Subassembly and series number --- 0814 Number of possible access authorizations --- 11 Identification of connected components ID number 15 subsystem name Airbag Bus message/node address 15 Hardware version for suppliers --- 3036 Vehicle equipment code --- 000000000000000000009180 Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Identification of parameterization Version number 11 Version number 12 Version number 00 Version number 11 Version number 11 Version number 21 Version number 00 Version number 11 Version number 21 Version number 11 Version number 00 Version number 12 Version number 21 Version number 12 Version number 92 Version number 22 Version number 11 Version number 11 SoftwareVersion --- 0130 Date of last adaptation Year 0 Month 0 Day 0 Adaptation workshop code Device number 0 Importer number 0 Dealership number 0 Date of last coding Year 16 Month 6 Day 7 Coding workshop code Device number 31 Importer number 770 Dealership number 33281 Number of parameterization attempts Data record 2 Number of successful parameterization attempts Data record 2 Parameter set part number --- 3V0003t Parameterization date Year 16 Month 6 Day 7 Parameterization workshop code Device number 31 Importer number 770 Dealership number 33281 Parameter set version --- 0041 Hardware part number --- 5Q0959655AK HardwareVersion --- 005 FAZIT-identification Manufacture location index TSR-TSR Day of manufacture 02.06.16 Manufacturer- test stand number 1568 Running manufacturer number 0814 VW/Audi part number --- 5Q0959655AK Manufacturer code --- TSR System description --- AirbagVW21 System abbreviation --- J234 Known subsystems Subsystem designation Side Sensor Driver Front Subsystem number A0 Subsystem designation Side Sensor Passenger Front Subsystem number A1 Subsystem designation Side Sensor Driver Rear Subsystem number A2 Subsystem designation Side Sensor Passenger Rear Subsystem number A3 Subsystem designation Front Sensor Driver Subsystem number A4 Passenger airbag igniter Device number 0 Importer number 0 Dealership number 0 Driver airbag igniter Device number 0 Importer number 0 Dealership number 0 Front passenger side airbag igniter Device number 0 Importer number 0 Dealership number 0 Driver thorax airbag igniter Device number 0 Importer number 0 Dealership number 0 Front passenger head curtain airbag igniter Device number 0 Importer number 0 Dealership number 0 Driver head curtain airbag igniter Device number 0 Importer number 0 Dealership number 0 Driver knee airbag igniter Device number 0 Importer number 0 Dealership number 0 Front passenger side seat belt tension igniter Device number 0 Importer number 0 Dealership number 0 Driver side seat belt tension igniter Device number 0 Importer number 0 Dealership number 0 Passenger side rear safety belt tension igniter Device number 0 Importer number 0 Dealership number 0 Driver side rear safety belt tension igniter Device number 0 Importer number 0 Dealership number 0 Igniter for battery interrupt Device number 0 Importer number 0 Dealership number 0 Key switch Device number 0 Importer number 0 Dealership number 0 Seat occupied recognition Device number 0 Importer number 0 Dealership number 0 Calibration data, pre-crash --- 000000000000000000000000000000000000 Workshop code, pre-crash calibration data Device number 31 Importer number 770 Dealership number 33281 ISO TP block size in bootloader Blocksize F Coding Coding 98CCC0C0000000005C5400CF004800000065 Coding 98CCC0C0000000005C5400CF004800000065 Igniter for battery interrupt, high voltage battery Device number 0 Importer number 0 Dealership number 0 FAZIT identification test sum Param to DOP 81118 0120E712EF Hardware part number for suppliers --- 94944300 Software version for suppliers --- V01.30 Number of programming attempts Bootloader 0 Application 0 Data record 0 Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Not available Not available Not available Not available Versions of software module Bootloader 0103 Application 0130 Data record Maximum number of possible update programming Bootloader 0 Application 100 Data record 0 Mileage: 372624 km Date: 2021-08-01 19:31:57 Backup 16 Steering Column System description: Lenks.Modul Software number: 5Q0953569A Software version: 0235 Hardware number: 5Q0953569A Hardware version: 075 Serial number: 20210116400094 Backup name: Steering Column Long coding 1014 Adaptations p_t_blinker_entprellen p t blinker entprellen 40 ms p_t_blinker_gra_entprellen p t blinker gra entprellen 40 ms p_t_fas_entprellen p t fas entprellen 40 ms p_t_wischer_entprellen p t wischer entprellen 40 ms p_t_wischer_intervall_entprellen p t wischer intervall entprellen 40 ms p_t_wischer_winterstellung p t wischer winterstellung 60 s p_t_grahebel_entprellen p t grahebel entprellen 40 ms p_t_hupe_entprellen p t hupe entprellen 40 ms p_s_NWDF_spg p s NWDF spg 0 ms p_t_hupe_indien_entprellen p t hupe indien entprellen 500 ms p_t_blinker_sperrzeit p t blinker sperrzeit 100 ms p_t_blinker_err_el_kurzschluss p t blinker err el kurzschluss 200 ms p_t_blinker_err_el_unterbrechung p t blinker err el unterbrechung 1000 ms p_t_blinker_err_unplausibel p t blinker err unplausibel 2000 ms p_t_blinker_err_lichthupe_haengt_ein p t blinker err lichthupe haengt ein 300 s p_t_blinker_err_lichthupe_haengt_aus p t blinker err lichthupe haengt aus 5000 ms p_t_blinker_err_fernlicht_haengt_ein p t blinker err fernlicht haengt ein 300 s p_t_blinker_err_fernlicht_haengt_aus p t blinker err fernlicht haengt aus 5000 ms p_t_blinker_err_gra_haengt_ein p t blinker err gra haengt ein 300 s p_t_blinker_err_gra_haengt_aus p t blinker err gra haengt aus 5000 ms p_t_wischer_err_el_kurzschluss p t wischer err el kurzschluss 200 ms p_t_wischer_err_el_unterbrechung p t wischer err el unterbrechung 1000 ms p_t_wischer_err_mfa_haengt_ein p t wischer err mfa haengt ein 300 s p_t_wischer_err_mfa_haengt_aus p t wischer err mfa haengt aus 5000 ms p_t_grahebel_err_el_kurzschluss p t grahebel err el kurzschluss 200 ms p_t_wischer_err_wischen_haengt_ein p t wischer err wischen haengt ein 300 s p_t_wischer_err_wischen_haengt_aus p t wischer err wischen haengt aus 5000 ms p_t_wischer_err_waschen_haengt_ein p t wischer err waschen haengt ein 300 s p_t_wischer_err_waschen_haengt_aus p t wischer err waschen haengt aus 5000 ms p_t_grahebel_err_el_unterbrechung p t grahebel err el unterbrechung 1000 ms p_t_grahebel_err_unplausibel p t grahebel err unplausibel 200 ms p_t_grahebel_err_gra_haengt_ein p t grahebel err gra haengt ein 300 s p_t_grahebel_err_gra_haengt_aus p t grahebel err gra haengt aus 5000 ms p_t_hupe_err_hupe_haengt_ein p t hupe err hupe haengt ein 60 s p_t_hupe_err_hupe_haengt_aus p t hupe err hupe haengt aus 5000 ms p_t_hupe_err_hinweis p t hupe err hinweis 2000 ms p_t_entprellzeit_unterspannung p t entprellzeit unterspannung 90000 ms p_t_entprellzeit_ueberspannung p t entprellzeit ueberspannung 90000 ms p_t_spannung_untere_schwelle p t spannung untere schwelle 6.5 V p_t_spannung_obere_schwelle p t spannung obere schwelle 18.0 V p_t_wischer_err_intervallpoti_haengt_ein p t wischer err intervallpoti haengt ein 300 s p_t_wischer_err_intervallpoti_haengt_aus p t wischer err intervallpoti haengt aus 5000 ms p_t_gra_ea_error p t gra ea error 2000 ms p_t_blinker_err_weckkontakthaengt_ein p t blinker err weckkontakthaengt ein 3000 ms p_t_blinker_err_weckkontakthaengt_aus p t blinker err weckkontakthaengt aus 5000 ms p_t_wischer_err_unplausibel p t wischer err unplausibel 200 ms p_t_spannung_obere_schwelle_funkt_einschr p t spannung obere schwelle funkt einschr 16.50 V p_t_spannung_untere_schwelle_funkt_einschr p t spannung untere schwelle funkt einschr 9.00 V p_t_entprellung_p_unplausibel p t entprellung p unplausibel 400 ms p_n_fehler_p_verriegelt p n fehler p verriegelt 50 Advanced identification Number of programming attempts Bootloader 1 Application 0 Data record 0 Number of parameterization attempts Data record 0 Number of successful parameterization attempts Data record 0 Maximum number of possible update programming Bootloader 1 Application 1000 Data record 1000 Workshop code and date of last update programming of SW module Year 13 Month 1 Day 25 Device number 8192 Importer number 258 Dealership number 1280 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Subassembly and series number --- 0094 Date of last coding Year 21 Month 2 Day 26 FAZIT-identification Manufacture location index URB-001 Day of manufacture 16.01.21 Manufacturer- test stand number P4PQ Running manufacturer number 0094 Manufacturer's test stand number --- P4PQ Manufacturer modification status Control module family - Decoration variant - Construction version --- Manufacture version --- Manufacturer code --- URB Identification of parameterization Version number -- Version number -- Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q0953569A SoftwareVersion --- 0235 Supplier identification --- VALEO BIETIGHEIM BISSINGEN, DE Date of manufacture Year 21 Month 1 Day 16 Serial number --- 20210116400094 Hardware part number --- 5Q0953569A Hardware part number for suppliers --- ---------- Hardware version for suppliers --- 30373520202020202020 Software version of suppliers --- 30323335 Software version for suppliers --- 20160203142623 System description --- Lenks.Modul Adaptation workshop code Device number 8192 Importer number 258 Dealership number 1280 Date of last adaptation Year 12 Month 10 Day 16 ASAM/ODX file identification --- EV SMLSVALEOMQB Parameter set part number --- ----------- Parameter set version --- ---- ASAM/ODX file version --- 001016 HardwareVersion --- 075 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 1048576 Importer number 0 Dealership number 44801 Parameterization workshop code Device number 0 Importer number 0 Dealership number 0 Parameterization date Year 0 Month 1 Day 1 System abbreviation --- J524 Versions of software module Bootloader 0095 Application 0235 Data record 0235 Number of possible access authorizations --- 3 AUTOSAR Standard application software identification Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 5 Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 2 Secondary version number 2 Revision number 2 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 9 Revision number 0 Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 2 Standard software module OSEK - operating system Software manufacturer ID Vector Informatik GmbH Primary version number 5 Secondary version number 1 Revision number 0 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 2 Standard software module Standard diagnostic services for UDS Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 2 Standard software module Bootloader/flasher (TP2.0/ISO TP) Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 3 Revision number 8 Programmability status Programmability programmable Program consistency Program present Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Mileage: 372624 km Date: 2021-08-01 19:31:58 Backup 17 Dashboard System description: KOMBI Software number: 3V0920751A Software version: 8311 Hardware number: 3V0920751A Hardware version: 304 Backup name: Dashboard Long coding 07A5011A2B80000801886A011000000000000000 Adaptations Day --- 1 d dimming_characteristic_curve_adjustment_middle_display_main_field X1 0 Y1 1 X2 A Y2 1 X3 46 Y3 6 X4 64 Y4 C X5 DC Y5 46 X6 FD Y6 64 time_parameter_display tDDWUP 0.00 tDD15 on 0.00 tDD15 off 0.30 hmi t Dreiter ms 2.0 s hmi t dummyMenuTimeout ms 5 s hmi t UhrTimeout ms 10 s hmi t MenuTimeout ms 255 s hmi t TWSAnz ms 3 s hmi t NextWarning ms 6 s hmi t NextServiceAnz ms 5 s hmi t P2Pause ms 900 s hmi t Quit ms 10 s hmi t FondGurt 35 s hmi t USZ 0.40 s hmi t FTuerAUF 300 ms hmi t P1Pause ms 20 s rollierblockgroesse 3 Distance --- 372624 km Picture_Upload_Download Picture Upload Download not active FIX: Distance covered since last mileage-dependent inspection --- 3400 km Fix: Max. distance until next mileage-related inspection --- 30000 km Offset for tank calibration values Offset sensor 1 -12.8 L Offset sensor 2 12.7 L Offset sensor 3 12.7 L Offset sensor 4 12.7 L Complete tank calibration -12.8 L Service notification in days --- 30 d SIA: maximum value of time to service --- 365 d Source for synchronization of time --- GPS Deactivate seat belt warning --- No Hour --- 19 h WIV: Resetting ESI --- no warning Oil temperature display --- On dimming_characteristic_curve_adjustment_indicator_lights X1 0 Y1 5 X2 A Y2 5 X3 32 Y3 C X4 64 Y4 17 X5 96 Y5 32 X6 FD Y6 64 FIX: Maximum time until next time-dependent inspection --- 365 d Day counter --- 1839 d FIX: Reset value for next mileage-dependent inspections --- 365 d MFA3-Reset MFI button RESET / OK Manual reset, not possible Refuel detection gasoline / diesel MFA3-Reset Refuel detection gas MFA3-Reset Electrical refueling detection MFA3-Reset SIA: maximum value of distance to service --- 15000 km Units adjusted Volume Liter Temperature Degrees Celsius Consumption gasoline / diesel - LPG (liquefied petroleum gas) Liters per 100 km Pressure Bar Distance Kilometers Speed Kilometers per hour Date dd mm yy Time 24h Operating range consumption, CNG (compressed natural gas) kg per 100 km Average consumption, electric drive kWh per 100 km Trailer/support load ground Kilogram (kg) SIE: minimum value km-driving distance/inspection --- 15000 km Activating and deactivating all development messages send messages not active Year --- 2021 a Month --- 8 mon Speed warning --- not active Unit Kilometers per hour Speed 150 FIX: Reset value for next mileage-dependent inspection --- 30000 km dimming_characteristic_curve_adjustment_gauge X1 0 Y1 3 X2 A Y2 3 X3 46 Y3 11 X4 64 Y4 1E X5 DC Y5 5A X6 FD Y6 64 Display depiction --- Version 1 outside_temperature p time constant pt1 40 s p speed threshold 20 km/h p kmt at delta 25 °C p blocking time after v bigger 0 15 s p storage time engine off 180 min p mileage after v bigger 0 5.0 km p ice warning exit temperature 6 °C p ice warning entry temperature 4 °C p tendency threshold 1.0 °C p time constant slow damping 2.0 p tendency damping 15 s Driving profiled for range remaining --- 7.7 l/100 km SIE: time from inspection --- 26 d FIX: Time since last time-dependent inspection --- 26 d SIE: maximum value km-driving distance/inspection --- 30000 km Service_Key_Clear_All_Counter clear all counter Yes dimming_characteristic_curve_adjustment_clock_dial_day X1 0 Y1 0 X2 32 Y2 0 X3 66 Y3 0 X4 96 Y4 A X5 DC Y5 32 X6 FD Y6 64 SIE: maximum value of time between inspections --- 730 d SIE: thermal load --- 2700 km SIE: distance driven from inspection --- 3477 km Service-key settings p write delay time 40 s p write delay speed 20 km/h p write distance 20 km p forcewrite qual time 10 s p main switch Keyless On p main switch Basic On p deactivate SK Function On WIV: minimum value of time between inspections --- 365 d SIE: soot entry --- 8700 km Display correction of consumptions and operating range --- 100 % Configuration of Development CAN-Messages Block 1 off Block 12 off Block 2 off Block 3 off Block 4 off Block 5 off Block 6 off Block 7 off Block 8 off Block 9 off Block 10 off Block 11 off Block 13 off Block 14 off Block 15 off Block 16 off Block 17 off Block 18 off Block 19 off Block 20 off Block 21 off Block 22 off Block 23 off Block 24 off Block 25 off Block 26 off Block 27 off Block 28 off Block 29 off Block 30 off Block 31 off Block 32 off Block 33 off Block 34 off Block 35 off Block 36 off Block 37 off Block 38 off Block 39 off Minute --- 21 min dimming_characteristic_curve_adjustment_clock_dial_night X1 0 Y1 3 X2 A Y2 3 X3 46 Y3 11 X4 64 Y4 1F X5 DC Y5 5A X6 FD Y6 64 Language version --- English SIE: oil quality --- Poor oil quality dimming_characteristic_curve_adjustment_internal_phototransistor X1 0 Y1 0 X2 32 Y2 3C X3 64 Y3 B4 X4 C8 Y4 DC X5 1F4 Y5 FD Digital speedometer --- Display BAP_Debug_Mode_Release Release not released Vehicle positioning system interface control module --- not installed Ignition active message, actuator --- Driver door defuel_threshold defuel threshold 9 L init_fuel_algorithm initialisation No Roller test bench mode, functional --- Not activated Gas_functionality Gas functionality not active total_range_gas state not active selection consumption factor consumption factor CAN consumption profile consumption profile calculation consumption factor 0.000 No-voltage display --- --- Cylinder shut-off --- Display Illumination_algorithm Pointer illumination algorithim terminal 58xd log bus parkinglight Scale switching algorithm parking light Service notification --- 30 d Statistic_phev_mileage --- 5 km Leaving_warning_delay Leaving warning delay 1.6 s Display of colour adjustment Red 0 Green 0 Blue 0 Scale_switching_algorithm --- lowbeam foglight Advanced identification Number of programming attempts Block 1 0 Block 2 0 Block 3 0 Block 4 0 Block 5 0 Block 6 0 Block 7 0 Block 8 0 Block 9 0 Block 10 0 Block 11 0 Block 12 0 Block 13 0 Block 14 0 Block 15 0 Maximum number of possible update programming Block 1 1000 Block 2 1000 Block 3 1000 Block 4 1000 Block 5 1000 Block 6 1000 Block 7 1000 Block 8 1000 Block 9 1000 Block 10 65535 Block 11 65535 Block 12 65535 Block 13 65535 Block 14 65535 Block 15 65535 Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Date of last coding Year 21 Month 7 Day 29 FAZIT-identification Manufacture location index VD1-048 Day of manufacture 29.05.16 Manufacturer- test stand number 7396 Running manufacturer number 3745 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 3V0920751A SoftwareVersion --- 8311 Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Hardware part number --- 3V0920751A System description --- KOMBI Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 7 Day 28 ASAM/ODX file identification --- EV DashBoardVDDMQBAB Parameter set part number --- ----------- Parameter set version --- ---- ASAM/ODX file version --- 009051 HardwareVersion --- 304 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 System abbreviation --- J285 Versions of software module Block 1 0086 Block 2 0010 Block 3 0005 Block 4 0010 Block 5 0007 Block 6 0006 Block 7 0006 Block 8 0006 Block 9 0007 Block 10 ---- Block 11 ---- Block 12 ---- Block 13 ---- Block 14 ---- Block 15 ---- Number of possible access authorizations --- 1 AUTOSAR Standard application software identification Standard software module Operating system Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 1 Revision number 0 Standard software module BAP Software manufacturer ID ICT Software Engineering GmbH Primary version number 1 Secondary version number 7 Revision number 1 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 2 Standard software module Component protection on ISO TP Software manufacturer ID Leopold Kostal GmbH & Co. KG Primary version number 6 Secondary version number 2 Revision number 3 Flash data security Hash value Not available Key enable mechanism Not available Key No Key type Series Project ID 000004FC Hash value --- Programmability status Programmability programmable Program consistency Program present Identification of parameterization Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Number of parameterization attempts Counter Value Block 1 0 Counter Value Block 2 0 Counter Value Block 3 0 Counter Value Block 4 0 Counter Value Block 5 0 Counter Value Block 6 0 Counter Value Block 7 0 Counter Value Block 8 0 Counter Value Block 9 0 Counter Value Block 10 0 Counter Value Block 11 0 Counter Value Block 12 0 Counter Value Block 13 0 Parameterization workshop code Device number 0 Importer number 0 Dealership number 0 Parameterization date Year 0 Month 1 Day 1 Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record changed Parameterizability Parameterizable Number of successful parameterization attempts Counter Value Block 1 0 Counter Value Block 2 0 Counter Value Block 3 0 Counter Value Block 4 0 Counter Value Block 5 0 Counter Value Block 6 0 Counter Value Block 7 0 Counter Value Block 8 0 Counter Value Block 9 0 Counter Value Block 10 0 Counter Value Block 11 0 Counter Value Block 12 0 Counter Value Block 13 0 ISO TP block size in bootloader --- F Identification of connected components ID number 17 subsystem name Dash Board Bus message/node address 14 Mileage: 372624 km Date: 2021-08-01 19:31:58 Backup 19 Gateway System description: GW MQB High Software number: 5Q0907530AM Software version: 2265 Hardware number: 5Q0907530M Hardware version: 212 Serial number: 30051610801229 Backup name: Gateway Long coding 0B0100045F087300EB0002481C0F00010001070000000000000000000000 Adaptations Installation list, specified installations Gateway coded Node 0x01 Not coded Node 0x02 Not coded Node 0x03 Not coded Node 0x04 Not coded Node 0x05 Not coded Node 0x06 Not coded Node 0x07 Not coded Node 0x08 Not coded Multifunction Module Not coded Parking Assistance coded Tire Pressure Monitoring 1 Not coded Steering Column Electronics coded Node 0x0D Not coded Central Electrics coded All Wheel Control Not coded Node 0x11 Not coded Steering Assistance coded Brakes 1 coded Dash Board coded Airbag coded Node 0x16 Not coded Node 0x17 Not coded Radio Not coded Air Conditioning Compressor Not coded Node 0x1A Not coded Head Up Display Not coded Actuator For Structure-Borne Sound Not coded Node 0x1D Not coded Lock Electronics Not coded Node 0x1F Not coded Node 0x20 Not coded Node 0x21 Not coded Node 0x22 Not coded Deck Lid Control Unit coded Node 0x24 Not coded Node 0x25 Not coded Node 0x26 Not coded Node 0x27 Not coded Node 0x28 Not coded Node 0x29 Not coded Node 0x2A Not coded Special Function 2 Not coded Special Function Not coded Electronic Roof Control Not coded Node 0x2E Not coded Node 0x2F Not coded High Beam Assistance Not coded Steering Column Locking coded Access Startsystem Interface coded Sliding Door Rear Left Not coded Sliding Door Rear Right Not coded Node 0x35 Not coded Node 0x36 Not coded Node 0x37 Not coded Node 0x38 Not coded Node 0x39 Not coded Node 0x3A Not coded Brake Boost Not coded Node 0x3C Not coded Node 0x3D Not coded Door Electronics Rear Driver Side Not coded Door Electronics Rear Passenger Side Not coded Node 0x40 Not coded Node 0x41 Not coded Thermal Management Not coded Node 0x43 Not coded Battery Charger Control Module Not coded Node 0x45 Not coded Air Conditioning coded Trailer Function Not coded Node 0x48 Not coded Node 0x49 Not coded Door Electronics Driver Side coded Door Electronics Passenger Side coded Seat Adjustment Driver Side coded Seat Adjustment Passenger Side Not coded Lane Change Assistant Not coded Front Sensors Driver Assistance System Not coded Vehicle Position Detection Not coded Node 0x51 Not coded Node 0x52 Not coded Node 0x53 Not coded Headlight Regulation coded Node 0x55 Not coded Node 0x56 Not coded Adaptive Cruise Control coded Node 0x58 Not coded Node 0x59 Not coded Node 0x5A Not coded Node 0x5B Not coded Node 0x5C Not coded Node 0x5D Not coded Node 0x5E Not coded Node 0x5F Not coded Node 0x60 Not coded Node 0x61 Not coded Node 0x62 Not coded Microphone Control Unit Not coded Actuator For Exterior Noise Not coded High Voltage Battery Charge Management Not coded Node 0x66 Not coded Telematics Communication Unit Not coded Node 0x68 Not coded Camera System Rear View Not coded Auxiliary Parking Heater Not coded Node 0x6B Not coded Node 0x6C Not coded TV Tuner Not coded Node 0x6E Not coded Sound System Not coded Media Player Position 1 Not coded Tachograph Not coded Wheel Dampening Electronics Not coded Information Control Unit 1 coded Node 0x74 Not coded Node 0x75 Not coded Engine Control Module 1 coded Transmission Control Module coded Node 0x78 Not coded Node 0x79 Not coded Node 0x7A Not coded Battery Energy Control Module Not coded Drive Motor Control Module Not coded Node 0x7D Not coded Node 0x7E Not coded Node 0x7F Not coded Node 0x80 Not coded Node 0x81 Not coded Node 0x82 Not coded Node 0x83 Not coded Control Module For Sunroof Not coded Starter / Generator Control Module Not coded Node 0x86 Not coded Node 0x87 Not coded Node 0x88 Not coded Node 0x89 Not coded Control Unit Lane Change Assistant 2 Not coded Node 0x8B Not coded Node 0x8C Not coded Node 0x8D Not coded Node 0x8E Not coded Node 0x8F Not coded Node 0x90 Not coded Node 0x91 Not coded Node 0x92 Not coded Node 0x93 Not coded Node 0x94 Not coded Node 0x95 Not coded Node 0x96 Not coded Node 0x97 Not coded Node 0x98 Not coded Node 0x99 Not coded Node 0x9A Not coded Node 0x9B Not coded Battery Energy Control Module 2 Not coded Node 0x9D Not coded Node 0x9E Not coded Node 0x9F Not coded Node 0xA0 Not coded Node 0xA1 Not coded Node 0xA2 Not coded Node 0xA3 Not coded Auxiliary Air Heater Not coded Node 0xA5 Not coded Node 0xA6 Not coded Node 0xA7 Not coded Node 0xA8 Not coded Multifunction Module Not coded Node 0xAA Not coded Node 0xAB Not coded Node 0xAC Not coded Node 0xAD Not coded Battery Regulation Auxiliary Accumulator 1 Not coded Node 0xAF Not coded Node 0xB0 Not coded Node 0xB1 Not coded Node 0xB2 Not coded Node 0xB3 Not coded Node 0xB4 Not coded Node 0xB5 Not coded Node 0xB6 Not coded Node 0xB7 Not coded Node 0xB8 Not coded Node 0xB9 Not coded Node 0xBA Not coded Node 0xBB Not coded Node 0xBC Not coded Node 0xBD Not coded Node 0xBE Not coded Node 0xBF Not coded Node 0xC0 Not coded Node 0xC1 Not coded Node 0xC2 Not coded Node 0xC3 Not coded Node 0xC4 Not coded Node 0xC5 Not coded Node 0xC6 Not coded Node 0xC7 Not coded Node 0xC8 Not coded Node 0xC9 Not coded Node 0xCA Not coded Node 0xCB Not coded Node 0xCC Not coded Node 0xCD Not coded Node 0xCE Not coded Node 0xCF Not coded Node 0xD0 Not coded Node 0xD1 Not coded Node 0xD2 Not coded Node 0xD3 Not coded Node 0xD4 Not coded Node 0xD5 Not coded Node 0xD6 Not coded Node 0xD7 Not coded Node 0xD8 Not coded Node 0xD9 Not coded Node 0xDA Not coded Node 0xDB Not coded Node 0xDC Not coded Node 0xDD Not coded Node 0xDE Not coded Node 0xDF Not coded Node 0xE0 Not coded Node 0xE1 Not coded Node 0xE2 Not coded Node 0xE3 Not coded Node 0xE4 Not coded Node 0xE5 Not coded Node 0xE6 Not coded Node 0xE7 Not coded Node 0xE8 Not coded Node 0xE9 Not coded Node 0xEA Not coded Node 0xEB Not coded Node 0xEC Not coded Node 0xED Not coded Node 0xEE Not coded Node 0xEF Not coded Node 0xF0 Not coded Node 0xF1 Not coded Node 0xF2 Not coded Node 0xF3 Not coded Node 0xF4 Not coded Node 0xF5 Not coded Node 0xF6 Not coded Node 0xF7 Not coded Node 0xF8 Not coded Node 0xF9 Not coded Node 0xFA Not coded Node 0xFB Not coded Node 0xFC Not coded Node 0xFD Not coded Node 0xFE Not coded Node 0xFF Not coded Battery adaptation Rated battery capacity 68 Ah Battery manufacturer JCB Battery serial number 1111111111 Battery technology Fleece Static current measuring mode --- Not activated Transport mode --- not active Component protection showroom mode --- not active GW_Enable_CAN_Timeout_DTC Gateway enabled Gateway Component List Failure Mask Node 0x01 enabled Gateway Component List Failure Mask Node 0x02 enabled Gateway Component List Failure Mask Node 0x03 enabled Gateway Component List Failure Mask Node 0x04 enabled Gateway Component List Failure Mask Node 0x05 enabled Gateway Component List Failure Mask Node 0x06 enabled Gateway Component List Failure Mask Node 0x07 enabled Gateway Component List Failure Mask Node 0x08 enabled Multifunction Module enabled Parking Assistance enabled Tire Pressure Monitoring 1 enabled Steering Column Electronics enabled Gateway Component List Failure Mask Node 0x0D enabled Central Electrics enabled All Wheel Control enabled Gateway Component List Failure Mask Node 0x11 enabled Steering Assistance enabled Brakes 1 not enabled Dash Board enabled Airbag not enabled Gateway Component List Failure Mask Node 0x16 enabled Gateway Component List Failure Mask Node 0x17 enabled Radio enabled Air Conditioning Compressor enabled Gateway Component List Failure Mask Node 0x1A enabled Head Up Display enabled Actuator For Structure-Borne Sound enabled Gateway Component List Failure Mask Node 0x1D enabled Lock Electronics enabled Gateway Component List Failure Mask Node 0x1F enabled Gateway Component List Failure Mask Node 0x20 enabled Gateway Component List Failure Mask Node 0x21 enabled Gateway Component List Failure Mask Node 0x22 enabled Deck Lid Control Unit enabled Gateway Component List Failure Mask Node 0x24 enabled Gateway Component List Failure Mask Node 0x25 enabled Gateway Component List Failure Mask Node 0x26 enabled Gateway Component List Failure Mask Node 0x27 enabled Gateway Component List Failure Mask Node 0x28 enabled Gateway Component List Failure Mask Node 0x29 enabled Gateway Component List Failure Mask Node 0x2A enabled Special Function 2 enabled Special Function enabled Electronic Roof Control enabled Gateway Component List Failure Mask Node 0x2E enabled Gateway Component List Failure Mask Node 0x2F enabled High Beam Assistance enabled Steering Column Locking enabled Access Startsystem Interface enabled Sliding Door Rear Left enabled Sliding Door Rear Right enabled Gateway Component List Failure Mask Node 0x35 enabled Gateway Component List Failure Mask Node 0x36 enabled Gateway Component List Failure Mask Node 0x37 enabled Gateway Component List Failure Mask Node 0x38 enabled Gateway Component List Failure Mask Node 0x39 enabled Gateway Component List Failure Mask Node 0x3A enabled Brake Boost enabled Gateway Component List Failure Mask Node 0x3C enabled Gateway Component List Failure Mask Node 0x3D enabled Door Electronics Rear Driver Side enabled Door Electronics Rear Passenger Side enabled Gateway Component List Failure Mask Node 0x40 enabled Gateway Component List Failure Mask Node 0x41 enabled Thermal Management enabled Gateway Component List Failure Mask Node 0x43 enabled Battery Charger Control Module enabled Gateway Component List Failure Mask Node 0x45 enabled Air Conditioning enabled Trailer Function enabled Gateway Component List Failure Mask Node 0x48 enabled Gateway Component List Failure Mask Node 0x49 enabled Door Electronics Driver Side enabled Door Electronics Passenger Side enabled Seat Adjustment Driver Side enabled Seat Adjustment Passenger Side enabled Lane Change Assistant enabled Front Sensors Driver Assistance System enabled Vehicle Position Detection enabled Gateway Component List Failure Mask Node 0x51 enabled Gateway Component List Failure Mask Node 0x52 enabled Gateway Component List Failure Mask Node 0x53 enabled Headlight Regulation enabled Gateway Component List Failure Mask Node 0x55 enabled Gateway Component List Failure Mask Node 0x56 enabled Adaptive Cruise Control enabled Gateway Component List Failure Mask Node 0x58 enabled Gateway Component List Failure Mask Node 0x59 enabled Gateway Component List Failure Mask Node 0x5A enabled Gateway Component List Failure Mask Node 0x5B enabled Gateway Component List Failure Mask Node 0x5C enabled Gateway Component List Failure Mask Node 0x5D enabled Gateway Component List Failure Mask Node 0x5E enabled Gateway Component List Failure Mask Node 0x5F enabled Gateway Component List Failure Mask Node 0x60 enabled Gateway Component List Failure Mask Node 0x61 enabled Gateway Component List Failure Mask Node 0x62 enabled Microphone Control Unit enabled Actuator For Exterior Noise enabled High Voltage Battery Charge Management enabled Gateway Component List Failure Mask Node 0x66 enabled Telematics Communication Unit enabled Gateway Component List Failure Mask Node 0x68 enabled Camera System Rear View enabled Auxiliary Parking Heater enabled Gateway Component List Failure Mask Node 0x6B enabled Gateway Component List Failure Mask Node 0x6C enabled TV Tuner enabled Gateway Component List Failure Mask Node 0x6E enabled Sound System enabled Media Player Position 1 enabled Tachograph enabled Wheel Dampening Electronics enabled Information Control Unit 1 enabled Gateway Component List Failure Mask Node 0x74 enabled Gateway Component List Failure Mask Node 0x75 enabled Engine Control Module 1 enabled Transmission Control Module enabled Gateway Component List Failure Mask Node 0x78 enabled Gateway Component List Failure Mask Node 0x79 enabled Gateway Component List Failure Mask Node 0x7A enabled Battery Energy Control Module enabled Drive Motor Control Module enabled Gateway Component List Failure Mask Node 0x7D enabled Gateway Component List Failure Mask Node 0x7E enabled Gateway Component List Failure Mask Node 0x7F enabled Gateway Component List Failure Mask Node 0x80 enabled Gateway Component List Failure Mask Node 0x81 enabled Gateway Component List Failure Mask Node 0x82 enabled Gateway Component List Failure Mask Node 0x83 enabled Control Module For Sunroof enabled Starter / Generator Control Module enabled Gateway Component List Failure Mask Node 0x86 enabled Gateway Component List Failure Mask Node 0x87 enabled Gateway Component List Failure Mask Node 0x88 enabled Gateway Component List Failure Mask Node 0x89 enabled Control Unit Lane Change Assistant 2 enabled Gateway Component List Failure Mask Node 0x8B enabled Gateway Component List Failure Mask Node 0x8C enabled Gateway Component List Failure Mask Node 0x8D enabled Gateway Component List Failure Mask Node 0x8E enabled Gateway Component List Failure Mask Node 0x8F enabled Gateway Component List Failure Mask Node 0x90 enabled Gateway Component List Failure Mask Node 0x91 enabled Gateway Component List Failure Mask Node 0x92 enabled Gateway Component List Failure Mask Node 0x93 enabled Gateway Component List Failure Mask Node 0x94 enabled Gateway Component List Failure Mask Node 0x95 enabled Gateway Component List Failure Mask Node 0x96 enabled Gateway Component List Failure Mask Node 0x97 enabled Gateway Component List Failure Mask Node 0x98 enabled Gateway Component List Failure Mask Node 0x99 enabled Gateway Component List Failure Mask Node 0x9A enabled Gateway Component List Failure Mask Node 0x9B enabled Battery Energy Control Module 2 enabled Gateway Component List Failure Mask Node 0x9D enabled Gateway Component List Failure Mask Node 0x9E enabled Gateway Component List Failure Mask Node 0x9F enabled Gateway Component List Failure Mask Node 0xA0 enabled Gateway Component List Failure Mask Node 0xA1 enabled Gateway Component List Failure Mask Node 0xA2 enabled Gateway Component List Failure Mask Node 0xA3 enabled Auxiliary Air Heater enabled Gateway Component List Failure Mask Node 0xA5 enabled Gateway Component List Failure Mask Node 0xA6 enabled Gateway Component List Failure Mask Node 0xA7 enabled Gateway Component List Failure Mask Node 0xA8 enabled Multifunction Module enabled Gateway Component List Failure Mask Node 0xAA enabled Gateway Component List Failure Mask Node 0xAB enabled Gateway Component List Failure Mask Node 0xAC enabled Gateway Component List Failure Mask Node 0xAD enabled Battery Regulation Auxiliary Accumulator 1 enabled Gateway Component List Failure Mask Node 0xAF enabled Gateway Component List Failure Mask Node 0xB0 enabled Gateway Component List Failure Mask Node 0xB1 enabled Gateway Component List Failure Mask Node 0xB2 enabled Gateway Component List Failure Mask Node 0xB3 enabled Gateway Component List Failure Mask Node 0xB4 enabled Gateway Component List Failure Mask Node 0xB5 enabled Gateway Component List Failure Mask Node 0xB6 enabled Gateway Component List Failure Mask Node 0xB7 enabled Gateway Component List Failure Mask Node 0xB8 enabled Gateway Component List Failure Mask Node 0xB9 enabled Gateway Component List Failure Mask Node 0xBA enabled Gateway Component List Failure Mask Node 0xBB enabled Gateway Component List Failure Mask Node 0xBC enabled Gateway Component List Failure Mask Node 0xBD enabled Gateway Component List Failure Mask Node 0xBE enabled Gateway Component List Failure Mask Node 0xBF enabled Gateway Component List Failure Mask Node 0xC0 enabled Gateway Component List Failure Mask Node 0xC1 enabled Gateway Component List Failure Mask Node 0xC2 enabled Gateway Component List Failure Mask Node 0xC3 enabled Gateway Component List Failure Mask Node 0xC4 enabled Gateway Component List Failure Mask Node 0xC5 enabled Gateway Component List Failure Mask Node 0xC6 enabled Gateway Component List Failure Mask Node 0xC7 enabled Gateway Component List Failure Mask Node 0xC8 enabled Gateway Component List Failure Mask Node 0xC9 enabled Gateway Component List Failure Mask Node 0xCA enabled Gateway Component List Failure Mask Node 0xCB enabled Gateway Component List Failure Mask Node 0xCC enabled Gateway Component List Failure Mask Node 0xCD enabled Gateway Component List Failure Mask Node 0xCE enabled Gateway Component List Failure Mask Node 0xCF enabled Gateway Component List Failure Mask Node 0xD0 enabled Gateway Component List Failure Mask Node 0xD1 enabled Gateway Component List Failure Mask Node 0xD2 enabled Gateway Component List Failure Mask Node 0xD3 enabled Gateway Component List Failure Mask Node 0xD4 enabled Gateway Component List Failure Mask Node 0xD5 enabled Gateway Component List Failure Mask Node 0xD6 enabled Gateway Component List Failure Mask Node 0xD7 enabled Gateway Component List Failure Mask Node 0xD8 enabled Gateway Component List Failure Mask Node 0xD9 enabled Gateway Component List Failure Mask Node 0xDA enabled Gateway Component List Failure Mask Node 0xDB enabled Gateway Component List Failure Mask Node 0xDC enabled Gateway Component List Failure Mask Node 0xDD enabled Gateway Component List Failure Mask Node 0xDE enabled Gateway Component List Failure Mask Node 0xDF enabled Gateway Component List Failure Mask Node 0xE0 enabled Gateway Component List Failure Mask Node 0xE1 enabled Gateway Component List Failure Mask Node 0xE2 enabled Gateway Component List Failure Mask Node 0xE3 enabled Gateway Component List Failure Mask Node 0xE4 enabled Gateway Component List Failure Mask Node 0xE5 enabled Gateway Component List Failure Mask Node 0xE6 enabled Gateway Component List Failure Mask Node 0xE7 enabled Gateway Component List Failure Mask Node 0xE8 enabled Gateway Component List Failure Mask Node 0xE9 enabled Gateway Component List Failure Mask Node 0xEA enabled Gateway Component List Failure Mask Node 0xEB enabled Gateway Component List Failure Mask Node 0xEC enabled Gateway Component List Failure Mask Node 0xED enabled Gateway Component List Failure Mask Node 0xEE enabled Gateway Component List Failure Mask Node 0xEF enabled Gateway Component List Failure Mask Node 0xF0 enabled Gateway Component List Failure Mask Node 0xF1 enabled Gateway Component List Failure Mask Node 0xF2 enabled Gateway Component List Failure Mask Node 0xF3 enabled Gateway Component List Failure Mask Node 0xF4 enabled Gateway Component List Failure Mask Node 0xF5 enabled Gateway Component List Failure Mask Node 0xF6 enabled Gateway Component List Failure Mask Node 0xF7 enabled Gateway Component List Failure Mask Node 0xF8 enabled Gateway Component List Failure Mask Node 0xF9 enabled Gateway Component List Failure Mask Node 0xFA enabled Gateway Component List Failure Mask Node 0xFB enabled Gateway Component List Failure Mask Node 0xFC enabled Gateway Component List Failure Mask Node 0xFD enabled Gateway Component List Failure Mask Node 0xFE enabled Gateway Component List Failure Mask Node 0xFF enabled Gateway Component List Failure Mask Node 0x00 enabled GW_mirror_mode mirror mode bus Databus drivetrain mirror mode typ not active MKE Check box --- activated WakeUpMonitor_Configuration Sample Time Keeping Awake Events 12 s Max Num Keeping Awake Events 100 WakeUpMonitor Start Delay 0 s WakeUpMonitor_Activation Activation activated Open Filter Activate Not activated Distance left for deactivation of static current measuring mode --- 2 Distance left for deactivation of transport mode --- 50 Roller test bench mode, functional Activation stages Not activated Malfunction states no error Deactivation of start-stop function --- Mode not active Auxiliary heater activation restriction request Switch on ban activation Mode not active Set point target time -- Energy management deactivation stage --- Mode not active EM_energy_management_warning_displays Generatormeldungen Mode not active Batteriemeldungen Mode not active MMI Vorwarnungen Mode not active Ladezustand Mode not active Energy management heat output control status --- Mode not active Increase idle speed request --- Mode not active Battery terminal recognition --- connected Hysteresis voltage Voltage lowering 12.1 V Voltage elevation 12.1 V EM_nominal_voltage_limitation_low_beams --- 12.1 V Generator specified voltage value variable Set point voltage 10.6 V EM_start_stop_requirement_ambient_temperature Minimum temperature -50.0 °C Maximum temperature -50.0 °C EM_requirement_reduction_air_blowers --- Mode not active EM_requirement_cyclic_time_voltage_measurement --- 0 s Production mode p mode deactivate recuperation Deactivating p mode deactivate mfl keys Deactivating Activating and deactivating all development messages Development messages not active GW_routing_0 --- 000000000000000000000000 GW_routing_1 --- 000000000000000000000000 GW_routing_2 --- 000000000000000000000000 GW_routing_3 --- 000000000000000000000000 GW_routing_4 --- 000000000000000000000000 GW_routing_5 --- 000000000000000000000000 GW_routing_6 --- 000000000000000000000000 GW_routing_7 --- 000000000000000000000000 GW_routing_8 --- 000000000000000000000000 GW_routing_9 --- 000000000000000000000000 Driving_Profile_Selection_Parameter Driving Profile Selection Toogle Time Adaptation 800 ms Driving Profile Selection Touch Contact Time Adaption 2500 ms Driving Profile Selection Indication Control Adaption 3000 ms Driving Profile Selection Kombi Offset Adaption 0 ms Driving Profile Selection Sync Time Adaptation 1500 ms Driving Profile Selection Request Repetition Time Adaptation 180000 ms Driving Profile Selection Fiddle Proofing Time Adaptation 10000 ms Driving Profile Selection Fiddle Proofing Limit Adaptation 100 Driving Profile Selection Fiddle Proofing Lock Adaptation 60000 ms Driving Profile Selection Counter Master Reset active Efficiency program display Live tip air resistance: close window/sunroof activated Live tip engine brake: uncouple not until below 1300 RPM activated Live tip do not operate gas pedal during engine start activated Live tip adhere to switch display (only manual switch) activated Live tip use start-stop-system activated Live tip switch on start-stop-system activated Live tip air conditioning: close window/sunroof activated Live tip use gearshift position D activated Live tip Do not press accelerator pedal at standstill activated Live tip sunroof open: switch of A/C (AC button) activated Live tip avoid engine warm-up at standstill activated Comfort use A/C activated Rear A/C System blower convenience consumption activated Comfort use parking heater activated Comfort use windshield heater activated Comfort use rear window heater activated Comfort use steering wheel heater activated Comfort use rear heater activated Comfort use mirror heater activated Comfort use front seat heater activated Comfort use rear seat heater Not activated Comfort use front seat ventilation activated Comfort use rear seat ventilation activated Comfort use fog light activated Comfort use rear fog light Not activated Dependence of ECO tips on driver profile selection ECO tips independent of driver profile selection Comfort use parking heater consumption emission activated Convenience consumption outer mirror heater dependency Until temperature threshold, with after-run, with switch Production process data 1 --- 0 Counter for inconsistent states --- 1099 Start/stop start voltage limit --- 7.8 V Transfer of release code for a SWaP function --- 00 Selection of release codes for a SWaP function --- FFFFFFFF AGW_Calibration AGW Time Fade In 0 ms AGW Time Fade Out 0 ms AGW Time Fade In Start 0 ms AGW Time Fade Out Start 0 ms AGW Time Start Sequence 0 ms AGW Time Start Delay 0 ms AGW Brightness Start Sequence 100 % AGW fade in deactivation threshold 100 AGW_Function_Releases AGW Enabling Brightness active AGW Enabling Flash Frequency active AGW Enabling Supression Symbol active Range gain PTC(low voltage) consumption Not activated Convenience consumption socket activated Outer mirror heater consumption in rear window heating Not activated Windshield heater consumption in AC system Not activated List at engine still stand activated List display absolute values with weighting Not activated Catalogue range display activated Loading condition catalogue range display activated A/C System blower manual convenience consumption Not activated Range gain AC system activated Range gain auxiliary heater activated Range gain window defogger activated Range gain seat heater front activated Range gain front set ventilation activated Range gain rear heater activated Range gain fog light activated Range gain rear fog light activated Range gain windshield heating activated Range gain steering wheel heater activated Range gain mirror heater activated Range gain rear seat heater activated Range gain rear seat heater activated Windshield heater range gain in AC system Not activated PTC(low voltage) range gain Not activated Number requests autonomous recharging --- 3 Cyclization limitation request battery service --- 0 EM_heating_power_quota_adjustment --- 1000 W Advanced identification Number of programming attempts Bootloader 0 Application 0 Data record 0 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Maximum number of possible update programming Bootloader 65535 Application 65535 Data record 0 Identification of bus master/sub bus master ECU ID 19 ECU Name Gateway LOGICAL-LINK SHORT-NAME Gateway Identification of connected components ID number 19 subsystem name Gateway Bus message/node address 10 Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Not available Not available Not available Not available Date of last coding Year 0 Month 1 Day 1 FAZIT-identification Manufacture location index SJ8-FST Day of manufacture 30.05.16 Manufacturer- test stand number 1080 Running manufacturer number 1229 Manufacturer modification status Control module family - Decoration variant - Construction version --- Manufacture version --- Identification of parameterization Version number -- Version number F4 Version number -- Version number -- Version number -- Version number 36 Version number -- Version number -- Version number -- Version number -- Version number -- Version number -- Version number 72 Version number -- Version number -- Version number -- Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q0907530AM SoftwareVersion --- 2265 Serial number --- 30051610801229 Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Hardware part number --- 5Q0907530M Hardware part number for suppliers --- 333530303731333036323136303730362D2D2D2D2D2D2D2D System description --- GW MQB High Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 0 Month 0 Day 0 ASAM/ODX file identification --- EV GatewConti Parameter set part number --- V03935242BS Parameter set version --- 0001 ASAM/ODX file version --- 013020 HardwareVersion --- 212 Vehicle equipment code --- 00000000BA5EA3E9846A1D81 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 18 Importer number 770 Dealership number 33281 Parameterization date Year 16 Month 6 Day 7 System abbreviation --- J533 Versions of software module Bootloader 2006 Application 2265 Data record Number of possible access authorizations --- 1 AUTOSAR Standard application software identification Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 2 Secondary version number 3 Revision number 3 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 1 Secondary version number 0 Revision number 3 Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 5 Standard software module Standard diagnostic services for UDS Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 2 Revision number 6 Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 16 Standard software module OSEK - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 2 Revision number 0 Flash data security Hash value Not available Key enable mechanism Not available Key No Key type Series Project ID 0000041A Hash value --- Programmability status Programmability programmable Program consistency Program present Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Mileage: 372624 km Date: 2021-08-01 19:31:58 Backup 2B Steering Column Lock System description: ELV-MQBB Software number: 3Q0905861 Software version: 0032 Hardware number: 3Q0905861 Hardware version: H05 Serial number: 16000112006001 Backup name: Steering Column Lock Long coding 0800000000000000 Adaptations Activating and deactivating all development messages Development messages not active Steering column lock unlocked --- unlock functional_check_manufacturer functional check manufacturer tested functional_check_steering_column_supplier functional check steering column supplier tested Advanced identification Number of programming attempts Bootloader 0 Application 0 CoCo 0 Maximum number of possible update programming Bootloader 1000 Application 1000 CoCo 1000 Identification of connected components ID number 2B subsystem name Steering Column Locking Bus message/node address 0 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Subassembly and series number --- 0202 Date of last coding Year 0 Month 0 Day 0 FAZIT-identification Manufacture location index MD9-MSR Day of manufacture 14.05.16 Manufacturer- test stand number 0605 Running manufacturer number 0202 Manufacturer code --- MD9 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 3Q0905861 SoftwareVersion --- 0032 Date of manufacture Year 16 Month 5 Day 14 Serial number --- 16000112006001 Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Hardware part number --- 3Q0905861 System description --- ELV-MQBB Adaptation workshop code Device number 0 Importer number 0 Dealership number 0 Date of last adaptation Year 0 Month 1 Day 1 ASAM/ODX file identification --- EV ELVMarquMQBB Parameter set part number --- ----------- Parameter set version --- ---- ASAM/ODX file version --- 001007 HardwareVersion --- H05 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 System abbreviation --- J764 Versions of software module Bootloader 0010 Application 0032 CoCo 0020 AUTOSAR Standard application software identification Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 3 Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 4 Secondary version number 1 Revision number 4 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 26 Revision number 2 Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 4 Standard software module OSEK - operating system Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 21 Revision number 0 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 2 Revision number 0 Standard software module Standard diagnostic services for UDS Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 2 Revision number 3 Flash data security Hash value Not available Key enable mechanism Not available Key No Key type Series Project ID 000004ED Hash value --- Programmability status Programmability programmable Program consistency Program present Immobilizer - Challenge --- C6684856 State of Immobilizer --- 020103A3000000000000 State of Immobilizer Slaves --- 04F80000000000000000 State Blocking Time --- 000000000000 CRC32 Checksum of FAZIT Identification String --- 8234C49893 Snapshot --- FFFFFFFFFFFFFF000000 ISO TP block size in bootloader --- F MQ Serial Number --- 4016000112006001 Platform coding value --- MQBB Free_Releases_Numbers --- 255 Manufacturer's test stand number --- 0605 Mileage: 372624 km Date: 2021-08-01 19:31:58 Backup 36 Driver Seat System description: Sitzmemory Software number: 5Q0959760B Software version: 0020 Hardware number: 5Q0959760B Hardware version: H07 Serial number: Y0006PES17037 Backup name: Driver Seat Long coding 0010000000000500018480808080000000008181000000D400 Adaptations installation position --- Memory seat driver side vehicle_velocity_monitoring --- active Advanced identification Number of programming attempts Bootloader 0 Application 0 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Maximum number of possible update programming Bootloader 1 Application 65534 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Subassembly and series number --- 7037 Date of last coding Year 21 Month 3 Day 26 FAZIT-identification Manufacture location index KO1-ABY Day of manufacture 28.05.16 Manufacturer- test stand number 1019 Running manufacturer number 7037 Manufacturer's test stand number --- 1019 Manufacturer code --- KO1 Identification of parameterization Version number 03 Version number 04 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q0959760B SoftwareVersion --- 0020 Supplier identification --- Kostal Date of manufacture Year 16 Month 5 Day 28 Serial number --- Y0006PES17037 Hardware part number --- 5Q0959760B Hardware part number for suppliers --- 10121326 Hardware version for suppliers --- H07 Software version of suppliers --- 10121326 Software version for suppliers --- APPL: 0020, FBL: 0010 System description --- Sitzmemory Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 3 Day 26 ASAM/ODX file identification --- EV SeatMemorDriveSide Parameter set part number --- ----------- Parameter set version --- ---- ASAM/ODX file version --- 002021 HardwareVersion --- H07 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 1048576 Importer number 0 Dealership number 1536 Parameterization date Year 95 Month 11 Day 1 System abbreviation --- J810 Number of possible access authorizations --- 1 Programmability status Programmability programmable Program consistency Program present Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable ISO TP block size in bootloader ISO TP block size in bootloader 15 Versions of software module Bootloader 0010 Application 0020 Mileage: 372624 km Date: 2021-08-01 19:31:58 Backup 42 Driver Door System description: TSG FS Software number: 5Q4959593E Software version: 0031 Hardware number: 5Q4959593B Hardware version: 010 Serial number: 0000201590746 Backup name: Driver Door Long coding 001D0920DE00040000001100 Adaptations Production mode Production mode 0 Window_Regulator_Supplier_Settings_Driver_Side_Rear_1 Parameter 000014832B14F0F0F0002000FC7C00140005066401F4320F0007800000073F8000B4000C000C00270050008900D10129017B04040301030703E80BB832050F2D507304049A3C091A36630083E0E7044E5370CA0003000C00AF016E5A01908507D010100014001403842710536D030010800C01FF9FFF0000000A010000009D42 Window_Regulator_Supplier_Settings_Driver_Side_Rear_2 Parameter 028A022614ECFF02020A0201000A053C0212190A0005F11E1E0F0005FB0A05FB120D00000000FF00000000FF002300191E201EFAD8C4F6FB281E320A1E00003203190C1210FAECD8F6FB1E1432000C00008202190E1614FAD8C4F6FB281E32080E000A280A0A2823050A281E00000000000000000000000000000000000010BD Patch_Code_Driver_Side_Rear Parameter 00FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF22FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF Window_Regulator_VW_Settings_Driver_Side_Rear Param to DOP 22811 F600F00010190F03F0080014C800000001A401C2096423C81E003232019000000000000000AF0000323CC8004E004D7964643260D36DCF641E320A0A5BD96DCF641432323214000037343031010000000000000000004C17 Deactivate production mode Deactivate production mode 0 Reversing_Threshold_Driver_Side_Front --- 90 % Reversing_Threshold_Driver_Side_Rear --- 90 % Advanced identification Number of programming attempts Bootloader 1 Application 0 Data record 1 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Maximum number of possible update programming Bootloader 1 Application 1000 Data record 1000 Identification of bus master/sub bus master ECU ID 42 ECU Name Door Electronics Driver Side LOGICAL-LINK SHORT-NAME Door Electronics Driver Side Identification of connected components ID number 42 subsystem name Door Electronics Driver Side Bus message/node address 4A Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 16 Month 6 Day 7 Device number 31 Importer number 770 Dealership number 33281 Programming status Correct result Date of last coding Year 0 Month 1 Day 1 FAZIT-identification Manufacture location index CU5-DCM Day of manufacture 25.05.16 Manufacturer- test stand number 0310 Running manufacturer number 418B Identification of parameterization Version number SK Version number 48 Version number 11 Version number 60 Version number 42 Version number 9D Version number 01 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q4959593E SoftwareVersion --- 0031 Serial number --- 0000201590746 Hardware part number --- 5Q4959593B System description --- TSG FS Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 1 Day 31 ASAM/ODX file identification --- EV DCUDriveSideEWMAXCONT Parameter set part number --- V03935241US Parameter set version --- 0001 ASAM/ODX file version --- 006001 HardwareVersion --- 010 Vehicle equipment code --- 0000000000000000000028AB Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 31 Importer number 770 Dealership number 33281 Parameterization date Year 16 Month 6 Day 7 System abbreviation --- J386 Versions of software module Bootloader 0204 Application 0031 Data record 0001 Number of possible access authorizations --- 2 AUTOSAR Standard application software identification --- Unknown Software manufacturer ID IAV GmbH Primary version number 2 Secondary version number 2 Revision number 2 Standard software module Flash EEPROM emulation Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 2 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 5 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 2 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 26 Revision number 2 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 2 Programmability status Programmability programmable Program consistency Program present Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record changed Parameterizability Parameterizable Mileage: 372624 km Date: 2021-08-01 19:31:58 Backup 44 Steering Assistance System description: MQB_PP_APA Software number: 5Q0909143M Software version: 2041 Hardware number: 5Q0909143E Hardware version: 204 Serial number: 0000827022 Backup name: Steering Assistance Long coding 01000010005000 Adaptations Activating and deactivating all development messages Development messages not active Activation of pwr steering asst without engine running --- not active Download without rest bus --- not active XCP calibration protocol --- not active Software end stop --- active Straight line running --- active Driving profile switchover --- Incremental, controlled over time Support power --- 100% Characteristic curve of steering assistance --- Not assigned Advanced identification Number of programming attempts Bootloader 1 Application 1 data block ASC 1 data block system 2 data block steering 3 Number of parameterization attempts Data record 3 Number of successful parameterization attempts Data record 2 Maximum number of possible update programming Bootloader 1 Application 999 data block ASC 999 data block system 999 data block steering 999 Identification of connected components ID number 44 subsystem name Steering Assistance Bus message/node address 12 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Subassembly and series number --- 0219 Date of last coding Year 0 Month 0 Day 0 FAZIT-identification Manufacture location index TT1-BUD Day of manufacture 24.05.16 Manufacturer- test stand number 0001 Running manufacturer number 0219 Manufacturer's test stand number --- 0001 Manufacturer code --- TT1 Identification of parameterization Number of data records 05 Version of system parameters 22 Vehicle type UZ Index characteristic curve 06 Version of characteristic curves 03 Version of memory map 03 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q0909143M SoftwareVersion --- 2041 Date of manufacture Year 16 Month 5 Day 24 Serial number --- 0000827022 Hardware part number --- 5Q0909143E System description --- MQB PP APA Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 32 Month 31 Day 30 ASAM/ODX file identification --- EV SteerAssisVWBSMQBA Parameter set part number --- 3V0074t Parameter set version --- 0016 ASAM/ODX file version --- 008028 HardwareVersion --- 204 Vehicle equipment code --- FFFFFFFFFFFFFFFFFFFFFFFE Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 2096927 Importer number 771 Dealership number 130817 Parameterization date Year 21 Month 2 Day 17 System abbreviation --- J500 Versions of software module Bootloader U504 Application 2041 Data record 0934 Number of possible access authorizations --- 2 AUTOSAR Standard application software identification Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 3 Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 2 Secondary version number 2 Revision number 2 Standard software module Standard diagnostic services for UDS Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 3 Standard software module Bootloader/flasher Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 2 Revision number 1 Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 1 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 18 Revision number 2 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 0 Standard software module XCP calibration protocol Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 24 Revision number 0 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 1 Secondary version number 0 Revision number 1 Programmability status Programmability programmable Program consistency Program present Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable ISO TP block size in bootloader --- 0F Vehicle Identification Number (VIN) --- 9796 Mileage: 372624 km Date: 2021-08-01 19:31:59 Backup 52 Passenger Door System description: TSG BFS Software number: 5Q4959592E Software version: 0031 Hardware number: 5Q4959592B Hardware version: 010 Serial number: 0000201904108 Backup name: Passenger Door Long coding 001D0320DE00040000001100 Adaptations Production mode Production mode 0 Window_Regulator_Supplier_Settings_Passenger_Side_Rear_1 Parameter 000014832B14F0F0F0002000FC7C00140005066401F4320F0007800000073F8000B4000C000C00270050008900D10129017B04040301030703E80BB832050F2D507304049A3C091A36630083E0E7044E5370CA0003000C000F016E5A01908507D010100014001403842710536D030010800C01FF9FFF0000000A01000000CECA Window_Regulator_Supplier_Settings_Passenger_Side_Rear_2 Parameter 028A022614ECFF02020A0201000A053C0212190A0005F11E1E0F0005FB0A05FB120D00000000FF00000000FF002300191E201EFAD8C4F6FB281E320A1E00003203190C1210FAECD8F6FB1E1432000C00008202190E1614FAD8C4F6FB281E32080E000A280A0A2823050A281E00000000000000000000000000000000000010BD Patch_Code_Passenger_Side_Rear Parameter 00FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF22FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF Window_Regulator_VW_Settings_Passenger_Side_Rear Param to DOP 22811 F600F00010190F03F0080014C800000001A401C2096423C81E003232019000000000000000AF0000323CC8004E004D7900003260D36DCF641E320A0A5BD96DCF641432323214000037343031010000000000000000004191 Deactivate production mode Deactivate production mode 0 Reversing_Threshold_Passenger_Side_Front --- 90 % Reversing_Threshold_Passenger_Side_Rear --- 90 % Advanced identification Number of programming attempts Bootloader 1 Application 0 Data record 1 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Maximum number of possible update programming Bootloader 1 Application 1000 Data record 1000 Identification of bus master/sub bus master ECU ID 52 ECU Name Door Electronics Passenger Side LOGICAL-LINK SHORT-NAME Door Electronics Passenger Side Identification of connected components ID number 52 subsystem name Door Electronics Passenger Side Bus message/node address 4B Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 16 Month 6 Day 7 Device number 31 Importer number 770 Dealership number 33281 Programming status Correct result Date of last coding Year 21 Month 5 Day 30 FAZIT-identification Manufacture location index CU5-DCM Day of manufacture 25.05.16 Manufacturer- test stand number 0210 Running manufacturer number 3220 Identification of parameterization Version number SK Version number 48 Version number 11 Version number 60 Version number 42 Version number 9D Version number 02 Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q4959592E SoftwareVersion --- 0031 Serial number --- 0000201904108 Hardware part number --- 5Q4959592B System description --- TSG BFS Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 4 Day 8 ASAM/ODX file identification --- EV DCUPasseSideEWMAXCONT Parameter set part number --- V03935241UT Parameter set version --- 0001 ASAM/ODX file version --- 006001 HardwareVersion --- 010 Vehicle equipment code --- 000000000000000000000D8B Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 31 Importer number 770 Dealership number 33281 Parameterization date Year 16 Month 6 Day 7 System abbreviation --- J387 Versions of software module Bootloader 0204 Application 0031 Data record 0001 Number of possible access authorizations --- 2 AUTOSAR Standard application software identification --- Unknown Software manufacturer ID IAV GmbH Primary version number 2 Secondary version number 2 Revision number 2 Standard software module Flash EEPROM emulation Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 2 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 5 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 2 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 26 Revision number 2 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 2 Programmability status Programmability programmable Program consistency Program present Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record changed Parameterizability Parameterizable Mileage: 372624 km Date: 2021-08-01 19:31:59 Backup 55 Headlight Regulation System description: AFS-ECU Software number: 7P6907357D Software version: 0090 Hardware number: 7P6907357A Hardware version: H07 Serial number: -------------- Backup name: Headlight Regulation Long coding 06DA00003F010000 Adaptations Reference_Run_Start_Condition --- Engine start PWM to Level Scaling Factor Front --- 3.47 mm/% PWM to Level Scaling Factor Rear --- 4.32 mm/% Presentation run dynamic AFS light --- active Presentation mode --- not active Adaptive light functions --- active Activate left/right hand drive switch-over --- not active Advanced identification Diagnostic mode --- VW - diagnostic mode ASAM/ODX file identification --- EV HeadlRegulVWAFSMQB ASAM/ODX file version --- 001120 AUTOSAR Standard application software identification --- Unknown Software manufacturer ID --- Primary version number 1 Secondary version number 2 Revision number 14 --- Unknown Software manufacturer ID IAV GmbH Primary version number 1 Secondary version number 2 Revision number 5 --- Unknown Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 26 Revision number 1 --- Unknown Software manufacturer ID --- Primary version number 1 Secondary version number 2 Revision number 15 Standard software module Flash EEPROM emulation Software manufacturer ID --- Primary version number 1 Secondary version number 1 Revision number 0 Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Manufacturer modification status Control module family - Decoration variant - Construction version --- Manufacture version --- Manufacturer's test stand number --- 0008 Programmability status Programmability programmable Program consistency Program present Serial number --- -------------- Subassembly and series number --- 2288 Engine code --- ---- Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Number of possible access authorizations --- 1 Identification of connected components ID number 55 subsystem name Headlight Regulation Bus message/node address 54 Vehicle equipment code --- 00000000000000000000005C Vehicle Identification Number (VIN) --- ----------------- Identification of parameterization Version number 02 SoftwareVersion --- 0090 Date of last adaptation Year 21 Month 7 Day 11 Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last coding Year 21 Month 7 Day 28 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Parameter set part number --- V03935240PZ Parameterization date Year 16 Month 6 Day 7 Parameterization workshop code Device number 31 Importer number 770 Dealership number 73216 Parameter set version --- 0001 Hardware part number --- 7P6907357A HardwareVersion --- H07 FAZIT-identification Manufacture location index SME-RBG Day of manufacture 23.05.16 Manufacturer- test stand number 0008 Running manufacturer number 2288 Number of programming attempts Bootloader 0 Application 0 Maximum number of possible update programming Bootloader 0 Application 0 Versions of software module Bootloader 0112 Application 0090 VW/Audi part number --- 7P6907357D Manufacturer code --- SME System description --- AFS-ECU System abbreviation --- J745 Known subsystems Subsystem designation Left Headlamp Power Output Stage Subsystem number 14 Subsystem designation Right Headlamp Power Output Stage Subsystem number 15 Mileage: 372624 km Date: 2021-08-01 19:31:59 Backup 5F Multimedia System description: MU-S-N-ER Software number: 5Q0035864B Software version: 0367 Hardware number: 5Q0035864B Hardware version: H30 Serial number: SKZAZ2S5070757 Backup name: Multimedia Long coding 03840101FF0000005111000100080A232F0100C401200100CE Adaptations Developer mode --- Not activated Confirmation of installation change Key B50C Check tone frequency High note frequency range 4000 Hz Medium note frequency range 1000 Hz Low note frequency range 100 Hz Electrical test of loudspeakers Mode automatic Parameter AC-Diagnostics Channel 1 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 1 Test Volume 36 Parameter AC-Diagnostics Channel 2 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 2 Test Volume 36 Parameter AC-Diagnostics Channel 3 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 3 Test Volume 36 Parameter AC-Diagnostics Channel 4 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 4 Test Volume 36 Parameter AC-Diagnostics Channel 5 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 5 Test Volume 36 Parameter AC-Diagnostics Channel 6 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 6 Test Volume 36 Parameter AC-Diagnostics Channel 7 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 7 Test Volume 36 Parameter AC-Diagnostics Channel 8 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 8 Test Volume 36 Parameter AC-Diagnostics Channel 9 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 9 Test Volume 36 Parameter AC-Diagnostics Channel 10 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 10 Test Volume 36 Parameter AC-Diagnostics Channel 11 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 11 Test Volume 36 Parameter AC-Diagnostics Channel 12 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 12 Test Volume 36 Parameter AC-Diagnostics Channel 13 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 13 Test Volume 36 Parameter AC-Diagnostics Channel 14 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 14 Test Volume 36 Parameter AC-Diagnostics Channel 15 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 15 Test Volume 36 Parameter AC-Diagnostics Channel 16 Test Frequency 19000 Hz Parameter AC-Diagnostics Channel 16 Test Volume 36 Production mode --- 000000 Deactivate production mode Number 1 for Info call --- FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF Number 1 for roadside assistance --- FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF Number 2 for roadside assistance --- FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF Number 2 for Info call --- FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF Base volume of speech output --- 50 % Base volume of telephone --- 50 % Microphone sensitivity --- 0 dB(A) Wheel pulse --- 0 Wheel circ. --- 0 mm Bluetooth --- On Bluetooth: Sniff mode --- Off Automatic ring break diagnostic --- No automatic start Sporadic ring break detection --- Visual Awakening ability on optical databus --- Off Selection of release codes for a SWaP function --- FFFFFFFF Fee-based traffic information (TMC) --- 1023 Infotainment recorder --- activated Dimming_Ambient_Illumination_Information_Control_Unit X1 0 Y1 0 X2 50 Y2 50 X3 100 Y3 100 Dimming_Ambient_Illumination_Operating_and_Display_Unit X1 0 Y1 0 X2 50 Y2 50 X3 100 Y3 100 Dimming_Illumination_for_Display_Unit X1 0 Y1 1 % X2 10 Y2 1 % X3 100 Y3 10 % X4 150 Y4 20 % X5 220 Y5 60 % X6 253 Y6 100 % p_HMI_Display p HMI Display 13 % p_damping_Display p damping Display 5 ms BAP_Debug_Mode_Release Release not released Startup_Screen_Sticker_HMI Startup Screen Sticker HMI 0 Vehicle_configuration VZAPro Off online POI Off online POI voice Off online portal browser services Off online navigation Off online street view Off WIFI Hotspot On my audi Off picture navi On online dictation Off remote HMI Off advanced range display Off gracenote online coverarts Off gracenote online other Off gracenote local coverarts On gracenote local other On UPnP On OPS display in dash board display unit Off Joker button 1 Not present Joker button 2 Not present LTE modul activated Support second phone On Support of threeway calling Off Dtmf without active call Off Support for response and hold Off Sim card mode switch Not present Phone module operation mode Data & language service active PSD Protocol Version PSD 1.5 RVC video input FBAS Station Logo DB Mode 1 TPEG availability Off VZO Off LGI Off ProbeCar vzo Off online media Off ProbeCar lgi Off Baidu Car Life Off Google GAL On Apple DIO On SDS Region Flag no region Privacy WithPINRequest 0 Phone HMI Privacy 0 Hybrid Radio additional online data Not activated media control Not activated UOTA Off WiFi Client HMI Off RSE software component activated Mirror link On Smartphone interface for rhmi activated sd slot deactivation no restriction map sms support Off map email support Off map instant messaging support Off sim data only sms support Off esim data only sms support Off allow message editing Off vehicle readiness sound Not activated MirrorLink Country Code MIB EU vehicle leaving sound Not activated MirrorLink RGB Preference RGB565 conditioning variant 0 Map Style 0 Hybrid Radio Range Extender deactivated scon telephony Not activated voice over lte Not activated show volte hmi switch Not activated online radio deactivated wlan 5ghz switch Not activated unblock functions while piloted driving blocked block hmi function p epb blocked Popup if GPS services in use Not activated Baidu Car Life ios Off Tencent myCar canceling share location Off UOTA 2 Off Pilot Parking Not activated perso v threshold 0 perso v threshold hysteresis 0 FoD SWaP Baidu Car Life Wireless Off Baidu Car Life ios Wireless Off Google GAL Wireless Off Apple DIO Wireless Off rvc low black screen velocity threshold Not activated rvc low failsafe Not activated rvc low black screen trunk open Not activated AliBox Off internet over WLAN default setting Off correction e mileage 0 Operating_and_Display_Unit_1_Proximity_Sensor_Basic_Adaptation Proximity Sensor Basic Adaptation 04015204521052405232006400C8002C01FA00C8001400140014001400FFFFFFFFFFFFFFFF010037 Radio_Level_Quality_Offsets Set AM Quality Level Offset 0 Set FM Quality Level Offset 0 Bluetooth_Phonebook_Access_Profile --- PBAP Summertime-automatic --- Manual Car_Function_Adaptations_Gen2 menu display ACC Not activated menu display ACC operation clamp 15 off Not activated menu display ACC over threshold high activated menu display ACC standstill Not activated menu display ACC after disclaimer Not activated menu display ambient illumination activated menu display ambient illumination clamp 15 off Not activated menu display ambient illumination over threshold high activated menu display ambient illumination standstill Not activated menu display ambient illumination after disclaimer Not activated menu display pdc activated menu display pdc clamp 15 off Not activated menu display pdc over threshold high activated menu display pdc standstill Not activated menu display pdc after disclaimer Not activated menu display awv activated menu display awv clamp 15 off Not activated menu display awv over threshold high activated menu display awv standstill Not activated menu display awv after disclaimer Not activated menu display Lane Departure Warning Not activated menu display Lane Departure Warning clamp 15 off Not activated menu display Lane Departure Warning over threshold high activated menu display Lane Departure Warning standstill Not activated menu display Lane Departure Warning after disclaimer Not activated menu display lane assistant Not activated menu display lane assistant clamp 15 off Not activated menu display lane assistant over threshold high activated menu display lane assistant standstill Not activated menu display lane assistant after disclaimer Not activated menu display exterior illumination activated menu display exterior illumination clamp 15 off Not activated menu display exterior illumination over threshold high activated menu display exterior illumination standstill Not activated menu display exterior illumination after disclaimer Not activated menu display windows activated menu display windows clamp 15 off Not activated menu display windows over threshold high activated menu display windows standstill Not activated menu display windows after disclaimer Not activated menu display clima configuration activated menu display clima configuration clamp 15 off Not activated menu display clima configuration over threshold high activated menu display clima configuration standstill Not activated menu display clima configuration after disclaimer Not activated menu display auxiliary heating Not activated menu display auxiliary heating clamp 15 off Not activated menu display auxiliary heating over threshold high activated menu display auxiliary heating standstill Not activated menu display auxiliary heating after disclaimer Not activated menu display board computer activated menu display board computer clamp 15 off Not activated menu display board computer over threshold high activated menu display board computer standstill Not activated menu display board computer after disclaimer Not activated menu display rdk activated menu display rdk clamp 15 off Not activated menu display rdk over threshold high activated menu display rdk standstill Not activated menu display rdk after disclaimer Not activated menu display wiper activated menu display wiper clamp 15 off Not activated menu display wiper over threshold high activated menu display wiper standstill Not activated menu display wiper after disclaimer Not activated menu display sia activated menu display sia clamp 15 off Not activated menu display sia over threshold high activated menu display sia standstill Not activated menu display sia after disclaimer Not activated menu display seat configuration activated menu display seat configuration clamp 15 off Not activated menu display seat configuration over threshold high activated menu display seat configuration standstill Not activated menu display seat configuration after disclaimer Not activated menu display central locking activated menu display central locking clamp 15 off Not activated menu display central locking over threshold high activated menu display central locking standstill Not activated menu display central locking after disclaimer Not activated menu display compass Not activated menu display compass clamp 15 off Not activated menu display compass over threshold high activated menu display compass standstill Not activated menu display compass after disclaimer Not activated menu display charisma Not activated menu display charisma clamp 15 off Not activated menu display charisma over threshold high activated menu display charisma standstill Not activated menu display charisma after disclaimer Not activated menu display oil level Not activated menu display oil level clamp 15 off Not activated menu display oil level over threshold high activated menu display oil level standstill Not activated menu display oil level after disclaimer Not activated menu display vin activated menu display vin clamp 15 off Not activated menu display vin over threshold high activated menu display vin standstill Not activated menu display vin after disclaimer Not activated menu display clock activated menu display clock clamp 15 off Not activated menu display clock over threshold high activated menu display clock standstill Not activated menu display clock after disclaimer Not activated menu display air damper Not activated menu display air damper clamp 15 off Not activated menu display air damper over threshold high activated menu display air damper standstill Not activated menu display air damper after disclaimer Not activated menu display headup display Not activated menu display headup display clamp 15 off Not activated menu display headup display over threshold high activated menu display headup display standstill Not activated menu display headup display after disclaimer Not activated menu display central unit master activated menu display central unit master clamp 15 off Not activated menu display central unit master over threshold high activated menu display central unit master standstill Not activated menu display central unit master after disclaimer Not activated menu display hybrid Not activated menu display hybrid clamp 15 off Not activated menu display hybrid over threshold high activated menu display hybrid standstill Not activated menu display hybrid after disclaimer Not activated menu display ugdo Not activated menu display ugdo clamp 15 off Not activated menu display ugdo over threshold high activated menu display ugdo standstill Not activated menu display ugdo after disclaimer Not activated menu display night vision Not activated menu display night vision clamp 15 off Not activated menu display night vision over threshold high activated menu display night vision standstill Not activated menu display night vision after disclaimer Not activated menu display side view Not activated menu display side view clamp 15 off Not activated menu display side view over threshold high activated menu display side view standstill Not activated menu display side view after disclaimer Not activated menu display reversible belt pre load Not activated menu display reversible belt pre load clamp 15 off Not activated menu display reversible belt pre load over threshold high activated menu display reversible belt pre load standstill Not activated menu display reversible belt pre load after disclaimer Not activated menu display MFL jocker Not activated menu display MFL jocker clamp 15 off Not activated menu display MFL jocker over threshold high activated menu display MFL jocker standstill Not activated menu display MFL jocker after disclaimer Not activated menu display road sign identification Not activated menu display road sign identification clamp 15 off Not activated menu display road sign identification over threshold high activated menu display road sign identification standstill Not activated menu display road sign identification after disclaimer Not activated menu display attention identification Not activated menu display attention identification clamp 15 off Not activated menu display attention identification over threshold high activated menu display attention identification standstill Not activated menu display attention identification after disclaimer Not activated menu display adaptive key Not activated menu display adaptive key clamp 15 off Not activated menu display adaptive key over threshold high activated menu display adaptive key standstill Not activated menu display adaptive key after disclaimer Not activated menu display car mirror activated menu display car mirror clamp 15 off Not activated menu display car mirror over threshold high activated menu display car mirror standstill Not activated menu display car mirror after disclaimer Not activated menu display driving school Not activated menu display driving school clamp 15 off Not activated menu display driving school over threshold high activated menu display driving school standstill Not activated menu display driving school after disclaimer Not activated menu display weariness recognition Not activated menu display weariness recognition clamp 15 off Not activated menu display weariness recognition over threshold high activated menu display weariness recognition standstill Not activated menu display weariness recognition after disclaimer Not activated menu display BCmE activated menu display BCmE clamp 15 off Not activated menu display BCmE over threshold high activated menu display BCmE standstill Not activated menu display BCmE after disclaimer Not activated menu display user eco rating activated menu display user eco rating clamp 15 off Not activated menu display user eco rating over threshold high activated menu display user eco rating standstill Not activated menu display user eco rating after disclaimer Not activated menu display Brake Function activated menu display Brake Function clamp 15 off Not activated menu display Brake Function over threshold high activated menu display Brake Function standstill Not activated menu display Brake Function after disclaimer Not activated menu display Start Stop reasons activated menu display Start Stop reasons clamp 15 off Not activated menu display Start Stop reasons over threshold high activated menu display Start Stop reasons standstill Not activated menu display Start Stop reasons after disclaimer Not activated menu display angle of slope Not activated menu display angle of slope clamp 15 off Not activated menu display angle of slope over threshold high activated menu display angle of slope standstill Not activated menu display angle of slope after disclaimer Not activated menu display battery management Not activated menu display battery management clamp 15 off Not activated menu display battery management over threshold high activated menu display battery management standstill Not activated menu display battery management after disclaimer Not activated menu display RearSeatEntertainment Not activated menu display RearSeatEntertainment clamp 15 off Not activated menu display RearSeatEntertainment over threshold high activated menu display RearSeatEntertainment standstill Not activated menu display RearSeatEntertainment after disclaimer Not activated menu display special functions Not activated menu display special functions clamp 15 off Not activated menu display special functions over threshold high activated menu display special functions standstill Not activated menu display special functions after disclaimer Not activated menu display trailer assistant Not activated menu display trailer assistant clamp 15 off Not activated menu display trailer assistant over threshold high activated menu display trailer assistant standstill Not activated menu display trailer assistant after disclaimer Not activated menu display TV Tuner Not activated menu display TV Tuner clamp 15 off Not activated menu display TV Tuner over threshold high activated menu display TV Tuner standstill Not activated menu display TV Tuner after disclaimer Not activated menu auxiliary climatization Not activated menu auxiliary climatization clamp 15 off Not activated menu auxiliary climatization over threshold high activated menu auxiliary climatization standstill Not activated menu auxiliary climatization after disclaimer Not activated menu display Pedestrian Assist Not activated menu display Pedestrian Assist clamp 15 off Not activated menu display Pedestrian Assist over threshold high Not activated menu display Pedestrian Assist standstill Not activated menu display Pedestrian Assist after disclaimer Not activated menu display Seat Pneumatic Not activated menu display Seat Pneumatic clamp 15 off Not activated menu display Seat Pneumatic over threshold high activated menu display Seat Pneumatic standstill Not activated menu display Seat Pneumatic after disclaimer Not activated menu display Curve Assist Not activated menu display Curve Assist clamp 15 off Not activated menu display Curve Assist over threshold high activated menu display Curve Assist standstill Not activated menu display Curve Assist after disclaimer Not activated menu display eCall Not activated menu display eCall clamp 15 off Not activated menu display eCall over threshold high Not activated menu display eCall standstill Not activated menu display eCall after disclaimer Not activated menu display ENI Not activated menu display ENI clamp 15 off Not activated menu display ENI over threshold high Not activated menu display ENI standstill Not activated menu display ENI after disclaimer Not activated menu display SportHMI Not activated menu display SportHMI clamp 15 off Not activated menu display SportHMI over threshold high Not activated menu display SportHMI standstill Not activated menu display SportHMI after disclaimer Not activated menu display Adblue Not activated menu display Adblue clamp 15 off Not activated menu display Adblue over threshold high Not activated menu display Adblue standstill Not activated menu display Adblue after disclaimer Not activated menu display Spoiler Not activated menu display Spoiler clamp 15 off Not activated menu display Spoiler over threshold high Not activated menu display Spoiler standstill Not activated menu display Spoiler after disclaimer Not activated menu display Efficiency Assist Not activated menu display Efficiency Assist clamp 15 off Not activated menu display Efficiency Assist over threshold high Not activated menu display Efficiency Assist standstill Not activated menu display Efficiency Assist after disclaimer Not activated menu display Display Configuration Not activated menu display Display Configuration clamp 15 off Not activated menu display Display Configuration over threshold high Not activated menu display Display Configuration standstill Not activated menu display Display Configuration after disclaimer Not activated menu soundcontrol Not activated menu soundcontrol clamp 15 off Not activated menu soundcontrol over threshold high Not activated menu soundcontrol standstill Not activated menu soundcontrol after disclaimer Not activated menu auxiliary ventilation Not activated menu auxiliary ventilation clamp 15 off Not activated menu auxiliary ventilation over threshold high Not activated menu auxiliary ventilation standstill Not activated menu auxiliary ventilation after disclaimer Not activated menu crossroad assistent Not activated menu crossroad assistent clamp 15 off Not activated menu crossroad assistent over threshold high Not activated menu crossroad assistent standstill Not activated menu crossroad assistent after disclaimer Not activated Car_Function_List_CAN_Gen2 MFL available MFL msg bus Databus Infotainment reserved Not available reserved 1 Comfort data bus Oil level Not available Oil level msg bus Databus drivetrain PDC audio lowering available PDC audio lowering msg bus Terminal 15 VIN available VIN msg bus Comfort data bus Driving school Not available Driving school msg bus Not available Adaptive key msg bus Comfort data bus Adaptive key Not available reserved 2 Comfort data bus reserved 3 Not available Car_Function_List_BAP_Gen2 climatic master 0x01 activated climatic master 0x01 msg bus Comfort data bus climatic slave 0x02 activated climatic slave 0x02 msg bus Comfort data bus auxilary heating 0x03 Not activated auxilary heating 0x03 msg bus Comfort data bus headup displ 0x04 Not activated headup displ 0x04 msg bus Comfort data bus ACC 0x05 Not activated ACC 0x05 msg bus Databus extended air suspension 0x06 Not activated air suspension 0x06 msg bus Suspension data bus tire pressure system 0x07 activated tire pressure system 0x07 msg bus Suspension data bus interieur light 0x08 activated interieur light 0x08 msg bus Comfort data bus exterieur light 0x09 activated exterieur light 0x09 msg bus Comfort data bus parking assist 0x0A activated parking assist 0x0A msg bus Terminal 15 VPS 0x0B Not activated VPS 0x0B msg bus Databus Infotainment wiper comfort 0x0C activated wiper comfort 0x0C msg bus Comfort data bus central locking 0x0D activated central locking 0x0D msg bus Comfort data bus mirror 0x0E activated mirror 0x0E msg bus Comfort data bus MFA 0x0F activated MFA 0x0F msg bus Comfort data bus driver seat 0x10 activated driver seat 0x10 msg bus Comfort data bus clock 0x11 activated clock 0x11 msg bus Comfort data bus service interval display 0x12 activated service interval display 0x12 msg bus Comfort data bus unit master 0x13 activated unit master 0x13 msg bus Comfort data bus UGDO 0x14 Not activated UGDO 0x14 msg bus Terminal 15 compass 0x15 Not activated compass 0x15 msg bus Databus Infotainment clima slave 2 0x16 Not activated clima slave 2 0x16 msg bus Comfort data bus charisma 0x17 Not activated charisma 0x17 msg bus Databus Infotainment Night Vision 0x18 Not activated Night Vision 0x18 msg bus CAB 9 LDW HCA 0x19 Not activated LDW HCA 0x19 msg bus Databus extended SWA 0x1A Not activated SWA 0x1A msg bus Databus extended AWV 0x1B activated AWV 0x1B msg bus Terminal 15 Hybrid 0x1D Not activated Hybrid 0x1D msg bus Databus drivetrain SideView 0x1E Not activated SideView 0x1E msg bus CAB 9 Reversible Seat Belt Tightener 0x1F Not activated Reversible Seat Belt Tightener 0x1F msg bus Databus drivetrain Passanger Seat 0x20 Not activated Passanger Seat 0x20 msg bus Comfort data bus traffic sign recognition 0x21 Not activated traffic sign recognition 0x21 msg bus Databus extended weariness rcognition 0x22 Not activated weariness rcognition 0x22 msg bus Databus Infotainment BCmE 0x23 activated BCmE 0x23 msg bus Databus Infotainment Brake 0x26 activated Brake 0x26 msg bus Suspension data bus Start Stop reasons 0x27 activated Start Stop reasons 0x27 msg bus Databus Infotainment Amplifier 0x2D Not activated Amplifier 0x2D msg bus CAB 9 TV tuner 0x2C Not activated TV tuner 0x2C msg bus Comfort data bus RearSeatEntertainment 0x2E Not activated RearSeatEntertainment 0x2E msg bus Comfort data bus MFL Jocker 0x34 Not activated MFL Jocker msg bus 0x34 CAB 9 Special Functions 0x35 Not activated Special Functions msg bus 0x35 Databus Infotainment Trailer Assistant 0x36 Not activated Trailer Assistant msg bus 0x36 Terminal 15 ExBoxM2 0x38 Not activated Range Data 0x39 Not activated Range Data msg bus 0x39 Databus Infotainment Angle Of Slope 0x24 Not activated Angle Of Slope 0x24 msg bus Comfort data bus Battery Management 0x25 Not activated Battery Management 0x25 msg bus Comfort data bus eCall 0x33 Not activated eCall 0x33 msg bus Comfort data bus ENI 0x37 Not activated ENI 0x37 msg bus Comfort data bus Pedestrian Assist 0x3A Not activated Pedestrian Assist msg bus 0x3A Databus extended Seat Pneumatic 0x3B Not activated Seat Pneumatic msg bus 0x3B Comfort data bus efficiency assist 0x3C Not activated efficiency assis msg bus 0x3C Databus extended Seatmemory driver rear 0x3E Not activated Seatmemory driver rear msg bus 0x3E Comfort data bus Seatmemory codriver rear 0x3F Not activated Seatmemory codriver rear msg bus 0x3F Comfort data bus ExBoxM2 0x38 msg bus Comfort data bus Navigation receiver GNSS configuration Default On GPS Off Galileo Off Glonass Off Compass Off external gps 1 Off external gps 2 Off Number 1 for roadside assistance --- 0000000000000000000000000000000000000000000000 Number 1 (roaming) for roadside assistance --- 0000000000000000000000000000000000000000000000 WLAN --- On Activating and deactivating all development messages Infotainment CAN Messages Off MIB CAN Messages Off Menu entries for mobile online services --- Not activated Interface for external media, activation Connection 1 activated Connection 2 activated Connection 3 Not activated Connection 4 Not activated Audio Management Input Gain Generation 2 TV tuner -128 Radio (FM) -128 Radio (AM) -128 Digital radio (DAB) -128 Satellite radio -128 Tuner TI -128 Media AUXIN -128 Media AUX Adapter -128 Media CDA -128 Media DVD -128 Media MFP -128 Media BTDevice -128 TA Tuner FM -128 Media Bluray -128 Media HDMI -128 Tuner Online -128 Media Airplay -128 Media UPNP -128 Media Cloud -128 Tuner Personal -128 Tone Beep -128 Tone Warning -128 Tone Touchscreen -128 Tone Messaging -128 Exbox DMB -128 Mirrorlink -128 TTS Nav -128 TTS SDS -128 Phone Voice -128 Phone Ringer MFP -128 Phone Ringer OB -128 HFP -128 TV AV IN -128 Installation list, specified installations Instrument cluster control module No Information electronics control module 2 No DVD changer No TV tuner No Digital Sound System Control Module No Radio No Information electronics control module 1 Yes Smart Display Carrier 1 No Windshield projection head up display control module No Multimedia Operating Unit No Wireless Charger 2 No Wireless Charger 1 No Smart Control Carrier 2 No Smart Control Carrier 1 No Smart Display Carrier 2 No reserved 8 No Country identification, country of sale HMI --- IS Locked menu contents FB TUNER 0 non blocked FB TUNER 1 non blocked FB TUNER 2 non blocked FB TUNER 3 non blocked FB TUNER 4 non blocked FB TUNER 5 non blocked FB TUNER 6 non blocked FB TUNER 7 non blocked FB TUNER 8 non blocked FB TUNER 9 non blocked FB TUNER 10 non blocked FB TUNER 11 non blocked FB TUNER 12 non blocked FB TUNER 13 non blocked FB TUNER 14 non blocked FB TUNER 15 non blocked FB MEDIA 0 non blocked FB MEDIA 1 non blocked FB MEDIA 2 non blocked FB MEDIA 3 non blocked FB MEDIA 4 non blocked FB MEDIA 5 non blocked FB MEDIA 6 non blocked FB MEDIA 7 non blocked FB MEDIA 8 non blocked FB MEDIA 9 non blocked FB MEDIA 10 non blocked FB MEDIA 11 non blocked FB MEDIA 12 non blocked FB MEDIA 13 non blocked FB MEDIA 14 non blocked FB MEDIA 15 non blocked FB MEDIA 16 non blocked FB MEDIA 17 non blocked FB MEDIA 18 non blocked FB MEDIA 19 non blocked FB MEDIA 20 non blocked FB MEDIA 21 non blocked FB MEDIA 22 non blocked FB MEDIA 23 non blocked FB PHONE 0 non blocked FB PHONE 1 non blocked FB PHONE 2 non blocked FB PHONE 3 non blocked FB PHONE 4 non blocked FB PHONE 5 non blocked FB PHONE 6 non blocked FB PHONE 7 non blocked FB PHONE 8 non blocked FB PHONE 9 non blocked FB PHONE 10 non blocked FB PHONE 11 non blocked FB PHONE 12 non blocked FB PHONE 13 non blocked FB PHONE 14 non blocked FB PHONE 15 non blocked FB NAV 0 non blocked FB NAV 1 non blocked FB NAV 2 non blocked FB NAV 3 non blocked FB NAV 4 non blocked FB NAV 5 non blocked FB NAV 6 non blocked FB NAV 7 non blocked FB NAV 8 non blocked FB NAV 9 non blocked FB NAV 10 non blocked FB NAV 11 non blocked FB NAV 12 non blocked FB NAV 13 non blocked FB NAV 14 non blocked FB NAV 15 non blocked FB NAV 16 non blocked FB NAV 17 non blocked FB NAV 18 non blocked FB NAV 19 non blocked FB NAV 20 non blocked FB NAV 21 non blocked FB NAV 22 non blocked FB NAV 23 non blocked FB NAV 24 non blocked FB NAV 25 non blocked FB NAV 26 non blocked FB NAV 27 non blocked FB NAV 28 non blocked FB NAV 29 non blocked FB NAV 30 non blocked FB NAV 31 non blocked FB NAV 32 non blocked FB NAV 33 non blocked FB NAV 34 non blocked FB NAV 35 non blocked FB NAV 36 non blocked FB NAV 37 non blocked FB NAV 38 non blocked FB NAV 39 non blocked FB CAR 0 non blocked FB CAR 1 non blocked FB CAR 2 non blocked FB CAR 3 non blocked FB CAR 4 non blocked FB CAR 5 non blocked FB CAR 6 non blocked FB CAR 7 non blocked FB CAR 8 non blocked FB CAR 9 non blocked FB CAR 10 non blocked FB CAR 11 non blocked FB CAR 12 non blocked FB CAR 13 non blocked FB CAR 14 non blocked FB CAR 15 non blocked FB CAR 16 non blocked FB CAR 17 non blocked FB CAR 18 non blocked FB CAR 19 non blocked FB CAR 20 non blocked FB CAR 21 non blocked FB CAR 22 non blocked FB CAR 23 non blocked FB MISC 0 non blocked FB MISC 1 non blocked FB MISC 2 non blocked FB MISC 3 non blocked FB MISC 4 non blocked FB MISC 5 non blocked FB MISC 6 non blocked FB MISC 7 non blocked FB MISC 8 non blocked FB MISC 9 non blocked FB MISC 10 non blocked FB MISC 11 non blocked FB MISC 12 non blocked FB MISC 13 non blocked FB MISC 14 non blocked FB MISC 15 non blocked FB MISC 16 non blocked FB MISC 17 non blocked FB MISC 18 non blocked FB MISC 19 non blocked FB MISC 20 non blocked FB MISC 21 non blocked FB MISC 22 non blocked FB MISC 23 non blocked FB MISC 24 non blocked FB MISC 25 non blocked FB MISC 26 non blocked FB MISC 27 non blocked FB MISC 28 non blocked FB MISC 29 non blocked FB MISC 30 non blocked FB MISC 31 non blocked FB MISC 32 non blocked FB MISC 33 non blocked FB MISC 34 non blocked FB MISC 35 non blocked FB MISC 36 non blocked FB MISC 37 non blocked FB MISC 38 non blocked FB MISC 39 non blocked FB MISC 40 non blocked FB MISC 41 non blocked FB MISC 42 non blocked FB MISC 43 non blocked FB MISC 44 non blocked FB MISC 45 non blocked FB MISC 46 non blocked FB MISC 47 non blocked Dashboard_Display_Configuration navigation map transmission mode off navigation map compression mode RLE navigation map resolution resolution 1 crossroad detail map transmission mode off crossroad detail map compression mode RLE coverart Off stationart Off call picture Off crossroad detail map resolution resolution 1 fastlist most Off ability switch nav maps Off dynamic icon 0 Roller test bench mode, functional --- Not activated Advanced identification Diagnostic mode --- VW - diagnostic mode ASAM/ODX file identification --- EV MUStd4CTSAT ASAM/ODX file version --- 001022 AUTOSAR Standard application software identification Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 2 --- Unknown Software manufacturer ID In2Soft GmbH Primary version number 1 Secondary version number 0 Revision number 1 Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 7 Standard software module Component protection on ISO TP Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 6 Secondary version number 2 Revision number 4 Standard software module BAP Software manufacturer ID ICT Software Engineering GmbH Primary version number 1 Secondary version number 7 Revision number 1 Standard software module MOST net services Software manufacturer ID --- Primary version number 0 Secondary version number 0 Revision number 0 Standard software module INIC config string version Software manufacturer ID --- Primary version number 0 Secondary version number 0 Revision number 0 Standard software module MOST firmware Software manufacturer ID --- Primary version number 0 Secondary version number 0 Revision number 0 Standard software module High Speed - Network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 0 Revision number 0 Identification of bus master/sub bus master ECU ID 5F ECU Name Information Control Unit 1 LOGICAL-LINK SHORT-NAME Information Control Unit 1 Consistency of EEPROM-data Error during last data record download Error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Date of manufacture Year 16 Month 5 Day 23 Manufacturer's test stand number --- 0310 Programmability status Programmability programmable Program consistency Program present Serial number --- SKZAZ2S5070757 Subassembly and series number --- 0007 Flash data security Hash value available Key enable mechanism available Key Yes Key type Series Project ID 00000536 Hash value D9DED95CE1C2F03EF23BBB39E866E0E66E43E753 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 21 Month 7 Day 22 Device number 60933 Importer number 3 Dealership number 12289 Programming status Correct result Year 0 Not available Not available Not available Not available Number of possible access authorizations --- 1 Identification of connected components ID number 5F subsystem name Information Control Unit 1 Bus message/node address 73 Vehicle equipment code --- FFFFFFFFFFFFFFFFFFFFFFFE Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Identification of parameterization Number of data records 50 DTCP dataset ** ASAM ODX MUX dataset -- hmi control speed dataset 05 language dataset 13 visible MMI language dataset 15 powermanagment timer dataset 20 audio parameter sound dataset 23 DAB frequency dataset ** audio parameter sound announcement dataset M3 audio managment mute hmi constant 11 audio parameter telephone MO audio parameter SDS ** audio parameter individual sound processing -- eco HMI dataset 00 audio parameter sound cabrio dataset -- audio parameter sound configuration dataset 41 speech signal enhancement dataset ** in car communication -- air quality ** reserved 20 ** reserved 21 ** reserved 22 ** reserved 23 ** reserved 24 ** reserved 25 ** reserved 26 ** reserved 27 ** reserved 28 ** reserved 29 ** reserved 30 ** reserved 31 ** reserved 32 ** reserved 33 ** reserved 34 ** reserved 35 ** reserved 36 ** reserved 37 ** reserved 38 ** reserved 39 ** reserved 40 ** reserved 41 ** reserved 42 ** reserved 43 ** reserved 44 ** reserved 45 ** reserved 46 ** reserved 47 ** reserved 48 ** reserved 49 ** reserved 50 ** SoftwareVersion --- 0367 Date of last adaptation Year 21 Month 7 Day 29 Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last coding Year 21 Month 7 Day 29 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Number of parameterization attempts DTCP dataset 65535 ASAM ODX MUX dataset 0 hmi control speed dataset 11 language dataset 2 visible MMI language dataset 2 powermanagment timer dataset 2 audio parameter sound dataset 2 DAB frequency dataset 65535 audio parameter sound announcement dataset 2 audio managment mute hmi constant 2 audio parameter telephone 2 audio parameter SDS 65535 audio parameter individual sound processing 0 eco HMI dataset 2 audio parameter sound cabrio dataset 0 audio parameter sound configuration dataset 2 speech signal enhancement dataset 65535 in car communication 0 reserved 19 65535 reserved 20 65535 reserved 21 65535 reserved 22 65535 reserved 23 65535 reserved 24 65535 reserved 25 65535 reserved 26 65535 reserved 27 65535 reserved 28 65535 reserved 29 65535 reserved 30 65535 reserved 31 65535 reserved 32 65535 reserved 33 65535 reserved 34 65535 reserved 35 65535 reserved 36 65535 reserved 37 65535 reserved 38 65535 reserved 39 65535 reserved 40 65535 reserved 41 65535 reserved 42 65535 reserved 43 65535 reserved 44 65535 reserved 45 65535 reserved 46 65535 reserved 47 65535 reserved 48 65535 reserved 49 65535 reserved 50 65535 Number of successful parameterization attempts DTCP dataset 65535 ASAM ODX MUX dataset 0 hmi control speed dataset 3 language dataset 2 visible MMI language dataset 2 powermanagment timer dataset 2 audio parameter sound dataset 2 DAB frequency dataset 65535 audio parameter sound announcement dataset 2 audio managment mute hmi constant 2 audio parameter telephone 2 audio parameter SDS 65535 audio parameter individual sound processing 0 eco HMI dataset 2 audio parameter sound cabrio dataset 0 audio parameter sound configuration dataset 2 speech signal enhancement dataset 65535 in car communication 0 reserved 19 65535 reserved 20 65535 reserved 21 65535 reserved 22 65535 reserved 23 65535 reserved 24 65535 reserved 25 65535 reserved 26 65535 reserved 27 65535 reserved 28 65535 reserved 29 65535 reserved 30 65535 reserved 31 65535 reserved 32 65535 reserved 33 65535 reserved 34 65535 reserved 35 65535 reserved 36 65535 reserved 37 65535 reserved 38 65535 reserved 39 65535 reserved 40 65535 reserved 41 65535 reserved 42 65535 reserved 43 65535 reserved 44 65535 reserved 45 65535 reserved 46 65535 reserved 47 65535 reserved 48 65535 reserved 49 65535 reserved 50 65535 Parameter set part number --- V03935296MG Parameterization date Year 21 Month 7 Day 26 Parameterization workshop code Device number 31 Importer number 770 Dealership number 73216 Parameter set version --- 0001 Hardware part number --- 5Q0035864B HardwareVersion --- H30 FAZIT-identification Manufacture location index YD7-002 Day of manufacture 23.05.16 Manufacturer- test stand number 0310 Running manufacturer number 0007 Number of programming attempts Bootloader 0 Application 1 Data record 0 Maximum number of possible update programming Bootloader 0 Application 0 Data record 0 Versions of software module Bootloader ---- Application 0367 Data record VW/Audi part number --- 5Q0035864B Manufacturer code --- YD7 System description --- MU-S-N-ER System abbreviation --- J794 Known subsystems Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Operating And Display Unit 1 Subsystem number E Subsystem designation Subsystem not coded Subsystem number FFFF Subsystem designation Data Medium Subsystem number 11 Subsystem designation Subsystem not coded Subsystem number FFFF FAZIT identification test sum CRC32 parameter 10D75AB9 Version dec 129 Overall version of navigation database Card reader 5L0051236CD;1510;ECE AS 2021 Card reader 2 nicht verfuegbar Optical drive nicht verfuegbar internal accumulator nicht verfuegbar Active source of navigation database --- SD1 Mileage: 372624 km Date: 2021-08-01 19:31:59 Backup 6D Deck Lid Control System description: HDSG-Modul Software number: 5Q0959107J Software version: 0253 Hardware number: 5Q0959107J Hardware version: H13 Serial number: 30712538900000 Backup name: Deck Lid Control Long coding 1008 Adaptations Program opening stop Program opening stop 2014 Offset for maximum programmable opening stop Offset for maximum programmable opening stop 20 Minimum opening height of tailgate Minimum opening height of tailgate 600 Offset for opening height after basic setting Offset for opening height after basic setting 0 Detection area upper Detection area upper 10 Opening height in production mode Opening height in production mode 60 % Activating and deactivating all development messages Activating and deactivating all development messages not active Deactivate production mode Deactivate production mode Deactivating Production mode Activation due to excessive pressure on rear lid not active Opening height in production mode not active Opening and closing rear lid not active Tone sensor not active Activation of rear lid with reduced speed not active Calibration not active Checking the rear lid button not active Tailgate reverse path Reverse path when closing 7 Reverse path when opening 4 Deactivation of tailgate Deactivation of tailgate active Dectivation of the luggage compartment cover Dectivation of the luggage compartment cover not active Deactivation of tailgate while in trailer operation Release button in rear lid handle active Using button to close lock. mechanism in tailgate handle active Button for opening rear lid in luggage compartment active Rear lid lock button in luggage compartment active Sensor for rear lid opening active Remote ctrl, opening with button for tailgate unlock. mechan. not active Remote ctrl, closing with button for tailgate unlock. mechan. not active Opening with button for remote unlocking of tailgate not active Closing with remote unl.button of tailgate when using a trailer not active Using sensor to open tailgate not active Using sensor to close tailgate not active Opening with button 2 for remote unlocking of rear lid not active Closing with remote unlock.butt.2 of rear lid when using trail. not active Ausstattungen aktivieren Engine 2 active Motor 2, sensor system active Tone sensor active Clamping strip 1 not active Clamping strip 2 not active Clamping strip 3 not active Clamping strip 4 not active Temperature sensor 1 active Temperature sensor 2 active Closing assist motor active Luggage compartment cover, tolerance of the block counter Luggage compartment cover, tolerance of the block counter 0 Luggage compartment cover, maximum no. of block drives Luggage compartment cover, maximum no. of block drives 0 Luggage compartment cover, reverse path after obstacle recogn. Open 0 Close 0 Luggage compartment cover, detection area Detection area lower 0 Detection area upper 0 Luggage compartment cover, adjust. track tolerance Luggage compartment cover, adjust. track tolerance 0 Luggage compartment cover, number bloom drives Luggage compartment cover, number bloom drives 0 Luggage compartment cover, excess limitation in exclusion area Luggage compartment cover, excess limitation in exclusion area not active Advanced identification Number of programming attempts Bootloader 0 Application 1 Maximum number of possible update programming Bootloader 1 Application 65535 ISO TP block size in bootloader --- F Identification of connected components ID number 6D subsystem name Deck Lid Control Unit Bus message/node address 23 Workshop code and date of last update programming of SW module Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Date of last coding Year 0 Month 0 Day 0 FAZIT-identification Manufacture location index TF7-MNL Day of manufacture 12.05.16 Manufacturer- test stand number 5007 Running manufacturer number 0011 Identification of data sets Data set ID 720A Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 720D Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 720E Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7210 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7211 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7215 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7216 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7217 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7218 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7219 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 721A Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 721B Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 721D Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 721E Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 721F Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7220 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7221 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7222 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7223 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Data set ID 7224 Data set version: 0142 data set used by application Yes data set plausible Yes data set valid Yes Diagnostic mode --- VW - diagnostic mode VW/Audi part number --- 5Q0959107J SoftwareVersion --- 0253 Hardware part number --- 5Q0959107J System description --- HDSG-Modul Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last adaptation Year 21 Month 6 Day 30 ASAM/ODX file identification --- EV DeckLidCONTIAU736 Parameter set part number --- V03935238KK Parameter set version --- 0001 ASAM/ODX file version --- 001012 HardwareVersion --- H13 Vehicle equipment code --- 000000000000000000000000 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Parameterization workshop code Device number 31 Importer number 770 Dealership number 33281 Parameterization date Year 16 Month 6 Day 7 System abbreviation --- J605 Versions of software module Bootloader 0192 Application 0253 AUTOSAR Standard application software identification Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 1 Revision number 3 Standard software module Status management processor Software manufacturer ID Vector Informatik GmbH Primary version number 7 Secondary version number 3 Revision number 2 Standard software module Management communication Software manufacturer ID Vector Informatik GmbH Primary version number 4 Secondary version number 21 Revision number 3 Standard software module Development error tracer Software manufacturer ID Vector Informatik GmbH Primary version number 5 Secondary version number 1 Revision number 0 Standard software module Standard diagnostic services for UDS Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 2 Revision number 3 Standard software module Generic network management Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 21 Revision number 2 Standard software module CAN network management Software manufacturer ID Vector Informatik GmbH Primary version number 4 Secondary version number 20 Revision number 2 Standard software module CAN transport layer Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 24 Revision number 0 Standard software module Protocol data unit router Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 19 Revision number 2 Standard software module Diagnosis communication manager (DCM) Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 2 Secondary version number 2 Revision number 4 Standard software module Diagnosis event manager (DEM) Software manufacturer ID Elektrobit Automotive GmbH (3SOFT GmbH) Primary version number 2 Secondary version number 2 Revision number 2 Standard software module CAN interface Software manufacturer ID Vector Informatik GmbH Primary version number 4 Secondary version number 19 Revision number 4 Standard software module BSW Mode Manager Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 5 Revision number 2 Standard software module Management CAN status Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 18 Revision number 4 Standard software module CAN driver Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 4 Revision number 0 Standard software module AUTOSAR COM Software manufacturer ID Vector Informatik GmbH Primary version number 3 Secondary version number 24 Revision number 2 Standard software module XCP Transport layer on CAN Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 7 Revision number 1 Standard software module XCP calibration protocol Software manufacturer ID Vector Informatik GmbH Primary version number 1 Secondary version number 31 Revision number 2 Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 4 Secondary version number 1 Revision number 6 Programmability status Programmability programmable Program consistency Program present Mileage: 372624 km Date: 2021-08-01 19:31:59 Backup 76 Parking Assistant System description: PARKHILFE 8K Software number: 5Q0919294L Software version: 0056 Hardware number: 5Q0919294A Hardware version: H03 Serial number: 39331614906693 Backup name: Parking Assistant Long coding 0071051051 Adaptations Speaker volume for rear park assist --- Stage 5 Speaker frequency for rear park assist --- Stage 3 Speaker volume for front park assist --- Stage 3 Speaker frequency for front park assist --- Stage 6 Audio reduction request --- On Park assist activation tone --- On Switch-off speed for parking assist --- 15 km/h Deactivation of start-stop function --- Start-stop function in control module active Production mode --- Deactivating Deactivate production mode --- Deactivating Advanced identification Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Serial number --- 39331614906693 Hardware part number --- 5Q0919294A Versions of software module Bootloader 0107 Application 0056 Data record 0056 Application 0056 Application 0056 Date of last adaptation Year 21 Month 7 Day 1 Number of programming attempts Bootloader 1 Application 0 Data record 0 Application 0 Application 0 Programmability status Programmability programmable Program consistency Program present Workshop code and date of last update programming of SW module Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 0 Day 0 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result FAZIT-identification Manufacture location index ATW-001 Day of manufacture 29.05.16 Manufacturer- test stand number EC03 Running manufacturer number 0154 System description --- PARKHILFE 8K ASAM/ODX file identification --- EV EPHVA18AU3700000 HardwareVersion --- H03 ASAM/ODX file version --- 002026 VW/Audi part number --- 5Q0919294L AUTOSAR Standard application software identification Standard software module BAP Software manufacturer ID --- Primary version number 1 Secondary version number 6 Revision number 0 Standard software module UDS - protocol Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 2 Standard software module CAN - driver Software manufacturer ID Vector Informatik GmbH Primary version number 2 Secondary version number 4 Revision number 6 Standard software module ISO15765-2 Software manufacturer ID In2Soft GmbH Primary version number 2 Secondary version number 0 Revision number 1 System abbreviation --- J446 Date of last coding Year 21 Month 4 Day 8 Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Diagnostic mode --- VW - diagnostic mode Manufacturer modification status Control module family - Decoration variant - Construction version --- Manufacture version --- SoftwareVersion --- 0056 Maximum number of possible update programming Bootloader 1 Application 10000 Data record 10000 Application 10000 Application 10000 Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record not changed Parameterizability Parameterizable Number of parameterization attempts Data record 1 Identification of parameterization Version number C2 Vehicle equipment code --- 000000000000000000003A2B Parameter set part number --- 3V0039t Parameter set version --- 0001 Number of successful parameterization attempts Data record 1 VW Application Data Set Structure Version number 27 Mileage: 372624 km Date: 2021-08-01 19:32:00 Backup B7 Start System Interface System description: VWKESSYMQB Software number: 3Q0959435E Software version: 0811 Hardware number: 3Q0959435E Hardware version: 036 Serial number: 0403751108 Backup name: Start System Interface Long coding 032C0C0723 Adaptations Control module switch-off, switch-off time Control module 20 min Data bus 30 min Deactivate production mode --- Deactivating Production mode Deactivation of automatic shutdowns of terminal 15 not active Deactivation of automatic rear lid opening not active Deactivation of terminal 50 request not active rpm_threshold_engine_runnning --- 100 1/min Number_of_ZAT_activations_to_DTC --- 10 Number_of_Multiple_ZAT_activations_to_emergency_shutoff --- 2 Display_duration_please_engage_P --- 10 s time_to_drive_cycle_detection --- 1.00 s Display_duration_emergency_off --- 3000 ms Display_duration_error_mode_2_SPN --- 10 s min_time_for_Terminal_50_request --- 200 ms Terminal_S_Timeout --- 30 min time_to_ignore_ignition_trigger --- 35 s delay_time_Terminal_15_S_Shut_down_by_BEM --- 120.00 s delay_time_Terminal_15_S_Shut_down_after_leaving_vehicle --- 300 ms time_ZAT_actuation_detection --- 3000 ms duration_ZAT_debounce --- 50 ms time_to_ZAT_Short_circuit_fault_detection --- 60 s duration_to_ZAT_continuous_actuation_detection --- 1000 ms duration_to_ZAT_multi_actuation_detection --- 3000 ms time_ZAT_lock_after emergency_shutoff --- 1000 ms time_ZAT_lock_after_normal_shutoff --- 500 ms time_to_ZAT_Open_circuit_detection --- 1000 ms Speed_threshold_for_moving_vehicle_detection --- 1.0 km/h Speed_threshold_for_driving_cycle_detection --- 3.0 km/h Speed_threshold_for_terminal_15_emergency_shutoff --- 7.0 km/h CAN_signal_transmitting_duration_of_automatic_Terminal_15_shutoff --- 1.00 s Ignition_For_Immobilizer --- Default Terminal_15_adaption_body_control_module --- Default Debounce_time_driver_presence --- 200 ms Debounce_time_detection --- 500 ms Timeframe_request_immobilizer_terminal_approval --- 10000 ms CAN_signal_transmitting_duration_of_comfort_switch_off --- 10.00 s CAN_signal_transmitting_delay_of_car_roll _away_warning --- 1.00 s Byte13_vit_lf vit exit Not activated vit evaluate inversbit Not activated toggle active Not activated toggle at open door Not activated lock via toggle by closed vehicle skin Not activated min_receptiontime_vit --- 0 ms Timeout_trigger_terminal_deactivation_central_locking --- 1.00 s Diagnostic: wait time after power on --- 500 ms CAN-timeout service-key message --- 260 ms LED dimming curve first point 20 percent dimming --- 4.0 % Delta value LED dimming curve first point 40 percent dimming --- 11.0 % Delta value LED dimming curve second point 60 percent dimming --- 23.0 % Delta value LED dimming curve third point 80 percent dimming --- 28.0 % Delta value LED dimming curve forth point 100 percent dimming --- 34.0 % Standard dimming value ZAT --- 80.0 % Correction value LED dimming --- 1.0 ZAT post-carridge during clamp 15 off --- 10 min ZAT nominal voltage --- 13.0 V ZAT init value --- 0.0 % Stop release for start-stop function --- According to function requirements Proximity Sensor: duration of proximity Signal --- 10 s Internal --- 0 B Passive Entry Exit: T_ACT_OP_2 --- 5000 ms Passive Entry Exit: minimum activity time locking sensor --- 140 ms Passive Entry Exit: PARA_T_TIMOUT_PROXIMITY_ENTRY --- 210 ms Passive Entry Exit: control by pulling the door handle during active DSL_timeout --- 2.00 s Passive Entry Exit: entry request e-sliding door active time --- 500 ms Initialization_diagnostics_switching_terminal --- Not activated Reduced current for transponder-ID request --- 0 Step MCTX settling phase --- 7 B MCTX pause --- 1 B MCTX pause for Go / Key Minder --- 20 ms MCTX pause for Go authentification --- 7 B Scan Procedure: Timeout Authentification Result --- 150 ms Scan Procedure: p_keyless_eventsuche_retries_pause --- 1000 ms Scan Procedure: Timeout LF Repetition --- 100 ms Scan Procedure: Number of Repeats --- 1 Scan Procedure: cycle convenience coverage limiting --- 65 ms Scan Procedure: timeout ID-transmitter ready-to-receive after LF-error Go --- 190 ms Scan Procedure: timeout ID-transmitter ready-to-receive after LF-error Kombi --- 700 ms Scan Procedure: current limiting on undervoltage at Go-protocol --- 5 Step ScanProcedure: Timeout Entry Response --- 260 ms ScanProcedure: Timeout Response --- 100 ms timeout_convenience_coverage_limiting --- 75 s internal_passive_entry_exit_byte1 lf crc Not activated Impairment Entry / Exit key on low battery Not activated Passive Exit: access door not open activated Passive Exit: all doors not open Not activated passive exit door slam lock Not activated internal_passive_entry_exit_byte2 Passive Entry Exit: control by pulling door handle during active DSL activated Passive Entry Exit activated Passive Entry: second control concept Not activated Passive Entry Exit: retry with antennastep 1 Not activated Passive Entry bei Tuer verriegelt/gesafed ODER ZV ist gesafed activated lf shutdown Not activated lf shutdown gotrigger Not activated internal_keyminder_byte1 Seat Memory: scan after driver door opening Not activated Seat Memory: scan after driver door opening no KESSY unlocking activated Softtouch mounted installed Cyclic interior scan during active warning message "Key not found" Not activated allowa remotestart to disable keys Not activated aktivate function trigger access leaving elv activated internal_keyminder_byte2 No locking with ID-transmitter last used interior activated Re-open after passive comfort closing activated Re-open last handling Not activated Re-open tailgate activated Lock prevention tailgate activated Inhibit ID-transmitter for passive go activated DeveloperCoding: Search lights ZAT active during clamp 58t on activated Standardisation of ZAT activated ZAT detecting open load Not activated ZAT illumination modus mybeat clamp58xt Not activated ZAT illumination concept mybeat clamp58xt Not activated DeveloperCoding: vehicle environment Steering wheel Left-hand drive Convertible Not activated Pre Catch for Trunk Not activated reactivate all doorhandles Not activated DeveloperCoding: Passiv Go Passive Go activated GO only via antenna IN1 if tailgate open Not activated GO only via antenna IN1 if sliding door open Not activated Passive Go: tailgate authorized to start activated Impairment go on a low key battery Not activated Sonstiges_byte1 Backdoor TSG Not activated Response extension for scan procedure Not activated Diagnostic: service 86 - response on event Not activated Internal Not activated Use default antenna data Not activated Battery manager mounted activated Scan Procedure: timeoutcontrol active activated DeveloperCoding: Proximity Sensor AUDI doorknobs mounted Not activated Proximity Sensor: sensor stays active after fault detection Not activated Detection of an repeated failed doorknob actuation activated Suppress fault manager entry "Falschverbau aktiv" activated No turn off for driver doorknob while passive activated energized doorhandles at stateKL15on when opening door activated Byte9_VIP active vip Not activated vip activation on clamp15 Not activated vip deactivation on running engine Not activated Hitch trailer installation Not activated Coding kick and close function Not activated Coding easyclose locking Not activated ECL Start ueber ViP Not activated sonstiges_byte2 interiorscan clamp15 reach trashhold activated sad existing Not activated trunk ecu existing Not activated Byte12_diverse environment scan step1 Not activated environment scan step2 Not activated interior scan clamp 15 new concept activated exeption drivers doors interior scan Not activated suppression access detection for remotestart Not activated open cabrio canopy interior scan Not activated proximity Sensor: max. length of Diagnosticimpuls --- 71 ms proximity Sensor: max. length of Entryimpuls --- 10400 µs Proximity Sensor: max. length of Exitimpuls --- 40400 µs Proximity Sensor: max. Impulslength of proximity-Impuls --- 20400 µs Proximity Sensor: max. Impulslength --- 75 ms Proximity Sensor: max. intermission-length Diagnostic --- 14 ms Proximity Sensor: upper limit intermission-length --- 10 ms Proximity Sensor: max. signal-length --- 120 s Proximity Sensor: min. length of Diagnosticimpuls --- 42 ms Proximity Sensor: min. length of Entryimpuls --- 6200 µs Proximity Sensor: min. length of Exitimpuls --- 24200 µs Proximity Sensor: lower limit proximity-Impuls --- 12200 µs Proximity Sensor: lower limit Impuls --- 2000 µs Proximity Sensor: max. length of signal hall sensor --- 100 s Doorknob contact sensor disconnecting time --- 5400 min Time Sensor Power Off Group 2 --- 3600 min Proximity Sensor: Time Power On --- 1960 ms Key Minder: delay reunlocking tailgate --- 500 ms Proximity Sensor: SP_X2 --- 10 min Proximity Sensor: SP_X3 --- 1 Proximity Sensor: SP_X4 --- 80 Proximity Sensor: SP_X5 --- 1 Proximity Sensor: SP_X6 --- 30 min Proximity Sensor: SP_X7 --- 1 Proximity Sensor: Timervalue for ExitReverseOption --- 0 ms Proximity Sensor: Comfort Exit-Enlargement --- 200 ms Proximity Sensor: turn-off limit from battery-manager --- 2 Proximity Sensor: min. enginespeed for a running engine --- 300 1/min Proximity Sensor: min Vehiclespeed for a driving vehicle --- 20.0 km/h Proximity Sensor: max Vehiclespeed for a standing vehicle --- 10.0 km/h Proximity Sensor: min. tolerance data bit length --- 120 µs Proximity Sensor: max. tolerance data bit length --- 200 µs deactivation_time_vip_slidingdoor --- 15 s Time_frame_VIP_kick_forecast --- 5 Voltage monitoring: undervoltage for Keyless Go --- 6000 mV Voltage monitoring: undervoltage Delta --- 500 mV Voltage monitoring: undervoltage Jumpstart 1 Delta --- 0 mV Voltage monitoring: undervoltage for KESSY ECU --- 9000 mV Voltage monitoring: overvoltage for KESSY ECU --- 16000 mV Voltage monitoring: overvoltage for Keyless Go --- 27000 mV Voltage monitoring: overvoltage Delta --- 500 mV Voltage monitoring: overvoltage Jumpstart 2 Delta --- 0 mV Cycletime for voltage monitoring during sleepmode --- 100 ms settime_trigger_exit_vehicle --- 500 ms settime_trigger_entry_vehicle --- 500 ms Key Minder: p_keyless_eventsearch_holding_time --- 10 s Interior scan: opening threshold window lifter --- 5.0 % Interior scan: opening threshold sliding roof --- 1.0 % Interior scan: Speed - threshold --- 20 km/h Interior scan: max. engine speed for standing engine --- 10 km/h Key Minder: p_keyless_eventsearch_retries --- 4 Interior scan: deceleration after comfort closing --- 3200 ms Cyclic interior scan during clamp 15 on --- 10 s environment_scan_duration_step1 --- 300 min environment_scan_cyclic_step1 --- 700 ms environment_scan_duration_step2 --- 24 h environment_scan_cyclic_step2 --- 2000 ms environment_scan_responselevel_reduction --- 500 environment_scan_level_bem --- 2 environment_scan_startdelay_time --- 5 s Deactivation of start-stop function --- not active Control module rear lid opening, duration status query --- 4960 ms Control module rear lid opening, vehicle type --- FE Easy_close_detection_areas Easy close antenna current step E Easy close open door antenna current step 5 Value area 4 70 V/m Value area leaving area 65 V/m Easy_close_alignment RSSI sample rate 500 ms Timeframe scan active 20.00 s Min threashold trunk 70 % Max time IDGeber rear 2.00 s max threashold reopen EasyClose 30 % max time reentry EasyClose 5.00 s min rssi values hysteresis EasyClose 150 Activating and deactivating all development messages Development messages not active ZAT_motor_signal_timer_1 Time 3000 ms ZAT_motor_signal_timer_2 Time 3000 ms Interior_scans_clamp15_retry_at_active_message Interior scans clamp15 retry at active message 5 Interior_scans_clamp15_break_at_active_message Time 5000 ms ZAT_first_rise_time_low_high_state Time 100 ms ZAT_first_fall_time_high_low_state Time 900 ms ZAT_second_fall_time_high_low_state Time 2000 ms ZAT_pwm_offset_1_lower_limit --- 5.0 % ZAT_pwm_offset_2_lower_limit --- 10.0 % ZAT_pwm_peak1_upper_limit --- 90.0 % ZAT_pwm_peak2_upper_limit --- 100.0 % ZAT_clamp58xt_signal_factor ZAT clamp58xt signal factor 0.200 ZAT_clamp58xt_signal_offset ZAT clamp58xt signal offset 3.0 duration_A-CAN_wake_up_for_Engine_ECU_wake_up Time 2000 ms Advanced identification Diagnostic mode --- VW - diagnostic mode ASAM/ODX file identification --- EV KessyHellaMQBAB ASAM/ODX file version --- 004039 AUTOSAR Standard application software identification Standard software module Diagnostics - Event - Handler Software manufacturer ID IAV GmbH Primary version number 4 Secondary version number 1 Revision number 11 Identification of bus master/sub bus master ECU ID B7 ECU Name Access Startsystem Interface LOGICAL-LINK SHORT-NAME Access Startsystem Interface Consistency of EEPROM-data Error during last data record download no error Data consistency valid EEPROM data Data record modification Data record changed Parameterizability Parameterizable Date of manufacture Year 16 Month 5 Day 18 Manufacturer modification status Control module family 0 Decoration variant 0 Construction version 036 Manufacture version 000 Manufacturer's test stand number --- P001 Programmability status Programmability programmable Program consistency Program present Serial number --- 0403751108 Subassembly and series number --- 2201 Workshop code and date of last update programming of SW module Year 12 Month 1 Day 27 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 0 Month 1 Day 1 Device number 0 Importer number 0 Dealership number 0 Programming status Correct result Year 16 Month 6 Day 7 Device number 31 Importer number 770 Dealership number 33281 Programming status Correct result Number of possible access authorizations Number Of Logins 1 Identification of connected components ID number B7 subsystem name Access Startsystem Interface Bus message/node address 32 Hardware part number for suppliers --- 355A413031313436302D3232 Hardware version for suppliers --- 202020 Software version of suppliers --- 4B594D5142 Software version for suppliers --- 30383131 Vehicle equipment code --- 000000000000000000001632 Identification of parameterization Version number 01 SoftwareVersion --- 0811 Date of last adaptation Year 21 Month 7 Day 28 Adaptation workshop code Device number 60933 Importer number 3 Dealership number 12289 Date of last coding Year 21 Month 7 Day 29 Coding workshop code Device number 60933 Importer number 3 Dealership number 12289 Number of parameterization attempts Data record 1 Number of successful parameterization attempts Data record 1 Parameter set part number --- V03935239ZY Parameterization date Year 16 Month 6 Day 7 Parameterization workshop code Device number 31 Importer number 770 Dealership number 33281 Parameter set version --- 0001 Hardware part number --- 3Q0959435E HardwareVersion --- 036 FAZIT-identification Manufacture location index HLH-W42 Day of manufacture 18.05.16 Manufacturer- test stand number P001 Running manufacturer number 2201 Number of programming attempts Bootloader 1 Application 0 Data record 1 Maximum number of possible update programming Bootloader 1 Application 0 Data record 0 Versions of software module Bootloader 0009 Application 0811 Data record 0001 VW/Audi part number --- 3Q0959435E Manufacturer code --- HLH System description --- VWKESSYMQB System abbreviation --- J518 Known subsystems Subsystem designation No subsystems segment number 1 subsystem present Yes subsystem coded No reserved (VW 80127 3.0) 0 Subsystem number 0 ISO TP block size in bootloader --- F Vehicle Identification Number (VIN) --- TMBAH7NP2H7009796 Mileage: 372624 km Date: 2021-08-01 19:32:00

And sometimes my seat and mirrors have a kind of their own kessy air con and much more issues

I am going to send a backup of every module in the car because I am just out of ideas I’d anyone could point me out that would be amazing and my vin if that could be any help

Because my headlights are dull is there something in central electronics can I take a backup of it and send it here

Please how do I do that with OBDeleven because my lights were amazing 1 year ago now I can hardly see and I have messed with the coding

How do I do that with OBDeleven

06 DA 00 00 3F 01 00 00 help would be nice

I found out it’s the radiator shutters exhaust flap and throttle plate

https://youtube.com/shorts/vAfqRtBU1XU?feature=share strange noise when I turn off engine any help would be nice

Can a dirty sensor cause this error OBDeleven vehicle history log Date: 2021-06-21 14:26:49 VIN: TMBAH7NP2H7009796 Car: nvm20 Year: 2017 Body type: Saloon Engine: CRLB kW ( hp) l Mileage: 367345 km --------------------------------------------------------------- 01 Engine System description: R4 2.0l TDI Software number: 04L906026ET Software version: 1990 Hardware number: 04L907309R Hardware version: H23 Faults: P054400 - Exhaust Gas Temperatur Sensor Circuit - Bank 1 static Priority - 2 Malfunction frequency counter - 1 Unlearning counter - 255 km-Mileage - 367345 km Engine speed - 748.50 1/min Normed load value - 22.4 % Vehicle speed - 0 km/h Coolant temperature - 72 °C Intake air temperature - 50 °C Ambient air pressure - 1000 mbar Voltage terminal 30 - 13.300 V Dynamic environmental data - 20962810FB31BB14F70F6111B20F4810F90EFC1664617713BA0000011D date - 2021-06-21 14:26:33 P054400 - Exhaust Gas Temperatur Sensor Circuit - Bank 1 static Priority - 2 Malfunction frequency counter - 1 Unlearning counter - 255 km-Mileage - 367345 km Engine speed - 748.50 1/min Normed load value - 22.4 % Vehicle speed - 0 km/h Coolant temperature - 72 °C Intake air temperature - 50 °C Ambient air pressure - 1000 mbar Voltage terminal 30 - 13.300 V Dynamic environmental data - 20962810FB31BB14F70F6111B20F4810F90EFC1664617713BA0000011D date - 2021-06-21 14:26:33

There was one plug disconnected from previous owner attached it and it works

@langers2khow can I gain access to it

I’m trying to quiet down my car and noticed this spring not working

The problem was there when I bought the car a year ago with no collision on it the jets can manually move out no motor noise or anything have taken the little green relay and swapped did nothing allthough a pin in the relay seems loose do u have the wiring diagram by any chance I know an electrician that’s good in far electrics if u have the diagram that would be awesome
