raz2

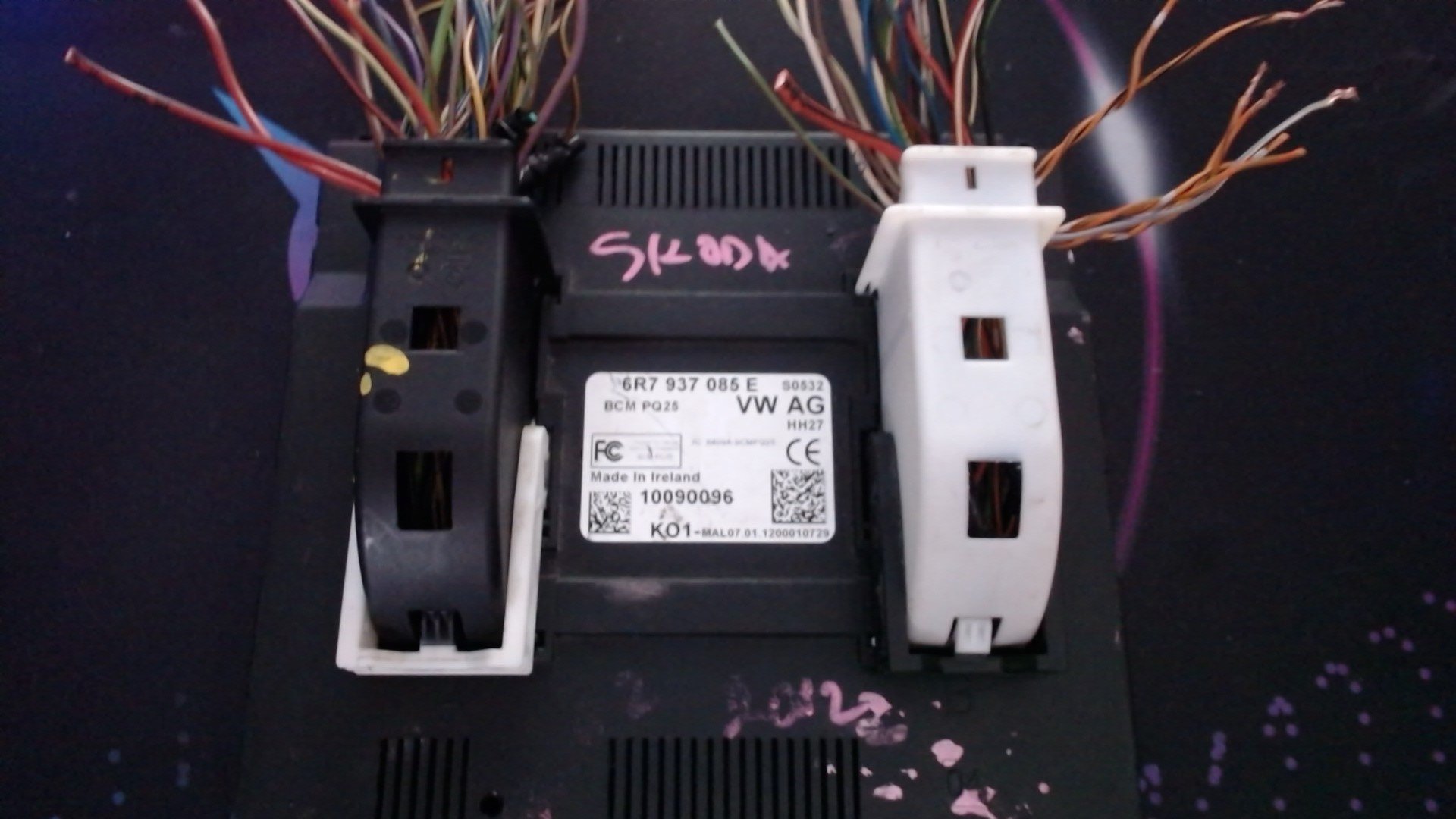

i want to power this up the bcm and connect to it using vcdss and also make it work with an instrument cluster. The only wire i have found is ground wich is a brown wire. The can bus and the k-line diagnostics wire are on the white plug. Does anybody have a pinout for it?

some time ago i posted a thread about climatornic pinout as it wouldnt turn on no matter what. anyways i took the car to a mechanic said he climatronic is broken replaced and still same issue. it does turn on but fan dosent work ac dosent work almost nothing works. code is 5J0 907 044 C. Im wondering if someone has a wiring diagram for power and fan and other things. also i found a pinout on a site but its for older climatronic with three plugs the plugs on mine has only two plugs C and B

yes i managed t odo that but i also want to connect the ecu

i did but i didint find anything

a so there is alos this cna bus on ecu( i think this might connecxtx to cluster) . And the pins at bsg for cluster are 2 and 5

yeah but when i connect thenm like that the cluster fraks out

no i have pins 2 and 3 that go to the ecu. THats the can bus for ecu

no i want it to connect to cluster. First it need to go thru can gateway that is integrated in bsg unnit above clutch pedal then from the unit in goes in the cluster yes i have the wake up pin connected the can for cluster is working but for tyhe ecu is dead for some reason

okay so when i connect the pins to the pins on the 2 and 3 pins on bsg nothing happenes ( and on those pins on the bsg there is no voltage) any idea? shoould be can bus voltage

right now im trying to connnect the ecu to the gateway

i know them already

yes but i already figured iut the other one. Also i want to connect the ecu to the unit but the ecu has 3 can busses and i yhink i need the power train can but i dont have the pin (if it helps its a magneti mareli 036 906 034 BL )
