Everything posted by Arkaig
-
Skoda Scala - Current Flow Diagrams
- 637 downloads
- Version 09.2019
Complete electrical diagrams -
Skoda Scala Owners Manual
- 722 downloads
- Version 02.2019
Owners Manual -
Oil grade ? - Petrol

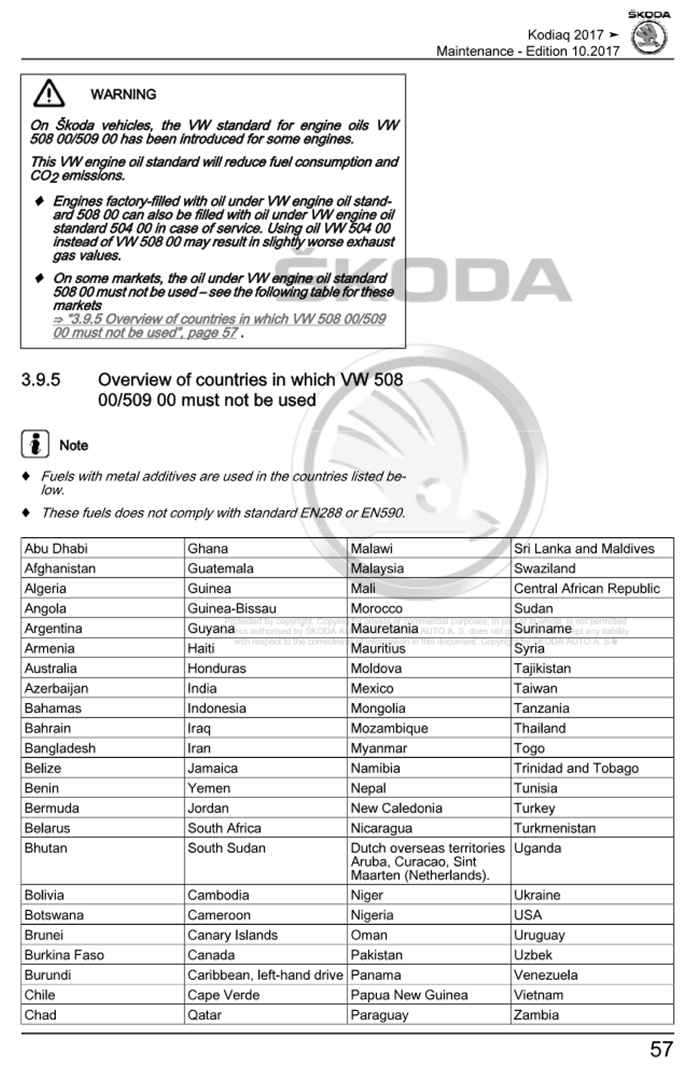

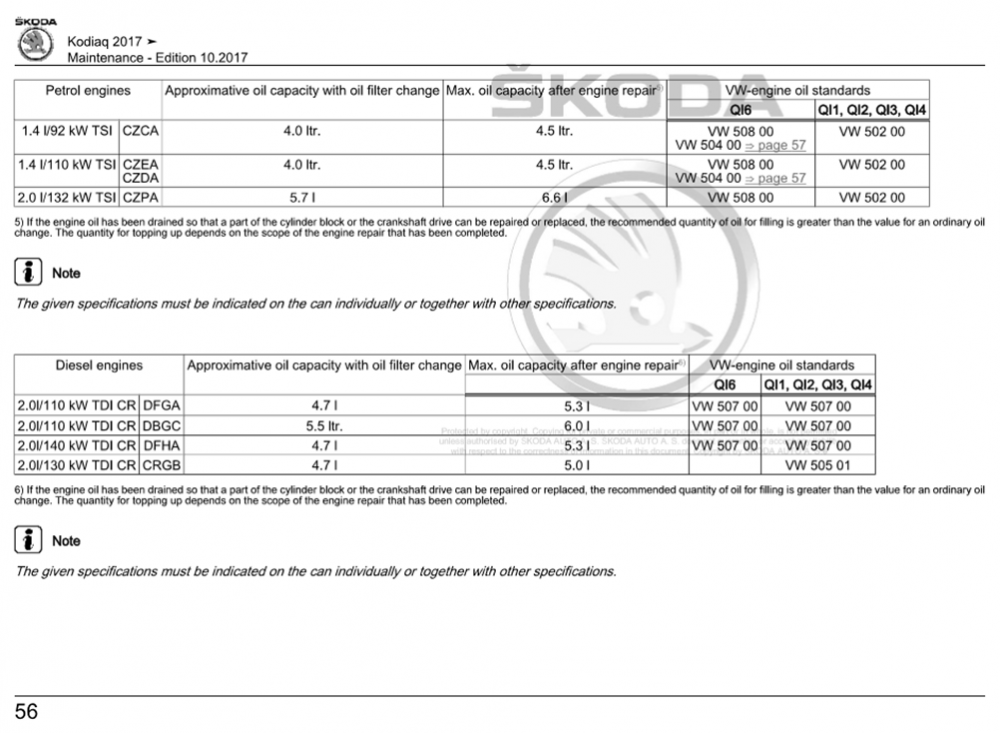

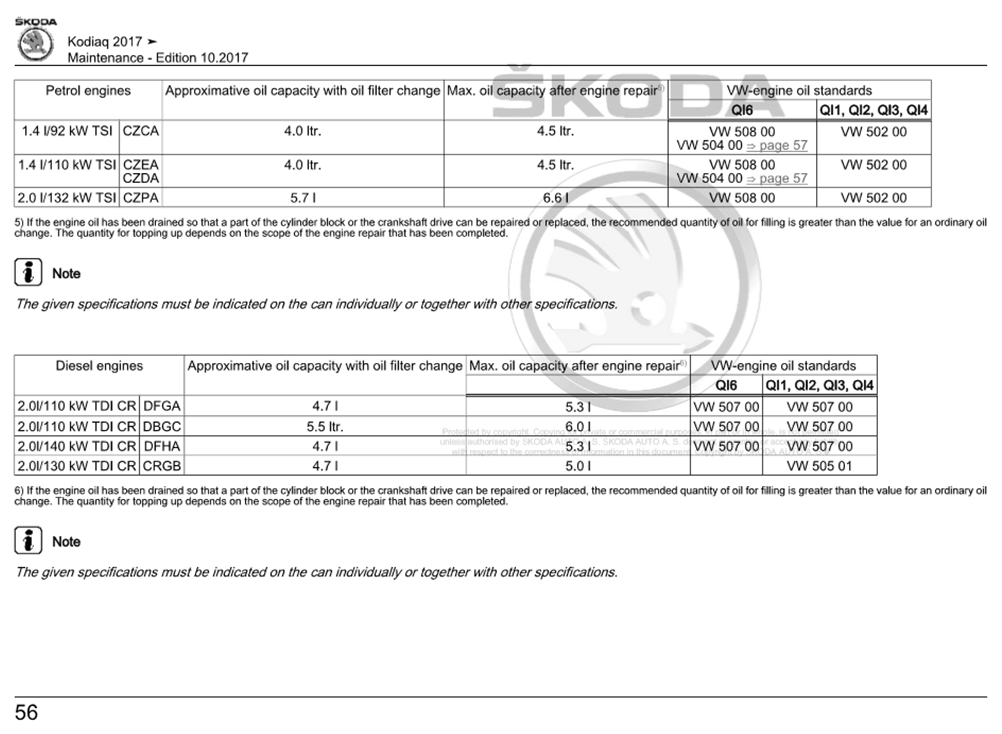

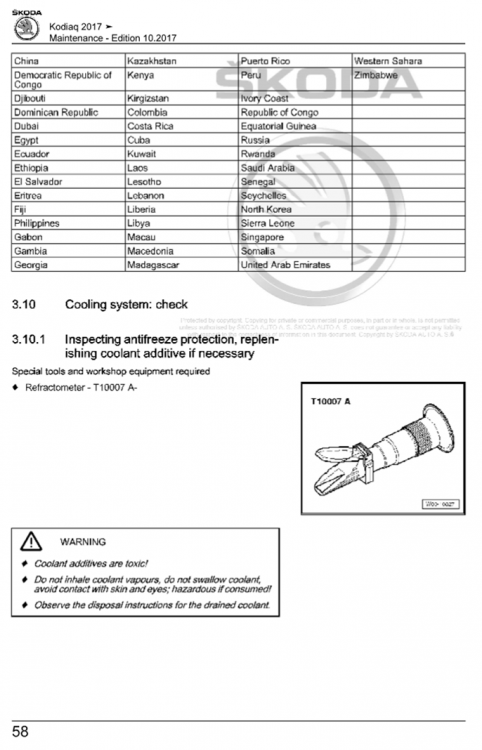

I understand the correct oil for the 1.4 TSI engine in the UK actually is VW 508 00 as detailed in the Kodiaq Maintenance Workshop Manual, which is available to download here - In certain other countries elsewhere in the world as detailed in the Manual, the correct oil is VW 504 00. Pages 56-58 thereof detail the following:
-
Kodiaq Workshop Manuals
You can access Erwin yourself at a cost of about €8.40 per hour: https://erwin.skoda-auto.cz/erwin/showHome.do
-
Fuse ratings
Current flow diagrams together with a number of other workshop manuals for Kodiaqs are available to download here:- https://www.briskoda.net/forums/files/category/8-skoda-kodiaq/
-
MPG
My average over some 26,500 miles is shown below as 35.2 mpg, includes significant periods towing trailers, and the aircon is never turned off. Further detail can be seen by double-clicking on the mpg figure with details maintained by Spritmonitor.
-
Space saver spare wheel
Non vRS.
-
Should I buy one ?
Well I do have full leather seats, and in this heat, the fact they're ventilated means they're an absolute joy - lovely and cool. 😁😁
-
Paint Code from VIN
The VIN does not hold information as to the paint code. I believe the paint code forms part of the Vehicle Data Sticker, one of which is usually found affixed into the 2nd inside back page of the Owners Manual and another stuck in the vehicle luggage compartment.
-
Karoq pictures
-
2021 brochure / pricelist now on UK website
I believe you are correct!! 😀
-
Skoda Karoq - 4-cylinder petrol engine (2.0 l with direct injection, 4V, turbocharger, timing chain, EA 888 III Generation BZ) (eng.) Workshop Manual.
- 424 downloads
- Version 10.2018
Workshop Manual. Engine code: CZPB, DKZA. Repair manual for gasoline engines with letter designation: CZPB, DKZA . Edition 07.2018 Content (repair groups): 00 - Technical data, 10 - Removing and installing engine, 13 - Crankshaft group, 15 - Cylinder head, valve gear , 17 - Lubrication, 19 - Cooling, 21 - Turbocharging / supercharging, 24 - Mixture preparation - injection, 26 - Exhaust system, 28 - Ignition system. 419 pages. 16 Mb. The 2.0 L 140/206 kW TSI engines belong to the EA888 engine family. The following are the differences between two different power versions: • Valve travel switching system: - on an 140 kW engine - intake valves; - on an engine of 206 kW - exhaust valves. • On a 140 kW engine, Miller’s duty cycle has been implemented. • Software applications in the engine control unit. • The 206 kW engine is equipped with exhaust gas damper blocks on the rear silencers: left J883 and right J945. In the forced idle mode and at engine speeds from 1000 to 2700 rpm, one or both shutters are closed to reduce noise (hum) in the passenger compartment. -
It’s an absolute scoot - ŠKODA develops clever foldaway two-wheeler for Scala
May 20, 2020 › ŠKODA Scooter designed to fit into spare wheel well without compromising luggage space › Patented Simply Clever folding mechanism allows for compact storage › Weighs just 5kg but can carry passengers up to 100kg › Available now as a ŠKODA accessory through UK retailers Milton Keynes, 20 May 2020: ŠKODA has developed the perfect accessory for the owner who needs to cross the city in style: the ŠKODA Scooter. Designed to allow owners to go from door to door without having to sacrifice ŠKODA style or innovation, the new scooter is another example of the brand’s passion for micromobility. Of course, ŠKODA knows a thing or two about building clever two wheelers. Founders Laurin and Klement started the brand with innovative bicycles before turning their design skills to cars. And, as buyers have come to expect from the brand, the ŠKODA Scooter features a clever twist on the standard design. Thanks to a patented folding mechanism, the ŠKODA Scooter can be folded up in a few simple steps. Collapsed, it measures just 49×42×11cm and fits into the spare wheel well under the boot floor of the Scala. This means that the entire volume of the boot remains free for transporting luggage and shopping. Unlike many scooters, the ŠKODA Scooter has been designed for adult use and has a weight capacity of 100kg. The frame is made from hard-wearing steel and aluminium and finished in black with ŠKODA green highlights on the wheels and handlebar grips. High-quality bearings and wheels in polyurethane guarantee an equally fast and comfortable riding experience. Despite its solid construction, the ŠKODA Scooter weighs just 5kg, making it easy to carry on public transport or into offices. The ŠKODA Scooter is available as an accessory through retailers and is priced at £120 including VAT and can be ordered now. http://www.skodamedia.com/index.php/latest-news/it-s-an-absolute-scoot-skoda-develops-clever-foldaway-two-wheeler-for-kamiq-and-scala
-
Skoda Yeti - Brake Systems Workshop Manual
- 408 downloads
- Version 06.2016
Skoda Yeti since 2010, Skoda Yeti since 2011. Manual for the brake system Skoda Yeti. Front brakes FS-III - 15 ", Front brakes FN3 - 15", Front brake FN3 - 16 ", Rear brake C38 - 15", Rear brake Bosch BIRIII - 15 ", Rear brake CII 41 - 16", ABS / ESP, ABS Mark 70 (ABS / TCS), ABS / ESP Mark 60 EC (ABS / EDL / TCS / ESP). The type of brake system installed in the vehicle is indicated, inter alia, on the sticker with the PR numbers. The sticker with data about the car is located in the niche of the spare tire and is glued on the first page of the service book. The following are the PR numbers. From them you can determine the exact type of brake caliper / brake disc of your car: Front brake FN3 15 "- PR number: 1ZE Front brake FN3 16" - PR number: 1ZA Rear brake C38 - PR number: 1KD Rear brake Bosch BIRIII - PR number: 1KS Rear brake CII 41 - PR number: 1KJ Content (repair groups) 00 - Technical data, 45 - Anti-lock brake system, 46 - Brakes - mechanism, 47 - Brakes - hydraulics. 174 pages.- 1 review
-
-
- 1
-
-
Ignite Wheels
A picture of the new Ignite wheel for the MY20 vRS appears in the latest Kodiaq Accessories brochure: Kodiaq_Accessories_EN_22_2019_low.efaf681a129bd25ac8c5bd520fb89c9a.pdf
- Yeti Manuals
-
Skoda Yeti - Electrical System, general notes
- 504 downloads
- Version 12.2014
Workshop Manual Yeti 2010 ->, Yeti 2011 -> Content (repair groups): 27 - Starter, current supply, CCS, 92 - Windscreen wash / wipe system, 94 - Lights, bulbs, switches - exterior, 96 - Lights, bulbs, switches - interior, 97 - Wiring 73 pages. - Skoda Yeti - Complete wiring diagrams
-
Skoda Kodiaq Brake Systems Workshop Manual
- 402 downloads
- Version 06.2019
Kodiaq 2017 > Kodiaq 2019 > -
RS Reflector Bar

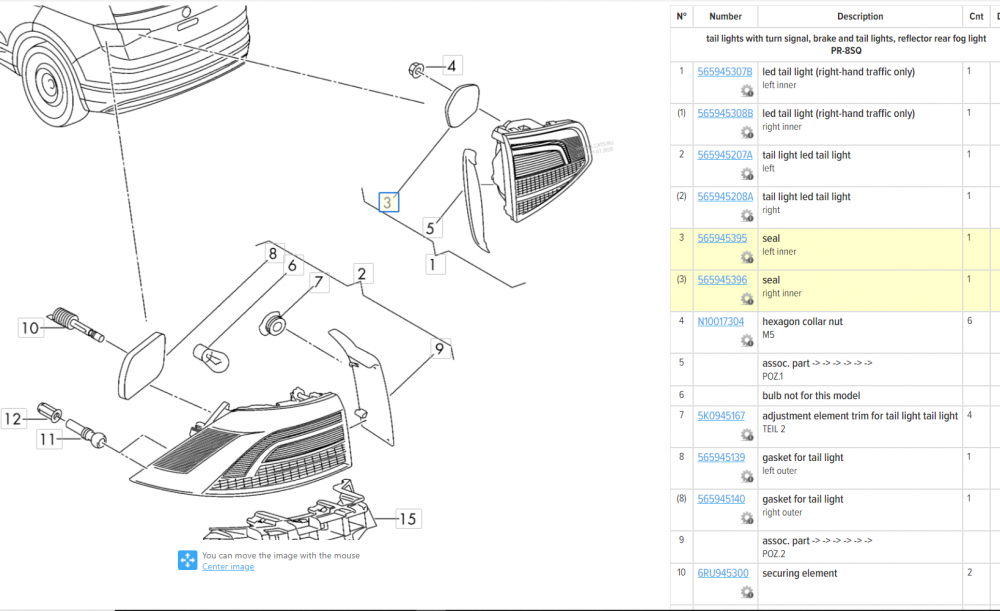

I've just fitted a RS Reflector Bar to my L&K, which I think improves the rear end appearance. There are 3 parts involved, total cost from my local dealer inc vat - £91.63: Protective bar - 565807423A9B9 - £58.34 ex VAT Reflector - 565945103 - £9.01 ex VAT Reflector - 565945104 - £9.01 ex VAT Fitting does not require the rear bumper to be removed. There is some minor modification involved in the fitting as the reflector studs protrude through the rear of the bar, that is not beyond the means of an average d-i-yer with a 13mm drill and a dremel taking around 1/2 hour, simply because the RS bumper is not quite the same as other Kodiaq rear bumpers. (Yes, it's due a first wash!)
-
Skoda Kodiaq - Petrol Engine Fuel System Workshop Manual
- 256 downloads
- Version 11.2019
Kodiaq 2017 > Kodiaq 2019 > -
Skoda Kodiaq - Air Conditioniing System Workshop Manual
- 327 downloads
- Version 04.2020
Kodiaq 2019 > Air conditioning system with refrigerant R1234yf -
Skoda Karoq - Maintenance Workshop Manual
- 1,520 downloads
- Version 09.2020
Karoq 2018 -
Skoda Karoq Communication Workshop Manual
- 891 downloads
- Version 09.2020
Karoq 2018 -
Skoda Karoq Wheels & Tyres Workshop Manual
- 803 downloads
- Version 02.2020
Karoq 2018
