Installing a Projectors with Shutters

Featured Replies

Hello



I am planning to fit a Xenon Projector in my 2006 L&K Octavia Pre-FL

As it is L&K it have OEM Xenons , But I want to replace it with a new Projector which have a shutter . The projector will fit in my headlamps assembly all I want now is the shutters to work . To get it working as far I know I have to run a wire from CECM to the shutters.

So my question is is it possible with my current CECM and which Pin out should be used for the shutters.

I also have xenon on my pre fl and i am interested of this thing.

For the shutter wire i suppose you can use the hi beam wire.

What projectors do you found that are straight fit?

Keep us informed with the job.

Sent from my GT-I9195 using Tapatalk

  • Author

It is Hella Gen 5 projectors , with a mounting bracket , it can be mounted.

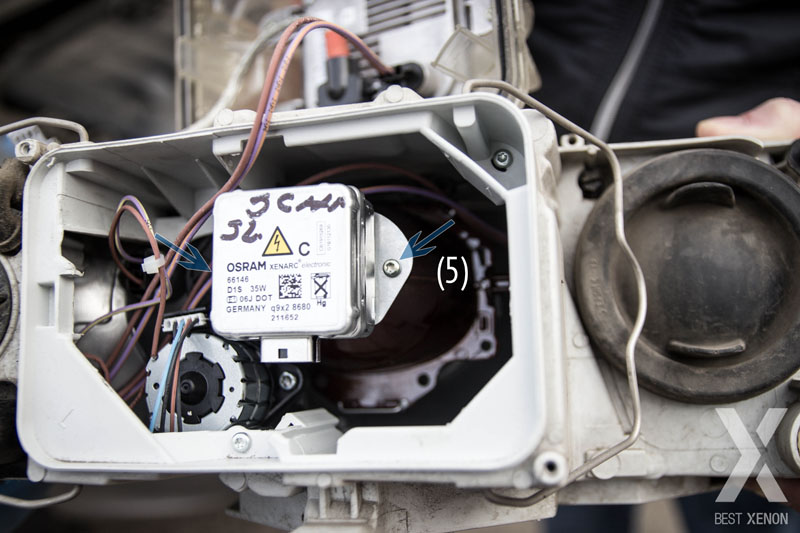

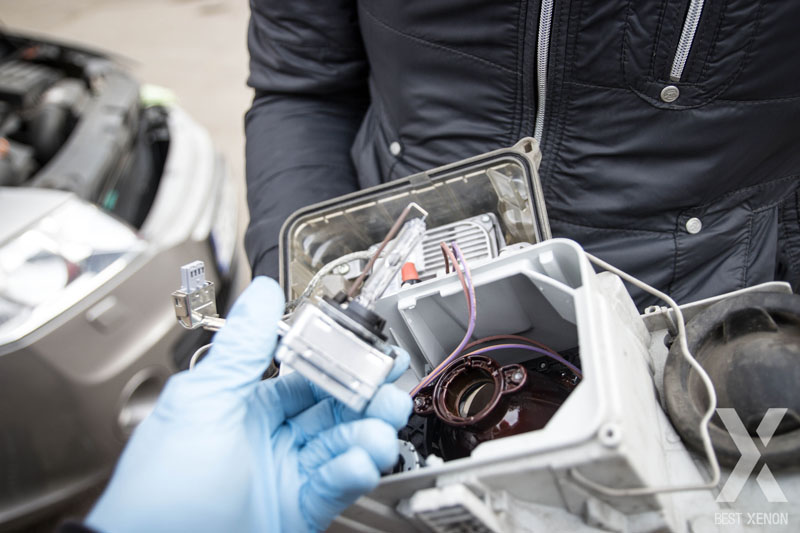

Are you planning to change it from behind or you want to take apart the glass from the headlight?





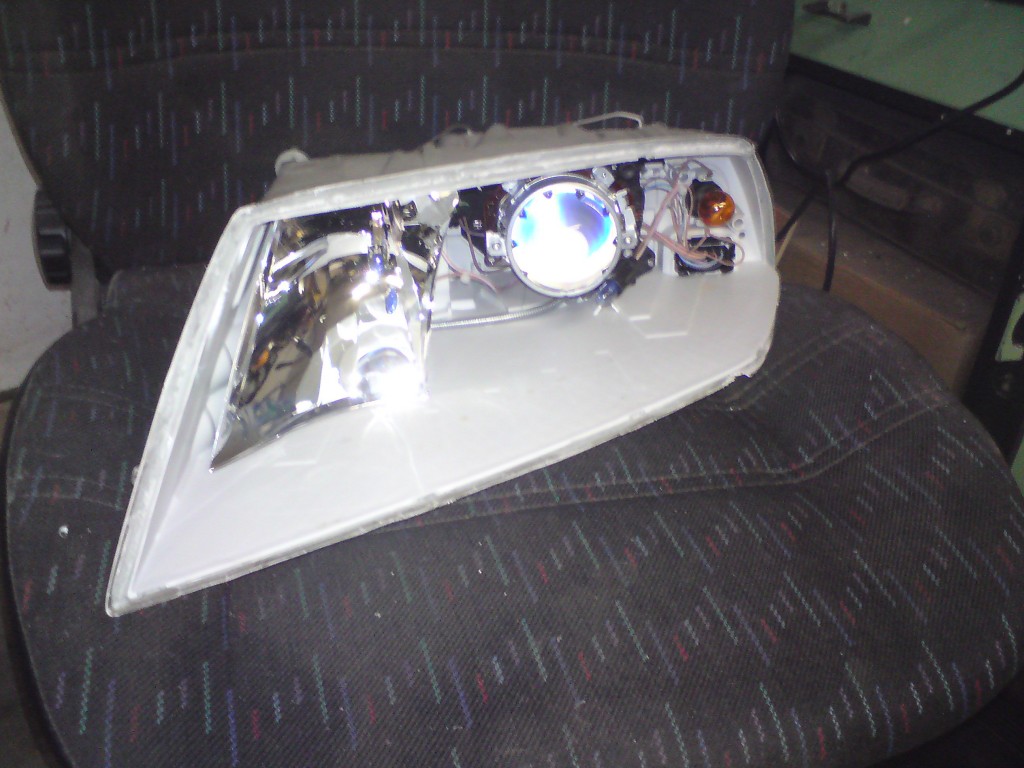

I am not good with czech language but it seems that one guy tried to do the bixenon thing



http://forum.skodahome.cz/topic/27005-bi-xenony/page-4





Edited by mociclistu

  • Author

Replacing the projector is not a problem , I can open the from glass housing and remove the projector . The main thing is wiring the solenoid motor which activates the ****ter for high beam .

It can be coded via VCDS (Xenon with shutter installed) but the positive wire of Solenoid will goes in CECM to activate . I do not know the pin in CECM . The part no. Of my CECM is 3C0 937 049 AE (3C0937049AE) – 23 Byte – Highend. I guess it can get the job done . But do not know which pin to connect .

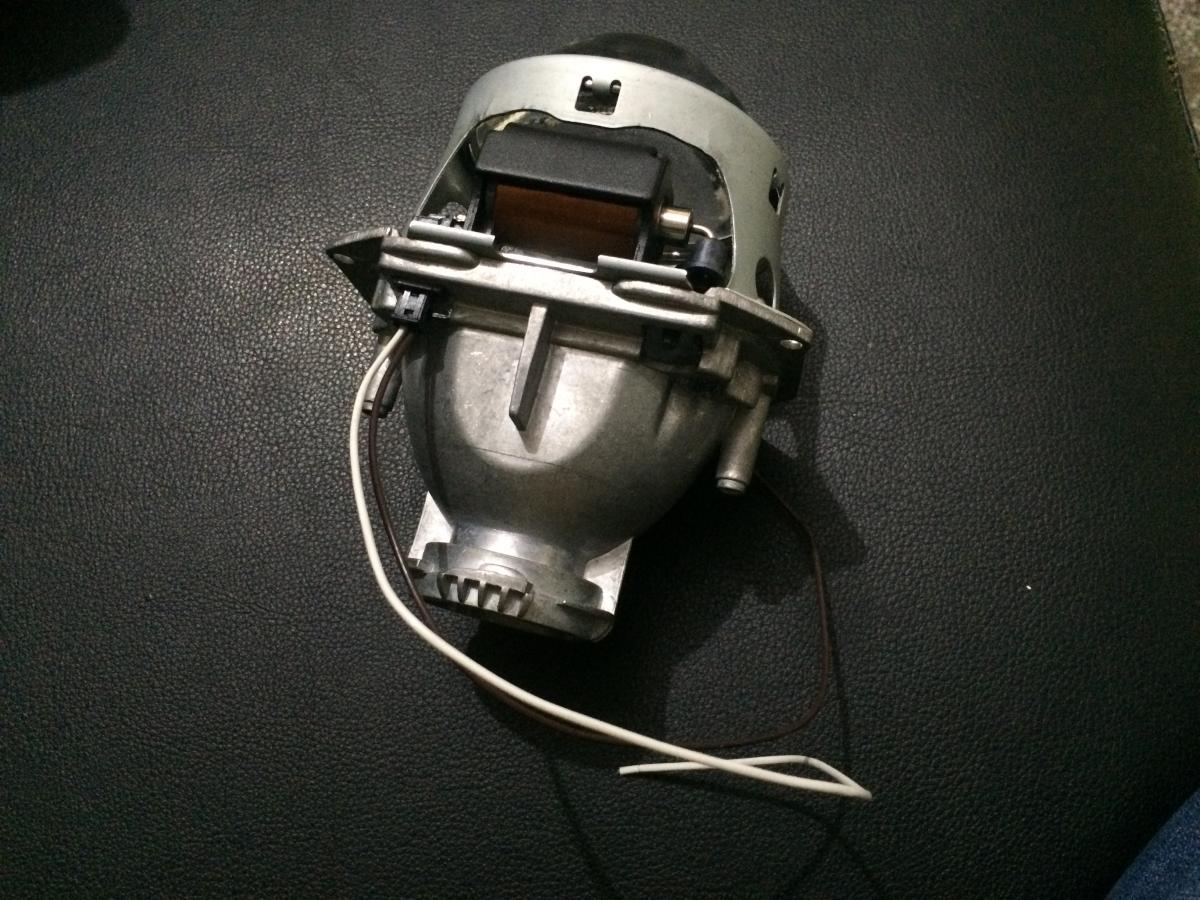

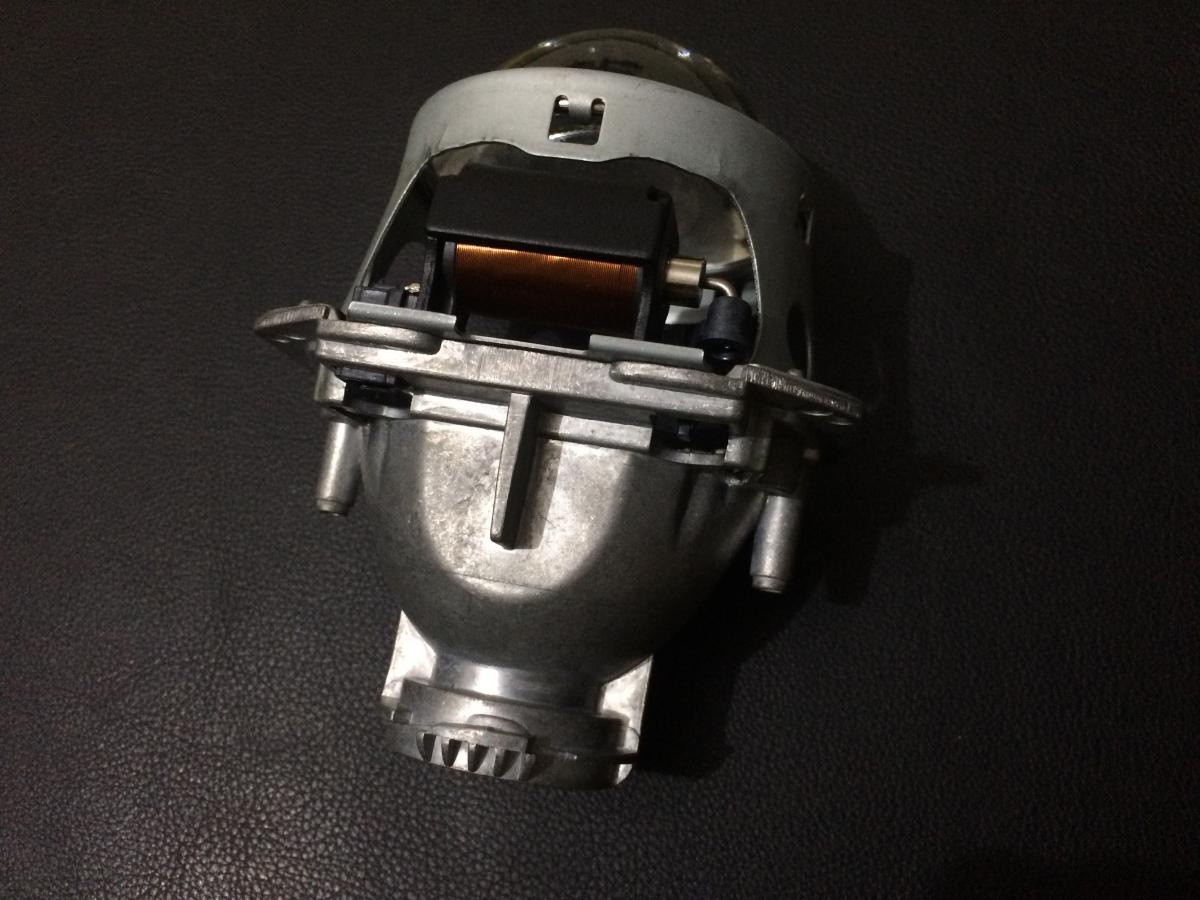

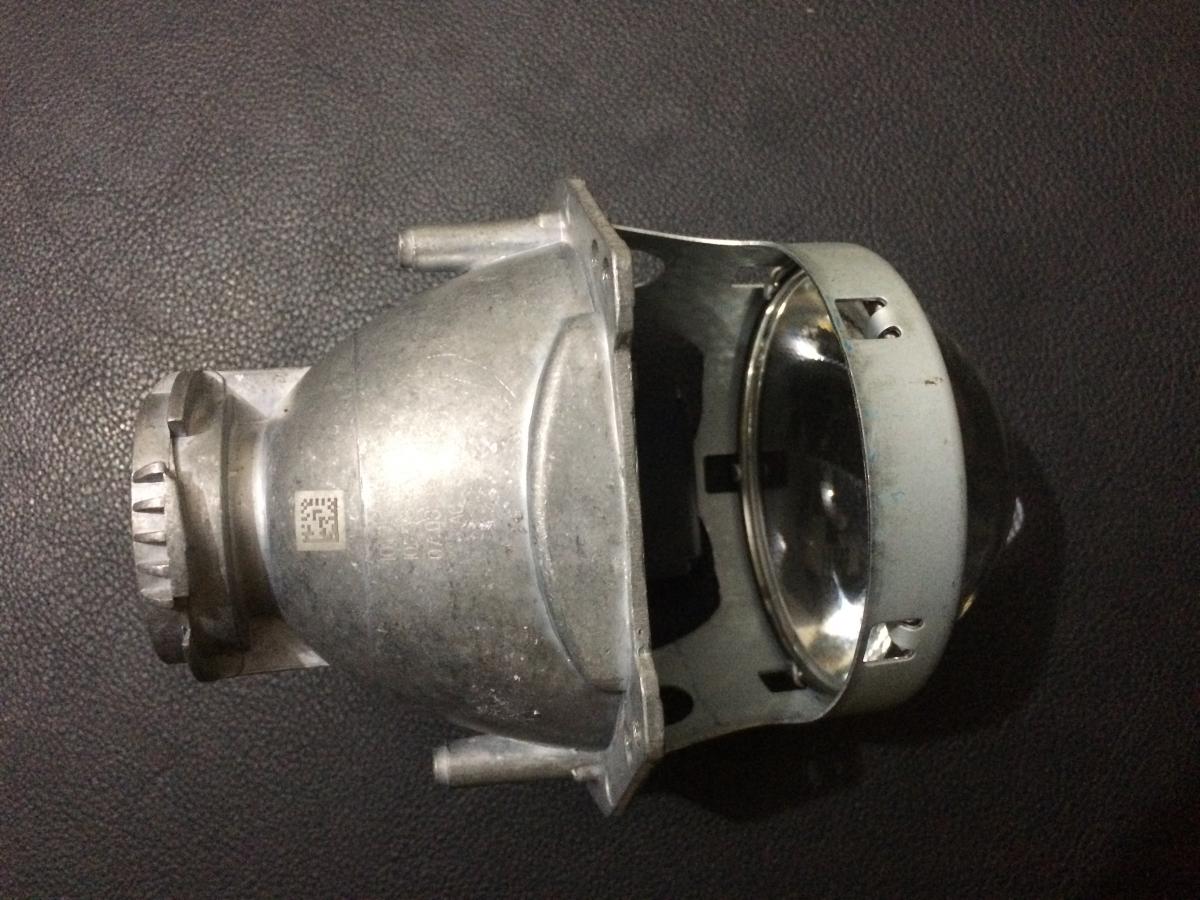

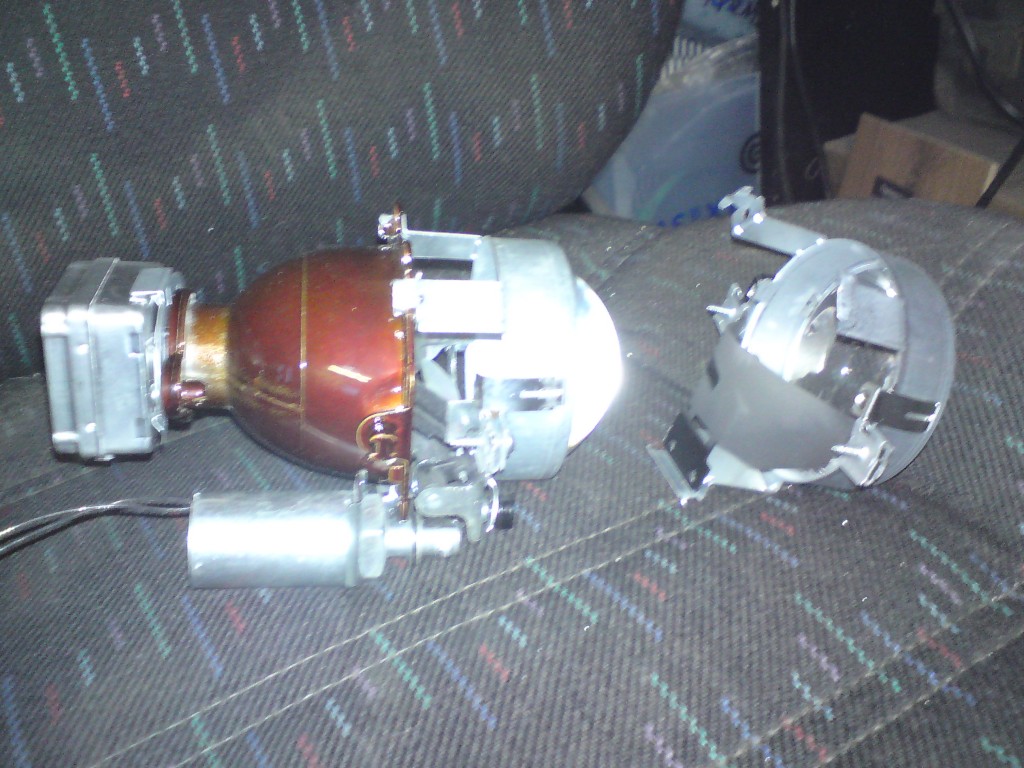

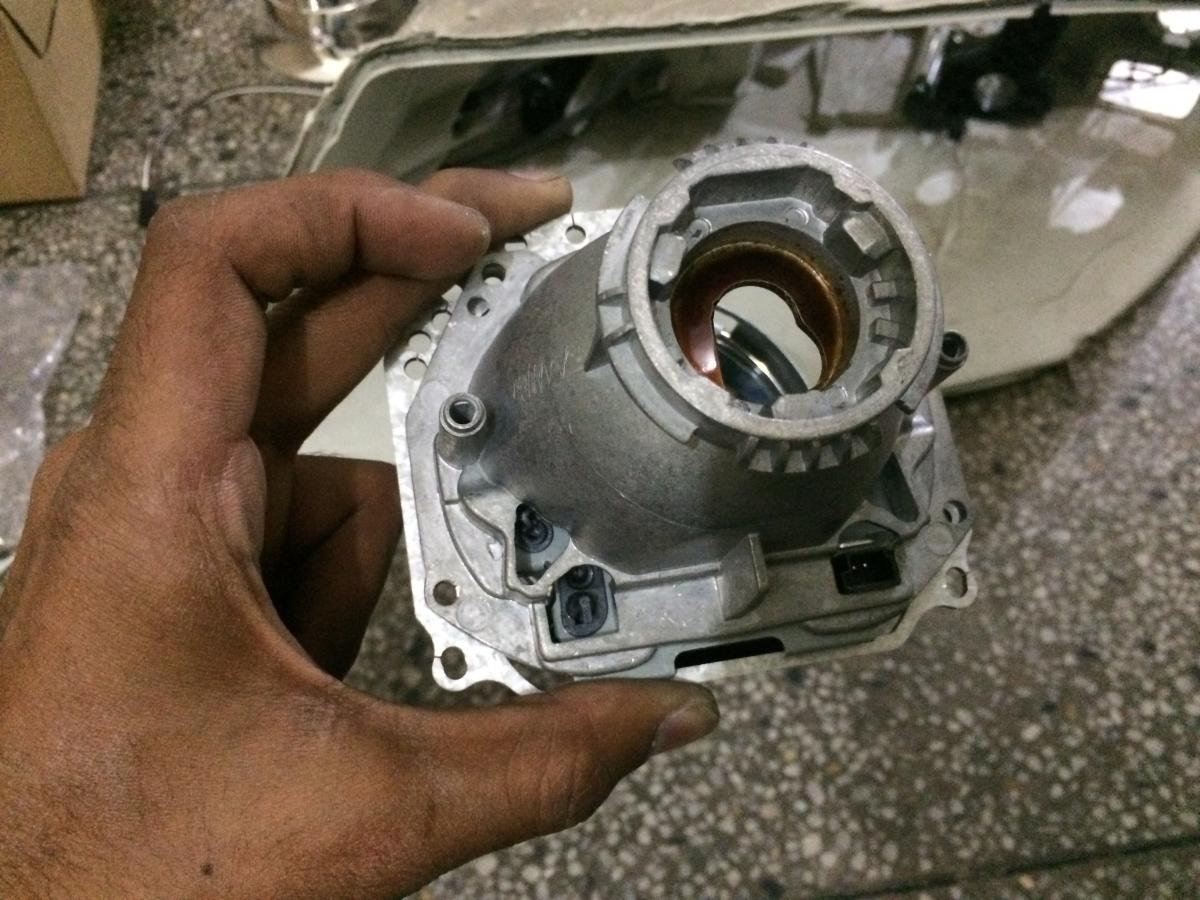

Attaching the image of the projector




  • Author

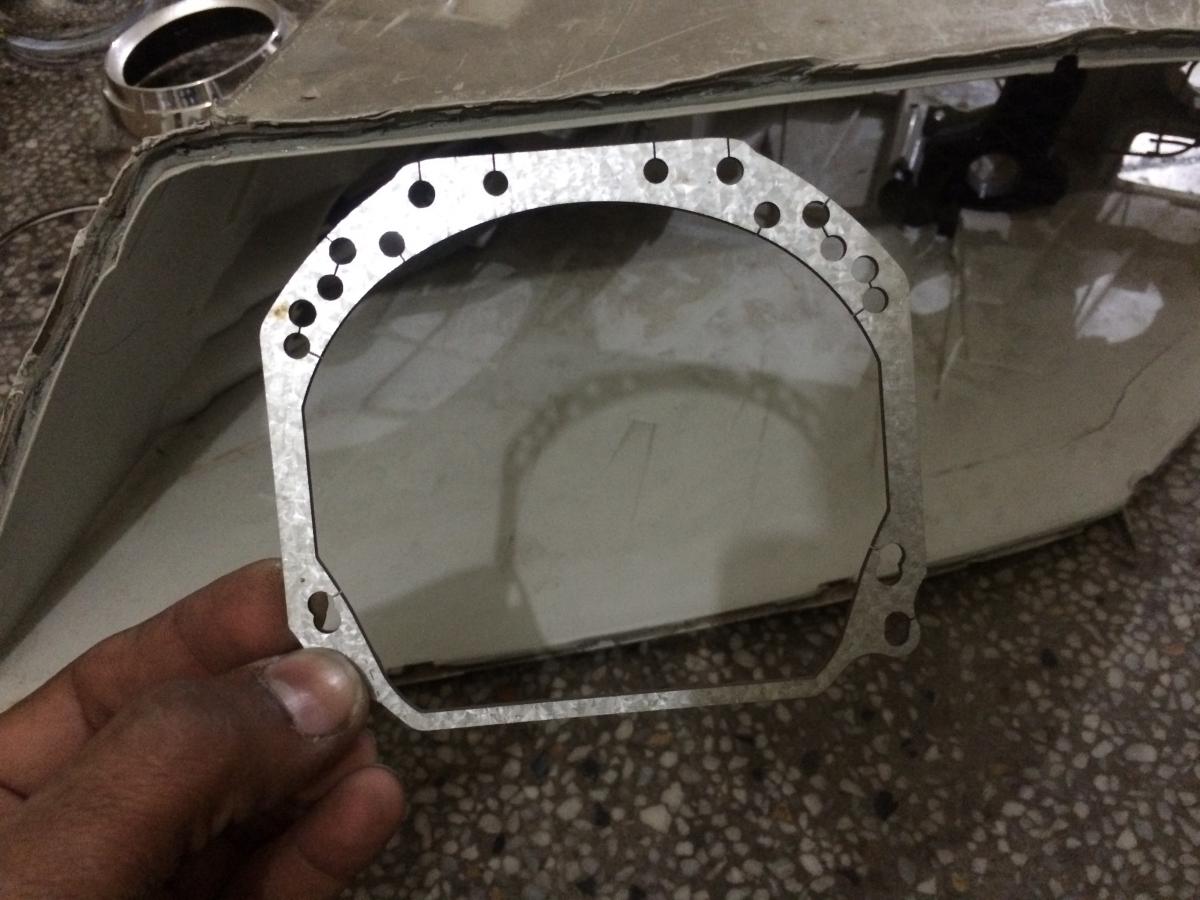

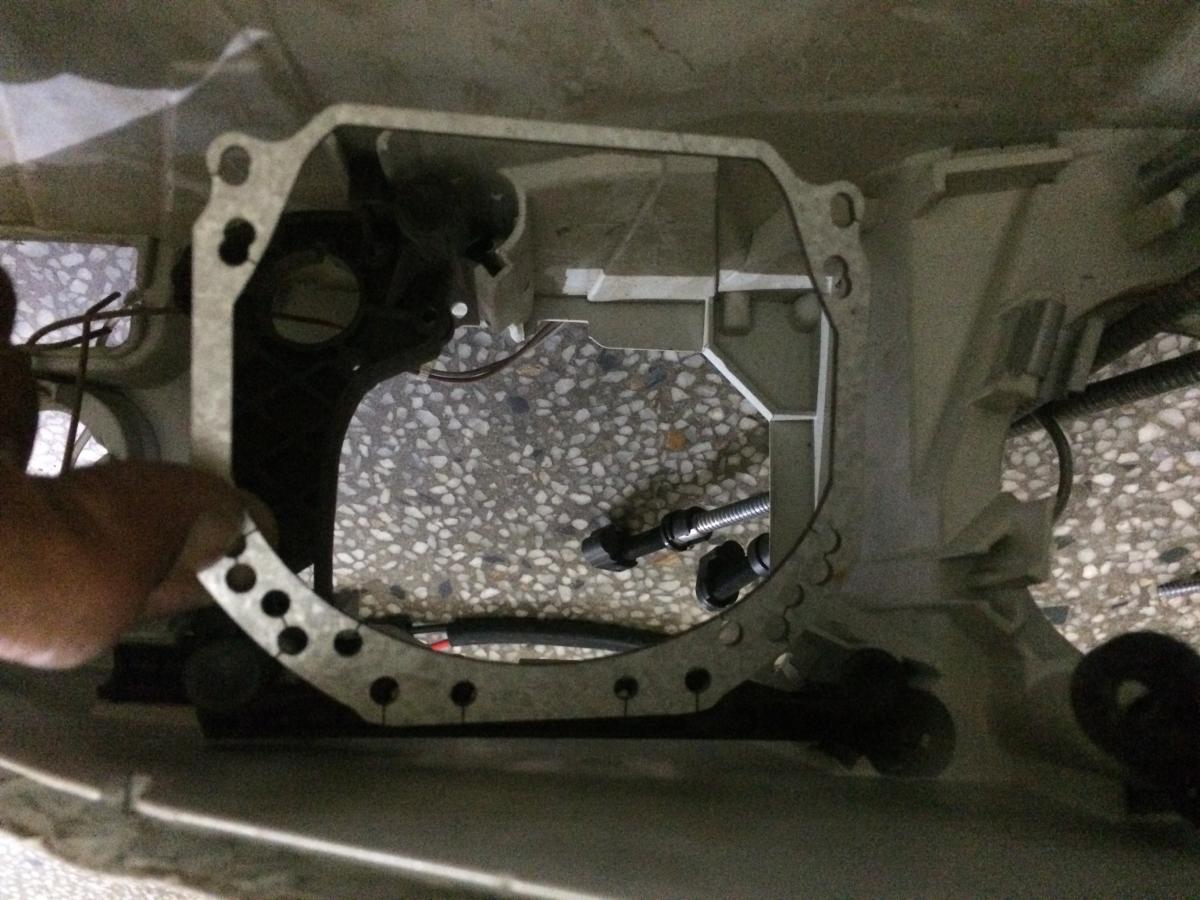

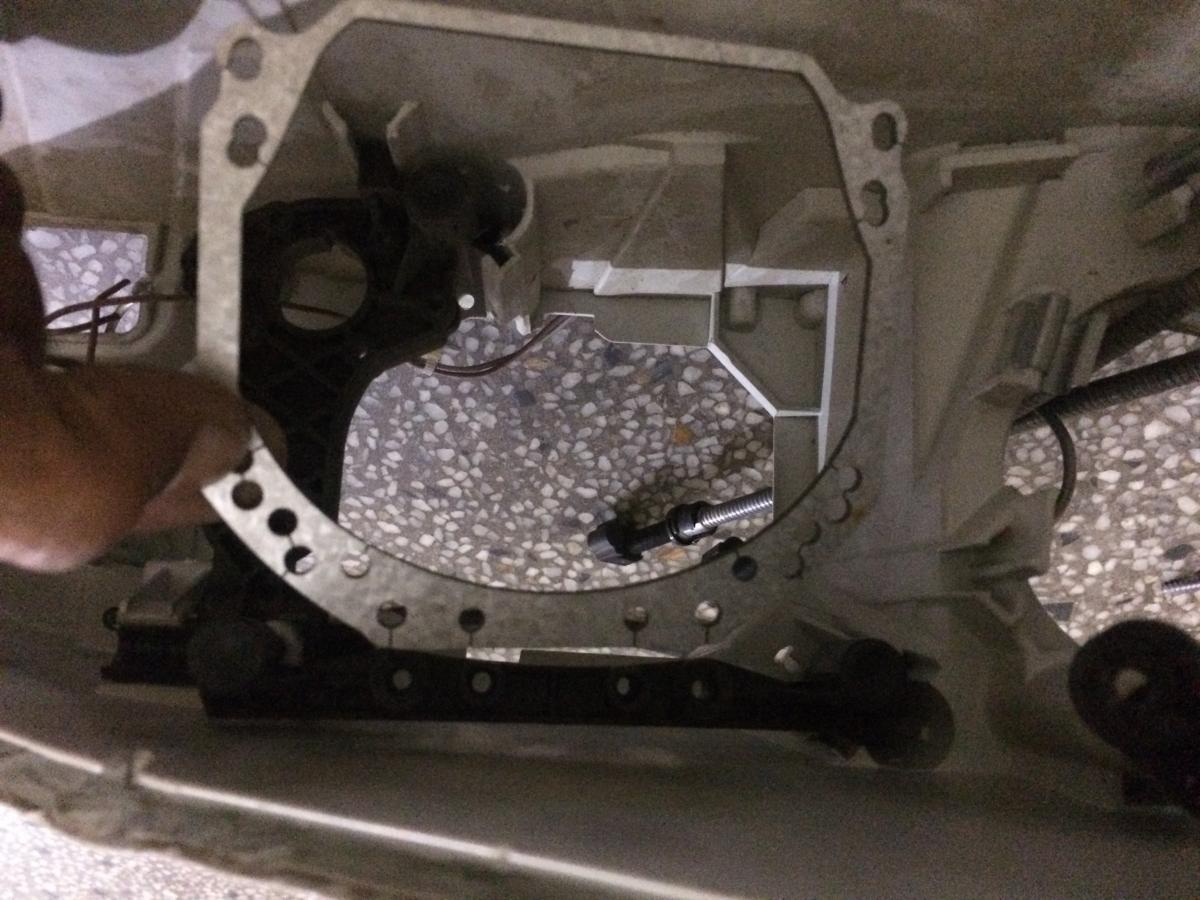

Image of the mounting bracket

Which will easily mount the Hella Gen5 without any issue .





This would help you. It's for Golf V





http://forums.vwvortex.com/showthread.php?3597373



And how i see in this topic http://forums.vwvortex.com/showthread.php?3552517-Golf-V-GTI-OEM-Xenon-Installation-Completed it seems that shutter is commanded by high beam.



It also says : 'I had to connect a cable that says "lights-on" to the A connector of the CECM pin number 2 and i hat to solder it.'

Do you know what it is at pin number 2?

  • Author

As far my finding and reading mociclistu's link (many thanks for that)

http://forums.vwvortex.com/showthread.php?3597373

I am sure it is A/5 and D/6 for Right and Left side Headlights but according to Mike's post for CECM pin out information A/5 and D/6 pins are "Not Assigned" . I guess only thing is left for me is to check them by my self after coding it with VCDS .

If any one has done it any help will be highy appreciated.

Keep us posted with your work. I am interested in the lens change. Send us photo with that.

Sent from my GT-I9195 using Tapatalk
