Evening guys,



Hopefully someone can help, im currently fitting (trying to) auto dim and rain sensing wipers to the Octavia, I have it all wired bar the CECM as I cant find the pinout / locations anywhere!



Its the highline 1K0 937 087Q with three connectors on the top so I just need the wiring diagram for it.



Tis is worth many virtual hugs if someone can give me it!





Cheers in advance

Dave

U find  something?

I can help if u steel need help.

He said Its the highline 1K0 937 087Q with three connectors on the top so it is not good.

I think this is





o2 2010.txt

Edited 27 March, 201511 yr by gabi2004

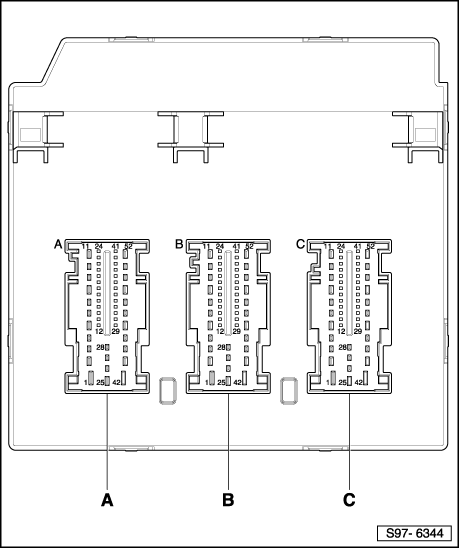

Think this is what you need. It's directly from ELSAWIN.

Ignore the highlighted bit about footwell lights!



Mike



I found a pin-out list on a Polish website a while ago. One pin seems to be different between ELSAWIN and the English translation on the 'E' connector:



E = 16 -pin connector - T16k - In harness :

1 - light switch , terminal 58

2 - the brake light switch

3 - unused

4 - unused

5 - not used

6 - fog lamp switch

7 - weight (only in vehicles with manual transmission for non-US markets )

7 - Clutch position sensor (only on vehicles with manual transmission for the Americas )

8 - light switch , terminal 56

9 - unused

10 - not used

11 - not used

12 - not used

13 - switch rear fog lights

14 - switch lights ( low beam assistant )

15 - not used

16 - switch lights ( running lights during the day )



......E16 kinda imples DRLs. Given it's mentioned in VCDS, would seem strange not to have a pin for them

Ok but this is an input or an output?...i need an wire to conect led drl from facelift to go on with ignition and thim with lights on...and something like parking lights front off all the time
