mikkelvitus

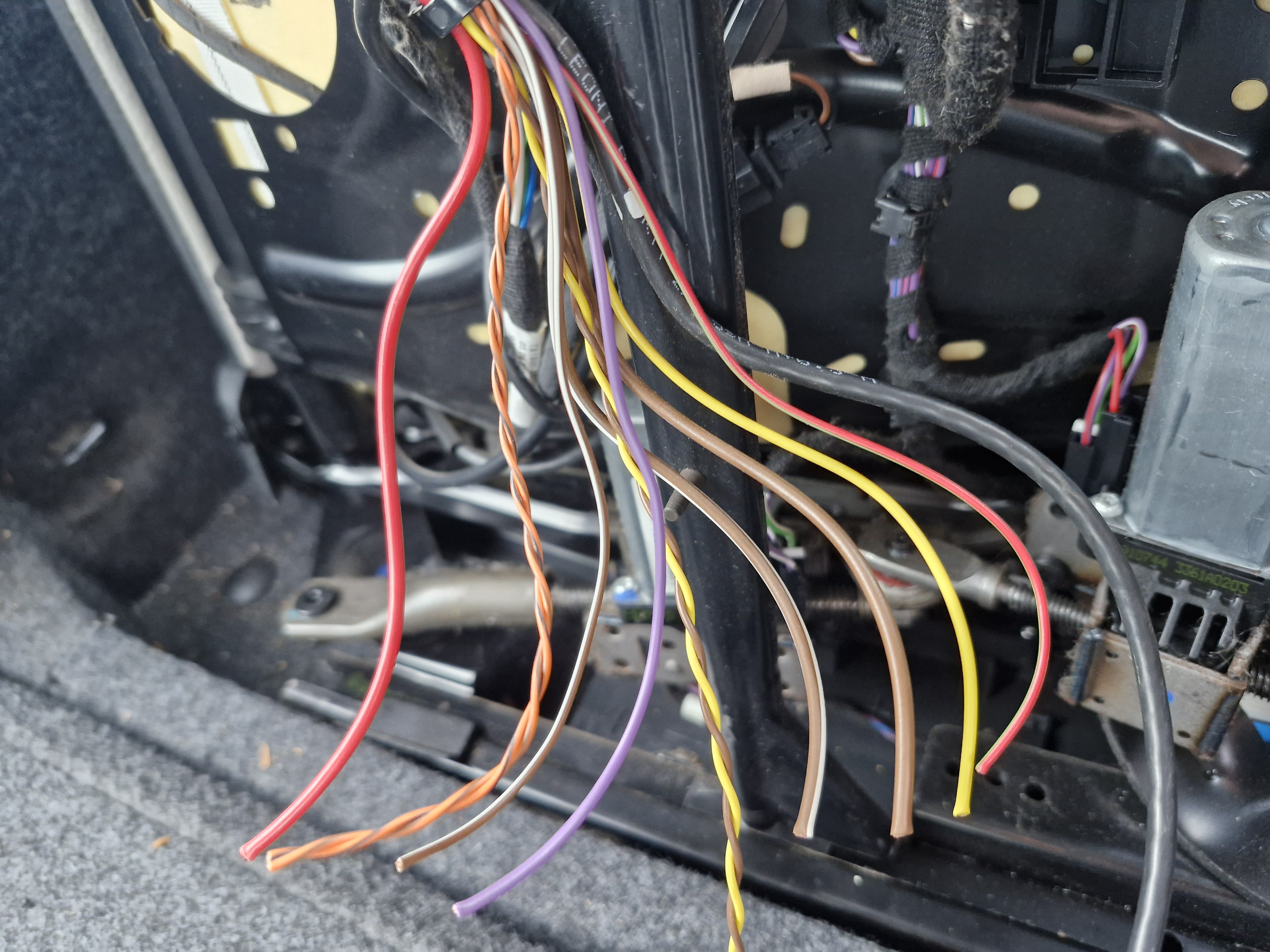

Hi all. I have a Skoda Octavia 2010, the facelift model. I have gotten my hands on two front seats from a Skoda Superb 3T: driver's seat electric, passenger seat not electric. My car is a left-hand drive vehicle. The wire loom beneath both seats has the connector decapitated. That means that the cables, the wire loom, just has all the cables sticking out. Could anyone advise where the different cables should be connected? I'm aware that going from both manually seat's to now electric with memory would require me to get some CAN-bus wiring from beneath the steering wheel out to the seats but what about the rest of the cables? Could anyone advise on which CAN-bus to extend to the seats and where it would be easiest to take them from? I have attached photos of the cables from both seats.

I have the pinouts - still need them ? Can I ask: when you don't use the electronic box connected to the CAN bus for the seat memory, does the comfort function work ? the function that enables the seat to automatically travel backwards when you open the door and forward again when the ignition is turned on.

Hi, I miss the electric functions of the seats - espec. the comfort function where the seats move 5 cm back before you exit the car, and then again forward before you drive. I was thinking on finding a pair of electric front seats from a Superb 3T (2009-2013) and then fit them into my Octavia 2 FL (2010). Has anyone done that ? The seats are quite a bit larger than octavia seats - can they fit into my octavia ? I can see that the seat control memory module is fitted under one of the seats and is connected to the conv. can bus. - so i will have to extend that can bus to the seat control box. Is it a doable project ? Any input is welcome Best regards Mikkel

In the first vesion of simos (10.10) there is no option to reset timing adaptation values. But the latter versions (10.20 ->) there is an option to reset adaptation vlues when you do a chain replacement.

My version of SIMOS is 10.10 wich to my understanding was the first version - and also a version where there is no option to reset timing enhancements values when you replace the chain. To my understanding there also is no dedicated field where the timing deviation is recorded, other than those 7 parameters i have shown in the top of this post - wich if they somehow could be intrepreted, should say something about the rotation timing of the camshaft related to the crankshaft. The problem is that the values are jibberish, and just some entrys of some degrees - wich all is related, but i dont know how. I bet that the SIMOS you are showing data from has version 10.20 or so ?

Thanks, but your video is not a tsi engine with SIMOS ECU. I dont think that bank 93 in SIMOS has that information ?

Can you tell me how you did ? How did you manage to reset from MFD ?

Hi Franky, Could you inform me, if it is byte 27, bit 2 you have set to indicate that the drl lights are LED's ? BR Mikkel

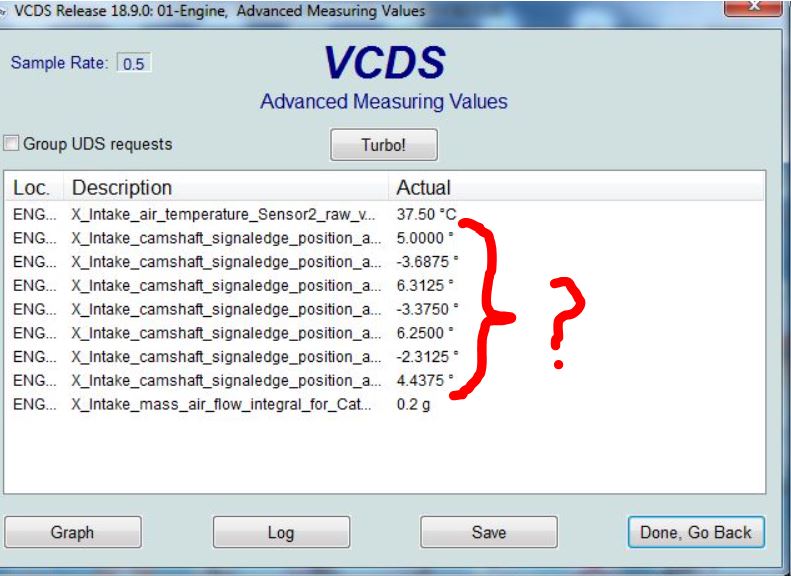

Hi, I was once shown these timing measures from the camshaft position sensor on my 1,2 tsi with chain. I was told that what was important, was that the angles where not to big. But what does that mean ? I know that these values is used for the engine to have correct timing, and therefore it should say something about how stretched the chain is - but compared to what ? Can anyone help med getting a better understanding ?

The black one is G62 on engine CBZB (1.2 tsi )

I dont know - but if You have a button on the dash You can press, then there is no reason to have the option in the MFD as well. My problem is that i dont have i button to press, and therefore only can reset the tpms by hooking up the pc and vcds - so for me the option in the MFD would be very nice. But i guess i have to install the button - but it is almost impossible to route the single wire out in the engine bay to the ABS module.

Ok thanks for looking But is it not strange that the cluster works with the HBA then ? It has the correct symbol with the "A" in a light when it is enabled. HBA is rather new - get my point ? The cluster is also capable of displaying the symbol for coffee break - driver alert - so i guess it cannot be that old ? The tpms functionality is OK - i can reset the tpms with vcds and the chime goes off - so its just the reset from the maxidot i miss.... When i installed the HBA i read a post written by you where you stated to fill the 09 module with zero's, an then afterwards the correct long coding , for the module to behave correctly. Could it be the same with this problem ?

Yes it comes here Thanks Friday,08,September,2023,21:45:02:00009 VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64 VCDS Version: 22.3.1.4 Data version: 20220407 DS337.0 www.Ross-Tech.com VIN: TMBCM61Z9B2015010 License Plate: Chassis Type: 1Z-SK35 (7N0) Scan: 01 03 08 09 15 16 17 19 20 25 42 44 46 4C 52 56 62 69 72 VIN: TMBCM61Z9B2015010 Mileage: 176250km-109516miles 01-Engine -- Status: OK 0000 03-ABS Brakes -- Status: OK 0000 04-Steering Angle -- Status: OK 0000 08-Auto HVAC -- Status: OK 0000 09-Cent. Elect. -- Status: Malfunction 0010 15-Airbags -- Status: OK 0000 16-Steering wheel -- Status: OK 0000 17-Instruments -- Status: OK 0000 19-CAN Gateway -- Status: OK 0000 20-High Beam Assist. -- Status: OK 0000 25-Immobilizer -- Status: OK 0000 42-Door Elect, Driver -- Status: OK 0000 44-Steering Assist -- Status: OK 0000 46-Central Conv. -- Status: OK 0000 4C-Tire Pressure II -- Status: OK 0000 52-Door Elect, Pass. -- Status: OK 0000 56-Radio -- Status: OK 0000 62-Door, Rear Left -- Status: OK 0000 69-Trailer -- Status: OK 0000 72-Door, Rear Right -- Status: Malfunction 0010 ------------------------------------------------------------------------------- Address 01: Engine (J623-CBZB) Labels:. 03F-906-070-CBZ.clb Part No SW: 03F 906 070 F HW: 03F 906 070 F Component: SIMOS10.10H03 9837 Revision: -------- Serial number: CVN: DC322491 Coding: 001900D6232400080000 Shop #: WSC 73430 031 00999 ASAM Dataset: EV_ECM12TFS02103F906070F 003011 ROD: EV_ECM12TFS02103F906070BF_003.rod VCID: 2541449324E10FA79C-8070 VINID: 91D49374606A252080045001000AE9936D No fault code found. Readiness: 0000 0000 ------------------------------------------------------------------------------- Address 03: ABS Brakes (J104) Labels:. 1K0-907-379-60EC1F.clb Part No SW: 1K0 907 379 AS HW: 1K0 907 379 AS Component: ESP MK60EC1 H30 0105 Revision: 00H30001 Coding: 113B201C092300FF880B04E590190040360600 Shop #: WSC 00046 123 12345 VCID: 03053A0B82151197D2-8056 No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC (J255) Labels:| 5K0-907-044.clb Part No SW: 3T0 907 044 AS HW: 3T0 907 044 AS Component: Climatronic H15 0401 Revision: 00005001 Coding: 0000000002 Shop #: WSC 73430 790 00999 ASAM Dataset: EV_Climatronic A01006 ROD: EV_ClimaAutoBasis_SK35.rod VCID: 03053A0B8A151197D2-8056 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. (J519) Labels:. 1K0-937-08x-09.clb Part No SW: 1K0 937 087 J HW: 1K0 937 087 J Component: BCM PQ35 H 103 0615 Revision: 00103 AD Coding: 40180AB8E02128C040980088110081E0427900AE52758D60630440200040 Shop #: WSC 73430 790 00999 VCID: 387F9DE78B53824F37-806C Subsystem 1 - Part No: 1Z1 955 119 C Labels: 1KX-955-119.CLB Component: Wischer 13061 22 0601 Coding: 00DF97 Subsystem 2 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB Component: RLS 150610 05 54 0403 Coding: 0730ED 2 Faults Found: 02746 - Bulb for Daytime Running Light; Right 010 - Open or Short to Plus - Intermittent Freeze Frame: Fault Status: 00101010 Fault Priority: 2 Fault Frequency: 44 Reset counter: 81 Mileage: 175966 km Time Indication: 0 Date: 2017.12.24 Time: 18:01:56 Freeze Frame: Term 15 On Voltage: 14.25 V ON ON Term 50 Off OFF OFF 02746 - Bulb for Daytime Running Light; Right 012 - Electrical Fault in Circuit Freeze Frame: Fault Status: 01101100 Fault Priority: 2 Fault Frequency: 1 Reset counter: 41 Mileage: 176251 km Time Indication: 0 Date: 2018.01.29 Time: 21:39:30 Freeze Frame: Term 15 On Voltage: 11.80 V ON ON Term 50 Off OFF OFF ------------------------------------------------------------------------------- Address 15: Airbags Labels: 1K0-909-605.lbl Part No SW: 1K0 909 605 T HW: 1K0 909 605 T Component: Q6 AIRBAG VW8 020 2300 Revision: 05020000 Serial number: 0038PD2MNU2% Coding: 0020790 Shop #: WSC 73430 790 00999 VCID: 3D718CF36471A767E4-8068 Subsystem 1 - Serial number: 6332MSME54416B136 Subsystem 2 - Serial number: 6342MSME547460356 Subsystem 3 - Serial number: 6351HSME22284164$ Subsystem 4 - Serial number: 6361HSME2228436C7 No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel (J527) Labels:| 5K0-953-569.clb Part No SW: 5K0 953 521 BL HW: 5K0 953 569 C Component: LENKS.MODUL 009 0136 Revision: FF010036 Serial number: 20100617301141 Coding: 5080140000 Shop #: WSC 00385 442 95158 ASAM Dataset: EV_SMLSNGVOLWS A01004 ROD: EV_SMLSNGVOLWS.rod VCID: 77FD5EDBCECD4D37FE-8022 No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1 Part No SW: 1Z0 920 843 K HW: 1Z0 920 843 K Component: KOMBI H20 0420 Serial number: 00000000000000 Coding: 110B01 Shop #: WSC 00046 123 12345 ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04089 ROD: EV_Kombi_UDS_VDD_RM09_004_SK35.rod VCID: 408FF507DB83CA8F8F-8014 No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb Part No SW: 7N0 907 530 G HW: 1K0 907 951 Component: J533 Gateway H41 1614 Revision: H41 Serial number: 241010F1001858 Coding: 351302 Shop #: WSC 00028 028 00001 VCID: 3467A9D7973B662F1B-8060 No fault code found. ------------------------------------------------------------------------------- Address 20: High Beam Assist. (J844) Labels:. 8K0-857-511.clb Part No SW: 5K0 857 511 C HW: 8P0 857 511 C Component: FLA H04 0006 Revision: AA001002 Coding: 0101196B74745D545420363E00 Shop #: WSC 01324 020 00200 VCID: 2E53BBBF79174CFF6D-807A No fault code found. ------------------------------------------------------------------------------- Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb Part No SW: 5K0 953 234 HW: 5K0 953 234 Component: IMMO H20 0420 Serial number: 00000000000000 Coding: 000000 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03008 ROD: EV_Immo_UDS_VDD_RM09_VW21.rod VCID: 6ADB77AF8D7FE0DF71-803E No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver Labels:. 1K0-959-701-MAX3.clb Part No SW: 1T0 959 701 AA HW: 1T0 959 701 AA Component: Tuer-SG 009 2113 Coding: 0004342 Shop #: WSC 73430 790 00083 VCID: 76E353DF01C7343FE5-8022 No fault code found. ------------------------------------------------------------------------------- Address 44: Steering Assist Labels: 1K0-909-14x-GEN3.clb Part No: 1K0 909 144 J Component: EPS_ZFLS Kl. 67 3001 Revision: 00H17000 Shop #: WSC 73430 790 00999 VCID: 3169A0C3A829530770-8064 No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. Labels:. 1K0-959-702-MAX3.clb Part No SW: 1T0 959 702 S HW: 1T0 959 702 S Component: Tuer-SG 009 2119 Coding: 0004342 Shop #: WSC 73430 790 00083 VCID: 489FED273BB3F2CF47-801C No fault code found. ------------------------------------------------------------------------------- Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb Part No SW: 1Z0 035 161 M HW: 1Z0 035 161 M Component: Radio-SWING 002 0003 Revision: -----04S Serial number: SKZ4Z2M1215287 Coding: 050004000001 Shop #: WSC 33361 790 00999 VCID: 387F9DE78B53824F37-806C No fault code found. ------------------------------------------------------------------------------- Address 62: Door, Rear Left Labels:. 1K0-959-703-GEN3.clb Part No SW: 5K0 959 703 A HW: 5K0 959 703 A Component: Tuer-SG 007 2101 Coding: 0000144 Shop #: WSC 73430 790 1012563 VCID: 326BAFCFAD2F681F09-8066 No fault code found. ------------------------------------------------------------------------------- Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb Part No SW: 1K0 907 383 F HW: 1K0 907 383 F Component: Anhaenger H09 0100 Revision: 3A001001 Serial number: 00008200737972 Coding: 0100000100000000 Shop #: WSC 00000 000 00000 VCID: 306FA5C763235A0F7F-8064 No fault code found. ------------------------------------------------------------------------------- Address 72: Door, Rear Right Labels:. 1K0-959-704-GEN3.clb Part No SW: 5K0 959 704 A HW: 5K0 959 704 A Component: Tuer-SG 007 2101 Coding: 0000144 Shop #: WSC 73430 790 1012563 VCID: 3365AACB5235611702-8066 1 Fault Found: 00931 - Locking Module for Central Locking; Rear Right (F223) 008 - Implausible Signal - Intermittent End-------------------------(Elapsed Time: 02:11)--------------------------

Hi Langers, I really appreciate all Your knowledge, and hope you can guide me as well. I have an octavia from 06-2010, with both instrument cluster and gateway replacement. (I have fitted HBA, and it works like a charm). But for some reson i cannot get the instrument to appear with the "Tire Pressure" menu in the maxidot, so that i can reset the TPMS that way. I have done all the coding you have described, incl. the hidden bit 1 of byte 16 in the abs module. Im frustrated that it will not show - i don't get any errorcodes. Do you think that i should try to soft reset the modules, or is it a waste of time ? Do you know which wersions of hard an software is required ? My instrument is as follows: Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1 Part No SW: 1Z0 920 803 K HW: 1Z0 920 803 K Component: KOMBI H04 0405 Serial number: 00000000000000 And the gate way: Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb Part No SW: 7N0 907 530 G HW: 1K0 907 951 Component: J533 Gateway H41 1614 Revision: H41 Serial number: 241010F1001858 BR Mikkel

I have also bought a new chain tensioner - and just wanna know if you just unscrewed the old one and then torque'de the new one to 60 nm, without locking the camshaft with the "camshaft locking tool" ? If it is safe to do the operation without locking the cam, that would be the easiest
