Szogun

For DCC slider also?

And that might be the issue. The climate panel. I have: 3V0-907-044-FM which is older than 565. I know that 3V5 panel will solve this issue, so maybe the 565 is also compatible with 3levels of heating. Do You remember if there was a MIB2 or MIB3 unit?

this one: https://battle-giver-65e.notion.site/Steering-wheel-module-18eb3eb13c27800e91d8f7cf3f5b1e67

Sure - via closing the car for few minutes

SFT271921-MAS13892-Multifunction steering wheel control module-Platform MQB 3

I belive You are talking about: [LO]_Heated_steering_wheel_version: [VO]_LRH_Gen_2_mod - I tried all of possibilities - without luck. Do You have a capacity, heating steering wheel from factory?

Did it worked as on this video? 3-2-1-0? Or just ON-OFF? IMG_7084.MOV

I have adapter for new steering wheel and LIN signals - the view and menu button works. Exactly - I want to code it as in first option (3-2-1-0) But now I have only 2-0 (2- according to the graphic on VC) Heated_steering_wheel_automatic_mode - Not installed

I belive moderator has to accept the new topic. Yes - new clock spring with additional power supply

Do I need new dataset for heating steering wheel? I made a new topic for this: https://www.briskoda.net/forums/topic/536918-superb-3v-my2020-heated-steering-wheel-retrofit-almost-complete/ I also uploaded there autoscan and admap from 08,19 and 5F unit

Hello, I retrofitted heating steering wheel to my Skoda Superb MY2020. It's a face lift model, but it came from factory with "old" steering wheel - as many of early lift models. From factory the steering wheel was heated. But now I changed the steering wheel to the "new" one with capacity sensor. I coded everything properly, but from the button on steering wheel I can only turn ON/OFF heating. I know there is a possibility to turn on the 3 level of heating option. I'm starting assuming that it might be because of low FW version in my HVAC panel. I think it will work with 3V5 module, but I want to try code it in this panel. Do You have idea what else I can do? Or maybe someone has access to the 3V0907044 firmware higher than 4XXX?FULL SCAN FULL SCAN Wednesday,24,December,2025,11:40:04:16626 VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64 VCDS Version: 25.3.2.0 (x64) HEX-V2 CB: 0.4671.4 Data version: 20250822 DS365.0 www.Ross-Tech.com Dealer/Shop Name: Diagnostyk.pl Workshop Code: 777 12345 089765 VIN: TMBCJ7NP9L7011843 License Plate: MOJE Mileage: 170288km-105812mi Repair Order: -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- Chassis Type: NP-SK48 (3Q0) Scan: 01 02 03 05 06 08 09 10 13 15 17 19 22 23 2B 36 3C 42 44 47 4B 52 5F 6C 6D 75 A5 BB BC CA D6 D7 VIN: TMBCJ7NP9L7011843 Mileage: 170288km-105812miles 01-Engine -- Status: OK 0000 02-Auto Trans -- Status: OK 0000 03-ABS Brakes -- Status: OK 0000 05-Acc/Start Auth. -- Status: OK 0000 06-Seat Mem. Pass -- Status: OK 0000 08-Auto HVAC -- Status: OK 0000 09-Cent. Elect. -- Status: OK 0000 10-Park/Steer Assist -- Status: OK 0000 13-Auto Dist. Reg -- Status: OK 0000 15-Airbags -- Status: OK 0000 17-Instruments -- Status: OK 0000 19-CAN Gateway -- Status: Malfunction 0010 22-AWD -- Status: OK 0000 23-Brake Booster -- Status: OK 0000 2B-Steer. Col. Lock -- Status: OK 0000 36-Seat Mem. Drvr -- Status: OK 0000 3C-Lane Change -- Status: OK 0000 42-Door Elect, Driver -- Status: OK 0000 44-Steering Assist -- Status: OK 0000 47-Sound System -- Status: Cannot be reached 0100 4B-Multifunc. Module -- Status: OK 0000 52-Door Elect, Pass. -- Status: OK 0000 5F-Information Electr. -- Status: Malfunction 0010 6C-Back-up Cam. -- Status: Malfunction 0010 6D-Trunk Elect. -- Status: OK 0000 75-Telematics -- Status: OK 0000 A5-Frt Sens. Drv. Assist -- Status: OK 0000 BB-Door Rear Drv -- Status: OK 0000 BC-Door Rear Pass -- Status: OK 0000 CA-Sunroof -- Status: OK 0000 D6-Light Ctrl Left 2 -- Status: OK 0000 D7-Light Ctrl Right 2 -- Status: OK 0000 ------------------------------------------------------------------------------- Address 01: Engine (J623-DFHA) Labels:. 04L-907-309-V1.clb Part No SW: 04L 906 027 P HW: 04L 907 309 P Component: R4 2.0l TDI H26 9497 Revision: B4H26--- CVN: 6E79B040DAF1CE2E5D3F3C3E Coding: 01250412036605083000 Shop #: WSC 00046 000 00000 ASAM Dataset: EV_ECM20TDI01104L906027P 005003 ROD: EV_ECM20TDI01104L906027P.rod VCID: 38292DCD52D784EA763-806C VINID: 91D4936877A025C1C00412040C95878E45 No fault code found. Readiness: 0 0 0 0 1 ------------------------------------------------------------------------------- Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb Part No SW: 0GC 300 013 K HW: 0GC 927 711 H Component: GSG DQ381 H06 2405 Revision: 00H06V09 CVN: 705A9222 Coding: 0014 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_TCMDQ381061 001 ROD: EV_TCMDQ381061.rod VCID: 2C01019D968F384A02B-8078 No subsystems: No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes (J104) Labels: 5Q0-907-379-IPB-V1.clb Part No SW: 5Q0 614 517 FA HW: 5Q0 614 517 BR Component: ESC H82 0190 Revision: 00000000 Serial number: 62089000001821 Coding: 1D077A9C31213B6D477F070460C649B85E8CDCE2E006927538615078D2894A0B0002000012121212B835351919323200 Shop #: WSC 00046 000 00000 ASAM Dataset: EV_Brake1UDSContiMK100IPB 038007 ROD: EV_Brake1UDSContiMK100IPB_038.rod VCID: 75B7E4F905453982AD5-8020 No fault code found. ------------------------------------------------------------------------------- Address 05: Acc/Start Auth. (J518) Labels:| 5Q0-959-435.clb Part No SW: 3Q0 959 435 N HW: 3Q0 959 435 N Component: VWKESSYMQB 037 1307 Revision: 00037000 Serial number: 0522954008 Dataset Number: V03935290ED 0001 Coding: 0F20000723 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_KessyHellaMQBAB 004052 ROD: EV_KessyHellaMQBAB_004_VW37.rod VCID: 45D754391525E902FD5-8010 No fault code found. ------------------------------------------------------------------------------- Address 06: Seat Mem. Pass (J521) Labels:* None Part No SW: 5Q0 959 760 E HW: 5Q0 959 760 E Component: Sitzmemory H09 0026 Serial number: Y0007SG922574 Coding: 001000020000150001C280808080000000008181000000D400 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_SeatMemorPasseSide 002022 ROD: EV_SeatMemorPasseSide_VW37.rod VCID: 3FDB46D177F9B3D2B79-806A No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC (E87) Labels:| 3V0-907-044.clb Part No SW: 3V0 907 044 FM HW: 3V0 907 044 FM Component: AC Automat H34 4803 Revision: 20K10000 Serial number: 00000B01427151 Coding: 11010104002410011004004100105032 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_ACClimaPrehVW37X 002027 ROD: EV_ACClimaPrehVW37X_002_VW37.rod VCID: 0451893D5E9F100AAAB-8050 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. (J519) Labels:. 5Q0-937-08X-V2.clb Part No SW: 5Q0 937 086 CF HW: 5Q0 937 086 BR Component: BCM PQ37BOSCH 038 0303 Revision: -------- Serial number: J53F08071900K0 Dataset Number: V03935307JU 0001 Coding: 000000000000000000000000000000000000000000000000000000000000 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_BodyContrModul1UDSBosc 020001 ROD: EV_BCMBOSCH_020_VW27.rod VCID: 0059852D4A870C2A8E3-8054 Wiper motor control module: Subsystem 1 - Part No SW: 3V1 955 119 HW: 3V1 955 119 Labels: 5QX-955-119-V1.CLB Component: 48x LL 190617 032 0121 Serial number: 00000001906130308371 Coding: 165DDD Rain/Light Recognition Sensor: Subsystem 2 - Part No SW: 5Q0 955 547 C HW: 5Q0 955 547 C Labels: 5Q0-955-547.CLB Component: RLHS 051 0206 Serial number: SBY19M07D10H22M03S39 Coding: 0088DF Anti-theft alarm system sensor: Subsystem 3 - Part No SW: 5Q0 951 177 HW: 5Q0 951 172 Component: Sensor, DWA 005 0316 Serial number: 000000000ZY191800HT8 Alarm horn: Subsystem 4 - Part No SW: 5Q0 951 605 B HW: 5Q0 951 605 B Component: Sirene, DWA 004 0007 Serial number: 00000000000000509315 Humidity sensor: interior: Steering Column Switch: Subsystem 6 - Part No SW: 5Q1 953 521 DH HW: 5Q1 953 569 C Component: Lenks.Modul H33 0170 Serial number: 0100080420200C103093 No fault code found. ------------------------------------------------------------------------------- Address 10: Park/Steer Assist (J446) Labels:| 5Q0-919-294.clb Part No SW: 5QA 919 294 G HW: 5QA 919 294 Component: PDC 8 Kanal H08 0061 Serial number: 000150058619193 Dataset Number: V03935302KA 0001 Coding: 0471155851 Shop #: WSC 00046 000 00000 ASAM Dataset: EV_EPHVA18AU3700000 009046 ROD: EV_EPHVA18AU3700000_009_AU37.rod VCID: 50F9756DDA673CAA5E3-8004 No fault code found. ------------------------------------------------------------------------------- Address 13: Auto Dist. Reg (J428) Labels:| 5Q0-907-572-V2.clb Part No SW: 5Q0 907 572 R HW: 3Q0 907 567 A Component: ACC BOSCH MQB H01 0771 Dataset Number: V12345678AA V305 Coding: 32055FF159FFCF28949F812581400680000000000099400076 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_ACCBOSCHVW416 003014 ROD: EV_ACCBOSCHVW416_003_VW41.rod VCID: 46D553352823E21AF4F-8012 No fault code found. ------------------------------------------------------------------------------- Address 15: Airbags (J234) Labels:| 5Q0-959-655.clb Part No SW: 5Q0 959 655 BS HW: 5Q0 959 655 BS Component: AirbagVW21 007 0403 Serial number: 003FMR5JZMCV Dataset Number: V03935308KP 0001 Coding: 98CCC0C0000000005C5400CF004800000065 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_AirbaVW20SMEVW37X 002164 ROD: EV_AirbaVW20SMEVW37X_VW37.rod VCID: 127DBF6514EB8EBA287-8046 Crash sensor for side airbag: driver side: Subsystem 1 - Part No SW: ----------- HW: 480 002 607 19 Component: SideSensor_Df 001 0887 Serial number: 35700000000E455CED3% Coding: 2D2D2D Crash sensor for side airbag: passenger side: Subsystem 2 - Part No SW: ----------- HW: 480 002 907 19 Component: SideSensor_Pf 001 0887 Serial number: 3580000000095B6D7E3+ Coding: 2D2D2D Rear Side Airbag Crash Sensor (on driver's side): Subsystem 3 - Part No SW: ----------- HW: 480 401 307 19 Component: SideSensor_Dr 005 6149 Serial number: 3510001A6F03BAE61729 Coding: 2D2D2D Passenger side rear thorax airbag crash sensor: Subsystem 4 - Part No SW: ----------- HW: 480 402 607 19 Component: SideSensor_Pr 005 6149 Serial number: 3520001B0F08AF8617FL Coding: 2D2D2D Crash sensor for front airbag: driver side: Subsystem 5 - Part No SW: ----------- HW: 480 402 607 19 Component: FrontSensor_D 003 6149 Serial number: 3550001AB2BD5E53216B Coding: 2D2D2D No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels:| 5G0-920-XXX-17.clb-SRI3 Part No SW: 3V0 920 790 D HW: 3V0 920 790 D Component: KOMBI 502 4191 Coding: 09AD001AEF8C0008018D770B0001000880000000 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_DashBoardVDDMQBA0 001042 ROD: EV_DashBoardVDDMQBA0_001_VW37.rod VCID: 38292DCD52D784EA763-806C No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels:| 3Q0-907-530-V1.clb Part No SW: 3Q0 907 530 AR HW: 3Q0 907 530 C Component: GW MQB High 521 5502 Serial number: 15071911600851 Dataset Number: SET_FPA_MOD 0001 Coding: 0B0100045F0873008B1002DA180F00010001070000000000000000000000 Shop #: WSC 12345 777 89765 GVL: 01C63C000900060840FC80008082C80010000000000200000000000000000000 ASAM Dataset: EV_GatewNF 013026 ROD: EV_GatewNF_VW37.rod VCID: 7F5B06D1377973D2F79-802A Generator: Component: 4-00-05-00-04 Multifunction steering wheel control module: Subsystem 2 - Part No SW: 5E3 919 719 N HW: 5E3 919 719 N Labels: 3C8-959-537.CLB Component: t.ly/hSCQu H50 0500 Serial number: PR6-0440062344212368 Coding: A70000 Battery Monitoring Control Module: Subsystem 3 - Part No SW: 5Q0 915 181 K HW: 5Q0 915 181 K Component: J367-BDMHella H10 9070 Serial number: 7608581905 Inverter for electrical outlet: Subsystem 4 - Part No SW: 5Q0 907 155 B HW: 5Q0 907 155 B Component: U13DCAC H27 0810 Serial number: 2137219 4 Faults Found: 131616 - No Communications with Undefined Control Module U1126 00 [00001001] - - [Timeout Knoten 0x20] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 2 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:30:11 Terminal 30 power supply: 11.8 V Terminal 15: On 131695 - Digital sound System control module U106A 00 [00001001] - No Communication [Timeout Knoten 0x6F / 47 - Steuergerät für digitales Soundpaket] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 2 Fault Frequency: 2 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:10 Terminal 30 power supply: 11.9 V Terminal 15: On 67072 - Local Databus U1125 00 [00001001] - Additional Installations Detected [Subsystem Mehrverbau erkannt] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 2 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:10 Terminal 30 power supply: 11.9 V Terminal 15: On 15360512 - Component Protection U1101 00 [00001001] - Active Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:10 Terminal 30 power supply: 11.9 V Terminal 15: On ------------------------------------------------------------------------------- Address 22: AWD (J492) Labels:| 0CQ-907-554-V1.clb Part No SW: 0CQ 907 554 J HW: 0CQ 525 130 Component: Haldex4Motion H55 7084 Serial number: HA1-00004.07.19 Dataset Number: v1260x015G0 0000 Coding: 0301 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_AllWheelContrHA1VW37X 004013 ROD: EV_AllWheelContrHA1VW37X_004_VW37.rod VCID: 4CC1611D364F184A22B-8018 No fault code found. ------------------------------------------------------------------------------- Address 23: Brake Booster (J539) Labels:. 5QE-909-059.clb Part No SW: 3Q0 909 059 G HW: 3Q0 909 059 A Component: EBKV H06 0069 Serial number: BPA085190619013 Coding: 0102C500340000C618638C31000049922449920400 ASAM Dataset: EV_BrakeBoostG2BoschVW48X 011019 ROD: EV_BrakeBoostG2BoschVW48X_011_SK48.rod VCID: 3B2332C163E1AFF29B1-806E No fault code found. ------------------------------------------------------------------------------- Address 2B: Steer. Col. Lock (J764) Labels:| 1EA-905-861.clb Part No SW: 3Q0 905 861 B HW: 3Q0 905 861 B Component: ELV-MQBB H05 0020 Serial number: 19000199603003 Coding: 0800000000000000 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_ELVMarqMQBA0 002002 ROD: EV_ELVMarqMQBA0_SK48.rod VCID: 33331AE14BB167B2431-8066 No fault code found. ------------------------------------------------------------------------------- Address 36: Seat Mem. Drvr (J810) Labels:* None Part No SW: 5Q0 959 760 E HW: 5Q0 959 760 E Component: Sitzmemory H09 0026 Serial number: Y0007SG921992 Coding: 001000020000150001C280808080000000008181000000D400 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_SeatMemorDriveSide 002022 ROD: EV_SeatMemorDriveSide_002_VW48.rod VCID: 3FDB46D177F9B3D2B79-806A No fault code found. ------------------------------------------------------------------------------- Address 3C: Lane Change (J1086) Labels:| 2Qx-907-686-V2.clb Part No SW: 2Q0 907 686 B HW: 2Q0 907 686 B Component: HRE3_Kl15_Mst H06 0149 Serial number: 00000522863366 Dataset Number: V03935306BB 0001 Coding: 52954640 ASAM Dataset: EV_HREntryHellaGen3Kl15 002001 ROD: EV_HREntryHellaGen3Kl15_002_VW27.rod VCID: 392F28C969DD9DE289D-806C Lane change assistance control module 2: Subsystem 1 - Part No SW: 2Q0 907 685 B HW: 2Q0 907 685 B Component: HRE3_Kl15_Slv H06 0149 Serial number: 00000522999983 No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver (J386) Labels:| 5QX-959-X93-42.clb Part No SW: 5Q4 959 593 K HW: 5Q4 959 593 K Component: TSG FS 007 0480 Serial number: 0000382776037 Dataset Number: V03935303TQ 0001 Coding: 001D8820DE00020000001100 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_DCU2DriveSideMAXHCONT 001005 ROD: EV_DCU2DriveSideMAXHCONT_VW37.rod VCID: 4DC76C19CD551142355-8018 No fault code found. ------------------------------------------------------------------------------- Address 44: Steering Assist (J500) Labels:| 5Q0-909-144.clb Part No SW: 3Q0 909 144 M HW: 3Q0 909 144 L Component: EPS_MQB_ZFLS 507 5082 Dataset Number: V03935289T 0001 Coding: 91970000 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_SteerAssisMQB 015157 ROD: EV_SteerAssisMQB_015.rod VCID: 3C2131DD66EFA8CA92B-8068 No fault code found. ------------------------------------------------------------------------------- Address 47: Sound System (J525) Labels:| 81A-035-466.clb Part No SW: 81A 035 223 HW: 81A 035 223 Component: MIB2_amp_P_SK H10 0410 Revision: 00000001 Serial number: SKZ8Z1KJE0805WA Dataset Number: V03935263JW 0001 Coding: 0384010001AA002FAA0000000000 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_AMPMst16C5Gen2ALPI 001001 ROD: EV_AMPMst16C5Gen2ALPI.rod VCID: 59EF8849899D7DE2A9D-800C No fault code found. ------------------------------------------------------------------------------- Address 4B: Multifunc. Module (J745) Labels:| 3Q0-907-338-V2.clb Part No SW: 3Q0 907 338 E HW: 3Q0 907 338 E Component: FCM MQB Low 003 0367 Serial number: 11071910803020 Dataset Number: V03935308TC 0001 Coding: 00000007090008F200003D13010000000000000000000000000000000000 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_MultiModulContiVW48X 003003 ROD: EV_MultiModulContiVW48X_003_VW27.rod VCID: 372B2EF15FC98B927F9-8062 No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. (J387) Labels:| 5QX-959-X92-52.clb Part No SW: 5Q4 959 592 K HW: 5Q4 959 592 K Component: TSG BFS 007 0480 Serial number: 0000382848586 Dataset Number: V03935303TR 0001 Coding: 001D8020DE00020000001100 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_DCU2PasseSideMAXHCONT 001005 ROD: EV_DCU2PasseSideMAXHCONT_VW37.rod VCID: 4CC1611D364F184A22B-8018 No fault code found. ------------------------------------------------------------------------------- Address 5F: Information Electr. (J794) Labels:| 3V0-035-MIB-HGH2.clb Part No SW: 565 035 021 E HW: 565 035 021 Component: MU-H-LND-EU H55 1440 Serial number: A853J0JB077087 Dataset Number: V03935314JG 0001 Coding: 03840101000000004111000200080A002F020DE401208400DF Shop #: WSC 12345 777 89765 ASAM Dataset: EV_MUHig4CGen2HBAS 001001 ROD: EV_MUHig4CGen2HBAS_AU37.rod VCID: 1079B56D1AE77CAA1E3-8044 Display and control head 1 for information electronics: Subsystem 1 - Part No SW: 3V0 919 606 D HW: 3V0 919 606 D Component: ABT_High-2 H52 9130 Serial number: SKZ6ZHW1322758 Data carrier: Subsystem 2 - Part No SW: V03 959 823 HL HW: ----------- Component: ECE 2026 --- 0430 Serial number: -------------------- Compact disc data bank: Subsystem 3 - Part No SW: V03 959 800 EG HW: ----------- Component: Gracenote2 --- 1017 Serial number: -------------------- 3 Faults Found: 1543 - Control Module Incorrectly Coded U1014 00 [00001001] - - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:14 Voltage terminal 30: 12.1 V Byte_Coding_Condition-byte_0_condition: OK Byte_Coding_Condition-byte_1_condition: OK Byte_Coding_Condition-byte_10_condition: ERROR Byte_Coding_Condition-byte_11_condition: ERROR Byte_Coding_Condition-byte_12_condition: ERROR Byte_Coding_Condition-byte_13_condition: ERROR Byte_Coding_Condition-byte_14_condition: ERROR Byte_Coding_Condition-byte_15_condition: ERROR Byte_Coding_Condition-byte_16_condition: ERROR Byte_Coding_Condition-byte_17_condition: ERROR Byte_Coding_Condition-byte_18_condition: ERROR Byte_Coding_Condition-byte_19_condition: ERROR Byte_Coding_Condition-byte_2_condition: OK Byte_Coding_Condition-byte_20_condition: ERROR Byte_Coding_Condition-byte_21_condition: ERROR Byte_Coding_Condition-byte_22_condition: ERROR Byte_Coding_Condition-byte_23_condition: ERROR Byte_Coding_Condition-byte_24_condition: ERROR Byte_Coding_Condition-byte_25_condition: ERROR Byte_Coding_Condition-byte_26_condition: ERROR Byte_Coding_Condition-byte_27_condition: ERROR Byte_Coding_Condition-byte_3_condition: OK Byte_Coding_Condition-byte_4_condition: OK Byte_Coding_Condition-byte_5_condition: OK Byte_Coding_Condition-byte_6_condition: OK Byte_Coding_Condition-byte_7_condition: OK Byte_Coding_Condition-byte_8_condition: OK Byte_Coding_Condition-byte_9_condition: OK 1555 - Check Software Version Management B201A 00 [00001001] - - [Check software version management] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:19 Voltage terminal 30: 12.1 V Status_Software_Version_Management-module_name: MDUK619/Main 15360512 - Component Protection U1101 00 [00001001] - Active [Anti-theft protection - component protection active (0xEA6200)] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:14 Voltage terminal 30: 12.1 V ------------------------------------------------------------------------------- Address 6C: Back-up Cam. (J772) Labels:| 5Q0-980-556.clb Part No SW: 5Q0 980 556 B HW: 5Q0 980 556 B Component: RVC Compact H18 0231 Dataset Number: 83A909460A 0006 Coding: 0484060122002017000040 Shop #: WSC 12345 777 89765 ASAM Dataset: EV_CamSysRVRVCPANAMQBAB 006009 ROD: EV_CamSysRVRVCPANAMQBAB.rod VCID: 392F28C969DD9DE289D-806C 1 Fault Found: 10489856 - No Basic Setting B2010 00 [00001001] - - [RearView system not calibrated] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 5 Fault Frequency: 1 Reset counter: 88 Mileage: 170288 km Date: 2025.12.24 Time: 11:26:09 passive ------------------------------------------------------------------------------- Address 6D: Trunk Elect. (J605) Labels:| 5Q0-959-107.clb Part No SW: 5Q0 959 107 S HW: 5Q0 959 107 J Component: HDSG-Modul H13 0271 Revision: -------- Serial number: A2-C737-6291-8 Dataset Number: V03935272KG 0001 Coding: 1008 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_DeckLidCONTIAU736 001017 ROD: EV_DeckLidCONTIAU736_VW37.rod VCID: 48C95D0D2237F46A063-801C No fault code found. ------------------------------------------------------------------------------- Address 75: Telematics (J949) Labels:* None Part No SW: 5NA 035 284 C HW: 5NA 035 284 C Component: OCULowMQBLGE H19 0825 Revision: -------- Dataset Number: V03935303EX 0001 Coding: 03840101EA423A0D3F1C9E020045400382E608 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_OCULowMQBLGE 004049 ROD: EV_OCULowMQBLGE_004_VW25.rod VCID: 3D273CD97DF5A1C2A55-8068 No fault code found. ------------------------------------------------------------------------------- Address A5: Frt Sens. Drv. Assist (R242) Labels:| 2Q0-980-653.clb Part No SW: 2Q0 980 653 HW: 2Q0 980 653 Component: MQB MFK 3.0 H11 1031 Serial number: E33417008192120 Dataset Number: V03935317SN 0001 Coding: 00020898216C402810DF14001030008001430000000000000000000000000000 ASAM Dataset: EV_MFK3ValeoMQB 005035 ROD: EV_MFK3ValeoMQB_005_VW48.rod VCID: 72BDDFE5742B2EBA887-8026 No fault code found. ------------------------------------------------------------------------------- Address BB: Door Rear Drv (J388) Labels:* None Part No SW: 8W0 959 595 M HW: 8W0 959 595 J Component: TSG HFS 010 0384 Serial number: 0000384856674 Dataset Number: V03935299VS 0001 Coding: 001880208000020000001100 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_DCU2RearDriveMAXHCONT 001005 ROD: EV_DCU2RearDriveMAXHCONT_VW37.rod VCID: 56F58375F883529A84F-8002 No fault code found. ------------------------------------------------------------------------------- Address BC: Door Rear Pass (J389) Labels:* None Part No SW: 8W0 959 595 M HW: 8W0 959 595 J Component: TSG HBFS 010 0384 Serial number: 0000384822745 Dataset Number: V03935299VR 0001 Coding: 001880208000020000001100 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_DCU2RearPasseMAXHCONT 001005 ROD: EV_DCU2RearPasseMAXHCONT_VW37.rod VCID: 56F58375F883529A84F-8002 No fault code found. ------------------------------------------------------------------------------- Address CA: Sunroof (J245) Labels:| 4M0-907-594.clb Part No SW: 4K0 907 594 AD HW: 4K0 907 594 Component: SAD_STG_1 006 0002 Dataset Number: V03935282YQ 0001 Coding: 408000648101 Shop #: WSC 00033 790 00105 ASAM Dataset: EV_SunRoofCONTIAU736 009011 ROD: EV_SunRoofCONTIAU736_009_SK48.rod VCID: 76B5E3F51843329AA4F-8022 No fault code found. ------------------------------------------------------------------------------- Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb Part No SW: 992 941 571 AA HW: 992 941 571 A Component: LED1L H08 9002 ASAM Dataset: EV_LLPGen3LKEBODPO68X 001003 ROD: EV_LLPGen3LKEBODPO68X_001_SK48.rod VCID: 619FA0A9A1CDA522E1D-8034 No fault code found. ------------------------------------------------------------------------------- Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb Part No SW: 992 941 571 AA HW: 992 941 571 A Component: LED1R H08 9002 ASAM Dataset: EV_LLPGen3RKEBODPO68X 001003 ROD: EV_LLPGen3LKEBODPO68X_001_SK48.rod VCID: 619FA0A9A1CDA522E1D-8034 No fault code found. End----(Elapsed Time: 02:15, VBatt start/end: 11.9V/11.9V. VIgn 11.9V)----- ------------------------------8 Faults Found------------------------------- 08 - HVAC ;SW:3V0-907-044-FM HW:3V0-907-044-FM --- Auto HVAC --- SA: 20103 ;Component:AC Automat H34 4803 Coding:1101010400241001100400450010902A ;EV_ACClimaPrehVW37X 2027 EV_ACClimaPrehVW37X_002_VW37.rod ;Saturday 20 December ;VCDS Version: Release 25.3.2 (x64) Data version: 20250822 DS365.0 ;VCID: 0451893D5E9F100AAAB-8050 IDE00001-Production mode Deactivating 3 IDE01067-Retention of driver's seat heater level active for 10 minutes 1 IDE01478-Ignore compressor switch-off by Engine Control Module Do not ignore 1 IDE01483-Blower voltage with voice control not activated 1 IDE01488-Auxiliary heating retrofit without CAN not installed 1 IDE01493-Sensitivity of air quality sensor Maximum 1 IDE01503-Running time of basic setting for compressor break-in 60 s 1 IDE01536-Post heating of auxiliary heating 0 min 1 IDE02155-Reset all counters not activated 1 IDE02332-Deactivate production mode 0 3 IDE03176-Duration of compressor run in 60 s 1 IDE03251-Stop enable for Start/Stop function According to function requirements 1 IDE04159-Deactivation of start/stop function not active 1 IDE06097-Target temperature of A/C - heater function via remote control 22.0 °C 1 IDE07108-A/C styles Matching coding 1 IDE07160-MAS01155-Control module switch-off: switch-off time-Control module 20 min 2 IDE07160-MAS05583-Control module switch-off: switch-off time-Data bus 30 min 2 IDE07301-Remote start function: activation of seat heating Front seat heating 1 IDE07302-Remote start function: interior climate control status Remote start function with fixed rated temperature active 1 IDE07304-Remote start function: activation of seat ventilation activated 1 IDE07305-Rem. start funct.: activat.temper. of seat heating 15 °C 1 IDE07306-Rem. start funct.: activat.temper. of seat ventilation 20 °C 1 IDE07307-Remote start function: activation stage of seat heating level 2 1 IDE07308-Remote start function: activation stage of seat ventilation level 2 1 IDE07398-Blower logic with manual adjustment Matching coding 1 IDE07865-Automatic activation of front windshield defroster at MAX-Defrost active 1 IDE07948-Retention of frt.pass. seat heater level not active 1 IDE12229-Filtering of interior air: store Service life-dependent store 1 IDE13676-Remote start function: rear window defogger activated 1 IDE13677-Remote start function: seat climate control takeover activated 1 MAS06564-Window condensation exterior reduction at high humidity Matching coding 1 MAS14860-Remote start function: windshield defogger takeover activated 1 MAS14861-Remote start function: windshield defogger activated 1 MAS17226-Remote start function: windshield defogger can be activated activated 1 ENG122844-ENG101574-dimming_characteristic_1-X1 0 12 ENG122844-ENG99557-dimming_characteristic_1-X2 6 12 ENG122844-ENG102140-dimming_characteristic_1-X3 40 12 ENG122844-ENG102936-dimming_characteristic_1-X4 60 12 ENG122844-ENG103548-dimming_characteristic_1-X5 80 12 ENG122844-ENG113992-dimming_characteristic_1-X6 100 12 ENG122844-ENG99777-dimming_characteristic_1-Y1 0% 12 ENG122844-ENG100480-dimming_characteristic_1-Y2 6% 12 ENG122844-ENG100773-dimming_characteristic_1-Y3 40% 12 ENG122844-ENG100631-dimming_characteristic_1-Y4 60% 12 ENG122844-ENG102174-dimming_characteristic_1-Y5 80% 12 ENG122844-ENG113993-dimming_characteristic_1-Y6 100% 12 ENG122845-ENG101574-dimming_characteristic_2-X1 0 12 ENG122845-ENG99557-dimming_characteristic_2-X2 10 12 ENG122845-ENG102140-dimming_characteristic_2-X3 50 12 ENG122845-ENG102936-dimming_characteristic_2-X4 100 12 ENG122845-ENG103548-dimming_characteristic_2-X5 220 12 ENG122845-ENG113992-dimming_characteristic_2-X6 253 12 ENG122845-ENG99777-dimming_characteristic_2-Y1 2% 12 ENG122845-ENG100480-dimming_characteristic_2-Y2 2% 12 ENG122845-ENG100773-dimming_characteristic_2-Y3 10% 12 ENG122845-ENG100631-dimming_characteristic_2-Y4 21% 12 ENG122845-ENG102174-dimming_characteristic_2-Y5 85% 12 ENG122845-ENG113993-dimming_characteristic_2-Y6 100% 12 ENG122846-ENG101574-dimming_characteristic_3-X1 0 12 ENG122846-ENG99557-dimming_characteristic_3-X2 10 12 ENG122846-ENG102140-dimming_characteristic_3-X3 50 12 ENG122846-ENG102936-dimming_characteristic_3-X4 100 12 ENG122846-ENG103548-dimming_characteristic_3-X5 220 12 ENG122846-ENG113992-dimming_characteristic_3-X6 253 12 ENG122846-ENG99777-dimming_characteristic_3-Y1 2% 12 ENG122846-ENG100480-dimming_characteristic_3-Y2 2% 12 ENG122846-ENG100773-dimming_characteristic_3-Y3 5% 12 ENG122846-ENG100631-dimming_characteristic_3-Y4 10% 12 ENG122846-ENG102174-dimming_characteristic_3-Y5 85% 12 ENG122846-ENG113993-dimming_characteristic_3-Y6 100% 12 ENG122847-ENG101574-dimming_characteristic_4-X1 0 12 ENG122847-ENG99557-dimming_characteristic_4-X2 10 12 ENG122847-ENG102140-dimming_characteristic_4-X3 50 12 ENG122847-ENG102936-dimming_characteristic_4-X4 100 12 ENG122847-ENG103548-dimming_characteristic_4-X5 220 12 ENG122847-ENG113992-dimming_characteristic_4-X6 253 12 ENG122847-ENG99777-dimming_characteristic_4-Y1 2% 12 ENG122847-ENG100480-dimming_characteristic_4-Y2 2% 12 ENG122847-ENG100773-dimming_characteristic_4-Y3 5% 12 ENG122847-ENG100631-dimming_characteristic_4-Y4 10% 12 ENG122847-ENG102174-dimming_characteristic_4-Y5 85% 12 ENG122847-ENG113993-dimming_characteristic_4-Y6 100% 12 ENG122848-ENG101574-dimming_characteristic_5-X1 0 12 ENG122848-ENG99557-dimming_characteristic_5-X2 10 12 ENG122848-ENG102140-dimming_characteristic_5-X3 50 12 ENG122848-ENG102936-dimming_characteristic_5-X4 100 12 ENG122848-ENG103548-dimming_characteristic_5-X5 220 12 ENG122848-ENG113992-dimming_characteristic_5-X6 253 12 ENG122848-ENG99777-dimming_characteristic_5-Y1 2% 12 ENG122848-ENG100480-dimming_characteristic_5-Y2 2% 12 ENG122848-ENG100773-dimming_characteristic_5-Y3 5% 12 ENG122848-ENG100631-dimming_characteristic_5-Y4 10% 12 ENG122848-ENG102174-dimming_characteristic_5-Y5 85% 12 ENG122848-ENG113993-dimming_characteristic_5-Y6 100% 12 ENG153708-Remotestart_window_heating_temperature 4 1 Elapsed Time: 00:13 19 - GATEWAY ;SW:3Q0-907-530-AR HW:3Q0-907-530-C --- CAN Gateway --- SA: 20103 ;Component:GW MQB High 521 5502 Coding:0B0100045F0873008B1002DA180F00010001070000000000000000000000 ;EV_GatewNF 13026 EV_GatewNF_VW37.rod ;Saturday 20 December ;VCDS Version: Release 25.3.2 (x64) Data version: 20250822 DS365.0 ;VCID: 7F5B06D1377973D2F79-802A IDE00001-ENG124491-Production mode-p_mode_deactivate_mfl_keys Deactivating 3 IDE00001-ENG118694-Production mode-p_mode_deactivate_recuperation Deactivating 3 IDE00002-Transport mode not active 1 IDE00820-MAS01172-Activating and deactivating all development messages-Development messages not active 1 IDE00820-ENG98891-Activating and deactivating all development messages-Reserved 0 1 IDE01211-Static current measuring mode not activated 1 IDE01457-Energy management deactivation stage Mode not active 1 IDE01459-Energy management heat output control status Mode not active 1 IDE01844-Increase idle speed request Mode not active 1 IDE01847-ENG118685-Auxiliary heater activation restriction request-Set_point_target_time -- 3 IDE01847-ENG118684-Auxiliary heater activation restriction request-Switch_on_ban_activation Mode not active 3 IDE01860-Generator specified voltage value variable 10.6 V 1 IDE01996-SFT00001-Installation list: specified installations-Engine Electronics coded 32 IDE01996-SFT00002-Installation list: specified installations-Transmission Electronics coded 32 IDE01996-SFT00003-Installation list: specified installations-Brake electronics coded 32 IDE01996-SFT00006-Installation list: specified installations-Seat adjustment: passenger's side coded 32 IDE01996-SFT00008-Installation list: specified installations-Climate Control Module coded 32 IDE01996-SFT00009-Installation list: specified installations-Electronic central electric coded 32 IDE01996-SFT00011-Installation list: specified installations-Auxiliary Air Heater Not coded 32 IDE01996-SFT00014-Installation list: specified installations-Media Player 1 Not coded 32 IDE01996-SFT00019-Installation list: specified installations-Adaptive Cruise Control coded 32 IDE01996-SFT00020-Installation list: specified installations-Wheel Damping Electronics Not coded 32 IDE01996-SFT00021-Installation list: specified installations-Airbag coded 32 IDE01996-SFT00022-Installation list: specified installations-Steering Column Electronics Not coded 32 IDE01996-SFT00023-Installation list: specified installations-Instrument cluster coded 32 IDE01996-SFT00024-Installation list: specified installations-Auxiliary/parking heating Not coded 32 IDE01996-SFT00025-Installation list: specified installations-Data Bus OBD Interface 1 32 IDE01996-SFT00028-Installation list: specified installations-Vehicle Position Detection Not coded 32 IDE01996-SFT00032-Installation list: specified installations-High beam assistant Not coded 32 IDE01996-SFT00033-Installation list: specified installations-Battery management 2 Not coded 32 IDE01996-SFT00034-Installation list: specified installations-All-wheel drive electronics coded 32 IDE01996-SFT00035-Installation list: specified installations-Brake Boost coded 32 IDE01996-SFT00038-Installation list: specified installations-Convertible top operation Not coded 32 IDE01996-SFT00043-Installation list: specified installations-Steering column lock coded 32 IDE01996-SFT00048-Installation list: specified installations-Special Function 2 Not coded 32 IDE01996-SFT00050-Installation list: specified installations-Differential lock electronics Not coded 32 IDE01996-SFT00054-Installation list: specified installations-Seat adjustment: driver side coded 32 IDE01996-SFT00060-Installation list: specified installations-Lane change assistance coded 32 IDE01996-SFT00061-Installation list: specified installations-Special Function Not coded 32 IDE01996-SFT00064-Installation list: specified installations-A/C compressor Not coded 32 IDE01996-SFT00066-Installation list: specified installations-Driver's door electronics coded 32 IDE01996-SFT00068-Installation list: specified installations-Power steering coded 32 IDE01996-SFT00071-Installation list: specified installations-Sound System coded 32 IDE01996-SFT00075-Installation list: specified installations-Multi-function module coded 32 IDE01996-SFT00075-Installation list: specified installations-Multi-function module coded 32 IDE01996-SFT00081-Installation list: specified installations-Electric drive Not coded 32 IDE01996-SFT00082-Installation list: specified installations-Passenger's door electronics coded 32 IDE01996-SFT00085-Installation list: specified installations-Headlamp range control Not coded 32 IDE01996-SFT00086-Installation list: specified installations-Radio Not coded 32 IDE01996-SFT00087-Installation list: specified installations-TV Tuner Not coded 32 IDE01996-SFT00095-Installation list: specified installations-Information electronics 1 coded 32 IDE01996-SFT00096-Installation list: specified installations-Trip recorder Not coded 32 IDE01996-SFT00101-Installation list: specified installations-Tire Pressure Monitoring System (TPMS) Not coded 32 IDE01996-SFT00105-Installation list: specified installations-Trailer Function Not coded 32 IDE01996-SFT00108-Installation list: specified installations-Rear view camera system coded 32 IDE01996-SFT00109-Installation list: specified installations-Rear lid electronics coded 32 IDE01996-SFT00117-Installation list: specified installations-Emergency call module and communication unit coded 32 IDE01996-SFT00118-Installation list: specified installations-Parking aid coded 32 IDE01996-SFT00128-Installation list: specified installations-Battery control additional memory 1 Not coded 32 IDE01996-SFT00130-Installation list: specified installations-Head-Up-Display Not coded 32 IDE01996-SFT00140-Installation list: specified installations-Hybrid Battery Management Not coded 32 IDE01996-SFT00165-Installation list: specified installations-Front sensor for drivers assistant systems coded 32 IDE01996-SFT00166-Installation list: specified installations-Microphone control module Not coded 32 IDE01996-SFT00169-Installation list: specified installations-Structure-borne sound actuator Not coded 32 IDE01996-SFT00183-Installation list: specified installations-Interface for access/start system coded 32 IDE01996-SFT00187-Installation list: specified installations-Rear drivers side door electronics Not coded 32 IDE01996-SFT00188-Installation list: specified installations-Rear passenger side door electronics Not coded 32 IDE01996-SFT00189-Installation list: specified installations-High-voltage battery charging management Not coded 32 IDE01996-SFT00190-Installation list: specified installations-Left rear sliding door Not coded 32 IDE01996-SFT00191-Installation list: specified installations-Right rear sliding door Not coded 32 IDE01996-SFT00192-Installation list: specified installations-Actuator For Exterior Noise Not coded 32 IDE01996-SFT00197-Installation list: specified installations-Thermal management Not coded 32 IDE01996-SFT00198-Installation list: specified installations-High-voltage battery charger Not coded 32 IDE01996-SFT00202-Installation list: specified installations-Sunroof control module coded 32 IDE01996-SFT00204-Installation list: specified installations-Starter generator Not coded 32 IDE01996-SFT00207-Installation list: specified installations-Lane Change Assistance 2 Not coded 32 IDE01996-ENG118226-Installation list: specified installations-Node_0x01 Not coded 32 IDE01996-ENG118227-Installation list: specified installations-Node_0x02 Not coded 32 IDE01996-ENG118228-Installation list: specified installations-Node_0x03 Not coded 32 IDE01996-ENG118229-Installation list: specified installations-Node_0x04 Not coded 32 IDE01996-ENG118230-Installation list: specified installations-Node_0x05 Not coded 32 IDE01996-ENG118231-Installation list: specified installations-Node_0x06 Not coded 32 IDE01996-ENG118232-Installation list: specified installations-Node_0x07 Not coded 32 IDE01996-ENG118233-Installation list: specified installations-Node_0x08 Not coded 32 IDE01996-ENG118235-Installation list: specified installations-Node_0x0D Not coded 32 IDE01996-ENG118236-Installation list: specified installations-Node_0x11 Not coded 32 IDE01996-ENG118237-Installation list: specified installations-Node_0x16 Not coded 32 IDE01996-ENG118238-Installation list: specified installations-Node_0x17 Not coded 32 IDE01996-ENG118239-Installation list: specified installations-Node_0x1A Not coded 32 IDE01996-ENG118241-Installation list: specified installations-Node_0x1D Not coded 32 IDE01996-ENG118242-Installation list: specified installations-Node_0x1F Not coded 32 IDE01996-ENG118243-Installation list: specified installations-Node_0x20 Not coded 32 IDE01996-ENG118244-Installation list: specified installations-Node_0x21 Not coded 32 IDE01996-ENG118245-Installation list: specified installations-Node_0x22 Not coded 32 IDE01996-ENG118246-Installation list: specified installations-Node_0x24 Not coded 32 IDE01996-ENG118247-Installation list: specified installations-Node_0x25 Not coded 32 IDE01996-ENG118248-Installation list: specified installations-Node_0x26 Not coded 32 IDE01996-ENG118249-Installation list: specified installations-Node_0x27 Not coded 32 IDE01996-ENG118250-Installation list: specified installations-Node_0x28 Not coded 32 IDE01996-ENG118251-Installation list: specified installations-Node_0x29 Not coded 32 IDE01996-ENG118252-Installation list: specified installations-Node_0x2A Not coded 32 IDE01996-ENG118253-Installation list: specified installations-Node_0x2E Not coded 32 IDE01996-ENG118254-Installation list: specified installations-Node_0x2F Not coded 32 IDE01996-ENG118255-Installation list: specified installations-Node_0x35 Not coded 32 IDE01996-ENG118256-Installation list: specified installations-Node_0x36 Not coded 32 IDE01996-ENG118257-Installation list: specified installations-Node_0x37 Not coded 32 IDE01996-ENG118258-Installation list: specified installations-Node_0x38 Not coded 32 IDE01996-ENG118259-Installation list: specified installations-Node_0x39 Not coded 32 IDE01996-ENG118260-Installation list: specified installations-Node_0x3A Not coded 32 IDE01996-ENG118261-Installation list: specified installations-Node_0x3C Not coded 32 IDE01996-ENG118262-Installation list: specified installations-Node_0x3D Not coded 32 IDE01996-ENG118263-Installation list: specified installations-Node_0x40 Not coded 32 IDE01996-ENG118264-Installation list: specified installations-Node_0x41 Not coded 32 IDE01996-ENG118265-Installation list: specified installations-Node_0x43 Not coded 32 IDE01996-ENG118266-Installation list: specified installations-Node_0x45 Not coded 32 IDE01996-ENG118267-Installation list: specified installations-Node_0x48 Not coded 32 IDE01996-ENG118268-Installation list: specified installations-Node_0x49 Not coded 32 IDE01996-ENG118269-Installation list: specified installations-Node_0x51 Not coded 32 IDE01996-ENG118270-Installation list: specified installations-Node_0x52 Not coded 32 IDE01996-ENG118271-Installation list: specified installations-Node_0x53 Not coded 32 IDE01996-ENG118272-Installation list: specified installations-Node_0x55 Not coded 32 IDE01996-ENG118273-Installation list: specified installations-Node_0x56 Not coded 32 IDE01996-ENG118274-Installation list: specified installations-Node_0x58 Not coded 32 IDE01996-ENG118275-Installation list: specified installations-Node_0x59 Not coded 32 IDE01996-ENG118276-Installation list: specified installations-Node_0x5A Not coded 32 IDE01996-ENG118277-Installation list: specified installations-Node_0x5B Not coded 32 IDE01996-ENG118278-Installation list: specified installations-Node_0x5C Not coded 32 IDE01996-ENG118279-Installation list: specified installations-Node_0x5D Not coded 32 IDE01996-ENG118280-Installation list: specified installations-Node_0x5E Not coded 32 IDE01996-ENG118281-Installation list: specified installations-Node_0x5F Not coded 32 IDE01996-ENG118282-Installation list: specified installations-Node_0x60 Not coded 32 IDE01996-ENG118283-Installation list: specified installations-Node_0x61 Not coded 32 IDE01996-ENG118284-Installation list: specified installations-Node_0x62 Not coded 32 IDE01996-ENG118285-Installation list: specified installations-Node_0x66 Not coded 32 IDE01996-ENG118286-Installation list: specified installations-Node_0x68 Not coded 32 IDE01996-ENG118287-Installation list: specified installations-Node_0x6B Not coded 32 IDE01996-ENG118288-Installation list: specified installations-Node_0x6C Not coded 32 IDE01996-ENG118289-Installation list: specified installations-Node_0x6E Not coded 32 IDE01996-ENG118290-Installation list: specified installations-Node_0x74 Not coded 32 IDE01996-ENG118291-Installation list: specified installations-Node_0x75 Not coded 32 IDE01996-ENG118292-Installation list: specified installations-Node_0x78 Not coded 32 IDE01996-ENG118293-Installation list: specified installations-Node_0x79 Not coded 32 IDE01996-ENG118294-Installation list: specified installations-Node_0x7A Not coded 32 IDE01996-ENG118295-Installation list: specified installations-Node_0x7D Not coded 32 IDE01996-ENG118296-Installation list: specified installations-Node_0x7E Not coded 32 IDE01996-ENG118297-Installation list: specified installations-Node_0x7F Not coded 32 IDE01996-ENG118298-Installation list: specified installations-Node_0x80 Not coded 32 IDE01996-ENG118299-Installation list: specified installations-Node_0x81 Not coded 32 IDE01996-ENG118300-Installation list: specified installations-Node_0x82 Not coded 32 IDE01996-ENG118301-Installation list: specified installations-Node_0x83 Not coded 32 IDE01996-ENG118303-Installation list: specified installations-Node_0x86 Not coded 32 IDE01996-ENG118304-Installation list: specified installations-Node_0x87 Not coded 32 IDE01996-ENG118305-Installation list: specified installations-Node_0x88 Not coded 32 IDE01996-ENG118306-Installation list: specified installations-Node_0x89 Not coded 32 IDE01996-ENG118307-Installation list: specified installations-Node_0x8B Not coded 32 IDE01996-ENG118308-Installation list: specified installations-Node_0x8C Not coded 32 IDE01996-ENG118309-Installation list: specified installations-Node_0x8D Not coded 32 IDE01996-ENG118310-Installation list: specified installations-Node_0x8E Not coded 32 IDE01996-ENG118311-Installation list: specified installations-Node_0x8F Not coded 32 IDE01996-ENG118312-Installation list: specified installations-Node_0x90 Not coded 32 IDE01996-ENG118313-Installation list: specified installations-Node_0x91 Not coded 32 IDE01996-ENG118314-Installation list: specified installations-Node_0x92 Not coded 32 IDE01996-ENG118315-Installation list: specified installations-Node_0x93 Not coded 32 IDE01996-ENG118316-Installation list: specified installations-Node_0x94 Not coded 32 IDE01996-ENG118317-Installation list: specified installations-Node_0x95 Not coded 32 IDE01996-ENG118318-Installation list: specified installations-Node_0x96 Not coded 32 IDE01996-ENG118319-Installation list: specified installations-Node_0x97 Not coded 32 IDE01996-ENG118320-Installation list: specified installations-Node_0x98 Not coded 32 IDE01996-ENG118321-Installation list: specified installations-Node_0x99 Not coded 32 IDE01996-ENG118322-Installation list: specified installations-Node_0x9A Not coded 32 IDE01996-ENG118323-Installation list: specified installations-Node_0x9B Not coded 32 IDE01996-ENG118325-Installation list: specified installations-Node_0x9D Not coded 32 IDE01996-ENG118326-Installation list: specified installations-Node_0x9E Not coded 32 IDE01996-ENG118327-Installation list: specified installations-Node_0x9F Not coded 32 IDE01996-ENG118328-Installation list: specified installations-Node_0xA0 Not coded 32 IDE01996-ENG118329-Installation list: specified installations-Node_0xA1 Not coded 32 IDE01996-ENG118330-Installation list: specified installations-Node_0xA2 Not coded 32 IDE01996-ENG118331-Installation list: specified installations-Node_0xA3 Not coded 32 IDE01996-ENG118333-Installation list: specified installations-Node_0xA5 Not coded 32 IDE01996-ENG118334-Installation list: specified installations-Node_0xA6 Not coded 32 IDE01996-ENG118335-Installation list: specified installations-Node_0xA7 Not coded 32 IDE01996-ENG118336-Installation list: specified installations-Node_0xA8 Not coded 32 IDE01996-ENG118338-Installation list: specified installations-Node_0xAA Not coded 32 IDE01996-ENG118339-Installation list: specified installations-Node_0xAB Not coded 32 IDE01996-ENG118340-Installation list: specified installations-Node_0xAC Not coded 32 IDE01996-ENG118341-Installation list: specified installations-Node_0xAD Not coded 32 IDE01996-ENG118343-Installation list: specified installations-Node_0xAF Not coded 32 IDE01996-ENG118344-Installation list: specified installations-Node_0xB0 Not coded 32 IDE01996-ENG118345-Installation list: specified installations-Node_0xB1 Not coded 32 IDE01996-ENG118346-Installation list: specified installations-Node_0xB2 Not coded 32 IDE01996-ENG118347-Installation list: specified installations-Node_0xB3 Not coded 32 IDE01996-ENG118348-Installation list: specified installations-Node_0xB4 Not coded 32 IDE01996-ENG118349-Installation list: specified installations-Node_0xB5 Not coded 32 IDE01996-ENG118350-Installation list: specified installations-Node_0xB6 Not coded 32 IDE01996-ENG118351-Installation list: specified installations-Node_0xB7 Not coded 32 IDE01996-ENG118352-Installation list: specified installations-Node_0xB8 Not coded 32 IDE01996-ENG118353-Installation list: specified installations-Node_0xB9 Not coded 32 IDE01996-ENG118354-Installation list: specified installations-Node_0xBA Not coded 32 IDE01996-ENG118355-Installation list: specified installations-Node_0xBB Not coded 32 IDE01996-ENG118356-Installation list: specified installations-Node_0xBC Not coded 32 IDE01996-ENG118357-Installation list: specified installations-Node_0xBD Not coded 32 IDE01996-ENG118358-Installation list: specified installations-Node_0xBE Not coded 32 IDE01996-ENG118359-Installation list: specified installations-Node_0xBF Not coded 32 IDE01996-ENG118360-Installation list: specified installations-Node_0xC0 Not coded 32 IDE01996-ENG118361-Installation list: specified installations-Node_0xC1 Not coded 32 IDE01996-ENG118362-Installation list: specified installations-Node_0xC2 Not coded 32 IDE01996-ENG118363-Installation list: specified installations-Node_0xC3 Not coded 32 IDE01996-ENG118364-Installation list: specified installations-Node_0xC4 Not coded 32 IDE01996-ENG118365-Installation list: specified installations-Node_0xC5 Not coded 32 IDE01996-ENG118366-Installation list: specified installations-Node_0xC6 Not coded 32 IDE01996-ENG118367-Installation list: specified installations-Node_0xC7 Not coded 32 IDE01996-ENG118368-Installation list: specified installations-Node_0xC8 Not coded 32 IDE01996-ENG118369-Installation list: specified installations-Node_0xC9 Not coded 32 IDE01996-ENG118370-Installation list: specified installations-Node_0xCA Not coded 32 IDE01996-ENG118371-Installation list: specified installations-Node_0xCB Not coded 32 IDE01996-ENG118372-Installation list: specified installations-Node_0xCC Not coded 32 IDE01996-ENG118373-Installation list: specified installations-Node_0xCD Not coded 32 IDE01996-ENG118374-Installation list: specified installations-Node_0xCE Not coded 32 IDE01996-ENG118375-Installation list: specified installations-Node_0xCF Not coded 32 IDE01996-ENG118376-Installation list: specified installations-Node_0xD0 Not coded 32 IDE01996-ENG118377-Installation list: specified installations-Node_0xD1 Not coded 32 IDE01996-ENG118378-Installation list: specified installations-Node_0xD2 Not coded 32 IDE01996-ENG118379-Installation list: specified installations-Node_0xD3 Not coded 32 IDE01996-ENG118380-Installation list: specified installations-Node_0xD4 Not coded 32 IDE01996-ENG118381-Installation list: specified installations-Node_0xD5 Not coded 32 IDE01996-ENG118382-Installation list: specified installations-Node_0xD6 Not coded 32 IDE01996-ENG118383-Installation list: specified installations-Node_0xD7 Not coded 32 IDE01996-ENG118384-Installation list: specified installations-Node_0xD8 Not coded 32 IDE01996-ENG118385-Installation list: specified installations-Node_0xD9 Not coded 32 IDE01996-ENG118386-Installation list: specified installations-Node_0xDA Not coded 32 IDE01996-ENG118387-Installation list: specified installations-Node_0xDB Not coded 32 IDE01996-ENG118388-Installation list: specified installations-Node_0xDC Not coded 32 IDE01996-ENG118389-Installation list: specified installations-Node_0xDD Not coded 32 IDE01996-ENG118390-Installation list: specified installations-Node_0xDE Not coded 32 IDE01996-ENG118391-Installation list: specified installations-Node_0xDF Not coded 32 IDE01996-ENG118392-Installation list: specified installations-Node_0xE0 Not coded 32 IDE01996-ENG118393-Installation list: specified installations-Node_0xE1 Not coded 32 IDE01996-ENG118394-Installation list: specified installations-Node_0xE2 Not coded 32 IDE01996-ENG118395-Installation list: specified installations-Node_0xE3 Not coded 32 IDE01996-ENG118396-Installation list: specified installations-Node_0xE4 Not coded 32 IDE01996-ENG118397-Installation list: specified installations-Node_0xE5 Not coded 32 IDE01996-ENG118398-Installation list: specified installations-Node_0xE6 Not coded 32 IDE01996-ENG118399-Installation list: specified installations-Node_0xE7 Not coded 32 IDE01996-ENG118400-Installation list: specified installations-Node_0xE8 Not coded 32 IDE01996-ENG118401-Installation list: specified installations-Node_0xE9 Not coded 32 IDE01996-ENG118402-Installation list: specified installations-Node_0xEA Not coded 32 IDE01996-ENG118403-Installation list: specified installations-Node_0xEB Not coded 32 IDE01996-ENG118404-Installation list: specified installations-Node_0xEC Not coded 32 IDE01996-ENG118405-Installation list: specified installations-Node_0xED Not coded 32 IDE01996-ENG118406-Installation list: specified installations-Node_0xEE Not coded 32 IDE01996-ENG118407-Installation list: specified installations-Node_0xEF Not coded 32 IDE01996-ENG118408-Installation list: specified installations-Node_0xF0 Not coded 32 IDE01996-ENG118409-Installation list: specified installations-Node_0xF1 Not coded 32 IDE01996-ENG118410-Installation list: specified installations-Node_0xF2 Not coded 32 IDE01996-ENG118411-Installation list: specified installations-Node_0xF3 Not coded 32 IDE01996-ENG118412-Installation list: specified installations-Node_0xF4 Not coded 32 IDE01996-ENG118413-Installation list: specified installations-Node_0xF5 Not coded 32 IDE01996-ENG118414-Installation list: specified installations-Node_0xF6 Not coded 32 IDE01996-ENG118415-Installation list: specified installations-Node_0xF7 Not coded 32 IDE01996-ENG118416-Installation list: specified installations-Node_0xF8 Not coded 32 IDE01996-ENG118417-Installation list: specified installations-Node_0xF9 Not coded 32 IDE01996-ENG118418-Installation list: specified installations-Node_0xFA Not coded 32 IDE01996-ENG118419-Installation list: specified installations-Node_0xFB Not coded 32 IDE01996-ENG118420-Installation list: specified installations-Node_0xFC Not coded 32 IDE01996-ENG118421-Installation list: specified installations-Node_0xFD Not coded 32 IDE01996-ENG118422-Installation list: specified installations-Node_0xFE Not coded 32 IDE01996-ENG118423-Installation list: specified installations-Node_0xFF Not coded 32 IDE02332-Deactivate production mode 0 3 IDE03256-MAS06105-Battery adaptation-Rated battery capacity 70 Ah 15 IDE03256-MAS06106-Battery adaptation-Battery technology EFB 15 IDE03256-MAS06107-Battery adaptation-Battery manufacturer 15 IDE03256-MAS06108-Battery adaptation-Battery Serial Number 000915089A 15 IDE03903-Production process data 1 00 00 2 IDE04159-Deactivation of start/stop function Mode not active 1 IDE04186-Battery terminal recognition connected 1 IDE04330-Transfer of release code for a SWaP function 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1 IDE04331-Selection of release codes for a SWaP function FF FF FF FF 4 IDE06530-Distance left for deactivation of static current measuring mode 2 1 IDE06541-Distance left for deactivation of transport mode 50 1 IDE06753-MAS06278-Efficiency program display-Live tip air resistance: close window/sunroof activated 4 IDE06753-MAS06279-Efficiency program display-Live tip engine brake: uncouple not until below 1300 RPM activated 4 IDE06753-MAS06280-Efficiency program display-Live tip do not operate gas pedal during engine start activated 4 IDE06753-MAS06281-Efficiency program display-Live tip adhere to switch display (only manual switch) activated 4 IDE06753-MAS06282-Efficiency program display-Live tip use start-stop-system activated 4 IDE06753-MAS06283-Efficiency program display-Live tip switch on start-stop-system activated 4 IDE06753-MAS06284-Efficiency program display-Live tip air conditioning: close window/sunroof activated 4 IDE06753-MAS06285-Efficiency program display-Live tip use gearshift position D not activated 4 IDE06753-MAS06286-Efficiency program display-Live tip Do not press accelerator pedal at standstill activated 4 IDE06753-MAS06287-Efficiency program display-Live tip sunroof open: switch of A/C (AC button) activated 4 IDE06753-MAS06288-Efficiency program display-Live tip avoid engine warm-up at standstill activated 4 IDE06753-MAS06289-Efficiency program display-Comfort use A/C activated 4 IDE06753-MAS06290-Efficiency program display-Comfort use parking heater activated 4 IDE06753-MAS06291-Efficiency program display-Comfort use rear window heater activated 4 IDE06753-MAS06292-Efficiency program display-Comfort use front seat heater activated 4 IDE06753-MAS06293-Efficiency program display-Comfort use front seat ventilation activated 4 IDE06753-MAS06294-Efficiency program display-Comfort use rear heater activated 4 IDE06753-MAS06295-Efficiency program display-Comfort use fog light activated 4 IDE06753-MAS06296-Efficiency program display-Comfort use rear fog light not activated 4 IDE06753-MAS06297-Efficiency program display-Comfort use parking heater consumption emission activated 4 IDE06753-MAS06298-Efficiency program display-Comfort use windshield heater activated 4 IDE06753-MAS06299-Efficiency program display-Comfort use steering wheel heater activated 4 IDE06753-MAS06300-Efficiency program display-Comfort use mirror heater activated 4 IDE06753-MAS06301-Efficiency program display-Comfort use rear seat heater not activated 4 IDE06753-MAS06302-Efficiency program display-Comfort use rear seat ventilation activated 4 IDE06753-MAS14430-Efficiency program display-Dependence of ECO tips on driver profile selection ECO tips independent of driver profile selection 4 IDE06753-MAS19094-Efficiency program display-Rear A/C System blower convenience consumption activated 4 IDE06753-MAS19095-Efficiency program display-Convenience consumption outer mirror heater dependency Until temperature threshold: with after-run: with switch 4 IDE07838-Counter for inconsistent states 898 2 IDE08348-Start/stop start voltage limit 12.1 V 1 IDE08624-MKE Check box activated 1 IDE10735-Number requests autonomous recharging 3 1 IDE10736-Cyclization limitation request battery service 0 1 IDE10748-MAS11262-Range gain-Range gain AC system activated 3 IDE10748-MAS11263-Range gain-Range gain auxiliary heater activated 3 IDE10748-MAS11264-Range gain-Range gain window defogger activated 3 IDE10748-MAS11265-Range gain-Range gain seat heater front activated 3 IDE10748-MAS11266-Range gain-Range gain front set ventilation activated 3 IDE10748-MAS11267-Range gain-Range gain rear heater activated 3 IDE10748-MAS11268-Range gain-Range gain fog light activated 3 IDE10748-MAS11269-Range gain-Range gain rear fog light activated 3 IDE10748-MAS11270-Range gain-Range gain windshield heating activated 3 IDE10748-MAS11271-Range gain-Range gain steering wheel heater activated 3 IDE10748-MAS11272-Range gain-Range gain mirror heater activated 3 IDE10748-MAS11273-Range gain-Range gain rear seat heater activated 3 IDE10748-MAS11274-Range gain-Range gain rear seat heater activated 3 IDE10748-MAS11275-Range gain-Windshield heater consumption in AC system not activated 3 IDE10748-MAS11276-Range gain-Windshield heater range gain in AC system not activated 3 IDE10748-MAS11277-Range gain-PTC(low voltage) consumption not activated 3 IDE10748-MAS11278-Range gain-PTC(low voltage) range gain not activated 3 IDE10748-MAS11279-Range gain-List at engine still stand activated 3 IDE10748-MAS12689-Range gain-Catalogue range display activated 3 IDE10748-MAS12690-Range gain-Loading condition catalogue range display activated 3 IDE10748-MAS13161-Range gain-List display absolute values ??with weighting not activated 3 IDE10748-MAS19099-Range gain-Convenience consumption socket activated 3 IDE10748-MAS19100-Range gain-A/C System blower manual convenience consumption not activated 3 IDE10748-MAS19132-Range gain-Outer mirror heater consumption in rear window heating not activated 3 IDE11689-48V-System: locking regular operation 1 IDE13756-Diagnosis filter: activation not active 1 IDE13757-MAS16868-Diagnosis filter: kilometer thresholds-Kilometer threshold: production 200 km 2 IDE13757-MAS16869-Diagnosis filter: kilometer thresholds-Kilometer threshold: customer service 20 km 2 IDE15331-Multifunction steering wheel extended adaptation Configuration 1 3 MAS16372-Security version number 3 2 SFT271921-IDE02583-Multifunction steering wheel control module-Steering wheel Tiptronic switch installed 3 SFT271921-MAS02311-Multifunction steering wheel control module-Steering wheel heating button active 3 SFT271921-MAS04733-Multifunction steering wheel control module-Two-stage not active 3 SFT271921-MAS06614-Multifunction steering wheel control module-Variant Low (audio/instrument cluster) 3 SFT271921-MAS09758-Multifunction steering wheel control module-Temperature sensor installed 3 SFT271921-MAS13892-Multifunction steering wheel control module-Platform MQB 3 SFT271921-MAS19104-Multifunction steering wheel control module-Alarm horn wake-up function not active 3 SFT271921-MAS19104-Multifunction steering wheel control module-Alarm horn wake-up function not active 3 SFT271921-ENG258379-Multifunction steering wheel control module-clamp behaviour active with terminal 58 3 SFT271921-ENG260738-Multifunction steering wheel control module-FoD ACC automatic 3 SFT271921-ENG258784-Multifunction steering wheel control module-FoD Travel Assist activated 3 SFT271921-ENG262857-Multifunction steering wheel control module-Kombi_02_gueltig not active 3 ENG118777-ENG118712-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Counter_Master_Reset active 12 ENG118777-ENG118710-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Fiddle_Proofing_Limit_Adaptation 100 12 ENG118777-ENG118711-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Fiddle_Proofing_Lock_Adaptation 60000 ms 12 ENG118777-ENG118709-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Fiddle_Proofing_Time_Adaptation 10000 ms 12 ENG118777-ENG118705-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Indication_Control_Adaption 3000 ms 12 ENG118777-ENG118706-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Kombi_Offset_Adaption 0 ms 12 ENG118777-ENG118708-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Request_Repetition_Time_Adaptation 255000 ms 12 ENG118777-ENG118707-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Sync_Time_Adaptation 1500 ms 12 ENG118777-ENG118703-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Toogle_Time_Adaptation 0 ms 12 ENG118777-ENG118704-Driving_Profile_Selection_Parameter-Driving_Profile_Selection_Touch_Contact_Time_Adaption 2500 ms 12 ENG137060-ENG113874-EM_energy_management_warning_displays-Battery reports Mode not active 4 ENG137060-ENG113873-EM_energy_management_warning_displays-Generatormeldungen Mode not active 4 ENG137060-ENG118686-EM_energy_management_warning_displays-MMI Vorwarnungen Mode not active 4 ENG137060-ENG98711-EM_energy_management_warning_displays-State of Charge (SOC) Mode not active 4 ENG137075-EM_heating_power_quota_adjustment 1000 W 1 ENG137061-EM_nominal_voltage_limitation_low_beams 12.1 V 1 ENG137064-EM_requirement_cyclic_time_voltage_measurement 0 s 1 ENG137063-EM_requirement_reduction_air_blowers Mode not active 1 ENG137058-SFT00001-GW_Enable_CAN_Timeout_DTC-Engine Electronics activated 32 ENG137058-SFT00002-GW_Enable_CAN_Timeout_DTC-Transmission Electronics activated 32 ENG137058-SFT00003-GW_Enable_CAN_Timeout_DTC-Brake electronics not activated 32 ENG137058-SFT00006-GW_Enable_CAN_Timeout_DTC-Seat adjustment: passenger's side activated 32 ENG137058-SFT00008-GW_Enable_CAN_Timeout_DTC-Climate Control Module activated 32 ENG137058-SFT00009-GW_Enable_CAN_Timeout_DTC-Electronic central electric activated 32 ENG137058-SFT00011-GW_Enable_CAN_Timeout_DTC-Auxiliary Air Heater activated 32 ENG137058-SFT00014-GW_Enable_CAN_Timeout_DTC-Media Player 1 activated 32 ENG137058-SFT00019-GW_Enable_CAN_Timeout_DTC-Adaptive Cruise Control activated 32 ENG137058-SFT00020-GW_Enable_CAN_Timeout_DTC-Wheel Damping Electronics activated 32 ENG137058-SFT00021-GW_Enable_CAN_Timeout_DTC-Airbag not activated 32 ENG137058-SFT00022-GW_Enable_CAN_Timeout_DTC-Steering Column Electronics activated 32 ENG137058-SFT00023-GW_Enable_CAN_Timeout_DTC-Instrument cluster activated 32 ENG137058-SFT00024-GW_Enable_CAN_Timeout_DTC-Auxiliary/parking heating activated 32 ENG137058-SFT00025-GW_Enable_CAN_Timeout_DTC-Data Bus OBD Interface activated 32 ENG137058-SFT00028-GW_Enable_CAN_Timeout_DTC-Vehicle Position Detection activated 32 ENG137058-SFT00032-GW_Enable_CAN_Timeout_DTC-High beam assistant activated 32 ENG137058-SFT00033-GW_Enable_CAN_Timeout_DTC-Battery management 2 activated 32 ENG137058-SFT00034-GW_Enable_CAN_Timeout_DTC-All-wheel drive electronics activated 32 ENG137058-SFT00035-GW_Enable_CAN_Timeout_DTC-Brake Boost activated 32 ENG137058-SFT00038-GW_Enable_CAN_Timeout_DTC-Convertible top operation activated 32 ENG137058-SFT00043-GW_Enable_CAN_Timeout_DTC-Steering column lock activated 32 ENG137058-SFT00048-GW_Enable_CAN_Timeout_DTC-Special Function 2 activated 32 ENG137058-SFT00050-GW_Enable_CAN_Timeout_DTC-Differential lock electronics activated 32 ENG137058-SFT00054-GW_Enable_CAN_Timeout_DTC-Seat adjustment: driver side activated 32 ENG137058-SFT00060-GW_Enable_CAN_Timeout_DTC-Lane change assistance activated 32 ENG137058-SFT00061-GW_Enable_CAN_Timeout_DTC-Special Function activated 32 ENG137058-SFT00064-GW_Enable_CAN_Timeout_DTC-A/C compressor activated 32 ENG137058-SFT00066-GW_Enable_CAN_Timeout_DTC-Driver's door electronics activated 32 ENG137058-SFT00068-GW_Enable_CAN_Timeout_DTC-Power steering activated 32 ENG137058-SFT00071-GW_Enable_CAN_Timeout_DTC-Sound System activated 32 ENG137058-SFT00075-GW_Enable_CAN_Timeout_DTC-Multi-function module activated 32 ENG137058-SFT00075-GW_Enable_CAN_Timeout_DTC-Multi-function module activated 32 ENG137058-SFT00081-GW_Enable_CAN_Timeout_DTC-Electric drive activated 32 ENG137058-SFT00082-GW_Enable_CAN_Timeout_DTC-Passenger's door electronics activated 32 ENG137058-SFT00085-GW_Enable_CAN_Timeout_DTC-Headlamp range control activated 32 ENG137058-SFT00086-GW_Enable_CAN_Timeout_DTC-Radio activated 32 ENG137058-SFT00087-GW_Enable_CAN_Timeout_DTC-TV Tuner activated 32 ENG137058-SFT00095-GW_Enable_CAN_Timeout_DTC-Information electronics 1 activated 32 ENG137058-SFT00096-GW_Enable_CAN_Timeout_DTC-Trip recorder activated 32 ENG137058-SFT00101-GW_Enable_CAN_Timeout_DTC-Tire Pressure Monitoring System (TPMS) activated 32 ENG137058-SFT00105-GW_Enable_CAN_Timeout_DTC-Trailer Function activated 32 ENG137058-SFT00108-GW_Enable_CAN_Timeout_DTC-Rear view camera system activated 32 ENG137058-SFT00109-GW_Enable_CAN_Timeout_DTC-Rear lid electronics activated 32 ENG137058-SFT00117-GW_Enable_CAN_Timeout_DTC-Emergency call module and communication unit activated 32 ENG137058-SFT00118-GW_Enable_CAN_Timeout_DTC-Parking aid activated 32 ENG137058-SFT00128-GW_Enable_CAN_Timeout_DTC-Battery control additional memory 1 activated 32 ENG137058-SFT00130-GW_Enable_CAN_Timeout_DTC-Head-Up-Display activated 32 ENG137058-SFT00140-GW_Enable_CAN_Timeout_DTC-Hybrid Battery Management activated 32 ENG137058-SFT00165-GW_Enable_CAN_Timeout_DTC-Front sensor for drivers assistant systems activated 32 ENG137058-SFT00166-GW_Enable_CAN_Timeout_DTC-Microphone control module activated 32 ENG137058-SFT00169-GW_Enable_CAN_Timeout_DTC-Structure-borne sound actuator activated 32 ENG137058-SFT00183-GW_Enable_CAN_Timeout_DTC-Interface for access/start system activated 32 ENG137058-SFT00187-GW_Enable_CAN_Timeout_DTC-Rear drivers side door electronics activated 32 ENG137058-SFT00188-GW_Enable_CAN_Timeout_DTC-Rear passenger side door electronics activated 32 ENG137058-SFT00189-GW_Enable_CAN_Timeout_DTC-High-voltage battery charging management activated 32 ENG137058-SFT00190-GW_Enable_CAN_Timeout_DTC-Left rear sliding door activated 32 ENG137058-SFT00191-GW_Enable_CAN_Timeout_DTC-Right rear sliding door activated 32 ENG137058-SFT00192-GW_Enable_CAN_Timeout_DTC-Actuator For Exterior Noise activated 32 ENG137058-SFT00197-GW_Enable_CAN_Timeout_DTC-Thermal management activated 32 ENG137058-SFT00198-GW_Enable_CAN_Timeout_DTC-High-voltage battery charger activated 32 ENG137058-SFT00202-GW_Enable_CAN_Timeout_DTC-Sunroof control module activated 32 ENG137058-SFT00204-GW_Enable_CAN_Timeout_DTC-Starter generator activated 32 ENG137058-SFT00207-GW_Enable_CAN_Timeout_DTC-Lane Change Assistance 2 activated 32 ENG137058-ENG118664-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x00 activated 32 ENG137058-ENG118466-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x01 activated 32 ENG137058-ENG118467-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x02 activated 32 ENG137058-ENG118468-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x03 activated 32 ENG137058-ENG118469-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x04 activated 32 ENG137058-ENG118470-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x05 activated 32 ENG137058-ENG118471-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x06 activated 32 ENG137058-ENG118472-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x07 activated 32 ENG137058-ENG118473-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x08 activated 32 ENG137058-ENG118475-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x0D activated 32 ENG137058-ENG118476-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x11 activated 32 ENG137058-ENG118477-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x16 activated 32 ENG137058-ENG118478-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x17 activated 32 ENG137058-ENG118479-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x1A activated 32 ENG137058-ENG118481-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x1D activated 32 ENG137058-ENG118482-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x1F activated 32 ENG137058-ENG118483-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x20 activated 32 ENG137058-ENG118484-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x21 activated 32 ENG137058-ENG118485-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x22 activated 32 ENG137058-ENG118486-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x24 activated 32 ENG137058-ENG118487-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x25 activated 32 ENG137058-ENG118488-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x26 activated 32 ENG137058-ENG118489-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x27 activated 32 ENG137058-ENG118490-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x28 activated 32 ENG137058-ENG118491-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x29 activated 32 ENG137058-ENG118492-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x2A activated 32 ENG137058-ENG118493-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x2E activated 32 ENG137058-ENG118494-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x2F activated 32 ENG137058-ENG118495-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x35 activated 32 ENG137058-ENG118496-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x36 activated 32 ENG137058-ENG118497-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x37 activated 32 ENG137058-ENG118498-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x38 activated 32 ENG137058-ENG118499-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x39 activated 32 ENG137058-ENG118500-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x3A activated 32 ENG137058-ENG118501-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x3C activated 32 ENG137058-ENG118502-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x3D activated 32 ENG137058-ENG118503-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x40 activated 32 ENG137058-ENG118504-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x41 activated 32 ENG137058-ENG118505-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x43 activated 32 ENG137058-ENG118506-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x45 activated 32 ENG137058-ENG118507-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x48 activated 32 ENG137058-ENG118508-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x49 activated 32 ENG137058-ENG118509-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x51 activated 32 ENG137058-ENG118510-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x52 activated 32 ENG137058-ENG118511-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x53 activated 32 ENG137058-ENG118512-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x55 activated 32 ENG137058-ENG118513-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x56 activated 32 ENG137058-ENG118514-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x58 activated 32 ENG137058-ENG118515-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x59 activated 32 ENG137058-ENG118516-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x5A activated 32 ENG137058-ENG118517-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x5B activated 32 ENG137058-ENG118518-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x5C activated 32 ENG137058-ENG118519-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x5D activated 32 ENG137058-ENG118520-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x5E activated 32 ENG137058-ENG118521-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x5F activated 32 ENG137058-ENG118522-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x60 activated 32 ENG137058-ENG118523-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x61 activated 32 ENG137058-ENG118524-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x62 activated 32 ENG137058-ENG118525-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x66 activated 32 ENG137058-ENG118526-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x68 activated 32 ENG137058-ENG118527-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x6B activated 32 ENG137058-ENG118528-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x6C activated 32 ENG137058-ENG118529-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x6E activated 32 ENG137058-ENG118530-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x74 activated 32 ENG137058-ENG118531-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x75 activated 32 ENG137058-ENG118532-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x78 activated 32 ENG137058-ENG118533-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x79 activated 32 ENG137058-ENG118534-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x7A activated 32 ENG137058-ENG118535-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x7D activated 32 ENG137058-ENG118536-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x7E activated 32 ENG137058-ENG118537-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x7F activated 32 ENG137058-ENG118538-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x80 activated 32 ENG137058-ENG118539-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x81 activated 32 ENG137058-ENG118540-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x82 activated 32 ENG137058-ENG118541-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x83 activated 32 ENG137058-ENG118543-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x86 activated 32 ENG137058-ENG118544-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x87 activated 32 ENG137058-ENG118545-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x88 activated 32 ENG137058-ENG118546-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x89 activated 32 ENG137058-ENG118547-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x8B activated 32 ENG137058-ENG118548-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x8C activated 32 ENG137058-ENG118549-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x8D activated 32 ENG137058-ENG118550-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x8E activated 32 ENG137058-ENG118551-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x8F activated 32 ENG137058-ENG118552-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x90 activated 32 ENG137058-ENG118553-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x91 activated 32 ENG137058-ENG118554-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x92 activated 32 ENG137058-ENG118555-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x93 activated 32 ENG137058-ENG118556-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x94 activated 32 ENG137058-ENG118557-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x95 activated 32 ENG137058-ENG118558-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x96 activated 32 ENG137058-ENG118559-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x97 activated 32 ENG137058-ENG118560-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x98 activated 32 ENG137058-ENG118561-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x99 activated 32 ENG137058-ENG118562-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x9A activated 32 ENG137058-ENG118563-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x9B activated 32 ENG137058-ENG118565-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x9D activated 32 ENG137058-ENG118566-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x9E activated 32 ENG137058-ENG118567-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0x9F activated 32 ENG137058-ENG118568-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA0 activated 32 ENG137058-ENG118569-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA1 activated 32 ENG137058-ENG118570-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA2 activated 32 ENG137058-ENG118571-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA3 activated 32 ENG137058-ENG118573-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA5 activated 32 ENG137058-ENG118574-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA6 activated 32 ENG137058-ENG118575-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA7 activated 32 ENG137058-ENG118576-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xA8 activated 32 ENG137058-ENG118578-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xAA activated 32 ENG137058-ENG118579-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xAB activated 32 ENG137058-ENG118580-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xAC activated 32 ENG137058-ENG118581-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xAD activated 32 ENG137058-ENG118583-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xAF activated 32 ENG137058-ENG118584-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB0 activated 32 ENG137058-ENG118585-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB1 activated 32 ENG137058-ENG118586-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB2 activated 32 ENG137058-ENG118587-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB3 activated 32 ENG137058-ENG118588-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB4 activated 32 ENG137058-ENG118589-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB5 activated 32 ENG137058-ENG118590-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB6 activated 32 ENG137058-ENG118591-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB7 activated 32 ENG137058-ENG118592-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB8 activated 32 ENG137058-ENG118593-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xB9 activated 32 ENG137058-ENG118594-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xBA activated 32 ENG137058-ENG118595-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xBB activated 32 ENG137058-ENG118596-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xBC activated 32 ENG137058-ENG118597-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xBD activated 32 ENG137058-ENG118598-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xBE activated 32 ENG137058-ENG118599-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xBF activated 32 ENG137058-ENG118600-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC0 activated 32 ENG137058-ENG118601-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC1 activated 32 ENG137058-ENG118602-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC2 activated 32 ENG137058-ENG118603-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC3 activated 32 ENG137058-ENG118604-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC4 activated 32 ENG137058-ENG118605-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC5 activated 32 ENG137058-ENG118606-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC6 activated 32 ENG137058-ENG118607-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC7 activated 32 ENG137058-ENG118608-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC8 activated 32 ENG137058-ENG118609-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xC9 activated 32 ENG137058-ENG118610-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xCA activated 32 ENG137058-ENG118611-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xCB activated 32 ENG137058-ENG118612-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xCC activated 32 ENG137058-ENG118613-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xCD activated 32 ENG137058-ENG118614-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xCE activated 32 ENG137058-ENG118615-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xCF activated 32 ENG137058-ENG118616-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD0 activated 32 ENG137058-ENG118617-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD1 activated 32 ENG137058-ENG118618-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD2 activated 32 ENG137058-ENG118619-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD3 activated 32 ENG137058-ENG118620-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD4 activated 32 ENG137058-ENG118621-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD5 activated 32 ENG137058-ENG118622-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD6 activated 32 ENG137058-ENG118623-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD7 activated 32 ENG137058-ENG118624-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD8 activated 32 ENG137058-ENG118625-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xD9 activated 32 ENG137058-ENG118626-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xDA activated 32 ENG137058-ENG118627-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xDB activated 32 ENG137058-ENG118628-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xDC activated 32 ENG137058-ENG118629-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xDD activated 32 ENG137058-ENG118630-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xDE activated 32 ENG137058-ENG118631-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xDF activated 32 ENG137058-ENG118632-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE0 activated 32 ENG137058-ENG118633-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE1 activated 32 ENG137058-ENG118634-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE2 activated 32 ENG137058-ENG118635-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE3 activated 32 ENG137058-ENG118636-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE4 activated 32 ENG137058-ENG118637-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE5 activated 32 ENG137058-ENG118638-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE6 activated 32 ENG137058-ENG118639-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE7 activated 32 ENG137058-ENG118640-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE8 activated 32 ENG137058-ENG118641-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xE9 activated 32 ENG137058-ENG118642-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xEA activated 32 ENG137058-ENG118643-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xEB activated 32 ENG137058-ENG118644-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xEC activated 32 ENG137058-ENG118645-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xED activated 32 ENG137058-ENG118646-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xEE activated 32 ENG137058-ENG118647-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xEF activated 32 ENG137058-ENG118648-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF0 activated 32 ENG137058-ENG118649-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF1 activated 32 ENG137058-ENG118650-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF2 activated 32 ENG137058-ENG118651-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF3 activated 32 ENG137058-ENG118652-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF4 activated 32 ENG137058-ENG118653-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF5 activated 32 ENG137058-ENG118654-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF6 activated 32 ENG137058-ENG118655-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF7 activated 32 ENG137058-ENG118656-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF8 activated 32 ENG137058-ENG118657-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xF9 activated 32 ENG137058-ENG118658-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xFA activated 32 ENG137058-ENG118659-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xFB activated 32 ENG137058-ENG118660-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xFC activated 32 ENG137058-ENG118661-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xFD activated 32 ENG137058-ENG118662-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xFE activated 32 ENG137058-ENG118663-GW_Enable_CAN_Timeout_DTC-Gateway_Component_List_Failure_Mask_Node_0xFF activated 32 ENG137059-ENG118464-GW_mirror_mode-mirror_mode_bus Powertrain data bus 2 ENG137059-ENG118465-GW_mirror_mode-mirror_mode_typ not active 2 ENG152379-MV-EM_adaption_48V_zero_potential regular operation 1 ENG137850-MVK_Warning regular operation 1 ENG118774-ENG98345-WakeUpMonitor_Activation-Activation activated 1 ENG118774-ENG152567-WakeUpMonitor_Activation-Open_Filter_Activate not activated 1 ENG118773-ENG99074-WakeUpMonitor_Configuration-Max_Num_Keeping_Awake_Events 100 8 ENG118773-ENG103057-WakeUpMonitor_Configuration-Max_Num_Logical_WakeUp_Events 20 8 ENG118773-ENG104006-WakeUpMonitor_Configuration-Max_Num_Physical_WakeUp_Events 20 8 ENG118773-ENG154846-WakeUpMonitor_Configuration-Open_Filter_Time 45 min 8 ENG118773-ENG103852-WakeUpMonitor_Configuration-Sample_Time_Keeping_Awake_Events 12 s 8 ENG118773-ENG127936-WakeUpMonitor_Configuration-WakeUpMonitor_Start_Delay 0 s 8 5F - MIB ;SW:565-035-021-E HW:565-035-021 --- Information Electr. --- SA: 20103 ;Component:MU-H-LND-EU H55 1440 Coding:03840101000000004111000200080A002F020DE401208400DF ;EV_MUHig4CGen2HBAS 001001 EV_MUHig4CGen2HBAS_AU37.rod ;Saturday 20 December 2025 13:14:19:16626 ;VCDS Version: Release 25.3.2 (x64) Data version: 20250822 DS365.0 ;VCID: 1079B56D1AE77CAA1E3-8044 IDE00001-Production mode 00 00 00 3 IDE00346-Summertime-automatic Europe 1 IDE00759-Base volume of speech output 50% 1 IDE00760-Microphone sensitivity 0 dB 1 IDE00768-Country identification: country of sale NL 2 IDE00769-Call number 1 for info call FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE00770-Number 1 for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE00820-ENG117828-Activating and deactivating all development messages-Infotainment_CAN_Messages OFF 1 IDE00820-ENG117829-Activating and deactivating all development messages-MIB_CAN_Messages OFF 1 IDE00845-Wheel circumference 0 mm 2 IDE01996-MAS00076-Installation list: specified installations-Instrument cluster control module Yes 3 IDE01996-MAS00839-Installation list: specified installations-TV Tuner No 3 IDE01996-MAS00844-Installation list: specified installations-Radio No 3 IDE01996-MAS00847-Installation list: specified installations-Digital Sound System Control Module Yes 3 IDE01996-MAS00849-Installation list: specified installations-Information electronics control module 1 Yes 3 IDE01996-MAS00850-Installation list: specified installations-Information electronics control module 2 No 3 IDE01996-MAS04300-Installation list: specified installations-DVD changer No 3 IDE01996-MAS14306-Installation list: specified installations-Windshield projection head up display control module No 3 IDE01996-SFT271943-Installation list: specified installations-Multimedia system control head No 3 IDE01996-ENG154341-Installation list: specified installations-Reserved_8 No 3 IDE01996-ENG152491-Installation list: specified installations-Smart Control Carrier 1 No 3 IDE01996-ENG152490-Installation list: specified installations-Smart Control Carrier 2 No 3 IDE01996-ENG152488-Installation list: specified installations-Smart Display Carrier 1 No 3 IDE01996-ENG152492-Installation list: specified installations-Smart Display Carrier 2 No 3 IDE01996-ENG152493-Installation list: specified installations-Wireless Charger 1 No 3 IDE01996-ENG152489-Installation list: specified installations-Wireless Charger 2 No 3 IDE02121-CD eject button Enabled 1 IDE02122-Developer mode activated 1 IDE02330-Call number 2 for info call FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE02331-Number 2 for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE02332-Deactivate production mode 0 3 IDE02476-MAS03001-Electrical test of speakers-Mode automatic 49 IDE02476-ENG117360-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_1_Test_Frequency 19000 Hz 49 IDE02476-ENG117361-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_1_Test_Volume 22 49 IDE02476-ENG117378-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_10_Test_Frequency 19000 Hz 49 IDE02476-ENG117379-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_10_Test_Volume 22 49 IDE02476-ENG117380-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_11_Test_Frequency 19000 Hz 49 IDE02476-ENG117381-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_11_Test_Volume 22 49 IDE02476-ENG117382-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_12_Test_Frequency 19000 Hz 49 IDE02476-ENG117383-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_12_Test_Volume 22 49 IDE02476-ENG117384-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_13_Test_Frequency 19000 Hz 49 IDE02476-ENG117385-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_13_Test_Volume 22 49 IDE02476-ENG117386-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_14_Test_Frequency 19000 Hz 49 IDE02476-ENG117387-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_14_Test_Volume 22 49 IDE02476-ENG117388-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_15_Test_Frequency 19000 Hz 49 IDE02476-ENG117389-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_15_Test_Volume 22 49 IDE02476-ENG117390-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_16_Test_Frequency 19000 Hz 49 IDE02476-ENG117391-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_16_Test_Volume 22 49 IDE02476-ENG117362-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_2_Test_Frequency 19000 Hz 49 IDE02476-ENG117363-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_2_Test_Volume 22 49 IDE02476-ENG117364-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_3_Test_Frequency 19000 Hz 49 IDE02476-ENG117365-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_3_Test_Volume 22 49 IDE02476-ENG117366-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_4_Test_Frequency 19000 Hz 49 IDE02476-ENG117367-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_4_Test_Volume 22 49 IDE02476-ENG117368-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_5_Test_Frequency 19000 Hz 49 IDE02476-ENG117369-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_5_Test_Volume 22 49 IDE02476-ENG117370-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_6_Test_Frequency 19000 Hz 49 IDE02476-ENG117371-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_6_Test_Volume 22 49 IDE02476-ENG117372-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_7_Test_Frequency 19000 Hz 49 IDE02476-ENG117373-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_7_Test_Volume 22 49 IDE02476-ENG117374-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_8_Test_Frequency 19000 Hz 49 IDE02476-ENG117375-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_8_Test_Volume 22 49 IDE02476-ENG117376-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_9_Test_Frequency 19000 Hz 49 IDE02476-ENG117377-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_9_Test_Volume 22 49 IDE02502-Confirmation of installation change 50 AB 2 IDE02506-MAS03229-Copy multimedia data-Data carrier On 1 IDE02506-MAS03230-Copy multimedia data-Optical drive OFF 1 IDE02607-Wheel pulse 0 2 IDE02699-Number 1 for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE02701-Number 1 (roaming) for roadside assistance 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 23 IDE03238-ENG117830-Parameter for connection transfer (UMTS)-1E_EcLo 0 8 IDE03238-ENG117831-Parameter for connection transfer (UMTS)-1E_RSCP 15 8 IDE03238-ENG117832-Parameter for connection transfer (UMTS)-1F_EcLo 0 8 IDE03238-ENG117833-Parameter for connection transfer (UMTS)-1F_RSCP 15 8 IDE03238-ENG122277-Parameter for connection transfer (UMTS)-2D_EcLo 0 8 IDE03238-ENG122278-Parameter for connection transfer (UMTS)-2D_RSCP 11 8 IDE03238-ENG122275-Parameter for connection transfer (UMTS)-3A_EcLo 0 8 IDE03238-ENG122276-Parameter for connection transfer (UMTS)-3A_RSCP 8 8 IDE03471-ENG117847-Vehicle configuration-advanced_range_display OFF 30 IDE03471-ENG249824-Vehicle configuration-AliBox OFF 30 IDE03471-ENG142146-Vehicle configuration-allow_message_editing On 30 IDE03471-ENG130249-Vehicle configuration-Apple_DIO On 30 IDE03471-ENG185764-Vehicle configuration-Apple_DIO_Wireless OFF 30 IDE03471-ENG152525-Vehicle configuration-Baidu_Car_Life OFF 30 IDE03471-ENG152559-Vehicle configuration-Baidu_Car_Life_ios OFF 30 IDE03471-ENG185765-Vehicle configuration-Baidu_Car_Life_ios_Wireless OFF 30 IDE03471-ENG185766-Vehicle configuration-Baidu_Car_Life_Wireless OFF 30 IDE03471-ENG152560-Vehicle configuration-block_hmi_function_p_epb locked 30 IDE03471-ENG142151-Vehicle configuration-conditioning_variant 0 30 IDE03471-ENG263540-Vehicle configuration-correction_e_mileage 0 30 IDE03471-ENG125043-Vehicle configuration-Dtmf_without_active_call OFF 30 IDE03471-ENG142145-Vehicle configuration-esim_data_only_sms_support OFF 30 IDE03471-ENG185778-Vehicle configuration-FoD SWaP 30 IDE03471-ENG130248-Vehicle configuration-Google_GAL On 30 IDE03471-ENG185779-Vehicle configuration-Google_GAL_Wireless OFF 30 IDE03471-ENG117850-Vehicle configuration-gracenote_local_coverarts On 30 IDE03471-ENG117851-Vehicle configuration-gracenote_local_other On 30 IDE03471-ENG117848-Vehicle configuration-gracenote_online_coverarts On 30 IDE03471-ENG117849-Vehicle configuration-gracenote_online_other On 30 IDE03471-ENG152533-Vehicle configuration-Hybrid_Radio_additional_online_data not activated 30 IDE03471-ENG152534-Vehicle configuration-Hybrid_Radio_Range_Extender Deactivated 30 IDE03471-ENG261211-Vehicle configuration-internet_over_WLAN_default_setting OFF 30 IDE03471-ENG125049-Vehicle configuration-Joker_button_1 not installed 30 IDE03471-ENG125050-Vehicle configuration-Joker_button_2 not installed 30 IDE03471-ENG127492-Vehicle configuration-LGI OFF 30 IDE03471-ENG130246-Vehicle configuration-LTE_modul activated 30 IDE03471-ENG142142-Vehicle configuration-map_email_support OFF 30 IDE03471-ENG142143-Vehicle configuration-map_instant_messaging_support OFF 30 IDE03471-ENG142141-Vehicle configuration-map_sms_support On 30 IDE03471-ENG142152-Vehicle configuration-Map_Style 1 30 IDE03471-ENG152537-Vehicle configuration-media_control not activated 30 IDE03471-ENG138662-Vehicle configuration-Mirror_link On 30 IDE03471-ENG142148-Vehicle configuration-MirrorLink_Country_Code MIB_EU 30 IDE03471-ENG142150-Vehicle configuration-MirrorLink_RGB_Preference RGB565 30 IDE03471-ENG117843-Vehicle configuration-my_audi OFF 30 IDE03471-ENG117845-Vehicle configuration-online_dictation OFF 30 IDE03471-ENG127495-Vehicle configuration-online_media OFF 30 IDE03471-ENG117840-Vehicle configuration-online_navigation On 30 IDE03471-ENG117837-Vehicle configuration-online_POI OFF 30 IDE03471-ENG117838-Vehicle configuration-online_POI_voice OFF 30 IDE03471-ENG117839-Vehicle configuration-online_portal_browser_services OFF 30 IDE03471-ENG152553-Vehicle configuration-online_radio Deactivated 30 IDE03471-ENG117841-Vehicle configuration-online_street_view On 30 IDE03471-ENG125048-Vehicle configuration-OPS_display_in_dash_board_display_unit OFF 30 IDE03471-ENG167521-Vehicle configuration-perso_v_threshold 00 30 IDE03471-ENG167522-Vehicle configuration-perso_v_threshold_hysteresis 00 30 IDE03471-ENG152554-Vehicle configuration-Phone_HMI_Privacy 0 30 IDE03471-ENG125046-Vehicle configuration-Phone_module_operation_mode only data service act. 30 IDE03471-ENG117844-Vehicle configuration-picture_navi On 30 IDE03471-ENG167523-Vehicle configuration-Pilot_Parking not activated 30 IDE03471-ENG167525-Vehicle configuration-Popup_if_GPS_services_in_use not activated 30 IDE03471-ENG152555-Vehicle configuration-Privacy_WithPINRequest 0 30 IDE03471-ENG127496-Vehicle configuration-ProbeCar_lgi OFF 30 IDE03471-ENG137646-Vehicle configuration-ProbeCar_vzo OFF 30 IDE03471-ENG125047-Vehicle configuration-PSD_Protocol_Version PSD_1.5 30 IDE03471-ENG117846-Vehicle configuration-remote_HMI OFF 30 IDE03471-ENG138661-Vehicle configuration-RSE_software_component activated 30 IDE03471-ENG245031-Vehicle configuration-rvc_low_black_screen_trunk_open not activated 30 IDE03471-ENG244966-Vehicle configuration-rvc_low_black_screen_velocity_threshold not activated 30 IDE03471-ENG245015-Vehicle configuration-rvc_low_failsafe not activated 30 IDE03471-ENG126143-Vehicle configuration-RVC_video_input FBAS 30 IDE03471-ENG152556-Vehicle configuration-scon_telephony not activated 30 IDE03471-ENG142081-Vehicle configuration-sd_slot_deactivation no restriction 30 IDE03471-ENG138660-Vehicle configuration-SDS_Region_Flag no_region 30 IDE03471-ENG152557-Vehicle configuration-show_volte_hmi_switch not activated 30 IDE03471-ENG125045-Vehicle configuration-Sim_card_mode_switch present 30 IDE03471-ENG142144-Vehicle configuration-sim_data_only_sms_support On 30 IDE03471-ENG138663-Vehicle configuration-Smartphone_interface_for_rhmi activated 30 IDE03471-ENG126993-Vehicle configuration-Station_Logo_DB_Mode 1 30 IDE03471-ENG125044-Vehicle configuration-Support_for_response_and_hold OFF 30 IDE03471-ENG125042-Vehicle configuration-Support_of_threeway_calling OFF 30 IDE03471-ENG130247-Vehicle configuration-Support_second_phone On 30 IDE03471-ENG167531-Vehicle configuration-Tencent_myCar_canceling_share_location OFF 30 IDE03471-ENG126994-Vehicle configuration-TPEG_availability OFF 30 IDE03471-ENG152571-Vehicle configuration-unblock_functions_while_piloted_driving locked 30 IDE03471-ENG137647-Vehicle configuration-UOTA On 30 IDE03471-ENG167532-Vehicle configuration-UOTA_2 OFF 30 IDE03471-ENG117852-Vehicle configuration-UPnP On 30 IDE03471-ENG142149-Vehicle configuration-vehicle_leaving_sound not activated 30 IDE03471-ENG142147-Vehicle configuration-vehicle_readiness_sound not activated 30 IDE03471-ENG152558-Vehicle configuration-voice_over_lte not activated 30 IDE03471-ENG117836-Vehicle configuration-VZAPro OFF 30 IDE03471-ENG127494-Vehicle configuration-VZO OFF 30 IDE03471-ENG137648-Vehicle configuration-WiFi_Client_HMI On 30 IDE03471-ENG117842-Vehicle configuration-WIFI_Hotspot On 30 IDE03471-ENG152572-Vehicle configuration-wlan_5ghz_switch not activated 30 IDE03580-Country recognition for mobile network 0 2 IDE03902-Automatic ring break diagnostic No automatic start 1 IDE04295-Bluetooth: Preferred connection profile for phone book data PBAP 1 IDE04298-MAS01779-Vehicle dimensions-Length 0 mm 6 IDE04298-MAS01780-Vehicle dimensions-Width 0 mm 6 IDE04298-MAS02230-Vehicle dimensions-Height 0 mm 6 IDE04331-Selection of release codes for a SWaP function FF FF FF FF 4 IDE04484-ENG117426-Regional codes-Parameter_Set_BlueRay_System_Region_Code 2 2 IDE04484-ENG117425-Regional codes-Parameter_Set_DVD_Region_Code 2 2 IDE04521-Sporadic ring break detection optical 1 IDE04522-Awakening ability on optical databus OFF 1 IDE04549-Telephone data service On 1 IDE04550-Bluetooth: Sniff mode OFF 1 IDE05111-Fee-based traffic information (TMC) 32768 2 IDE05113-Infotainment Recorder activated 1 IDE06425-Dynamometer mode: functional- not activated 1 IDE06425-ENG98891-Dynamometer mode: functional-Reserved 0 1 IDE06697-Audio management mute function Muting of audio sources 1 IDE07399-ENG142045-Engine type-Engine_type_adaption_1 Petrol 1 IDE07399-ENG142046-Engine type-Engine_type_adaption_2 Petrol 1 IDE08814-IDE04033-Navigation receiver GNSS configuration-Compass OFF 1 IDE08814-MAS01570-Navigation receiver GNSS configuration-Default On 1 IDE08814-MAS02614-Navigation receiver GNSS configuration-GPS On 1 IDE08814-MAS07828-Navigation receiver GNSS configuration-Galileo OFF 1 IDE08814-MAS07829-Navigation receiver GNSS configuration-Glonass OFF 1 IDE08814-ENG142047-Navigation receiver GNSS configuration-external_gps_1 OFF 1 IDE08814-ENG142048-Navigation receiver GNSS configuration-external_gps_2 OFF 1 IDE09382-ENG125051-Parameter 2 for connection transfer (UMTS)-Scan Tune Level 2G 0 16 IDE09382-ENG125052-Parameter 2 for connection transfer (UMTS)-Scan Tune Level 3G 0 16 IDE10082-MAS09813-Telephone functions configuration-Entering Access Point Name On 1 IDE10082-MAS09814-Telephone functions configuration-Call Center Function On 1 IDE10082-MAS13846-Telephone functions configuration-Internet access via WiFi Available 1 IDE10082-MAS13847-Telephone functions configuration-Call center function on MIB: roadside assistance call On 1 IDE10082-MAS13848-Telephone functions configuration-Call center function on MIB: POI call On 1 IDE10082-MAS16726-Telephone functions configuration-Call center function on MIB: POI call regions OFF 1 IDE10221-MAS00839-Audio Management Input Gain Generation 2-TV Tuner -128 40 IDE10221-MAS00846-Audio Management Input Gain Generation 2-Satellite radio -128 40 IDE10221-MAS01984-Audio Management Input Gain Generation 2-Radio (FM) -128 40 IDE10221-MAS01985-Audio Management Input Gain Generation 2-Radio (AM) -128 40 IDE10221-MAS01986-Audio Management Input Gain Generation 2-Digital radio (DAB) -128 40 IDE10221-ENG125854-Audio Management Input Gain Generation 2-Exbox_DMB -128 40 IDE10221-ENG117430-Audio Management Input Gain Generation 2-HFP -128 40 IDE10221-ENG125846-Audio Management Input Gain Generation 2-Media_Airplay -128 40 IDE10221-ENG125837-Audio Management Input Gain Generation 2-Media_AUX_Adapter -128 40 IDE10221-ENG125836-Audio Management Input Gain Generation 2-Media_AUXIN -128 40 IDE10221-ENG125843-Audio Management Input Gain Generation 2-Media_Bluray -128 40 IDE10221-ENG125841-Audio Management Input Gain Generation 2-Media_BTDevice -128 40 IDE10221-ENG125838-Audio Management Input Gain Generation 2-Media_CDA -128 40 IDE10221-ENG125848-Audio Management Input Gain Generation 2-Media_Cloud -128 40 IDE10221-ENG125839-Audio Management Input Gain Generation 2-Media_DVD -128 40 IDE10221-ENG125844-Audio Management Input Gain Generation 2-Media_HDMI -128 40 IDE10221-ENG125840-Audio Management Input Gain Generation 2-Media_MFP -128 40 IDE10221-ENG125847-Audio Management Input Gain Generation 2-Media_UPNP -128 40 IDE10221-ENG125855-Audio Management Input Gain Generation 2-Mirrorlink -128 40 IDE10221-ENG125859-Audio Management Input Gain Generation 2-Phone_Ringer_MFP -128 40 IDE10221-ENG125860-Audio Management Input Gain Generation 2-Phone_Ringer_OB -128 40 IDE10221-ENG125858-Audio Management Input Gain Generation 2-Phone_Voice -128 40 IDE10221-ENG125842-Audio Management Input Gain Generation 2-TA_Tuner_FM -128 40 IDE10221-ENG125850-Audio Management Input Gain Generation 2-Tone_Beep -128 40 IDE10221-ENG125853-Audio Management Input Gain Generation 2-Tone_Messaging -128 40 IDE10221-ENG125852-Audio Management Input Gain Generation 2-Tone_Touchscreen -128 40 IDE10221-ENG125851-Audio Management Input Gain Generation 2-Tone_Warning -128 40 IDE10221-ENG125856-Audio Management Input Gain Generation 2-TTS_Nav -128 40 IDE10221-ENG125857-Audio Management Input Gain Generation 2-TTS_SDS -128 40 IDE10221-ENG125845-Audio Management Input Gain Generation 2-Tuner_Online -128 40 IDE10221-ENG125849-Audio Management Input Gain Generation 2-Tuner_Personal -128 40 IDE10221-ENG125835-Audio Management Input Gain Generation 2-Tuner_TI -128 40 IDE10221-ENG125861-Audio Management Input Gain Generation 2-TV_AV_IN -128 40 IDE10480-MAS10741-Interface for external media: activation-Connection 1 activated 4 IDE10480-MAS10742-Interface for external media: activation-Connection 2 activated 4 IDE10480-MAS10743-Interface for external media: activation-Connection 3 not activated 4 IDE10480-MAS10744-Interface for external media: activation-Connection 4 not activated 4 IDE10604-Menu entries for mobile online services activated 1 IDE10668-Internal SIM Card: Usage Never 1 IDE11104-ENG127502-FM tuner: mono/stereo setting-l_hf_stereo_lower_threshold 37 dBµV 3 IDE11104-ENG127503-FM tuner: mono/stereo setting-l_nf_max_stereo_channel_separation 32 dB 3 IDE11104-ENG127504-FM tuner: mono/stereo setting-t_hysteresis_mono_to_stereo 15.0 s 3 IDE11105-Brand-specific display of connect application 256 IDE11122-Country identification: country of sale HMI -- 2 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11502-ENG127601-Locked menu contents-FB_CAR_0 non_blocked 21 IDE11502-ENG127602-Locked menu contents-FB_CAR_1 non_blocked 21 IDE11502-ENG127611-Locked menu contents-FB_CAR_10 non_blocked 21 IDE11502-ENG127612-Locked menu contents-FB_CAR_11 non_blocked 21 IDE11502-ENG127613-Locked menu contents-FB_CAR_12 non_blocked 21 IDE11502-ENG127614-Locked menu contents-FB_CAR_13 non_blocked 21 IDE11502-ENG127615-Locked menu contents-FB_CAR_14 non_blocked 21 IDE11502-ENG127616-Locked menu contents-FB_CAR_15 non_blocked 21 IDE11502-ENG127617-Locked menu contents-FB_CAR_16 non_blocked 21 IDE11502-ENG127618-Locked menu contents-FB_CAR_17 non_blocked 21 IDE11502-ENG127619-Locked menu contents-FB_CAR_18 non_blocked 21 IDE11502-ENG127620-Locked menu contents-FB_CAR_19 non_blocked 21 IDE11502-ENG127603-Locked menu contents-FB_CAR_2 non_blocked 21 IDE11502-ENG127621-Locked menu contents-FB_CAR_20 non_blocked 21 IDE11502-ENG127622-Locked menu contents-FB_CAR_21 non_blocked 21 IDE11502-ENG127623-Locked menu contents-FB_CAR_22 non_blocked 21 IDE11502-ENG127624-Locked menu contents-FB_CAR_23 non_blocked 21 IDE11502-ENG127604-Locked menu contents-FB_CAR_3 non_blocked 21 IDE11502-ENG127605-Locked menu contents-FB_CAR_4 non_blocked 21 IDE11502-ENG127606-Locked menu contents-FB_CAR_5 non_blocked 21 IDE11502-ENG127607-Locked menu contents-FB_CAR_6 non_blocked 21 IDE11502-ENG127608-Locked menu contents-FB_CAR_7 non_blocked 21 IDE11502-ENG127609-Locked menu contents-FB_CAR_8 non_blocked 21 IDE11502-ENG127610-Locked menu contents-FB_CAR_9 non_blocked 21 IDE11502-ENG127521-Locked menu contents-FB_MEDIA_0 non_blocked 21 IDE11502-ENG127522-Locked menu contents-FB_MEDIA_1 non_blocked 21 IDE11502-ENG127531-Locked menu contents-FB_MEDIA_10 non_blocked 21 IDE11502-ENG127532-Locked menu contents-FB_MEDIA_11 non_blocked 21 IDE11502-ENG127533-Locked menu contents-FB_MEDIA_12 non_blocked 21 IDE11502-ENG127534-Locked menu contents-FB_MEDIA_13 non_blocked 21 IDE11502-ENG127535-Locked menu contents-FB_MEDIA_14 non_blocked 21 IDE11502-ENG127536-Locked menu contents-FB_MEDIA_15 non_blocked 21 IDE11502-ENG127537-Locked menu contents-FB_MEDIA_16 non_blocked 21 IDE11502-ENG127538-Locked menu contents-FB_MEDIA_17 non_blocked 21 IDE11502-ENG127539-Locked menu contents-FB_MEDIA_18 non_blocked 21 IDE11502-ENG127540-Locked menu contents-FB_MEDIA_19 non_blocked 21 IDE11502-ENG127523-Locked menu contents-FB_MEDIA_2 non_blocked 21 IDE11502-ENG127541-Locked menu contents-FB_MEDIA_20 non_blocked 21 IDE11502-ENG127542-Locked menu contents-FB_MEDIA_21 non_blocked 21 IDE11502-ENG127543-Locked menu contents-FB_MEDIA_22 non_blocked 21 IDE11502-ENG127544-Locked menu contents-FB_MEDIA_23 non_blocked 21 IDE11502-ENG127524-Locked menu contents-FB_MEDIA_3 non_blocked 21 IDE11502-ENG127525-Locked menu contents-FB_MEDIA_4 non_blocked 21 IDE11502-ENG127526-Locked menu contents-FB_MEDIA_5 non_blocked 21 IDE11502-ENG127527-Locked menu contents-FB_MEDIA_6 non_blocked 21 IDE11502-ENG127528-Locked menu contents-FB_MEDIA_7 non_blocked 21 IDE11502-ENG127529-Locked menu contents-FB_MEDIA_8 non_blocked 21 IDE11502-ENG127530-Locked menu contents-FB_MEDIA_9 non_blocked 21 IDE11502-ENG127625-Locked menu contents-FB_MISC_0 non_blocked 21 IDE11502-ENG127626-Locked menu contents-FB_MISC_1 non_blocked 21 IDE11502-ENG127635-Locked menu contents-FB_MISC_10 non_blocked 21 IDE11502-ENG127636-Locked menu contents-FB_MISC_11 non_blocked 21 IDE11502-ENG127637-Locked menu contents-FB_MISC_12 non_blocked 21 IDE11502-ENG127638-Locked menu contents-FB_MISC_13 non_blocked 21 IDE11502-ENG127639-Locked menu contents-FB_MISC_14 non_blocked 21 IDE11502-ENG127640-Locked menu contents-FB_MISC_15 non_blocked 21 IDE11502-ENG127641-Locked menu contents-FB_MISC_16 non_blocked 21 IDE11502-ENG127642-Locked menu contents-FB_MISC_17 non_blocked 21 IDE11502-ENG127643-Locked menu contents-FB_MISC_18 non_blocked 21 IDE11502-ENG127644-Locked menu contents-FB_MISC_19 non_blocked 21 IDE11502-ENG127627-Locked menu contents-FB_MISC_2 non_blocked 21 IDE11502-ENG127645-Locked menu contents-FB_MISC_20 non_blocked 21 IDE11502-ENG127646-Locked menu contents-FB_MISC_21 non_blocked 21 IDE11502-ENG127647-Locked menu contents-FB_MISC_22 non_blocked 21 IDE11502-ENG127648-Locked menu contents-FB_MISC_23 non_blocked 21 IDE11502-ENG127649-Locked menu contents-FB_MISC_24 non_blocked 21 IDE11502-ENG127650-Locked menu contents-FB_MISC_25 non_blocked 21 IDE11502-ENG127651-Locked menu contents-FB_MISC_26 non_blocked 21 IDE11502-ENG127652-Locked menu contents-FB_MISC_27 non_blocked 21 IDE11502-ENG127653-Locked menu contents-FB_MISC_28 non_blocked 21 IDE11502-ENG127654-Locked menu contents-FB_MISC_29 non_blocked 21 IDE11502-ENG127628-Locked menu contents-FB_MISC_3 non_blocked 21 IDE11502-ENG127655-Locked menu contents-FB_MISC_30 non_blocked 21 IDE11502-ENG127656-Locked menu contents-FB_MISC_31 non_blocked 21 IDE11502-ENG127657-Locked menu contents-FB_MISC_32 non_blocked 21 IDE11502-ENG127658-Locked menu contents-FB_MISC_33 non_blocked 21 IDE11502-ENG127659-Locked menu contents-FB_MISC_34 non_blocked 21 IDE11502-ENG127660-Locked menu contents-FB_MISC_35 non_blocked 21 IDE11502-ENG127661-Locked menu contents-FB_MISC_36 non_blocked 21 IDE11502-ENG127662-Locked menu contents-FB_MISC_37 non_blocked 21 IDE11502-ENG127663-Locked menu contents-FB_MISC_38 non_blocked 21 IDE11502-ENG127664-Locked menu contents-FB_MISC_39 non_blocked 21 IDE11502-ENG127629-Locked menu contents-FB_MISC_4 non_blocked 21 IDE11502-ENG127665-Locked menu contents-FB_MISC_40 non_blocked 21 IDE11502-ENG127666-Locked menu contents-FB_MISC_41 non_blocked 21 IDE11502-ENG127667-Locked menu contents-FB_MISC_42 non_blocked 21 IDE11502-ENG127668-Locked menu contents-FB_MISC_43 non_blocked 21 IDE11502-ENG127669-Locked menu contents-FB_MISC_44 non_blocked 21 IDE11502-ENG127670-Locked menu contents-FB_MISC_45 non_blocked 21 IDE11502-ENG127671-Locked menu contents-FB_MISC_46 non_blocked 21 IDE11502-ENG127672-Locked menu contents-FB_MISC_47 non_blocked 21 IDE11502-ENG127630-Locked menu contents-FB_MISC_5 non_blocked 21 IDE11502-ENG127631-Locked menu contents-FB_MISC_6 non_blocked 21 IDE11502-ENG127632-Locked menu contents-FB_MISC_7 non_blocked 21 IDE11502-ENG127633-Locked menu contents-FB_MISC_8 non_blocked 21 IDE11502-ENG127634-Locked menu contents-FB_MISC_9 non_blocked 21 IDE11502-ENG127561-Locked menu contents-FB_NAV_0 non_blocked 21 IDE11502-ENG127562-Locked menu contents-FB_NAV_1 non_blocked 21 IDE11502-ENG127571-Locked menu contents-FB_NAV_10 non_blocked 21 IDE11502-ENG127572-Locked menu contents-FB_NAV_11 non_blocked 21 IDE11502-ENG127573-Locked menu contents-FB_NAV_12 non_blocked 21 IDE11502-ENG127574-Locked menu contents-FB_NAV_13 non_blocked 21 IDE11502-ENG127575-Locked menu contents-FB_NAV_14 non_blocked 21 IDE11502-ENG127576-Locked menu contents-FB_NAV_15 non_blocked 21 IDE11502-ENG127577-Locked menu contents-FB_NAV_16 non_blocked 21 IDE11502-ENG127578-Locked menu contents-FB_NAV_17 non_blocked 21 IDE11502-ENG127579-Locked menu contents-FB_NAV_18 non_blocked 21 IDE11502-ENG127580-Locked menu contents-FB_NAV_19 non_blocked 21 IDE11502-ENG127563-Locked menu contents-FB_NAV_2 non_blocked 21 IDE11502-ENG127581-Locked menu contents-FB_NAV_20 non_blocked 21 IDE11502-ENG127582-Locked menu contents-FB_NAV_21 non_blocked 21 IDE11502-ENG127583-Locked menu contents-FB_NAV_22 non_blocked 21 IDE11502-ENG127584-Locked menu contents-FB_NAV_23 non_blocked 21 IDE11502-ENG127585-Locked menu contents-FB_NAV_24 non_blocked 21 IDE11502-ENG127586-Locked menu contents-FB_NAV_25 non_blocked 21 IDE11502-ENG127587-Locked menu contents-FB_NAV_26 non_blocked 21 IDE11502-ENG127588-Locked menu contents-FB_NAV_27 non_blocked 21 IDE11502-ENG127589-Locked menu contents-FB_NAV_28 non_blocked 21 IDE11502-ENG127590-Locked menu contents-FB_NAV_29 non_blocked 21 IDE11502-ENG127564-Locked menu contents-FB_NAV_3 non_blocked 21 IDE11502-ENG127591-Locked menu contents-FB_NAV_30 non_blocked 21 IDE11502-ENG127592-Locked menu contents-FB_NAV_31 non_blocked 21 IDE11502-ENG127593-Locked menu contents-FB_NAV_32 non_blocked 21 IDE11502-ENG127594-Locked menu contents-FB_NAV_33 non_blocked 21 IDE11502-ENG127595-Locked menu contents-FB_NAV_34 non_blocked 21 IDE11502-ENG127596-Locked menu contents-FB_NAV_35 non_blocked 21 IDE11502-ENG127597-Locked menu contents-FB_NAV_36 non_blocked 21 IDE11502-ENG127598-Locked menu contents-FB_NAV_37 non_blocked 21 IDE11502-ENG127599-Locked menu contents-FB_NAV_38 non_blocked 21 IDE11502-ENG127600-Locked menu contents-FB_NAV_39 non_blocked 21 IDE11502-ENG127565-Locked menu contents-FB_NAV_4 non_blocked 21 IDE11502-ENG127566-Locked menu contents-FB_NAV_5 non_blocked 21 IDE11502-ENG127567-Locked menu contents-FB_NAV_6 non_blocked 21 IDE11502-ENG127568-Locked menu contents-FB_NAV_7 non_blocked 21 IDE11502-ENG127569-Locked menu contents-FB_NAV_8 non_blocked 21 IDE11502-ENG127570-Locked menu contents-FB_NAV_9 non_blocked 21 IDE11502-ENG127545-Locked menu contents-FB_PHONE_0 non_blocked 21 IDE11502-ENG127546-Locked menu contents-FB_PHONE_1 non_blocked 21 IDE11502-ENG127555-Locked menu contents-FB_PHONE_10 non_blocked 21 IDE11502-ENG127556-Locked menu contents-FB_PHONE_11 non_blocked 21 IDE11502-ENG127557-Locked menu contents-FB_PHONE_12 non_blocked 21 IDE11502-ENG127558-Locked menu contents-FB_PHONE_13 non_blocked 21 IDE11502-ENG127559-Locked menu contents-FB_PHONE_14 non_blocked 21 IDE11502-ENG127560-Locked menu contents-FB_PHONE_15 non_blocked 21 IDE11502-ENG127547-Locked menu contents-FB_PHONE_2 non_blocked 21 IDE11502-ENG127548-Locked menu contents-FB_PHONE_3 non_blocked 21 IDE11502-ENG127549-Locked menu contents-FB_PHONE_4 non_blocked 21 IDE11502-ENG127550-Locked menu contents-FB_PHONE_5 non_blocked 21 IDE11502-ENG127551-Locked menu contents-FB_PHONE_6 non_blocked 21 IDE11502-ENG127552-Locked menu contents-FB_PHONE_7 non_blocked 21 IDE11502-ENG127553-Locked menu contents-FB_PHONE_8 non_blocked 21 IDE11502-ENG127554-Locked menu contents-FB_PHONE_9 non_blocked 21 IDE11502-ENG127505-Locked menu contents-FB_TUNER_0 non_blocked 21 IDE11502-ENG127506-Locked menu contents-FB_TUNER_1 non_blocked 21 IDE11502-ENG127515-Locked menu contents-FB_TUNER_10 non_blocked 21 IDE11502-ENG127516-Locked menu contents-FB_TUNER_11 non_blocked 21 IDE11502-ENG127517-Locked menu contents-FB_TUNER_12 non_blocked 21 IDE11502-ENG127518-Locked menu contents-FB_TUNER_13 non_blocked 21 IDE11502-ENG127519-Locked menu contents-FB_TUNER_14 non_blocked 21 IDE11502-ENG127520-Locked menu contents-FB_TUNER_15 non_blocked 21 IDE11502-ENG127507-Locked menu contents-FB_TUNER_2 non_blocked 21 IDE11502-ENG127508-Locked menu contents-FB_TUNER_3 non_blocked 21 IDE11502-ENG127509-Locked menu contents-FB_TUNER_4 non_blocked 21 IDE11502-ENG127510-Locked menu contents-FB_TUNER_5 non_blocked 21 IDE11502-ENG127511-Locked menu contents-FB_TUNER_6 non_blocked 21 IDE11502-ENG127512-Locked menu contents-FB_TUNER_7 non_blocked 21 IDE11502-ENG127513-Locked menu contents-FB_TUNER_8 non_blocked 21 IDE11502-ENG127514-Locked menu contents-FB_TUNER_9 non_blocked 21 IDE11524-ENG249835-Vehicle function list BAP 2nd generation: expansion-chassis_control_0x57 not activated 192 IDE11524-ENG249836-Vehicle function list BAP 2nd generation: expansion-chassis_control_0x57_msg_bus Comfort data bus 192 IDE11524-ENG142156-Vehicle function list BAP 2nd generation: expansion-climate_mastet_0x42 not activated 192 IDE11524-ENG142157-Vehicle function list BAP 2nd generation: expansion-climate_mastet_0x42_msg_bus Comfort data bus 192 IDE11524-ENG142158-Vehicle function list BAP 2nd generation: expansion-connection_manager_0x47 not activated 192 IDE11524-ENG142159-Vehicle function list BAP 2nd generation: expansion-connection_manager_0x47_msg_bus Comfort data bus 192 IDE11524-ENG249837-Vehicle function list BAP 2nd generation: expansion-convertibleTop_0x6C not activated 192 IDE11524-ENG249838-Vehicle function list BAP 2nd generation: expansion-convertibleTop_0x6C_msg_bus Comfort data bus 192 IDE11524-ENG152529-Vehicle function list BAP 2nd generation: expansion-daf_profile_0x51 not activated 192 IDE11524-ENG152530-Vehicle function list BAP 2nd generation: expansion-daf_profile_0x51_msg_bus Comfort data bus 192 IDE11524-ENG137043-Vehicle function list BAP 2nd generation: expansion-display_configuration_0x45 activated 192 IDE11524-ENG137044-Vehicle function list BAP 2nd generation: expansion-display_configuration_0x45_msg_bus Comfort data bus 192 IDE11524-ENG185772-Vehicle function list BAP 2nd generation: expansion-engine_functions_0x5D not activated 192 IDE11524-ENG185773-Vehicle function list BAP 2nd generation: expansion-engine_functions_0x5D_msg_bus Comfort data bus 192 IDE11524-ENG142168-Vehicle function list BAP 2nd generation: expansion-fas_profile_0x4D not activated 192 IDE11524-ENG142169-Vehicle function list BAP 2nd generation: expansion-fas_profile_0x4D_msg_bus Comfort data bus 192 IDE11524-ENG142154-Vehicle function list BAP 2nd generation: expansion-front_traffic_assist_0x41 not activated 192 IDE11524-ENG142155-Vehicle function list BAP 2nd generation: expansion-front_traffic_assist_0x41_msg_bus Comfort data bus 192 IDE11524-ENG152535-Vehicle function list BAP 2nd generation: expansion-infotainmentsettings_profile_0x50 not activated 192 IDE11524-ENG152536-Vehicle function list BAP 2nd generation: expansion-infotainmentsettings_profile_0x50_msg_bus Comfort data bus 192 IDE11524-ENG248719-Vehicle function list BAP 2nd generation: expansion-ITM_0x65 not activated 192 IDE11524-ENG248720-Vehicle function list BAP 2nd generation: expansion-ITM_0x65_msg_bus Comfort data bus 192 IDE11524-ENG249902-Vehicle function list BAP 2nd generation: expansion-lift_0x64 not activated 192 IDE11524-ENG249903-Vehicle function list BAP 2nd generation: expansion-lift_0x64_msg_bus Comfort data bus 192 IDE11524-ENG185787-Vehicle function list BAP 2nd generation: expansion-mascot_0x83 not activated 192 IDE11524-ENG185788-Vehicle function list BAP 2nd generation: expansion-mascot_0x83_msg_bus Comfort data bus 192 IDE11524-ENG152569-Vehicle function list BAP 2nd generation: expansion-remote_services_profile_0x4E not activated 192 IDE11524-ENG152570-Vehicle function list BAP 2nd generation: expansion-remote_services_profile_0x4E_msg_bus Comfort data bus 192 IDE11524-ENG139202-Vehicle function list BAP 2nd generation: expansion-Soundcontrol_0x44 not activated 192 IDE11524-ENG139203-Vehicle function list BAP 2nd generation: expansion-Soundcontrol_0x44_msg_bus Comfort data bus 192 IDE11524-ENG127678-Vehicle function list BAP 2nd generation: expansion-spoiler_0x40 not activated 192 IDE11524-ENG127679-Vehicle function list BAP 2nd generation: expansion-spoiler_0x40_msg_bus Comfort data bus 192 IDE11524-ENG142162-Vehicle function list BAP 2nd generation: expansion-statistic_0x4A not activated 192 IDE11524-ENG142163-Vehicle function list BAP 2nd generation: expansion-statistic_0x4A_msg_bus Comfort data bus 192 IDE11524-ENG142164-Vehicle function list BAP 2nd generation: expansion-sunroof_front_0x4B not activated 192 IDE11524-ENG142165-Vehicle function list BAP 2nd generation: expansion-sunroof_front_0x4B_msg_bus Comfort data bus 192 IDE11524-ENG142166-Vehicle function list BAP 2nd generation: expansion-sunroof_rear_0x4C not activated 192 IDE11524-ENG142167-Vehicle function list BAP 2nd generation: expansion-sunroof_rear_0x4C_msg_bus Comfort data bus 192 IDE11524-ENG185817-Vehicle function list BAP 2nd generation: expansion-vas_0x54 not activated 192 IDE11524-ENG185818-Vehicle function list BAP 2nd generation: expansion-vas_0x54_msg_bus Comfort data bus 192 IDE11524-ENG142160-Vehicle function list BAP 2nd generation: expansion-wireless_charging_0x48 not activated 192 IDE11524-ENG142161-Vehicle function list BAP 2nd generation: expansion-wireless_charging_0x48_msg_bus Comfort data bus 192 IDE11638-Bluetooth Audio Codec FF 1 IDE12266-Follow on time for telephone activated 1 IDE12353-Configuration of traffic light online functions On 1 IDE12434-ENG249906-Vehicle menu operation: second generation: extension-menu_chassis_control not activated 60 IDE12434-ENG249907-Vehicle menu operation: second generation: extension-menu_chassis_control_after_disclaimer not activated 60 IDE12434-ENG249908-Vehicle menu operation: second generation: extension-menu_chassis_control_clamp_15_off not activated 60 IDE12434-ENG249909-Vehicle menu operation: second generation: extension-menu_chassis_control_over_threshold_high not activated 60 IDE12434-ENG249910-Vehicle menu operation: second generation: extension-menu_chassis_control_stillstand not activated 60 IDE12434-ENG152495-Vehicle menu operation: second generation: extension-menu_connection_manager not activated 60 IDE12434-ENG152499-Vehicle menu operation: second generation: extension-menu_connection_manager_after_disclaimer not activated 60 IDE12434-ENG152496-Vehicle menu operation: second generation: extension-menu_connection_manager_clamp_15_off not activated 60 IDE12434-ENG152497-Vehicle menu operation: second generation: extension-menu_connection_manager_over_threshold_high not activated 60 IDE12434-ENG152498-Vehicle menu operation: second generation: extension-menu_connection_manager_standstill not activated 60 IDE12434-ENG249911-Vehicle menu operation: second generation: extension-menu_convertible_top not activated 60 IDE12434-ENG249912-Vehicle menu operation: second generation: extension-menu_convertible_top_after_disclaimer not activated 60 IDE12434-ENG249913-Vehicle menu operation: second generation: extension-menu_convertible_top_clamp_15_off not activated 60 IDE12434-ENG249914-Vehicle menu operation: second generation: extension-menu_convertible_top_over_threshold_high not activated 60 IDE12434-ENG249915-Vehicle menu operation: second generation: extension-menu_convertible_top_stillstand not activated 60 IDE12434-ENG152548-Vehicle menu operation: second generation: extension-menu_daf_profile not activated 60 IDE12434-ENG152549-Vehicle menu operation: second generation: extension-menu_daf_profile_after_disclaimer not activated 60 IDE12434-ENG152550-Vehicle menu operation: second generation: extension-menu_daf_profile_clamp_15_off not activated 60 IDE12434-ENG152551-Vehicle menu operation: second generation: extension-menu_daf_profile_over_threshold_high not activated 60 IDE12434-ENG152552-Vehicle menu operation: second generation: extension-menu_daf_profile_stillstand not activated 60 IDE12434-ENG185793-Vehicle menu operation: second generation: extension-menu_engine_functions not activated 60 IDE12434-ENG185794-Vehicle menu operation: second generation: extension-menu_engine_functions_after_disclaimer not activated 60 IDE12434-ENG185795-Vehicle menu operation: second generation: extension-menu_engine_functions_clamp_15_off not activated 60 IDE12434-ENG185796-Vehicle menu operation: second generation: extension-menu_engine_functions_over_threshold_high not activated 60 IDE12434-ENG185797-Vehicle menu operation: second generation: extension-menu_engine_functions_stillstand not activated 60 IDE12434-ENG152515-Vehicle menu operation: second generation: extension-menu_fas_profile not activated 60 IDE12434-ENG152519-Vehicle menu operation: second generation: extension-menu_fas_profile_after_disclaimer not activated 60 IDE12434-ENG152516-Vehicle menu operation: second generation: extension-menu_fas_profile_clamp_15_off not activated 60 IDE12434-ENG152517-Vehicle menu operation: second generation: extension-menu_fas_profile_over_threshold_high not activated 60 IDE12434-ENG152518-Vehicle menu operation: second generation: extension-menu_fas_profile_standstill not activated 60 IDE12434-ENG185798-Vehicle menu operation: second generation: extension-menu_fod not activated 60 IDE12434-ENG185799-Vehicle menu operation: second generation: extension-menu_fod_after_disclaimer not activated 60 IDE12434-ENG185800-Vehicle menu operation: second generation: extension-menu_fod_clamp_15_off not activated 60 IDE12434-ENG185801-Vehicle menu operation: second generation: extension-menu_fod_over_threshold_high not activated 60 IDE12434-ENG185802-Vehicle menu operation: second generation: extension-menu_fod_stillstand not activated 60 IDE12434-ENG248744-Vehicle menu operation: second generation: extension-menu_ITM not activated 60 IDE12434-ENG248745-Vehicle menu operation: second generation: extension-menu_ITM_after_disclaimer not activated 60 IDE12434-ENG248746-Vehicle menu operation: second generation: extension-menu_ITM_clamp_15_off not activated 60 IDE12434-ENG248747-Vehicle menu operation: second generation: extension-menu_ITM_over_threshold_high not activated 60 IDE12434-ENG248748-Vehicle menu operation: second generation: extension-menu_ITM_stillstand not activated 60 IDE12434-ENG249916-Vehicle menu operation: second generation: extension-menu_lift not activated 60 IDE12434-ENG249917-Vehicle menu operation: second generation: extension-menu_lift_after_disclaimer not activated 60 IDE12434-ENG249918-Vehicle menu operation: second generation: extension-menu_lift_clamp_15_off not activated 60 IDE12434-ENG249919-Vehicle menu operation: second generation: extension-menu_lift_over_threshold_high not activated 60 IDE12434-ENG249920-Vehicle menu operation: second generation: extension-menu_lift_stillstand not activated 60 IDE12434-ENG184478-Vehicle menu operation: second generation: extension-menu_mascot not activated 60 IDE12434-ENG184479-Vehicle menu operation: second generation: extension-menu_mascot_after_disclaimer not activated 60 IDE12434-ENG184480-Vehicle menu operation: second generation: extension-menu_mascot_clamp_15_off not activated 60 IDE12434-ENG184481-Vehicle menu operation: second generation: extension-menu_mascot_over_threshold_high not activated 60 IDE12434-ENG184482-Vehicle menu operation: second generation: extension-menu_mascot_stillstand not activated 60 IDE12434-ENG152562-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile not activated 60 IDE12434-ENG152563-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_after_disclaimer not activated 60 IDE12434-ENG152564-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_clamp_15_off not activated 60 IDE12434-ENG152565-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_over_threshold_high not activated 60 IDE12434-ENG152566-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_stillstand not activated 60 IDE12434-ENG152505-Vehicle menu operation: second generation: extension-menu_statistic not activated 60 IDE12434-ENG152509-Vehicle menu operation: second generation: extension-menu_statistic_after_disclaimer not activated 60 IDE12434-ENG152506-Vehicle menu operation: second generation: extension-menu_statistic_clamp_15_off not activated 60 IDE12434-ENG152507-Vehicle menu operation: second generation: extension-menu_statistic_over_threshold_high not activated 60 IDE12434-ENG152508-Vehicle menu operation: second generation: extension-menu_statistic_standstill not activated 60 IDE12434-ENG152510-Vehicle menu operation: second generation: extension-menu_sunroof not activated 60 IDE12434-ENG152514-Vehicle menu operation: second generation: extension-menu_sunroof_after_disclaimer not activated 60 IDE12434-ENG152511-Vehicle menu operation: second generation: extension-menu_sunroof_clamp_15_off not activated 60 IDE12434-ENG152512-Vehicle menu operation: second generation: extension-menu_sunroof_over_threshold_high not activated 60 IDE12434-ENG152513-Vehicle menu operation: second generation: extension-menu_sunroof_standstill not activated 60 IDE12434-ENG185803-Vehicle menu operation: second generation: extension-menu_vas not activated 60 IDE12434-ENG185804-Vehicle menu operation: second generation: extension-menu_vas_after_disclaimer not activated 60 IDE12434-ENG185805-Vehicle menu operation: second generation: extension-menu_vas_clamp_15_off not activated 60 IDE12434-ENG185806-Vehicle menu operation: second generation: extension-menu_vas_over_threshold_high not activated 60 IDE12434-ENG185807-Vehicle menu operation: second generation: extension-menu_vas_stillstand not activated 60 IDE12434-ENG152500-Vehicle menu operation: second generation: extension-menu_wireless_charging not activated 60 IDE12434-ENG152504-Vehicle menu operation: second generation: extension-menu_wireless_charging_after_disclaimer not activated 60 IDE12434-ENG152501-Vehicle menu operation: second generation: extension-menu_wireless_charging_clamp_15_off not activated 60 IDE12434-ENG152502-Vehicle menu operation: second generation: extension-menu_wireless_charging_over_threshold_high not activated 60 IDE12434-ENG152503-Vehicle menu operation: second generation: extension-menu_wireless_charging_standstill not activated 60 IDE13183-Deactivation/activation of the pop-up for active tracking services 00 00 00 00 4 MAS00951-Bluetooth On 1 MAS02809-MAS02870-Check tone frequency-High note frequency range 4000 Hz 6 MAS02809-MAS02871-Check tone frequency-Medium note frequency range 1000 Hz 6 MAS02809-MAS02872-Check tone frequency-Low note frequency range 100 Hz 6 MAS03690-Telephone Data & language service active 1 MAS03782-WLAN On 1 ENG126140-ENG117811-Audio_Management_Audio_Delay_Lines_Gen2-Amplifier_Delay_On_Off OFF 12 ENG126140-ENG117813-Audio_Management_Audio_Delay_Lines_Gen2-Amplifier_Delay_Time 0.00 ms 12 ENG126140-ENG126188-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_Delay_On_Off OFF 12 ENG126140-ENG126189-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_Delay_Time 0.00 ms 12 ENG126140-ENG126190-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_wireless_Delay_On_Off OFF 12 ENG126140-ENG126191-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_wireless_Delay_Time 0.00 ms 12 ENG126140-ENG117810-Audio_Management_Audio_Delay_Lines_Gen2-Main_Unit_Delay_On_Off OFF 12 ENG126140-ENG117812-Audio_Management_Audio_Delay_Lines_Gen2-Main_Unit_Delay_Time 0.00 ms 12 ENG117920-Audio_Managment_Soundset_Menu OFF 1 ENG117917-BAP_Debug_Mode_Release not_released 1 ENG122227-ENG125811-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization not activated 60 ENG122227-ENG125814-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_after_disclaimer not activated 60 ENG122227-ENG126995-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_clamp_15_off not activated 60 ENG122227-ENG125812-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_over_threshold_high activated 60 ENG122227-ENG125813-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_standstill not activated 60 ENG122227-ENG152538-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation not activated 60 ENG122227-ENG152539-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_after_disclaimer not activated 60 ENG122227-ENG152540-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_clamp_15_off not activated 60 ENG122227-ENG152541-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_over_threshold_high not activated 60 ENG122227-ENG152542-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_standstill not activated 60 ENG122227-ENG152543-Car_Function_Adaptations_Gen2-menu_crossroad_assistent not activated 60 ENG122227-ENG152544-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_after_disclaimer not activated 60 ENG122227-ENG152545-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_clamp_15_off not activated 60 ENG122227-ENG152546-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_over_threshold_high not activated 60 ENG122227-ENG152547-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_standstill not activated 60 ENG122227-ENG117486-Car_Function_Adaptations_Gen2-menu_display_ACC activated 60 ENG122227-ENG117490-Car_Function_Adaptations_Gen2-menu_display_ACC_after_disclaimer not activated 60 ENG122227-ENG117487-Car_Function_Adaptations_Gen2-menu_display_ACC_operation_clamp_15_off not activated 60 ENG122227-ENG117488-Car_Function_Adaptations_Gen2-menu_display_ACC_over_threshold_high activated 60 ENG122227-ENG117489-Car_Function_Adaptations_Gen2-menu_display_ACC_standstill not activated 60 ENG122227-ENG117646-Car_Function_Adaptations_Gen2-menu_display_adaptive_key not activated 60 ENG122227-ENG117650-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_after_disclaimer not activated 60 ENG122227-ENG117647-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_clamp_15_off not activated 60 ENG122227-ENG117648-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_over_threshold_high activated 60 ENG122227-ENG117649-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_standstill not activated 60 ENG122227-ENG126152-Car_Function_Adaptations_Gen2-menu_display_Adblue not activated 60 ENG122227-ENG126155-Car_Function_Adaptations_Gen2-menu_display_Adblue_after_disclaimer not activated 60 ENG122227-ENG127002-Car_Function_Adaptations_Gen2-menu_display_Adblue_clamp_15_off not activated 60 ENG122227-ENG126153-Car_Function_Adaptations_Gen2-menu_display_Adblue_over_threshold_high not activated 60 ENG122227-ENG126154-Car_Function_Adaptations_Gen2-menu_display_Adblue_standstill not activated 60 ENG122227-ENG117591-Car_Function_Adaptations_Gen2-menu_display_air_damper not activated 60 ENG122227-ENG117595-Car_Function_Adaptations_Gen2-menu_display_air_damper_after_disclaimer not activated 60 ENG122227-ENG117592-Car_Function_Adaptations_Gen2-menu_display_air_damper_clamp_15_off not activated 60 ENG122227-ENG117593-Car_Function_Adaptations_Gen2-menu_display_air_damper_over_threshold_high activated 60 ENG122227-ENG117594-Car_Function_Adaptations_Gen2-menu_display_air_damper_standstill not activated 60 ENG122227-ENG117491-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination activated 60 ENG122227-ENG117495-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_after_disclaimer not activated 60 ENG122227-ENG117492-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_clamp_15_off not activated 60 ENG122227-ENG117493-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_over_threshold_high activated 60 ENG122227-ENG117494-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_standstill not activated 60 ENG122227-ENG122296-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope not activated 60 ENG122227-ENG122300-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_after_disclaimer not activated 60 ENG122227-ENG122297-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_clamp_15_off not activated 60 ENG122227-ENG122298-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_over_threshold_high activated 60 ENG122227-ENG122299-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_standstill not activated 60 ENG122227-ENG117641-Car_Function_Adaptations_Gen2-menu_display_attention_identification not activated 60 ENG122227-ENG117645-Car_Function_Adaptations_Gen2-menu_display_attention_identification_after_disclaimer not activated 60 ENG122227-ENG117642-Car_Function_Adaptations_Gen2-menu_display_attention_identification_clamp_15_off not activated 60 ENG122227-ENG117643-Car_Function_Adaptations_Gen2-menu_display_attention_identification_over_threshold_high activated 60 ENG122227-ENG117644-Car_Function_Adaptations_Gen2-menu_display_attention_identification_standstill not activated 60 ENG122227-ENG117531-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating not activated 60 ENG122227-ENG117535-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_after_disclaimer not activated 60 ENG122227-ENG117532-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_clamp_15_off not activated 60 ENG122227-ENG117533-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_over_threshold_high activated 60 ENG122227-ENG117534-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_standstill not activated 60 ENG122227-ENG117501-Car_Function_Adaptations_Gen2-menu_display_awv activated 60 ENG122227-ENG117505-Car_Function_Adaptations_Gen2-menu_display_awv_after_disclaimer not activated 60 ENG122227-ENG117502-Car_Function_Adaptations_Gen2-menu_display_awv_clamp_15_off not activated 60 ENG122227-ENG117503-Car_Function_Adaptations_Gen2-menu_display_awv_over_threshold_high activated 60 ENG122227-ENG117504-Car_Function_Adaptations_Gen2-menu_display_awv_standstill not activated 60 ENG122227-ENG122301-Car_Function_Adaptations_Gen2-menu_display_battery_management not activated 60 ENG122227-ENG122305-Car_Function_Adaptations_Gen2-menu_display_battery_management_after_disclaimer not activated 60 ENG122227-ENG122302-Car_Function_Adaptations_Gen2-menu_display_battery_management_clamp_15_off not activated 60 ENG122227-ENG122303-Car_Function_Adaptations_Gen2-menu_display_battery_management_over_threshold_high activated 60 ENG122227-ENG122304-Car_Function_Adaptations_Gen2-menu_display_battery_management_standstill not activated 60 ENG122227-ENG117666-Car_Function_Adaptations_Gen2-menu_display_BCmE activated 60 ENG122227-ENG117670-Car_Function_Adaptations_Gen2-menu_display_BCmE_after_disclaimer not activated 60 ENG122227-ENG117667-Car_Function_Adaptations_Gen2-menu_display_BCmE_clamp_15_off not activated 60 ENG122227-ENG117668-Car_Function_Adaptations_Gen2-menu_display_BCmE_over_threshold_high activated 60 ENG122227-ENG117669-Car_Function_Adaptations_Gen2-menu_display_BCmE_standstill not activated 60 ENG122227-ENG117536-Car_Function_Adaptations_Gen2-menu_display_board_computer activated 60 ENG122227-ENG117540-Car_Function_Adaptations_Gen2-menu_display_board_computer_after_disclaimer not activated 60 ENG122227-ENG117537-Car_Function_Adaptations_Gen2-menu_display_board_computer_clamp_15_off not activated 60 ENG122227-ENG117538-Car_Function_Adaptations_Gen2-menu_display_board_computer_over_threshold_high activated 60 ENG122227-ENG117539-Car_Function_Adaptations_Gen2-menu_display_board_computer_standstill not activated 60 ENG122227-ENG117671-Car_Function_Adaptations_Gen2-menu_display_Brake_Function activated 60 ENG122227-ENG117675-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_after_disclaimer not activated 60 ENG122227-ENG117672-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_clamp_15_off not activated 60 ENG122227-ENG117673-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_over_threshold_high activated 60 ENG122227-ENG117674-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_standstill not activated 60 ENG122227-ENG117651-Car_Function_Adaptations_Gen2-menu_display_car_mirror activated 60 ENG122227-ENG117655-Car_Function_Adaptations_Gen2-menu_display_car_mirror_after_disclaimer not activated 60 ENG122227-ENG117652-Car_Function_Adaptations_Gen2-menu_display_car_mirror_clamp_15_off not activated 60 ENG122227-ENG117653-Car_Function_Adaptations_Gen2-menu_display_car_mirror_over_threshold_high activated 60 ENG122227-ENG117654-Car_Function_Adaptations_Gen2-menu_display_car_mirror_standstill not activated 60 ENG122227-ENG117561-Car_Function_Adaptations_Gen2-menu_display_central_locking activated 60 ENG122227-ENG117565-Car_Function_Adaptations_Gen2-menu_display_central_locking_after_disclaimer not activated 60 ENG122227-ENG117562-Car_Function_Adaptations_Gen2-menu_display_central_locking_clamp_15_off not activated 60 ENG122227-ENG117563-Car_Function_Adaptations_Gen2-menu_display_central_locking_over_threshold_high activated 60 ENG122227-ENG117564-Car_Function_Adaptations_Gen2-menu_display_central_locking_standstill not activated 60 ENG122227-ENG117601-Car_Function_Adaptations_Gen2-menu_display_central_unit_master activated 60 ENG122227-ENG117605-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_after_disclaimer not activated 60 ENG122227-ENG117602-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_clamp_15_off not activated 60 ENG122227-ENG117603-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_over_threshold_high activated 60 ENG122227-ENG117604-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_standstill not activated 60 ENG122227-ENG117571-Car_Function_Adaptations_Gen2-menu_display_charisma activated 60 ENG122227-ENG117575-Car_Function_Adaptations_Gen2-menu_display_charisma_after_disclaimer not activated 60 ENG122227-ENG117572-Car_Function_Adaptations_Gen2-menu_display_charisma_clamp_15_off not activated 60 ENG122227-ENG117573-Car_Function_Adaptations_Gen2-menu_display_charisma_over_threshold_high activated 60 ENG122227-ENG117574-Car_Function_Adaptations_Gen2-menu_display_charisma_standstill not activated 60 ENG122227-ENG117526-Car_Function_Adaptations_Gen2-menu_display_clima_configuration activated 60 ENG122227-ENG117530-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_after_disclaimer not activated 60 ENG122227-ENG117527-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_clamp_15_off not activated 60 ENG122227-ENG117528-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_over_threshold_high activated 60 ENG122227-ENG117529-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_standstill not activated 60 ENG122227-ENG117586-Car_Function_Adaptations_Gen2-menu_display_clock activated 60 ENG122227-ENG117590-Car_Function_Adaptations_Gen2-menu_display_clock_after_disclaimer not activated 60 ENG122227-ENG117587-Car_Function_Adaptations_Gen2-menu_display_clock_clamp_15_off not activated 60 ENG122227-ENG117588-Car_Function_Adaptations_Gen2-menu_display_clock_over_threshold_high activated 60 ENG122227-ENG117589-Car_Function_Adaptations_Gen2-menu_display_clock_standstill not activated 60 ENG122227-ENG117566-Car_Function_Adaptations_Gen2-menu_display_compass activated 60 ENG122227-ENG117570-Car_Function_Adaptations_Gen2-menu_display_compass_after_disclaimer not activated 60 ENG122227-ENG117567-Car_Function_Adaptations_Gen2-menu_display_compass_clamp_15_off not activated 60 ENG122227-ENG117568-Car_Function_Adaptations_Gen2-menu_display_compass_over_threshold_high activated 60 ENG122227-ENG117569-Car_Function_Adaptations_Gen2-menu_display_compass_standstill not activated 60 ENG122227-ENG125823-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist not activated 60 ENG122227-ENG125826-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_after_disclaimer not activated 60 ENG122227-ENG126998-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_clamp_15_off not activated 60 ENG122227-ENG125824-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_over_threshold_high activated 60 ENG122227-ENG125825-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_standstill not activated 60 ENG122227-ENG142087-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration activated 60 ENG122227-ENG142091-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_after_disclaimer not activated 60 ENG122227-ENG142088-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_clamp_15_off not activated 60 ENG122227-ENG142089-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_over_threshold_high activated 60 ENG122227-ENG142090-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_standstill not activated 60 ENG122227-ENG117656-Car_Function_Adaptations_Gen2-menu_display_driving_school not activated 60 ENG122227-ENG117660-Car_Function_Adaptations_Gen2-menu_display_driving_school_after_disclaimer not activated 60 ENG122227-ENG117657-Car_Function_Adaptations_Gen2-menu_display_driving_school_clamp_15_off not activated 60 ENG122227-ENG117658-Car_Function_Adaptations_Gen2-menu_display_driving_school_over_threshold_high activated 60 ENG122227-ENG117659-Car_Function_Adaptations_Gen2-menu_display_driving_school_standstill not activated 60 ENG122227-ENG125034-Car_Function_Adaptations_Gen2-menu_display_Ecall activated 60 ENG122227-ENG125038-Car_Function_Adaptations_Gen2-menu_display_Ecall_after_disclaimer not activated 60 ENG122227-ENG126999-Car_Function_Adaptations_Gen2-menu_display_eCall_clamp_15_off not activated 60 ENG122227-ENG125036-Car_Function_Adaptations_Gen2-menu_display_Ecall_over_threshold_high activated 60 ENG122227-ENG125037-Car_Function_Adaptations_Gen2-menu_display_Ecall_standstill not activated 60 ENG122227-ENG126160-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist not activated 60 ENG122227-ENG126163-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_after_disclaimer not activated 60 ENG122227-ENG127004-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_clamp_15_off not activated 60 ENG122227-ENG126161-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_over_threshold_high not activated 60 ENG122227-ENG126162-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_standstill not activated 60 ENG122227-ENG126144-Car_Function_Adaptations_Gen2-menu_display_ENI activated 60 ENG122227-ENG126147-Car_Function_Adaptations_Gen2-menu_display_ENI_after_disclaimer not activated 60 ENG122227-ENG127000-Car_Function_Adaptations_Gen2-menu_display_ENI_clamp_15_off not activated 60 ENG122227-ENG126145-Car_Function_Adaptations_Gen2-menu_display_ENI_over_threshold_high activated 60 ENG122227-ENG126146-Car_Function_Adaptations_Gen2-menu_display_ENI_standstill not activated 60 ENG122227-ENG117516-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination activated 60 ENG122227-ENG117520-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_after_disclaimer not activated 60 ENG122227-ENG117517-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_clamp_15_off not activated 60 ENG122227-ENG117518-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_over_threshold_high activated 60 ENG122227-ENG117519-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_standstill not activated 60 ENG122227-ENG117596-Car_Function_Adaptations_Gen2-menu_display_headup_display not activated 60 ENG122227-ENG117600-Car_Function_Adaptations_Gen2-menu_display_headup_display_after_disclaimer not activated 60 ENG122227-ENG117597-Car_Function_Adaptations_Gen2-menu_display_headup_display_clamp_15_off not activated 60 ENG122227-ENG117598-Car_Function_Adaptations_Gen2-menu_display_headup_display_over_threshold_high activated 60 ENG122227-ENG117599-Car_Function_Adaptations_Gen2-menu_display_headup_display_standstill not activated 60 ENG122227-ENG117606-Car_Function_Adaptations_Gen2-menu_display_hybrid not activated 60 ENG122227-ENG117610-Car_Function_Adaptations_Gen2-menu_display_hybrid_after_disclaimer not activated 60 ENG122227-ENG117607-Car_Function_Adaptations_Gen2-menu_display_hybrid_clamp_15_off not activated 60 ENG122227-ENG117608-Car_Function_Adaptations_Gen2-menu_display_hybrid_over_threshold_high activated 60 ENG122227-ENG117609-Car_Function_Adaptations_Gen2-menu_display_hybrid_standstill not activated 60 ENG122227-ENG125805-Car_Function_Adaptations_Gen2-menu_display_lane_assistant activated 60 ENG122227-ENG125809-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_after_disclaimer not activated 60 ENG122227-ENG125806-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_clamp_15_off not activated 60 ENG122227-ENG125807-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_over_threshold_high activated 60 ENG122227-ENG125808-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_standstill not activated 60 ENG122227-ENG117506-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning activated 60 ENG122227-ENG117510-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_after_disclaimer not activated 60 ENG122227-ENG117507-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_clamp_15_off not activated 60 ENG122227-ENG117508-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_over_threshold_high activated 60 ENG122227-ENG117509-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_standstill not activated 60 ENG122227-ENG117631-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker not activated 60 ENG122227-ENG117635-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_after_disclaimer not activated 60 ENG122227-ENG117632-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_clamp_15_off not activated 60 ENG122227-ENG117633-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_over_threshold_high activated 60 ENG122227-ENG117634-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_standstill not activated 60 ENG122227-ENG117616-Car_Function_Adaptations_Gen2-menu_display_night_vision not activated 60 ENG122227-ENG117620-Car_Function_Adaptations_Gen2-menu_display_night_vision_after_disclaimer not activated 60 ENG122227-ENG117617-Car_Function_Adaptations_Gen2-menu_display_night_vision_clamp_15_off not activated 60 ENG122227-ENG117618-Car_Function_Adaptations_Gen2-menu_display_night_vision_over_threshold_high activated 60 ENG122227-ENG117619-Car_Function_Adaptations_Gen2-menu_display_night_vision_standstill not activated 60 ENG122227-ENG117576-Car_Function_Adaptations_Gen2-menu_display_oil_level not activated 60 ENG122227-ENG117580-Car_Function_Adaptations_Gen2-menu_display_oil_level_after_disclaimer not activated 60 ENG122227-ENG117577-Car_Function_Adaptations_Gen2-menu_display_oil_level_clamp_15_off not activated 60 ENG122227-ENG117578-Car_Function_Adaptations_Gen2-menu_display_oil_level_over_threshold_high activated 60 ENG122227-ENG117579-Car_Function_Adaptations_Gen2-menu_display_oil_level_standstill not activated 60 ENG122227-ENG117496-Car_Function_Adaptations_Gen2-menu_display_pdc activated 60 ENG122227-ENG117500-Car_Function_Adaptations_Gen2-menu_display_pdc_after_disclaimer not activated 60 ENG122227-ENG117497-Car_Function_Adaptations_Gen2-menu_display_pdc_clamp_15_off not activated 60 ENG122227-ENG117498-Car_Function_Adaptations_Gen2-menu_display_pdc_over_threshold_high activated 60 ENG122227-ENG117499-Car_Function_Adaptations_Gen2-menu_display_pdc_standstill not activated 60 ENG122227-ENG125815-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist not activated 60 ENG122227-ENG125818-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_after_disclaimer not activated 60 ENG122227-ENG126996-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_clamp_15_off not activated 60 ENG122227-ENG125816-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_over_threshold_high activated 60 ENG122227-ENG125817-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_standstill not activated 60 ENG122227-ENG117541-Car_Function_Adaptations_Gen2-menu_display_rdk activated 60 ENG122227-ENG117545-Car_Function_Adaptations_Gen2-menu_display_rdk_after_disclaimer not activated 60 ENG122227-ENG117542-Car_Function_Adaptations_Gen2-menu_display_rdk_clamp_15_off not activated 60 ENG122227-ENG117543-Car_Function_Adaptations_Gen2-menu_display_rdk_over_threshold_high activated 60 ENG122227-ENG117544-Car_Function_Adaptations_Gen2-menu_display_rdk_standstill not activated 60 ENG122227-ENG122306-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment not activated 60 ENG122227-ENG122310-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_after_disclaimer not activated 60 ENG122227-ENG122307-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_clamp_15_off not activated 60 ENG122227-ENG122308-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_over_threshold_high activated 60 ENG122227-ENG122309-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_standstill not activated 60 ENG122227-ENG117626-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load not activated 60 ENG122227-ENG117630-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_after_disclaimer not activated 60 ENG122227-ENG117627-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_clamp_15_off not activated 60 ENG122227-ENG117628-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_over_threshold_high activated 60 ENG122227-ENG117629-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_standstill not activated 60 ENG122227-ENG117636-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification activated 60 ENG122227-ENG117640-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_after_disclaimer not activated 60 ENG122227-ENG117637-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_clamp_15_off not activated 60 ENG122227-ENG117638-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_over_threshold_high activated 60 ENG122227-ENG117639-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_standstill not activated 60 ENG122227-ENG117556-Car_Function_Adaptations_Gen2-menu_display_seat_configuration activated 60 ENG122227-ENG117560-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_after_disclaimer not activated 60 ENG122227-ENG117557-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_clamp_15_off not activated 60 ENG122227-ENG117558-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_over_threshold_high activated 60 ENG122227-ENG117559-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_standstill not activated 60 ENG122227-ENG125819-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic not activated 60 ENG122227-ENG125822-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_after_disclaimer not activated 60 ENG122227-ENG126997-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_clamp_15_off not activated 60 ENG122227-ENG125820-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_over_threshold_high activated 60 ENG122227-ENG125821-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_standstill not activated 60 ENG122227-ENG117551-Car_Function_Adaptations_Gen2-menu_display_sia activated 60 ENG122227-ENG117555-Car_Function_Adaptations_Gen2-menu_display_sia_after_disclaimer not activated 60 ENG122227-ENG117552-Car_Function_Adaptations_Gen2-menu_display_sia_clamp_15_off not activated 60 ENG122227-ENG117553-Car_Function_Adaptations_Gen2-menu_display_sia_over_threshold_high activated 60 ENG122227-ENG117554-Car_Function_Adaptations_Gen2-menu_display_sia_standstill not activated 60 ENG122227-ENG117621-Car_Function_Adaptations_Gen2-menu_display_side_view not activated 60 ENG122227-ENG117625-Car_Function_Adaptations_Gen2-menu_display_side_view_after_disclaimer not activated 60 ENG122227-ENG117622-Car_Function_Adaptations_Gen2-menu_display_side_view_clamp_15_off not activated 60 ENG122227-ENG117623-Car_Function_Adaptations_Gen2-menu_display_side_view_over_threshold_high activated 60 ENG122227-ENG117624-Car_Function_Adaptations_Gen2-menu_display_side_view_standstill not activated 60 ENG122227-ENG122311-Car_Function_Adaptations_Gen2-menu_display_special_functions not activated 60 ENG122227-ENG122314-Car_Function_Adaptations_Gen2-menu_display_special_functions_after_disclaimer not activated 60 ENG122227-ENG125810-Car_Function_Adaptations_Gen2-menu_display_special_functions_clamp_15_off not activated 60 ENG122227-ENG122312-Car_Function_Adaptations_Gen2-menu_display_special_functions_over_threshold_high activated 60 ENG122227-ENG122313-Car_Function_Adaptations_Gen2-menu_display_special_functions_standstill not activated 60 ENG122227-ENG142082-Car_Function_Adaptations_Gen2-menu_display_Spoiler not activated 60 ENG122227-ENG142086-Car_Function_Adaptations_Gen2-menu_display_Spoiler_after_disclaimer not activated 60 ENG122227-ENG142083-Car_Function_Adaptations_Gen2-menu_display_Spoiler_clamp_15_off not activated 60 ENG122227-ENG142084-Car_Function_Adaptations_Gen2-menu_display_Spoiler_over_threshold_high not activated 60 ENG122227-ENG142085-Car_Function_Adaptations_Gen2-menu_display_Spoiler_standstill not activated 60 ENG122227-ENG126148-Car_Function_Adaptations_Gen2-menu_display_SportHMI activated 60 ENG122227-ENG126151-Car_Function_Adaptations_Gen2-menu_display_SportHMI_after_disclaimer not activated 60 ENG122227-ENG127001-Car_Function_Adaptations_Gen2-menu_display_SportHMI_clamp_15_off not activated 60 ENG122227-ENG126149-Car_Function_Adaptations_Gen2-menu_display_SportHMI_over_threshold_high activated 60 ENG122227-ENG126150-Car_Function_Adaptations_Gen2-menu_display_SportHMI_standstill not activated 60 ENG122227-ENG117676-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons activated 60 ENG122227-ENG117680-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_after_disclaimer not activated 60 ENG122227-ENG117677-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_clamp_15_off not activated 60 ENG122227-ENG117678-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_over_threshold_high activated 60 ENG122227-ENG117679-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_standstill not activated 60 ENG122227-ENG122315-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant not activated 60 ENG122227-ENG122319-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_after_disclaimer not activated 60 ENG122227-ENG122316-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_clamp_15_off not activated 60 ENG122227-ENG122317-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_over_threshold_high activated 60 ENG122227-ENG122318-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_standstill not activated 60 ENG122227-ENG122320-Car_Function_Adaptations_Gen2-menu_display_TV_tuner not activated 60 ENG122227-ENG122324-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_after_disclaimer not activated 60 ENG122227-ENG122321-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_clamp_15_off not activated 60 ENG122227-ENG122322-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_over_threshold_high activated 60 ENG122227-ENG122323-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_standstill not activated 60 ENG122227-ENG117611-Car_Function_Adaptations_Gen2-menu_display_ugdo not activated 60 ENG122227-ENG117615-Car_Function_Adaptations_Gen2-menu_display_ugdo_after_disclaimer not activated 60 ENG122227-ENG117612-Car_Function_Adaptations_Gen2-menu_display_ugdo_clamp_15_off not activated 60 ENG122227-ENG117613-Car_Function_Adaptations_Gen2-menu_display_ugdo_over_threshold_high activated 60 ENG122227-ENG117614-Car_Function_Adaptations_Gen2-menu_display_ugdo_standstill not activated 60 ENG122227-ENG122291-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating activated 60 ENG122227-ENG122295-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_after_disclaimer not activated 60 ENG122227-ENG122292-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_clamp_15_off not activated 60 ENG122227-ENG122293-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_over_threshold_high activated 60 ENG122227-ENG122294-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_standstill not activated 60 ENG122227-ENG117581-Car_Function_Adaptations_Gen2-menu_display_vin activated 60 ENG122227-ENG117585-Car_Function_Adaptations_Gen2-menu_display_vin_after_disclaimer not activated 60 ENG122227-ENG117582-Car_Function_Adaptations_Gen2-menu_display_vin_clamp_15_off not activated 60 ENG122227-ENG117583-Car_Function_Adaptations_Gen2-menu_display_vin_over_threshold_high activated 60 ENG122227-ENG117584-Car_Function_Adaptations_Gen2-menu_display_vin_standstill not activated 60 ENG122227-ENG117661-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition activated 60 ENG122227-ENG117665-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_after_disclaimer not activated 60 ENG122227-ENG117662-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_clamp_15_off not activated 60 ENG122227-ENG117663-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_over_threshold_high activated 60 ENG122227-ENG117664-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_standstill not activated 60 ENG122227-ENG117521-Car_Function_Adaptations_Gen2-menu_display_windows activated 60 ENG122227-ENG117525-Car_Function_Adaptations_Gen2-menu_display_windows_after_disclaimer not activated 60 ENG122227-ENG117522-Car_Function_Adaptations_Gen2-menu_display_windows_clamp_15_off not activated 60 ENG122227-ENG117523-Car_Function_Adaptations_Gen2-menu_display_windows_over_threshold_high activated 60 ENG122227-ENG117524-Car_Function_Adaptations_Gen2-menu_display_windows_standstill not activated 60 ENG122227-ENG117546-Car_Function_Adaptations_Gen2-menu_display_wiper activated 60 ENG122227-ENG117550-Car_Function_Adaptations_Gen2-menu_display_wiper_after_disclaimer not activated 60 ENG122227-ENG117547-Car_Function_Adaptations_Gen2-menu_display_wiper_clamp_15_off not activated 60 ENG122227-ENG117548-Car_Function_Adaptations_Gen2-menu_display_wiper_over_threshold_high activated 60 ENG122227-ENG117549-Car_Function_Adaptations_Gen2-menu_display_wiper_standstill not activated 60 ENG122227-ENG142092-Car_Function_Adaptations_Gen2-menu_soundcontrol not activated 60 ENG122227-ENG142096-Car_Function_Adaptations_Gen2-menu_soundcontrol_after_disclaimer not activated 60 ENG122227-ENG142093-Car_Function_Adaptations_Gen2-menu_soundcontrol_clamp_15_off not activated 60 ENG122227-ENG142094-Car_Function_Adaptations_Gen2-menu_soundcontrol_over_threshold_high not activated 60 ENG122227-ENG142095-Car_Function_Adaptations_Gen2-menu_soundcontrol_standstill not activated 60 ENG122229-ENG117700-Car_Function_List_BAP_Gen2-ACC_0x05 activated 64 ENG122229-ENG117701-Car_Function_List_BAP_Gen2-ACC_0x05_msg_bus Extended data bus 64 ENG122229-ENG117702-Car_Function_List_BAP_Gen2-air_suspension_0x06 not activated 64 ENG122229-ENG117703-Car_Function_List_BAP_Gen2-air_suspension_0x06_msg_bus Suspension data bus 64 ENG122229-ENG117764-Car_Function_List_BAP_Gen2-Amplifier_0x2D not activated 64 ENG122229-ENG117765-Car_Function_List_BAP_Gen2-Amplifier_0x2D_msg_bus CAB_9 64 ENG122229-ENG122334-Car_Function_List_BAP_Gen2-Angle_Of_Slope_0x24 not activated 64 ENG122229-ENG122335-Car_Function_List_BAP_Gen2-Angle_Of_Slope_0x24_msg_bus Comfort data bus 64 ENG122229-ENG117696-Car_Function_List_BAP_Gen2-auxilary_heating_0x03 not activated 64 ENG122229-ENG117697-Car_Function_List_BAP_Gen2-auxilary_heating_0x03_msg_bus Comfort data bus 64 ENG122229-ENG117744-Car_Function_List_BAP_Gen2-AWV_0x1B activated 64 ENG122229-ENG117745-Car_Function_List_BAP_Gen2-AWV_0x1B_msg_bus Terminal 15 64 ENG122229-ENG122336-Car_Function_List_BAP_Gen2-Battery_Management_0x25 not activated 64 ENG122229-ENG122337-Car_Function_List_BAP_Gen2-Battery_Management_0x25_msg_bus Comfort data bus 64 ENG122229-ENG117758-Car_Function_List_BAP_Gen2-BCmE_0x23 activated 64 ENG122229-ENG117759-Car_Function_List_BAP_Gen2-BCmE_0x23_msg_bus Infotainment data bus 64 ENG122229-ENG117760-Car_Function_List_BAP_Gen2-Brake_0x26 activated 64 ENG122229-ENG117761-Car_Function_List_BAP_Gen2-Brake_0x26_msg_bus Suspension data bus 64 ENG122229-ENG117717-Car_Function_List_BAP_Gen2-central_locking_0x0D activated 64 ENG122229-ENG117716-Car_Function_List_BAP_Gen2-central_locking_0x0D_msg_bus Comfort data bus 64 ENG122229-ENG117736-Car_Function_List_BAP_Gen2-charisma_0x17 activated 64 ENG122229-ENG117737-Car_Function_List_BAP_Gen2-charisma_0x17_msg_bus Infotainment data bus 64 ENG122229-ENG117734-Car_Function_List_BAP_Gen2-clima_slave_2_0x16 not activated 64 ENG122229-ENG117735-Car_Function_List_BAP_Gen2-clima_slave_2_0x16_msg_bus Comfort data bus 64 ENG122229-ENG117692-Car_Function_List_BAP_Gen2-climatic_master_0x01 activated 64 ENG122229-ENG117693-Car_Function_List_BAP_Gen2-climatic_master_0x01_msg_bus Comfort data bus 64 ENG122229-ENG117694-Car_Function_List_BAP_Gen2-climatic_slave_0x02 not activated 64 ENG122229-ENG117695-Car_Function_List_BAP_Gen2-climatic_slave_0x02_msg_bus Comfort data bus 64 ENG122229-ENG117724-Car_Function_List_BAP_Gen2-clock_0x11 activated 64 ENG122229-ENG117725-Car_Function_List_BAP_Gen2-clock_0x11_msg_bus Comfort data bus 64 ENG122229-ENG117732-Car_Function_List_BAP_Gen2-compass_0x15 activated 64 ENG122229-ENG117733-Car_Function_List_BAP_Gen2-compass_0x15_msg_bus Infotainment data bus 64 ENG122229-ENG117722-Car_Function_List_BAP_Gen2-driver_seat_0x10 activated 64 ENG122229-ENG117723-Car_Function_List_BAP_Gen2-driver_seat_0x10_msg_bus Comfort data bus 64 ENG122229-ENG125039-Car_Function_List_BAP_Gen2-Ecall_0x33 activated 64 ENG122229-ENG125828-Car_Function_List_BAP_Gen2-eCall_0x33_msg_bus Comfort data bus 64 ENG122229-ENG127500-Car_Function_List_BAP_Gen2-efficiency_assis_msg_bus_0x3C Extended data bus 64 ENG122229-ENG127499-Car_Function_List_BAP_Gen2-efficiency_assist_0x3C not activated 64 ENG122229-ENG125829-Car_Function_List_BAP_Gen2-ENI_0x37 activated 64 ENG122229-ENG125830-Car_Function_List_BAP_Gen2-ENI_0x37_msg_bus Comfort data bus 64 ENG122229-ENG152531-Car_Function_List_BAP_Gen2-ExBoxM2_0x38 not activated 64 ENG122229-ENG152532-Car_Function_List_BAP_Gen2-ExBoxM2_0x38_msg_bus Comfort data bus 64 ENG122229-ENG117708-Car_Function_List_BAP_Gen2-exterieur_light_0x09 activated 64 ENG122229-ENG117709-Car_Function_List_BAP_Gen2-exterieur_light_0x09_msg_bus Comfort data bus 64 ENG122229-ENG117698-Car_Function_List_BAP_Gen2-headup_displ_0x04 not activated 64 ENG122229-ENG117699-Car_Function_List_BAP_Gen2-headup_displ_0x04_msg_bus Comfort data bus 64 ENG122229-ENG117746-Car_Function_List_BAP_Gen2-Hybrid_0x1D not activated 64 ENG122229-ENG117747-Car_Function_List_BAP_Gen2-Hybrid_0x1D_msg_bus Powertrain data bus 64 ENG122229-ENG117706-Car_Function_List_BAP_Gen2-interieur_light_0x08 activated 64 ENG122229-ENG117707-Car_Function_List_BAP_Gen2-interieur_light_0x08_msg_bus Comfort data bus 64 ENG122229-ENG117740-Car_Function_List_BAP_Gen2-LDW_HCA_0x19 activated 64 ENG122229-ENG117741-Car_Function_List_BAP_Gen2-LDW_HCA_0x19_msg_bus Extended data bus 64 ENG122229-ENG117720-Car_Function_List_BAP_Gen2-MFA_0x0F activated 64 ENG122229-ENG117721-Car_Function_List_BAP_Gen2-MFA_0x0F_msg_bus Comfort data bus 64 ENG122229-ENG117767-Car_Function_List_BAP_Gen2-MFL_Jocker_0x34 not activated 64 ENG122229-ENG117766-Car_Function_List_BAP_Gen2-MFL_Jocker_msg_bus_0x34 CAB_9 64 ENG122229-ENG117719-Car_Function_List_BAP_Gen2-mirror_0x0E activated 64 ENG122229-ENG117718-Car_Function_List_BAP_Gen2-mirror_0x0E_msg_bus Comfort data bus 64 ENG122229-ENG117738-Car_Function_List_BAP_Gen2-Night_Vision_0x18 not activated 64 ENG122229-ENG117739-Car_Function_List_BAP_Gen2-Night_Vision_0x18_msg_bus CAB_9 64 ENG122229-ENG117710-Car_Function_List_BAP_Gen2-parking_assist_0x0A activated 64 ENG122229-ENG117711-Car_Function_List_BAP_Gen2-parking_assist_0x0A_msg_bus Terminal 15 64 ENG122229-ENG117752-Car_Function_List_BAP_Gen2-Passenger_Seat_0x20 activated 64 ENG122229-ENG117753-Car_Function_List_BAP_Gen2-Passenger_Seat_0x20_msg_bus Comfort data bus 64 ENG122229-ENG125831-Car_Function_List_BAP_Gen2-Pedestrian_Assist_0x3A not activated 64 ENG122229-ENG125832-Car_Function_List_BAP_Gen2-Pedestrian_Assist_msg_bus_0x3A Extended data bus 64 ENG122229-ENG122333-Car_Function_List_BAP_Gen2-Range_Data_0x39 not activated 64 ENG122229-ENG125827-Car_Function_List_BAP_Gen2-Range_Data_msg_bus_0x39 Infotainment data bus 64 ENG122229-ENG122327-Car_Function_List_BAP_Gen2-RearSeatEntertainment_0x2E not activated 64 ENG122229-ENG122328-Car_Function_List_BAP_Gen2-RearSeatEntertainment_0x2E_msg_bus Comfort data bus 64 ENG122229-ENG117750-Car_Function_List_BAP_Gen2-Reversible_Seat_Belt_Tightener_0x1F not activated 64 ENG122229-ENG117751-Car_Function_List_BAP_Gen2-Reversible_Seat_Belt_Tightener_0x1F_msg_bus Powertrain data bus 64 ENG122229-ENG125833-Car_Function_List_BAP_Gen2-Seat_Pneumatic_0x3B not activated 64 ENG122229-ENG125834-Car_Function_List_BAP_Gen2-Seat_Pneumatic_msg_bus_0x3B Comfort data bus 64 ENG122229-ENG139200-Car_Function_List_BAP_Gen2-Seatmemory_codriver_rear_0x3F not activated 64 ENG122229-ENG139201-Car_Function_List_BAP_Gen2-Seatmemory_codriver_rear_msg_bus_0x3F Comfort data bus 64 ENG122229-ENG139198-Car_Function_List_BAP_Gen2-Seatmemory_driver_rear_0x3E not activated 64 ENG122229-ENG139199-Car_Function_List_BAP_Gen2-Seatmemory_driver_rear_msg_bus_0x3E Comfort data bus 64 ENG122229-ENG117726-Car_Function_List_BAP_Gen2-service_interval_display_0x12 activated 64 ENG122229-ENG117727-Car_Function_List_BAP_Gen2-service_interval_display_0x12_msg_bus Comfort data bus 64 ENG122229-ENG117748-Car_Function_List_BAP_Gen2-SideView_0x1E not activated 64 ENG122229-ENG117749-Car_Function_List_BAP_Gen2-SideView_0x1E_msg_bus CAB_9 64 ENG122229-ENG122329-Car_Function_List_BAP_Gen2-Special_Functions_0x35 not activated 64 ENG122229-ENG122330-Car_Function_List_BAP_Gen2-Special_Functions_msg_bus_0x35 Infotainment data bus 64 ENG122229-ENG117762-Car_Function_List_BAP_Gen2-Start_Stop_reasons_0x27 activated 64 ENG122229-ENG117763-Car_Function_List_BAP_Gen2-Start_Stop_reasons_0x27_msg_bus Infotainment data bus 64 ENG122229-ENG117742-Car_Function_List_BAP_Gen2-SWA_0x1A activated 64 ENG122229-ENG117743-Car_Function_List_BAP_Gen2-SWA_0x1A_msg_bus Extended data bus 64 ENG122229-ENG117704-Car_Function_List_BAP_Gen2-tire_pressure_system_0x07 activated 64 ENG122229-ENG117705-Car_Function_List_BAP_Gen2-tire_pressure_system_0x07_msg_bus Suspension data bus 64 ENG122229-ENG117754-Car_Function_List_BAP_Gen2-traffic_sign_recognition_0x21 activated 64 ENG122229-ENG117755-Car_Function_List_BAP_Gen2-traffic_sign_recognition_0x21_msg_bus Extended data bus 64 ENG122229-ENG122331-Car_Function_List_BAP_Gen2-Trailer_Assistant_0x36 not activated 64 ENG122229-ENG122332-Car_Function_List_BAP_Gen2-Trailer_Assistant_msg_bus_0x36 Terminal 15 64 ENG122229-ENG122325-Car_Function_List_BAP_Gen2-TV_tuner_0x2C not activated 64 ENG122229-ENG122326-Car_Function_List_BAP_Gen2-TV_tuner_0x2C_msg_bus Comfort data bus 64 ENG122229-ENG117730-Car_Function_List_BAP_Gen2-UGDO_0x14 not activated 64 ENG122229-ENG117731-Car_Function_List_BAP_Gen2-UGDO_0x14_msg_bus Terminal 15 64 ENG122229-ENG117728-Car_Function_List_BAP_Gen2-unit_master_0x13 activated 64 ENG122229-ENG117729-Car_Function_List_BAP_Gen2-unit_master_0x13_msg_bus Comfort data bus 64 ENG122229-ENG117712-Car_Function_List_BAP_Gen2-VPS_0x0B activated 64 ENG122229-ENG117713-Car_Function_List_BAP_Gen2-VPS_0x0B_msg_bus Comfort data bus 64 ENG122229-ENG117756-Car_Function_List_BAP_Gen2-weariness_rcognition_0x22 activated 64 ENG122229-ENG117757-Car_Function_List_BAP_Gen2-weariness_rcognition_0x22_msg_bus Infotainment data bus 64 ENG122229-ENG117714-Car_Function_List_BAP_Gen2-wiper_comfort_0x0C activated 64 ENG122229-ENG117715-Car_Function_List_BAP_Gen2-wiper_comfort_0x0C_msg_bus Comfort data bus 64 ENG122228-ENG127498-Car_Function_List_CAN_Gen2-Adaptive_key Not available 8 ENG122228-ENG117690-Car_Function_List_CAN_Gen2-Adaptive_key_msg_bus Comfort data bus 8 ENG122228-ENG117688-Car_Function_List_CAN_Gen2-Driving_school Not available 8 ENG122228-ENG117689-Car_Function_List_CAN_Gen2-Driving_school_msg_bus Not available 8 ENG122228-ENG107608-Car_Function_List_CAN_Gen2-MFL Available 8 ENG122228-ENG117681-Car_Function_List_CAN_Gen2-MFL_msg_bus Infotainment data bus 8 ENG122228-ENG117683-Car_Function_List_CAN_Gen2-Oil_level Not available 8 ENG122228-ENG117684-Car_Function_List_CAN_Gen2-Oil_level_msg_bus Powertrain data bus 8 ENG122228-ENG117685-Car_Function_List_CAN_Gen2-PDC_audio_lowering Available 8 ENG122228-ENG117686-Car_Function_List_CAN_Gen2-PDC_audio_lowering_msg_bus Terminal 15 8 ENG122228-ENG98891-Car_Function_List_CAN_Gen2-Reserved Not available 8 ENG122228-ENG101416-Car_Function_List_CAN_Gen2-Reserved_1 Comfort data bus 8 ENG122228-ENG99458-Car_Function_List_CAN_Gen2-Reserved_2 Comfort data bus 8 ENG122228-ENG99668-Car_Function_List_CAN_Gen2-Reserved_3 Not available 8 ENG122228-ENG99892-Car_Function_List_CAN_Gen2-VIN Available 8 ENG122228-ENG117687-Car_Function_List_CAN_Gen2-VIN_msg_bus Comfort data bus 8 ENG122230-ENG142097-Dashboard_Display_Configuration-ability_switch_nav_maps OFF 10 ENG122230-ENG122343-Dashboard_Display_Configuration-call_picture On 10 ENG122230-ENG122341-Dashboard_Display_Configuration-coverart On 10 ENG122230-ENG122340-Dashboard_Display_Configuration-crossroad_detail_map_compression_mode H264 10 ENG122230-ENG122344-Dashboard_Display_Configuration-crossroad_detail_map_resolution resolution_3 10 ENG122230-ENG127006-Dashboard_Display_Configuration-crossroad_detail_map_transmission_mode MOST_streaming 10 ENG122230-ENG142153-Dashboard_Display_Configuration-dynamic_icon 0 10 ENG122230-ENG127501-Dashboard_Display_Configuration-fastlist_most On 10 ENG122230-ENG122338-Dashboard_Display_Configuration-navigation_map_compression_mode H264 10 ENG122230-ENG122339-Dashboard_Display_Configuration-navigation_map_resolution resolution_3 10 ENG122230-ENG127005-Dashboard_Display_Configuration-navigation_map_transmission_mode MOST_streaming 10 ENG122230-ENG122342-Dashboard_Display_Configuration-stationart On 10 ENG117913-ENG101574-Dimming_Ambient_Illumination_Information_Control_Unit-X1 0 6 ENG117913-ENG99557-Dimming_Ambient_Illumination_Information_Control_Unit-X2 50 6 ENG117913-ENG102140-Dimming_Ambient_Illumination_Information_Control_Unit-X3 100 6 ENG117913-ENG99777-Dimming_Ambient_Illumination_Information_Control_Unit-Y1 0 6 ENG117913-ENG100480-Dimming_Ambient_Illumination_Information_Control_Unit-Y2 50 6 ENG117913-ENG100773-Dimming_Ambient_Illumination_Information_Control_Unit-Y3 100 6 ENG117914-ENG101574-Dimming_Ambient_Illumination_Operating_and_Display_Unit-X1 0 6 ENG117914-ENG99557-Dimming_Ambient_Illumination_Operating_and_Display_Unit-X2 50 6 ENG117914-ENG102140-Dimming_Ambient_Illumination_Operating_and_Display_Unit-X3 100 6 ENG117914-ENG99777-Dimming_Ambient_Illumination_Operating_and_Display_Unit-Y1 0 6 ENG117914-ENG100480-Dimming_Ambient_Illumination_Operating_and_Display_Unit-Y2 50 6 ENG117914-ENG100773-Dimming_Ambient_Illumination_Operating_and_Display_Unit-Y3 100 6 ENG117916-ENG101574-Dimming_Illumination_for_Display_Unit-X1 0 12 ENG117916-ENG99557-Dimming_Illumination_for_Display_Unit-X2 10 12 ENG117916-ENG102140-Dimming_Illumination_for_Display_Unit-X3 50 12 ENG117916-ENG102936-Dimming_Illumination_for_Display_Unit-X4 100 12 ENG117916-ENG103548-Dimming_Illumination_for_Display_Unit-X5 150 12 ENG117916-ENG113992-Dimming_Illumination_for_Display_Unit-X6 253 12 ENG117916-ENG99777-Dimming_Illumination_for_Display_Unit-Y1 1% 12 ENG117916-ENG100480-Dimming_Illumination_for_Display_Unit-Y2 1% 12 ENG117916-ENG100773-Dimming_Illumination_for_Display_Unit-Y3 3% 12 ENG117916-ENG100631-Dimming_Illumination_for_Display_Unit-Y4 6% 12 ENG117916-ENG102174-Dimming_Illumination_for_Display_Unit-Y5 44% 12 ENG117916-ENG113993-Dimming_Illumination_for_Display_Unit-Y6 100% 12 ENG117911-ENG117768-FM_Delay_Adaption-Parameter_Adaption_FM_Delay 0 ms 3 ENG117911-ENG117769-FM_Delay_Adaption-Seamless_linking_automatic On 3 ENG141636-ENG142049-Key_code_monitoring-monitoring_keycode_0x00_0x07 FF 32 ENG141636-ENG142050-Key_code_monitoring-monitoring_keycode_0x08_0x0F FF 32 ENG141636-ENG142051-Key_code_monitoring-monitoring_keycode_0x10_0x17 FF 32 ENG141636-ENG142052-Key_code_monitoring-monitoring_keycode_0x18_0x1F FF 32 ENG141636-ENG142053-Key_code_monitoring-monitoring_keycode_0x20_0x27 FF 32 ENG141636-ENG142054-Key_code_monitoring-monitoring_keycode_0x28_0x2F FF 32 ENG141636-ENG142055-Key_code_monitoring-monitoring_keycode_0x30_0x37 FF 32 ENG141636-ENG142056-Key_code_monitoring-monitoring_keycode_0x38_0x3F FF 32 ENG141636-ENG142057-Key_code_monitoring-monitoring_keycode_0x40_0x47 FF 32 ENG141636-ENG142058-Key_code_monitoring-monitoring_keycode_0x48_0x4F FF 32 ENG141636-ENG142059-Key_code_monitoring-monitoring_keycode_0x50_0x57 FF 32 ENG141636-ENG142060-Key_code_monitoring-monitoring_keycode_0x58_0x5F FF 32 ENG141636-ENG142061-Key_code_monitoring-monitoring_keycode_0x60_0x67 FF 32 ENG141636-ENG142062-Key_code_monitoring-monitoring_keycode_0x68_0x6F FF 32 ENG141636-ENG142063-Key_code_monitoring-monitoring_keycode_0x70_0x77 FF 32 ENG141636-ENG142064-Key_code_monitoring-monitoring_keycode_0x78_0x7F FF 32 ENG141636-ENG142065-Key_code_monitoring-monitoring_keycode_0x80_0x87 FF 32 ENG141636-ENG142066-Key_code_monitoring-monitoring_keycode_0x88_0x8F FF 32 ENG141636-ENG142067-Key_code_monitoring-monitoring_keycode_0x90_0x97 FF 32 ENG141636-ENG142068-Key_code_monitoring-monitoring_keycode_0x98_0x9F FF 32 ENG141636-ENG142069-Key_code_monitoring-monitoring_keycode_0xA0_0xA7 FF 32 ENG141636-ENG142070-Key_code_monitoring-monitoring_keycode_0xA8_0xAF FF 32 ENG141636-ENG142071-Key_code_monitoring-monitoring_keycode_0xB0_0xB7 FF 32 ENG141636-ENG142072-Key_code_monitoring-monitoring_keycode_0xB8_0xBF FF 32 ENG141636-ENG142073-Key_code_monitoring-monitoring_keycode_0xC0_0xC7 FF 32 ENG141636-ENG142074-Key_code_monitoring-monitoring_keycode_0xC8_0xCF FF 32 ENG141636-ENG142075-Key_code_monitoring-monitoring_keycode_0xD0_0xD7 FF 32 ENG141636-ENG142076-Key_code_monitoring-monitoring_keycode_0xD8_0xDF FF 32 ENG141636-ENG142077-Key_code_monitoring-monitoring_keycode_0xE0_0xE7 FF 32 ENG141636-ENG142078-Key_code_monitoring-monitoring_keycode_0xE8_0xEF FF 32 ENG141636-ENG142079-Key_code_monitoring-monitoring_keycode_0xF0_0xF7 FF 32 ENG141636-ENG142080-Key_code_monitoring-monitoring_keycode_0xF8_0xFF FF 32 ENG107658-ENG126192-mobile phone voice control availability-apple_device not installed 1 ENG107658-ENG126193-mobile phone voice control availability-other_devices not installed 1 ENG167428-ENG167502-nhtsa_properties-limitation_dependency Speed_threshold 5 ENG167428-ENG167510-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_limit_displayed_message_length activated 5 ENG167428-ENG167511-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_setup_configuration activated 5 ENG167428-ENG167512-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_text_input activated 5 ENG167428-ENG167513-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_video_playback activated 5 ENG167428-ENG167514-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_voice _input not activated 5 ENG167428-ENG167515-nhtsa_properties-nhtsa_limitation_switches_for_carplay_limit_musicLists not activated 5 ENG167428-ENG167516-nhtsa_properties-nhtsa_limitation_switches_for_carplay_limit_nonMusicLists not activated 5 ENG167428-ENG167517-nhtsa_properties-nhtsa_limitation_switches_for_carplay_no_japanMaps not activated 5 ENG167428-ENG167518-nhtsa_properties-nhtsa_limitation_switches_for_carplay_no_softKeyboard not activated 5 ENG167428-ENG167519-nhtsa_properties-nhtsa_limitation_switches_for_carplay_no_softPhoneKeypad not activated 5 ENG117921-Operating_and_Display_Unit_1_Proximity_Sensor_Basic_Adaptation 01 01 28 02 50 02 50 02 28 02 50 02 64 02 6E 02 78 02 3C 02 3C 02 3C 02 50 02 1E 02 1E 02 1E 02 1E 02 02 02 02 14 05 48 40 ENG117809-p_damping_Display 5 ms 1 ENG117808-p_HMI_Display 13% 1 ENG122219-ENG122287-Radio_Level_Quality_Offsets-Set_AM_Quality_Level_Offset 0 2 ENG122219-ENG122288-Radio_Level_Quality_Offsets-Set_FM_Quality_Level_Offset 0 2 ENG117912-ENG117775-Select_Remote_Test_DAB_Service-Parameter_Adaption_Service_ID Conditions not correct or request sequence error 2 ENG117912-ENG117776-Select_Remote_Test_DAB_Service-Parameter_Adaption_Subservice_ID Conditions not correct or request sequence error 2 ENG117910-Set_Remote_Test_Channel_Scanning Conditions not correct or request sequence error 2 ENG117908-Shift_Remote_Test_Frequency_AM Conditions not correct or request sequence error 2 ENG117909-Shift_Remote_Test_Frequency_DAB Conditions not correct or request sequence error 2 ENG117907-Shift_Remote_Test_Frequency_FM Conditions not correct or request sequence error 2 ENG117906-Shift_Remote_Test_Volume Conditions not correct or request sequence error 2 ENG117919-Startup_Screen_Sticker_HMI 00 02 2 ENG117905-ENG99753-Testmode_Video_speed_cutoff-PIN 0 3 ENG117905-ENG109008-Testmode_Video_speed_cutoff-speed_limit 0 km/h 3 Elapsed Time: 01:10

I flashed it to the highest possible version: SW:3Q0-907-530-AR HW:3Q0-907-530-C

The heating itself is working. But I cannot activate a 3 levels of heating turning on via steering wheel button. On the pre fl steering wheel - it can be done vie MIB unit. But on the fl version - the activation is moved to the button on steering wheel.

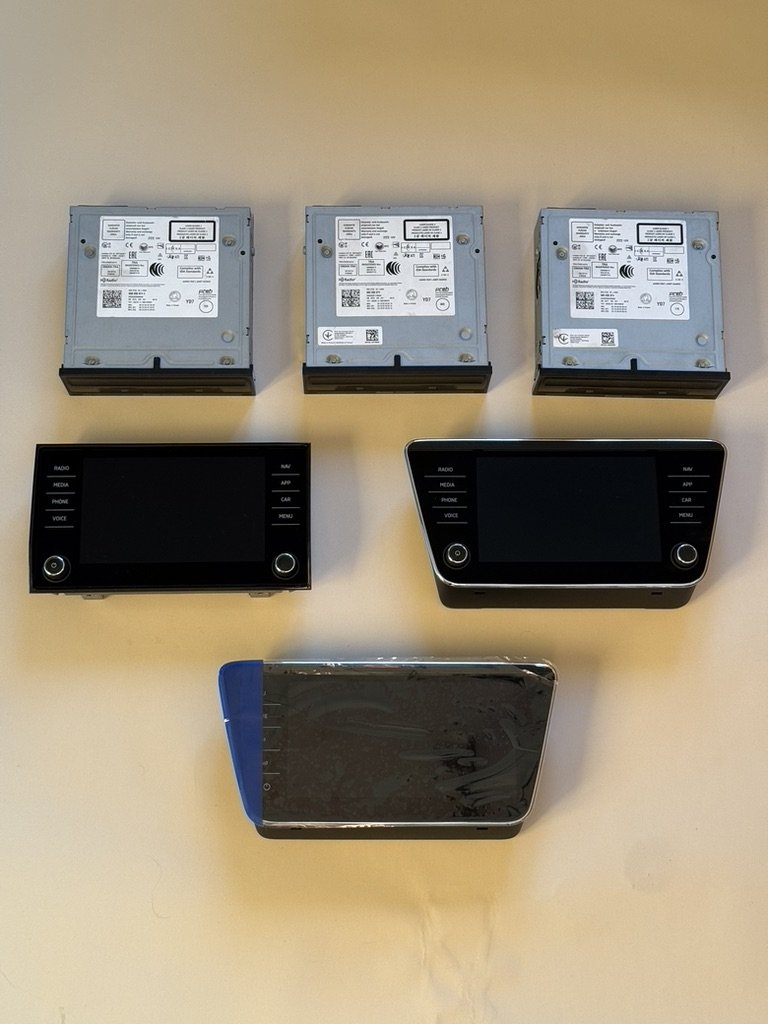

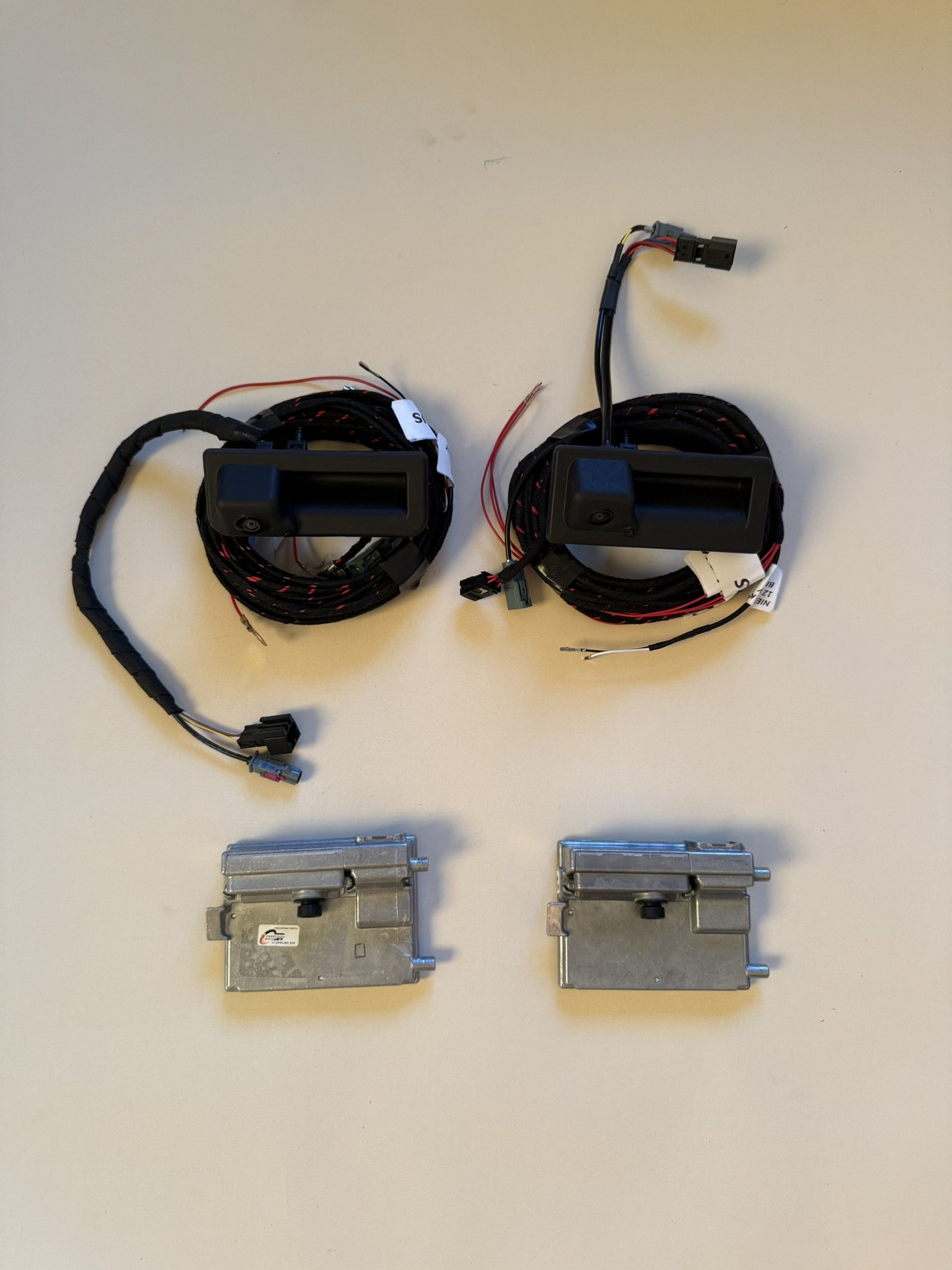

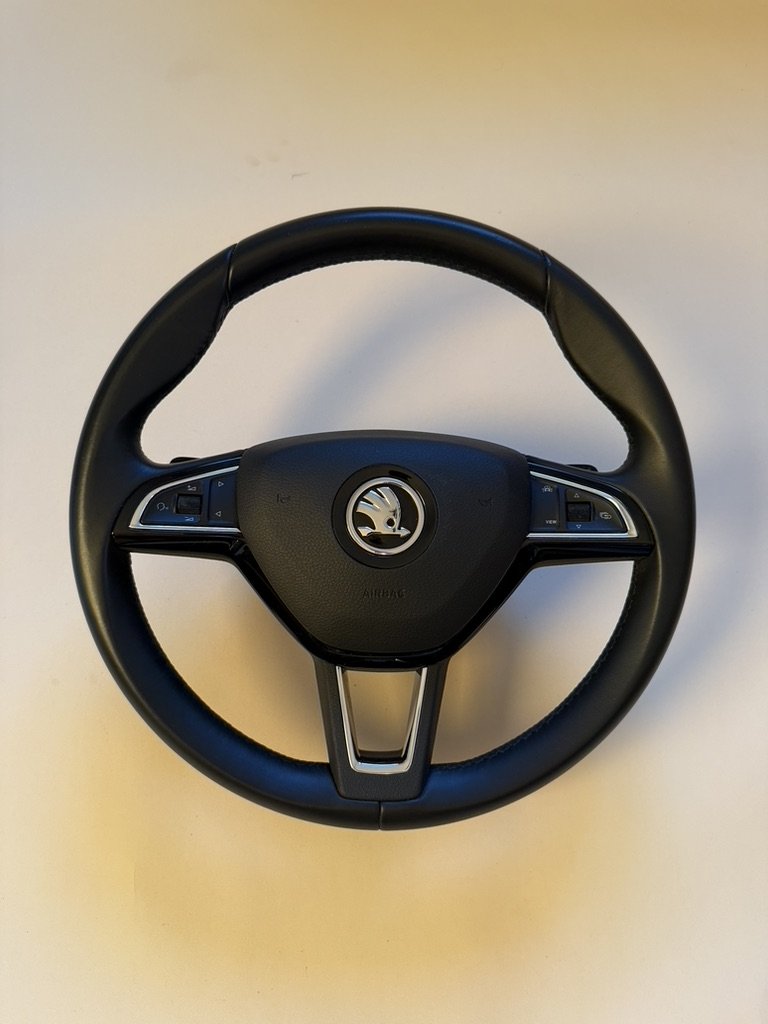

Hello! After some cleaning in my stuff I have some parts for sale: Many parts are compatible across various Skoda and VAG models. Please feel free to ask, and I will verify if this part is suitable for your car. MIB2 units: All FEC active, Component protection removed, CarPlay and AndroidAuto activated. I can code it to Your car equipment before shipping. MIB STD2 565 035 874 x2 - 250Euro MIB STD2 5Q0 035 874 C x1 - 250 Euro MIB2 screens: Perfect condition - no bad pixels. Touch is working at all surface. Superb 8" 3V0 919 605 D H53 - 230 Euro Kodiaq 565 919 605 B H52 - 230 Euro MIB2.5 screens: Perfect condition - no bad pixels. Touch is working at all surface. Superb 9,2" 3V0 919 606 D H53 - 270 Euro Front cameras: Cameras are PATCHED and all SWAPs are activated. Perfect for 5Q0/3Q0 replacement. 2Q0 980 653 SW: 1027 H11 - 100 Euro 2Q0 980 653 D SW 1401 H16 - 120 Euro Reverse cameras: Brand new, original cameras. Price includes also a wiring for retrofit. 3Q0 980 121 Q - LOW camera. 160 Euro 3V0 827 566 L - HIGH camera. Calibrated and parametrized for Superb 3V. 200 Euro Stalks: 5Q1 953 521 P – CCS - 50 Euro 5Q1 953 521 DK – CCS - 50 Euro 5Q1 953 502 AA - 50 Euro 5Q1 953 521 AC – assistents button - 60 Euro Stalks + clock springs: 5Q1 953 521 GP + 5Q1 953 569 G – CCS, heating wheel - 120 Euro 5Q0 953 507 F + 5Q0 953 549 CCS - 80 Euro 5Q1 953 521 DH + 5Q1 953 569 C – ACC, heating wheel - 170 Euro Clock spring: 5Q1 953 569 A – ACC - 70 Euro Steering wheel: Very good visual and 100% functional. From Superb Laurin&Klement version. 5E0 419 091 BR + AIR BAG - 180 Euro I can provide more information or photos of any part. Fast shipment form Poland. About 30/40Euro in EU.

I tried with every combination in that byte: LRH_Gen_2_mod LRH_Gen_2_mod_with_longpush That didn't work for me
