Is there someone that can help me whit a electric diagram over the 12 pins plug on the rear of a Admunsen Touch Screen I want to install a rear camera.

Regards Kenny

25 minutes ago, KEJAN said:

Is there someone that can help me whit a electric diagram over the 12 pins plug on the rear of a Admunsen Touch Screen I want to install a rear camera.

Regards Kenny

Sasha Grace has done this and many more mods on her Mk3 Octavia Vrs estate. Sure she will be along to assist you.

You don’t plumb the camera to the screen, you plumb it into the radio unit in the glovebox, blue plug in the quadlock, pin 6 is positive and pin 12 is negative. This is just for video feed, take power form somewhere and if you want a Highline Camera you also have to connect to CAN on the grey plug in the quadlock.

TX Sasha

So if I understand you correct, it´s the unit whit the nav and disk in the glovebox I have to use to the RCA connector placing the red from this in 6 black in 12 Right.

Do you maybe have a electric diagram and will send it to me I will happy as a pig. LOL

Regards Kenny

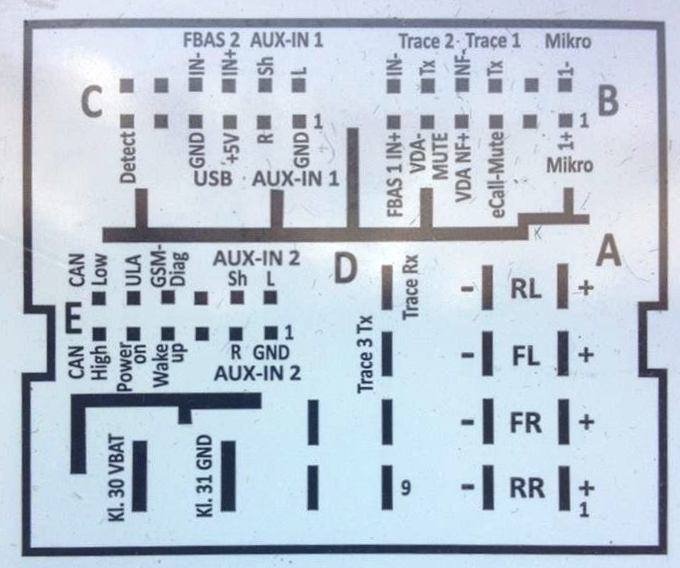

Yes, pinout for the MIB above.

TX Sasha.

You say I can connect to CAN on the grey plug in the quadlock.

Where do I find this and how do you mean connect to the grey plug ??

Where to place the red and black wire from the RCA plug ??

Regards Kenny

You only connect to CAN with OEM Highline Camera with guidance lines, anything else and you don’t connect to CAN. So you connect RCA to the FBAS1 pins on that diagram.

Hi again

Is it possible to buy a kind of an adaptor to put between the original wiring whit the RCA mounted ??

Sorry I´m very new doing things by my own on a Skoda mostly I had Volvo before.

Regards Kenny

Hi Sasha

Just had a quick look on the blue plug you said to use, there are already a white and a black can´t see the numbers on the plug but is it like this that the white are in 1 and the black in 7 ??

If so in + are 6 and in - are 12, right ?

Regards Kenny

Adaptor here ￡0.73 | Car Rear View Camera RVC Cable Adaptor For VW Golf VI Jetta 5 6 MK5 MK6 Passat B6 Touran Tiguan with MIB RCD330
https://a.aliexpress.com/_dYDpJCj



Pins occupied already are the BT mic, 1 and 7 so 6 and 12 are opposite. It’s printed on the plug itself which you can see when removed.

Thanks Sasha

You are a star.

I found it on ebay cheaper so now I have to wait on it to arrive.

Until next time I have request, keep safe and ones again BIG THANKS.

Regards Kenny

12 hours ago, SashaGrace said:

Adaptor here ￡0.73 | Car Rear View Camera RVC Cable Adaptor For VW Golf VI Jetta 5 6 MK5 MK6 Passat B6 Touran Tiguan with MIB RCD330
https://a.aliexpress.com/_dYDpJCj



Pins occupied already are the BT mic, 1 and 7 so 6 and 12 are opposite. It’s printed on the plug itself which you can see when removed.

Could always buy the kit you recommend sasha as works a treat
