VCDS Scan Errors - Help Required

Followers

10 December, 201312 yr

Hi,

I'd done a VCDS scan yesterday and got the following two errors:

Address 10: Park/Steer Assist (J791) Labels: 3AA-919-475.clb

Part No SW: 3AA 919 475 M HW: 4H0 919 475 E

Component: PARKHILFE PLA H06 0030

Revision: -------- Serial number: 56231310100396

Coding: 141107

Shop #: WSC 12345 123 12345

ASAM Dataset: EV_EPHVA2C000000000 002011

ROD: EV_EPHVA2C000000000_SE36.rod

VCID: 458A8275C42B9236E75-8010

1 Fault Found:

12658720 - Databus

U1121 00 [009] - Missing Message

Confirmed - Tested Since Memory Clear

Freeze Frame:

Fault Status: 00000001

Fault Priority: 6

Fault Frequency: 1

Reset counter: 7

Mileage: 21290 km

Date: 2016.14.02

Time: 17:51:51

Address 2E: Media Player 3 (J650) Labels: 5N0-035-342.lbl

Part No SW: 5N0 035 342 F HW: 5N0 035 342 F

Component: SG EXT.PLAYER H18 0530

Revision: A1001003 Serial number: 7662600712

Coding: 010100

Shop #: WSC 00000 000 00000

VCID: 2A50D1C945755D4EEA7-807F

2 Faults Found:

00464 - Control Module with Display for Radio and Navigation (J503)

004 - No Signal/Communication

Freeze Frame:

Fault Status: 01100100

Fault Priority: 6

Fault Frequency: 1

Reset counter: 7

Mileage: 0 km

Time Indication: 0

03138 - Input AUX IN

009 - Open or Short to Ground

Freeze Frame:

Fault Status: 01101001

Fault Priority: 4

Fault Frequency: 1

Reset counter: 7

Mileage: 0 km

Time Indication: 0

Both the park assist and the MDI interface seems to work fine. What could be causing these errors?

regards,

Nitin

10 December, 201312 yr

good luck finding some vcds advice on the Park assist fault. hardly anyone has it.

I think you should look at the MDI coding for the first fault with the MDI

the 2nd one is due to leaving the lead connected to the socket and unplugging the device

park assist fault have no idea and I'm sure if you ask ross-tech they will tell you that it shouldn't be fitted to your car

10 December, 201312 yr

Author

"leaving the lead connected to the socket and unplugging the device" - Could you please elaborate on this one? I'm not clear.

The interesting part is that the park assist works fine, despite the error.

10 December, 201312 yr

what I mean by unplugging the device

Aux-in Socket > 3,5 jack > (mobile, ipod, mp3 player etc)

I have found that if you leave the 3,5 jack in the socket but unplug the device it will cause the Aux-in fault. Although if you unplug the 3,5 jack then there is no fault

The fault with the park assist is due to the module not finding a module in the car.

The part number you have is for the magotan "Chinese Passat"

Passat will have several modules that your Laura won't have

11 December, 201312 yr

Author

Thanks! I shall check on the Aux-IN socket. As for the Park-Assist, the module was imported from Czech republic and its a genuine module for VW. Do they sell the china version modules directly from Czech? I hope this error is not a serious issue. The park assist system works fine, though!

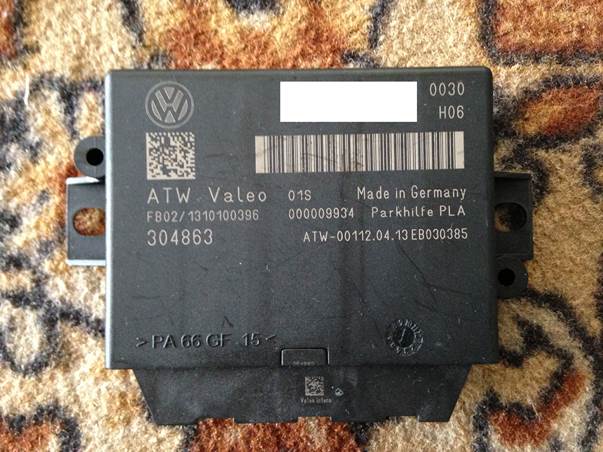

Please find the picture of the PLA module.

In India, the Skoda after sales support (including Skoda India) is really pathetic and most owners resort to themselves when it comes to service, support and repair.

Edited 11 December, 201312 yr by nitinbose

11 December, 201312 yr

part number is definately for chinese Magotan (vw passat)

see what the vehicle type is in the coding

Byte 3

11 December, 201312 yr

First off, I would delete the fault codes and see if they come back, if they do then I would start the investigation. No point chasing after a fault if it isn't there anymore.

Not sure about the date shown on the park assist fault readout, 2016.14.02?

Ian

12 December, 201312 yr

Author

Hmmm.... I did not notice the difference in the date;

Here's the full scan details: I'm noticing there is a "park/steering assist" and "Steering assist". Are these related in anyway?

Monday,09,December,2013,18:50:35:35444
VCDS -- Windows Based VAG/VAS Emulator
VCDS Version: 12.12.0.0
Data version: 20130910

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------

Chassis Type: 1Z (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 25 2E 36 42 44 46 47 52 55 56
          62 72 77

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: Malfunction 0010
36-Seat Mem. Drvr -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: Malfunction 0010
52-Door Elect, Pass. -- Status: OK 0000
55-Xenon Range -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CLCB)       Labels: 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 EH    HW: 03L 906 018 BR
   Component: R4 2,0L EDC   H24 9480
   Revision: 42H24---    Serial number:
   Coding: 001D0012042500080000
   Shop #: WSC 33361 790 00999
   ASAM Dataset: EV_ECM20TDI01103L906018EH 003005
   ROD: EV_ECM20TDI01103L906018EH.rod
   VCID: 74EC0FB1DF315BBE80B-8021

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 02E-300-0xx.lbl
   Part No SW: 02E 300 057 P    HW: 02E 927 770 AL
   Component: GSG DSG AG6     512 3103
   Revision: 05551213    Serial number: 00001203211192
   Coding: 0000020
   Shop #: WSC 73430 790 00999
   VCID: 264825F9916D792ECEF-8073

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 1K0-907-379-60EC1F.clb
   Part No SW: 1K0 907 379 AJ    HW: 1K0 907 379 AJ
   Component: ESP MK60EC1   H30 0107
   Revision: 00H30001
   Coding: 133B401C0A2700FCC80E02E450190082350950
   Shop #: WSC 12345 123 12345
   VCID: 7AF02189F5552DCEDA7-802F

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb
   Part No SW: 3T0 907 044 BL    HW: 3T0 907 044 BL
   Component: Climatronic   H18 0506
   Revision: 00001007
   Coding: 0000004002
   Shop #: WSC 73430 790 00999
   ASAM Dataset: EV_Climatronic A01010
   ROD: EV_ClimaAutoBasis_SK35.rod
   VCID: 7DFA2A95EC7B1AF6FF5-8028

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb
   Part No SW: 1K0 937 087 Q    HW: 1K0 937 087 Q
   Component: BCM PQ35 H   110 0651
   Revision: 00110 AC
   Coding: 4E180AB8E82508C0C0480080110089E441FD0000722085605C8440000040
   Shop #: WSC 06260 743 06260
   VCID: 3F86909DAEF7C8E6AD9-806A

   Subsystem 1 - Part No: 1Z2 955 119 D Labels: 1KX-955-119.CLB
   Component: Wischer 25031 26 0601
   Coding: 00D7B7

   Subsystem 2 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
   Component: RLS 270312 05 54 0403
   Coding: 0730ED

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791)       Labels: 3AA-919-475.clb
   Part No SW: 3AA 919 475 M    HW: 4H0 919 475 E
   Component: PARKHILFE PLA H06 0030
   Revision: --------    Serial number: 56231310100396
   Coding: 141107
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_EPHVA2C000000000 002011
   ROD: EV_EPHVA2C000000000_SE36.rod
   VCID: 458A8275C42B9236E75-8010

1 Fault Found:
12658720 - Databus
          U1121 00 [009] - Missing Message
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 21290 km
                    Date: 2016.14.02
                    Time: 17:51:51

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: None
   VCID: 55AA5235BC8B22B6975

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels: 5K0-953-569.clb
   Part No SW: 5K0 953 501 AT    HW: 5K0 953 569 H
   Component: LENKS.MODUL   014 0140
   Revision: FF010041    Serial number: 20120906100081
   Coding: 0892140002
   Shop #: WSC 12345 123 12345
   ASAM Dataset: EV_SMLSNGVOLWS A01004
   ROD: EV_SMLSNGVOLWS.rod
   VCID: 7CFC2791F76113FEC8B-8029

   Multifunction steering wheel control module:
   Subsystem 1 - Part No SW: 3T0 959 537 A    HW: 3T0 959 537 A Labels: 3C8-959-537.CLB
   Component: E221__MFL-URO H07 0012
   Coding: 830000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
   Part No SW: 1Z0 920 843 S    HW: 1Z0 920 843 S
   Component: KOMBI         H05 0608
   Serial number: 00000000000000
   Coding: 510E01
   Shop #: WSC 73430 031 00999
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
   ROD: EV_Kombi_UDS_VDD_RM09_SE36.rod
   VCID: 48948B41F3398F5E1C3-801D

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 AA    HW: 7N0 907 530 G
   Component: J533 Gateway H41 1632
   Revision:   H41       Serial number: 250113F1002033
   Coding: 350303
   Shop #: WSC 12345 123 12345
   VCID: 6FE600DDBE1778667D9-803A

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 0608
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
   ROD: EV_Immo_UDS_VDD_RM09_SE25.rod
   VCID: EAD091C90DF51D4EAA7-80BF

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels: 5N0-035-342.lbl
   Part No SW: 5N0 035 342 F    HW: 5N0 035 342 F
   Component: SG EXT.PLAYER H18 0530
   Revision: A1001003    Serial number: 7662600712
   Coding: 010100
   Shop #: WSC 00000 000 00000
   VCID: 2A50D1C945755D4EEA7-807F

2 Faults Found:
00464 - Control Module with Display for Radio and Navigation (J503)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 0 km
                    Time Indication: 0

03138 - Input AUX IN
            009 - Open or Short to Ground
             Freeze Frame:
                    Fault Status: 01101001
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 0 km
                    Time Indication: 0

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr        Labels: 3C0-959-760.lbl
   Part No SW: 3C0 959 760 E    HW: 3C0 959 760 E
   Component: Sitzverstellung     1102
   Revision: 00005000    Serial number: 00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 2F66C0DDBE9738663D9-807A

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels: 1K0-959-701-MAX3.lbl
   Part No SW: 1T0 959 701 AA    HW: 1T0 959 701 AA
   Component: Tuer-SG         009 2120
   Coding: 0005110
   Shop #: WSC 73430 790 00999
   VCID: 76E835B9014D49AEBEF-8023

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb
   Part No: 1K0 909 144 P
   Component: EPS_ZFLS Kl. 70     3305
   Revision: 00H22000
   Shop #: WSC 73430 790 00078
   VCID: 3776F8BD46C7F0A6659-8062

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System (R12)       Labels: 3T0-035-456.clb
   Part No SW: 5C6 035 456     HW: 5C6 035 456
   Component: KonzernAmp10K H07 0468
   Revision: --------    Serial number: EAA083A0031755
   ASAM Dataset: EV_AudioVerst10KanalBNO2 A01003
   ROD: EV_AudioVerst10KanalBNO2.rod
   VCID: E5CAE2F5E4EB3236875-80B0

1 Fault Found:
9462803 - Front Right Treble Speaker
          B1064 13 [009] - Open Circuit
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 7
                    Mileage: 21290 km
                    Date: 2016.14.02
                    Time: 18:28:06

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels: 1K0-959-702-MAX3.lbl
   Part No SW: 1T0 959 702 S    HW: 1T0 959 702 S
   Component: Tuer-SG         009 2114
   Coding: 0005110
   Shop #: WSC 73430 790 00999
   VCID: 48948B413B398F5E1C3-801D

No fault code found.

-------------------------------------------------------------------------------
Address 55: Xenon Range        Labels: 5M0-907-357-V2.lbl
   Part No SW: 5M0 907 357 C    HW: 5M0 907 357 C
   Component: AFS-Steuergeraet    0148
   Revision: 00H04000    Serial number:
   Coding: 1507610
   Shop #: WSC 62658 626 45725
   VCID: 346CCFB157B11BBE40B-8061

   Subsystem 1 - Part No: 7L6 941 329 B
   Component: AFS-Lst.-Modul l    0005
   Coding: 00000023

   Subsystem 2 - Part No: 7L6 941 329 B
   Component: AFS-Lst.-Modul r    0004
   Coding: 00000023

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels: 5M0-035-1xx-56.clb
   Part No SW: 1Z0 035 156 F    HW: 1Z0 035 156 F
   Component: BOLERO        010 0061
   Revision: 0A001001    Serial number: SKZ1Z3M0099181
   Coding: 090200000100
   Shop #: WSC 73430 790 00999
   VCID: 356AF2B59CCB02B6775-8060

No fault code found.

-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels: 1K0-959-703-GEN3.lbl
   Part No SW: 5K0 959 703 A    HW: 5K0 959 703 A
   Component: Tuer-SG         007 2101
   Coding: 0000144
   Shop #: WSC 73430 790 1012551
   VCID: 3260C9A9ADA5158E527-8067

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels: 1K0-959-704-GEN3.lbl
   Part No SW: 5K0 959 704 A    HW: 5K0 959 704 A
   Component: Tuer-SG         007 2101
   Coding: 0000144
   Shop #: WSC 73430 790 1012551
   VCID: 336ECCAD52BF1C86591-8066

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels: 7P6-035-730.clb
   Part No SW: 5K0 035 730     HW: 5K0 035 730
   Component: TELEFON       H09 1020
   Revision: 1B001001    Serial number: 00007669724456
   Coding: 0200000000010110
   Shop #: WSC 01234 123 01234
   ASAM Dataset: UHVNA A01009
   ROD: UHVNA.rod
   VCID: E2C0F9E9F5C5450E627-80B7

No fault code found.

End   ---------------------------------------------------------------------

12 December, 201312 yr

in the Park assist what is your car coded to?

Byte 3 what type is it?

Create an account or sign in to comment

Followers

Go to topic listing

No registered users viewing this page.

Announcements

About BRISKODA

BRISKODA is for the sharing of information on ŠKODA. Founded for all motoring enthusiasts, it's free to join and use. We have members from all over the world.

Our Guidelines.
Search the Site.
Explore the Forums.
Gaze into the Gallery.
Make a date, the Calendar.
Classic, custom or modified car insurance!
Please be respectful when posting.

See all Subscription Plans

Reversing camera display change after update.
Skoda Octavia Mk4 (2020 > )

Reversing camera display change after update.

NormanE · Thursday at 22:031 day

Whilst in France last week my car received an infotainment update, The car is a 2024 Octavia Vrs diesel hatchback, with a reversing camera retrofitted by East Yorkshire Retrofit. After the update two odd things happened. Firstly the reversing camera did not work at all the first time I reversed the car after the update. Then it worked, but instead of the full screen showing the camera view, it is now two thirds camera view and one third a top-down outline of the car with curved lines showing the
- 6 replies
- 163 views
NormanE

Thursday at 22:031 day

NormanE

17 minutes ago17 min
Front Windscreen wiper has an annoying issue
Skoda Karoq

Front Windscreen wiper has an annoying issue

RMH · 23 hours ago23 hr

We bought a 2024 Skoda Karoq 1.5 SE L back in May this year. Pretty much ever since we've had it, the front wiper will periodically (randomly) wipe the windscreen when there's blue skies and no rain. Sometimes it will wipe once, sometimes three or even four times. It has been doing this seemingly more frequently in the last couple of weeks when we were away on holiday. Driving back from north Wales yesterday. it happened on seven or eight occassions. I've checked the position of the wiper lever
- 4 replies
- 132 views
RMH

23 hours ago23 hr

RMH

26 minutes ago26 min
the truth about electric cars
Electric Vehicles

the truth about electric cars

310golfr · 22 November, 20214 yr

https://www.channel4.com/programmes/the-truth-about-electric-cars-dispatches channel 4 tonight 8.30pm i wonder if they will tell us the truth
- 12,370 replies
- 719,564 views
310golfr

22 November, 20214 yr

lol-lol

1 hour ago1 hr
MST2_EU_SK_ZR_P0480T
Skoda Fabia Mk3 (2014-2021)

MST2_EU_SK_ZR_P0480T

Pepper6666 · 1 hour ago1 hr

Hello Everyone im really struggling to find a download for MST2_EU_SK_ZR_P0480T mibsolutions is always down do any of you helpful people out there have a working link/download ? Many Many thanks in advance.
- 0 replies
- 31 views
Pepper6666

1 hour ago1 hr

Pepper6666

1 hour ago1 hr
2020 Kamiq with ACC - opinions?
Škoda Kamiq

2020 Kamiq with ACC - opinions?

Maxr · 4 December, 20241 yr

I'm looking at a 2020 Kamiq SEL as a second car, which has the fairly rare 'adaptive' cruise control (not 'predictive adaptive'). I've had mixed experiences with ACC on two Citroens. My recent C5 has it, and it works great and very smoothly so long as you remember that all it really does is keep you on station with the car in front and stop you running into it. Before that had an older Berlingo. That had ACC that it worked, but that system braked fairly hard and later than I'd have liked, then a
- 14 replies
- 1,554 views
Maxr

4 December, 20241 yr

sussamb

2 hours ago2 hr

VCDS Scan Errors - Help Required

Featured Replies

Create an account or sign in to comment

Recently Browsing 0

About BRISKODA

Available Subscriptions

FREEDOM Lite

FREEDOM

Recent Topics

Reversing camera display change after update.

Front Windscreen wiper has an annoying issue

the truth about electric cars

MST2_EU_SK_ZR_P0480T

2020 Kamiq with ACC - opinions?

Important Information

Account

Navigation

Configure browser push notifications

Chrome (Android)

Chrome (Desktop)

Safari (iOS 16.4+)

Safari (macOS)

Edge (Android)

Edge (Desktop)

Firefox (Android)

Firefox (Desktop)
