anyone got an image of the underside of their car showing the entire exhaust path? trying to explain something to a mate but cant find anything on ye old google



cheers

Luke

I did but deleted it only yesterday :(

Any good? Lol

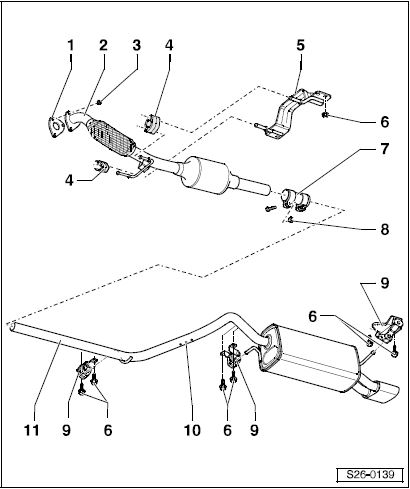

Try this

It goes straight down the middle until under the back seats sort of area where unfortunately it has to go up and to the side to curve over the rear beam, and then back down again to come out at the tailpipe position.



No.10 on the above diagram shows that section.

ignore the slightly longer floor pan after the spare wheel well.. thats the only diff between the estate + hatch

Cheers matt thats perfect

Sent using Tapatalk, like a bawsss!

Damit, i was too slow lol
