I have a octavia 1z 2006 I have facelift for 2010 rs bumper with LED daytime running lights .. I've changed my bcm from 1k0937049n to 3c8937049ac ..
I would like to hear about a few that can help me where to install the 3 wires from the context daytime running lights and where to mount .. there has to be dimming in the light ..
my car does not have xenon

Hope you can help me

Regards thomas



I can tell you what the 3 wires are!

1. Earth wire directly to ground

2. wire to 09 CCM for PWM (switches between full brightness and dimmed)

3. wire to 09 CCM for modulated current / voltage supply to LED's

PLEASE IGNORE THE TEXT ON THE IMAGE (it is incorrect)

The left wire to the CCM is number 3

The right wire to the CCM is number 2

The wire going down is number 1

This is from a 2012 vRS

Edited 15 June, 201411 yr by xpower

Hello Xpower

I can not quite understand the numbers you wrote

1 Earth wire directly two ground
  2 wire two 09 CCM for PWM (switches mellan full brightness and dimmed)
  3 wire two 09 CCM for modulated current / voltage supply two LED's

in bcm called the plug a-b-c-d-e-f-g and pin 1 2 3 4 5 6 7 etc

and my bcm 3c8937049ac 30 byt highend

Regards thomas

Hi Thomas,



A BCM was installed on the facelift models and looks like this....

The pre-facelift uses a CECM, and looks like this.....





I've also been looking for the DRL pin assignments on a CECM since my upgrade a couple of weeks ago.



So far, I've found this.....

http://www.briskoda.net/forums/topic/316664-cecm-pin-out-assignments/?p=3789930



E 16 looks about the most promising so far. Will try and get back on this at the weekend.

Hello Xpower

I can not quite understand the numbers you wrote

1 Earth wire directly two ground

  2 wire two 09 CCM for PWM (switches mellan full brightness and dimmed)

  3 wire two 09 CCM for modulated current / voltage supply two LED's

in bcm called the plug a-b-c-d-e-f-g and pin 1 2 3 4 5 6 7 etc

and my bcm 3c8937049ac 30 byt highend

Regards Thomas

Ok, i understand



Number 1 in my list (ground) goes directly to body earth

Number 2 in my list is plug C pin 26 switch between Full and dim

Number 3 in my list is plug C pin 48 Supply to LED module



Just remember this was to a BCM from a 2012 factory vehicle

Edited 16 June, 201411 yr by xpower

Hello

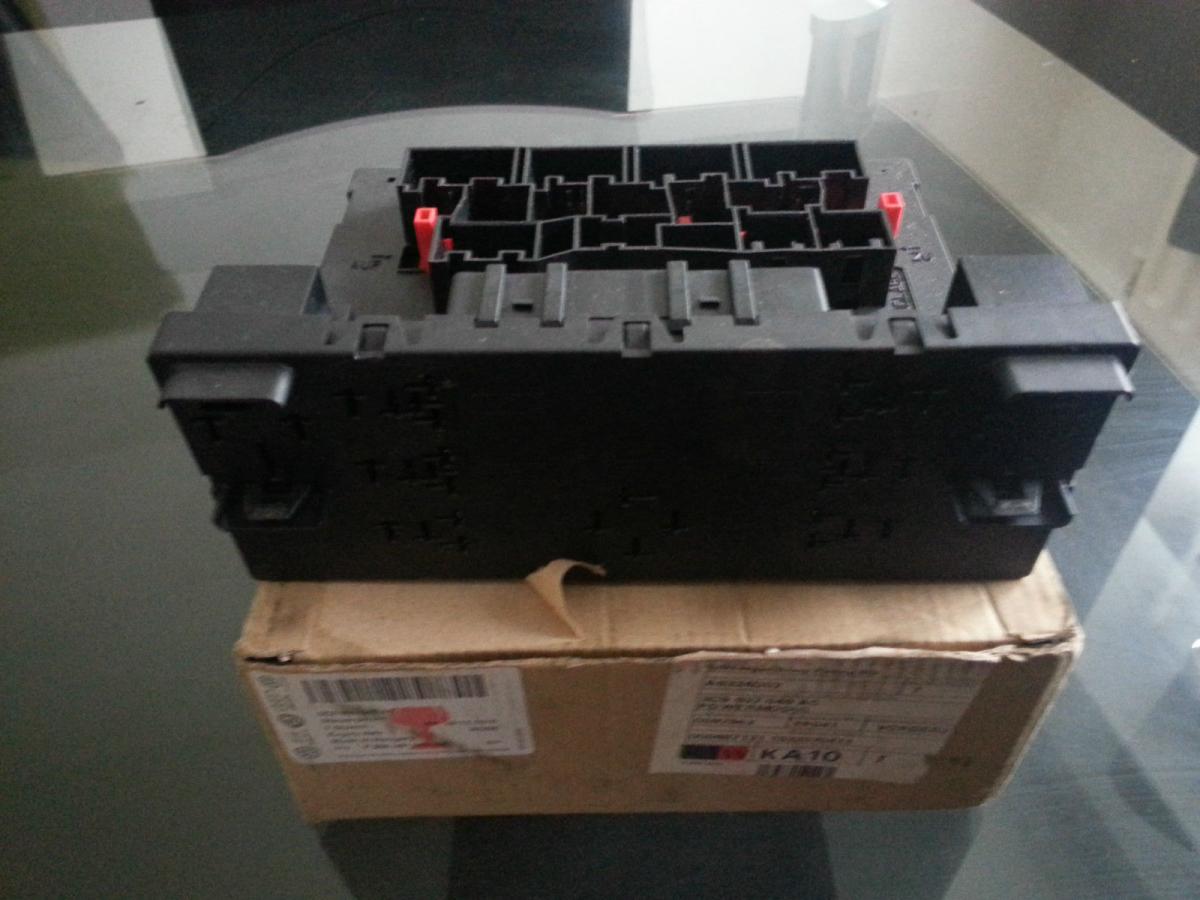

I'm sorry this is  my box



Maybe there is a Comfort convenience module in my Octavia 1z 2005



hilsen thomas



<Fixed missing image in post>

Hello

has found out where I need to connect the wire from my Led headlights

Regards thomas
