Hi Folks,



I've recently installed a reversing camera on my Superb Combi (which involved attacking the tailgate with a Dremel :peek:) . All of the hardware is in (camera: 5N0 627 566, camera control module: 5N0 907 441A, camera fixing bracket: 3C9 827 229C) and the cable has been run and plugged into the back of the Columbus unit. Power supply to the controller is connected and can-hi & can-low are also connected.



Due to a lack of info on this, its all been a little experimental up until now.

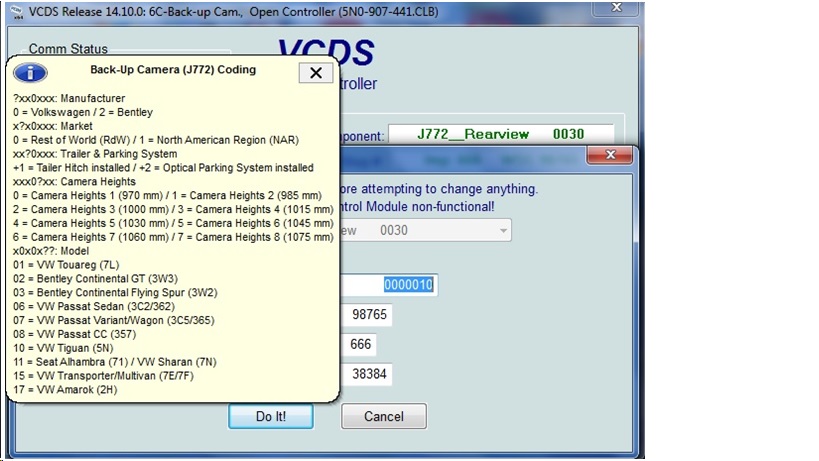

The problem I am having is the coding of the 6C backup camera controller, despite my best efforts, the controller will not accept ANY coding changes whatsoever, i keep getting the 'out of range' error code. I have tried non zero WSC/Importer codes etc. but no luck.



I've registered the camera controller in the canbus gateway (6C backup cam) but the coding is the main issue, it also throws up an error code 01042 (control module not coded).



Via the measuring blocks, the controller can read the steering angle, reversing signal etc so I know it's alive in that respect.



I've tinkered with a few settings in the park/steer assist to allow for the camera's presence but it all comes back to the total inability to change any coding on the controller.



Can anyone suggest anything? other than smashing it with a hammer? is it borked, perhaps? I've attached my latest scan if it helps.



T.I.A.



Wednesday,19,November,2014,12:17:56:39432

VCDS -- Windows Based VAG/VAS Emulator

VCDS Version: 14.10.0.0 (x64)

Data version: 20141022



Workshop Code: 166 03246 013427



VIN: TMBKF73T8E9015256   License Plate: ---

Mileage: 49360km-30670mi   Repair Order:







--------------------------------------------------------------------------------

--------------------------------------------------------------------------------





Chassis Type: 3T (7N0)

Scan: 01 03 08 09 10 15 16 17 19 25 36 37 42 44 46 52 55 56 61 62

          6C 72 77



VIN: TMBKF73T8E9015256   Mileage: 49360km-30670miles



01-Engine -- Status: OK 0000

03-ABS Brakes -- Status: OK 0000

04-Steering Angle -- Status: OK 0000

08-Auto HVAC -- Status: OK 0000

09-Cent. Elect. -- Status: OK 0000

10-Park/Steer Assist -- Status: OK 0000

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: OK 0000

17-Instruments -- Status: OK 0000

19-CAN Gateway -- Status: Malfunction 0010

25-Immobilizer -- Status: OK 0000

36-Seat Mem. Drvr -- Status: OK 0000

37-Navigation -- Status: Malfunction 0010

42-Door Elect, Driver -- Status: OK 0000

44-Steering Assist -- Status: OK 0000

46-Central Conv. -- Status: OK 0000

52-Door Elect, Pass. -- Status: OK 0000

55-Headlight Range -- Status: OK 0000

56-Radio -- Status: Malfunction 0010

61-Battery Regul. -- Status: OK 0000

62-Door, Rear Left -- Status: OK 0000

6C-Back-up Cam. -- Status: Malfunction 0010

72-Door, Rear Right -- Status: OK 0000

77-Telephone -- Status: OK 0000



-------------------------------------------------------------------------------

Address 01: Engine (J623-CFGB)       Labels: 03L-906-018-CFF.clb

   Part No SW: 03L 906 018 RR    HW: 03L 906 018 MH

   Component: R4 2,0L EDC   H28 5266

   Revision: 41H28---    Serial number:

   Coding: 00190012042501080000

   Shop #: WSC 33361 790 00999

   ASAM Dataset: EV_ECM20TDI01103L906018RR 003003

   ROD: EV_ECM20TDI01103L906018RR.rod

   VCID: 0B1E10E3A2DF58790A9-805E



No fault code found.

Readiness: 0 0 0 0 1



-------------------------------------------------------------------------------

Address 03: ABS Brakes (J104)       Labels: 1K0-907-379-60EC1F.clb

   Part No SW: 1K0 907 379 BL    HW: 1K0 907 379 BL

   Component: ESP MK60EC1   H31 0152

   Revision: 00H31001

   Coding: 863D6016092300FF610D06E9901F0092340000

   Shop #: WSC 33361 790 00999

   VCID: 7DFA4E3BE46B66C904D-8028



No fault code found.



-------------------------------------------------------------------------------

Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb

   Part No SW: 3T0 907 044 CJ    HW: 3T0 907 044 CJ

   Component: Climatronic   H19 0607

   Revision: 00001008

   Coding: 0018000003

   Shop #: WSC 33361 790 00999

   ASAM Dataset: EV_Climatronic A01010

   ROD: EV_ClimaAutoBasis_SK12.rod

   VCID: 7CFC433FF7716FC1333-8029



No fault code found.



-------------------------------------------------------------------------------

Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb

   Part No SW: 1K0 937 087 AN    HW: 1K0 937 087 AN

   Component: BCM PQ35  H+  112 0771

   Revision: AF112771

   Coding: 48010AB8E86BF1C0400800C0310089EC4BF800E0732187208089E7040041

   Shop #: WSC 33361 790 00999

   VCID: 7DFA4E3BE46B66C904D-8028



   Subsystem 1 - Part No: 3T2 955 119 B

   Component: Wischer 30061  26  0700

   Coding: 00D7B7



   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB

   Component: RLS 080713 05  54  0403

   Coding: 062BED



   Subsystem 3 - Part No: 7N0 951 171 A

   Component: DWA-Sensor 00  002 0206



   Subsystem 4 - Part No: 1K0 951 605 C

   Component: LIN BACKUP HO  H05 1501



No fault code found.



-------------------------------------------------------------------------------

Address 10: Park/Steer Assist (J446)       Labels: 5J0-919-475.clb

   Part No SW: 5J0 919 475 B    HW: 5J0 919 475 A

   Component: PARKHILFE 4K  H11 0010

   Revision: --H11---    Serial number: 32961318501575

   Coding: 108002

   Shop #: WSC 33361 790 00085

   ASAM Dataset: EV_EPHVA14SKxxx0000 002001

   ROD: EV_EPHVA14SKxxx0000_SK46.rod

   VCID: 346CAB1F9FA16781BB3-8061



No fault code found.



-------------------------------------------------------------------------------

Address 15: Airbags        Labels: 5N0-959-655.lbl

   Part No SW: 3T0 959 655 D    HW: 3T0 959 655 D

   Component: J234__LDM VW10 HI   2118

   Revision: 24019000    Serial number: 003LEPCYXU66

   Coding: 0017485

   Shop #: WSC 33361 790 00999

   VCID: 4280FDC71D15D93139F-8017



   Subsystem 1 - Serial number: 6332MTS680791713



   Subsystem 2 - Serial number: 6342MTS669541713



   Subsystem 3 - Serial number: 6351HTS6QIDB4CKR



   Subsystem 4 - Serial number: 6361HTS603KF2CKJ



   Subsystem 5 - Serial number: 63727TS685V95CKR



   Subsystem 6 - Serial number: 00000000000000000



No fault code found.



-------------------------------------------------------------------------------

Address 16: Steering wheel (J527)       Labels: 5K0-953-569.clb

   Part No SW: 5K0 953 521 BN    HW: 5K0 953 569 E

   Component: LENKS.MODUL   016 0140

   Revision: FF010042    Serial number: 20130708300033

   Coding: 1082140000

   Shop #: WSC 33361 790 00999

   ASAM Dataset: EV_SMLSNGVOLWSXS A01004

   ROD: EV_SMLSNGVOLWS.rod

   VCID: 79F25A2BF8435AE9285-802C



   Multi Function Steering Wheel Control Module:

   Subsystem 1 - Part No SW: 5E0 919 719 F    HW: 5E0 919 719 F

   Component: E221__MFL-PR6  H04 0120

   Coding: 820000



No fault code found.



-------------------------------------------------------------------------------

Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb

   Part No SW: 3T2 920 941 M    HW: 3T2 920 941 M

   Component: KOMBI         H06 0811

   Serial number: 00000000000000

   Coding: 711E01

   Shop #: WSC 33361 790 00085

   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04721

   ROD: EV_Kombi_UDS_VDD_RM09_SK25.rod

   VCID: 3F86F433A6E7B4D9561-806A



No fault code found.



-------------------------------------------------------------------------------

Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb

   Part No SW: 7N0 907 530 AL    HW: 7N0 907 530 AL

   Component: J533  Gateway H58 1642

   Revision:   H58       Serial number: 200613F1002149

   Coding: 352303

   Shop #: WSC 03246 166 13427

   VCID: 7AF04527F54551F121F-802F



1 Fault Found:

01044 - Control Module Incorrectly Coded

            000 -  -  - Intermittent

             Freeze Frame:

                    Fault Status: 00100000

                    Fault Priority: 1

                    Fault Frequency: 1

                    Reset counter: 255

                    Mileage: 49364 km

                    Time Indication: 0

                    Date: 2014.11.19

                    Time: 11:46:30





-------------------------------------------------------------------------------

Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb

   Part No SW: 5K0 953 234     HW: 5K0 953 234

   Component: IMMO          H06 0811

   Serial number: 00000000000000

   Coding: 000000

   Shop #: WSC 00000 000 00000

   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710

   ROD: EV_Immo_UDS_VDD_RM09_SE25.rod

   VCID: 6AD075678DE5E171D1F-803F



No fault code found.



-------------------------------------------------------------------------------

Address 36: Seat Mem. Drvr (J810)       Labels: 3C0-959-760.lbl

   Part No SW: 3C8 959 760 E    HW: 3C8 959 760 E

   Component: Sitzmemory    H05 3001

   Revision: 00H05000

   Coding: 00003B

   Shop #: WSC 12336 024 394758

   VCID: 37769C1386D78C999E1-8062



No fault code found.



-------------------------------------------------------------------------------

Address 37: Navigation (J0506)       Labels: 1T0-035-680.clb

   Part No SW: 3T0 035 686 C    HW: 3T0 035 686 C

   Component: RNS-MID       H10 5269

   Revision: AB001001    Serial number: SKZ6Z7N5210009

   Coding: 04000402000400A11000

   Shop #: WSC 03246 166 13427

   VCID: 3668911781DD7591857-8063



   Subsystem 1 - Part No: 3T0 051 859 Q

   Component: EU West V10  8048



1 Fault Found:

02873 - Control Module for Back-Up Camera (J772)

            004 - No Signal/Communication - Intermittent

             Freeze Frame:

                    Fault Status: 00100100

                    Fault Priority: 5

                    Fault Frequency: 1

                    Reset counter: 55

                    Mileage: 49360 km

                    Time Indication: 0





-------------------------------------------------------------------------------

Address 42: Door Elect, Driver (J386)       Labels: 8X0-959-793.clb

   Part No SW: 8X0 959 793 H    HW: 8X0 959 793 H

   Component: TSG FA        H10 0415

   Revision: --------    Serial number: --------------

   Coding: 011D0220DE01001000

   Shop #: WSC 33361 790 00999

   VCID: 52A0CD870D7549B189F-8007



No fault code found.



-------------------------------------------------------------------------------

Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb

   Part No: 1K0 909 144 R

   Component: EPS_ZFLS Kl. 195    3501

   Revision: 00H22000

   Shop #: WSC 33361 790 00085

   VCID: 39729A2B70C39AE9685-806C



No fault code found.



-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. (J387)       Labels: 8X0-959-792.clb

   Part No SW: 8X0 959 792 H    HW: 8X0 959 792 H

   Component: TSG BF        H10 0415

   Revision: --------    Serial number: --------------

   Coding: 011D0220DE01001000

   Shop #: WSC 33361 790 00999

   VCID: 51A2C28B087332A9B05-8004



No fault code found.



-------------------------------------------------------------------------------

Address 55: Headlight Range (J745)       Labels: 5M0-907-357-V3.clb

   Part No SW: 5M0 907 357 F    HW: 7L6 907 357 C

   Component: AFS-ECU       H04 0111

   Revision: --------    Serial number: --------------

   Coding: 01C600003F000000

   Shop #: WSC 33361 790 00999

   ASAM Dataset: EV_HeadlRegulVWAFSPt 002016

   ROD: EV_HeadlRegulVWAFSPt.rod

   VCID: 37769C138ED78C999E1-8062



   Left_headlamp_power_output_stage:

   Subsystem 1 - Part No SW: 8U0 941 329     HW: 8U0 941 329

   Component: LeiMo links  H01 0003

   Coding: 8E0000



   Right_headlamp_power_output_stage:

   Subsystem 2 - Part No SW: 8U0 941 329     HW: 8U0 941 329

   Component: LeiMo rechts  H01 0003

   Coding: 8E0000



No fault code found.



-------------------------------------------------------------------------------

Address 56: Radio (J0506)       Labels: 1T0-035-680.clb

   Part No SW: 3T0 035 686 C    HW: 3T0 035 686 C

   Component: RNS-MID       H10 5269

   Revision: AB001001    Serial number: SKZ6Z7N5210009

   Coding: 04000402000400A11000

   Shop #: WSC 03246 166 13427

   VCID: 3668911781DD7591857-8063



   Subsystem 1 - Part No: 3T0 051 859 Q

   Component: EU West V10  8048



1 Fault Found:

02873 - Control Module for Back-Up Camera (J772)

            004 - No Signal/Communication - Intermittent

             Freeze Frame:

                    Fault Status: 00100100

                    Fault Priority: 5

                    Fault Frequency: 1

                    Reset counter: 55

                    Mileage: 49360 km

                    Time Indication: 0





-------------------------------------------------------------------------------

Address 61: Battery Regul. (J840)       Labels: 1K0-907-534.clb

   Part No SW: 7N0 907 534     HW: 7N0 907 530 AL

   Component: Batt.regelung H58 1642

   Serial number: 200613F1002149

   Coding: 030F185A

   Shop #: WSC 03246 166 13427

   VCID: 71E2620BA83312A9905-8024



   Subsystem 1 - Part No SW: 1K0 915 181 H    HW: 1K0 915 181 A

   Component: J367-BDM  H07 0180



No fault code found.



-------------------------------------------------------------------------------

Address 62: Door, Rear Left (J388)       Labels: None

   Part No SW: 8X0 959 795 D    HW: 8X0 959 795 D

   Component: TSG HL        H07 0415

   Revision: --------    Serial number: --------------

   Coding: 010C00200001001000

   Shop #: WSC 33361 790 00085

   VCID: 50A4C78F03793BA1BFB-8005



No fault code found.



-------------------------------------------------------------------------------

Address 6C: Back-up Cam.        Labels: 5N0-907-441.clb

   Part No SW: 5N0 907 441 A    HW: 5N0 907 441 A

   Component: J772__Rearview      0030

   Revision: 00H13000    Serial number: 525PA8-J399331

   Coding: 8388607

   Shop #: WSC 98765 666 38384

   VCID: 2D5ABE7BB48B3649F4D-8078



2 Faults Found:

01042 - Control Module; Not Coded

            000 -  -

             Freeze Frame:

                    Fault Status: 01100000

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 15

                    Time Indication: 0



03006 - Back-up Camera System not calibrated

            000 -  -

             Freeze Frame:

                    Fault Status: 01100000

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 15

                    Time Indication: 0





-------------------------------------------------------------------------------

Address 72: Door, Rear Right (J389)       Labels: None

   Part No SW: 8X0 959 795 D    HW: 8X0 959 795 D

   Component: TSG HR        H07 0415

   Revision: --------    Serial number: --------------

   Coding: 010C00200001001000

   Shop #: WSC 33361 790 00085

   VCID: 50A4C78F03793BA1BFB-8005



No fault code found.



-------------------------------------------------------------------------------

Address 77: Telephone (J412)       Labels: 3C8-035-730-A.clb

   Part No SW: 3C8 035 730 D    HW: 3C8 035 730 D

   Component: Telefon       022 0946

   Revision: --------    Serial number: 35502105026606

   Coding: 020000000100010000000001

   Shop #: WSC 33361 790 00999

   ASAM Dataset: EV_UHVPremi 002708

   ROD: EV_UHVPremi_SE36.rod

   VCID: 244C5B5F2F41F7012B3-8071



No fault code found.



End-------------------------(Elapsed Time: 03:42)--------------------------





Interestingly, I just tried connecting a 7N0 camera controller and I get exactly the same issue. I can change any of the adaptations with no problem but I cannot change the coding at all. Seeing as 2 different controllers are behaving the same way, I am thinking maybe it is the CAN gateway causing the issue?



Still hitting the brick wall on this one......

I will try to help you on this as I just fitted a RVC to my Tiguan. I followed this thread and my headunit is a RNS315 (same as Amundsen plus).



http://www.mytiguan.com/index.php?/topic/17474-retrofitting-highline-reverse-camera-in-2014-uk-spec-r-line-177-dsg/



You will need to calibrate it as well.



My VCDS scan:-

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
65-Tire Pressure -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFFB)       Labels: 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 E    HW: 03L 907 309 AE
   Component: R4 2,0L EDC   H28 4572
   Revision: 41H28---    Serial number: 00000000000000
   Coding: 00190032042701080000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_ECM20TDI01103L906018E 003008
   ROD: EV_ECM20TDI01103L906018E.rod
   VCID: 2C79DF26472EF441E33-8079

No fault code found.
Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 5N0-614-109-C6.clb
   Part No SW: 5N0 614 109 BJ    HW: 5N0 614 109 BJ
   Component: J104   C6 450M V430 0014
   Revision: --H07---    Serial number: 00000007988208
   Coding: 0036158
   Shop #: WSC 01357 011 00200
   VCID: 74C90746179EEC817B3-8021

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb
   Part No SW: 5K0 907 044 GJ    HW: 5K0 907 044 GJ
   Component: Climatronic   H19 1313
   Revision: 00001004
   Coding: 0010004003
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Climatronic A01010
   ROD: EV_ClimaAutoBasis_SE36.rod
   VCID: 79D73672F8FC91E9285-802C

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb
   Part No SW: 5K0 937 086 Q    HW: 5K0 937 086 Q
   Component: BCM PQ35 M    122 0173
   Revision: BC122001
   Coding: 48180A33E837F3C040A800C8300081EC4FF9AA88437D81206488E7000041
   Shop #: WSC 01357 011 00200
   VCID: 42A5919EDDAA123139F-8017

   Subsystem 1 - Part No SW: 5N2 955 119     HW:              Labels: 1KX-955-119.CLB
   Component: Wischer 15031  013 0204
   Coding: 009F95

   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 270314 05  54  0403
   Coding: 06304D

   Subsystem 3 - Part No: 1K8 951 171
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 4 - Part No: 1K0 951 605 C
   Component: LIN BACKUP HO  H05 1501
   Coding: 000000

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791)       Labels: 3AA-919-475.clb
   Part No SW: 3AA 919 475 S    HW: 4H0 919 475 E
   Component: PARKHILFE PLA H06 0043
   Revision: --------    Serial number: 56231408101072
   Coding: 349203
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_EPHVA2C000000000 002014
   ROD: EV_EPHVA2C000000000_SE36.rod
   VCID: 4BBBBCBAE2E0D379CA9-801E

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 5N0-959-655.lbl
   Part No SW: 5N0 959 655 AA    HW: 5N0 959 655 AA
   Component: J234__20E VW10 HI   2518
   Revision: 27019000    Serial number: 003L7P6DBPP7
   Coding: 0012357
   Shop #: WSC 01357 011 00200
   VCID: 7CD92F663FCEA4C1333-8029

   Subsystem 1 - Serial number: 6332MTS606200794

   Subsystem 2 - Serial number: 6342MTS600730734

   Subsystem 3 - Serial number: 6351HTS6A9VTNCKJ

   Subsystem 4 - Serial number: 6361HTS65S4UNCKR

   Subsystem 5 - Serial number: 00000000000000000

   Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels: 5K0-953-569.clb
   Part No SW: 5K0 953 521 DQ    HW: 5K0 953 569 AH
   Component: LENKS.MODUL   016 0140
   Revision: FF010042    Serial number: 20140319201289
   Coding: 108A140000
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_SMLSNGVOLWSXS A01004
   ROD: EV_SMLSNGVOLWS.rod
   VCID: 7EDD256EE1D2B6D11D7-802B

   Multi Function Steering Wheel Control Module:
   Subsystem 1 - Part No SW: 5K0 959 542 C    HW: 5K0 959 542 C  Labels: 3C8-959-537.CLB
   Component: E221__MFL-TAS  H31 0037
   Coding: 820000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
   Part No SW: 5N0 920 983 D    HW: 5N0 920 983 D
   Component: KOMBI         H04 0611
   Serial number: 00000000000000
   Coding: 111F00
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04723
   ROD: EV_Kombi_UDS_VDD_RM09_SE25.rod
   VCID: 364DFD4E8962BE91857-8063

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels: 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 AN    HW: 7N0 907 530 AN
   Component: J533  Gateway H56 1642
   Revision:   H56       Serial number: 180314F1001395
   Coding: 356003
   Shop #: WSC 01357 011 00200
   VCID: 7CD92F66FFCEA4C1333-8029

No fault code found.

-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844)       Labels: 8K0-857-511.clb
   Part No SW: 5K0 857 511 C    HW: 8P0 857 511 C
   Component: FLA           H04 0012
   Revision: AA001002
   Coding: 0102196B74745D545420363E01
   Shop #: WSC 01357 011 00200
   VCID: 2E7DD52E79328651CD7-807B

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD
Cannot be reached

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H04 0611
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_SE25.rod
   VCID: 6AF5193E8D5A2A71D1F-803F

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels: 5N0-035-342.lbl
   Part No SW: 5N0 035 342 G    HW: 5N0 035 342 G
   Component: SG EXT.PLAYER H19 0770
   Revision: A1001003    Serial number: 7666027292
   Coding: 020100
   Shop #: WSC 01357 011 00200
   VCID: 2B7BDC3A4A20F379EA9-807E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J794)       Labels: 1K0-035-27x-37.clb
   Part No SW: 3C8 035 279 G    HW: 3C8 035 279 G
   Component: RNS315-EU   H77 0410
   Serial number: VWZAZ2P0128740
   Coding: 0400040104000C0000001002
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_RNS315EUV2UDS 001705
   ROD: EV_RNS315EUV2UDS.rod
   VCID: 2F43C82A76388F59C61-807A

   Data medium:
   Subsystem 1 - Part No: 3AA 919 866
   Component: EUR_W_V5  0055

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels: 3C0-959-70X-GEN4.clb
   Part No SW: 5N0 959 701 G    HW: 3C0 959 793 C
   Component: TUER-SG FT    002 0504
   Revision: 12110009    Serial number: 0008308251
   Coding: 0212B6
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001
   ROD: EV_TSGFPQ35BRFVW46X.rod
   VCID: 3957F672B87C51E9685-806C

   Slave Driver:
   Subsystem 1 - Part No SW: 5N0 959 704 F    HW: 3C0 959 795 C
   Component: J389__TSG-HR  009 1504
   Serial number: 00000008645443
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb
   Part No: 5N0 909 144 R
   Component: EPS_ZFLS Kl. 202    3501
   Revision: 00H22000
   Shop #: WSC 01324 785 00200
   VCID: 40A19B9613A600212FB-8015

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels: 3C0-959-70X-GEN4.clb
   Part No SW: 5N0 959 702 G    HW: 3C0 959 792 C
   Component: TUER-SG BT    002 0504
   Revision: 14110009    Serial number: 0008276528
   Coding: 0213B6
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001
   ROD: EV_TSGBPQ35BRFVW46X.rod
   VCID: 3A55E97EBD7A5AF161F-806F

   Slave Passenger:
   Subsystem 1 - Part No SW: 5N0 959 703 F    HW: 3C0 959 794 C
   Component: J388__TSG-HL  009 1504
   Serial number: 00000008637995
   Coding: 000090

No fault code found.

-------------------------------------------------------------------------------
Address 53: Parking Brake        Labels: 3AA-907-801.clb
   Part No SW: 3AA 907 801 H    HW: 3AA 907 801 H
   Component: J540 EPB4  VW-86594 0010
   Revision:   H19       Serial number: 00000002080899
   Coding: 0026167
   Shop #: WSC 01357 011 00200
   VCID: 364DFD4E4162BE91857-8063

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels: 1K0-907-534.clb
   Part No SW: 7N0 907 534     HW: 7N0 907 530 AN
   Component: Batt.regelung H56 1642
   Serial number: 180314F1001395
   Coding: 030F1859
   Shop #: WSC 01357 011 00200
   VCID: 71C70E52A88CD9A9905-8024

   Subsystem 1 - Part No SW: 1K0 915 181 H    HW: 1K0 915 181 A
   Component: J367-BDM  H07 0180

No fault code found.

-------------------------------------------------------------------------------
Address 65: Tire Pressure        Labels: None
   VCID: 558F5AC2BC2495896CD-8000


-------------------------------------------------------------------------------
Address 6C: Back-up Cam.        Labels: 5N0-907-441.clb
   Part No SW: 5N0 907 441 A    HW: 5N0 907 441 A
   Component: J772__Rearview      0030
   Revision: 00H13000    Serial number: 525PA8-J399332
   Coding: 0000010
   Shop #: WSC 98765 666 38384
   VCID: 2D7FD222B434FD49F4D-8078

No fault code found.

End-------------------------(Elapsed Time: 03:17)--------------------------


I am sure I read somewhere the VW controller can't be used on a Skoda hence why there are no models listed.





Did anyone come up with a solution? - I have this exact same issue, installation all went well, but as dstev2000 says,

"6C backup camera controller.. will not accept ANY coding changes whatsoever, i keep getting the 'out of range' error code.

and

I've registered the camera controller in the canbus gateway (6C backup cam) but the coding is the main issue, it also throws up an error code 01042 (control module not coded). "



Also my Optical Parking system display has disappeared.. just makes beeping sounds now.



Any ideas welcome!!

I fitted a RVC to our SII estate -

I have attached the VCDS of the 6C controller after calibration.



If your OPC is suddenly playing up and you should not have done anything to it for the RVC installation, go back to the last coding where the OPC was working and delete the DTCs. Otherwise it may have coincidentally become faulty.

RVC_cal.txt
