Can anyone tell me the part number for the ASZ engine?



ebay brings up multiple variants like : http://www.ebay.co.uk/itm/Genuine-VW-Golf-MK4-Bora-1-9-TDI-PD130-ASZ-Upper-Intercooler-Pipe-1J0-145-770-Q-/231519878615?pt=LH_DefaultDomain_3&hash=item35e7a8fdd7



and http://www.ebay.co.uk/itm/VW-Golf-Mk4-1-9-TDi-ASZ-130-BHP-Plastic-Intercooler-Pipe-1J0145770Q-/321149082263?pt=LH_DefaultDomain_3&hash=item4ac5fa1a97



Buy all look different shapes, angles and diameters.

http://pages.ebay.com/link/?nav=item.view&alt=web&id=111624601340

not that part i want.



thats off the intercooler, i want the part after the 90 turbo elbow down to that part.

I'm confused, the lower boost pipe, from the turbo to the intercooler

Or

From the intercooler up to the egr valve?

The bottom is basically a 90° silicone, into the pipe I posted and then another 90° silicone.

Which part from here?

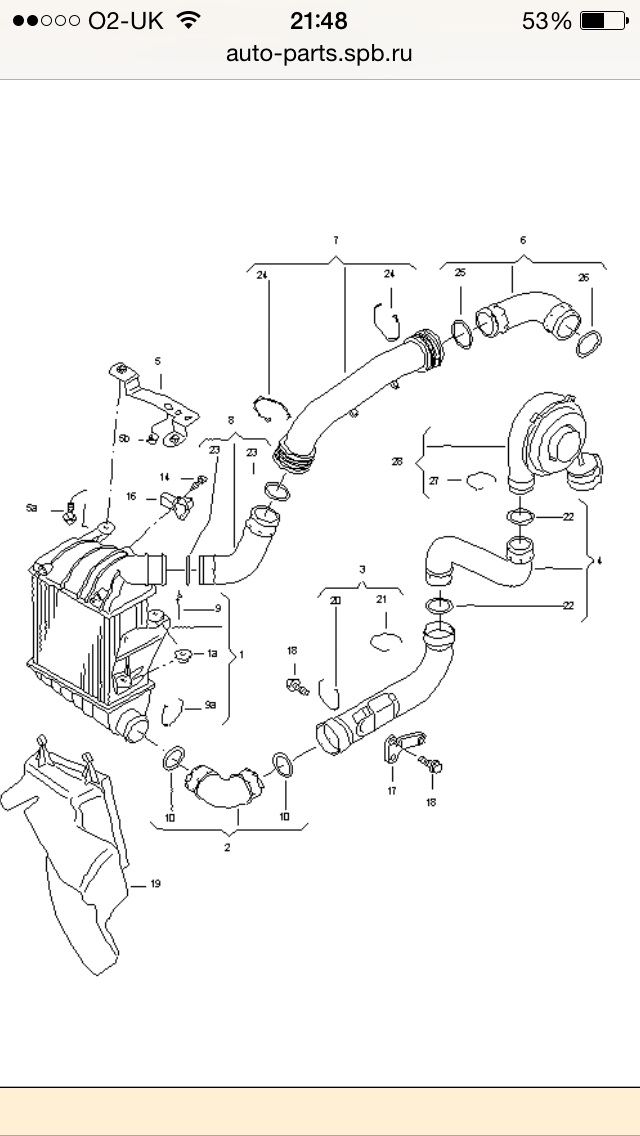

Part number 3 i guess, but mine didn't look like that diagram, it was a hard pipe, that was vertical with a rubber 90 to the turbo

That diagram is from a golf ASZ engine. It's pretty much exactly the same apart from the S shape pipe number 4 is a 90° on the Fabia.

Number 3 you wanted is the part I listed above.

Sorry i mean number 4, the part after number 3

I have part 4 sitting in the bottom of my tool box. Iirc it's basically just a 90° silicone pipe, same as the rest.

That diagram is from a golf ASZ engine. It's pretty much exactly the same apart from the S shape pipe number 4 is a 90° on the Fabia.

Number 3 you wanted is the part I listed above.

How can you tell? I guess the diagrams would be similar

The part number should be 6Q0145822

what came off mine was a hard plastic that went vertically off that was a 90 degree silicon, and looked like : http://www.ebay.co.uk/itm/201323618156?_trksid=p2060353.m1431.l2649&ssPageName=STRK%3AMEBIDX%3AIT

So its that plastic one you need?

I apologise if I'm confusing anyone.

But pretty sure this is number 4 from the diagram, like I said from a golf.

http://pages.ebay.com/link/?nav=item.view&alt=web&id=271832279331

So its that plastic one you need?

That's the top boost pipe I'm sure, from

The egr valve etc..
