Wiring diagram for coolant fan system 2002 Fabia 1.4 MPI AQW w/o Air condition

Followers

18 January18 Jan

Does anybody have this wiring diagram ?

18 January18 Jan

Sponsor

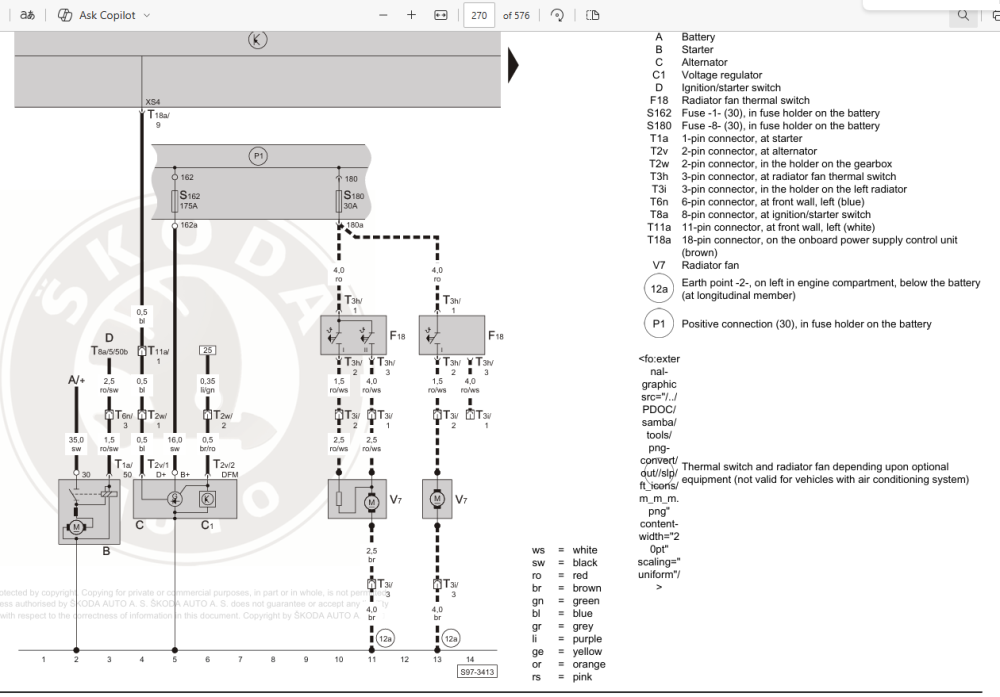

This I think. Two options shown, single and dual speed fan.

Fuse 8 in battery fusebox is a standard blade fuse hiding beneath a cover to the right of the strip fuses. Failure of first/low speed function of fan is common; internal resistor burns out.
