hello,

need a relay box diagram 1,2 tsi 2014.

i have 11 relays behind the main fusebox .

1x644

4x645

6x646

i cant find this specific one online

what do they do?

thank you

Layout of relay box for a 2014 1,2 tsi 86hp

1x644 (sqr white)

4x645 (sqr blk)

6x646 (slim)

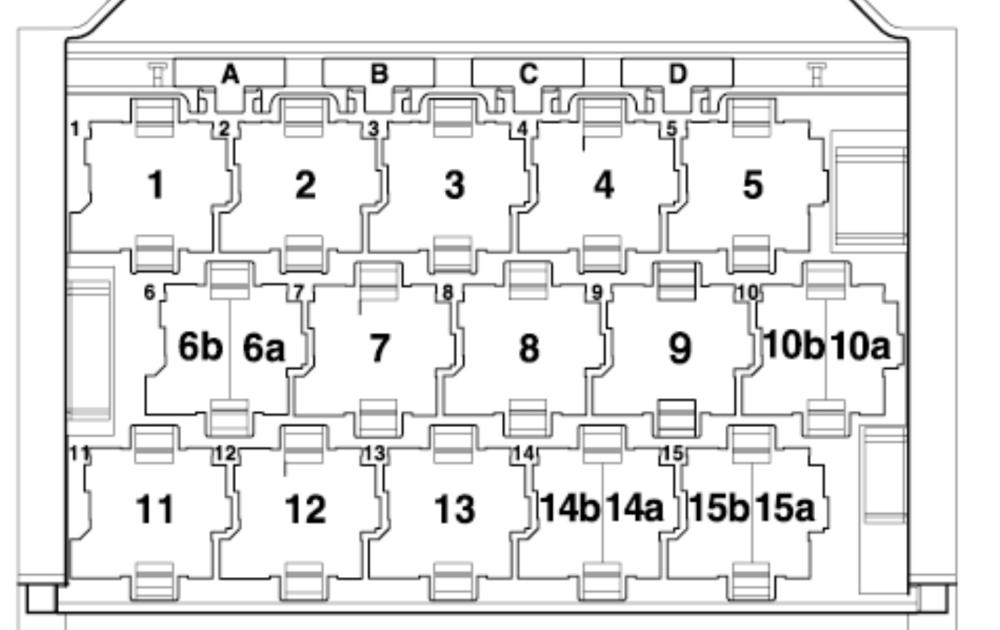

this is how i see it...the layout front view .... but all the numbers are upside down on the relays

646				645	646	646
	646	645	644	645	646
		646	645

Would be interested to find our where you get one. Have tried online for my octavia and fabia and cant find anything. Plenty fuse diagrams but no relays for some reason.

Alasdair

if it can help

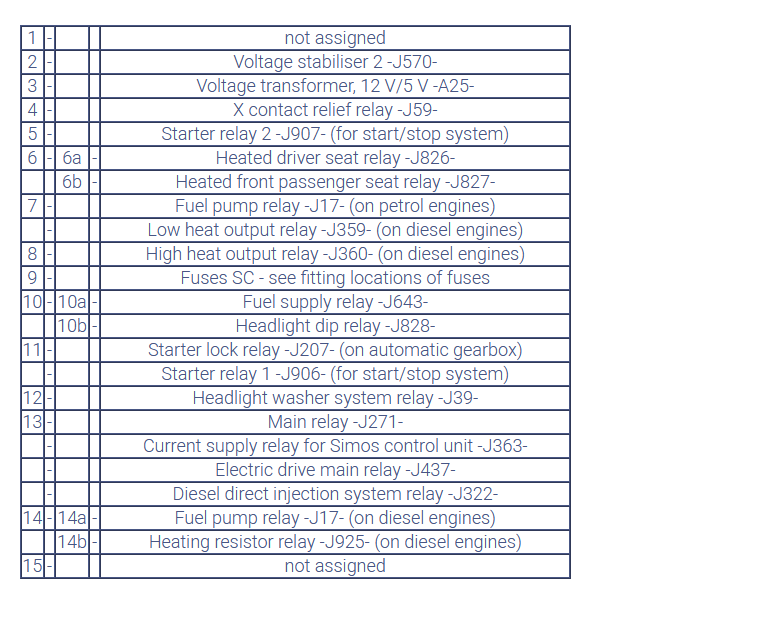

not the same ...in my case petrol engine not diesel and nr 8 is contact relay the 644 for me and there is a high heat output relay.

its similar.
