KoenG

haha I've found it. With the hybrid it's under the passenger seat, not in the back.

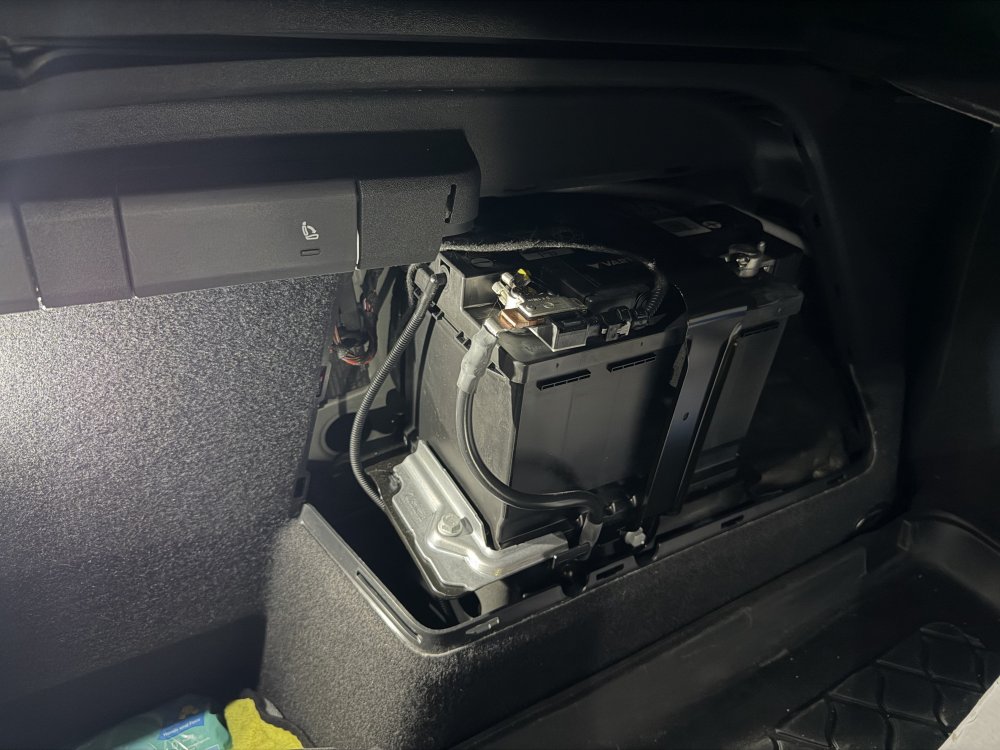

Where is the canton amp? Manual says left side but can not find it. Behind the battery?

Hi, anyone the Current Flow diagram available? I have all the workshop manual documents except fro the Current Flow.

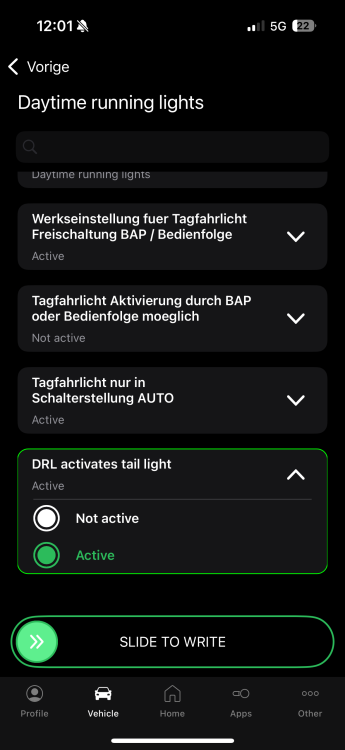

I'm trying to activate the tail light with DRL. I'm not able to write it with OBD. Also the security code 31347 that Ive used with Kodiaq 2019 doesn't work. Is there already a new security code available? It's for the Kodiaq 2025

I'm getting a new camera from the dealer. They discussed with Skoda and I'm getting another model

Absolutely. But it’s not dirt. It’s low res. I see a lot of user complain about it. Even the Skoda dealer makes it excuse for it.

And what compared to the front camera?

I have the 360 camera. Front camera is very good HD quality, rear camera is really bad low quality. Reseller days its standard. Anyone has same problem? Of a way to fix this? With MK I there where some sliders to change, with MK II they are not there anymore,

CAR is already gone now 😬 new Kodiaq phev sportline arrived

I did the logo change to VRS, I'm going to sell the car and want to return it to default. I've selected version 1 (hood open) and then a reset of the unit. But the logo doesn't change to default. Anybody can tell me the coding? VRS logo on ODB Select Control unit 17 (Dash Board) Long coding Select: Start screen Value: Version 3 [standard: Version 1]

Perfect place for wiring 👍🏼 with most amps you can get a small sub controller button. You can place it in front and control the sub with the knob.

I've downloaded them but the one that I need is missing Do You have this one also? Skoda Kodiaq PS from 2024 wiring circuit diagram repair workshop manual

I tried everything and was not satisfied. So I've replaced and disabled canton complete. Put in a Audison DSP, replaced all the speaker and place a subbox. All with enough power. And that was amazing, complete changed the system. The 100 or 200 Watt output for a subwoofer in these big cars will never be sufficient. You need to have 400-600 to get it to work fine. I'm changing my Kodiaq I to II in few weeks. First thing I will do is removed the speakers and replace them (luckily they are now 4 ohm instead of 8 in front) and use the dsp again to calibrated again.

Perfect 👌🏼

Hereby nice website for the new workshop manuals for the new Kodiaq https://cardiagn.com/skoda/skoda-kodiaq/

I'm still looking for this workshop manual: Skoda Kodiaq PS from 2024 wiring circuit diagram repair workshop manual eBook It can be bought online but I think it's bit expensive. Kodiaq I manuals can be downloaded no problem. I have a friend with garage that can download them officially but he needs a VIN number from a Kodiaq PS II to be able to do that. If someone is willing to do so and hand me there VIN number I can get the files and I will post them. My new Kodiaq will be delivered end of February other wise I would use my own VIN number of course will be discreet and not shared.

Is there already a pdf with wire diagram available as with the MKI? Need to check the Canton 38 pin layout.

It's all 4 Ohm

I know that all the speakers are now 4 Ohm of the new Canton system. What makes it easier to or replace or add and dsp amp. With my MKI Kodiaq I've disabled Canton and put a 8 channel dsp amp what was amazing. Now in January I will get my Kodiaq MKII PHEV also with Canton. It's now placed in the rear instead of under the driver seat. But has anyone pictures or more specs of the amp and the connections? The MKI has a 38 pin connector.

I've seen the configuration for the new Canton. https://www.canton.de/en/partner/automotive/kodiaq/ But before it mentioned the Ohm values, now doesn't show it. Anybody know what the Ohm is for the different speaker?

Thanks! 😀 haven’t found it yet. 👍🏼

Dos anybody have the specs for the new canton amp and speaker config?

Is there already a new forum for the 2024 hybrid version? I'm trying to find the specs of the Canton amp and speaker configurations in the new 2024 model. Like watt and ohm.

Don't believe it's possible. Kodiaq was also only possible till I believe 2020.

I set the max volume startup of the MIB to a higher value but everytime when I get in the car again it is on a lower value. So it doesn’t keep te value. Any one had this? Or a solution?
