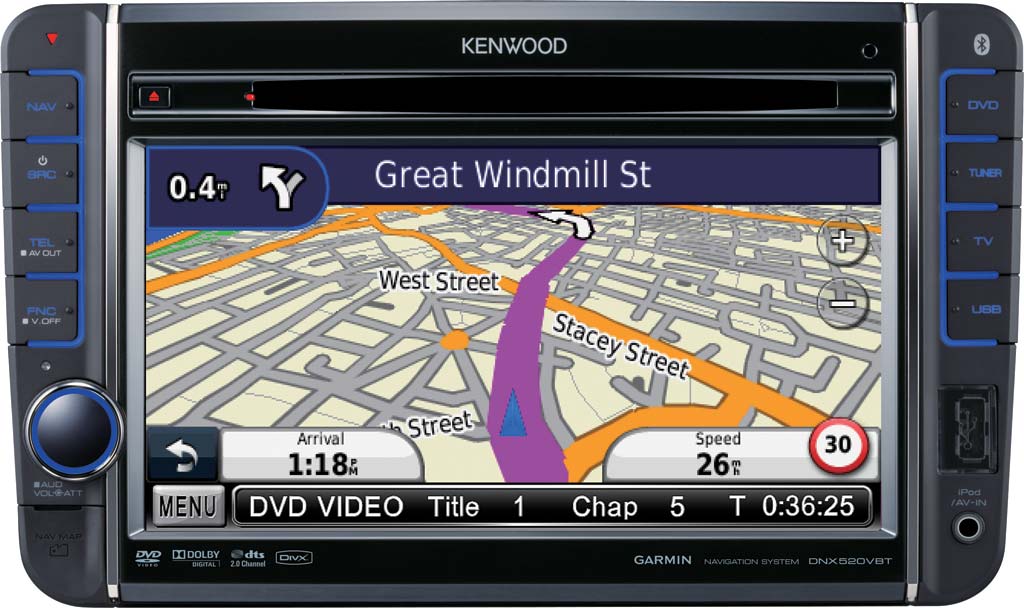

For sale is a Kenwood DNX520VBT.

This headunit is shaped like a Columbus and therefore fits into any Columbus shaped hole on an Octavia 2, Superb, Yeti, Fabia and Roomster.

It offers Parrot Bluetooth, iPod control, Navigation DVD, TV (with optional box), rear camera input, USB, pre-outs and more!

Maps on board are 2010 I think, but I will supply 2012/2013 maps on Micro SD card with the unit. Latest firmware installed and lifetime TMC on the unit.

It is in mint condition, with box, manual, looms to plug and play on most modern Skodas and also VW/Seat, GPS aerial and new BT microphone.

Can be seen working before you buy (it's out of the car right now).

More details and pics here: http://www.kenwood-e...r/vw/DNX520VBT/

£500 ono or might swap for a Skoda Navi headunit?

Detailled specs below:

Key Features 7.0 inch Wide VGA colour TFT Designed for VW, ŠKODA & SEAT cars Variable key illumination (Hard keys & GUI colour) 1 AV-In (Front), 1 AV-Out, 1 Video In for optional rear view camera iPod, iPhone USB direct control (Requires KCA-iP240V) Bluetooth built-in (handsfree profile/SMS) Built in Garmin Navigation system (new platform), with V12 map included TMC(pro) decoder built-in) Front micro SD slot for navigation update DivX, MPEG 1/2 Video File & JPEG File, AAC, WMA, MP3 playback

General Features Disabled System Indicator (DSI) Yes Security Code Function ( user set) Yes On Screen Display (OSD) Operation Yes Smooth GUI Yes Key Illumination Variable colour Rotary Encoder & Control Knob Yes Installer Memory Yes Back-up Memory Yes Attenuator with Smooth Volume Return Yes Touch Sensor Tone Yes Optional IR remote controller Yes, KNA-RCDV331 Digital Clock (24H) Yes ISO connector Yes Bluetooth unit built-in (powerd by Parrot) Yes Navigation unit built-in Yes

Navigation Features Touch-screen controllable Yes IR Remote controllable Yes, Remote optional (KCA-RCDV331) Easy-to-use Graphical Interface Yes Built-in Map Data V12 Map Upgrade via micro SD Card Phone call by POI search Yes Lane Asssitance Yes ecoRoute™ Yes Traffic Message Channel Built-in Yes, With TMC-Pro support in Germany TMCpro decoder Yes, needs upgrade EGNOS System Compatible Yes Vehicle Position Sensing by GPS Trip Computer Yes

Monitor Features Screen Type TFT 7.0" Wide Display Mode 4 Mode (Full/Just/Zoom/Normal) High Resolution VGA Display Yes Screen Adjustments Brightness/Tint/Color/Contrast/Black Level/Dimmer Dimmer function ON/OFF/Sync/Navi-Sync Visual Source Mode DVD/Video/Navigation/(TV)/USB/iPod Touch Panel Yes Mechanism Angle Adjustment none (fixed faceplate) NTSC/PAL judge Auto

Multimedia GUI Features OSDC Type Full Graphics GUI colour coordinate Yes Menu text English Skin Change Yes, 3D, Fire & Metal Colour Pallet 29790 Background Customize Yes

Tuner Features Radio Data System Yes Radio Text Plus Yes Program Type Function (PTY) Yes Enhanced Other Networks Function (EON) Yes K3I - Clean Reception Tuner Yes FM Reception Yes AM (MW/LW) Reception Yes Presets 24 Presets (18FM / 3LW / 3MW) Station Select List Automatic Memory Entry (AME) Yes Up/Down Seek Tuning Yes Tuning mode (Auto1 / Auto2 / Manual) Yes FM Stereo / Mono Selector Yes

DVD-Features Mechanism DVS-8220 Disc Capacity 1 Disc(s) DVD±R/RW Compatible Yes DVD Region Code 2 VCD Compatible Yes CD-R/RW Compatible Yes CD Text Yes MP3, WMA,AAC & WAV playback Yes Digital/Analog Converter 24 bit Shock Proof Yes MPEG1/2 Video File (.mpg) Compatible Yes JPEG File (.jpg) Compatible Yes DivX (Certified) Yes CD-DA Repeat/Scan/Random play Yes Direct Search Yes Time Code Display Yes Resume Play Yes Zoom Control (DVD/VCD) Yes Disc Menu Direct Touch Yes Picture Control (JPEG) Yes JPEG slide show Yes

USB Features USB terminal Yes USB Type USB1.1 / USB 2.0 MP3, WMA, AAC & WAV playback Yes MPEG1 Video decoder Yes MPEG2 Video Decoder Yes DivX Video Decoder Yes JPEG picture control Yes JPEG slide show Yes Repeat/Scan/Random search Yes Category search Yes Resume play Yes Time code display Yes

iPod Features Made for iPod & iPhone * Yes USB Video & Audio direct control (2 wire) with optional KCA-iP240V Music playback Yes Video playback Yes Album art support Yes Music library search Yes Alphabet search Yes, up to characters Works with iPod Classic * 80G & 120G Works with iPod Video * 5th/6th generation Works with iPod Touch * 1st/2nd Gen Works with iPod Nano * 1st/2nd/3rd/4th/5th Gen Works with iPhone * Yes, iPhone, iPhone 3G & iPhone 3GS Battery charge + power control Yes * Always update to latest Apple firmware

Audio features Max. Output Power (MOSFET Power IC) 4 x 50W Pre-out 3RCA: Front/Rear/Subwoofer Pre-out Output Level 2V Auxiliary Input AV Front Input with optional CA-C3AV Rear / Subwoofer Switchable Yes Subwoofer Reference Level Adj. Yes Dual Zone Source & Volume Control Yes Dual Zone (FRONT / REAR Switchable) Yes Source Tone Control & Memory Bass / Mid / Treble Balance/Fader Control Yes Loudness Control Yes Att.(-20dB) with smooth Volume Return Yes System QEX (Preset & Manual Sound Control) Yes System E's+ (Built-in HPF & LPF) Yes Beep On/Off Yes

Video Features Audio/Video Output 1 RCA Audio/Video Input Yes, Mini-jack in front panel, need optional CA-C3AV iPod AV input switchable to additional AV input Yes Video-In for Rear-view Camera 1 dedicated video input (RCA) Detection Mode Rear View Camera Reverse sensor wire DVD Menu Direct Touch Operation Yes MPEG Decoder Yes TV ready Yes

Connectivity OEM Wired Remote Control Yes Parking sensor wire Yes Reverse sensor wire Yes Power Control (P.CON) wire Yes 2-way (Tel/Navi) mute wire Yes Dimmer control wire Yes TV Tuner Control Yes GPS Antenna Input Yes External microphone input Yes

Bluetooth General Features Hands free Profile (HPF) Yes Serial Port Profile (SPP) Yes Headset Profile (HSP) Yes Phonebook Access Profile (PBAP) Yes Phone numbers hold: up to 1000 per registed cell-phone. Object Push Profile (OPP) Yes Synchronization Profile (SYNC) Yes Short Message Service (SMS) Yes Phone device status display Yes Signal strength display Yes Remaining battery display Yes Bluetooth phones to register 5 High-quality noise canceling microphone Yes, external microphone Bluetooth firmware upgradeable Yes * depends on phone model/make

Tuner Specifications FM Frequency Range 87.5MHz ~ 108MHz FM Frequency Step 50kHz FM Usable Sensitivity 0.7?V/750ohm (S/N 26dB) FM Quieting Sensitivity 1.6?V/75ohm (S/N 46dB) FM Frequency Response 30Hz ~ 15kHz (± 3dB) FM Selectivity(DIN) over 80dB (±400kHz) FM Stereo Separation (1kHz) 35dB MW Frequency Range 531kHz ~ 1611kHz (9kHz step) MW Frequency step 9kHz MW Usable Sensitivity 25?V LW Frequency Range 153kHz ~ 281kHz (9kHz step) LW Usable Sensitivity 45?V

DVD Specifications D/A Converter 24 bit Video decoder Linear PCM/Dolby Digital/dts/MLP/MP3/WMA/AAC Audio decoder MPEG1/MPEG2/MPEG4(Divx) Wow & Flutter Below Measurable Limit Freq. Resp. (96kHz Sampling) 20Hz ~ 44kHz Freq. Resp. (48kHz Sampling) 20Hz ~ 22kHz Freq. Resp. (44,1kHz Sampling) 20Hz ~ 20kHz Total Harmonic Distortion 0.01% (1kHz) Signal to Noise Ratio 98dB (1kHz) Dynamic Range 98dB FM Signal to Noise Ratio 65dB(MONO) Disc Format DVD-Video/Video-CD/CD-DA Sample Frequency 44.1kHz/48kHz/96kHz Quantifying bit number 16/20/24bit

USB Specifications USB Version compatibility 1.1 / 2.0 File System FAT 16/32 Maximum Supply current 500mA D/A Converter 24 bit MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC "m4a" Files WAV Decode Linear - PCM Files Acceptable video files MPEG1, MPEG2, DivX Acceptable video files extentions mpg, mpeg, m1v, m2v, divx, div, avi

Audio Specifications Maximum Power 50W x 4 Output Power (DIN45324,+B=14.4v) 30W x 4 Preout Level 2000mV / 10kOhm, Preout Impedance ? 600Ohm Speaker Impedance 4Ohm ~ 8Ohm Bass Tone Control 100Hz ±10dB Middle Tone Control 1kHz ±10dB Treble Tone Control 10kHz ±10dB

Video Specifications Color System of External Video Input NTSC/PAL External Video Input Level (RCA) 1 Vpp / 75 Ohm External Audio Max. Input Level (RCA) 2 V / 25 kOhm Video Output Level (RCA) 1 Vpp / 75 Ohm Audio Output Level (RCA) 1.2 Vpp / 10 kOhm

Monitor Specifications Screen size (Diagonal) 6.1 Inches Wide Screen Size (WxH) 136 x 72mm Display system Transparent TN LCD Panel Drive system TFT Active Matrix System Number of Pixels 1152000pixels (800(H) x 480(V) x RGB) Effective pixels 99.99% Pixel arrangement RGB Striped Back lighting LED (Light Emitting Diode)

Bluetooth specifications Technology bluetooth 1.2 certified Frequency 2.402 - 2.48 GHz Output power +4dBm(max), 0dBm (AVE) power class 2 Maximum range Line of sight approx. 10 meter Handsfree profile (HFP) Yes Serial port profile (SPP) Yes Object push profile (OPP) Yes Phonebook access profile (PBAP) Yes

Navigation specifications Receiver type High sensitivity GPS receiver Receiver frequency 1575.42 MHz (C/A code) Acquisition time cold < 38 sec Acquisition time, factory reset < 45 sec Update rate 1/sec continuous Position accuracy < 10 meters/typical Velocity accuracy 0.05 meter/sec RMS Positioning method GPS Antenna External GPS antenna

Accessories DC cord (Molex to ISO) 20 cm GPS antenna with 500 cm cable Handsfree Microphone with 300 cm cable

General Specifications Operating voltage 14.4V (10 ~ 16V Allowable) Maximum Current Consumption 15A Dimensions (WxHxD) 182 x 112 x 160mm Weight 1900gr Operation Temperature Range -10°C ~ 60°C Storage Temperature Range -20°C ~ 85°C Instruction Manuals ENG/FRE/GER/DUT/ITA/SPA/POR

I have a Factory fitted MFD2 unit in my MK2 vRS I could be tempted to swap for this..... Are you looking to do a straight swap?

I would swap for an MFD3 (Columbus), but not really interested in a 2, sorry!

PM'd you mate.

Sold. :-)
