Hi. I've just experienced the same problem here. Sprayed all bushes and bolts/nut with plus gas for a few days before alignment but the guy today couldn't budge the rear eccentric bolts as they had seized in the bushes. They've given me a price of around £400 inclusive of replacing the lower arms, bushes, bolts, nut, adjusters with OEM from TPS.



My usual garage says they can do it for less by just doing the bushes and replacing the bolts etc. But I need to supply the parts or at least part numbers as if TPS have already quoted for my reg of car they will just supply the whole lot and not just the bushes etc.



Found a diagram here:



http://www.realoem.me/img/Bilder/649/649505050.png



Anyone know part numbers for:



8; 9; 11; 12; 17; 21; 22  all x2. Any other parts I might need for this?



Thanks muchly



Nick.

9 WHT 000 232 Exzenterscheibe 35X3X5X12X105    4x

10 1K0 501 387 C Exzenterschraube M12X1,5X82     2x

(10) WHT 000 227 Exzenterschraube M12X82,5         2x

11 1K0 501 387 D Exzenterschraube M12X1,5X90     2x

(11) WHT 000 228 Exzenterschraube M12X97,5         x2

12 N  10106402 Sechskantbundmutter, selbstsichernd M12X1,5      4x



17 1K0 505 553 A Gummimetall-Lager   2x      PR-1KF,1KD,1KP

18 N  91047502 Sechskantschraube (Kombi) M14X1,5X95      2x

19 1K0 505 193 Unterlegscheibe                                              2x

20 N  10401801 Sechskantbundmutter M14X1,5                  2x

21 N  10610702 Sechskantbundschraube M12X1,5X75      2x

Edited 25 November, 20169 yr by 0ctavist



10 1K0 501 387 C Exzenterschraube M12X1,5X82 2

(10) WHT 000 227 Exzenterschraube M12X82,5 2

11 1K0 501 387 D Exzenterschraube M12X1,5X90 2

(11) WHT 000 228 Exzenterschraube M12X97,5 2





Thanks - but here lies the problem. Why are there part numbers that are different for the same number item and the thread length seems different too? M12x1.5x82 and M12x82.5 etc?



Thanks for the comprehensive list Octavist. I'll go along to my SKoda dealer or Eurocarparts and get prices.

Edited 25 November, 20169 yr by Golf-Fiend

The bushes i got from eurocarparts have a product code 610441630 they are £5.69 each there is more expensive ones but these were in stock.

They are definitely NOT this part number for a 54 plate Elegance 2.0 TDi. They are about 1.5mm too small. I believe 610441635 is the correct number. HTH.

https://nemigaparts.com/cat_spares/etka/volkswagen/go/474/505050/



(the png below isn't hosted anymore)

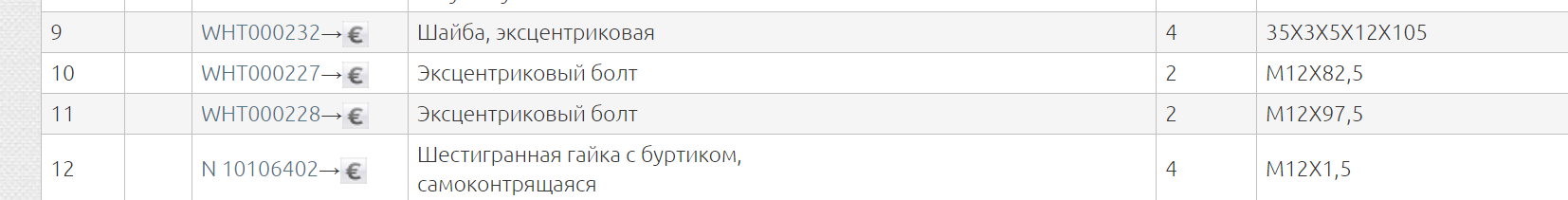

9	eccentric washer	35X3X5X12X105	4		WHT 000 232	1	0.52
10	eccentric bolt	M12X82,5	2		WHT 000 227	1	3.88
11	eccentric bolt	M12X97,5	2		WHT 000 228	-	3.88
12	hexagon collar nut self-locking	M12X1,5	4		N  101 064 02	26	0.53





17	bonded rubber bush		2		1K0 505 553 A	51	9.89
17	bonded rubber bush		2		1K0 505 553	44	-

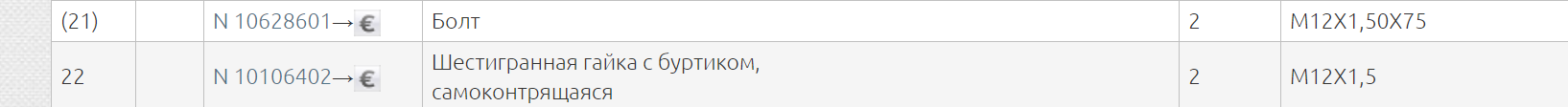

21	hex collared bolt	M12X1,5X75	2		N  106 107 01	-	-
22	hexagon collar nut self-locking	M12X1,5	2		N  101 064 02	26	0.53
