Hi, just bought a used towbar set and I'm about to install it into my '10 Octavia 1.9TDI 4x4.



Does anybody know where I can get the wiring instructions for part # 1K0 907 383E





Have you got the wiring loom to go with it ?



PM sent

Edited 5 April, 201610 yr by patrol man

Thank you, yes, I have the wiring loom.

Nobody?

https://erwin.skoda-auto.cz/erwin/ <-- That will give you factory wiring diagrams directly from Skoda.



Otherwise, this looks about right: http://www.rightconnections.co.uk/sites/default/files/29220508RC%20Piktogramm%20Skoda%20Octavia%20Limousine%20ab%2006-04,%20Combi%20ab%2001-05_3.pdf

Well, just found out though a local Skoda dealer, that I am unable to use this wiring kit since it only supposed to be used on cars up to 2008. :no:

There are 2009, 2010 and 2011 car's running that trailer module, examples scan links below



http://forums.ross-tech.com/showthread.php?2727-2010-Octavia-VRS-BCM-change-Few-problems-help

http://www.briskoda.net/forums/topic/279316-rear-door-central-lock-not-working-many-fault-codes

http://www.vagcars.dk/phpbb/viewtopic.php?f=97&t=61937

Edited 6 April, 201610 yr by langers2k

Hmm.. okay, good to know, this is what the dealer sent me.





Edited 7 April, 201610 yr by MaggiSig

I believe TPI 2017949 relates to updating the CAN gateway software.



The info from the dealer suggests that cars up to 2008 will need the CAN gateway update to use the 1K0 907 383 E module. 2009 onwards should already have a new enough CAN gateway and not need the update

Try dropping PF Jones an email. They'll know what you need and supply it too.

Try dropping PF Jones an email. They'll know what you need and supply it too.

Will do, thank you.

https://erwin.skoda-auto.cz/erwin/ <-- That will give you factory wiring diagrams directly from Skoda.



Otherwise, this looks about right: http://www.rightconnections.co.uk/sites/default/files/29220508RC%20Piktogramm%20Skoda%20Octavia%20Limousine%20ab%2006-04,%20Combi%20ab%2001-05_3.pdf



Was unable to find the wiring kit on this site > https://erwin.skoda-auto.cz/erwin/

I compared these wiring kit to the .pdf instructions from Right Connections, they are somewhat simular but not good enough. > http://www.rightconnections.co.uk/sites/default/files/29220508RC%20Piktogramm%20Skoda%20Octavia%20Limousine%20ab%2006-04,%20Combi%20ab%2001-05_3.pdf

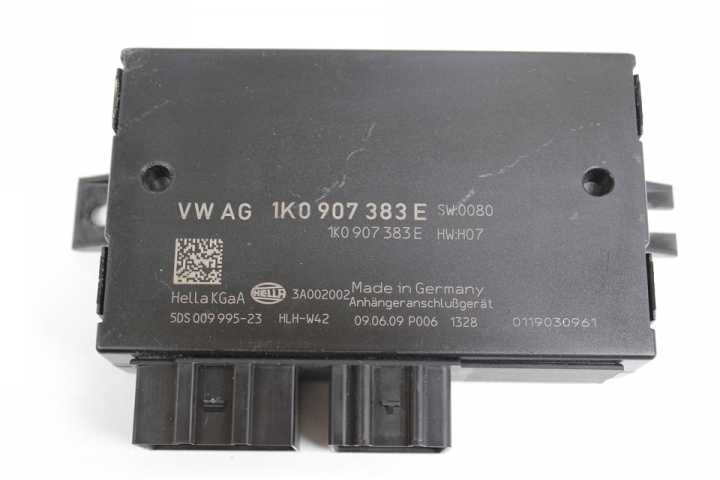

So this is what I'm dealing with, got it from a local used part store. If anyone has the OEM instruction sheet that would be great.
