Unusual electrical issues - won't start

Skodaman80
in Skoda Octavia Mk2 (2004 - 2013)

Featured Replies

Hi all,



I am new here and hope someone can help or point me in the right direction, I have a 57 plate skoda Octavia 1.6fsi it was driving lovely and has been since I had it. However, recently after a short 10 mile journey i came to a stop and the engine died.

It would turn over but not start.



The breakdown guy came out and after plugging in said it was the crank shaft sensor. I got a new one and after about 2 hours managed to get it replaced (these are not in the easiest of places for access!)

However, this didn't cure the problem.



I left the car for a while and as the battery went flat I bought a new one m, fitted it and tried to start. I noticed when the ignition is on the brake lights come on, front wipers wont go on at all, if I indicate right there is a green light on the dash that looks like a foot with a pad either side, the steering warning also comes on?

The car will still turnover but not start.



I have checked all the fuses which are ok double checked charging the battery and earth points (as best as I can may of missed some?) but I still have the same issue turnover won't start and all the random electrical problems above.



Does anyone have any idea where I start with this?



Any help much appreciated.

Full fault code scan would be useful to be honest.



When cranking does the rev counter move?

  • Author
3 hours ago, Tech1e said:

Full fault code scan would be useful to be honest.



When cranking does the rev counter move?



Hi,



Yes I am waiting on a lead to do this at the moment. But yes the rev counter does move when cranking.

  • Author

Just a bit of an update.....

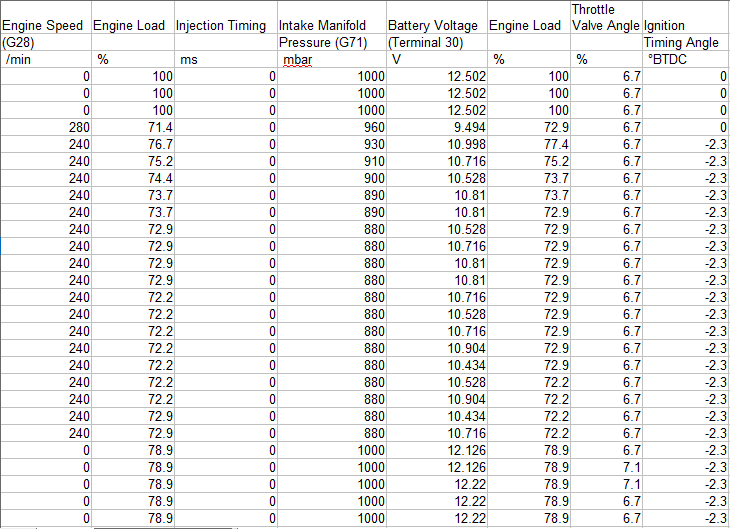

My cable still hasn't arrived yet but I got hold of a friends basic elm327 and put it through a free obd program. (not the best to use on these types of car I know the vcds etc. Is the most comprehensive)

But got error code P0404 this is something to do with the egr but wouldn't of thought this would stop it starting completely?

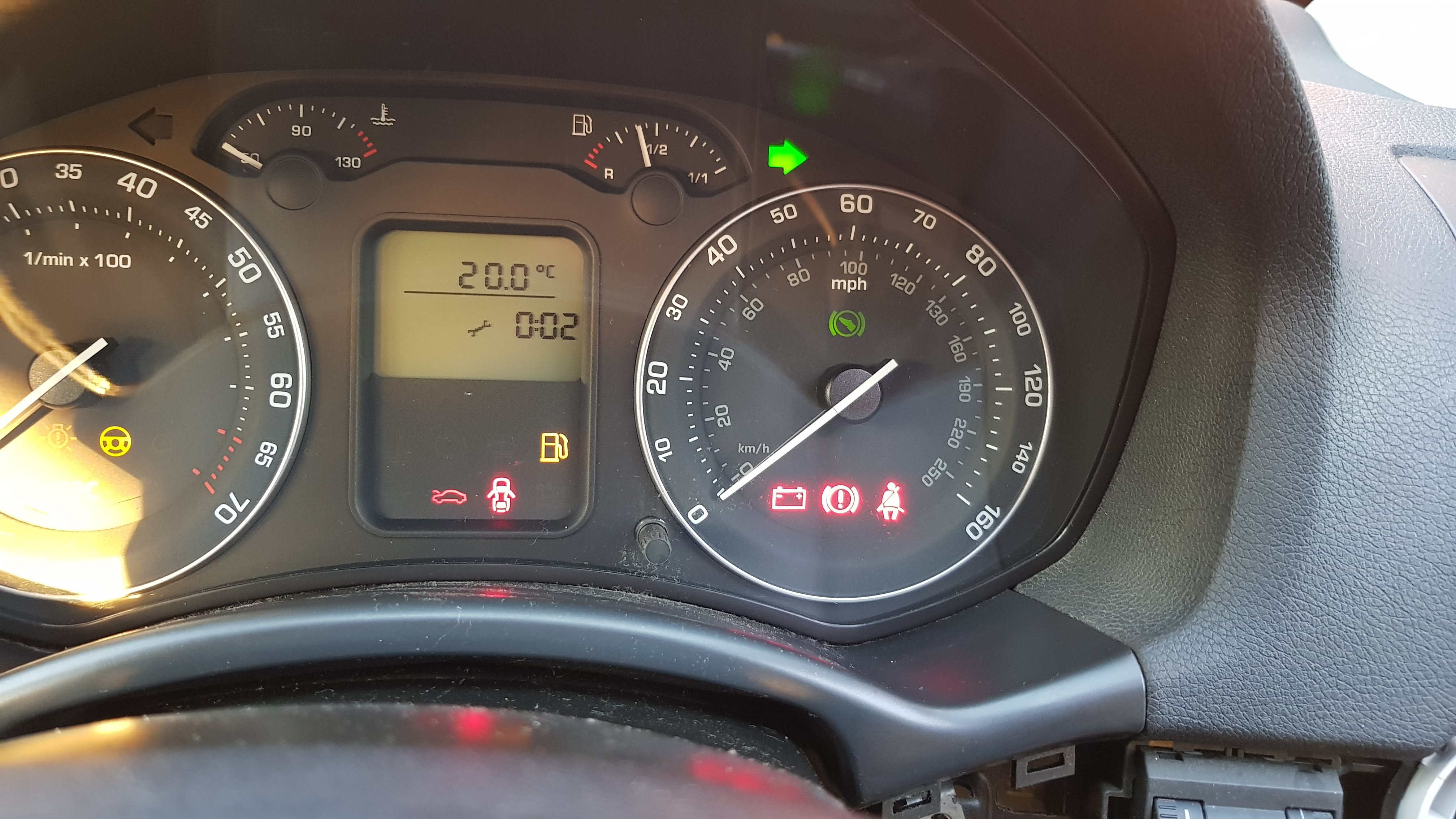

I have also attached 2 x pics one of the dash when indicating right (the foot icon seems to be to do with automatic transmission although this car is a manual and I've never seen that light before)

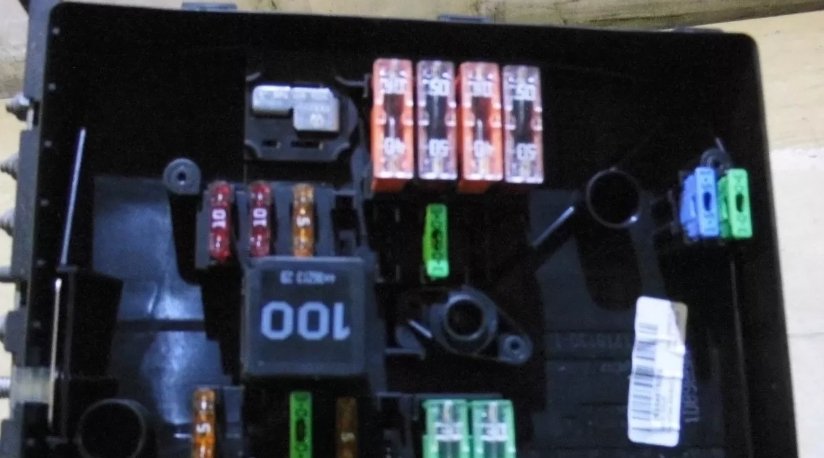

Also don't know if it's normal but the relay marked 449 (upside down on the left of my pic) is extremely hot to the touch after ignition has been on for a bit.



Once I get my cable I will update a bit more with hopefully some more in depth code/fault reads.



And the low fuel indicator is lit even though the fuel is not low.

Funny thanks happen when the battery has been low voltage, As a first step I would disconnect the new battery for a few minutes to be sure that when you reconnect it again really is a clean reboot with no hangovers.

if you have a multi-meter, check the battery is around 12.6 V or higher. The electronics are more sensitive to reduced voltage on our cars compared with previous generations.

  • Author
1 minute ago, pikpilot said:

And the low fuel indicator is lit even though the fuel is not low.

Funny thanks happen when the battery has been low voltage, As a first step I would disconnect the new battery for a few minutes to be sure that when you reconnect it again really is a clean reboot with no hangovers.

if you have a multi-meter, check the battery is around 12.6 V or higher. The electronics are more sensitive to reduced voltage on our cars compared with previous generations.



Hi,

Yes the fuel light is on too with just under half a tank on the guage (this could also be a duff reading? Although I have put at least 15liters from petrol cans in so I know it has fuel), I have put a meter on the battery and have a good 12.83v. No change disconnecting for a bit then putting back on - same p0404 code and turns over but wont start.



Also this evening I have taken out and cleaned and tested the starter motor as well just incase which is all working well.



I guess something is shorting maybe, but no idea where I'd start and I'd if hoped that a fuse may of blown if that was the case?





  • Author

Just a mini update still no cable!!



I manage to get at the brake like switch this evening and change it however didn't make any difference. (Another PITA to get at too!)



When I turn ignition on and brake lights come on if I take the bulbs out or disconnect the wiring plug and put back in the bulbs do stay off and work correctly when the brake pedal is pressed and released. But turning ignition off then on again makes them come back on constant again if this means anything to anyone?



Think I need to try and get hold of a schematic and trace back all the wiring? I can't seem to find a Haynes for this car though only petrol and diesel till 2004





Hello,



I imagine that it might be a bit more complicated than this but a dodgy earth connection can cause all sorts of electrical or electronic weirdness so that might be worth looking for to see if an earth strap has come adrift somewhere?



Best of luck with it anyway - sounds like a nightmare. 😬

  • Author
1 minute ago, ethel said:

Hello,



I imagine that it might be a bit more complicated than this but a dodgy earth connection can cause all sorts of electrical or electronic weirdness so that might be worth looking for to see if an earth strap has come adrift somewhere?



Best of luck with it anyway - sounds like a nightmare. 😬



Hi thank you, I have checked and re seated the earth points as many as I can find and they all seem ok I have also greased them up too.



I did find if I remove fuse 6 from the dash panel which apparently covers the following: Instrument cluster, Control unit for automatic gearbox, Control unit for electromechanical power steering, Parking aid; Haldex clutch



Then the brake lights no longer come on with the ignition so possibly instrument cluster at fault? Or cabling associated with it.



Hopefully my cable comes this week so I can get a code read properly and see what comes up.

3 minutes ago, Skodaman80 said:



Hi thank you, I have checked and re seated the earth points as many as I can find and they all seem ok I have also greased them up too.



I did find if I remove fuse 6 from the dash panel which apparently covers the following: Instrument cluster, Control unit for automatic gearbox, Control unit for electromechanical power steering, Parking aid; Haldex clutch



Then the brake lights no longer come on with the ignition so possibly instrument cluster at fault? Or cabling associated with it.



Hopefully my cable comes this week so I can get a code read properly and see what comes up.

Hi there - yeah, it was a bit of a long shot to be honest - blame years of owning Italian cars(!)

It sounds like a module has failed or perhaps needs to be reset so a scan should at least help you isolate which bit has gone kaput.

Keep us posted and again, best of luck. :thumbup:

D.

  • Author

Finally have the diagnostics read out - Apologies for a massive post!

Hopefully this may help pin doe the cause(s) the vehicle still won't start. Super grateful for anyone who can shed some light on this or point me in the right direct to getting sorted.



I will list only the items showing as fault (3 reports 1st one is initial read, 2nd one is after a clear, 3rd is after attempting to start):



FIRST - Initial Read (Without clearing any codes)

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: Malfunction 0010
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: Malfunction 0010
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: Malfunction 0010
52-Door Elect, Pass. -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: Malfunction 0010
72-Door, Rear Right -- Status: Malfunction 0010

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03C-906-056-BAG.lbl
   Part No SW: 03C 906 056 EB    HW: Hardware No
   Component: MED9.5.10        00 0144
   Revision: 66H09---    Serial number: SKZ7Z0G4374477
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 67DD0D9D566DD37274-8032

9 Faults Found:
005123 - EGR System
               P1403 - 008 - Regulation Deviation
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 10200 /min
                    Load: 100.0 %
                    Speed: 255.0 km/h
                    Temperature: 215.0°C

000152 - Intake Air Temperature Sensor 2 (G299)
               P0098 - 002 - Signal too Low
             Freeze Frame:
                    Fault Status: 01100010
                    Fault Priority: 0
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 10200 /min
                    Load: 100.0 %
                    Speed: 255.0 km/h
                    Temperature: 215.0°C

000406 - Engine Oil Temp. Sensor (G8)
               P0196 - 004 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 0
                    Fault Frequency: 2
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 10200 /min
                    Load: 100.0 %
                    Speed: 255.0 km/h
                    Temperature: 215.0°C

001669 - ECM Power Relay Control Circuit
               P0685 - 008 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: -40.0°C

001393 - Brake Switch (F)
               P0571 - 008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 00:40:35

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 28.0°C

049493 - No Communication with Instrument Cluster
               U0155 - 008 -  - Intermittent
             Freeze Frame:
                    Fault Status: 00101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 28.0°C

049508 - No Communications with HVAC Control Module (J301)
               U0164 - 008 -  - Intermittent
             Freeze Frame:
                    Fault Status: 00101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 28.0°C

005687 - Powertrain Data Bus
               P1637 - 008 - Missing Message from Electric Load Controller - Intermittent
             Freeze Frame:
                    Fault Status: 00101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 28.0°C

049478 - No Communication with Diagnostic Gateway
               U0146 - 008 -  - Intermittent
             Freeze Frame:
                    Fault Status: 00101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 0 km
                    Time Indication: 0

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 28.0°C

Readiness: 1110 0101

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK70.lbl
   Part No: 1K0 907 379 P
   Component: ASR FRONT MK70      0105
   Coding: 0017025
   Shop #: WSC 73430 790 00000
   VCID: 3F8DF5FD6E7DBBB2EC-806A

2 Faults Found:
00668 - Supply Voltage Terminal 30
            002 - Lower Limit Exceeded - Intermittent
00474 - Control Module for Immobilizer
            004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-820-047.lbl
   Part No SW: 1Z0 820 047 K    HW: 1Z0 820 047 K
   Component: Climatic PQ35   140 0909
   Revision: 00140009    Serial number: 00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 3B7581ED7A65A792C0-806E

4 Faults Found:
00229 - Refrigerant Pressure
            002 - Lower Limit Exceeded
00819 - High Pressure Sensor (G65)
            009 - Open or Short to Ground - Intermittent
01316 - ABS Control Module
            004 - No Signal/Communication
01314 - Engine Control Module
            004 - No Signal/Communication

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-30-M.lbl
   Part No SW: 3C0 937 049 AH    HW: 3C0 937 049 AH
   Component: Bordnetz-SG     H54 2202
   Revision: 00H54000    Serial number: 00000005066195
   Coding: 008C0F030004140000110D000000000000087B075C000000000000000000
   Shop #: WSC 24000 576 92255
   VCID: 6FED65BD7E9D0B323C-803A

   Subsystem 1 - Part No: 1Z2 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 120707 022  0601
   Coding: 00055223
   Shop #: WSC 24000

10 Faults Found:
00987 - Lamp for Brake Light; Left (M9)
            012 - Electrical Fault in Circuit - Intermittent
             Freeze Frame:
                    Fault Status: 00101100
                    Fault Priority: 1
                    Fault Frequency: 2
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.25 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

00988 - Lamp for Brake Light; Right (M10)
            012 - Electrical Fault in Circuit - Intermittent
             Freeze Frame:
                    Fault Status: 00101100
                    Fault Priority: 1
                    Fault Frequency: 2
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.30 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

00906 - Horn (H1)
            009 - Open or Short to Ground - Intermittent
             Freeze Frame:
                    Fault Status: 00101001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        OFF
                    Voltage: 12.45 V
                        OFF
                        OFF
                        OFF
                        OFF
                        OFF

01800 - Light Switch (E1)
            008 - Implausible Signal - Intermittent
             Freeze Frame:
                    Fault Status: 00101000
                    Fault Priority: 3
                    Fault Frequency: 3
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.05 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

00532 - Supply Voltage B+
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        OFF
                    Voltage: 7.20 V
                        OFF
                        ON
                        OFF
                        OFF
                        OFF

01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.35 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

01314 - Engine Control Module
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.35 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

00526 - Brake Light Switch (F)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 8
                    Reset counter: 151
                    Mileage: 249723 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.40 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

00446 - Function Limitation due to Under-Voltage
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 4
                    Fault Frequency: 2
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        OFF
                    Voltage: 7.85 V
                        OFF
                        ON
                        OFF
                        OFF
                        OFF

01309 - Power Steering Control Module (J500)
            004 - No Signal/Communication - Intermittent
             Freeze Frame:
                    Fault Status: 00100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.35 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 T    HW: 1K0 909 605 T
   Component: Q4 AIRBAG VW8   020 2300
   Revision: 05020000    Serial number: 0038PD1BWY97
   Coding: 0020788
   Shop #: WSC 73430 790 00000
   VCID: 3D718FF56471A9A2FE-8068

   Subsystem 1 - Serial number: 6332MSME1C2319122

   Subsystem 2 - Serial number: 6342MSME145C6569K

2 Faults Found:
00532 - Supply Voltage B+
            002 - Lower Limit Exceeded - Intermittent - MIL ON
01317 - Control Module in Instrument Cluster (J285)
            004 - No Signal/Communication - Intermittent - MIL ON


-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1K0-920-xxx-17.lbl
   Part No SW: 1Z0 920 912 B    HW: 1Z0 920 912 B
   Component: KOMBIINSTRUMENT VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0G4374477
   Coding: 0003401
   Shop #: WSC 00011 888 96745
   VCID: 3467AAD1573B68EA01-8060

2 Faults Found:
00446 - Function Limitation due to Under-Voltage
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 191
                    Mileage: 249741 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 08:58:50

00532 - Supply Voltage B+
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 2
                    Fault Frequency: 2
                    Reset counter: 191
                    Mileage: 249742 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 08:59:46


-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels:. 1K0-907-530-V3.clb
   Part No SW: 1K0 907 530 L    HW: 1K0 907 951
   Component: J533  Gateway   H07 0052
   Revision:   H07 01    Serial number: 130707F2001684
   Coding: E9807F060002022303
   Shop #: WSC 73430 790 00000
   VCID: 306FA6C1A32354CA65-8064

1 Fault Found:
00532 - Supply Voltage B+
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249740 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 08:57:47


-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No SW: 1Z0 920 912 B    HW: 1Z0 920 912 B
   Component: IMMO            VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0G4374477
   Shop #: WSC 00000 000 00000
   VCID: 3467AAD1573B68EA01-8060

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 D    HW: 1T0 959 701 D
   Component: Tuer-SG         006 1204
   Coding: 0000756
   Shop #: WSC 73430 790 00000
   VCID: 387F9EE14B538C8A2D-806C

2 Faults Found:
01811 - Supply Voltage for Door Controller; Drivers Side (J386)
            002 - Lower Limit Exceeded - Intermittent
01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K2 909 144 M
   Component: EPS_ZFLS Kl.067 H08 1901
   Shop #: WSC 73430 000 90108
   VCID: 366390D941477AFA3F-8062

2 Faults Found:
00668 - Supply Voltage Terminal 30
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Mileage: 249720 km
                    Temperature: 26.0°C
                    Voltage: 6.40 V
                    Voltage: 6.20 V

00778 - Steering Angle Sensor (G85)
            000 -  -
             Freeze Frame:


-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 1K0-959-433-MAX.clb
   Part No SW: 1K0 959 433 BT    HW: 1K0 959 433 BT
   Component:    KSG PQ35 G2  020 0204
   Revision: 00020000    Serial number: 00000000000000
   Coding: 88801A085283207F3F04850540085F96907CA0
   Shop #: WSC 24000 576 85313
   VCID: 0305390D42151F52C8-8056

   Subsystem 5 - Part No: 1Z0 951 171
   Component: Innenraumueberw.008 4801
   Coding: 00000000
   Shop #: WSC 24000

   Subsystem 6 - Part No: 1K0 951 605 D
   Component: LIN BACKUP HORN H07 9001

   Subsystem 7 - Component:       NGS n.mounted

3 Faults Found:
00532 - Supply Voltage B+
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00110010
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249740 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 08:57:57

01135 - Interior Monitoring Sensors
            002 - Lower Limit Exceeded - Intermittent
             Freeze Frame:
                    Fault Status: 00100010
                    Fault Priority: 4
                    Fault Frequency: 2
                    Reset counter: 191
                    Mileage: 249742 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:09:44

00332 - Control Circuit for Tank Flap
            007 - Short to Ground - Intermittent
             Freeze Frame:
                    Fault Status: 00100111
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 191
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 09:21:08


-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels:. 1K0-959-702-MIN3.clb
   Part No SW: 1T0 959 702 D    HW: 1T0 959 702 D
   Component: Tuer-SG         006 1204
   Coding: 0000756
   Shop #: WSC 73430 790 00000
   VCID: 39799BE570599582D2-806C

1 Fault Found:
01321 - Control Module for Airbags (J234)
            004 - No Signal/Communication

-------------------------------------------------------------------------------
Address 56: Radio        Labels: 1K0-035-1xx-56.lbl
   Part No SW: 1Z0 035 161 C    HW: 1Z0 035 161 C
   Component: Radio FO3       019 0040
   Revision: 00019000    Serial number: SKZ7Z3G0027220
   Coding: 0000402
   Shop #: WSC 73430 790 00000
   VCID: 2E53B8B9B917423A77-807A

1 Fault Found:
00668 - Supply Voltage Terminal 30
            002 - Lower Limit Exceeded - Intermittent

-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels:. 1K0-959-703-GEN3.clb
   Part No SW: 1K0 959 703 J    HW: 1K0 959 703 J
   Component: Tuer-SG         006 1201
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 377D9DDD464D83F224-8062

1 Fault Found:
01813 - Supply Voltage for Door Controller; Rear Left (J388)
            002 - Lower Limit Exceeded - Intermittent

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels:. 1K0-959-704-GEN3.clb
   Part No SW: 1K0 959 704 J    HW: 1K0 959 704 J
   Component: Tuer-SG         006 1201
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 387F9EE14B538C8A2D-806C

1 Fault Found:
01814 - Supply Voltage for Door Controller; Rear Right (J389)
            002 - Lower Limit Exceeded - Intermittent

End-------------------------(Elapsed Time: 01:39)--------------------------





SECOND - Read after Clearing DTC's

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03C-906-056-BAG.lbl
   Part No SW: 03C 906 056 EB    HW: Hardware No
   Component: MED9.5.10        00 0144
   Revision: 66H09---    Serial number: SKZ7Z0G4374477
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 67DD0D9D566DD37274-8032

1 Fault Found:
005123 - EGR System
               P1403 - 008 - Regulation Deviation
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 00:12:33

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 29.0°C


Readiness: 1110 0101

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK70.lbl
   Part No: 1K0 907 379 P
   Component: ASR FRONT MK70      0105
   Coding: 0017025
   Shop #: WSC 73430 790 00000
   VCID: 3F8DF5FD6E7DBBB2EC-806A

2 Faults Found:
00668 - Supply Voltage Terminal 30
            002 - Lower Limit Exceeded - Intermittent
00474 - Control Module for Immobilizer
            004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-820-047.lbl
   Part No SW: 1Z0 820 047 K    HW: 1Z0 820 047 K
   Component: Climatic PQ35   140 0909
   Revision: 00140009    Serial number: 00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 3B7581ED7A65A792C0-806E

1 Fault Found:
00229 - Refrigerant Pressure
            002 - Lower Limit Exceeded

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-30-M.lbl
   Part No SW: 3C0 937 049 AH    HW: 3C0 937 049 AH
   Component: Bordnetz-SG     H54 2202
   Revision: 00H54000    Serial number: 00000005066195
   Coding: 008C0F030004140000110D000000000000087B075C000000000000000000
   Shop #: WSC 24000 576 92255
   VCID: 6FED65BD7E9D0B323C-803A

   Subsystem 1 - Part No: 1Z2 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 120707 022  0601
   Coding: 00055223
   Shop #: WSC 24000

1 Fault Found:
00526 - Brake Light Switch (F)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 151
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.20 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K2 909 144 M
   Component: EPS_ZFLS Kl.067 H08 1901
   Shop #: WSC 73430 000 90108
   VCID: 366390D941477AFA3F-8062

1 Fault Found:
00778 - Steering Angle Sensor (G85)
            000 -  -



End-------------------------(Elapsed Time: 01:34)--------------------------





THIRD - Read after attempting to start (Which it turns over and still doesn't actually start)

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03C-906-056-BAG.lbl
   Part No SW: 03C 906 056 EB    HW: Hardware No
   Component: MED9.5.10        00 0144
   Revision: 66H09---    Serial number: SKZ7Z0G4374477
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 67DD0D9D566DD37274-8032

2 Faults Found:
005123 - EGR System
               P1403 - 008 - Regulation Deviation
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 00:04:32

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 29.0°C

000406 - Engine Oil Temp. Sensor (G8)
               P0196 - 004 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 00:05:33

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 29.0°C

Readiness: 1110 0101

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK70.lbl
   Part No: 1K0 907 379 P
   Component: ASR FRONT MK70      0105
   Coding: 0017025
   Shop #: WSC 73430 790 00000
   VCID: 3F8DF5FD6E7DBBB2EC-806A

2 Faults Found:
00668 - Supply Voltage Terminal 30
            002 - Lower Limit Exceeded - Intermittent
00474 - Control Module for Immobilizer
            004 - No Signal/Communication - Intermittent

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-820-047.lbl
   Part No SW: 1Z0 820 047 K    HW: 1Z0 820 047 K
   Component: Climatic PQ35   140 0909
   Revision: 00140009    Serial number: 00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 3B7581ED7A65A792C0-806E

1 Fault Found:
00229 - Refrigerant Pressure
            002 - Lower Limit Exceeded

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-30-M.lbl
   Part No SW: 3C0 937 049 AH    HW: 3C0 937 049 AH
   Component: Bordnetz-SG     H54 2202
   Revision: 00H54000    Serial number: 00000005066195
   Coding: 008C0F030004140000110D000000000000087B075C000000000000000000
   Shop #: WSC 24000 576 92255
   VCID: 6FED65BD7E9D0B323C-803A

   Subsystem 1 - Part No: 1Z2 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 120707 022  0601
   Coding: 00055223
   Shop #: WSC 24000

1 Fault Found:
00526 - Brake Light Switch (F)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 151
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.40 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K2 909 144 M
   Component: EPS_ZFLS Kl.067 H08 1901
   Shop #: WSC 73430 000 90108
   VCID: 366390D941477AFA3F-8062

1 Fault Found:
00778 - Steering Angle Sensor (G85)
            000 -  -


End-------------------------(Elapsed Time: 01:35)--------------------------



With so many reports of low voltage, I would check the engine bay fuse box location.

There are reports of burnt printed circuit board and loose fuses caused by overheating, leading to low voltage supply through those fuses.

Easy to check to eliminate this known fault.

  • Author
1 minute ago, pikpilot said:

With so many reports of low voltage, I would check the engine bay fuse box location.

There are reports of burnt printed circuit board and loose fuses caused by overheating, leading to low voltage supply through those fuses.

Easy to check to eliminate this known fault.



Thank you! I will get the engine bay fuse box out tomorrow and have a look.



I did notice as in the image attached my engine bay fuse box doesn't seem to have a bridge plate in the (if you look from the front of the car) left relay slot. I haven't removed it so I imagine it doesn't need to be there? Or is it worth bridging this?


  • Author

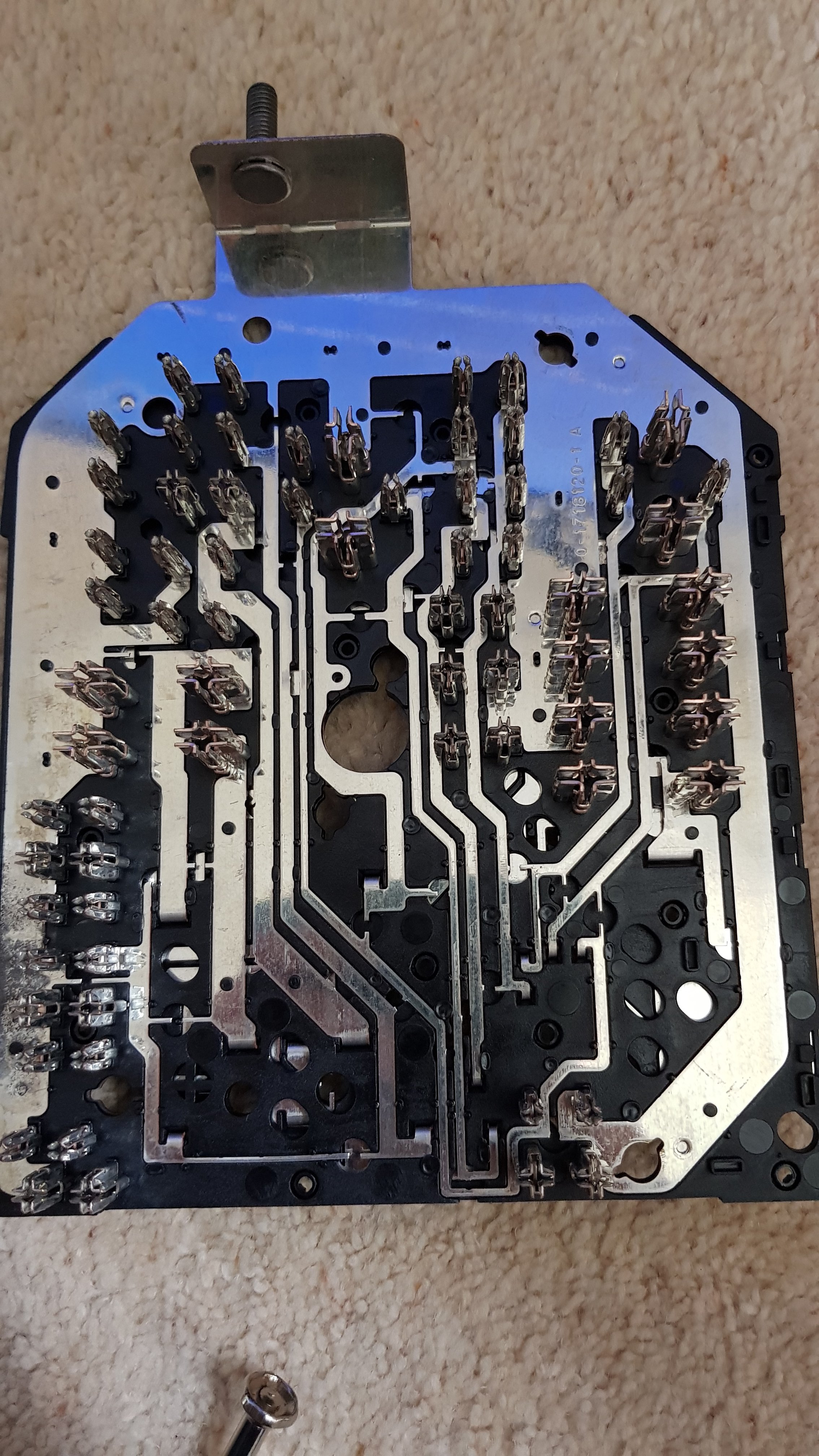

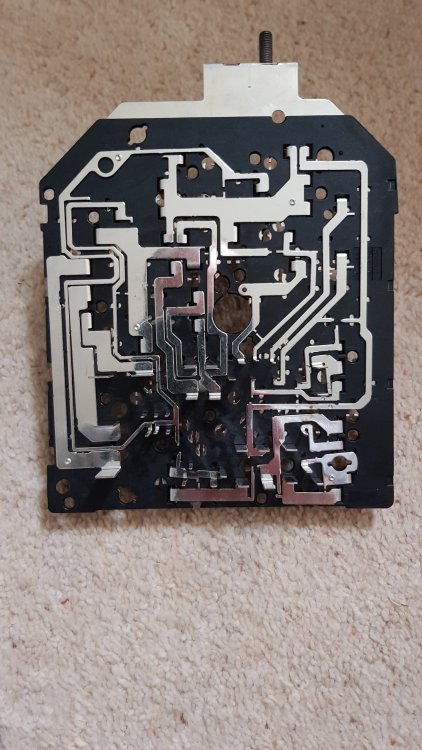

Fuse box in the engine bay taken apart all clean and clear. All tracks checked for continuity and all fuses checked before putting back together.

Still won't start and same errors coming up on a scan. Battery has been off and fully charged just to make sure too.

Is it worth taking instrument cluster out and checking this? Do I need to anything specific before disconnecting?







What’s the cranking speed reading on VCDS?

  • Author
1 hour ago, Tech1e said:

What’s the cranking speed reading on VCDS?



I am not overly familiar with using VCDS where would I find it out?

Just look for engine speed on live data

  • Author
2 hours ago, Tech1e said:

Just look for engine speed on live data

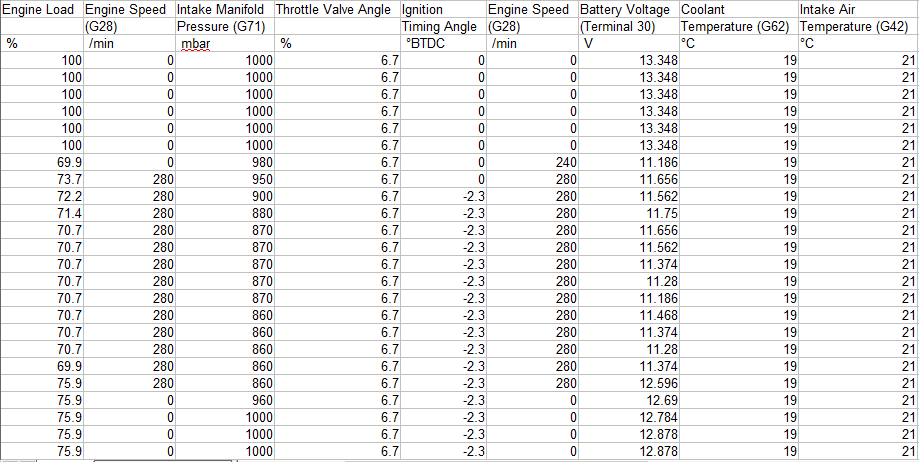

Ok I have found it - Attached image of read out when cranking (Including a few other sensor readings) The Engine speed is on 240/min.






That’s quite low. Have you tried some jump leads?

  • Author
2 minutes ago, Tech1e said:

That’s quite low. Have you tried some jump leads?



No not tried jumping, but it is a brand new battery and fully charged. I shall try a jump though see what happens.

  • 2 weeks later...
  • Author
On 27/07/2019 at 20:52, Tech1e said:

That’s quite low. Have you tried some jump leads?



So sorry for the delay coming back been on holiday …..

I did take the ABS pump out and module - reseated the cable and that has cleared the ABS module fault but jumping hasn't really made any difference.

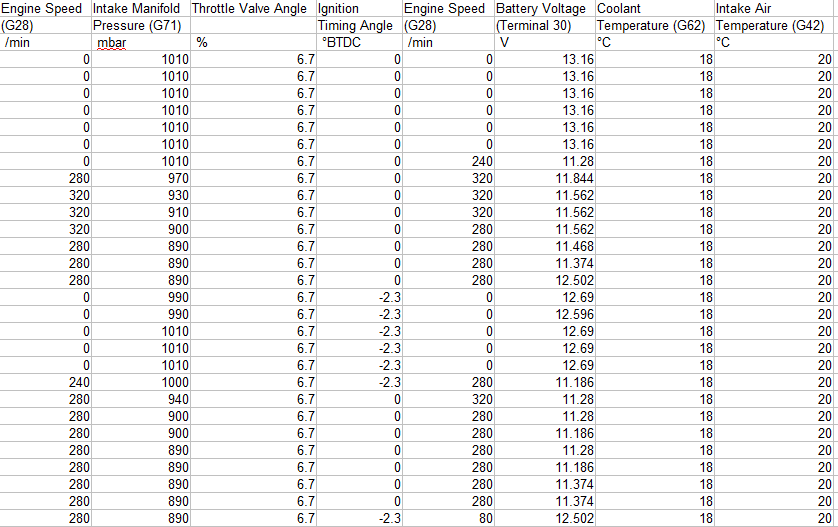

Live log attached of engine speed etc.



I also did a clear and re read of faults - Engine oil temp sensor showed up but it does clear until the engine has been cranked a few times.

I see engine timing angle -2.3 do I need to do anything with this since I changed the crank position sensor?



01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03C-906-056-BAG.lbl
   Part No SW: 03C 906 056 EB    HW: Hardware No
   Component: MED9.5.10        00 0144
   Revision: 66H09---    Serial number: SKZ7Z0G4374477
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 67DD0D9D566DD37274-8032

2 Faults Found:
005123 - EGR System
               P1403 - 008 - Regulation Deviation
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 00:41:32

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 19.0°C

000406 - Engine Oil Temp. Sensor (G8)
               P0196 - 004 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 00:45:37

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 19.0°C

Readiness: 1110 0101

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK70.lbl
   Part No: 1K0 907 379 P
   Component: ASR FRONT MK70      0105
   Coding: 0017025
   Shop #: WSC 73430 790 00000
   VCID: 3F8DF5FD6E7DBBB2EC-806A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-820-047.lbl
   Part No SW: 1Z0 820 047 K    HW: 1Z0 820 047 K
   Component: Climatic PQ35   140 0909
   Revision: 00140009    Serial number: 00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 3B7581ED7A65A792C0-806E

1 Fault Found:
00229 - Refrigerant Pressure
            002 - Lower Limit Exceeded

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-30-M.lbl
   Part No SW: 3C0 937 049 AH    HW: 3C0 937 049 AH
   Component: Bordnetz-SG     H54 2202
   Revision: 00H54000    Serial number: 00000005066195
   Coding: 008C0F030004140000110D000000000000087B075C000000000000000000
   Shop #: WSC 24000 576 92255
   VCID: 6FED65BD7E9D0B323C-803A

   Subsystem 1 - Part No: 1Z2 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 120707 022  0601
   Coding: 00055223
   Shop #: WSC 24000

1 Fault Found:
00526 - Brake Light Switch (F)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 151
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.30 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 T    HW: 1K0 909 605 T
   Component: Q4 AIRBAG VW8   020 2300
   Revision: 05020000    Serial number: 0038PD1BWY97
   Coding: 0020788
   Shop #: WSC 73430 790 00000
   VCID: 3D718FF56471A9A2FE-8068

   Subsystem 1 - Serial number: 6332MSME1C2319122

   Subsystem 2 - Serial number: 6342MSME145C6569K

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY8.lbl
   Part No SW: 1K0 953 549 BC    HW: 1K0 953 549 BC
   Component: Lenksäulenmodul 036 0070
   Coding: 0000012
   Shop #: WSC 73430 790 00000
   VCID: 74E76AD117BB28EAC1-8020

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1K0-920-xxx-17.lbl
   Part No SW: 1Z0 920 912 B    HW: 1Z0 920 912 B
   Component: KOMBIINSTRUMENT VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0G4374477
   Coding: 0003401
   Shop #: WSC 00011 888 96745
   VCID: 3467AAD1573B68EA01-8060

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels:. 1K0-907-530-V3.clb
   Part No SW: 1K0 907 530 L    HW: 1K0 907 951
   Component: J533  Gateway   H07 0052
   Revision:   H07 01    Serial number: 130707F2001684
   Coding: E9807F060002022303
   Shop #: WSC 73430 790 00000
   VCID: 306FA6C1A32354CA65-8064

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No SW: 1Z0 920 912 B    HW: 1Z0 920 912 B
   Component: IMMO            VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0G4374477
   Shop #: WSC 00000 000 00000
   VCID: 3467AAD1573B68EA01-8060

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 D    HW: 1T0 959 701 D
   Component: Tuer-SG         006 1204
   Coding: 0000756
   Shop #: WSC 73430 790 00000
   VCID: 387F9EE14B538C8A2D-806C

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K2 909 144 M
   Component: EPS_ZFLS Kl.067 H08 1901
   Shop #: WSC 73430 000 90108
   VCID: 366390D941477AFA3F-8062

1 Fault Found:
00778 - Steering Angle Sensor (G85)
            000 -  -

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 1K0-959-433-MAX.clb
   Part No SW: 1K0 959 433 BT    HW: 1K0 959 433 BT
   Component:    KSG PQ35 G2  020 0204
   Revision: 00020000    Serial number: 00000000000000
   Coding: 88801A085283207F3F04850540085F96907CA0
   Shop #: WSC 24000 576 85313
   VCID: 0305390D42151F52C8-8056

   Subsystem 5 - Part No: 1Z0 951 171
   Component: Innenraumueberw.008 4801
   Coding: 00000000
   Shop #: WSC 24000

   Subsystem 6 - Part No: 1K0 951 605 D
   Component: LIN BACKUP HORN H07 9001

   Subsystem 7 - Component:       NGS n.mounted

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels:. 1K0-959-702-MIN3.clb
   Part No SW: 1T0 959 702 D    HW: 1T0 959 702 D
   Component: Tuer-SG         006 1204
   Coding: 0000756
   Shop #: WSC 73430 790 00000
   VCID: 39799BE570599582D2-806C

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio        Labels: 1K0-035-1xx-56.lbl
   Part No SW: 1Z0 035 161 C    HW: 1Z0 035 161 C
   Component: Radio FO3       019 0040
   Revision: 00019000    Serial number: SKZ7Z3G0027220
   Coding: 0000402
   Shop #: WSC 73430 790 00000
   VCID: 2E53B8B9B917423A77-807A

No fault code found.

-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels:. 1K0-959-703-GEN3.clb
   Part No SW: 1K0 959 703 J    HW: 1K0 959 703 J
   Component: Tuer-SG         006 1201
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 377D9DDD464D83F224-8062

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels:. 1K0-959-704-GEN3.clb
   Part No SW: 1K0 959 704 J    HW: 1K0 959 704 J
   Component: Tuer-SG         006 1201
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 387F9EE14B538C8A2D-806C

No fault code found.




Edited by Skodaman80

I had a daft problem with my  fabia vrs, battery replaced. Kept loosing charge and especially when turning corners, the abs would put more strain on system, turned out to be a corroded lead from the alternater that wasnt charging the battery. Even though you could get a voltage read through the cable, when opened up its was vitually dust.

  • Author
32 minutes ago, Whoateallthepies said:

I had a daft problem with my  fabia vrs, battery replaced. Kept loosing charge and especially when turning corners, the abs would put more strain on system, turned out to be a corroded lead from the alternater that wasnt charging the battery. Even though you could get a voltage read through the cable, when opened up its was vitually dust.



I shall have another check on the leads in the engine bay. 👌

  • 3 weeks later...
  • Author

So kind of gave up on the car for a bit what with holidays and other things. The battery has been fully charged and and tested jumping at the same time just to be sure and still no start.



I've gone through the usual pre checks and now I'm not getting any spark!

Any idea on how I test the coils to make sure they are getting signal? Vcds doesn't show any misfire faults or anything like that but there is no spark on any of the 4 coils.



Or is there anyway if forcing with vcds to make it spark or send a signal to spark?

Edited by Skodaman80
Added extra info

  • Author

As it was mentioned the cranking speed was a little slow I have now put a new starter motor in and get the following reading:




Crank speed consistently around the 280 mark.







Also my throttle position sensor? Seems to have lost its adaption. Not sure this makes a difference, i tried to reset but just displays error instead of "adp run or adp ok"

The car still doesnt seem to produce a spark, I have checked fuses and checked my spark tester still works on 2 other vehicles.

I am at a total loss with where to go next on this car :(



Chassis Type: 1Z (1K0)
Scan: 01 03 08 09 15 16 17 19 25 42 44 46 52 56 62 72

VIN: TMBHB21Z582034652   Mileage: 249740km-155181miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: Malfunction 0010
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine        Labels: 03C-906-056-BAG.lbl
   Part No SW: 03C 906 056 EB    HW: Hardware No
   Component: MED9.5.10        00 0144
   Revision: 66H09---    Serial number: SKZ7Z0G4374477
   Coding: 0000071
   Shop #: WSC 73430 790 00000
   VCID: 67DD0D9D566DD37274-8032

2 Faults Found:
005497 - Throttle Actuator (J338)
               P1579 - 001 - Adaptation Not Started
             Freeze Frame:
                    Fault Status: 01100001
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 01:18:40

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 18.0°C

005123 - EGR System
               P1403 - 008 - Regulation Deviation
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 0
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2000.00.00
                    Time: 01:18:40

             Freeze Frame:
                    RPM: 0 /min
                    Load: 0.0 %
                    Speed: 0.0 km/h
                    Temperature: 18.0°C

Readiness: 1110 0101

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK70.lbl
   Part No: 1K0 907 379 P
   Component: ASR FRONT MK70      0105
   Coding: 0017025
   Shop #: WSC 73430 790 00000
   VCID: 3F8DF5FD6E7DBBB2EC-806A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC        Labels: 1K0-820-047.lbl
   Part No SW: 1Z0 820 047 K    HW: 1Z0 820 047 K
   Component: Climatic PQ35   140 0909
   Revision: 00140009    Serial number: 00000000000000
   Shop #: WSC 00000 000 00000
   VCID: 3B7581ED7A65A792C0-806E

1 Fault Found:
00229 - Refrigerant Pressure
            002 - Lower Limit Exceeded

-------------------------------------------------------------------------------
Address 09: Cent. Elect.        Labels:. 3C0-937-049-30-M.lbl
   Part No SW: 3C0 937 049 AH    HW: 3C0 937 049 AH
   Component: Bordnetz-SG     H54 2202
   Revision: 00H54000    Serial number: 00000005066195
   Coding: 008C0F030004140000110D000000000000087B075C000000000000000000
   Shop #: WSC 24000 576 92255
   VCID: 6FED65BD7E9D0B323C-803A

   Subsystem 1 - Part No: 1Z2 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 120707 022  0601
   Coding: 00055223
   Shop #: WSC 24000

1 Fault Found:
00526 - Brake Light Switch (F)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 151
                    Mileage: 249743 km
                    Time Indication: 0
                    Date: 2005.09.13
                    Time: 31:63:63

             Freeze Frame:
                        ON
                    Voltage: 12.40 V
                        ON
                        ON
                        OFF
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 T    HW: 1K0 909 605 T
   Component: Q4 AIRBAG VW8   020 2300
   Revision: 05020000    Serial number: 0038PD1BWY97
   Coding: 0020788
   Shop #: WSC 73430 790 00000
   VCID: 3D718FF56471A9A2FE-8068

   Subsystem 1 - Serial number: 6332MSME1C2319122

   Subsystem 2 - Serial number: 6342MSME145C6569K

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY8.lbl
   Part No SW: 1K0 953 549 BC    HW: 1K0 953 549 BC
   Component: Lenksäulenmodul 036 0070
   Coding: 0000012
   Shop #: WSC 73430 790 00000
   VCID: 74E76AD117BB28EAC1-8020

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments        Labels: 1K0-920-xxx-17.lbl
   Part No SW: 1Z0 920 912 B    HW: 1Z0 920 912 B
   Component: KOMBIINSTRUMENT VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0G4374477
   Coding: 0003401
   Shop #: WSC 00011 888 96745
   VCID: 3467AAD1573B68EA01-8060

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels:. 1K0-907-530-V3.clb
   Part No SW: 1K0 907 530 L    HW: 1K0 907 951
   Component: J533  Gateway   H07 0052
   Revision:   H07 01    Serial number: 130707F2001684
   Coding: E9807F060002022303
   Shop #: WSC 73430 790 00000
   VCID: 306FA6C1A32354CA65-8064

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer        Labels: 1K0-920-xxx-25.clb
   Part No SW: 1Z0 920 912 B    HW: 1Z0 920 912 B
   Component: IMMO            VD1 1610
   Revision: V1610056    Serial number: SKZ7Z0G4374477
   Shop #: WSC 00000 000 00000
   VCID: 3467AAD1573B68EA01-8060

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 D    HW: 1T0 959 701 D
   Component: Tuer-SG         006 1204
   Coding: 0000756
   Shop #: WSC 73430 790 00000
   VCID: 387F9EE14B538C8A2D-806C

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-144-G2V3.clb
   Part No: 1K2 909 144 M
   Component: EPS_ZFLS Kl.067 H08 1901
   Shop #: WSC 73430 000 90108
   VCID: 366390D941477AFA3F-8062

1 Fault Found:
00778 - Steering Angle Sensor (G85)
            000 -  -

-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 1K0-959-433-MAX.clb
   Part No SW: 1K0 959 433 BT    HW: 1K0 959 433 BT
   Component:    KSG PQ35 G2  020 0204
   Revision: 00020000    Serial number: 00000000000000
   Coding: 88801A085283207F3F04850540085F96907CA0
   Shop #: WSC 24000 576 85313
   VCID: 0305390D42151F52C8-8056

   Subsystem 5 - Part No: 1Z0 951 171
   Component: Innenraumueberw.008 4801
   Coding: 00000000
   Shop #: WSC 24000

   Subsystem 6 - Part No: 1K0 951 605 D
   Component: LIN BACKUP HORN H07 9001

   Subsystem 7 - Component:       NGS n.mounted

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels:. 1K0-959-702-MIN3.clb
   Part No SW: 1T0 959 702 D    HW: 1T0 959 702 D
   Component: Tuer-SG         006 1204
   Coding: 0000756
   Shop #: WSC 73430 790 00000
   VCID: 39799BE570599582D2-806C

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio        Labels: 1K0-035-1xx-56.lbl
   Part No SW: 1Z0 035 161 C    HW: 1Z0 035 161 C
   Component: Radio FO3       019 0040
   Revision: 00019000    Serial number: SKZ7Z3G0027220
   Coding: 0000402
   Shop #: WSC 73430 790 00000
   VCID: 2E53B8B9B917423A77-807A

No fault code found.

-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels:. 1K0-959-703-GEN3.clb
   Part No SW: 1K0 959 703 J    HW: 1K0 959 703 J
   Component: Tuer-SG         006 1201
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 377D9DDD464D83F224-8062

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels:. 1K0-959-704-GEN3.clb
   Part No SW: 1K0 959 704 J    HW: 1K0 959 704 J
   Component: Tuer-SG         006 1201
   Coding: 0000144
   Shop #: WSC 73430 790 1012544
   VCID: 387F9EE14B538C8A2D-806C

No fault code found.

End-------------------------(Elapsed Time: 01:35)--------------------------







Create an account or sign in to comment
Go to topic listing

Recently Browsing 0

  • No registered users viewing this page.

Important Information

Welcome to BRISKODA. Please note the following important links Terms of Use. We have a comprehensive Privacy Policy. We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.

Account

Navigation

Configure browser push notifications
Chrome (Android)
  1. Tap the lock icon next to the address bar.
  2. Tap Permissions → Notifications.
  3. Adjust your preference.
Chrome (Desktop)
  1. Click the padlock icon in the address bar.
  2. Select Site settings.
  3. Find Notifications and adjust your preference.
