MK1 Fabia - Replacing the brake light switch

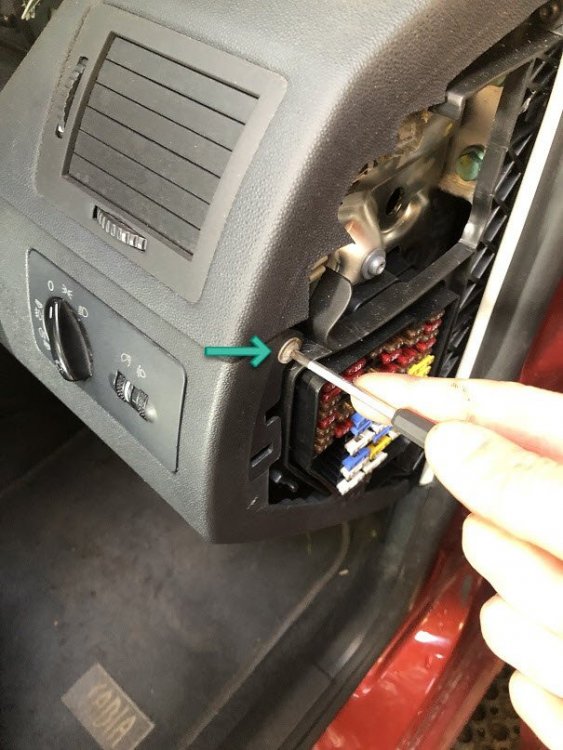

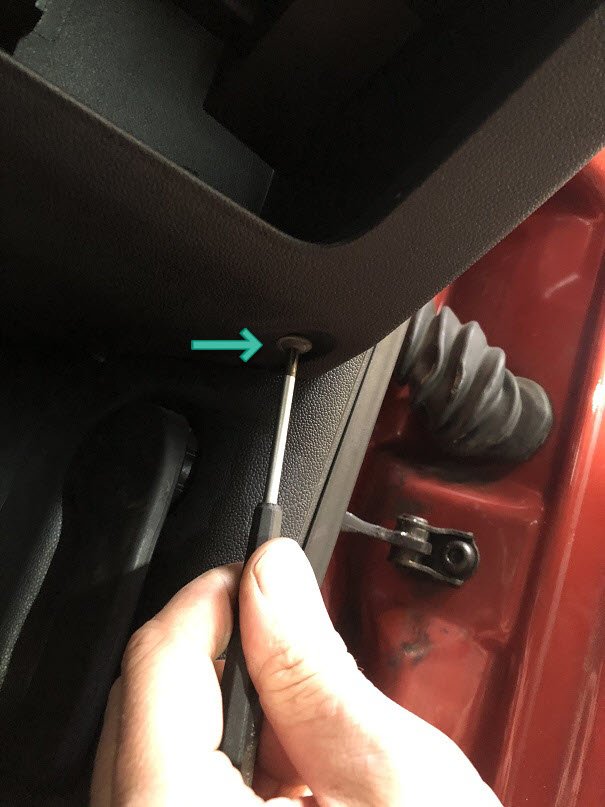

Step 1 - Using the hole along the bottom edge, lever out and remove the fuse box cover.

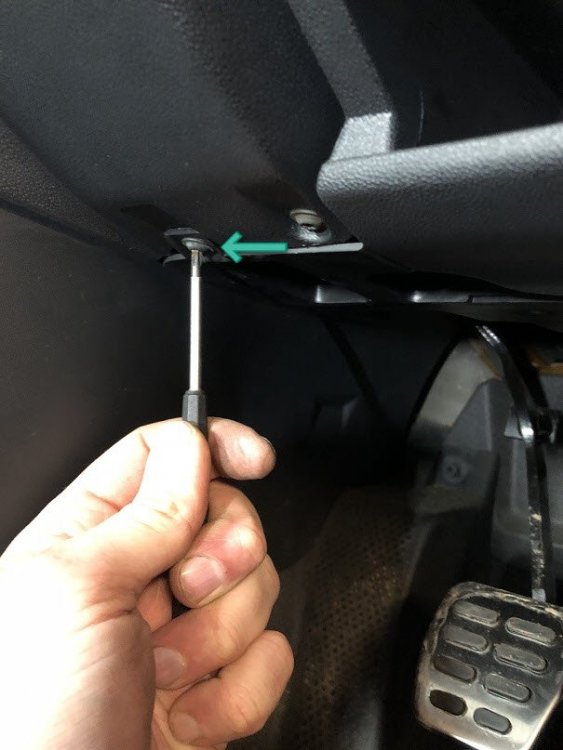

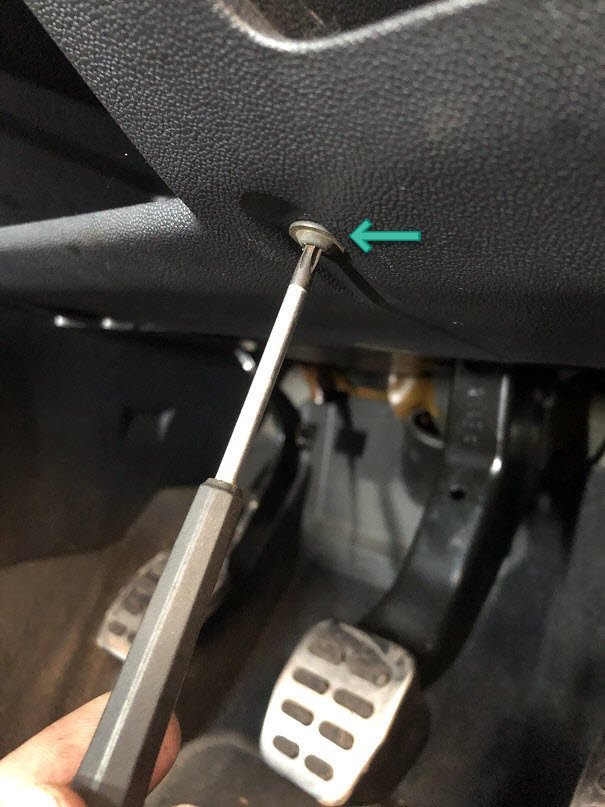

Step 2 - Remove the T20 screw.

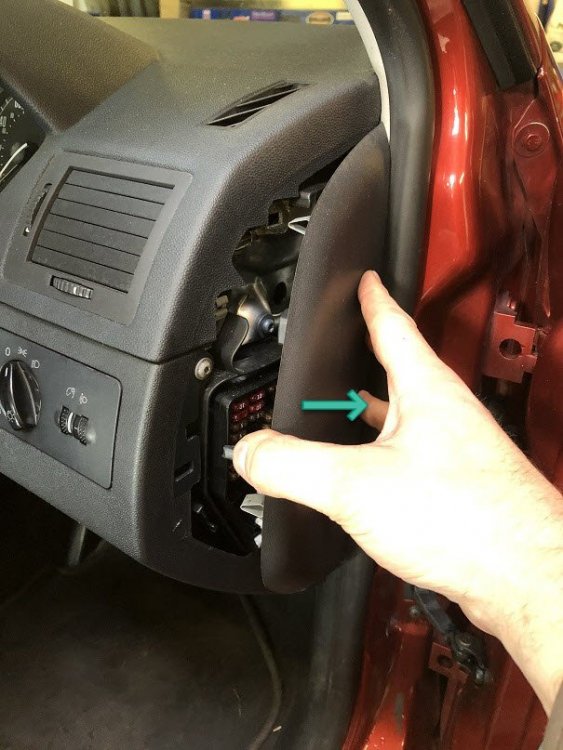

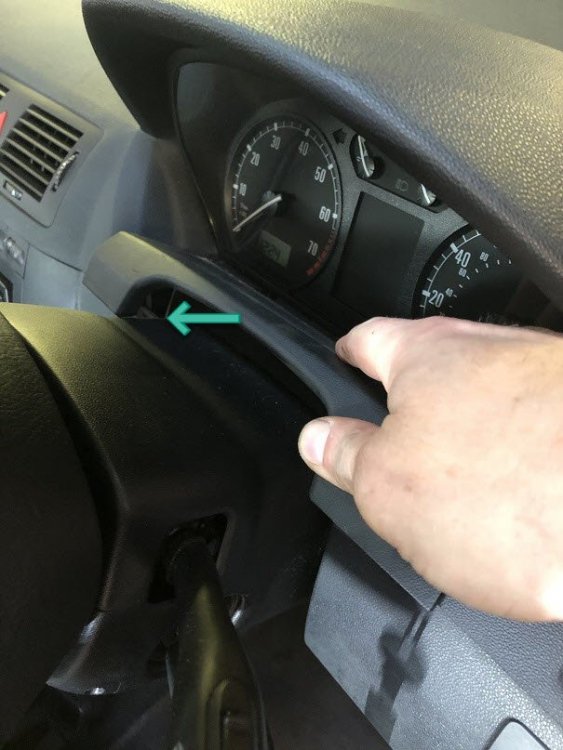

Step 3 - Remove the dash trim by pulling away from the dash.

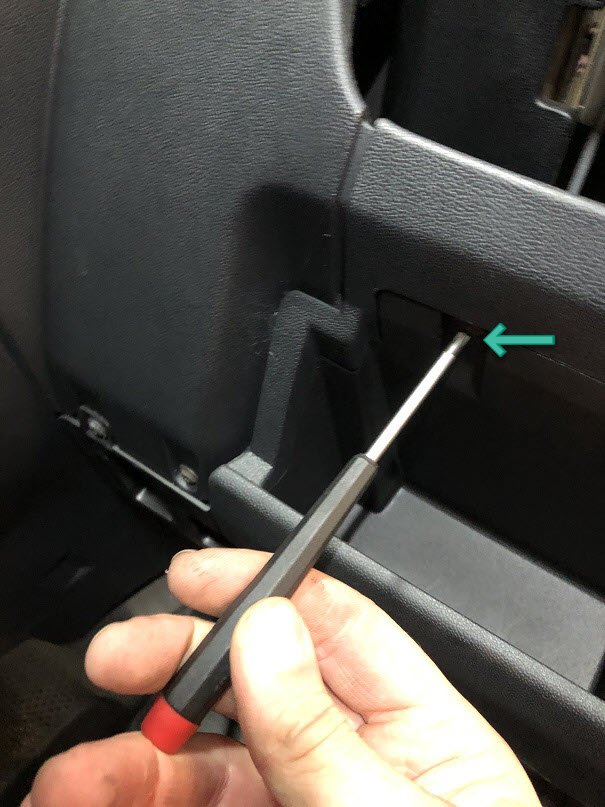

Step 4 - Remove the T20 screw.

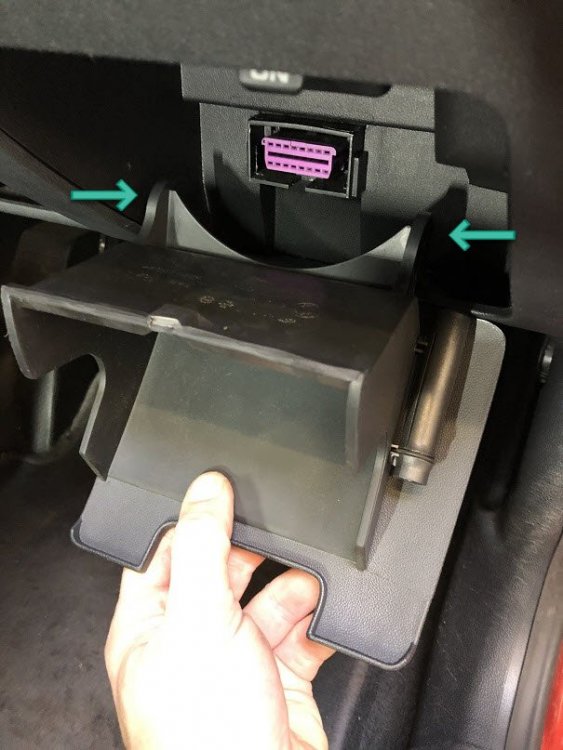

Step 5 - Remove the storage compartment by pinching in the hinge points and withdrawing the lid.

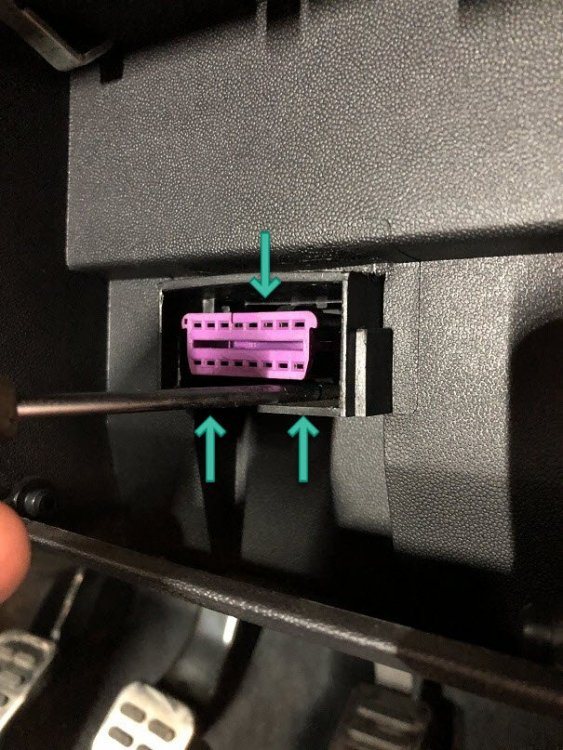

Step 6 - Remove the diagnostic socket by releasing the retaining tags top and bottom.

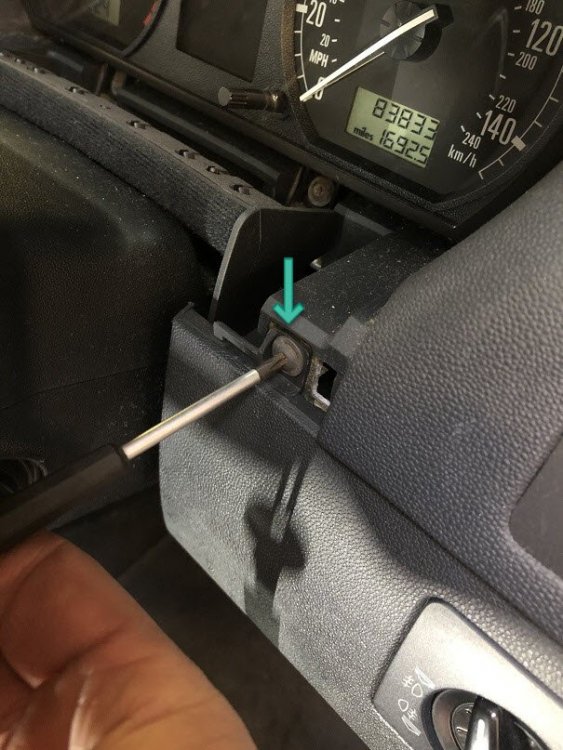

Step 7 - Remove the T20 screw.





Step 8 - Remove the T20 screw.





Step 9 - Remove the T20 screw





Step 10 - Remove the T20 screw.

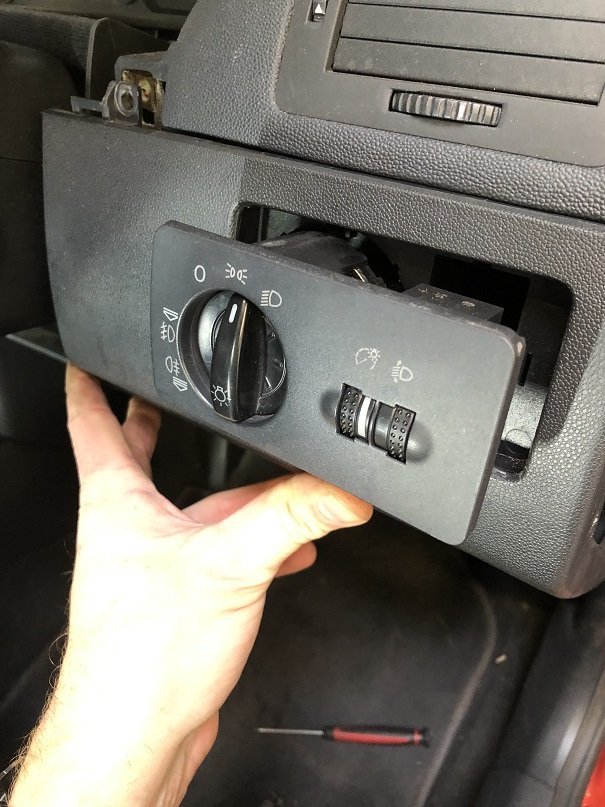

Step 11 - Remove and disconnect the headlamp switch

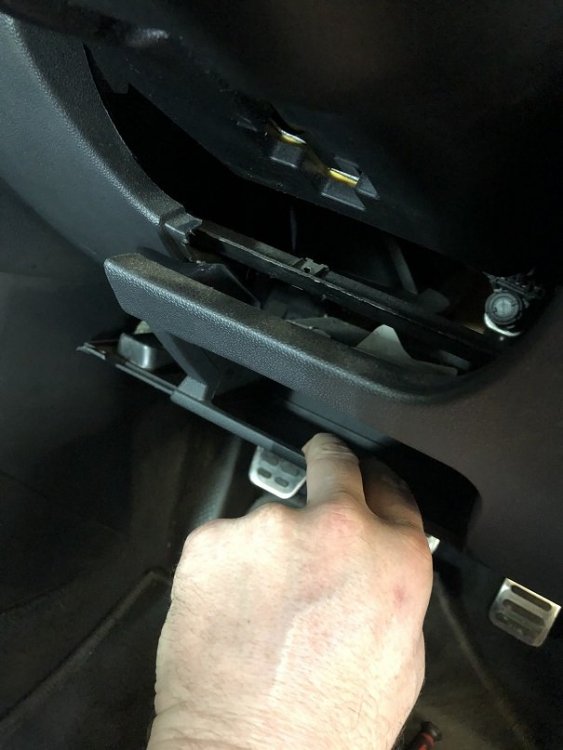

Step 12 - Remove the lower dash trim (if AC is equipped, disconnect the AC hose running to the top of the storage compartment).

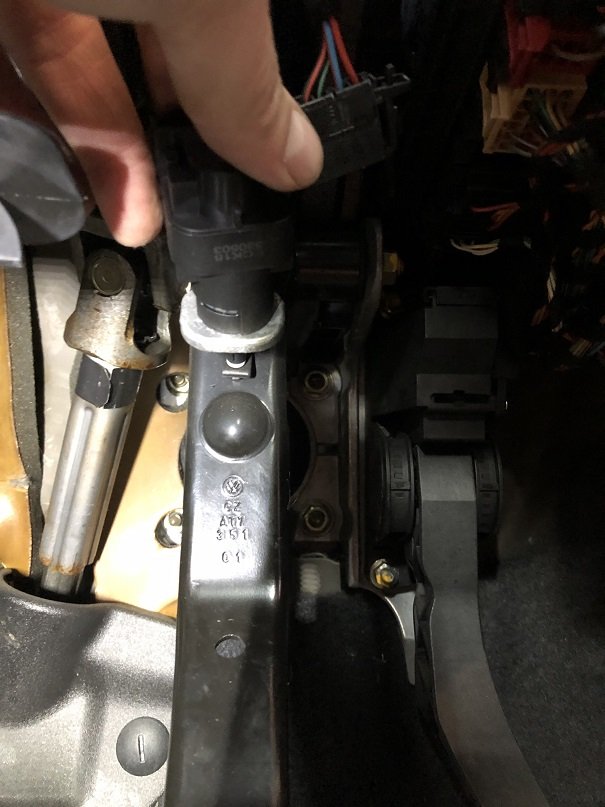

Step 13 - Locate and disconnect the connector brake light switch.

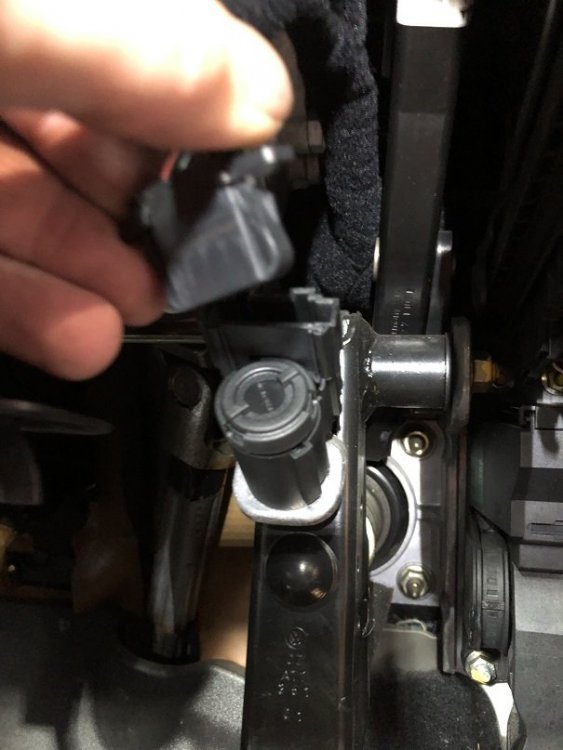

Step 14 - Rotate the brake light switch anti-clockwise and remove.

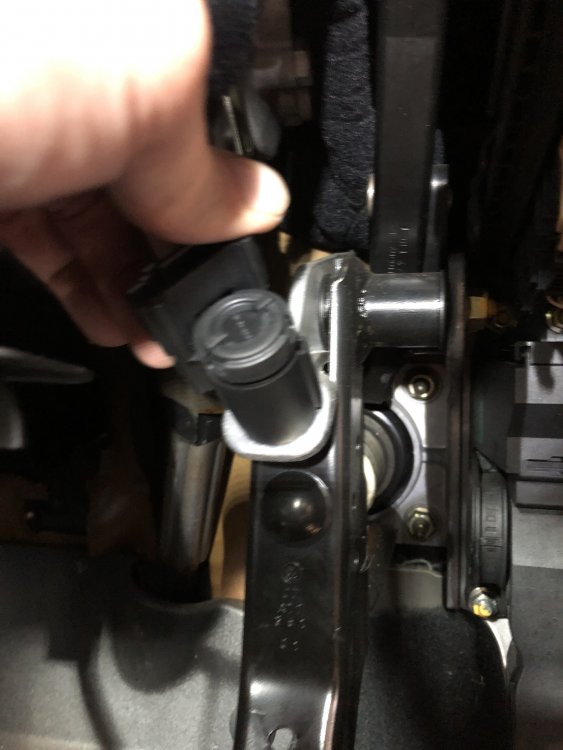

Step 15 - Best advice is to replace the earlier ratchet type switch with the later plunger type. It is much easier to install and far less likely to go wrong.

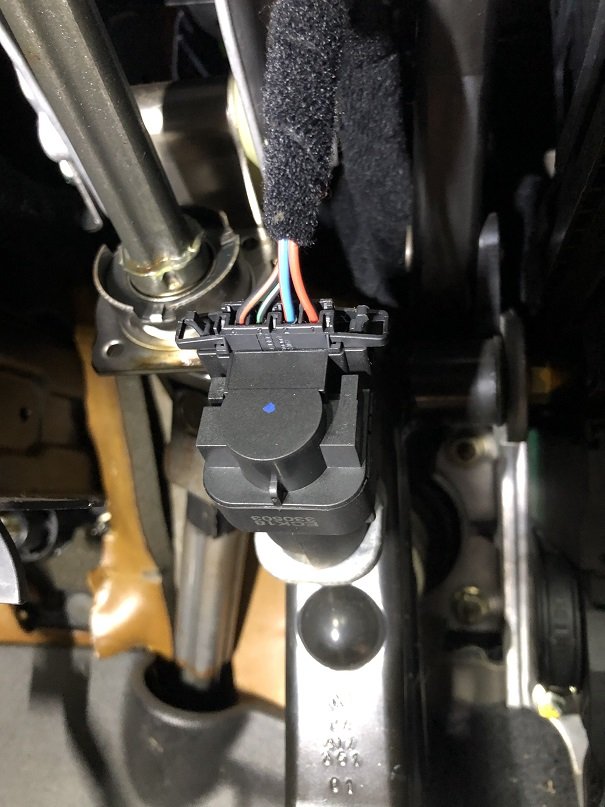

Step 16 - Note the key way on the new switch, install and the rotate until the switch clicks, plug the switch in.

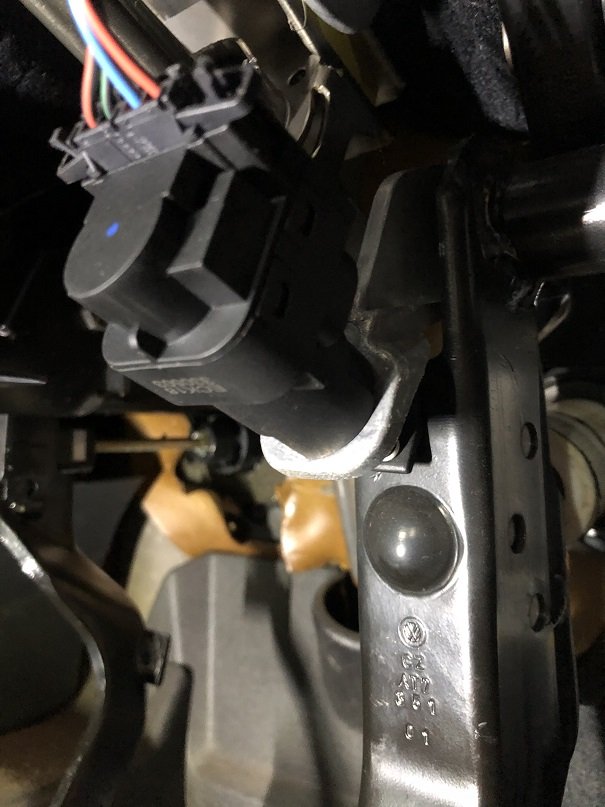

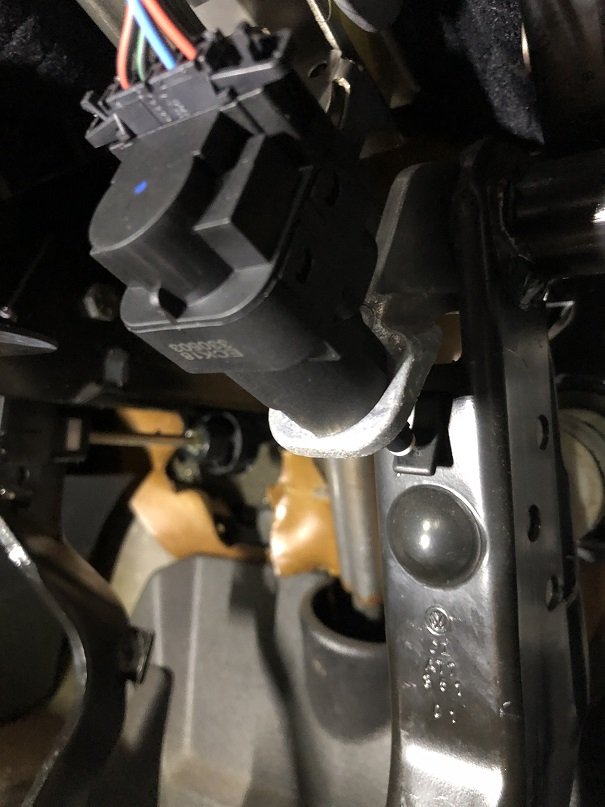

Step 17 - The brake light switch, installed correctly.





Step 18 - Check the switch operation on the pedal.



Off -





On -





Step 19 - Check the brake lights are working correctly.



Step 20 - To install, reverse the removal steps and if required clear fault codes.
