Instrument cluster

Featured Replies

I have a skoda fabia Mk1 2006 1.4 tdi and wanted to know if I changed the instrument cluster on my car does the replacement instrument cluster have to be reprogramed I'm only asking as my cluster has a fault and I'm unable to repair it myself.

  • Sponsor

Did you try reflowing any connector joints?

I can tell you the relevant pin numbers if it helps; or even do it for you if you can be without the cluster for a few days.



Don't think it's plug and play, there may be some immobiliser problems but not too sure.

  • Author

Thanks for the reply I took the cluster out and looked but to be honest it's to fiddly for me to do where abouts in the country are you if you don't mind me asking I myself am in Chesterfield Derbyshire.

Yeah, cluster can't be swapped without having the immobiliser programmed.

  • Author
4 minutes ago, TMB said:

Yeah, cluster can't be swapped without having the immobiliser programmed.

Thank you for the reply and answer.

  • Sponsor
45 minutes ago, Jennings392 said:

Thanks for the reply I took the cluster out and looked but to be honest it's to fiddly for me to do where abouts in the country are you if you don't mind me asking I myself am in Chesterfield Derbyshire.

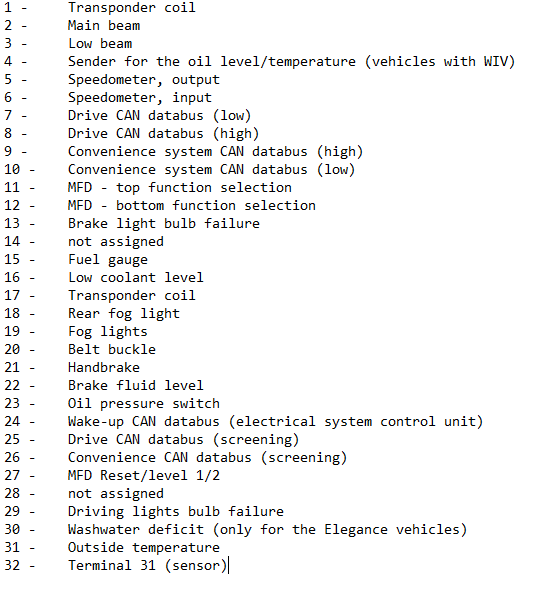

I'm in Oxfordshire so you'd have to post it, but I could post it back same day as I get it. Pins 15 and 32 of the green connector are the only relevant joints to check/reflow for the fuel gauge, I think.



Edited by Wino

  • Author

Would you happen to have a picture showing which pins it is.

40 minutes ago, Jennings392 said:

Would you happen to have a picture showing which pins it is.




Edited by TMB

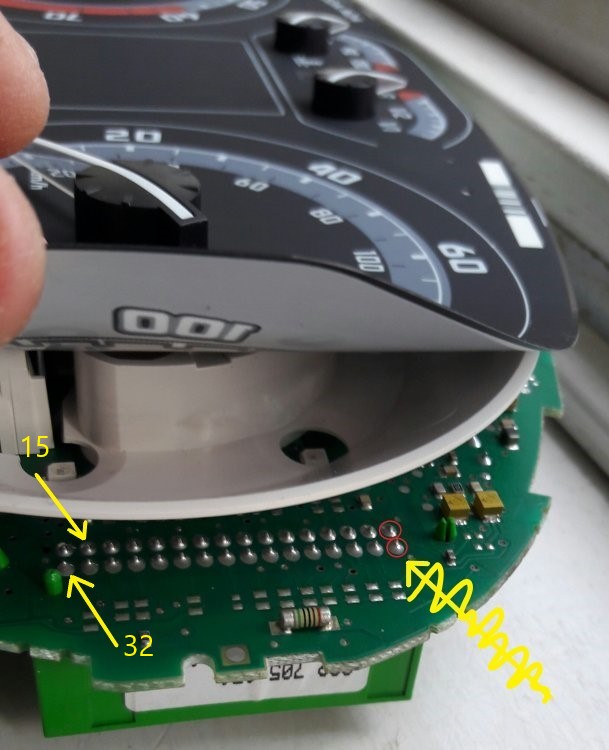

^ That's a pic of the pins. Ignore the big yellow arrow, that's the immobiliser pins.

Edited by TMB

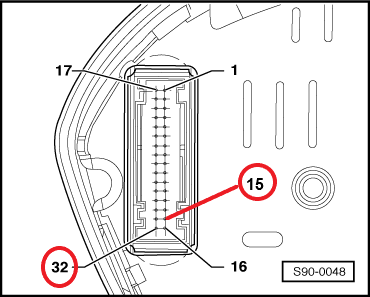

From back of cluster....




Edited by TMB

  • Sponsor

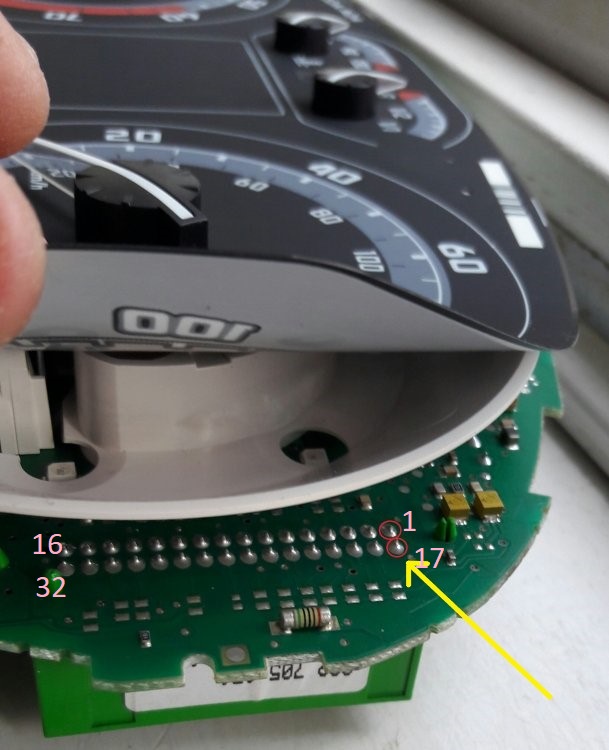

Or in this view...




So front row leftmost is 32, back row 2nd from left is 15.





EDIT. Wino beat me to it :thumbup:

Edited by TMB

  • Author

Thank you so much guys I really appreciate it you have been a great help.
