I've recently fitted the 30mm Eibach lowering springs to my Rapid, so I have the OEM ones available.



These have come off a 2014 1.2 TSI (105PS) hatchback with just under 50k miles on the clock.



All in good condition, there seems to be some paint flaking on some of them but no cracks or structural issues.



May fit other variants (Seat Toledo, VW Polo).



Pics to follow, looking for £40.



Collection Only - pics to follow.



Fronts are 6R0411105B and rears are 1J0511115AL,

Edited 5 March, 20224 yr by DunDunFather

What OEM part numbers are the front and rear springs?

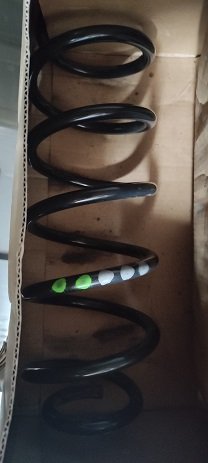

They are probably on the below charts. Notice the colour coded dots/marks that can be used to identify them.



For example, 2 white dots and 4 green dots would mean that the front springs have OEM part number 6R0411105D.



A car with a DSG automatic gearbox will have harder front springs than a similar car with a manual gearbox.



Front Springs

(1)	6R0 411 105 B	coil spring 3 paint marks 3 paint marks	white green	2	PR-L38
(1)	6R0 411 105 C	coil spring 1 paint mark 4 paint marks	white green	1	PR-L39
(1)	6R0 411 105 D	coil spring 2 paint marks 4 paint marks	white green	1	PR-L40

https://skoda.7zap.com/en/cz/rapid/rap/2014-740/4/411-411000/



Rear Springs

1	1J0 511 115 AL	coil spring 3 paint marks 2 paint marks	silver green	2	PR-1JA+0YB
(1)	1J0 511 115 BR	coil spring 3 paint marks 2 paint marks D >> - 24.03.2013	silver brown	2	PR-1JA+0YC
(1)	1J0 511 115 AM	coil spring 1 paint mark 3 paint marks D - 25.03.2013>>	silver green	2	PR-1JA+0YC

https://skoda.7zap.com/en/cz/rapid/rap/2014-740/5/511-511000/



Edited 1 March, 20224 yr by Carlston

On 01/03/2022 at 23:26, Carlston said:

What OEM part numbers are the front and rear springs?



They are probably on the below charts. Notice the colour coded dots/marks that can be used to identify them.



For example, 2 white dots and 4 green dots would mean that the front springs have OEM part number 6R0411105D.



A car with a DSG automatic gearbox will have harder front springs than a similar car with a manual gearbox.



Front Springs

(1)	6R0 411 105 B	coil spring 3 paint marks 3 paint marks	white green	2	PR-L38
(1)	6R0 411 105 C	coil spring 1 paint mark 4 paint marks	white green	1	PR-L39
(1)	6R0 411 105 D	coil spring 2 paint marks 4 paint marks	white green	1	PR-L40

https://skoda.7zap.com/en/cz/rapid/rap/2014-740/4/411-411000/



Rear Springs

1	1J0 511 115 AL	coil spring 3 paint marks 2 paint marks	silver green	2	PR-1JA+0YB
(1)	1J0 511 115 BR	coil spring 3 paint marks 2 paint marks D >> - 24.03.2013	silver brown	2	PR-1JA+0YC
(1)	1J0 511 115 AM	coil spring 1 paint mark 3 paint marks D - 25.03.2013>>	silver green	2	PR-1JA+0YC

https://skoda.7zap.com/en/cz/rapid/rap/2014-740/5/511-511000/

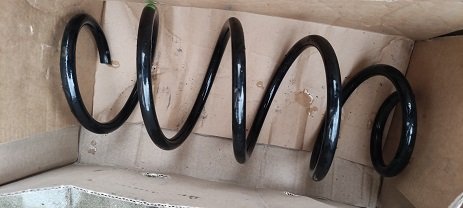

Fronts are 6R0411105B and rears are 1J0511115AL, I've just attached some pics.

On 01/03/2022 at 10:35, DunDunFather said:

May fit other variants (Seat Toledo, VW Polo).



Fronts are 6R0411105B and rears are 1J0511115AL,



According to the Kilen online spring catalogue, these front and rear springs will fit all Skoda Rapid and Skoda Rapid Spaceback 1.2TSI models with a manual gearbox from 2012 to 2019...so includes the 86PS and 105PS 8-valve engines and the 90PS and 110PS 16-valve engines.

https://www.kilensprings.com/



Skoda Rapid 1.2TSI Engines

1.2 TSI 63 kW	2012–2015	CBZA (EA111)	1197 ccm, I4, 8V SOHC, TSI, turbocharged	63 kW (86 PS; 85 hp) at 4800 rpm	160 Nm. (118 lb•ft) at 1500–3500 rpm	5-speed manual (MQ200), FWD	183 km/h (114 mph)	11.8	5.1 55.4 / 46.1 (4.9 / 57.6 / 48.0)*	119 (114*)
1.2 TSI 66 kW	2015–	CJZC (EA211)	1197 ccm, I4, 16V DOHC, TSI, turbocharged	66 kW (90 PS; 89 hp) at 4400 rpm	160 Nm. (118 lb•ft) at 1400–3500 rpm	5-speed manual (MQ200), FWD	186 km/h (116 mph)	11.2	4.7 60.1 / 50.1	107
1.2 TSI 77 kW	2012–2015	CBZB (EA111)	1197 ccm, I4, 8V SOHC, TSI, turbocharged	77 kW (105 PS; 103 hp) at 5000 rpm	175 Nm. (129 lb•ft) at 1550–4100	6-speed manual (MQ200), FWD	195 km/h (121 mph)	10.3	5.4 / 52.3 / 43.6 (5.0 / 56.5 / 47.0)*	125 (116*)
1.2 TSI 81 kW	2015–	CJZD (EA211)	1197 ccm, I4, 16V DOHC, TSI, turbocharged	81 kW (110 PS; 108 hp) at 4600 rpm	175 Nm. (129 lb•ft) at 1400–4000	6-speed manual (MQ200), FWD	200 km/h (124 mph)	9.8	4.9 / 57.7 / 48	110

https://en.wikipedia.org/wiki/Škoda_Rapid_(2012)



Edited 5 March, 20224 yr by Carlston
