I've posted my issues recently on other threads, but now I have VCDS, it should narrow of problems down right?



I recently had a used gearbox fitted as it was knackered. This gearbox was a different code, but does work after a guy with ODIS came out.



My main issues are the Turbo code, putting the car into limp, with a key reset or code delete temp fixing it.



And the Throttle Actuator code..

The car is still sluggish as it was pre gearbox change.



VCDS Scan below (Registered with Ross-Tech, awaiting confirmation)



Thursday,10,March,2022,08:09:03:15239

VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64

VCDS Version: 22.3.0.1 (x64)  HEX-V2 CB: 0.4613.4

Data version: 20220225 DS336.1

www.Ross-Tech.com

Quote



VIN: TMBBH7NP8G7071237   License Plate:





Chassis Type: NP-SK48 (5Q0)

Scan: 01 02 03 08 09 10 13 15 16 17 19 36 42 44 52 55 5F 6D



VIN: TMBBH7NP8G7071237   Mileage: 274385km-170494miles



01-Engine -- Status: Malfunction 0010

02-Auto Trans -- Status: OK 0000

03-ABS Brakes -- Status: Malfunction 0010

08-Auto HVAC -- Status: Malfunction 0010

09-Cent. Elect. -- Status: Malfunction 0010

10-Park/Steer Assist -- Status: Malfunction 0010

13-Auto Dist. Reg -- Status: Malfunction 0010

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: Malfunction 0010

17-Instruments -- Status: Malfunction 0010

19-CAN Gateway -- Status: Malfunction 0010

36-Seat Mem. Drvr -- Status: OK 0000

42-Door Elect, Driver -- Status: Malfunction 0010

44-Steering Assist -- Status: OK 0000

52-Door Elect, Pass. -- Status: Malfunction 0010

55-Headlight Range -- Status: Malfunction 0010

5F-Information Electr. -- Status: Malfunction 0010

6D-Trunk Elect. -- Status: Malfunction 0010

-------------------------------------------------------------------------------

Address 01: Engine (J623-CRLB)       Labels:. 04L-907-309-V1.clb

   Part No SW: 04L 906 026 ET    HW: 04L 907 309 R

   Component: R4 2.0l TDI   H22 1990

   Revision: B5H22---    CVN: 49FF1F44

   Coding: 011D0012036501086000

   Shop #: WSC 00000 000 00000

   ASAM Dataset: EV_ECM20TDI01104L906026ET 002002

   ROD: EV_ECM20TDI01104L906026FL.rod

   VCID: 00598FECFA80BB7BCF2-8054

   VINID: 91D4926077A02171C01C10831C98D958CB



4 Faults Found:

5295 - Throttle Valve Actuator Module (J338): Motor Circuit

          P2102 00 [237] - Signal Low

          MIL ON - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 9

                    Mileage: 274179 km

                    Date: 2022.03.09

                    Time: 07:42:19



                    Engine RPM: 1154.00 /min

                    Normed load value: 0.0 %

                    Vehicle speed: 26 km/h

                    Coolant temperature: 96 °C

                    Intake air temperature: 92 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 14.680 V

                    Unlearning counter according OBD: 40

                    Mass airflow sensor 1 bank 1 airflow: raw value: 454.9 mg/stroke

                    Throttl.valve adapt. 1 bank 1: posit feedback - Specified value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Offset closed: -0.35 %

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 7

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 2

                    Throttl.valve adapt. 1 bank 1: posit feedback - Raw voltage: 4442.6 mV



5296 - Throttle Valve Actuator Module (J338): Motor Circuit

          P2102 00 [104] - Signal Low

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 16

                    Mileage: 274226 km

                    Date: 2022.03.09

                    Time: 10:15:19



                    Engine RPM: 1603.50 /min

                    Normed load value: 76.9 %

                    Vehicle speed: 8 km/h

                    Coolant temperature: 77 °C

                    Intake air temperature: 79 °C

                    Ambient air pressure: 990 mbar

                    Voltage terminal 30: 13.040 V

                    Unlearning counter according OBD: 40

                    Mass airflow sensor 1 bank 1 airflow: raw value: 523.3 mg/stroke

                    Throttl.valve adapt. 1 bank 1: posit feedback - Specified value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Offset closed: -0.35 %

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 7

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 2

                    Throttl.valve adapt. 1 bank 1: posit feedback - Raw voltage: 4535.6 mV



7938 - Turbocharger Boost Control Position Sensor Circuit

          P2563 00 [032] - Implausible Signal

          Intermittent - Not Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 4

                    Mileage: 274285 km

                    Date: 2022.03.09

                    Time: 12:44:44



                    Engine RPM: 0.00 /min

                    Normed load value: 0.0 %

                    Vehicle speed: 0 km/h

                    Coolant temperature: 88 °C

                    Intake air temperature: 55 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 12.180 V

                    Unlearning counter according OBD: 38

                    Turbine actuator 1 bank 1: posit.feedback - Specified value: 0.00 %

                    Turbine actuator 1 bank 1: posit.feedback - Actual value: 100.00 %

                    Turbine actuator 1 bank 1: posit.feedback - Offset closed: -0.76 %

                    Turbine actuator 1 bank 1: monitoring - status-Bits 0-7: 0

                    Turbine actuator 1 bank 1: monitoring - status-Bits 0-7: 7

                    Turbine actuator 1 bank 1: monitoring - status-Bits 0-7: 0

                    Turbine actuator 1 bank 1: monitoring - status-Bits 0-7: 0

                    Turbine actuator 1 bank 1: posit.feedback - Raw voltage: 288.2 mV

                    Accelerator pedal travel: raw value: 0.00 %



4718 - No Communication with Transmission Control Module

          U0101 00 [175] - -

          MIL ON - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Mileage: 274140 km

                    Date: 2022.03.09

                    Time: 06:03:24



                    Engine RPM: 1141.00 /min

                    Normed load value: 67.8 %

                    Vehicle speed: 60 km/h

                    Coolant temperature: 93 °C

                    Intake air temperature: 52 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 13.200 V

                    Unlearning counter according OBD: 40

                    Requested transmission torque: 1000.0 Nm

                    Limitation: accelerator pedal: 56.7 Nm

                    Cruise Control System (CCS): status-Bits 0-7: 7

                    selected gear-Bits 0-7: 6

                    Engine control module reset status-Bits 0-7: 0

                    Engine control module reset status-Bits 0-7: 0

                    Transmission torque intervention status-Bits 0-7: 0

                    Transmission torque intervention status-Bits 0-7: 0

                    Calculated reducing transmission intervention torque: 1000.0 Nm



Readiness: 1 3 0 0 0



-------------------------------------------------------------------------------

Address 02: Auto Trans (J743)       Labels: 0D9-927-770.clb

   Part No SW: 0D9 300 040 A    HW: 02E 927 770 AN

   Component: DQ250-6F MQB  H52 3613

   Revision: 05652103    Serial number: TFK01210180563 CVN: 00005934

   Coding: 0014

   Shop #: WSC 01357 011 00200

   ASAM Dataset: EV_TCMDQ250021 001001

   ROD: EV_TCMDQ250021.rod

   VCID: 1577CEB895022ED30C4-8040



1 Fault Found:

10763 - Starter Enable from Selector Lever Sensor System

          P1734 00 [002] - -

          Intermittent - Not Confirmed - Tested Since Memory Clear





-------------------------------------------------------------------------------

Address 03: ABS Brakes (J104)       Labels: 5Q0-907-379-IPB-V1.clb

   Part No SW: 3Q0 907 379 AB    HW: 3Q0 907 379 G

   Component: ESC           H42 0723

   Revision: 00000000    Serial number: 60626000004206

   Coding: 1D07929C34270B6D0779060341CA49B8492CD0E0608292F51861F078C202

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_Brake1UDSContiMK100IPB 034036

   ROD: EV_Brake1UDSContiMK100IPB_034.rod

   VCID: 7AADFD049C5CE1AB816-802E



5 Faults Found:

16388 - TPMS Display

          C1146 F0 [008] - Not Available

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 244

                    Mileage: 272808 km

                    Date: 2022.03.04

                    Time: 06:08:49



16401 - Tire Pressure Warning

          C102D 00 [008] - -

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 243

                    Mileage: 272637 km

                    Date: 2022.03.03

                    Time: 09:41:00



32830 - Parking Brake Motors

          C10E1 29 [008] - Signal Implausible

          [IPB-Actuator: Actuator state UNKNOWN]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 243

                    Mileage: 272766 km

                    Date: 2022.03.04

                    Time: 04:48:44



32869 - Databus

          U1123 00 [008] - Received Error Message

          [IPB-BUS: Airbag_02 / AB_Gurtschloss_FA invalid]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 3

                    Fault Frequency: 1

                    Reset counter: 250

                    Mileage: 274004 km

                    Date: 2022.03.08

                    Time: 11:45:34



32901 - Right Parking Brake Motor Voltage Supply

          C100E 13 [008] - Electrical Malfunction

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 243

                    Mileage: 272766 km

                    Date: 2022.03.04

                    Time: 04:48:32





-------------------------------------------------------------------------------

Address 08: Auto HVAC (E87)       Labels:| 3V0-907-044.clb

   Part No SW: 3V0 907 044 AR    HW: 3V0 907 044 AR

   Component: AC Automat    H32 3701

   Revision: 20K05000    Serial number: 00000B00074070

   Coding: 11110104002100011005004000101002

   Shop #: WSC 73430 790 00063

   ASAM Dataset: EV_ACClimaPrehVW37X 002012

   ROD: EV_ACClimaPrehVW37X_002_VW37.rod

   VCID: 045183FCEE98A75BEBA-8050



3 Faults Found:

263425 - Air Quality Sensor

          B10AF 04 [009] - Internal System Fault

          Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 3

                    Fault Frequency: 240

                    Reset counter: 213

                    Mileage: 270567 km

                    Date: 2022.02.21

                    Time: 13:16:11



                    Outside temperature: 9.5 °C

                    Voltage terminal 30: 12.2 V

                    System run time-Engine running time: 0 s

                    System run time-Terminal 15 on: 56 s

                    Air quality status: Malfunction

                    System run time-Engine running time: 0 s

                    System run time-Terminal 15 on: 56 s



1048836 - Blower Output Reduction due to Energy Management

          B10CE 00 [008] - -

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 2

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 14:28:18



                    Voltage terminal 30: 11.2 V

                    Blower reduction: No switch-off: no reduction



1048835 - Functionality limited due to Engine Control Module

          P1719 00 [008] - -

          [PTC-Reduzierung durch MSG]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 12

                    Reset counter: 250

                    Mileage: 271365 km

                    Date: 2022.02.24

                    Time: 06:13:19



                    Voltage terminal 30: 13.6 V

                    Auxiliary heater: in stages-Enabling for auxiliary heater operation: Enabling stage 3

                    Auxiliary heater: in stages-Act.val.: 0

                    Auxiliary heater: in stages-Target value: 3

                    Auxiliary heater: in stages-Specified value for control: 3





-------------------------------------------------------------------------------

Address 09: Cent. Elect. (J519)       Labels:| 5Q0-937-08X-HV1.clb

   Part No SW: 5Q0 937 084 CL    HW: 5Q0 937 084 AN

   Component: BCM MQBAB H   H24 0175

   Serial number: 01061606401693

   Coding: 0F001A46C2C722FB17A44086B10C17280000000000000000000000000000

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_BCMMQB 015001

   ROD: EV_BCMBOSCH_015.rod

   VCID: 045183FCEE98A75BEBA-8050



   Wiper motor control module:

   Subsystem 1 - Part No SW: 3V2 955 119     HW: 3V1 955 119   Labels: 5QX-955-119-V1.CLB

   Component: 48x RL 160222  032 0121

   Serial number: 00000001602190301824

   Coding: 165DDD



   Rain/Light Recognition Sensor:

   Subsystem 2 - Part No SW: 5Q0 955 547 A    HW: 5Q0 955 547 A  Labels: 5Q0-955-547.CLB

   Component: RLHS  037 0059

   Serial number: S3Y16M03D07H05M58S10

   Coding: 00084D



   Anti-theft alarm system sensor:

   Subsystem 3 - Part No SW: 5Q0 951 172     HW: 5Q0 951 172

   Component: Sensor, DWA  005 0316

   Serial number: 000000000ZY113500PSY



   Alarm horn:

   Subsystem 4 - Part No SW: 5Q0 951 605 A    HW: 5Q0 951 605 A

   Component: Sirene, DWA  005 0313

   Serial number: 00000000000065170508



5 Faults Found:

6666 - Bulb for Low Beam Headlamp Left

          B1217 15 [008] - Open or Short to Plus

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 1

                    Fault Frequency: 3

                    Reset counter: 249

                    Mileage: 271012 km

                    Date: 2022.02.23

                    Time: 07:58:26



                    Terminal 15 status: On

                    Terminal 50 status: OFF

                    CAN-Bus_aktiv: On

                    Status Bremslichtschalter (HW): OFF

                    Status Bremslichtschalter (CAN): OFF

                    OFF: Not operated

                    Position lamps: Not operated

                    Automatic high beam assist: operated

                    Low beam: Not operated

                    Parking light left: Not operated

                    Parking light right: Not operated

                    last_wakeup: gültiges Funktelegramm

                    Voltage: 14.8 V

                    Outside temperature: 6.0 °C



204290 - Remote key 1

          B1479 18 [008] - Current Too Low

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 4

                    Fault Frequency: 16

                    Reset counter: 252

                    Mileage: 271194 km

                    Date: 2022.02.23

                    Time: 17:10:51



                    Terminal 15 status: OFF

                    Terminal 50 status: OFF

                    CAN-Bus_aktiv: On

                    Status Bremslichtschalter (HW): OFF

                    Status Bremslichtschalter (CAN): OFF

                    OFF: Not operated

                    Position lamps: Not operated

                    Automatic high beam assist: operated

                    Low beam: Not operated

                    Parking light left: Not operated

                    Parking light right: Not operated

                    last_wakeup: gültiges Funktelegramm

                    Voltage: 12.1 V

                    Outside temperature: 13.0 °C



204293 - Remote key 1

          B1479 54 [008] - Missing Calibration / Basic Setting

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 4

                    Fault Frequency: 4

                    Reset counter: 247

                    Mileage: 271136 km

                    Date: 2022.02.23

                    Time: 12:19:25



                    Terminal 15 status: OFF

                    Terminal 50 status: OFF

                    CAN-Bus_aktiv: OFF

                    Status Bremslichtschalter (HW): OFF

                    Status Bremslichtschalter (CAN): OFF

                    OFF: Not operated

                    Position lamps: Not operated

                    Automatic high beam assist: operated

                    Low beam: Not operated

                    Parking light left: Not operated

                    Parking light right: Not operated

                    last_wakeup: no cause for fault protection

                    Voltage: 12.8 V

                    Outside temperature: 9.5 °C



204302 - Remote key 1

          B1479 04 [008] - Internal System Fault

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 4

                    Fault Frequency: 1

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 15:47:52



                    Terminal 15 status: On

                    Terminal 50 status: OFF

                    CAN-Bus_aktiv: On

                    Status Bremslichtschalter (HW): OFF

                    Status Bremslichtschalter (CAN): OFF

                    OFF: Not operated

                    Position lamps: Not operated

                    Automatic high beam assist: operated

                    Low beam: Not operated

                    Parking light left: Not operated

                    Parking light right: Not operated

                    last_wakeup: gültiges Funktelegramm

                    Voltage: 11.1 V

                    Outside temperature: 10.0 °C



395273 - Control Circuit for Signal Horn

          B1344 14 [008] - Open or Short to Ground

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 2

                    Reset counter: 249

                    Mileage: 273685 km

                    Date: 2022.03.07

                    Time: 14:24:52



                    Terminal 15 status: OFF

                    Terminal 50 status: OFF

                    CAN-Bus_aktiv: On

                    Status Bremslichtschalter (HW): OFF

                    Status Bremslichtschalter (CAN): OFF

                    OFF: Not operated

                    Position lamps: Not operated

                    Automatic high beam assist: operated

                    Low beam: Not operated

                    Parking light left: Not operated

                    Parking light right: Not operated

                    last_wakeup: kl30g_pwm

                    Voltage: 12.6 V

                    Outside temperature: 10.5 °C





-------------------------------------------------------------------------------

Address 10: Park/Steer Assist (J446)       Labels:| 5Q0-919-283.clb

   Part No SW: 5Q0 919 283 G    HW: 5Q0 919 283

   Component: PARKHILFE 4K  H10 0056

   Revision: --------    Serial number: 39291606200207

   Coding: 0001050011

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_EPHVA14AU3700000 002024

   ROD: EV_EPHVA14AU3700000_002_VW37.rod

   VCID: 3D273618CDF21693E44-8068



2 Faults Found:

13893632 - Function Restricted due to Insufficient Voltage

          U1400 00 [008] - -

          [Funktionseinschränkung durch Unterspannung - unterer Grenzwert unterschritten]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 2

                    Reset counter: 238



13637120 - Databus

          U1123 00 [008] - Received Error Message

          [Parkbremse - EPB_01.EPB_Status - Fehlerspeicher auslesen]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 4

                    Reset counter: 243

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 13:41:25





-------------------------------------------------------------------------------

Address 13: Auto Dist. Reg (J428)       Labels:| 3Q0-907-572.clb

   Part No SW: 3Q0 907 572 B    HW: 3Q0 907 572 B

   Component: ACC BOSCH MQB H04 0192

   Coding: 3200678151FFC428949C804D

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_ACCBOSCHVW48X 001008

   ROD: EV_ACCBOSCHVW48X.rod

   VCID: 3431133CFEB8D7DB1BA-8060



6 Faults Found:

2086 - Databus

          U1123 00 [008] - Received Error Message

          [FAULT_EPB_ACTUATOR_FAIL]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 6

                    Reset counter: 243

                    Mileage: 272055 km

                    Date: 2022.02.27

                    Time: 11:29:00



                    Control Module temperature: 30 °C

                    Voltage terminal 15: 11.7 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error



2162 - Databus

          U1123 00 [008] - Received Error Message

          [FAULT_EPB_FAULT_STATUS]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 6

                    Reset counter: 243

                    Mileage: 272055 km

                    Date: 2022.02.27

                    Time: 11:30:56



                    Control Module temperature: 30 °C

                    Voltage terminal 15: 11.6 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error



2163 - Databus

          U1123 00 [008] - Received Error Message

          [FAULT_EPB_RESILIENCE]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 6

                    Reset counter: 243

                    Mileage: 272055 km

                    Date: 2022.02.27

                    Time: 11:30:56



                    Control Module temperature: 30 °C

                    Voltage terminal 15: 11.6 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error



2095 - Databus

          U1123 00 [008] - Received Error Message

          [FAULT_SEATBELT_FAIL]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 4

                    Fault Frequency: 3

                    Reset counter: 250

                    Mileage: 271136 km

                    Date: 2022.02.23

                    Time: 12:44:42



                    Control Module temperature: 37 °C

                    Voltage terminal 15: 12.1 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error



2068 - Databus

          U1123 00 [009] - Received Error Message

          [FAULT_TSK_IRREV_FAIL]

          Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 162

                    Reset counter: 213

                    Mileage: 270567 km

                    Date: 2022.02.21

                    Time: 13:16:25



                    Control Module temperature: 29 °C

                    Voltage terminal 15: 12.2 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error



1389 - Function Restricted due to Insufficient Voltage

          U1400 00 [008] - -

          [FAULT_VBAT_BUSMON_LOW]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 7

                    Reset counter: 252

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 13:40:41



                    Control Module temperature: 22 °C

                    Voltage terminal 15: 10.6 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error





-------------------------------------------------------------------------------

Address 15: Airbags (J234)       Labels:| 5Q0-959-655.clb

   Part No SW: 5Q0 959 655 AK    HW: 5Q0 959 655 AK

   Component: AirbagVW21    005 0130

   Serial number: 003Q5R1HZPKU

   Coding: 98CCC0C0000000005C5400CF00C800000065

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_AirbaVW20SMEVW37X 002146

   ROD: EV_AirbaVW20SMEVW37X_VW37.rod

   VCID: 094F92C8C9BAFA3398C-805C



   Crash sensor for side airbag: driver side:

   Subsystem 1 - Part No SW: -----------    HW: 480 000 303 16

   Component: SideSensor_Df  001 0887

   Serial number: 3570000000016A7D291L

   Coding: 2D2D2D



   Front Passenger's Side Airbag Crash Sensor:

   Subsystem 2 - Part No SW: -----------    HW: 480 000 303 16

   Component: SideSensor_Pf  001 0887

   Serial number: 3580000000074A7D291Q

   Coding: 2D2D2D



   Rear Side Airbag Crash Sensor (on driver's side):

   Subsystem 3 - Part No SW: -----------    HW: 480 400 703 16

   Component: SideSensor_Dr  001 6149

   Serial number: 3510002B71F93A02A070

   Coding: 2D2D2D



   Passenger side rear thorax airbag crash sensor:

   Subsystem 4 - Part No SW: -----------    HW: 480 400 703 16

   Component: SideSensor_Pr  001 6149

   Serial number: 3520002B71F93A02A330

   Coding: 2D2D2D



   Crash sensor for front airbag: driver side:

   Subsystem 5 - Part No SW: -----------    HW: 480 400 703 16

   Component: FrontSensor_D  001 6149

   Serial number: 3550002A51F93A02A2C8

   Coding: 2D2D2D



No fault code found.



-------------------------------------------------------------------------------

Address 16: Steering wheel (J524)       Labels:| 5Q0-953-549.clb

   Part No SW: 5Q0 953 521 GB    HW: 5Q0 953 569 A

   Component: Lenks.Modul   075 0195

   Revision: FF033033    Serial number: 20160303500657

   Coding: 6410

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_SMLSVALEOMQB 001015

   ROD: EV_SMLSVALEOMQB.rod

   VCID: 78A9E70CA250F3BBF72-802C



1 Fault Found:

114178 - Function Restricted due to Insufficient Voltage

          U1400 00 [008] - -

          [Funktionseinschränkung durch Unterspannung -unterer Grenzwert unterschritten>]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 1

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:22:51



                    Ubat 30 Voltage: 8.80 V

                    Ignition State: On

                    Terminal 15: 8.00 V





-------------------------------------------------------------------------------

Address 17: Instruments (J285)       Labels:| 5G0-920-XXX-17.clb-SRI3

   Part No SW: 3V0 920 941     HW: 3V0 920 941

   Component: KOMBI         213 6422

   Coding: 27A5010A2F80060001887A011000000000000000

   Shop #: WSC 73430 031 00063

   ASAM Dataset: EV_DashBoardVDDMQBAB 009046

   ROD: EV_DashBoardVDDMQBAB_009_VW26.rod

   VCID: 72BDD524C42C99EBC96-8026



1 Fault Found:

1048578 - No Basic Setting

          B2010 00 [009] - -

          [Steuergerät keine oder falsche Grundeinstellung]

          Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 187

                    Mileage: 270567 km

                    Date: 2022.02.21

                    Time: 13:16:02





-------------------------------------------------------------------------------

Address 19: CAN Gateway (J533)       Labels:| 5Q0-907-530-V1.clb

   Part No SW: 5Q0 907 530 AJ    HW: 5Q0 907 530 M

   Component: GW MQB High   212 2246

   Revision: --------    Serial number: 07031610802273

   Coding: 030100045F087300EB00025A1C0F00010001070000000000000000000000

   Shop #: WSC 73430 790 00063

   GVL: 01543C0008000000401C90000000C80000000000000000000000000000000000

   ASAM Dataset: EV_GatewConti 013020

   ROD: EV_GatewConti_013.rod

   VCID: 79AFE208995AEAB388C-802C



   Generator:



   Multifunction steering wheel control module:

   Subsystem 2 - Part No SW: 3V0 919 719 A    HW: 3V0 919 719 A

   Component: E221__MFL-PR6  H02 0150

   Serial number: 000000000B0963290216



   Battery Monitoring Control Module:

   Subsystem 3 - Part No SW: 5Q0 915 181 G    HW: 5Q0 915 181 G

   Component: J367-BDMHella  H04 8050

   Serial number: 5707929503



1 Fault Found:

8531970 - Quiescent Current

          U1406 00 [008] - Too High

          [Ruhestrom oberer Grenzwert überschritten]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 7

                    Fault Frequency: 17

                    Reset counter: 252

                    Mileage: 270627 km

                    Date: 2022.02.21

                    Time: 19:51:01



                    Terminal 30 power supply: 12.5 V

                    Terminal 15: OFF





-------------------------------------------------------------------------------

Address 36: Seat Mem. Drvr (J810)       Labels:* None

   Part No SW: 5Q0 959 760 A    HW: 5Q0 959 760 A

   Component: Sitzmemory    H06 0009

   Serial number: Y0006PBR10044

   Coding: 001400000000010001A080808080000000008181000000D4

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_SeatMemorDriveSide 001015

   ROD: EV_SeatMemorDriveSide_001.rod

   VCID: 3B233800D3E618A3DA0-806E



No fault code found.



-------------------------------------------------------------------------------

Address 42: Door Elect, Driver (J386)       Labels:| 5QX-959-X93-42.clb

   Part No SW: 5Q0 959 593 E    HW: 5Q0 959 593 B

   Component: TSG FS        020 0041

   Serial number: 021115BK104284

   Coding: 001D0820DE01040000001100

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_DCUDriveSideEWMAXKLO 006003

   ROD: EV_DCUDriveSideEWMAXCONT.rod

   VCID: 43D340E0AB166063920-8016



   Rear Driver Side Door Control Module:

   Subsystem 1 - Part No SW: 5Q0 959 812 A    HW: 5Q0 959 812 A  Labels: 5QX-959-81X-V1.CLB

   Component: FOND_FHSG_DRV  005 0005

   Serial number: 00000000000009104618

   Coding: 0D0200



1 Fault Found:

589829 - Window Regulator; Rear Driver side

          B131F F5 [008] - Supply Voltage too Low

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:23:35





-------------------------------------------------------------------------------

Address 44: Steering Assist (J500)       Labels:| 5Q0-909-144.clb

   Part No SW: 5Q0 909 144 S    HW: 5Q0 909 144 R

   Component: EPS_MQB_ZFLS  125 1063

   Coding: 8103

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_SteerAssisMQB 012140

   ROD: EV_SteerAssisMQB_012_VW37.rod

   VCID: 44D143FCAE18675BABA-8010



No fault code found.



-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. (J387)       Labels:| 5QX-959-X92-52.clb

   Part No SW: 5Q0 959 592 E    HW: 5Q0 959 592 B

   Component: TSG BFS       020 0041

   Serial number: 150116EAE0325A

   Coding: 001D0220DE01040000001100

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_DCUPasseSideEWMAXKLO 006003

   ROD: EV_DCUPasseSideEWMAXCONT.rod

   VCID: 42DD45E4B40C696B996-8016



   Rear Passenger Door Control Module:

   Subsystem 1 - Part No SW: 5Q0 959 811 A    HW: 5Q0 959 811 A  Labels: 5QX-959-81X-V1.CLB

   Component: FOND_FHSG_PSG  005 0005

   Serial number: 00000000000009055436

   Coding: 150200



1 Fault Found:

589845 - Window Regulator; Front Passenger side

          B1320 F5 [008] - Supply Voltage too Low

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:23:35





-------------------------------------------------------------------------------

Address 55: Headlight Range (J745)       Labels:| 7P6-907-357.clb

   Part No SW: 7P6 907 357 D    HW: 7P6 907 357 A

   Component: AFS-ECU       H07 0090

   Revision: --------    Serial number: --------------

   Coding: 06DE00003F010000

   Shop #: WSC 73430 790 00063

   ASAM Dataset: EV_HeadlRegulVWAFSMQB 001120

   ROD: EV_HeadlRegulVWAFSMQB.rod

   VCID: 40D94FECBA007B7B8F2-8014



   Left Headlamp Power Output Stage:

   Subsystem 1 - Part No SW: 8U0 941 329     HW: 8U0 941 329   Labels: 3D0-941-329.CLB

   Component: LeiMo links  H01 0006

   Coding: B20000



   Right Headlamp Power Output Stage:

   Subsystem 2 - Part No SW: 8U0 941 329     HW: 8U0 941 329   Labels: 3D0-941-329.CLB

   Component: LeiMo rechts  H01 0006

   Coding: B20000



3 Faults Found:

5275926 - Power Output Module for Left Headlamp

          C1081 16 [008] - Voltage Too Low

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:20:16



5276182 - Power Output Module for Right Headlamp

          C1082 16 [008] - Voltage Too Low

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:20:16



9574144 - Bulb for Low Beam Headlamp Left

          B1217 00 [008] - -

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 3

                    Reset counter: 249

                    Mileage: 271012 km

                    Date: 2022.02.23

                    Time: 07:58:29





-------------------------------------------------------------------------------

Address 5F: Information Electr. (J794)       Labels:| 3V0-035-MIB-HGH2.clb

   Part No SW: 3V0 035 020 B    HW: 3V0 035 020

   Component: MU-H-ND-EU    H50 0318

   Serial number: A676B0GB014916

   Coding: 03840101FF00000011111201008808002F0000C601200100DE

   Shop #: WSC 73430 790 00063

   ASAM Dataset: EV_MUHig4CGen2HBAS 001001

   ROD: EV_MUHig4CGen2HBAS_AU37.rod

   VCID: 2517FE784562BE539C4-8070



   Display and control head 1 for information electronics:

   Subsystem 1 - Part No SW: 3V0 919 606     HW: 3V0 919 606

   Component: ABT_High-2  H46 1031

   Serial number: SKZ8Z9SFP00AVR



   Data carrier:

   Subsystem 2 - Part No SW: V03 959 801 JK    HW: -----------

   Component: ECE 2016  --- 0134

   Serial number: --------------------



   Compact disc data bank:

   Subsystem 3 - Part No SW: V03 959 800 EG    HW: -----------

   Component: Gracenote2  --- 1012

   Serial number: --------------------



1 Fault Found:

1564 - Microphone 1

          B129B 13 [008] - Open Circuit

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 4

                    Fault Frequency: 2

                    Reset counter: 252

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:11:27



                    Voltage terminal 30: 9.1 V





-------------------------------------------------------------------------------

Address 6D: Trunk Elect. (J605)       Labels:| 5Q0-959-107.clb

   Part No SW: 5Q0 959 107 J    HW: 5Q0 959 107 J

   Component: HDSG-Modul    H13 0253

   Revision: --------    Serial number: 30573754900000

   Coding: 1000

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_DeckLidCONTIAU736 001012

   ROD: EV_DeckLidCONTIAU736_VW37.rod

   VCID: 3FDB4C10C7FE0483F68-806A



1 Fault Found:

0011 - Function Restricted due to Insufficient Voltage

          U1400 00 [008] - -

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 2

                    Reset counter: 238

                    Mileage: 272055 km

                    Date: 2022.02.28

                    Time: 16:22:51



                    Voltage terminal 30: 8.92 V





End----------(Elapsed Time: 01:37, VBatt start/end: 12.6V/12.5V)-----------







@ApertureS

Thats a whole bunch of faults... is that what returns after a code clear, and a drive?



I did say in the last thread that having something like VCDS would help a lot, but its still near impossible to diagnose something like this over the internet.



Youre gonna need to go back to basics, checking voltages at the actuators, checking wiring continuity and for shorts.



I believe you were the same person that had faulty wiring and a very oily engine that was causing all kinds of other issues too?

Just now, sapf0 said:

@ApertureS

Already on the case

There is a huge amount to work through but the starting faults to work through are the throttle actuator and the boost solenoid. Ill get back to you with details.

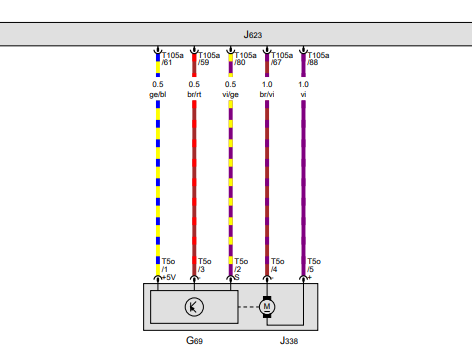

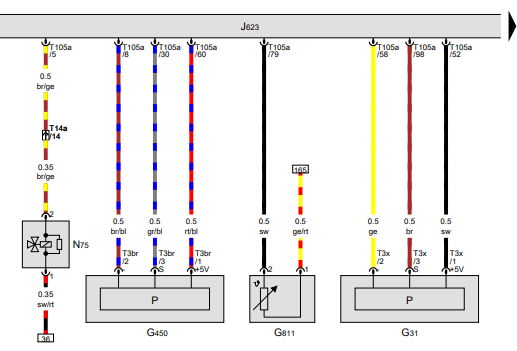

2 diagrams attached G69/J338 is your throttle body.



Pin 1 will have 5V permanent

3 will have a ground permanent

2 will be a signal varying between 0.5 and 4.5v depending on the position of the flap

4 will be a pwm 12v switched signal/ground

5 will be a pwn 12v switched signal/ground



N75 is in the second diagram - your boost solenoid - youve had issues in the past with this as pin 1 is fed by fuse 4 which youve already fixed i hope? What was the outcome for this?

pin 2 is a switched ground to the engine ecu J623



Youre gonna need a multimeter at worst and a scope of some kind at best to even start finding these faults.

11 minutes ago, ApertureS said:

Thats a whole bunch of faults... is that what returns after a code clear, and a drive?



I did say in the last thread that having something like VCDS would help a lot, but its still near impossible to diagnose something like this over the internet.



Youre gonna need to go back to basics, checking voltages at the actuators, checking wiring continuity and for shorts.



I believe you were the same person that had faulty wiring and a very oily engine that was causing all kinds of other issues too?

Already on the case

Yes mate, that was me unfortunalty. Wiring was fixed. Oil leak is still present but managing it whilst I get the other problem fixed. This the worst car Ive ever owned, but it will be satisfying if I can defeat the gremlins & get it running smoothly again.


I was considering clearing all of the codes but was not so sure. Its okay to do then?



Fuse 4 stopped breaking when the wiring was fixed. It was caused when the gearbox mount broke & the engine was rocking.

20 minutes ago, sapf0 said:

Fuse 4 stopped breaking when the wiring was fixed. It was caused when the gearbox mount broke & the engine was rocking.

It doesnt mean other wires arent damaged though, might not be visible without a proper wiring test.



25 minutes ago, sapf0 said:

Yes mate, that was me unfortunalty. Wiring was fixed. Oil leak is still present but managing it whilst I get the other problem fixed. This the worst car Ive ever owned, but it will be satisfying if I can defeat the gremlins & get it running smoothly again.


I was considering clearing all of the codes but was not so sure. Its okay to do then?



Clear all the codes, drive the car for a few days then post a new scan, im guessing youve had flat batteries and all sorts by them codes?

I did have a flat battery after a few days parked, but charged it up.

I cleared, then drove 10 miles. Felt pokey over 2k, but that surge under 2k which I assumed pre box change was the mechatronic, but someone said a flap of some sort may not be opening fully under 2k.


Here is the recent VCDS. I'll do it again after 200 miles tomorrow. Appear my coolant issue is solved.







Quote



Chassis Type: NP-SK48 (5Q0)

Scan: 01 02 03 08 09 10 13 15 16 17 19 36 42 44 52 55 5F 6D



VIN: TMBBH7NP8G7071237   Mileage: 274402km-170505miles



01-Engine -- Status: Malfunction 0010

02-Auto Trans -- Status: OK 0000

03-ABS Brakes -- Status: OK 0000

08-Auto HVAC -- Status: Malfunction 0010

09-Cent. Elect. -- Status: OK 0000

10-Park/Steer Assist -- Status: OK 0000

13-Auto Dist. Reg -- Status: Malfunction 0010

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: OK 0000

17-Instruments -- Status: Malfunction 0010

19-CAN Gateway -- Status: OK 0000

36-Seat Mem. Drvr -- Status: OK 0000

42-Door Elect, Driver -- Status: OK 0000

44-Steering Assist -- Status: OK 0000

52-Door Elect, Pass. -- Status: OK 0000

55-Headlight Range -- Status: OK 0000

5F-Information Electr. -- Status: OK 0000

6D-Trunk Elect. -- Status: OK 0000

-------------------------------------------------------------------------------

Address 01: Engine (J623-CRLB)       Labels:. 04L-907-309-V1.clb

   Part No SW: 04L 906 026 ET    HW: 04L 907 309 R

   Component: R4 2.0l TDI   H22 1990

   Revision: B5H22---    CVN: 49FF1F44

   Coding: 011D0012036501086000

   Shop #: WSC 00000 000 00000

   ASAM Dataset: EV_ECM20TDI01104L906026ET 002002

   ROD: EV_ECM20TDI01104L906026FL.rod

   VCID: 00598FECFA80BB7BCF2-8054

   VINID: 91D4926077A02171C01C10831C98D958CB



5 Faults Found:

13871 - Coolant Pump for Intercooler

          P023B 00 [039] - Short to GND

          Not Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Mileage: 274394 km

                    Date: 2022.03.10

                    Time: 19:36:47



                    Engine RPM: 751.50 /min

                    Normed load value: 32.5 %

                    Vehicle speed: 0 km/h

                    Coolant temperature: 81 °C

                    Intake air temperature: 67 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 13.780 V

                    Unlearning counter according OBD: 40

                    Air mass at air mass meter 1: 43.3 kg/h

                    EGR temp. sensor 2: B1: raw value: 2222.0 °C

                    Outside temperature sensor 1: B1: raw value: 12.0 °C

                    Intake air temperature before throttle valve: calculated: 0.0 K

                    Charge air cooler output: temp. sensor 1: B1: raw value: 44.2 °C

                    Heater supp.pump 1 bank 1 charg.air cool.circuit: activat.: 21.09 %

                    Turbocharger 1 charger output: temp. sensor 1: B1: raw value: 67.1 °C



28386 - Coolant Pump 3

          P26F5 00 [039] - Short to GND

          Not Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Mileage: 274394 km

                    Date: 2022.03.10

                    Time: 19:36:47



                    Engine RPM: 750.50 /min

                    Normed load value: 32.2 %

                    Vehicle speed: 0 km/h

                    Coolant temperature: 81 °C

                    Intake air temperature: 67 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 13.820 V

                    Unlearning counter according OBD: 40

                    Heater support pump 1 bank 1 second.circuit: activat.: 93.56 %

                    Outside temperature sensor 1: B1: raw value: 12.0 °C

                    Shut-off timer: last engine shut-off time: 10221 s



5295 - Throttle Valve Actuator Module (J338): Motor Circuit

          P2102 00 [167] - Signal Low

          MIL ON - Not Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Mileage: 274391 km

                    Date: 2022.03.10

                    Time: 19:33:25



                    Engine RPM: 1377.00 /min

                    Normed load value: 0.0 %

                    Vehicle speed: 74 km/h

                    Coolant temperature: 74 °C

                    Intake air temperature: 81 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 14.200 V

                    Unlearning counter according OBD: 40

                    Mass airflow sensor 1 bank 1 airflow: raw value: 546.4 mg/stroke

                    Throttl.valve adapt. 1 bank 1: posit feedback - Specified value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Offset closed: -0.34 %

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 7

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 2

                    Throttl.valve adapt. 1 bank 1: posit feedback - Raw voltage: 4535.6 mV



5296 - Throttle Valve Actuator Module (J338): Motor Circuit

          P2102 00 [167] - Signal Low

          MIL ON - Not Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Mileage: 274389 km

                    Date: 2022.03.10

                    Time: 19:31:08



                    Engine RPM: 1819.50 /min

                    Normed load value: 42.7 %

                    Vehicle speed: 11 km/h

                    Coolant temperature: 67 °C

                    Intake air temperature: 59 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 14.120 V

                    Unlearning counter according OBD: 40

                    Mass airflow sensor 1 bank 1 airflow: raw value: 807.4 mg/stroke

                    Throttl.valve adapt. 1 bank 1: posit feedback - Specified value: 77.04 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %

                    Throttl.valve adapt. 1 bank 1: posit feedback - Offset closed: -0.34 %

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 0

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 7

                    Throttle valve adapter 1 bank 1: monitoring - status-Bits 0-7: 2

                    Throttl.valve adapt. 1 bank 1: posit feedback - Raw voltage: 4540.4 mV



4718 - No Communication with Transmission Control Module

          U0101 00 [167] - -

          MIL ON - Not Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Mileage: 274385 km

                    Date: 2022.03.10

                    Time: 19:23:56



                    Engine RPM: 0.00 /min

                    Normed load value: 0.0 %

                    Vehicle speed: 0 km/h

                    Coolant temperature: 44 °C

                    Intake air temperature: 42 °C

                    Ambient air pressure: 1000 mbar

                    Voltage terminal 30: 12.160 V

                    Unlearning counter according OBD: 40

                    Requested transmission torque: 1000.0 Nm

                    Limitation: accelerator pedal: 0.0 Nm

                    Cruise Control System (CCS): status-Bits 0-7: 7

                    selected gear-Bits 0-7: 0

                    Engine control module reset status-Bits 0-7: 0

                    Engine control module reset status-Bits 0-7: 0

                    Transmission torque intervention status-Bits 0-7: 0

                    Transmission torque intervention status-Bits 0-7: 0

                    Calculated reducing transmission intervention torque: 1000.0 Nm



Readiness: 0 0 0 0 1



-------------------------------------------------------------------------------

Address 02: Auto Trans (J743)       Labels: 0D9-927-770.clb

   Part No SW: 0D9 300 040 A    HW: 02E 927 770 AN

   Component: DQ250-6F MQB  H52 3613

   Revision: 05652103    Serial number: TFK01210180563 CVN: 00005934

   Coding: 0014

   Shop #: WSC 01357 011 00200

   ASAM Dataset: EV_TCMDQ250021 001001

   ROD: EV_TCMDQ250021.rod

   VCID: 1577CEB895022ED30C4-8040



13 Faults Found:

21153 - Gear 1

          P072C 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



21154 - Gear 2

          P072D 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



21155 - Gear 3

          P072E 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



21156 - Gear 4

          P072F 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



21157 - Gear 5

          P073A 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



21158 - Gear 6

          P073B 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



21159 - Gear R

          P072B 00 [002] - Not Selectable

          Intermittent - Not Confirmed - Tested Since Memory Clear



10731 - Valve 3 in Transmission Part 1

          P174A 00 [002] - Electrical malfunction

          Intermittent - Not Confirmed - Tested Since Memory Clear



10732 - Valve 3 in Transmission Part 2

          P174E 00 [002] - Electrical malfunction

          Intermittent - Not Confirmed - Tested Since Memory Clear



10657 - RPM Signal from ECU

          P0726 00 [002] - Implausible Signal

          Intermittent - Not Confirmed - Tested Since Memory Clear



10739 - Valve 3 in Transmission Part 1

          P174A 00 [002] - Electrical malfunction

          Intermittent - Not Confirmed - Tested Since Memory Clear



21207 - Pressure Control Solenoid 3

          P0797 00 [002] - Stuck ON

          Intermittent - Not Confirmed - Tested Since Memory Clear



10906 - Cooling Oil Valve

          P179D 00 [002] - Electrical Malfunction

          Intermittent - Not Confirmed - Tested Since Memory Clear





-------------------------------------------------------------------------------

Address 03: ABS Brakes (J104)       Labels: 5Q0-907-379-IPB-V1.clb

   Part No SW: 3Q0 907 379 AB    HW: 3Q0 907 379 G

   Component: ESC           H42 0723

   Revision: 00000000    Serial number: 60626000004206

   Coding: 1D07929C34270B6D0779060341CA49B8492CD0E0608292F51861F078C202

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_Brake1UDSContiMK100IPB 034036

   ROD: EV_Brake1UDSContiMK100IPB_034.rod

   VCID: 7AADFD049C5CE1AB816-802E



No fault code found.



-------------------------------------------------------------------------------

Address 08: Auto HVAC (E87)       Labels:| 3V0-907-044.clb

   Part No SW: 3V0 907 044 AR    HW: 3V0 907 044 AR

   Component: AC Automat    H32 3701

   Revision: 20K05000    Serial number: 00000B00074070

   Coding: 11110104002100011005004000101002

   Shop #: WSC 73430 790 00063

   ASAM Dataset: EV_ACClimaPrehVW37X 002012

   ROD: EV_ACClimaPrehVW37X_002_VW37.rod

   VCID: 045183FCEE98A75BEBA-8050



1 Fault Found:

263425 - Air Quality Sensor

          B10AF 04 [009] - Internal System Fault

          Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 3

                    Fault Frequency: 1

                    Reset counter: 213

                    Mileage: 274385 km

                    Date: 2022.03.10

                    Time: 19:23:54



                    Outside temperature: 14.0 °C

                    Voltage terminal 30: 12.0 V

                    System run time-Engine running time: 0 s

                    System run time-Terminal 15 on: 253 s

                    Air quality status: Malfunction

                    System run time-Engine running time: 0 s

                    System run time-Terminal 15 on: 253 s





-------------------------------------------------------------------------------

Address 09: Cent. Elect. (J519)       Labels:| 5Q0-937-08X-HV1.clb

   Part No SW: 5Q0 937 084 CL    HW: 5Q0 937 084 AN

   Component: BCM MQBAB H   H24 0175

   Serial number: 01061606401693

   Coding: 0F001A46C2C722FB17A44086B10C17280000000000000000000000000000

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_BCMMQB 015001

   ROD: EV_BCMBOSCH_015.rod

   VCID: 045183FCEE98A75BEBA-8050



   Wiper motor control module:

   Subsystem 1 - Part No SW: 3V2 955 119     HW: 3V1 955 119   Labels: 5QX-955-119-V1.CLB

   Component: 48x RL 160222  032 0121

   Serial number: 00000001602190301824

   Coding: 165DDD



   Rain/Light Recognition Sensor:

   Subsystem 2 - Part No SW: 5Q0 955 547 A    HW: 5Q0 955 547 A  Labels: 5Q0-955-547.CLB

   Component: RLHS  037 0059

   Serial number: S3Y16M03D07H05M58S10

   Coding: 00084D



   Anti-theft alarm system sensor:

   Subsystem 3 - Part No SW: 5Q0 951 172     HW: 5Q0 951 172

   Component: Sensor, DWA  005 0316

   Serial number: 000000000ZY113500PSY



   Alarm horn:

   Subsystem 4 - Part No SW: 5Q0 951 605 A    HW: 5Q0 951 605 A

   Component: Sirene, DWA  005 0313

   Serial number: 00000000000065170508



No fault code found.



-------------------------------------------------------------------------------

Address 10: Park/Steer Assist (J446)       Labels:| 5Q0-919-283.clb

   Part No SW: 5Q0 919 283 G    HW: 5Q0 919 283

   Component: PARKHILFE 4K  H10 0056

   Revision: --------    Serial number: 39291606200207

   Coding: 0001050011

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_EPHVA14AU3700000 002024

   ROD: EV_EPHVA14AU3700000_002_VW37.rod

   VCID: 3D273618CDF21693E44-8068



No fault code found.



-------------------------------------------------------------------------------

Address 13: Auto Dist. Reg (J428)       Labels:| 3Q0-907-572.clb

   Part No SW: 3Q0 907 572 B    HW: 3Q0 907 572 B

   Component: ACC BOSCH MQB H04 0192

   Coding: 3200678151FFC428949C804D

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_ACCBOSCHVW48X 001008

   ROD: EV_ACCBOSCHVW48X.rod

   VCID: 3431133CFEB8D7DB1BA-8060



2 Faults Found:

2095 - Databus

          U1123 00 [008] - Received Error Message

          [FAULT_SEATBELT_FAIL]

          Intermittent - Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 4

                    Fault Frequency: 1

                    Reset counter: 253

                    Mileage: 274385 km

                    Date: 2022.03.10

                    Time: 19:24:13



                    Control Module temperature: 28 °C

                    Voltage terminal 15: 11.9 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error



2068 - Databus

          U1123 00 [009] - Received Error Message

          [FAULT_TSK_IRREV_FAIL]

          Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 6

                    Fault Frequency: 1

                    Reset counter: 213

                    Mileage: 274385 km

                    Date: 2022.03.10

                    Time: 19:23:55



                    Control Module temperature: 28 °C

                    Voltage terminal 15: 12.0 V

                    Velocity_vehicle_reference: 0.00 m/s

                    Longitudinal_acceleration_vehicle_reference: 0.00 m/s²

                    Status_ACC_System: ACC_irreversible error





-------------------------------------------------------------------------------

Address 15: Airbags (J234)       Labels:| 5Q0-959-655.clb

   Part No SW: 5Q0 959 655 AK    HW: 5Q0 959 655 AK

   Component: AirbagVW21    005 0130

   Serial number: 003Q5R1HZPKU

   Coding: 98CCC0C0000000005C5400CF00C800000065

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_AirbaVW20SMEVW37X 002146

   ROD: EV_AirbaVW20SMEVW37X_VW37.rod

   VCID: 094F92C8C9BAFA3398C-805C



   Crash sensor for side airbag: driver side:

   Subsystem 1 - Part No SW: -----------    HW: 480 000 303 16

   Component: SideSensor_Df  001 0887

   Serial number: 3570000000016A7D291L

   Coding: 2D2D2D



   Front Passenger's Side Airbag Crash Sensor:

   Subsystem 2 - Part No SW: -----------    HW: 480 000 303 16

   Component: SideSensor_Pf  001 0887

   Serial number: 3580000000074A7D291Q

   Coding: 2D2D2D



   Rear Side Airbag Crash Sensor (on driver's side):

   Subsystem 3 - Part No SW: -----------    HW: 480 400 703 16

   Component: SideSensor_Dr  001 6149

   Serial number: 3510002B71F93A02A070

   Coding: 2D2D2D



   Passenger side rear thorax airbag crash sensor:

   Subsystem 4 - Part No SW: -----------    HW: 480 400 703 16

   Component: SideSensor_Pr  001 6149

   Serial number: 3520002B71F93A02A330

   Coding: 2D2D2D



   Crash sensor for front airbag: driver side:

   Subsystem 5 - Part No SW: -----------    HW: 480 400 703 16

   Component: FrontSensor_D  001 6149

   Serial number: 3550002A51F93A02A2C8

   Coding: 2D2D2D



No fault code found.



-------------------------------------------------------------------------------

Address 16: Steering wheel (J524)       Labels:| 5Q0-953-549.clb

   Part No SW: 5Q0 953 521 GB    HW: 5Q0 953 569 A

   Component: Lenks.Modul   075 0195

   Revision: FF033033    Serial number: 20160303500657

   Coding: 6410

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_SMLSVALEOMQB 001015

   ROD: EV_SMLSVALEOMQB.rod

   VCID: 78A9E70CA250F3BBF72-802C



No fault code found.



-------------------------------------------------------------------------------

Address 17: Instruments (J285)       Labels:| 5G0-920-XXX-17.clb-SRI3

   Part No SW: 3V0 920 941     HW: 3V0 920 941

   Component: KOMBI         213 6422

   Coding: 27A5010A2F80060001887A011000000000000000

   Shop #: WSC 73430 031 00063

   ASAM Dataset: EV_DashBoardVDDMQBAB 009046

   ROD: EV_DashBoardVDDMQBAB_009_VW26.rod

   VCID: 72BDD524C42C99EBC96-8026



1 Fault Found:

1048578 - No Basic Setting

          B2010 00 [009] - -

          [Steuergerät keine oder falsche Grundeinstellung]

          Confirmed - Tested Since Memory Clear

             Freeze Frame:

                    Fault Status: 00000001

                    Fault Priority: 2

                    Fault Frequency: 1

                    Reset counter: 213

                    Mileage: 274385 km

                    Date: 2022.03.10

                    Time: 19:23:54





-------------------------------------------------------------------------------

Address 19: CAN Gateway (J533)       Labels:| 5Q0-907-530-V1.clb

   Part No SW: 5Q0 907 530 AJ    HW: 5Q0 907 530 M

   Component: GW MQB High   212 2246

   Revision: --------    Serial number: 07031610802273

   Coding: 030100045F087300EB00025A1C0F00010001070000000000000000000000

   Shop #: WSC 73430 790 00063

   GVL: 01543C0008000000401C90000000C80000000000000000000000000000000000

   ASAM Dataset: EV_GatewConti 013020

   ROD: EV_GatewConti_013.rod

   VCID: 79AFE208995AEAB388C-802C



   Generator:



   Multifunction steering wheel control module:

   Subsystem 2 - Part No SW: 3V0 919 719 A    HW: 3V0 919 719 A

   Component: E221__MFL-PR6  H02 0150

   Serial number: 000000000B0963290216



   Battery Monitoring Control Module:

   Subsystem 3 - Part No SW: 5Q0 915 181 G    HW: 5Q0 915 181 G

   Component: J367-BDMHella  H04 8050

   Serial number: 5707929503



No fault code found.



-------------------------------------------------------------------------------

Address 36: Seat Mem. Drvr (J810)       Labels:* None

   Part No SW: 5Q0 959 760 A    HW: 5Q0 959 760 A

   Component: Sitzmemory    H06 0009

   Serial number: Y0006PBR10044

   Coding: 001400000000010001A080808080000000008181000000D4

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_SeatMemorDriveSide 001015

   ROD: EV_SeatMemorDriveSide_001.rod

   VCID: 3B233800D3E618A3DA0-806E



No fault code found.



-------------------------------------------------------------------------------

Address 42: Door Elect, Driver (J386)       Labels:| 5QX-959-X93-42.clb

   Part No SW: 5Q0 959 593 E    HW: 5Q0 959 593 B

   Component: TSG FS        020 0041

   Serial number: 021115BK104284

   Coding: 001D0820DE01040000001100

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_DCUDriveSideEWMAXKLO 006003

   ROD: EV_DCUDriveSideEWMAXCONT.rod

   VCID: 43D340E0AB166063920-8016



   Rear Driver Side Door Control Module:

   Subsystem 1 - Part No SW: 5Q0 959 812 A    HW: 5Q0 959 812 A  Labels: 5QX-959-81X-V1.CLB

   Component: FOND_FHSG_DRV  005 0005

   Serial number: 00000000000009104618

   Coding: 0D0200



No fault code found.



-------------------------------------------------------------------------------

Address 44: Steering Assist (J500)       Labels:| 5Q0-909-144.clb

   Part No SW: 5Q0 909 144 S    HW: 5Q0 909 144 R

   Component: EPS_MQB_ZFLS  125 1063

   Coding: 8103

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_SteerAssisMQB 012140

   ROD: EV_SteerAssisMQB_012_VW37.rod

   VCID: 44D143FCAE18675BABA-8010



No fault code found.



-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. (J387)       Labels:| 5QX-959-X92-52.clb

   Part No SW: 5Q0 959 592 E    HW: 5Q0 959 592 B

   Component: TSG BFS       020 0041

   Serial number: 150116EAE0325A

   Coding: 001D0220DE01040000001100

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_DCUPasseSideEWMAXKLO 006003

   ROD: EV_DCUPasseSideEWMAXCONT.rod

   VCID: 42DD45E4B40C696B996-8016



   Rear Passenger Door Control Module:

   Subsystem 1 - Part No SW: 5Q0 959 811 A    HW: 5Q0 959 811 A  Labels: 5QX-959-81X-V1.CLB

   Component: FOND_FHSG_PSG  005 0005

   Serial number: 00000000000009055436

   Coding: 150200



No fault code found.



-------------------------------------------------------------------------------

Address 55: Headlight Range (J745)       Labels:| 7P6-907-357.clb

   Part No SW: 7P6 907 357 D    HW: 7P6 907 357 A

   Component: AFS-ECU       H07 0090

   Revision: --------    Serial number: --------------

   Coding: 06DE00003F010000

   Shop #: WSC 73430 790 00063

   ASAM Dataset: EV_HeadlRegulVWAFSMQB 001120

   ROD: EV_HeadlRegulVWAFSMQB.rod

   VCID: 40D94FECBA007B7B8F2-8014



   Left Headlamp Power Output Stage:

   Subsystem 1 - Part No SW: 8U0 941 329     HW: 8U0 941 329   Labels: 3D0-941-329.CLB

   Component: LeiMo links  H01 0006

   Coding: B20000



   Right Headlamp Power Output Stage:

   Subsystem 2 - Part No SW: 8U0 941 329     HW: 8U0 941 329   Labels: 3D0-941-329.CLB

   Component: LeiMo rechts  H01 0006

   Coding: B20000



No fault code found.



-------------------------------------------------------------------------------

Address 5F: Information Electr. (J794)       Labels:| 3V0-035-MIB-HGH2.clb

   Part No SW: 3V0 035 020 B    HW: 3V0 035 020

   Component: MU-H-ND-EU    H50 0318

   Serial number: A676B0GB014916

   Coding: 03840101FF00000011111201008808002F0000C601200100DE

   Shop #: WSC 73430 790 00063

   ASAM Dataset: EV_MUHig4CGen2HBAS 001001

   ROD: EV_MUHig4CGen2HBAS_AU37.rod

   VCID: 2517FE784562BE539C4-8070



   Display and control head 1 for information electronics:

   Subsystem 1 - Part No SW: 3V0 919 606     HW: 3V0 919 606

   Component: ABT_High-2  H46 1031

   Serial number: SKZ8Z9SFP00AVR



   Data carrier:

   Subsystem 2 - Part No SW: V03 959 801 JK    HW: -----------

   Component: ECE 2016  --- 0134

   Serial number: --------------------



   Compact disc data bank:

   Subsystem 3 - Part No SW: V03 959 800 EG    HW: -----------

   Component: Gracenote2  --- 1012

   Serial number: --------------------



No fault code found.



-------------------------------------------------------------------------------

Address 6D: Trunk Elect. (J605)       Labels:| 5Q0-959-107.clb

   Part No SW: 5Q0 959 107 J    HW: 5Q0 959 107 J

   Component: HDSG-Modul    H13 0253

   Revision: --------    Serial number: 30573754900000

   Coding: 1000

   Shop #: WSC 33361 790 00063

   ASAM Dataset: EV_DeckLidCONTIAU736 001012

   ROD: EV_DeckLidCONTIAU736_VW37.rod

   VCID: 3FDB4C10C7FE0483F68-806A



No fault code found.



End----------(Elapsed Time: 01:30, VBatt start/end: 13.1V/13.2V)-----------





13 hours ago, ApertureS said:

It doesnt mean other wires arent damaged though, might not be visible without a proper wiring test.



Clear all the codes, drive the car for a few days then post a new scan, im guessing youve had flat batteries and all sorts by them codes?



Is a scope better than a multi?

24 minutes ago, sapf0 said:



Is a scope better than a multi?

Different uses but a scope is better for signals.



honestly though by the time you’ve spent all this money on tools and equipment it would of been cheaper for a main dealer even to diagnose it



you sure you want to spend all this money on tools dude

Scopes and mustimeters are different tools for different tasks. At a guess, a load test would be a good plan to check the other wires which can be done using a bulb





Plenty of fault codes still present.



4718 - No Communication with Transmission Control Module

Feels odd given the DSG is showing in the scan, this is similar and needed the flash finishing/redoing: https://forums.ross-tech.com/index.php?threads/16335/



Given the number of DSG faults, that does feel it could be a wiring/power/ground issue...

On 10/03/2022 at 18:57, ApertureS said:

2 diagrams attached G69/J338 is your throttle body.



Pin 1 will have 5V permanent

3 will have a ground permanent

2 will be a signal varying between 0.5 and 4.5v depending on the position of the flap

4 will be a pwm 12v switched signal/ground

5 will be a pwn 12v switched signal/ground



N75 is in the second diagram - your boost solenoid - youve had issues in the past with this as pin 1 is fed by fuse 4 which youve already fixed i hope? What was the outcome for this?

pin 2 is a switched ground to the engine ecu J623



Youre gonna need a multimeter at worst and a scope of some kind at best to even start finding these faults.

Is G69 the throttle body connector?

16 minutes ago, sapf0 said:

Is G69 the throttle body connector?

T5o is the throttle body connector

G69 and J338 are components inside the throttle body.
