Does anyone have or has access to a  list of the product spec codes for a S3. My S2 had in the Service Handbook, a sticky label which had a list of codes which detailed what exactly was fitted to the car.



I would like to ensure that when eventually my S3 arrives, I can check it has all the bits & pieces that I asked for.



Hoping someone can help.



TIA

Kronik99uk





Here are the options I ordered:



19” Phoenix anthracite alloy wheels (PJ8) £650

Temporary space-saver spare wheel (PJA) £100

3 spoke leather MFSW with DSG paddles (PLE) £95

Smart light assist with Lane assist and BSD (PNG) £100

Wi-Fi and Phone box (PT5) £250

Heated windscreen washer nozzles (9T1) £50

Crew protection assist (7W2) £150

Rear-view parking camera (KA2) £300

Unblinds for rear window and rear side windows (3Y3) £250

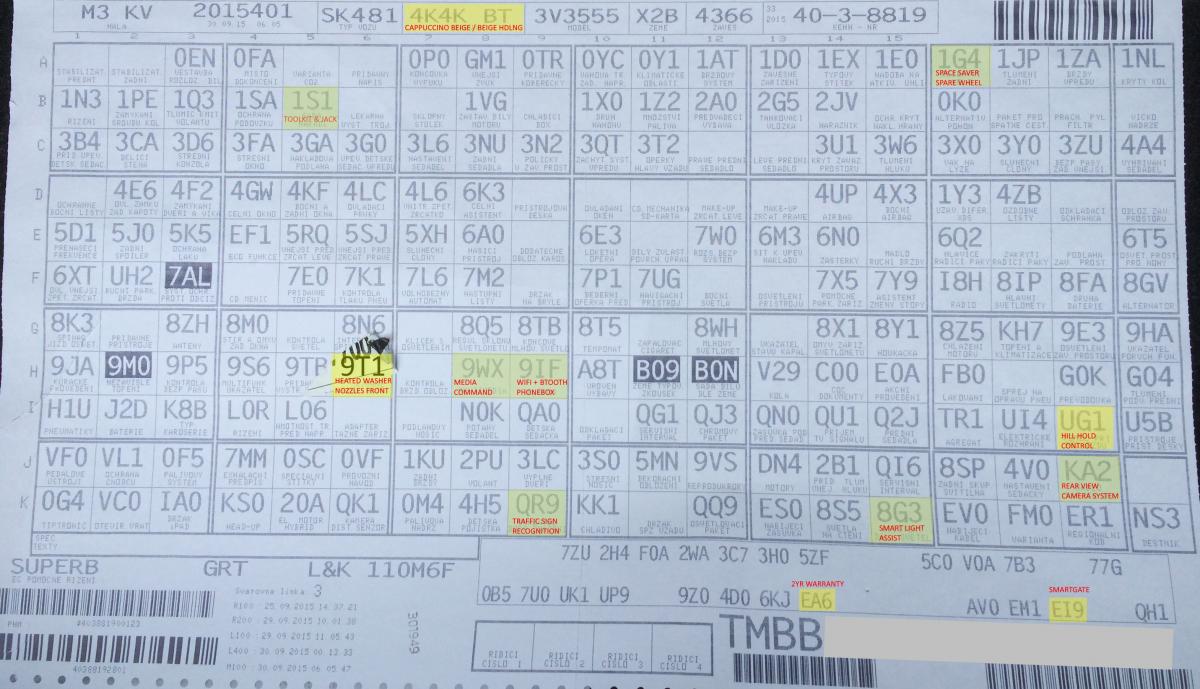

OK - here goes. I managed to get the build sheet for my L&K  photographed when it was still less than 24 hours off the transporter - it was taped to the boot floor.

This meant I could then check that what I ordered had at least been built in to the car. First worry - very few of my option codes were listed - only a couple. Then I decoded the whole sheet using the site below, and found that in fact all my options WERE included, but no longer with the codes used in the ordering process. This was very helpful: http://vag-codes.info/  - note you can download all the known codes as well as use the online lookup.

I was also expecting to find the sticker in the handbook but didn't have time to locate it in the car.



Have a look at this attached picture of it, with my markup:



Does anyone have or has access to a  list of the product spec codes for a S3. My S2 had in the Service Handbook, a sticky label which had a list of codes which detailed what exactly was fitted to the car.



I would like to ensure that when eventually my S3 arrives, I can check it has all the bits & pieces that I asked for.



Hoping someone can help.



TIA

Kronik99uk



If you go on the configurator on the SUK site and put your spec together, then select the Save as PDF option (it's called something like that anyway ), the resulting document lists everything, including all the option codes.

What I have discovered is that the option codes are within the brochures however they are in white font i.e. search on PJ8 in brochure and it will show a block after the description of the option.  I have not found a quick way to copy them but a pdf to text application would probably work. To decode singular options then copy block after description and paste into text editor and change font colour. Hope it helps.....

What I have discovered is that the option codes are within the brochures however they are in white font i.e. search on PJ8 in brochure and it will show a block after the description of the option.  I have not found a quick way to copy them but a pdf to text application would probably work. To decode singular options then copy block after description and paste into text editor and change font colour. Hope it helps.....



If you have a license of Adobe Acrobat you can export the options pages, select all text, change all text colour to black.

If you go on the configurator on the SUK site and put your spec together, then select the Save as PDF option (it's called something like that anyway ), the resulting document lists everything, including all the option codes.



Absolutely what I did. But you might find that the codes listed when the car is delivered to you are not as obvious - some of them are the same as the configurator's ORDER option codes but not all of them. So you can use http://vag-codes.info/  to double check.

Once again, thanks for all the prompt info, I will use http://vag-codes.info/ to check against ( if there is indeed a label in the service book.)



What a wonderful source of info this forum is, any info provided at the drop of a hat with humour and good grace. Take a bow all you list members.



On a final note has there been many TSI 220,s arriving on these shores??.



Still waiting for my TSI 220.

Hope this is useful?



S, SE, SE L, L&K

Wheels and suspension

17" Helios alloy wheels with anti-theft wheel bolts and Super ROWI tyres Only available on 1.4 TSI and 1.6 TDI

PJD

17" Stratos alloy wheels with anti-theft wheel bolts

PJ2

17" Stratos alloy wheels with anti-theft wheel bolts and Super ROWI tyres Only available on 1.4 TSI and 1.6 TDI

PJE

17" Zeus alloy wheels with anti-theft wheel bolts

PJ3

18" Zenith alloy wheels with anti-theft wheel bolts

PJ4

18" Modus alloy wheels with anti-theft wheel bolts

PJ5

18" Pegasus alloy wheels with anti-theft wheel bolts

PJ6

19" Phoenix alloy wheels with anti-theft wheel bolts

PJ7

19" Sirius alloy wheels with anti-theft wheel bolts

PJ9

19" Phoenix anthracite alloy wheels with anti-theft wheel bolts

PJ8

Temporary space-saver spare wheel

PJA / PJB

Drive mode selection Allows the driver to adapt the car’s behaviour to their preference or needs. Four driving modes

are available; normal, sport, eco and individual (which allows the driver to configure customised settings)

PFD-

Dynamic chassis control (DCC) Allows the driver to adapt the chassis properties to their preference or needs.

The system continuously evaluates and responds to various driving situations, adapting the damping and steering

characteristics. The available modes for DCC are normal, comfort and sport. Also includes drive mode selection

PFC



Exterior

Bi-Xenon headlights, AFS and LED daytime running lights with integrated headlight washers

PN0

Rough road package Includes engine guard and underbody stone guard. Ride height is increased by 15mm.

Only available in combination with 16" or 17" alloy wheels

PF1

Sunset glass

4KF

Hatch only

Rear-window wiper

8M1



Interior

3 spoke leather multifunction steering wheel with DSG paddles Only available in combination with DSG transmission

PLE

Alcantara/leather upholstery*

PL2

Leather upholstery*

PL1

Lumbar support for driver and front passenger

PK2

Electrically adjustable front seats Includes lumbar support and auto dimming door mirrors with memory function PB3 ( + PW1 on SE)



Front passenger seat adjustment from rear Allows rear passengers to control the adjustment of the front passenger seat.

Only available in combination with electrically adjustable front seats

4V2

Heated front seats

4A3

Heated front and rear seats

4A4

Ventilated front seats Only available in combination with electrically adjustable front seats

PHC / PHB on L&K

Dark aluminium look inserts

5MC

LED package plus Includes LED front reading lights, door handle illumination, footwell illumination in front and

rear and illuminated vanity mirrors. Also includes decorative ambient lighting strips on the dashboard and front

PNF + 5XH

and rear doors which can be set in three colours: warm amber, green or blue

Fold flat front passenger seat

PKJ

Rear backrest release from boot

UK3

Sunblinds for rear side windows

3Y4

Sunblinds for rear window and rear side windows

3Y3

Textile floor mat set

0TD

Boot net programme

6M3

Smoker's package Front ashtray and lighter

9JB

Waste bin in door panel

3LE

Hatch only

Sunroof

PH9

Estate only

Panoramic sunroof

PH0

Variable boot floor Not available in combination with space saver spare wheel

3GN

Partition net screen

3CX

Retractable parcel shelf Automatically retracts when the boot opens

3U7



Safety and Security

Hill-hold control Standard with DSG transmission

UG1

ISOFIX on front passenger seat

3G1

Crew protection assist and rear side airbags Senses when an impact is imminent and closes windows and sunroof

to protect the passengers from objects entering the car as well as tightening the seatbelts ensuring occupants

are in the safest possible position

 PE2 + 7W2



Entertainment and Communication

Amundsen touchscreen satellite navigation system SD card-based navigation with 6.5" colour TFT touchscreen

RAC

Columbus touchscreen satellite navigation system with integrated Wi-Fi HDD-based navigation with 8" colour

RAG + PT4*



TFT touchscreen, DVD drive and an internal SIM card slot

Bluetooth®+ with Phone box By placing a mobile phone in the tray in front of the gearshift lever the strength

of phone signal can be improved by up to 20%. This provides better sound quality during phone calls and helps

to improve phone battery life

PT1 / PT5 on SE L Executive and L&K



Premium WLAN with integrated high-speed LTE internet † Includes SIM card slot and rSAP profile compatibility

to provide high-speed LTE internet. Only available in combination with Columbus satellite navigation system

PT2**



Media Command Allows wireless control of selected functions of the Columbus satellite navigation system using

a mobile device via a wireless Wi-Fi technology. It is possible to access the following functions: media, navigation,

radio and audio settings. The Media Command application is available from app stores RA1



CANTON sound system Tailor-made for the Superb, this sound system delivers a total output of 610W and features

a 10 channel digital amplifier and 12 speakers: 6 front, 4 rear, 1 in the dashboard and a 200W subwoofer in the boot.

Includes 12 pre-set sound profiles, vehicle noise cancellation and 3D surround sound. Delivers Dolby 5.1

surround sound when combined with Columbus satellite navigation system RA3



SmartGate Uses Wi-Fi connection to send selected vehicle data to a connected device. Special mobile apps are

available which allow you to analyse driving data and performance to find out more about your driving style.

Examples of data available include vehicle speed, engine revs and g-meter. The SmartGate applications are

available free of charge from app stores EI9



TV Tuner Displays DVB, DAB and DMB-DTV broadcast formats whilst the vehicle is stationary. Only available in

combination with Columbus satellite navigation system QU1



Colour Maxi DOT trip computer

9S6

Driver Assistance

Rear parking sensors

7X1

Front and rear parking sensors

7X2

Rear-view parking camera

KA2

Park assist Parks the car in parallel or bay spaces. Includes front and rear parking sensors

PPA

Lane assist and Blind spot detection Lane assist is a camera-based function which is designed to keep the vehicle within

its lane and, if necessary, alert the driver of an unwanted lane change. Blind spot detection uses a radar to prevent the driver

from failing to notice a car in the blind spot behind or beside the car and, if necessary, provide a warning signal to

the driver in the outer corner of the wing mirrors. Only available in combination with electrically adjustable front seats

PWC



Light assist with high beam control Assesses the light conditions and traffic situation and automatically

switches on and off the high beams. Only available in combination with Bi-Xenon headlights

PNC***

Smart light assist Uses the multifunction camera to detect when to switch between low and high beams automatically

and prevents other drivers from being blinded by the vehicles lights. Also adds further decorative illuminated LED strips

to the headlights for a more distinctive look. Includes Lane assist and Blind spot detection. Only available in combination

with electrically adjustable front seats and Bi-Xenon headlights PNG



* Order PT5 if Phone box option is also required

**Order PT3 if Phone box option is also required

*** Order PWZ if Lane assist and Blind spot detection are also required



Travel assist with traffic sign recognition and display Uses the multifunction camera to recognise and display traffic

signs on the Maxi DOT and navigation displays. Only available in combination with a satellite navigation system

PWD



Cruise control with speed limiter

8T6



†High-speed LTE internet is activated by inserting a SIM card into the slot in the glovebox, or connecting a smartphone via the rSAP profile. Passengers can then connect to the

Superb's Wi-Fi hotspot and browse the internet wirelessly on their individual devices.An external data source is required to enable the Wi-Fi hotspot services. Only available for

mobile phone or SIM card contracts which include a data option with the use of LTE, if LTE usage is required. Usage will only be available within the coverage of the mobile phone

network; there may be additional costs for the use of these services (charges and billing correspond to the mobile phone or SIM card contract). Due to potentially high data

volumes, a contract including an unlimited or high usage data plan is strongly recommended.



Driver Assistance

Tri-zone climate control Allows three autonomous thermal comfort zones to be set: driver, front passenger

and rear passenger. Temperature range available is 16 - 29.5 °C and the rear temperature setting can be

deactivated in the infotainment system when not in use

Heated windscreen washer nozzles

9T1



Heated windscreen Designed to quickly defrost or demist the windscreen. A thin metal-coated layer is used

throughout the glass area and heats whilst the engine is running. This also reflects heat when warm outside

to help keep the interior cool PKV



KESSY - Keyless entry and start system

Allows the car to be locked, unlocked and started with a button as long as the sensors detect the key is with the driver

PK7



Electrically operated boot Enables the boot to open and close at the touch of a button; via the key, central panel

or boot handle. The top position of the boot lid can also be adjusted to suit individual preferences

4E7



Virtual pedal Enables touch-free boot opening via a motion sensor under the rear bumper. If the system identifies

the authorised key and detects the 'kick' motion, the boot will open. Includes electrically operated boot functionality.

PK9

Only available in combination with KESSY



Swivelling tow bar The tow bar can be easily released from the boot and folded away after use. Includes preparation

of the following vehicle systems for optimised operation whilst towing: alternator, battery, fan and cooling system

1D4

Service and Warranty

Extended warranty Total 4 years or 80,000 miles

EA5



Extended warranty Total 5 years or 100,000 miles

EA6

Service Plan Total 3 years or 30,000 miles

SP3

Just a word of warning for future buyers. I wanted Smart light assist and two things lead me to make an error in ordering which ended up getting me only Light assist instead of Smart light assist.



PWZ option was around 250 GBP more expensive than PNG option in my market (Croatia) which lead me to doubt if they named it correctly in online configurator as it didn't seem logical that Light assist + Lane assist + Blind spot detection can be more expensive than Smart light assist + Lane assist + Blind spot detection. I asked the same question to the dealer and got them confused as well. Then I went on to consult the Internet and found the snippet below based on which I wrongly concluded that PWZ is the code for Smart light assist + Lane assist + Blind spot detection. It turns out that mark *** is ties it to PNC code (also marked with ***) so PWZ is actually Light assist + Lane assist + Blind spot detection and it was just unluckily listed right below Smart light assist in this printout.

Summary:

PNG = Smart light assist + Lane assist + Blind spot detection

PWZ = Light assist + Lane assist + Blind spot detection



And, illogically, PNG is cheaper than PWZ.



So, it turns out that I paid 250 GBP for a life lesson of "Don't act smart" "Assumption is the mother of all f*** ups".



On 05/11/2015 at 00:51, reedfarmer said:

...

Light assist with high beam control Assesses the light conditions and traffic situation and automatically

switches on and off the high beams. Only available in combination with Bi-Xenon headlights

PNC***

Smart light assist Uses the multifunction camera to detect when to switch between low and high beams automatically

and prevents other drivers from being blinded by the vehicles lights. Also adds further decorative illuminated LED strips

to the headlights for a more distinctive look. Includes Lane assist and Blind spot detection. Only available in combination

with electrically adjustable front seats and Bi-Xenon headlights PNG



* Order PT5 if Phone box option is also required

**Order PT3 if Phone box option is also required

*** Order PWZ if Lane assist and Blind spot detection are also required

...
