Octavia II FL (1Z5) Battery Problem / Amundsen + upgraded

Featured Replies

Hi Guys,

I'm new here so please do not throw away with stones smile.png)

It is about a Skoda Octavia 1Z5 FL (2010) Kombi 1.4 TSI.

A few days ago I swapped my swing radio for an Amundsen + (RNS 315). (For this newly purchased Fakra GPS antenna and frame)

I unlocked the new navi with VCDS. (The parksensor front + rear run perfektly).
2 days Later I realized that battery had no juice.
Did I read afterwards on the internet that I would exchange the Canbus system (Gateway).
I have read my Canbus to watch and note which options are activated that I should unlock the '' New Canbus ''.

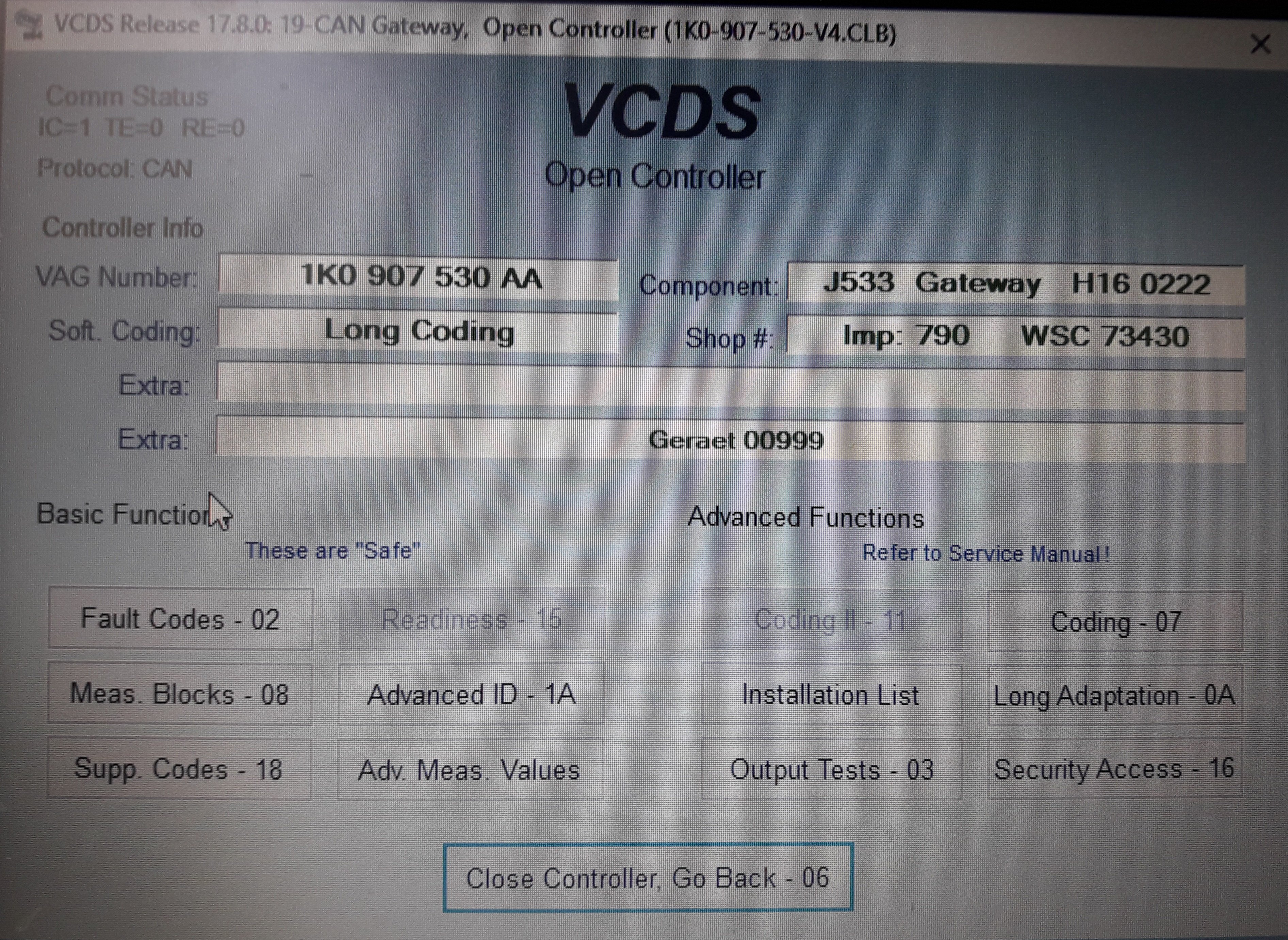

My gateway is 1K0 907 530 AA
Component J5333 H16 0222

Which Canbus do I have to buy? (With which letters)? Here I am in the cloud.

Thanks in advance


  • Author

.

Edited by majiku

  • Author

.

Edited by majiku

  • Author
1 hour ago, langers2k said:

Can you update your VCDS and post an complete autoscan.



It's not on the list so it might not be the gateway that's causing issues: http://wiki.ross-tech.com/wiki/index.php/Navigation_System_(RNS510)_Retrofitting

After I've disconnect the Radio i don't have problems with the battery.



00-Steering Angle Sensor -- Status: OK 0000
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
76-Park Assist -- Status: OK 0000
  • Author
6 hours ago, langers2k said:

Can you update your VCDS and post an complete autoscan.



It's not on the list so it might not be the gateway that's causing issues: http://wiki.ross-tech.com/wiki/index.php/Navigation_System_(RNS510)_Retrofitting

Everything about L (so in the alphabet higher) is good because of the baterrie problems (quiescent current) Canbus does not turn off?

Yup, anything that's new enough will send the correct CAN-bus messages to shut the headunit down. As your gateway isn't on the list, I'd expect it to be fine.



The page is designed around the RNS-510 (Columbus) as it's a more popular retrofit but I believe the same applies to the RNS-310 (Amundsen) and RNS-315 (Amundsen+).



Still worth posting a full autoscan rather than just a gateway installation list.

  • Author
On 03/10/2018 at 15:16, langers2k said:

Yup, anything that's new enough will send the correct CAN-bus messages to shut the headunit down. As your gateway isn't on the list, I'd expect it to be fine.



The page is designed around the RNS-510 (Columbus) as it's a more popular retrofit but I believe the same applies to the RNS-310 (Amundsen) and RNS-315 (Amundsen+).



Still worth posting a full autoscan rather than just a gateway installation list.

hursday,04,October,2018,18:42:04:00005
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 17.8.1.0 (x64)
Data version: 20171130 DS276.6
www.Ross-Tech.com


VIN: TMBHJ61Z6A2026222   License Plate:
Mileage: 140530km-87321mi   Repair Order:



--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 1Z-SK35 (1K0)
Scan: 01 03 08 09 10 15 16 17 19 25 37 42 44 46 52 56

VIN: TMBHJ61Z6A2026222   Mileage: 140530km-87321miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (CAX)       Labels: 03C-906-016-CAX.clb
   Part No SW: 03C 906 016 D    HW: 03C 906 016 C
   Component: MED17.5.5       G   8654
   Revision: LCH02---    Serial number:
   Coding: 0000072
   Shop #: WSC 20450 133 181917
   VCID: 204ED81CF3C3E646B1-8074

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 03: ABS Brakes (-----)       Labels:. 1K0-907-379-60EC1F.clb
   Part No SW: 1K0 907 379 AN    HW: 1K0 907 379 AN
   Component: ESP MK60EC1   H45 0107
   Revision: 00H45001
   Coding: 113B201C09240000880D04E6901B00402C00
   Shop #: WSC 73430 790 00999
   VCID: 7EF2C664E9F770B6E3-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 3C8-907-336.clb
   Part No SW: 3T0 820 047 H    HW: 3T0 820 047 H
   Component: Climatic      130 0203
   Revision: 00005001
   Coding: 0000000000
   Shop #: WSC 73430 790 00999
   ASAM Dataset: EV_Climatic A01001
   ROD: EV_ClimaBasis_SK35.rod
   VCID: 3466244C9F3B6AE645-8060

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 1K0-937-08x-09.clb
   Part No SW: 1K0 937 086 G    HW: 1K0 937 086 G
   Component: BCM PQ35  M+  103 0541
   Revision: 00103 AE
   Coding: 40180AB8F005009040080080110085E4077100AE427D89605C0400000000
   Shop #: WSC 46728 133 93754
   VCID: 3466244C973B6AE645-8060

   Subsystem 1 - Part No: 1Z1 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 27070  22  0601
   Coding: 00DFB7

   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 130709 05  54  0402
   Coding: 0730ED

1 Fault Found:
01134 - Alarm Horn (H12)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 145
                    Mileage: 140539 km
                    Time Indication: 0
                    Date: 2013.02.23
                    Time: 15:39:60

             Freeze Frame:
                        Term 15 On
                    Voltage: 12.00 V
                        ON
                        ON
                        Term 50 Off
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:. 1Z0-919-475-V1.clb
   Part No SW: 1Z0 919 475 C    HW: 1Z0 919 475 A
   Component: PARKHILFE 8K  H06 0006
   Revision: --------    Serial number: 66540919408675
   Coding: 100001
   Shop #: WSC 73430 790 00999
   VCID: 41887D98D889CF4EDE-8014

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 T    HW: 1K0 909 605 T
   Component: Q6 AIRBAG VW8   020 2300
   Revision: 05020000    Serial number: 0038PD2ET7X5
   Coding: 0020790
   Shop #: WSC 73430 790 00999
   VCID: 3D7001686471ABAEBA-8068

   Subsystem 1 - Serial number: 6332MSME49647373E

   Subsystem 2 - Serial number: 6342MSME47406A7DN

   Subsystem 3 - Serial number: 6351HSME1D256A48G

   Subsystem 4 - Serial number: 6361HSME1D331D62A

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY9.lbl
   Part No SW: 1K0 953 549 CQ    HW: 1K0 953 549 CQ
   Component: J0527           053 0111
   Coding: 0000034
   Shop #: WSC 73430 790 00999
   VCID: 0304B79042151D5E8C-8056

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb
   Part No SW: 1Z0 920 843 B    HW: 1Z0 920 843 B
   Component: KOMBI         H21 0110
   Serial number: 00000000000000
   Coding: 010B00
   Shop #: WSC 73430 031 00999
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04040
   ROD: EV_Kombi_UDS_VDD_RM09_A04_VW32.rod
   VCID: 377C13408E4D81FE60-8062

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels:. 1K0-907-530-V4.clb
   Part No SW: 1K0 907 530 AA    HW: 1K0 907 951
   Component: J533  Gateway   H16 0222
   Revision:   H16       Serial number: 4020K097050027
   Coding: E9A01F06400202002302
   Shop #: WSC 73430 790 00999
   VCID: 66C28E045167C8760B-8032

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:. 5K0-920-xxx-25.clb
   Part No SW: 1Z0 920 843 B    HW: 1Z0 920 843 B
   Component: IMMO          H21 0110
   Serial number: 00000000000000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03004
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 377C13408E4D81FE60-8062

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J794)       Labels:| 1K0-035-27x-37.clb
   Part No SW: 3T0 035 192 E    HW: 3T0 035 192 E
   Component: RNS315-EU   H35 0263
   Serial number: SKZAZ2M9242189
   Coding: 000504310401000000008000
   Shop #: WSC 73430 031 00090
   ASAM Dataset: EV_RNS315EUV2UDS A01004
   ROD: EV_RNS315EUV2UDS.rod
   VCID: 306E285C6B2356C621-8064

   Data medium:
   Subsystem 1 - Part No: 3AA 919 866
   Component: EUR_W_0038  0038

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels:. 1K0-959-701-MIN3.clb
   Part No SW: 1T0 959 701 T    HW: 1T0 959 701 T
   Component: Tuer-SG         009 2113
   Coding: 0000116
   Shop #: WSC 73430 790 00999
   VCID: 489E60BC3BB3FE0619-801C

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1K0-909-14x-GEN3.clb
   Part No: 1K0 909 144 H
   Component: EPS_ZFLS Kl. 68     2901
   Revision: 00H17000
   Shop #: WSC 73430 790 00999
   VCID: 2F6C2B20BE1D493E38-807A

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels:. 1K0-959-702-MIN3.clb
   Part No SW: 1T0 959 702 R    HW: 1T0 959 702 R
   Component: Tuer-SG         009 2113
   Coding: 0000116
   Shop #: WSC 73430 790 00999
   VCID: 479C638036ADF17E10-8012

No fault code found.

End-------------------------(Elapsed Time: 01:50)--------------------------

I can't see anything obvious but I'm not particularly familiar with the coding of an RNS315.
