Hi guys. I have Octavia 4x4 1.8 turbo. Can you inform me where I can find electric diagram that show how to plug the electric system in 4x4 Holdex carrier . The original plug is broken . 7 wires must connect correctly so the all weel drive did work. I have search the net for many hours but cannot find this info . How to plug the Holden rear drive electric wires correctly . In case , there is not same colors on the lum wires from the car end and the lum from Holdex . That is the problem .... thank you Valgeir



•
• Quote
•
• Edit



@Wino is usually pretty good at locating diagrams





J492, Control unit for four wheel drive? 8-way connector with 7 wires?

What colour wires do you have in the loom?



Circuit I'm looking at says:

Pin 1 black/green from fuse 231, ignition 12V

Pin2 brown earth

Pin 3 red/black from brake light switch pin 4

pin 4 brown/yellow from handbrake warning switch pin 1 and dash panel insert pin 13 of 32b Conn.

pin 5 grey/white to pin 7 of diagnostic connector

pin 7 orange/brown CANL

pin 8 org/black CANH

Nothing found yet ....

1 minute ago, Valgeir said:

Nothing found yet ....

There is different wire colors . Plug from the car have not the same colors than the plug on the differential end... that is the problem to find out the save fitment .

Do the colours I've posted match the car wire colours?

I will take a photo to morrow . Dont remember the colors . The plugs is gone . Broken , nothing to count on ....

Thank you Wino ..... I have the colors on clear to morrow .....

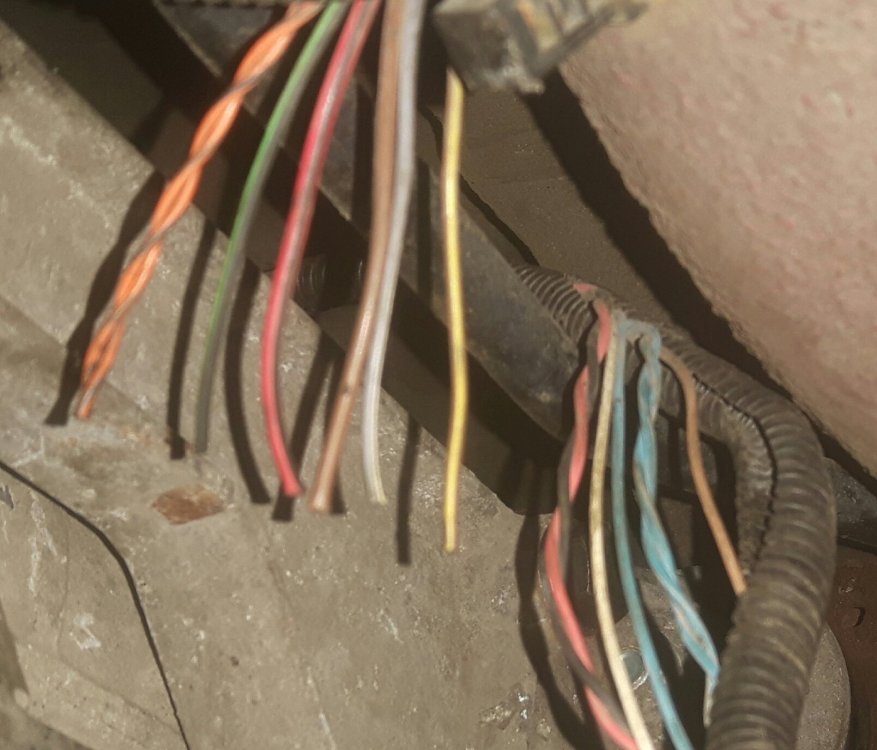

 Hi. Here is the wires. Left side wires from the car. Right side from the Haldex diff ....

Well, encouragingly it looks like the car wiring matches the colours I've found. What's the history of the Haldex unit, is it from a different car?

First photo on this post on Vortex shows a Haldex connector with wire colours like yours. Even the pin numbers on the connector are 'just about' visible. To my eyes it looks like the top row of pins in the picture are labelled 1, 3, 5, 7 from front to back of image, so the row beneath will be 2, 4, 6, 8.

See if you can work out the correspondence from this and my circuit info.

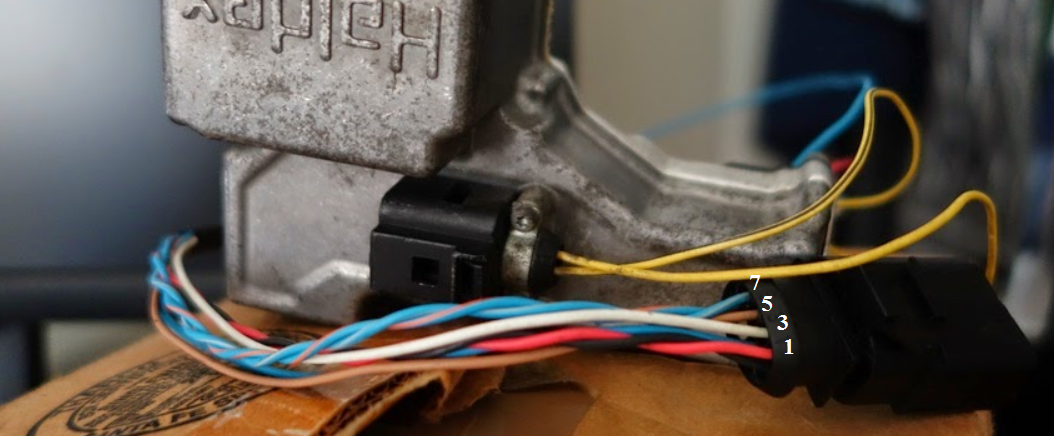

Here's the photo with numbers added for the top row. Don't take my word for this, my eyesight isn't by any means perfect:







 Hi. Here is the wires. Left side wires from the car. Right side from the Haldex diff ....

Hi. The wire color seams to be the same as mine from the Haldex . The wire from the car side is the problem . Witch wire should i pare ?????

Let me try to match them up for you.



Black/green from pin 1 of connector on circuit diagram (and the left in your photo), to red on the right in your photo (pin 1 of photo that I've numbered)



Brown from pin 2 of connector on circuit diagram (and the left in your photo), to black on the right in your photo (pin 2 of photo that I've numbered)



Red/black from pin 3 of connector on circuit diagram (and the left in your photo), to white on the right in your photo (pin 3 of photo that I've numbered)



Brown/yellow from pin 4 of connector on circuit diagram (and the left in your photo), to blue on the right in your photo (pin 4 of photo that I've numbered)



Grey/white from pin 5 of connector on circuit diagram (and the left in your photo), to brown on the right in your photo (pin 5 of photo that I've numbered)



Orange/brown from pin 7 of connector on circuit diagram (and the left in your photo), to blue/grey? on the right in your photo (pin 7 of photo that I've numbered)



Orange/black from pin 8 of connector on circuit diagram (and the left in your photo), to blue/red on the right in your photo (pin 8 of photo that I've numbered)



I may not have got the stripe colours exactly right on the twisted blue CAN wires from the Haldex unit, as they're dirty in your photo, and not too clear in the Vortex forum photo, but I think if you clean them up on your car it will be clear which is which.







 Hi. Here is the wires. Left side wires from the car. Right side from the Haldex diff ....

Hi . Wino...

Thank you for this . I'll try this to morrow. I have problems with the language ..... the tecnical words . So I thank you alot for your adwise . Valgeir

You're welcome Valgeir. I hope to hear soon that you have got it all working correctly.

Hi . Wino...

Thank you for this . I'll try this to morrow. I have problems with the

Hi Wino

All work fine now in my Octavia 4x4

I have another Octavia 4x4 . The Haldex unit not work . I have not check yet what the problem is . Is any common problems ? Where should I start to check ..... ? Thanks Valli



Well done.

I don't know anything about Haldex units, sorry, only wiring.

9 hours ago, Wino said:

Well done.

I don't know anything about Haldex units, sorry, only wiring.

ok. Thanks so mutch....

9 hours ago, Wino said:

Well done.

I don't know anything about Haldex units, sorry, only wiring.



9 hours ago, Valgeir said:

Hi Wino

All work fine now in my Octavia 4x4

I have another Octavia 4x4 . The Haldex unit not work . I have not check yet what the problem is . Is any common problems ? Where should I start to check ..... ? Thanks
