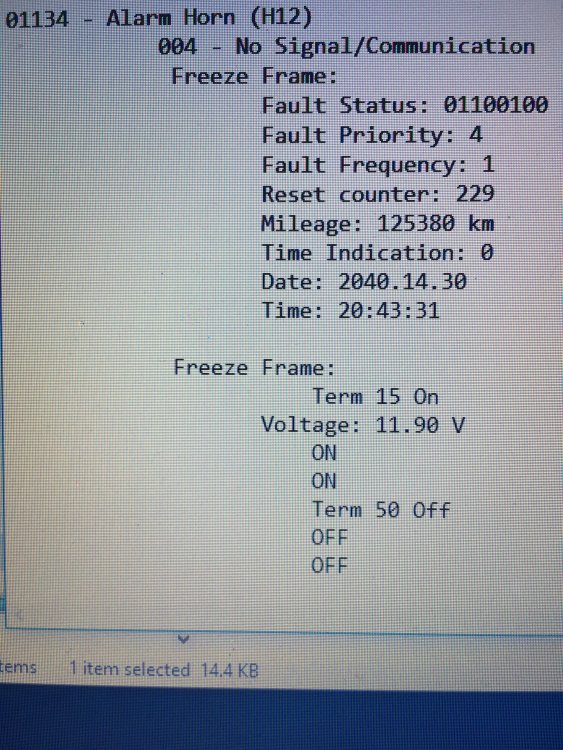

hello,sorry for my bad english but i have a problem,found in 09 cent.elect the fault code 01134 alarm horn(H12)

I  try to clear it but i cant.Open again immediately.

The problem is i dont have horn alarm in my octavia 2 (2011)!!!!

check all the bits (anti-thief system installed active etc) and all are unckeck!!



any help please?




  • Sponsor

Other than the annoyance of a confusing scan result, what is the big problem?

  • Sponsor

Maybe the connection to the BCM is different on Yeti and Octavia?

  • Sponsor

Was your car built before May 2011?

  • Author
4 minutes ago, Wino said:

Maybe the connection to the BCM is different on Yeti and Octavia?

no the connection its ok,i had this fault before try to retrofit and i cant erase it...

  • Author
Just now, Wino said:

Was your car built before May 2011?

yes jan 2011

  • Sponsor

OK, sorry, but I can't help. Seems like the LIN wire is in the same BCM pin as on Yeti.

  • Author
18 minutes ago, Wino said:

OK, sorry, but I can't help. Seems like the LIN wire is in the same BCM pin as on Yeti.

how can reset my bcm j519?seems like stuck..

Might be worth adding a full autoscan rather than just a picture.

  • Author
12 minutes ago, langers2k said:

Might be worth adding a full autoscan rather than just a picture.

VIN: TMBBJ21Z6A2062765   License Plate:


Chassis Type: 1Z (1K0)
Scan: 01 03 08 09 15 16 17 19 25 42 44 46 52 56 62 72

VIN: TMBBJ21Z6A2062765   Mileage: 127030km-78932miles

01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
56-Radio -- Status: Malfunction 0010
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine (CAX)       Labels: 03C-906-016-CAX.clb
   Part No SW: 03C 906 016 AK    HW: 03C 906 016 C
   Component: MED17.5.5       G   5295
   Revision: LCH04---    Serial number:
   Coding: 0000072
   Shop #: WSC 73430 790 00999
   VCID: 68D874EB5B773A0214-803C

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 03: ABS Brakes        Labels: 1K0-907-379-MK70M.clb
   Part No SW: 1K0 907 379 AK    HW: 1K0 907 379 AK
   Component: MK70 M MASR         0104
   Revision: 00H35001
   Coding: 0001281
   Shop #: WSC 73430 790 00999
   VCID: 7BF23BA73AE1819AE9-802E

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels: 5K0-907-044.clb
   Part No SW: 3T0 907 044 AR    HW: 3T0 907 044 AR
   Component: Climatronic   H15 0401
   Revision: 00005001
   Coding: 0000000002
   Shop #: WSC 73430 790 00999
   ASAM Dataset: EV_Climtaronic A01006
   ROD: N/A
   VCID: 020C4643950BF052AA-8056

No ASAM data for: "EV_Climtaronic" (VW36 *)
No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels: 1K0-937-08x-09.clb
   Part No SW: 1K0 937 087 D    HW: 1K0 937 087 D
   Component: BCM PQ35  H   103 0573
   Revision: 00103 AF
   Coding: 40180AB8B00100C0C0080080310081E4430000AE430089605C0440000000
   Shop #: WSC 73430 790 00999
   VCID: 326CD6836D2B80D27A-8066

   Subsystem 1 - Part No: 1Z1 955 119 C  Labels: 1KX-955-119.CLB
   Component: Wischer 11110  22  0601
   Coding: 00D7B7

1 Faults Found:
01134 - Alarm Horn (H12)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 16
                    Mileage: 127037 km
                    Time Indication: 0
                    Date: 2013.08.14
                    Time: 09:55:45

             Freeze Frame:
                        Term 15 On
                    Voltage: 11.85 V
                        ON
                        ON
                        Term 50 Off
                        OFF
                        OFF


-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 1K0-909-605.lbl
   Part No SW: 1K0 909 605 T    HW: 1K0 909 605 T
   Component: Q2 AIRBAG VW8   020 2300
   Revision: 05020000    Serial number: 0038PD2GX69T
   Coding: 0020786
   Shop #: WSC 73430 790 00999
   VCID: 3D76F5BF64754FAA97-8068

   Subsystem 1 - Serial number: 6332MSME4A427862E

   Subsystem 2 - Serial number: 6342MSME4C22090CD

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel        Labels: 1K0-953-549-MY9.lbl
   Part No SW: 1K0 953 549 CE    HW: 1K0 953 549 CE
   Component: J0527           056 0111
   Coding: 0000531
   Shop #: WSC 73430 790 00999
   VCID: 77FA279706C9A5FA8D-8022

   Subsystem 1 - Part No: 3T0 959 537   Labels: 3C8-959-537.CLB
   Component: E221__MFL-URO   H07 0012
   Coding: 00000128
   Shop #: WSC 00000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels: 5K0-920-xxx-17.clb
   Part No SW: 1Z0 920 843 F    HW: 1Z0 920 843 F
   Component: KOMBI         H05 0305
   Serial number: 00000000000000
   Coding: 110B00
   Shop #: WSC 73430 031 00999
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04052
   ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
   VCID: 3B72FBA7B261419AA9-806E

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway        Labels: 1K0-907-530-V4.clb
   Part No SW: 1K0 907 530 AD    HW: 1K0 907 951
   Component: J533  Gateway   H16 0231
   Revision:   H16       Serial number: 4320K09B020127
   Coding: E9807F06000202001302
   Shop #: WSC 73430 790 00999
   VCID: 69DE71EF407D030A0B-803C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels: 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 0305
   Serial number: 00000000000000
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VD_DRM09 A03005
   ROD: N/A
   VCID: 6ADC0EE38D7B081202-803E

No ASAM data for: "EV_Immo_UDS_VD_DRM09" (VW36 *)
No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver        Labels: 1K0-959-701-MAX3.lbl
   Part No SW: 1T0 959 701 AA    HW: 1T0 959 701 AA
   Component: Tuer-SG         009 2113
   Coding: 0004342
   Shop #: WSC 73430 790 00999
   VCID: 76E42A9301C3DCF296-8022

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1Kx-909-14x-44.clb
   Part No: 1K0 909 144 J
   Component: EPS_ZFLS Kl. 68     3001
   Revision: 00H17000
   Shop #: WSC 73430 790 00999
   VCID: 316ED98FA82DBBCA03-8064

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.        Labels: 1K0-959-702-MAX3.lbl
   Part No SW: 1T0 959 702 S    HW: 1T0 959 702 S
   Component: Tuer-SG         009 2113
   Coding: 0004342
   Shop #: WSC 73430 790 00999
   VCID: 4898946B3BB71A0234-801C

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels: 5M0-035-1xx-56.clb
   Part No SW: 1Z0 035 161 F    HW: 1Z0 035 161 F
   Component: SWING         009 0065
   Revision: 0I001001    Serial number: SKZ1Z2I8271360
   Coding: 050004000001
   Shop #: WSC 73430 790 00999
   VCID: 316ED98F682DBBCA03-8064

2 Faults Found:
03138 - Input AUX IN
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 15
                    Mileage: 127035 km
                    Time Indication: 0
                    Date: 2013.08.13
                    Time: 11:33:26

01044 - Control Module Incorrectly Coded
            000 -  -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 5
                    Fault Frequency: 1
                    Reset counter: 15
                    Mileage: 127035 km
                    Time Indication: 0
                    Date: 2013.08.13
                    Time: 11:33:21


-------------------------------------------------------------------------------
Address 62: Door, Rear Left        Labels: 1K0-959-703-GEN3.lbl
   Part No SW: 5K0 959 703 A    HW: 5K0 959 703 A
   Component: Tuer-SG         007 2101
   Coding: 0000144
   Shop #: WSC 73430 790 1012551
   VCID: 326CD683AD2B80D27A-8066

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right        Labels: 1K0-959-704-GEN3.lbl
   Part No SW: 5K0 959 704 A    HW: 5K0 959 704 A
   Component: Tuer-SG         007 2101
   Coding: 0000144
   Shop #: WSC 73430 790 1012551
   VCID: 3362D387523189DA71-8066

No fault code found.

End-------------------------(Elapsed Time: 01:51)--------------------------



Nothing super obvious, I'd try setting the BCM lcode to all 00's then reusing the lcode above.



If that doesn't work and assuming you have a genuine VCDS cable, try ross-techs forum for help :)
