Waylon

Great! Can the eyelash light be used as a daytime running light?

It would be best if the problem can be solved through software programming. I can't think of what went wrong. Yes, the vehicle shown is not a Superb, this is a replaced virtual cockpit of Seat, and the steering wheel has also been replaced with a Cupra

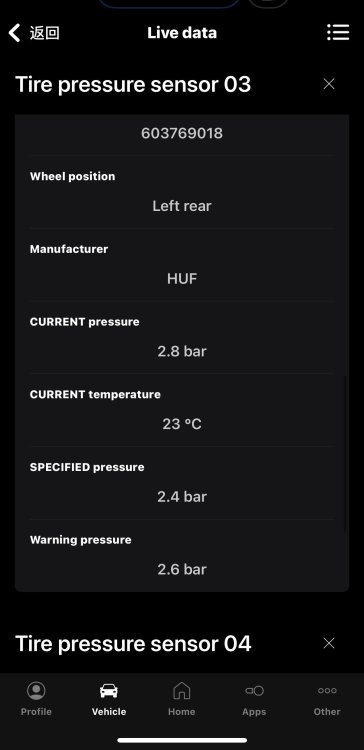

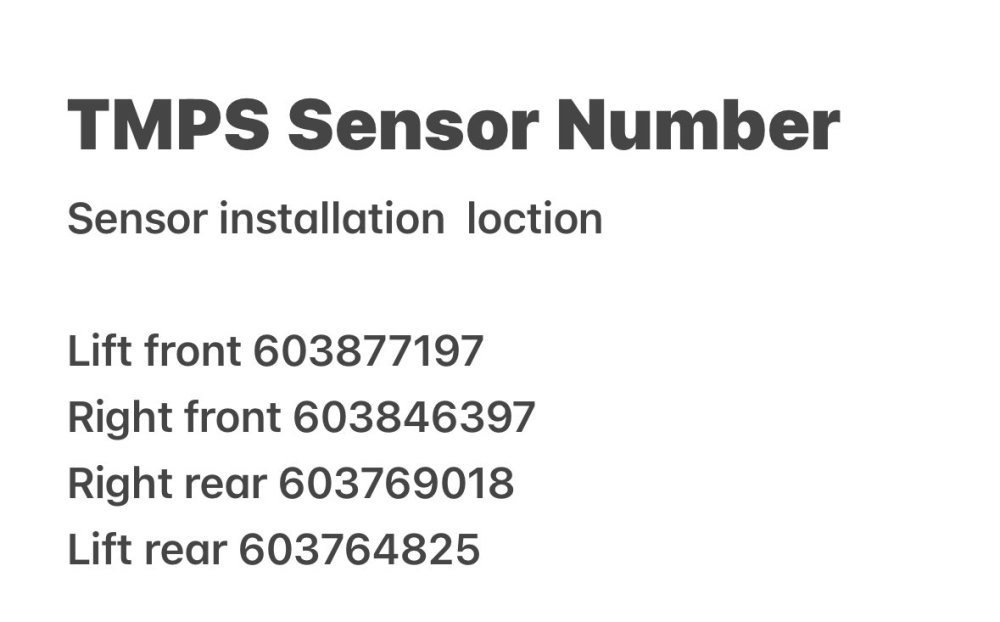

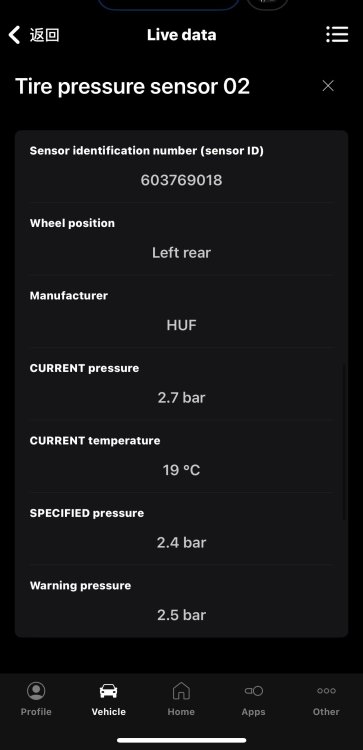

@JR RS@langers2k I have programmed the sensor to a specific position in the control unit 65 using OBDeleven After the car has traveled a certain distance, the sensor is installed and programmed to a fixed position opposite to the sensor position shown in the virtual cockpit

Yes, I have another one, its firmware version is 1382 MI2 toolbox has a lot of functions, I will try it out when I have time

Was this purchased from China?

I feel that the black sensor is more convenient to use I have found a way to change the position without disassembling the sensor and the tire Wait for my good news Cheers!

MHI2_ER_SKG13_P4523_1 MU 1382 This version can meet your requirements for details. You and I have the opposite needs.

So there is such a difference The four black sensors must be replaced Thank you!

orange

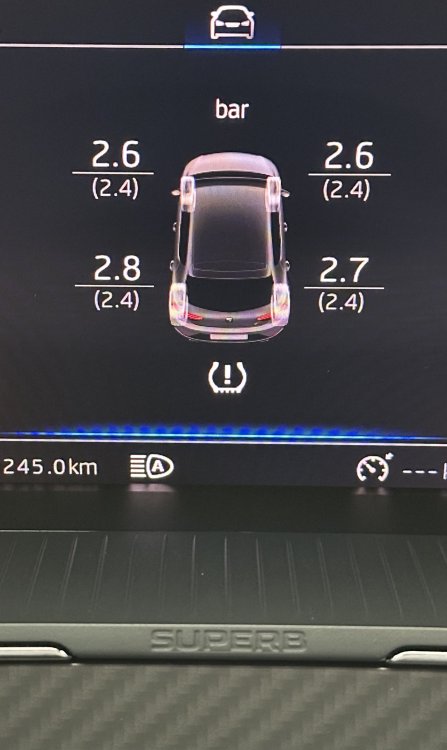

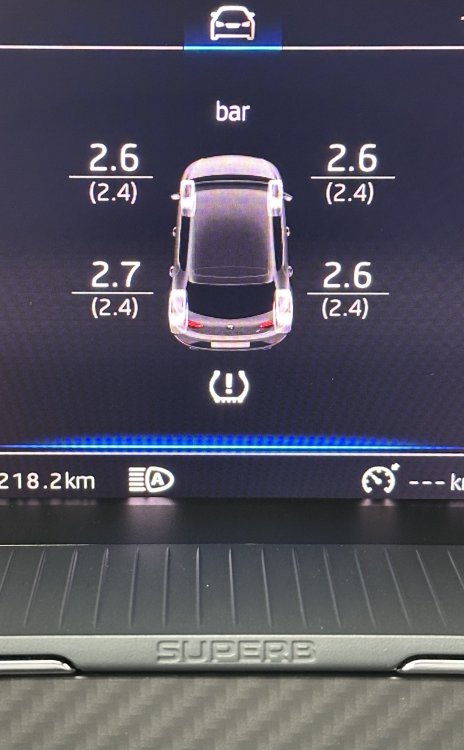

I have installed the direct TMPS module and four sensors The four sensors are not correctly displayed and installed in the virtual cockpit I am doubting whether the installation position of the direct TMPS module is correct

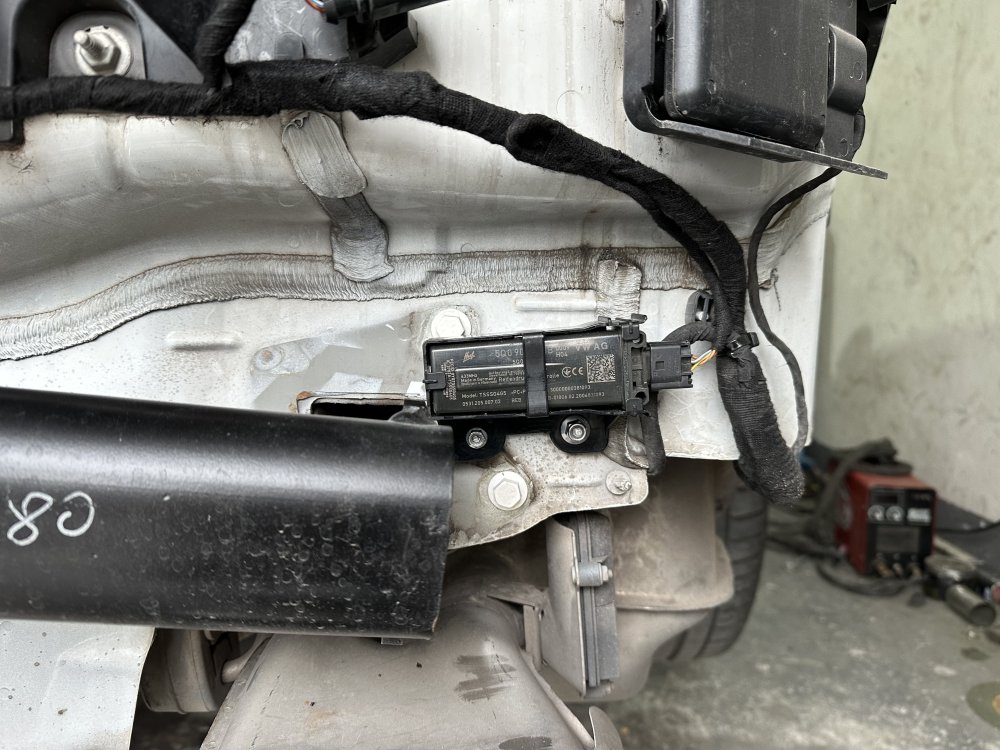

I have installed the direct TPMS receiver module on the right side. I found that the sensor position displayed on the virtual cockpit is different from the actual tire position where the sensor is installed.

The TPMS module does not seem to be the part number used by Superb. After the module is installed in the left position, is the position of each sensor installed in the tire exactly the same as the display in the car?

My description is not detailed enough, whether the TPMS module is installed on the left or right side of the rear of the car.

skoda superb iii tpms unit on the left side or the right side?

What is the firmware version of the MIB2.5 unit?

245 40/R19, ET35*9.5J, this is my current data, it is almost flush with the body, it feels pretty good.

If you need to fully test the headlights you buy, you must check the circuit diagram. I have completed the circuit conversion and coding of the matrix headlights, including the animation effect when the eyelash lights are turned on.

Hi all! I would like to know where can I buy the side skirts in the picture?

@MartiniB Okay! I am also going to use obdeleven for coding. If I have any questions, I hope to get your help again.

@MartiniB In comparison, the hardware and software are the same. Did you use obdeleven to make the coding modifications? I used odis engineers to make the coding modifications.

@MartiniB Hello! What software version is your 09 BCM? I found that some function options are not available on my car. The 09BCM information on my car: 5Q0...084EC, 0511, H44

@ApertureS I have completed the connection between the body control module and the taillight, and all basic functions can be used normally. Now it's just like in the video that the taillights come home and leave home animation is enabled. thank you for your attention

@Sanju Like the function demonstration in this video，Coming/Leaving Home light animation https://www.youtube.com/watch?v=u0ELI2WJK6Q

@Sanju Yes, it looks the same as the photo you provided. The original taillight has its own animation mode. Have you lost it? Because I upgraded and replaced the modified taillight later, it does not come with the original animation mode.

@JRRS Yes, because of parameterization problems after installing and debugging the matrix headlights, it was replaced with the 4B module model of MY2022 Superb 3Q0907338G. Before replacing the matrix headlights, the original 4B module model of my MY2020 Superb was 3Q0907338C. In recent months, I have searched on Google or forums about the parameters, coding, and matching topics of Superb matrix headlights. But it still failed to achieve the factory-like effects, such as the eyelashes of the matrix headlights acting as daytime running lights, and the light show animation similar to the Audi matrix headlights.
