Issue retrofitting a rear view camera.

[Lucwal]

Hello guys,

Me and my brother were trying to retrofit an OEM rear view camera to its Octavia vRS. The issue is, now that it is installed and coded via VCDS, there is no picture. VCDS says an error like "no signal" for the camera. We are pretty sure that the camera is getting juice.

Do any of you guys know what the issue might be ? Or how we can troubleshoot that ? because we have no idea if the problem is caused by cables not being in the right place in the autoradio, the signal cable broken, the camera not working, etc.

Cheers

[cliner]

Are you retrofitted brand new or used RVC?

[Lucwal]

I think it was new

[cliner]

Could you scan RVC module using any VAG device?VCDS,VCP,VAS?Paste this scan result here.

[Lucwal]

Address 5F: Information Electr. (J794)       Labels:| 5E0-035-MIB-STD1.clb
   Part No SW: 5E0 035 864 A    HW: 5E0 035 864 A
   Component: MU-S-N-ER     041 0435
   Serial number: S3F00301152823
   Coding: 037352010000000011110002000800002F0001B40100010046
   Shop #: WSC 73430 790 00063
   ASAM Dataset: EV_MUStd4CPASE 002039
   ROD: EV_MUStd4CPASE_VW37.rod
   VCID: 2541479524E1016286-8070

   Operating And Display Unit 1:
   Subsystem 1 - Part No SW: 5E0 919 605 D    HW: 5E0 919 605 D
   Component: ABT_Std_Nav  H60 0030
   Serial number: SKZ8Z9PT300V7K

   Data medium:
   Subsystem 2 - Part No SW: 5E0 051 236     HW: -----------
   Component:  ECE 2018/201  --- 0075
   Serial number: --------------------

2 Faults Found:
6720 - Rear View Camera
          B1102 31 [009] - No Signal
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 67
                    Mileage: 34800 km
                    Date: 2019.06.23
                    Time: 18:36:56

                    Voltage terminal 30: 11.6 V
                    Network diagnosis-Status: Enabled

6669 - Optical Data Bus for Digital Sound System
          U10CC 00 [008] - Intermittent Disruption
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 108
                    Mileage: 34800 km
                    Date: 2019.06.23
                    Time: 18:48:21

                    Voltage terminal 30: 12.9 V
                    Temperature of MOST transceiver-max.value: -50 ∞C
                    Temperature of MOST transceiver-min.value: -9 ∞C
                    Temperature of MOST transceiver-Current: 40 ∞C

here you go

[cliner]

Are you have added 6C(RVC) modul in Gateway modules list?That have to be done as first.

[Lucwal]

Is that something that has to be done with VCDS ? I'll check with my brother if he did that.

Do you know roughly where this is ? In 17. Instrumentation ?

[cliner]

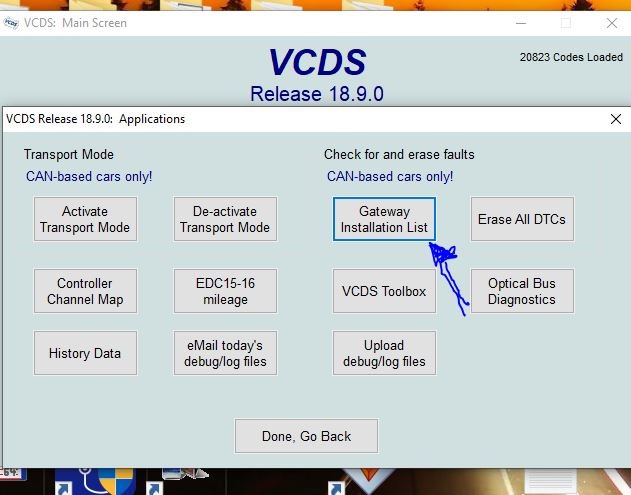

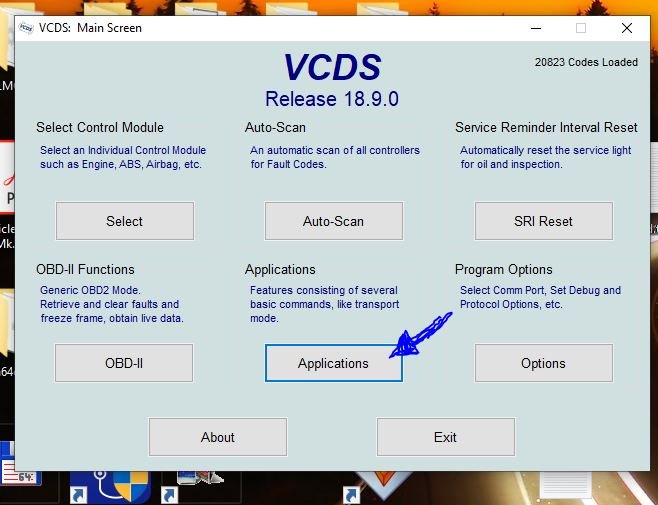

Yes.Can be done with VCDS.After open main screen VCDS,next Applications,next gateway instalation list,select  chassis,open instalation gateway list and add 6C(RVC)-save.Scan this modul and paste on forum.

[wg100]

On 23/06/2019 at 22:04, Lucwal said:

I think it was new

The other thing you need to check is that the camera had the parametisation file loaded, otherwise it cannot be coded. The parameter file coding can only be done with VCP.

Where did you get the camera from?

[cliner]

First have to activated RVC module in Gateway and get answer what is wrong.Nearly 100% it's -"not ending programming "info after scan.

[Lucwal]

I do not understand how I am supposed to add the Module, when in Gateway instalation list there is no "add" nor "open" button

[Lucwal]

4 hours ago, wg100 said:

The other thing you need to check is that the camera had the parametisation file loaded, otherwise it cannot be coded

How can I check that such file is loaded ?

[wg100]

5 minutes ago, Lucwal said:

How can I check that such file is loaded ?

First, you need to add the camera module as detailed above. Then, go into the module long coding. If it shows as 0000000000000, then it does not have the coding loaded and will not work. You will need to find someone with Vag Can Pro to upload the parameter file. It will then work.



I know this as I've had to go through the process to get my OEM reversing camera to work.

[cliner]

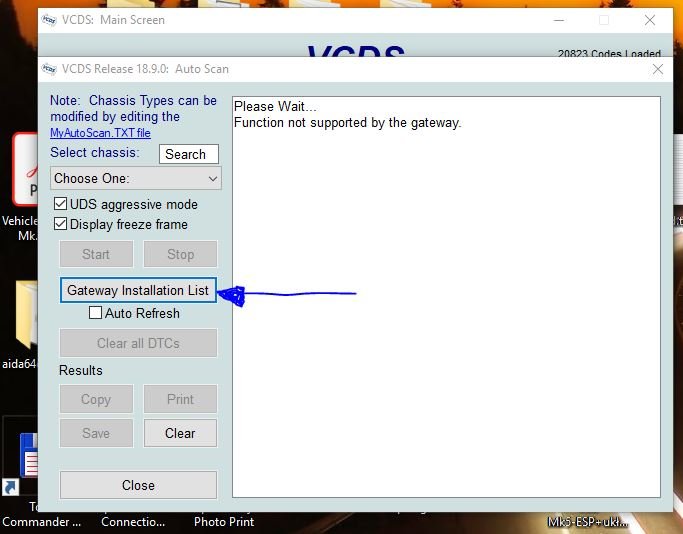

After open last window click on Gateway Instalation List...VCDS finished scan yours car and show you what modules are installed.Find 6C (RVC) tick and save...done.Next scan in Select Control Module -6C.

[Eddie-NL]

Might help if you put up a link to the camera you have bought



as there are two types



Low line only needs coding in the 5F and Parking module if fitted



Highline 6C needs coding in the gateway

[Lucwal]

This is the receipt for the camera he bought

[wg100]

56 minutes ago, Lucwal said:

This is the receipt for the camera he bought



There is a very good chance that the camera does not have the parameter file loaded. You will not be able to code anything until this has been loaded. I had this problem when I purchased from them.

[Lucwal]

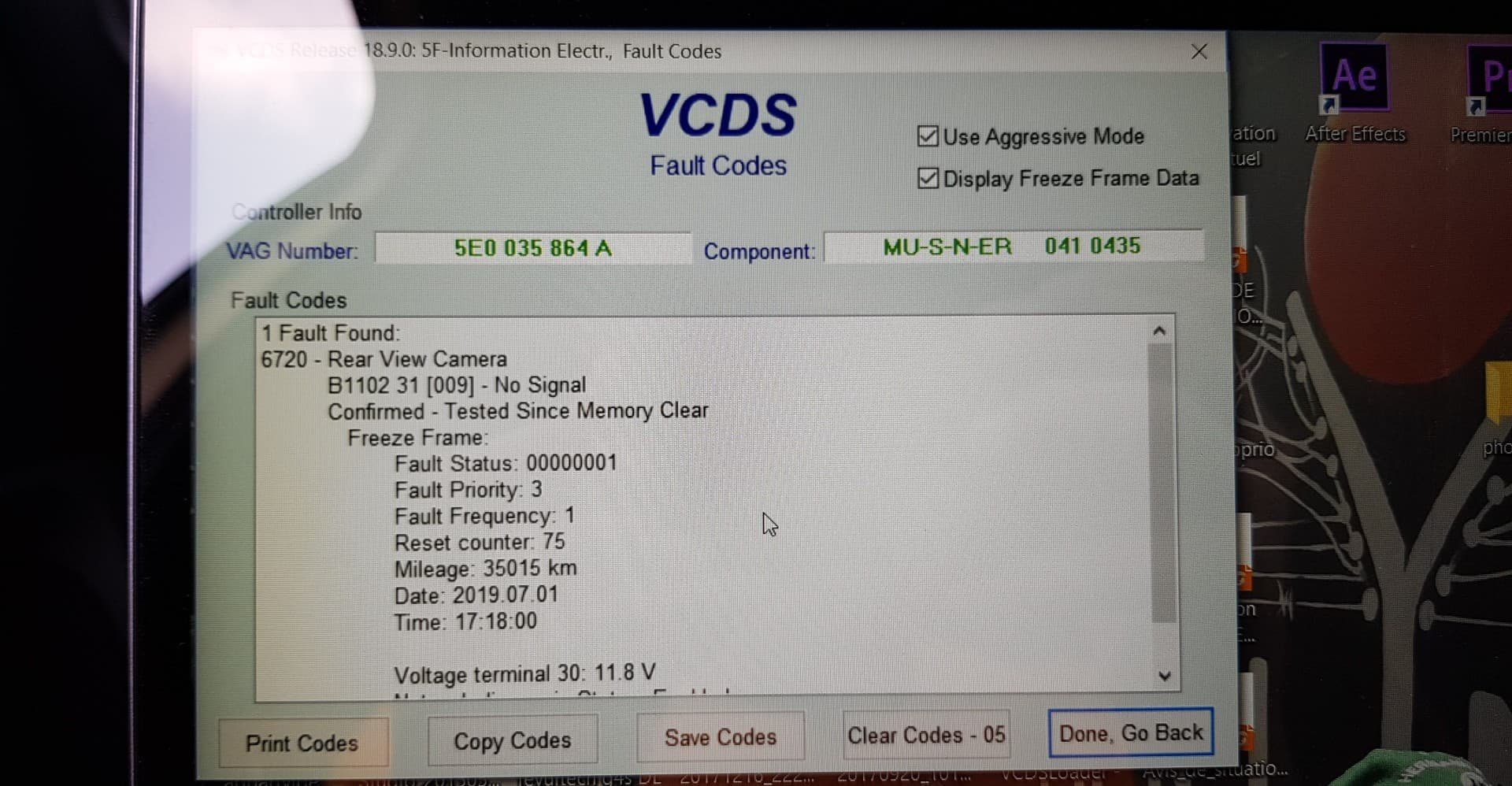

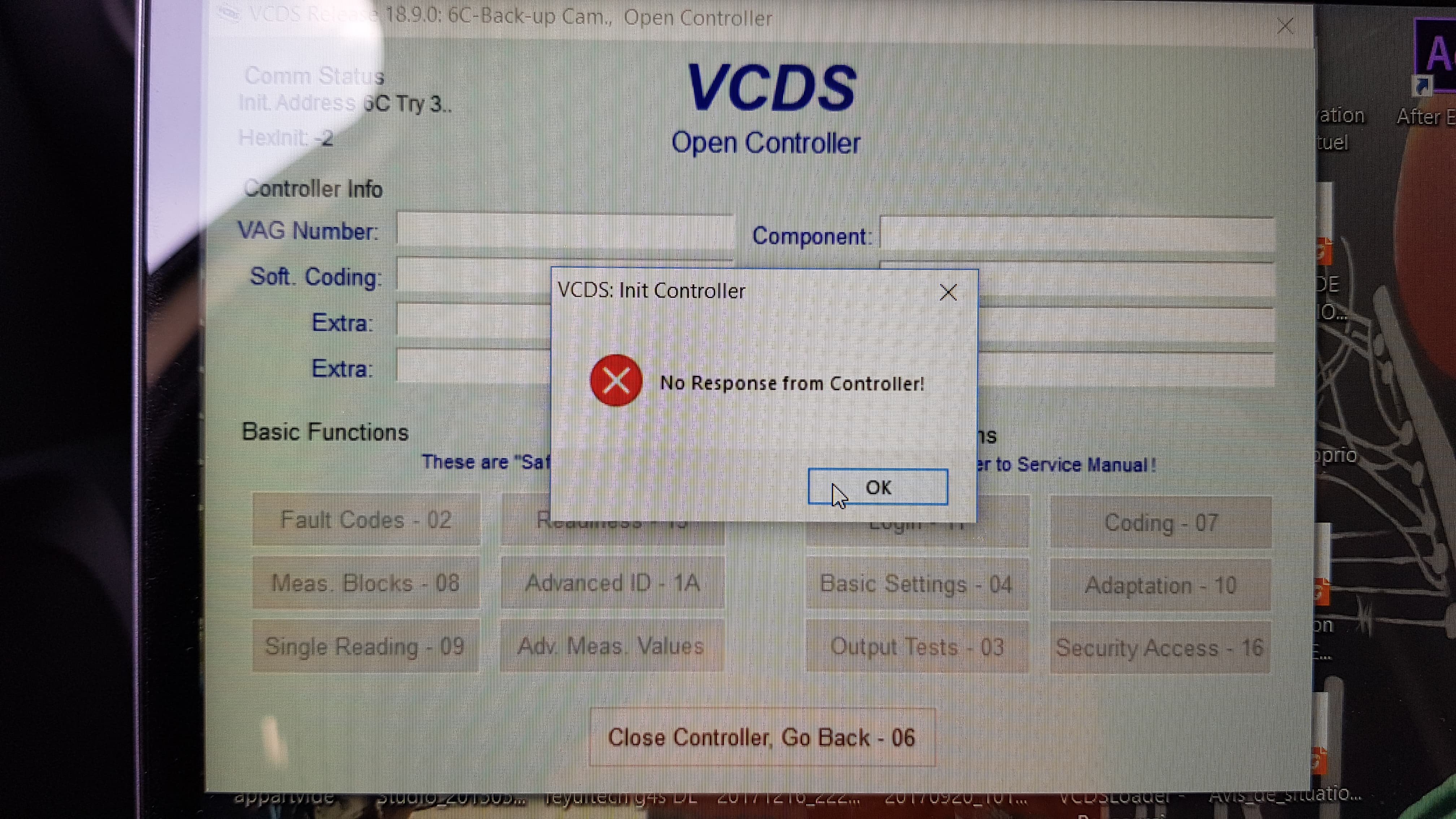

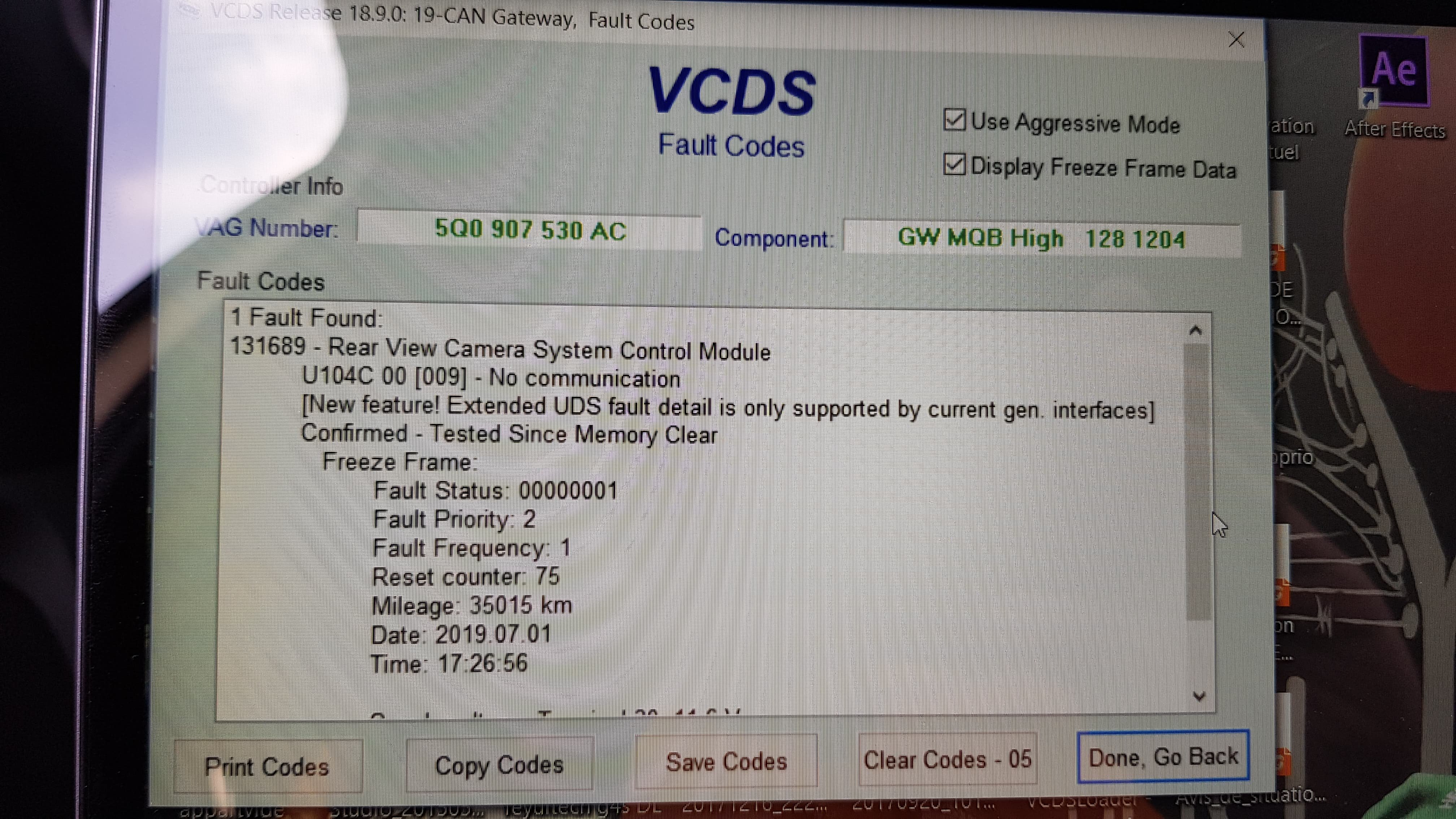

These are the faults he is getting on 6c, 19 and 5f. He'll try to look for someone with a Vag Can Pro

[Taikasaapas]

Hi! I was considering to install rear view camera to my Skoda Octavia 5E. My radio set up is Bolero MIB 1. My question is how do i code the RVC in the ODBeleven? I found this instruction from a VW ROC forum https://www.vwroc.com/forums/topic/20768-activate-rear-view-camera-obdeleven-coding/ . Does any one know if these instructions are correct?
