How to enable Digital Instrument Panel menu for Virtual cockpit?

[Richie2019]

I don’t have the Digital Instrument Panel menu on my Kodiaq with Virtual cockpit.



Is there any ways to enable the menu via OBDeleven or VCDS?

[ZacDaMan72]

Have you tried holding down the VIEW button on your steering wheel? Still quite weird that the menu isn't there in the CAR menu. It could be in the Instrument Cluster settings if you tap on Settings on the CAR menu.

[Auric Goldfinger]

Might be the same

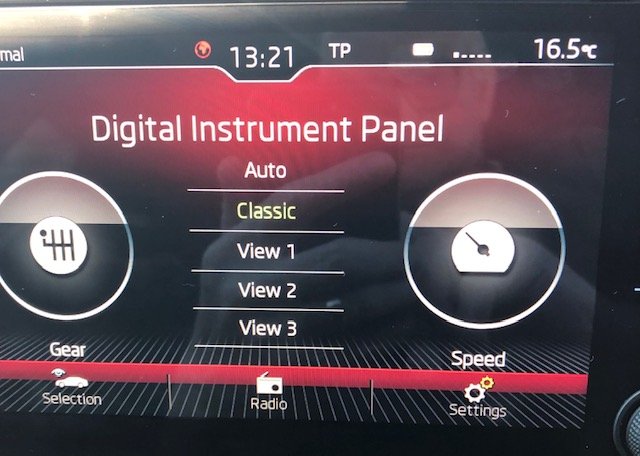

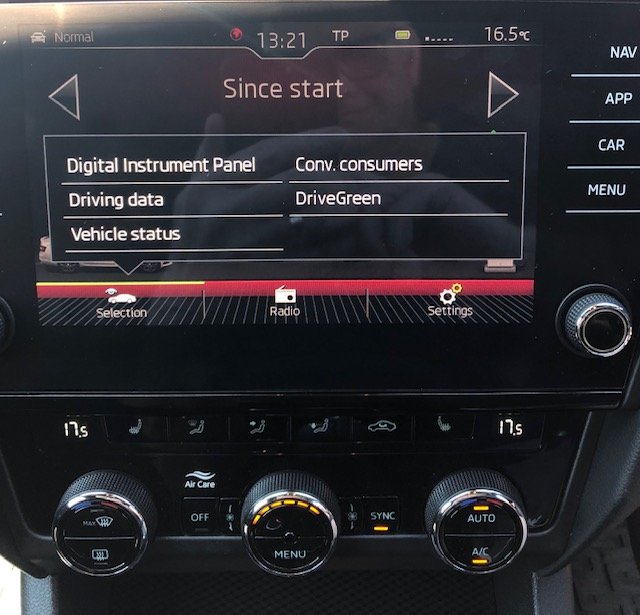

On my 245 Vrs press " Car " then  press " Selection " then " Digital Instrument Panel " and you get the " Views "



Or as ZacDaMam says press and hold the View button on the steering wheel







Edited 27 June, 2019 by Auric Goldfinger

[linni]

Auric is right.

In Car settings you can set up different views and then, holding the View button on steering wheel, you can change the different view layouts and different screens.



Setting the view layout - choose desired selections and then hold View 1, Vievw2 or 3 for couple of seconds until it changes from light green to dark green.

[Richie2019]

It’s hard to say why I don’t have the menu...



If someone who can tell me how to show/enable the menu via VCDS/OBD11 I would appreciate it.

[linni]

35 minutes ago, Auric Goldfinger said:

press " Car " then  press " Selection " then " Digital Instrument Panel " and you get the " Views "



Hard to believe you have digital cockpit but no menus. Unless your display is retrofitted.

[silver1011]

Where are you located @Richie2019?



I can't imagine the functionality of the Virtual cockpit would vary much between countries, especially given that they appear to function the same way here in the UK and with @linni in Estonia...

[mbrt]

@Richie2019 Hi, did you solve this issue? If yes, How? I have the same issue due to a retrofit of virtual Cockpit in my Karoq. Thank you

[Teir]

On 01/01/2024 at 01:26, mbrt said:

@Richie2019 Hi, did you solve this issue? If yes, How? I have the same issue due to a retrofit of virtual Cockpit in my Karoq. Thank you



What head unit do you have? MIB2 does not have this screen, and also cannot send maps to the VC.



If you have MIB2.5, then there are adaptation channels to code to display the menu. I don't remember what they are but you should be able to find them on the internet.

[ApertureS]

On 17/01/2024 at 15:21, Teir said:



What head unit do you have? MIB2 does not have this screen, and also cannot send maps to the VC.



If you have MIB2.5, then there are adaptation channels to code to display the menu. I don't remember what they are but you should be able to find them on the internet.

Certain MIB2 units can send map to the headunit no problem. The difference is MIB2.5 can show maps on both at the same time whereas MIB2 can only show maps on one screen at a time.
