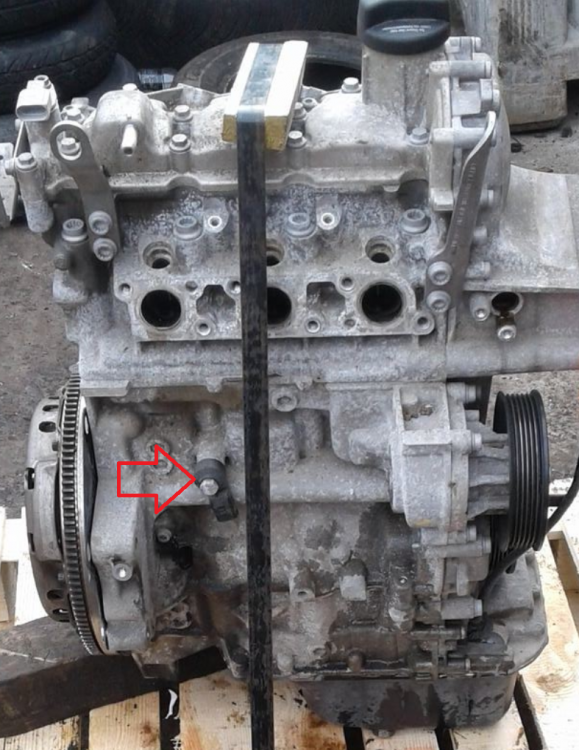

As I said, that arrow is the knock sensor. Just used that photo plus one sentence as I couldn't find a better photo quickly. That's a 6-valve engine in my photo but only the head is very different.

Edited 1 September, 20196 yr by Wino

37 minutes ago, Scothesniper said:

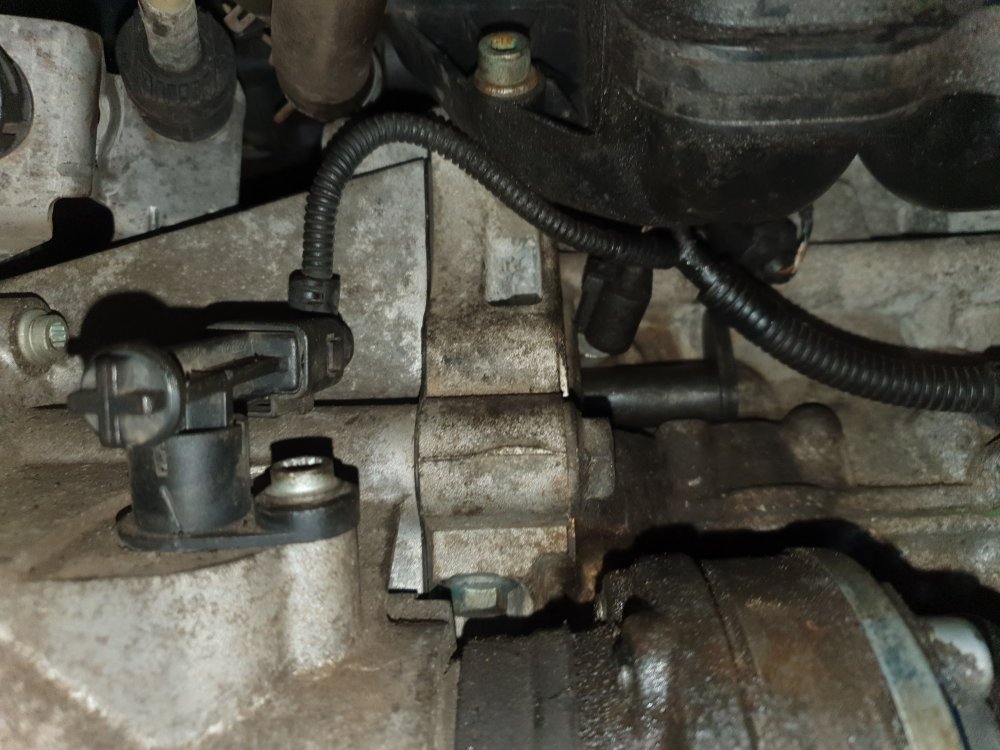

Wino mine looks lightly different to that my plup in connector plugs in from the top and is on with an Allen key bolt and my camshaft sensor is in a different place than that one



Thats a 6v engine that’s why. But it’s the same area.

Have come to the conclusion that the cranckshaft sensor is a totally nightmare been at it for at least 45 min with a mirror and 5mm hex socket and I have had enough it's so I'm gonna lock the cams in position take chain of as it's out anyway by a tooth then move crank to line up the 2 dots on tdc gonna have a cup of tea and rethink it might of been easier if I had not took engine mounting off and used large lump of wood to hold engine in place on the sump.

Also does sump really need to come off or can you just reseal the front part where timing chain cover goes on?

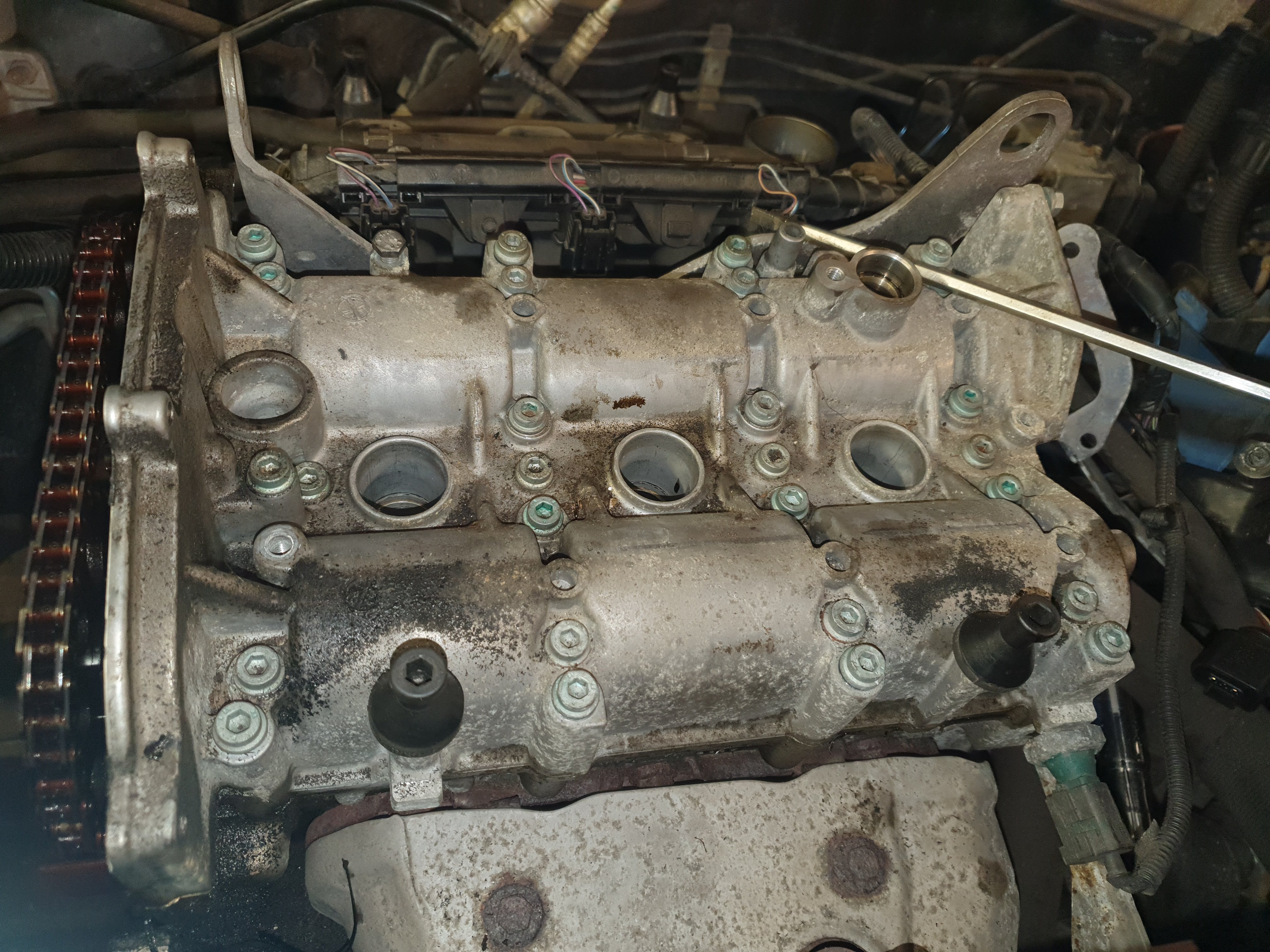

Also what's the story on the cam cover I take it some of the bolts hold the cams in place there are 21 bolts on the cover. Take it you cant take that of without it being a bit of a nightmare

Also what's the story on the cam cover I take it some of the bolts hold the cams in place there are 21 bolts on the cover. Take it you cant take that of without it being a bit of a nightmare

Also what's the story on the cam cover I take it some of the bolts hold the cams in place there are 21 bolts on the cover. Take it you cant take that of without it being a bit of a nightmare

Also what's the story on the cam cover I take it some of the bolts hold the cams in place there are 21 bolts on the cover. Take it you cant take that of without it being a bit of a nightmare

Also what's the story on the cam cover I take it some of the bolts hold the cams in place there are 21 bolts on the cover. Take it you cant take that of without it being a bit of a nightmare

Why do you want to take the rocker cover off?

48 minutes ago, Scothesniper said:

Also does sump really need to come off or can you just reseal the front part where timing chain cover goes on?



Drop it, sealing it otherwise is tricky

2 hours ago, Wino said:

Why do you want to take the rocker cover off?

I dont it was a question about the bolts in the cover

Hi guys I got the locking tool but there are 4 locking tools in it 2 for locking the cams one for locking the crank what's the 5th one for?

9 minutes ago, Scothesniper said:

Hi guys I got the locking tool but there are 4 locking tools in it 2 for locking the cams one for locking the crank what's the 5th one for?



5th one?



the 4th one is for locking the cam on the 6v

8 minutes ago, Tech1e said:



5th one?



the 4th one is for locking the cam on the 6v

Cheers for that mate

I'm losing the will to live. got crank sensor out but for the life of me cant get the locking g tool in the crank hole tried everything feels like the fatter bit of the tool is not going in the crank hole and looks like it's trying to go in at an angle. Have tried moving crank a bit thinking its hitting the crank but still no go anyone had this problem HELP

Plz

The crank locking tool can’t hit the crank, it goes into a slot in the flywheel.

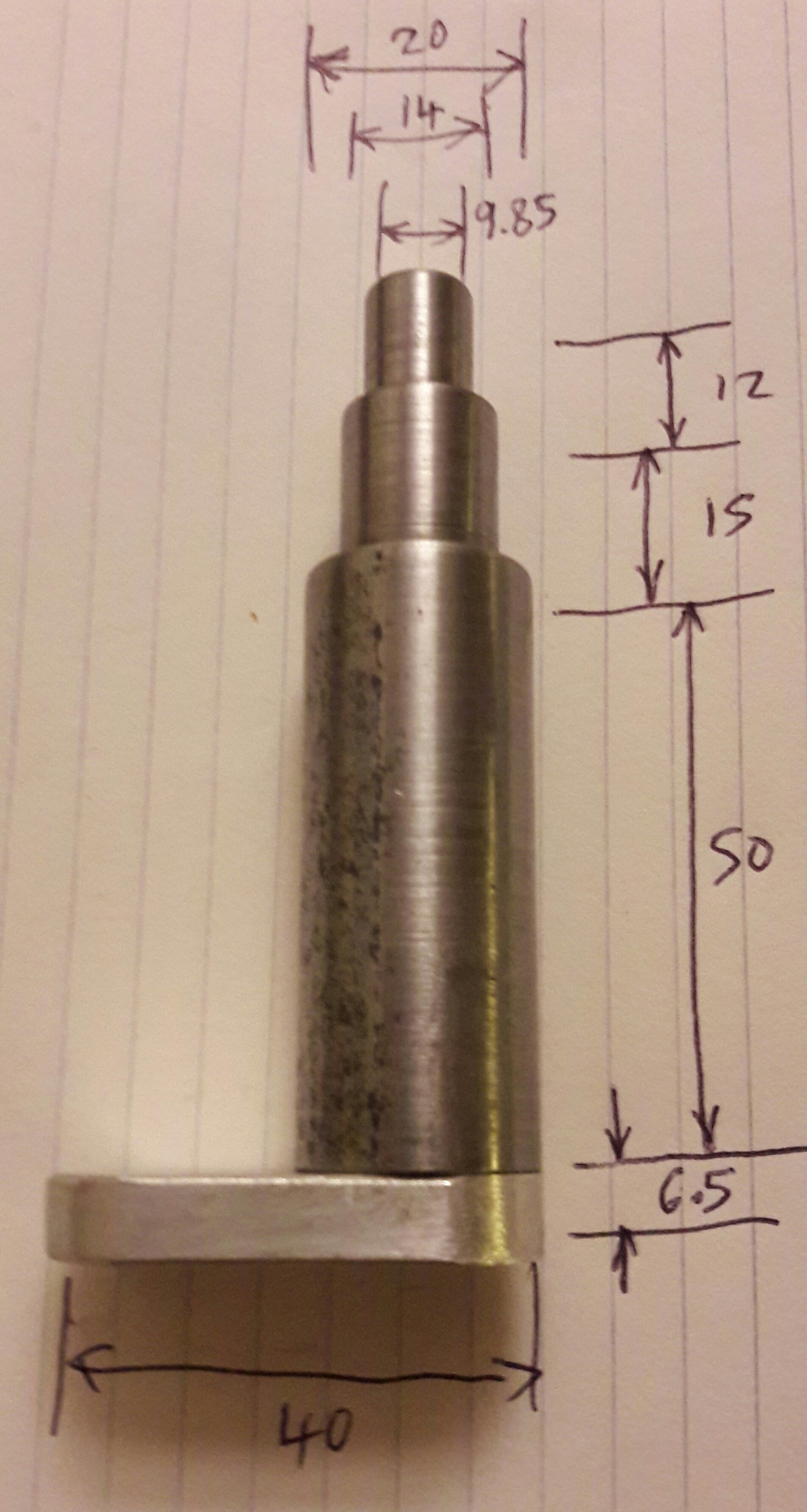

Check the dimensions of the crankshaft locking tool, to make sure it's been made to the right sizes. This one was one I made, copied from measurements of one that had been used successfully on another member's car:



Cheers for that wino will check tomorrow mate

Wino do you have a set of verbier calipers to measure the secumfrance of the 50mm bit plz

The diameter of that bit is 20mm, shown at the top of the pic, not very clearly to be fair.

1 minute ago, Scothesniper said:

Wino do you have a set of verbier calipers to measure the secumfrance of the 50mm bit plz



You can’t measure the circumference with vernier callipers, diameter maybe? Unless you want to calculate the circumference?



and is says 20 mm on the diagrams.

Someone bunked off their D&T lessons!



Use the screwdriver technique Wino suggested to get TDC on dwell then work the crank lock into place while tweaking it.

It is on tdc chain is off as it was a tooth out 2 dots on internal gears lined up cams locked at back been tweaking crank but no luck. The larger secumfrance does not even go in the hole.

Take a pic



Although why you would take the chain off before locking the crank is a bit of a mystery.

Edited 2 September, 20196 yr by Tech1e

As I said it was a tooth out could not get cans to line up so had to take chain off then move cams to lock them then moved crank into position now I just need to lock crank if everything was ok in the first place I would of locked it up with chain on

6 hours ago, Scothesniper said:

As I said it was a tooth out could not get cans to line up so had to take chain off then move cams to lock them then moved crank into position now I just need to lock crank if everything was ok in the first place I would of locked it up with chain on



I see. I would have done the crank, then aligned the cams and slackened the cam pulleys after.



Swings and roundabouts I guess.

11 hours ago, Scothesniper said:

It is on tdc chain is off as it was a tooth out 2 dots on internal gears lined up cams locked at back been tweaking crank but no luck. The larger secumfrance does not even go in the hole.



The word is circumference but you mean diameter, if the pin won't physically fit into the block then it can't lock the crank and you're going to have to improvise using a drill bit and a spacer or buy the correct sized locking tool.
