Skoda Octavia mk2 pre-fl headlight washer retrofit

Featured Replies

Hello!

Well, it took me almost 2 days until i have convinced myself that i need help.

I had a crush with my Octavia 2 from 2008 pre-fl model, all front was crashed, not hard, but enough to change many parts.

I have convinced myself this way to add some new features to the car as i have her all disassembled in the front, so I've added water sensor for the windshield washer and a new bumper with headlight washer.

All right, i have figured with the water sensor, i will install it today in the IC with cables from the sensor till the IC 34 pin for + and 33 for - and the VCDS coding.

But i have big missing information for the headlight washer electrical installation.

This is what i have: All hoses installed, new pump on the water recipient, bumper with washers, i have cables, i have found the relay location (MEYLE 100 951 0001) under the steering wheel and soon will be installed. OK i guess one cable will go to the relay, i guess. But what i will do with the 2 cables? Where i install them?



Those are my questions, i didn't find anything in my country or here as this is the biggest community for electrical installation for windshield washer.



Did someone retrofit this? i think it is not that hard but i don't find any schematics for this sadly. (i have found some electrical schematics but i understand nothing from them)

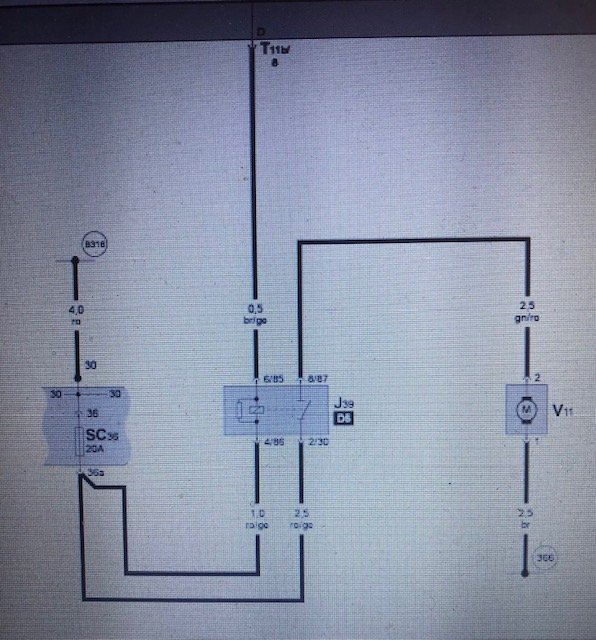

This is the wiring diagram from the dealers manual

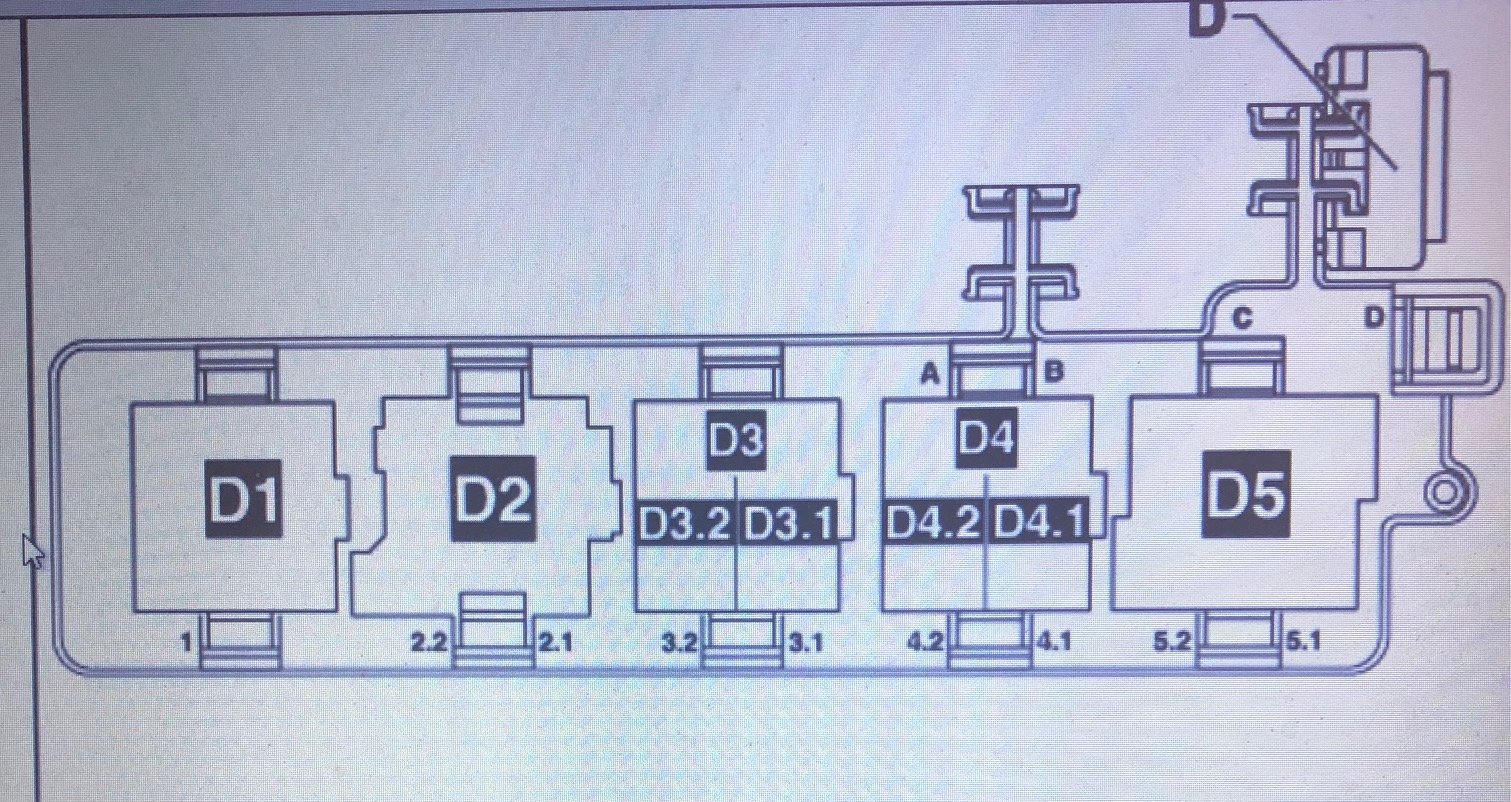

So you will need to install the relay (D5 in the picture below) and the two wires from fuse # 36 a wire from the relay to the onboard power supply unit under the dash to pin 8 of the 11 pin brown connector and finally a wire from the relay to the washer pump
