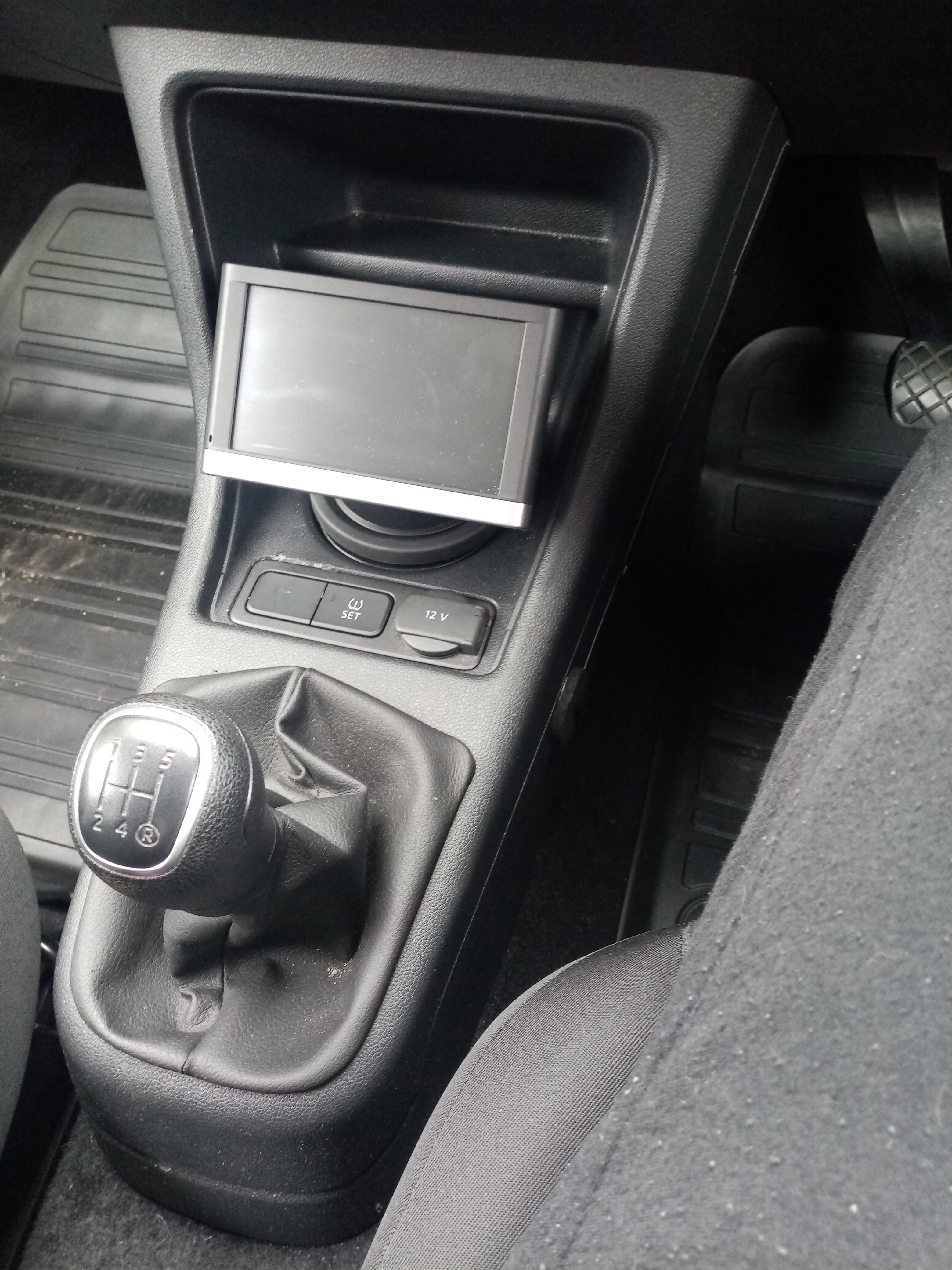

1 Lever out power socket plate with flat thin knives.

2 Attach camera earth wire to threaded stud at bottom of the console.

3 Attach camera live wire to power socket supply wire (red/yellow) using a 2amp in line fuse and scotchlock connector.

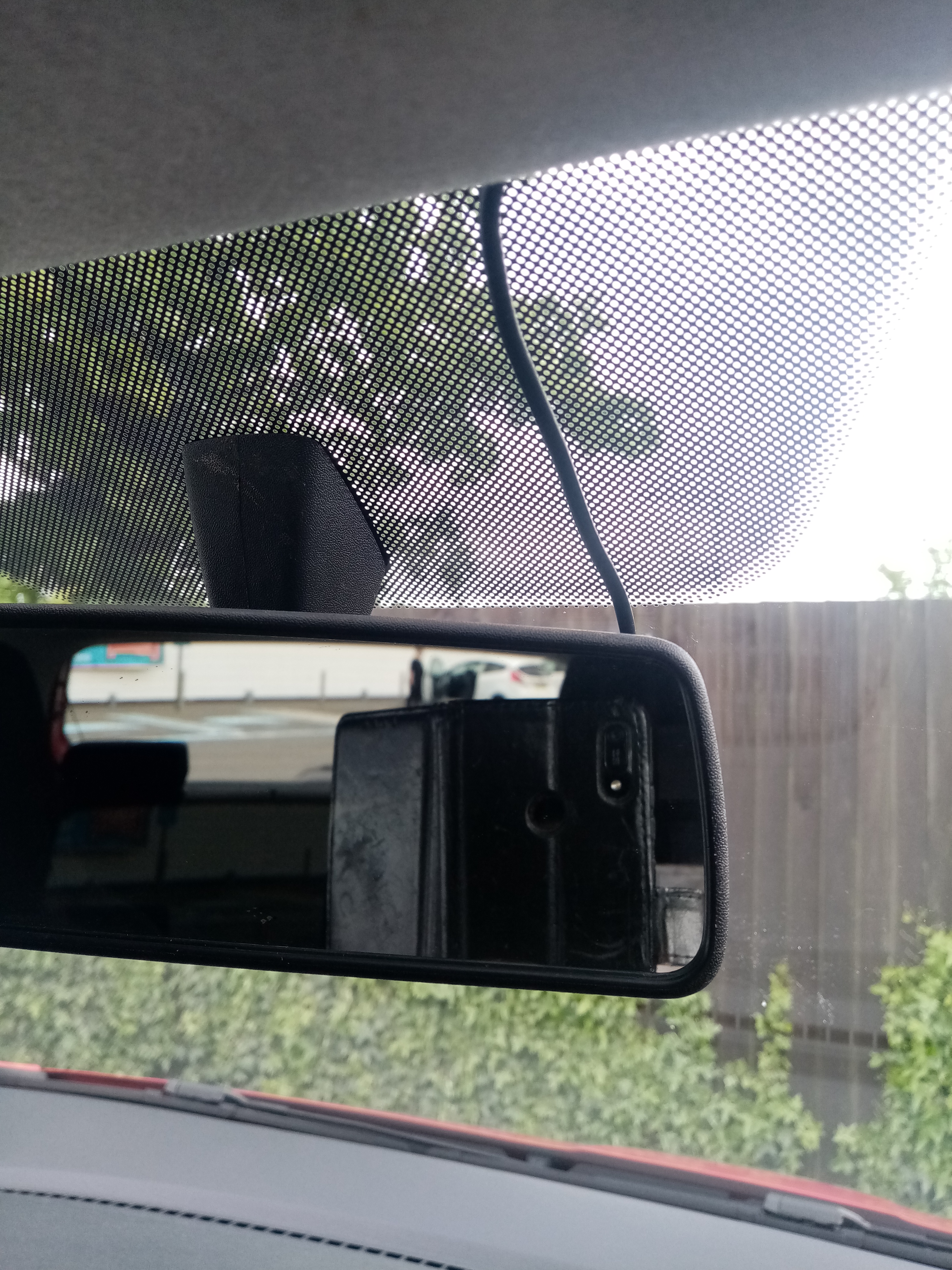

4 Route black camera feed wire through 14mm hole in console on driver's side and up to camera inside door and A pillar trims.

5 Fit rubber grommet to hole in console.

6 Turn on ignition to test system.

7 Refit power socket plate.

8 Drink Tea!

Total fitting time 1 hour.
