2016 Citigo fuses overview ?

[majland]

Just gotten a slightly used 2016 Citigo Style with most of the extra i wanted. But the fusebox is different to the one in my Danish manual ...

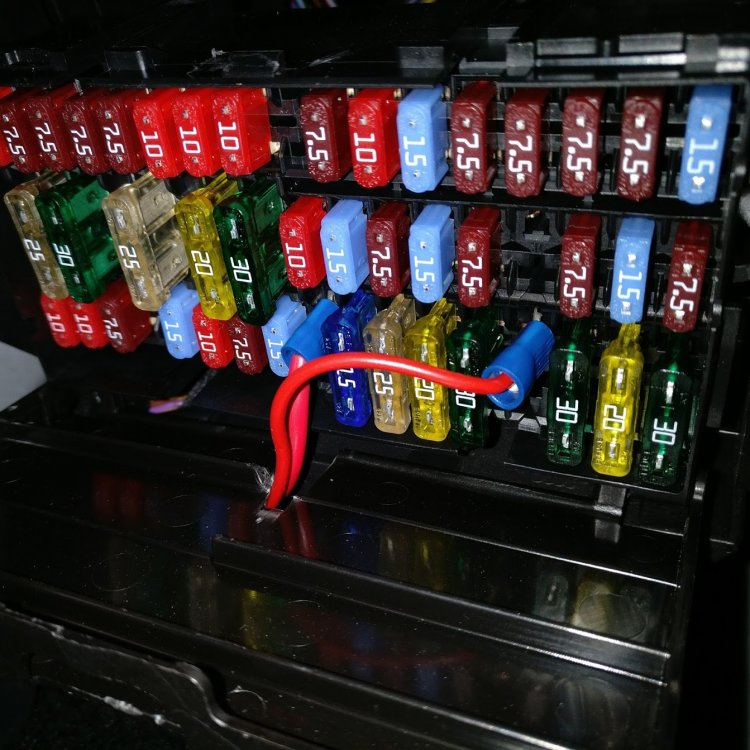

My car is with automatic shifting and does only have one fuse box - not the extra as those with stop'n'go has at the end of the dashboard. But in the manual there is one row of standard sized fuses and two rows of mini fuses but as the picture below soes there are now mixed so i don't trust the overview in my manual.



Does anyone have an overview of the fuses in this new layout

[Hyphons]

Got a picture of what the manual says? The fuse diagram is pretty confusing (at least in my 2012 model anyway) @Updown789 can certainly vouch for that

[majland]

The newest owners manual for download is 2015.11_A00_Citigo_OwnersManual.pdf  and that is what i got a print of with the car. It is grey import to Denmark (was originally registered in Praha, CZ - so it might have had the original CZ manual with the correct diagrams)



Hoped that someone had a newer manual

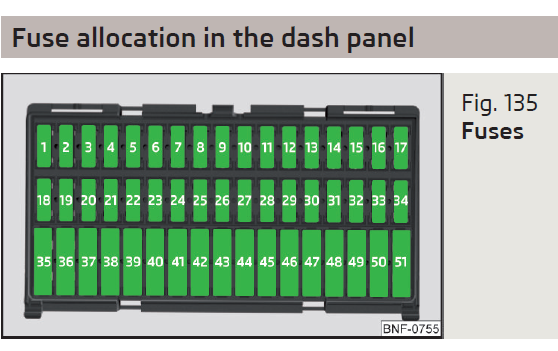

1.  Air Conditioning, diagnostic connector
2.  Headlight range control, park assist, electric exterior mirror adjustment
3.  Automatic transmission, engine control unit, power steering, control lever under the steering wheel, instrument cluster
4.  Airbag
5.  Reversing light
6.  Rear wiper, windscreen washer system
7.  Main beam headlamp - left side
8.  Main beam headlamp - right side
9.  Not assigned
10.  Electric exterior mirror heater
11.  Not assigned
12.  Vehicle lighting
13.  Vehicle lighting
14.  Vehicle lighting
15.  Vehicle with START-STOPsystem: Radio  -  Vehicle without START-STOPsystem: Central Control Unit, heating, automatic transmission, light switch, license plate light
16.  Vehicle lighting
17.  Rear window wiper
18.  Panoramic sunroof
19.  Central locking system
20.  Rear window heater
21.  Reversing light
22.  Horn
23.  Voltage transformer
24.  Headlamp flasher
25.  Windscreen wipers
26.  Radio
27.  Turn signal lights, brake lights
28.  Selector lever for the automatic transmission
29.  Fuel pump
30.  Engine control unit, instrument cluster, central control unit, rain sensor, control lever under the steering wheel, diagnostic connector
31.  Vehicle lighting
32.  Central control unit
33.  Vehicle lighting
34.  Indoor lighting
35.  Vehicle lighting
36.  Vehicle lighting
37.  ESC
38.  Key bar
39.  Lever under the steering wheel, windscreen washer system
40.  Engine components
41.  Brake pedal switch, cooling fan
42.  Engine control unit
43.  Fuel pump
44.  Engine components
45.  Engine components
46.  12-volt power socket
47.  Air blower for air conditioning/heating
48.  Seat heaters
49.  Electric power windows
50.  Vehicle lighting
51.  Electric power windows

[majland]

When i look at the above diagram and my car i do not have fuse 43 for fuel pump og fuse 21 for reversing light. Since both are working they most be in a different position ... And since the layout of standard and small fuses has also changed i suspect there might be more differences ....
