Rear suspension spring colour codes

Followers

5 June, 20179 yr

Hi,

Does anyone have a link to the website/page that links spring colours to part numbers?

I need to replace the rear springs on my 2010 combi (with factory sports suspension). I have seen a parts manual in the past that has this information but can't find it anymore.

Thanks

Matt

5 June, 20179 yr

Author

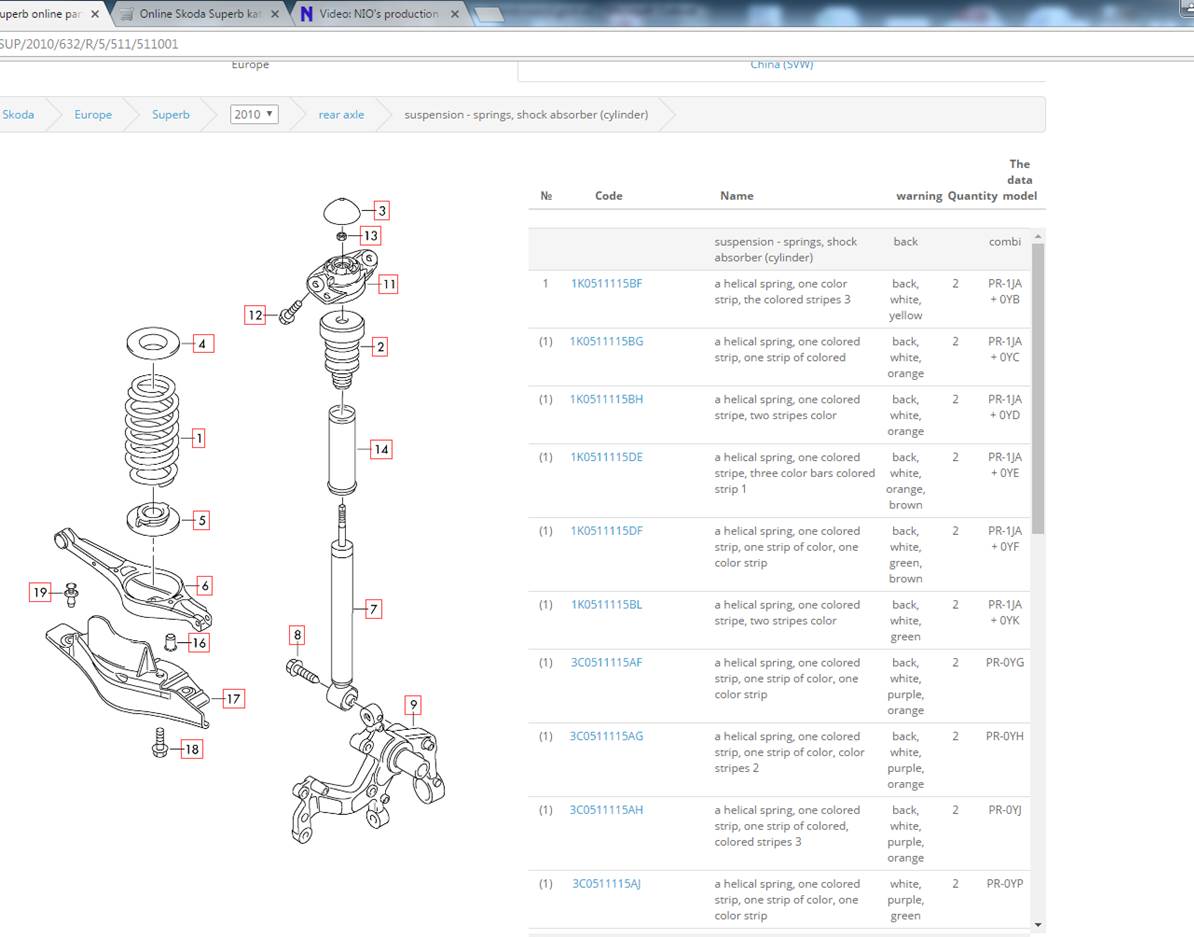

Oops, here I go, answering my own questions....

Hope this is of help to someone else, or let me know and I can remove the post.
