Skoda Superb Mk 3 FL Traffic Sign Recognition

[Georges92]

Hi, I try to activate traffic sign recognition on Skoda Superb Mk 3 FL but without succes, these errors occur:

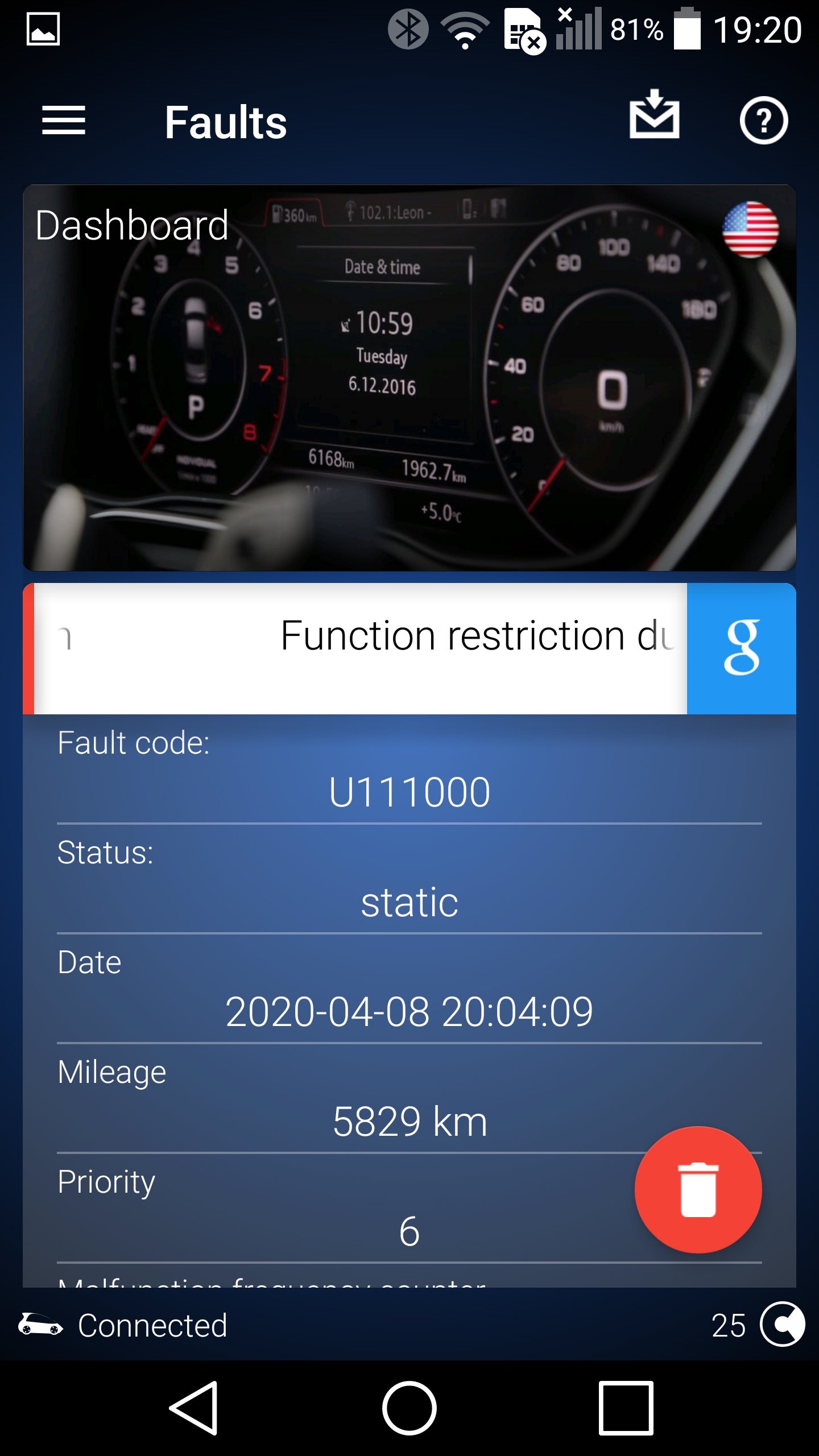

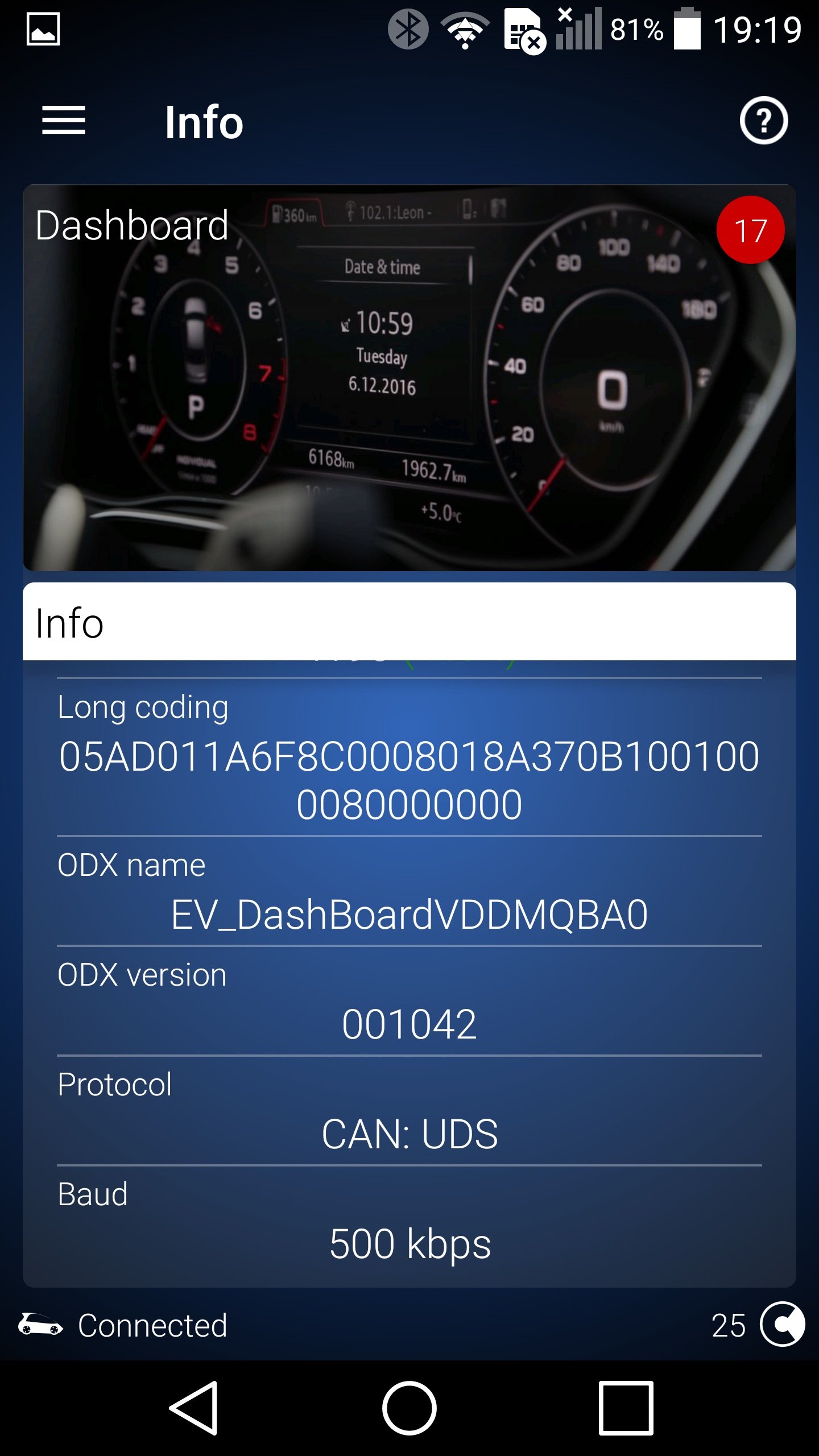

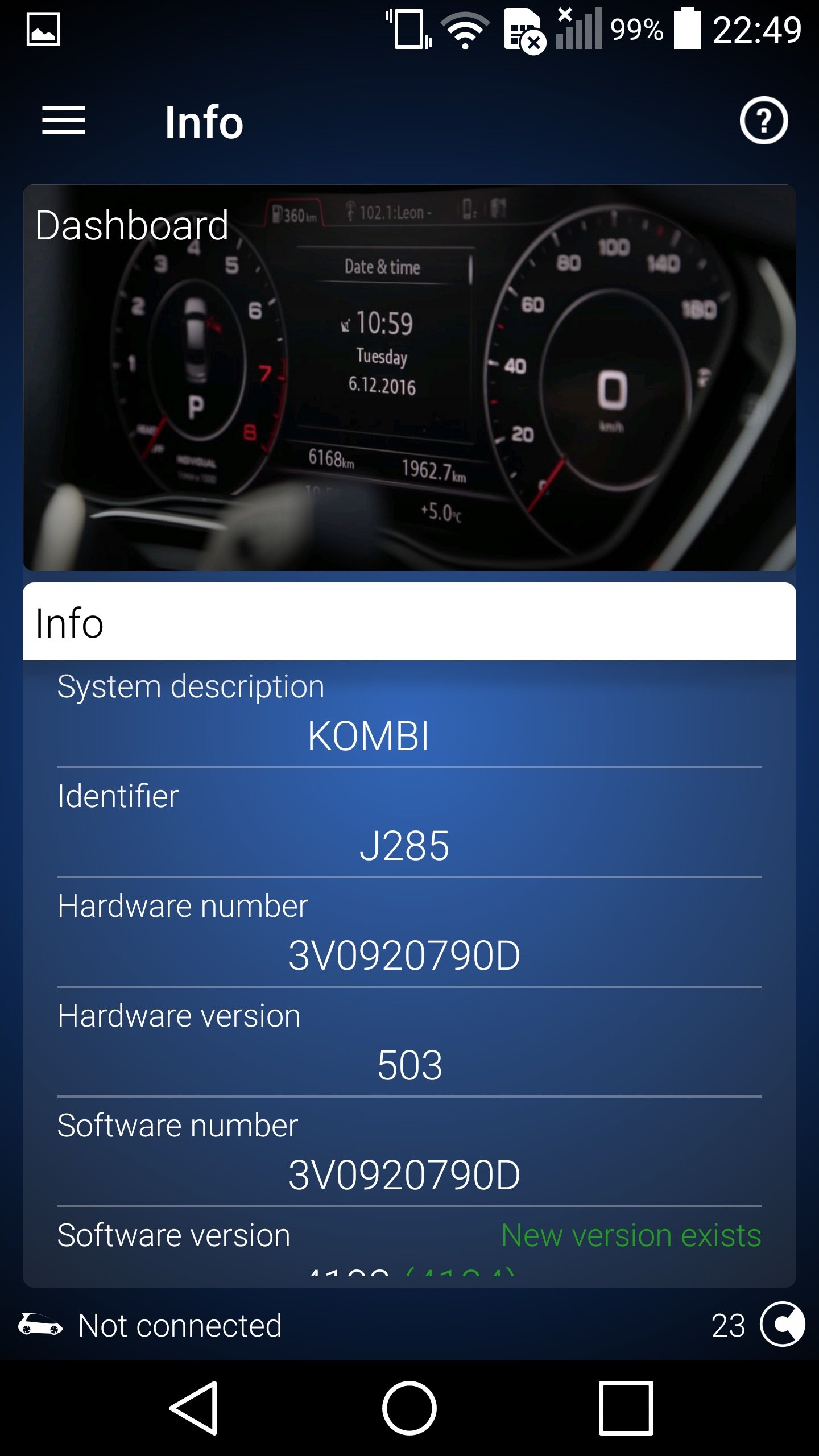

ECU: 0017 - Dash Board U111000 ($FFFF34 / 16777012) Function restriction due to communication interruption DTC text: BAP_VZA_0x21 keine Kommunikation

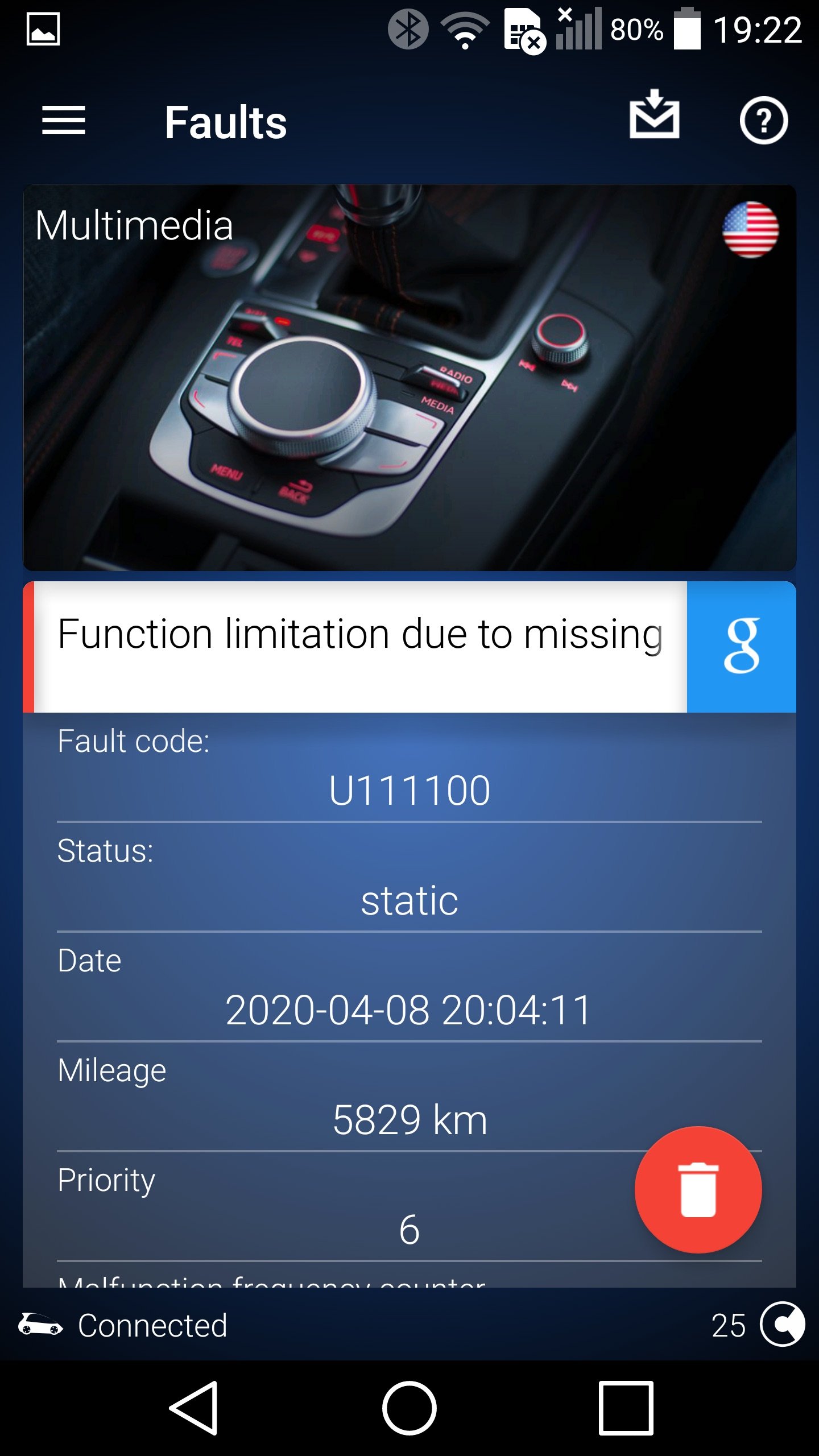

ECU: 005F - Information Control Unit 1 U111100 ($1C21 / 7201) Function limitation due to missing message DTC text: Road sign display (0x21) - function restriction due to communication error - BapErr_retry not successful
System description : MQB MFK 3.0
SoftwareVersion 1027
HardwareVersion H11
VW/Audi part number 2Q0980653
can someone help me to resolve this problem? Thanks.

[jjc]

Hi,



if you let us know what you changed it may help to work out what the problem might be



John

[gokhan19076]

Hi Jjc,



I have a FL 2019 Superb saloon. I applied below coding and I am using obdeleven for coding. I'm taking currently restricted error. Maybe you can help me with the same error.



STG A5> Coding> Activate byte 16> bit 4 ("Traffic sign recognition (VZE) active [PR-QR9]") ==> I could not activate because  I got an error 31 function not available but I activated VZE from not_coded to coded
STG 17> Coding> Byte 05> Activate bit 2 ("Traffic sign recognition installed / active") ==> I activated this one
STG 5F> Adjustment>…
> Channel "Car_Function_List_BAP_Gen2-traffic_sign_recognition_0x21"> Set value to "activated" ==> I activated this one
> Channel "Car_Function_List_BAP_Gen2-traffic_sign_recognition_0x21_msg_bus"> Set value to "Data bus extended" ==> I activated this one
> Channel "Car_Function_Adaptations_Gen2-menu_display_road_sign_identification"> Set value to "activated" ==> I activated this one
> Channel "Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_over_threshold_high"> Set value to "activated" ==> I activated this one
STG 13> Coding> Byte 01> Activate bit 0 ("traffic_sign_detection") I couldn't activate



[ChrisCh]

Looking at this, the only error I think is this one (this one needs to be activated - the other error doesn't matter):

STG A5> Coding> Activate byte 16> bit 4 ("Traffic sign recognition (VZE) active [PR-QR9]") ==> I could not activate because  I got an error 31 function not available but I activated VZE from not_coded to coded



The full guide, which I followed successfully is here:



Edited 2 May, 2020 by ChrisCh

[gokhan19076]

Hi ChrisCh,



First off all thank you for quick response. I tried again with two mobile phone but nothing changed. I take same error. Are you sure this channel correct for new camera(2Q0980653) ? Maybe moved another channel. Because I active lane assist with a few different codes. I added STG A5 long coding photo. Maybe it works.

[gokhan19076]

Can you share me anyone STG 17(Dashboard) and STG 5F(Multimedia) long coding and adaptation pictures who has a fl car and activated lane assist and traffic sign recognition ? Thanks.

[JR RS]

On 05/05/2020 at 18:20, gokhan19076 said:

Can you share me anyone STG 17(Dashboard) and STG 5F(Multimedia) long coding and adaptation pictures who has a fl car and activated lane assist and traffic sign recognition ? Thanks.



Here u go.....



Address 17: Instruments (J285)       Labels:| 5G0-920-XXX-17.clb-SRI3
   Part No SW: 3V0 920 750 A    HW: 3V0 920 750 A
   Component: KOMBI         305 8311
   Coding: 27A5011A7F84000801887B0B5001000000000000
   Shop #: WSC 33361 790 00141
   ASAM Dataset: EV_DashBoardVDDMQBAB 009051
   ROD: EV_DashBoardVDDMQBAB_SK48.rod
   VCID: 313F17BC51A403FF76B-8064

No fault code found.




Address 5F: Information Electr. (J794)       Labels:| 3V0-035-MIB-HGH2.clb
   Part No SW: 3V0 035 045 D    HW: 3V0 035 045
   Component: MU-H-N-RW     H50 0942
   Serial number: A692B0HS002088
   Coding: 038401080000000051510002000908212F0100E6012001009E
   Shop #: WSC 33361 790 00141
   ASAM Dataset: EV_MUHig4CGen2HBAS 001001
   ROD: EV_MUHig4CGen2HBAS_SK37.rod
   VCID: 2E050CC0409A1C076B9-807A

   Operating And Display Unit 1:
   Subsystem 1 - Part No SW: 3V0 919 606     HW: 3V0 919 606
   Component: ABT_High-2  H47 1031
   Serial number: SKZ8Z9TLU01HFA

   Data medium:
   Subsystem 2 - Part No SW: V03 959 806 GR    HW: -----------
   Component: ROW 2020  --- 0085
   Serial number: --------------------

   Compact Disc Database:
   Subsystem 3 - Part No SW: V03 959 800 EG    HW: -----------
   Component: Gracenote2---  --- 4009
   Serial number: --------------------

[JR RS]

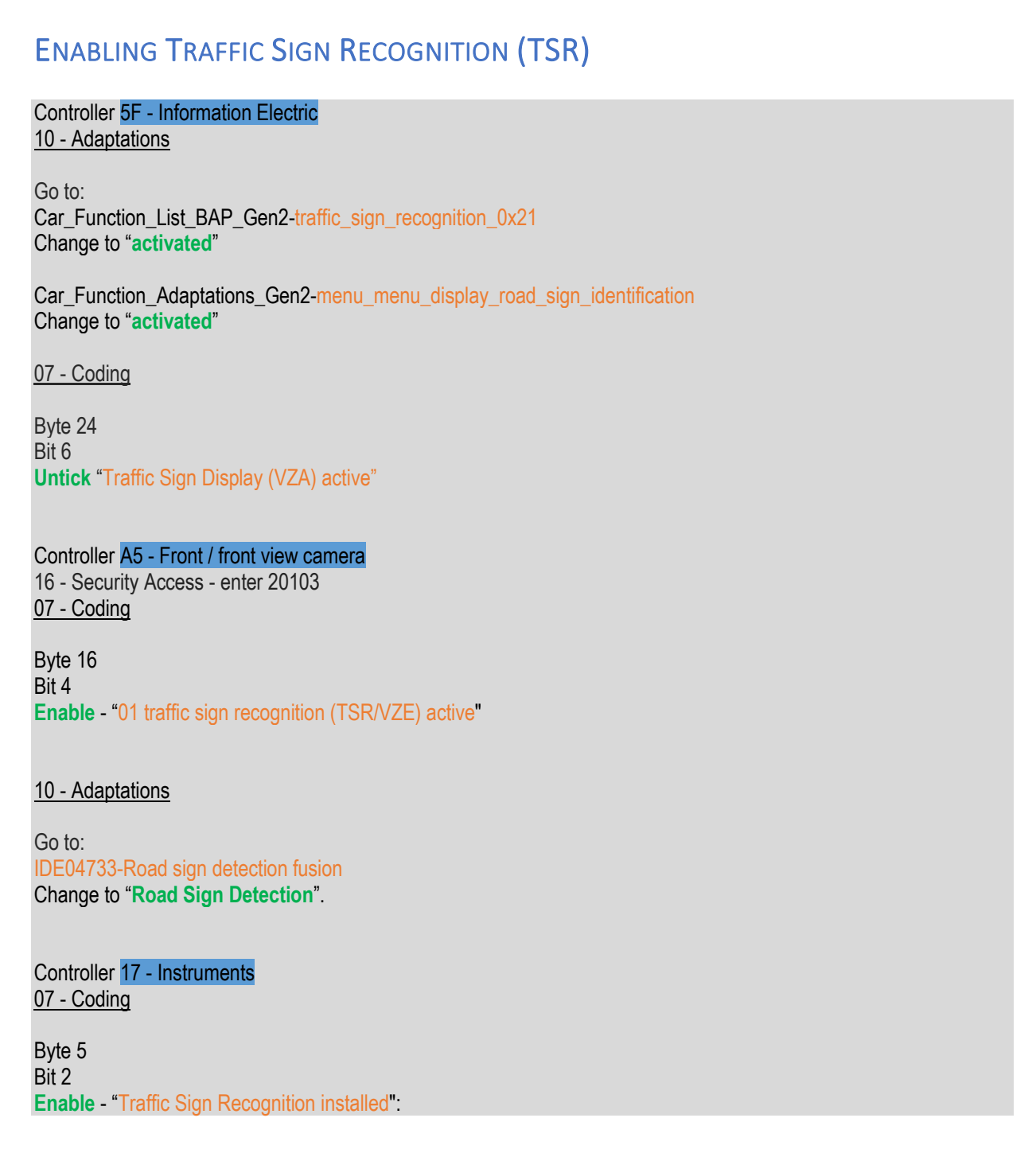

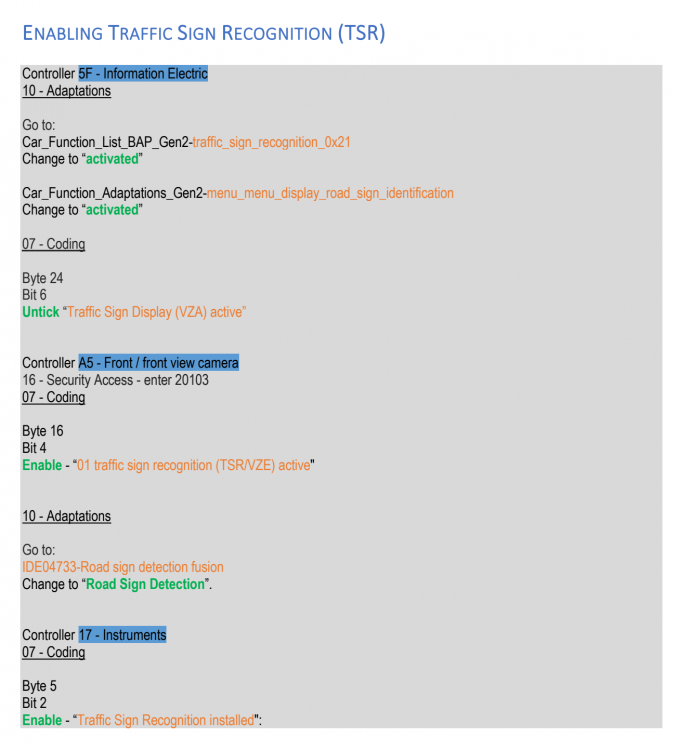

p.s. this is what I did to activate Traffic Sign Recognition (TSR) on mine.

Mine is MY17.



[gokhan19076]

Hi JR RS,



Thank you for answer but your shared codes working for before fl. I tried same codes but not working.

[jjc]

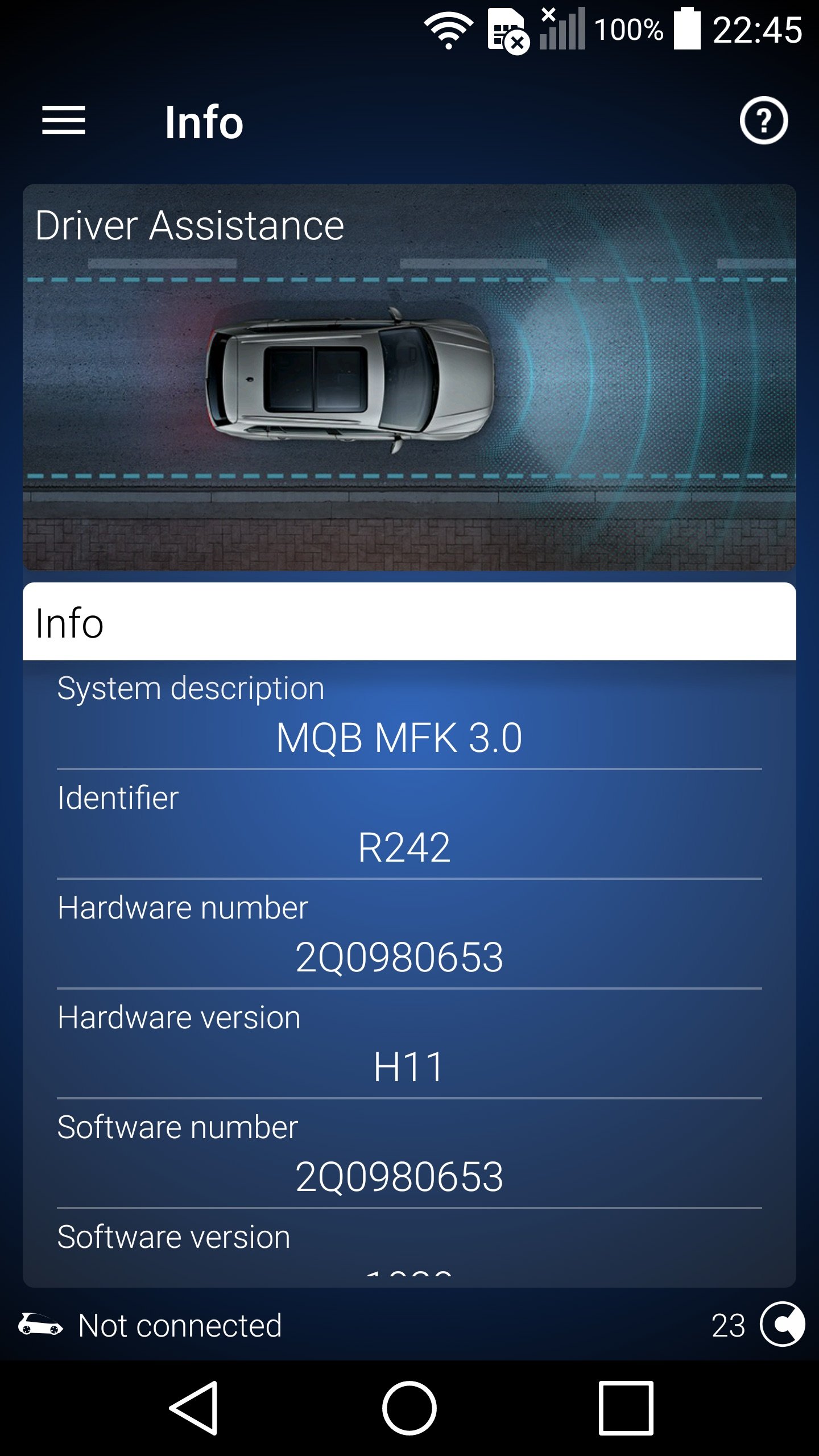

That may be because the FL uses a different camera, have a look at A5 and see if it is a



Part No SW: 2Q0 980 653     HW: 2Q0 980 653
   Component: MQB MFK 3.0   H11 1029



If so it is the new type and needs different coding.

I have a FL with factory enabled Traffic signs so if you know where you want me to look I am happy to do so.



If it helps these are the long codes for 5F and A5



A5  =  000208181168C020B09F00001030008001210000000000000000000000000000



5F  =  34810028008020000000000000000000000000000000000000



John

[gokhan19076]

2 hours ago, jjc said:

That may be because the FL uses a different camera, have a look at A5 and see if it is a



Part No SW: 2Q0 980 653     HW: 2Q0 980 653
   Component: MQB MFK 3.0   H11 1029



If so it is the new type and needs different coding.

I have a FL with factory enabled Traffic signs so if you know where you want me to look I am happy to do so.



If it helps these are the long codes for 5F and A5



A5  =  000208181168C020B09F00001030008001210000000000000000000000000000



5F  =  34810028008020000000000000000000000000000000000000



John



Yes, Our cars camera is the same.



I write codes here for check.

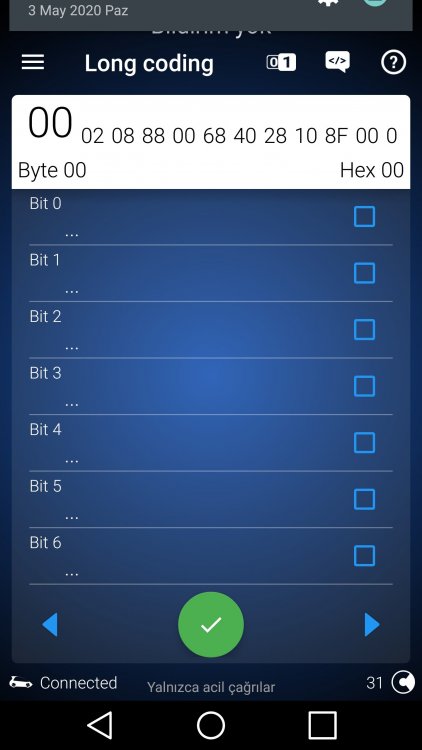

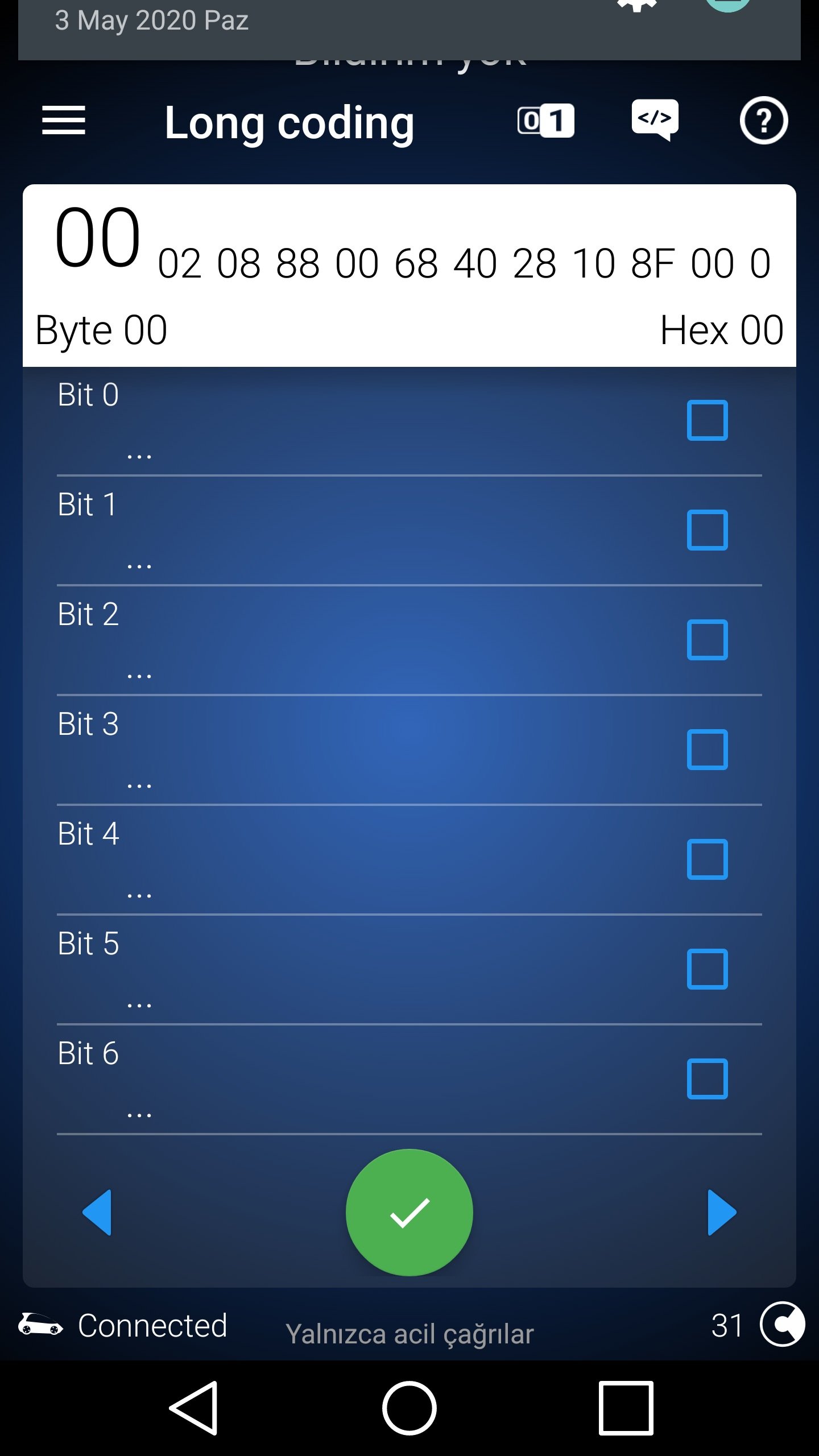

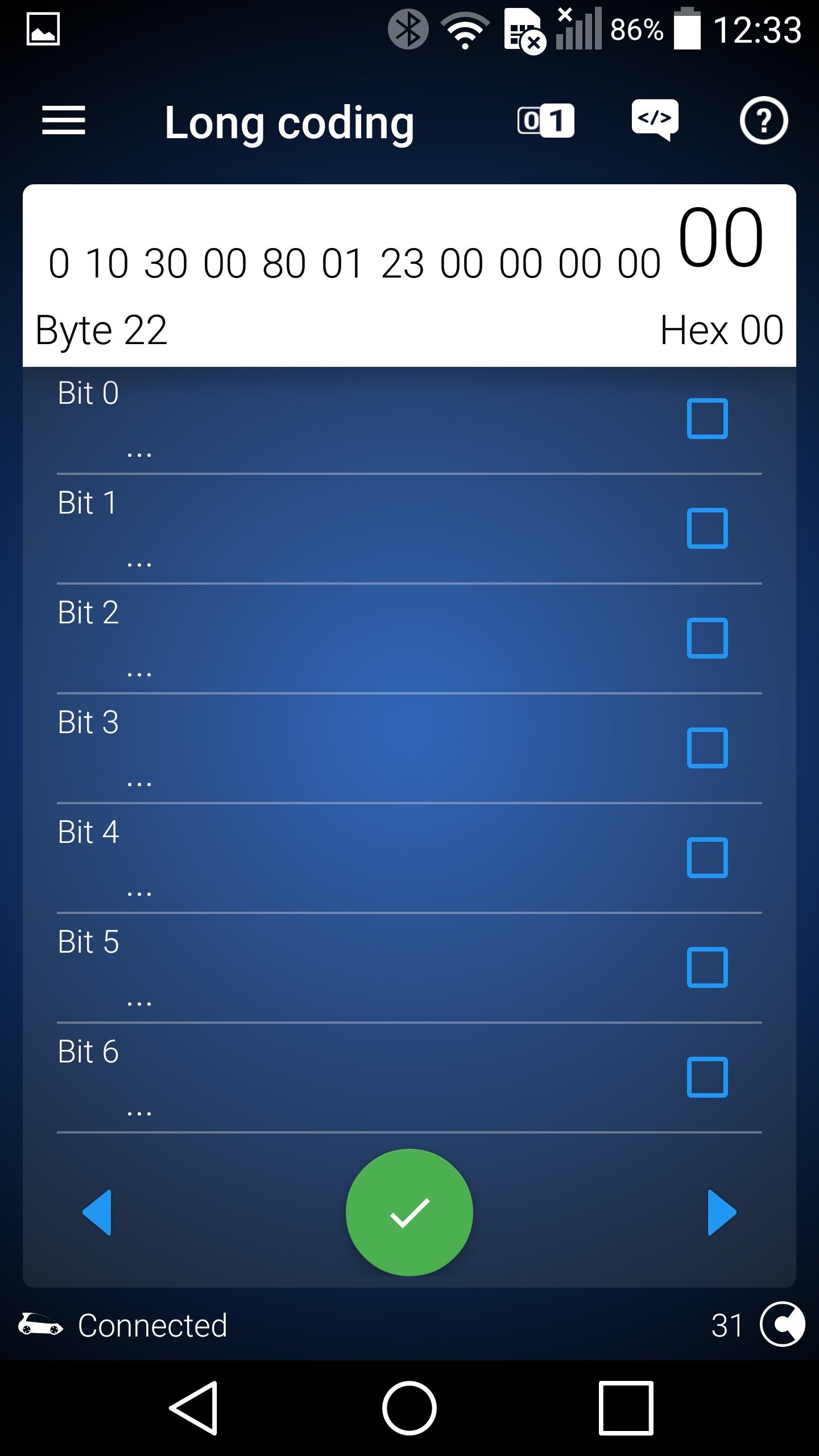

This is STG A5 code. There are some differences. I will try to check but It will be a little difficult for me. Can you share the coding photo with me?

00 02 08 88 00 68 40 28 10 8F 00 00 10 30 00 80 01 23 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 02 08 18 11 68 C0 20 B0 9F 00 00 10 30 00 80 01 21 00 00 00 00 00 00 00 00 00 00 00 00 00 00

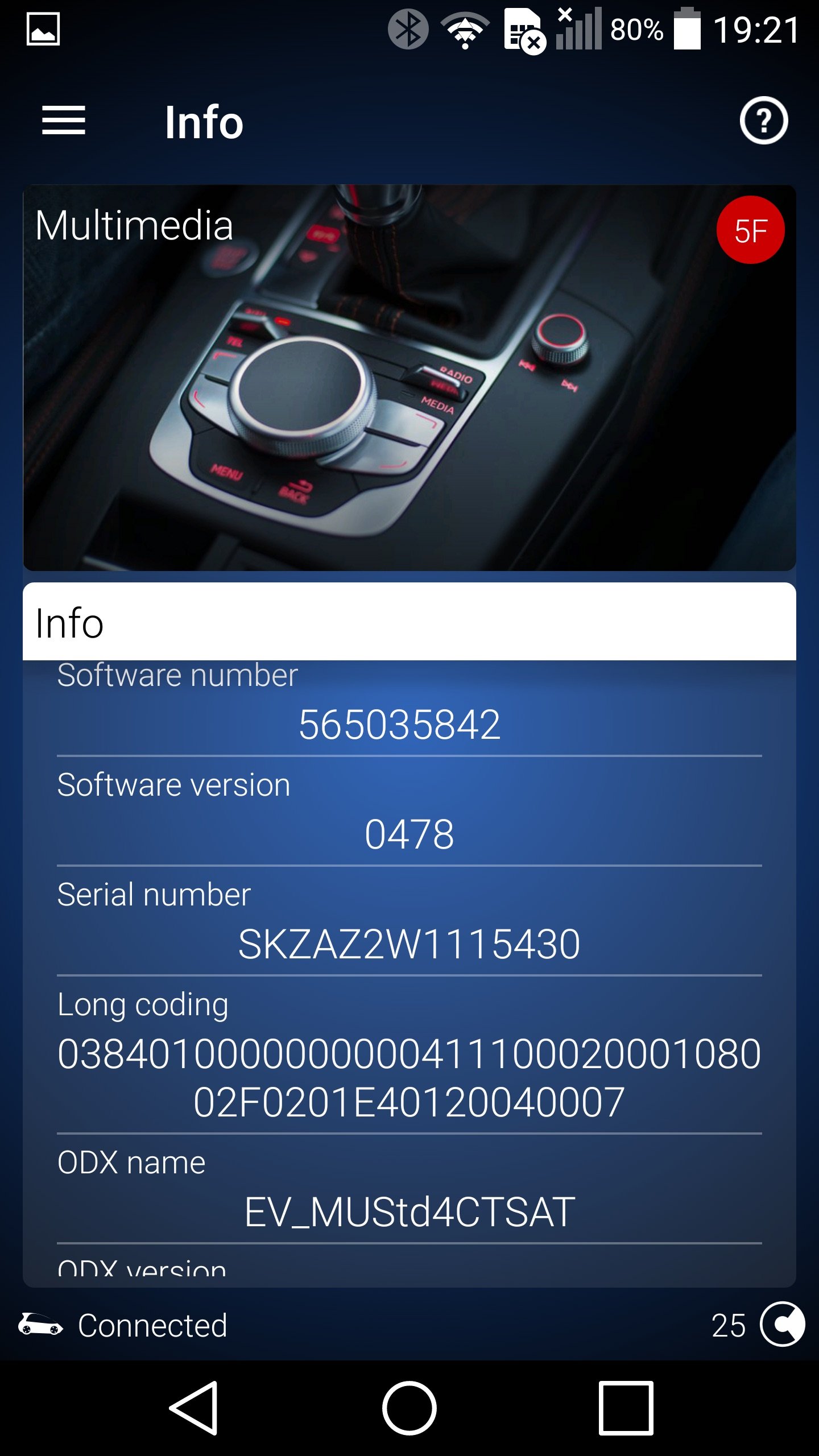

5F Unit HW and SW number : 565035842  Component: H41 0478

This is STG 5F code. There are very differences. This check will be difficult for me. İf share photo for this stage I will be happy.

03 84 01 00 00 00 00 00 41 11 00 02 00 01 08 00 2F 02 01 E4 01 20 04 00 07
34 81 00 28 00 80 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00


Finally, Can you share information and photo for Last stage STG 17(Dashboard) Virtual Cockpit ?



Thank you for help John.





[JR RS]

10 hours ago, gokhan19076 said:

Hi JR RS,



Thank you for answer but your shared codes working for before fl. I tried same codes but not working.



Sorry, I didn't realise urs was a facelift.



In that case, scratch everything - the coding, adaptations etc etc have changed alot between the pre-FL and FL, across all the modules.

Edited 7 May, 2020 by JR RS

[gokhan19076]

I've tried some coding and adaption but I couldn't find any solution. If you have a obdeleven, Can you share me those modules photos? Maybe I can find. Thanks

[doggy007]

Hi @gokhan19076

You manage to activate this feature? I tried on my side to activate on Superb 3Fl 2020, but without success, I have the same error. The coding trat I tried(I found on the internet) is the same as you.

[gokhan19076]

Hi doggy007,



No I don't. Because I don't have Odis or etc. for swap activation. You can find related answer from https://www.briskoda.net/forums/topic/368574-vcds-options-on-superb-iii/?do=findComment&comment=5417005

[doggy007]

OK, thank you for the information. So, even if we code properly without swap activation TSR will not work.

[GWCTas]

On 06/05/2020 at 23:11, JR RS said:

p.s. this is what I did to activate Traffic Sign Recognition (TSR) on mine.

Mine is MY17.





That's very interesting. How do I go about doing this? (Sorry for the newbie question)

[JR RS]

11 hours ago, GWCTas said:



That's very interesting. How do I go about doing this? (Sorry for the newbie question)



No need to b sorry - we have forums like this so u can ask questions 🙂



u can do the above code changes using either VCDS (vcds cable + laptop with vcds software

or OBDEleven (dongle + mobile app).

[GWCTas]

5 hours ago, JR RS said:



No need to b sorry - we have forums like this so u can ask questions 🙂



u can do the above code changes using either VCDS (vcds cable + laptop with vcds software

or OBDEleven (dongle + mobile app).

 Thanks @JR RS. I see the OBDEleven online, including various versions, e.g. Pro. (it's crazy what you can do with it).



My mechanic who has a certified workshop has worked on many vehicles (VW and Audi but not Skoda). He obviously has his own scan tools. I told him about the electronic service record and that there is no physical service book. Does the OBD allow updating of the service record or does the workshop have to have access to erWin?



Cheers,

[JR RS]

3 hours ago, GWCTas said:

My mechanic who has a certified workshop has worked on many vehicles (VW and Audi but not Skoda). He obviously has his own scan tools. I told him about the electronic service record and that there is no physical service book. Does the OBD allow updating of the service record or does the workshop have to have access to erWin?



the vehicle service record system is an entire different thing and both vcds and obdeleven don't go anywhere near it.   the only thing u can do in relation is reset the service reminder/indicator.



[GWCTas]

1 hour ago, JR RS said:



the vehicle service record system is an entire different thing and both vcds and obdeleven don't go anywhere near it.   the only thing u can do in relation is reset the service reminder/indicator.





Thanks. I'll do a separate post to ask what others do to keep their maintenance records intact and up to date if they don't go to a franchised dealer.
