On 21/09/2020 at 10:04, SashaGrace said:

So I could have sworn the SportLine I had in a few weeks ago had a radio splash screen that said SportLine. That car was a 2017 with MIB2 Columbus. Not sure if this only affects the cars with Amundsen but apparently there are people out there who have SportLine Superb’s and the radio splash screen just has the normal ‘Welcome to Skoda’ screen like the late 2018 (MY19) car I had in yesterday.



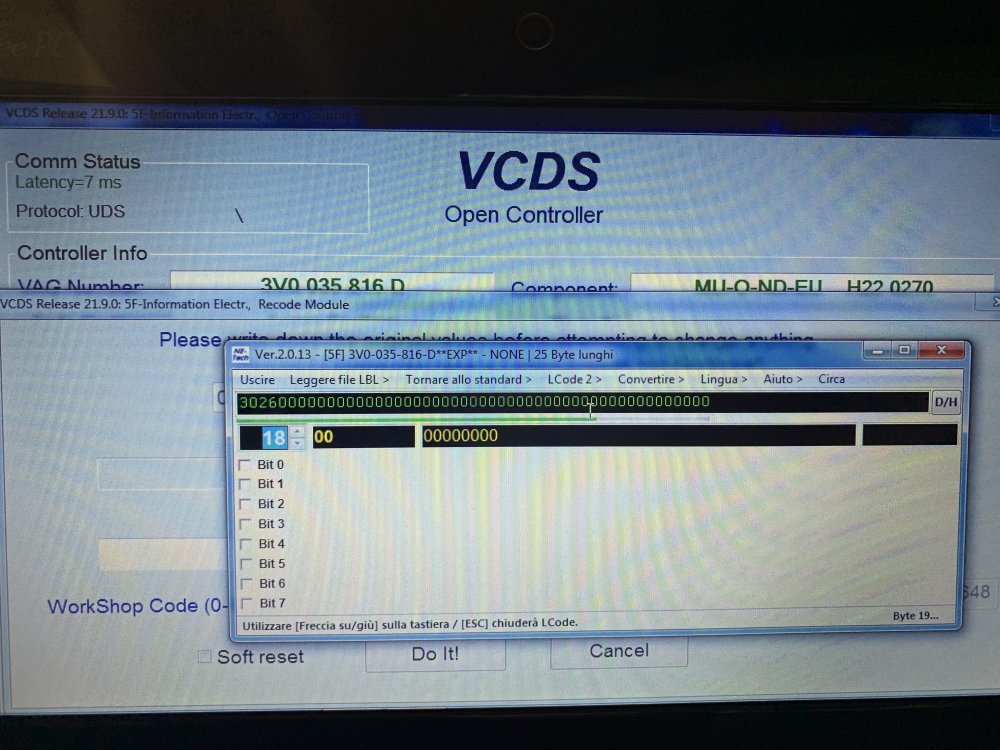

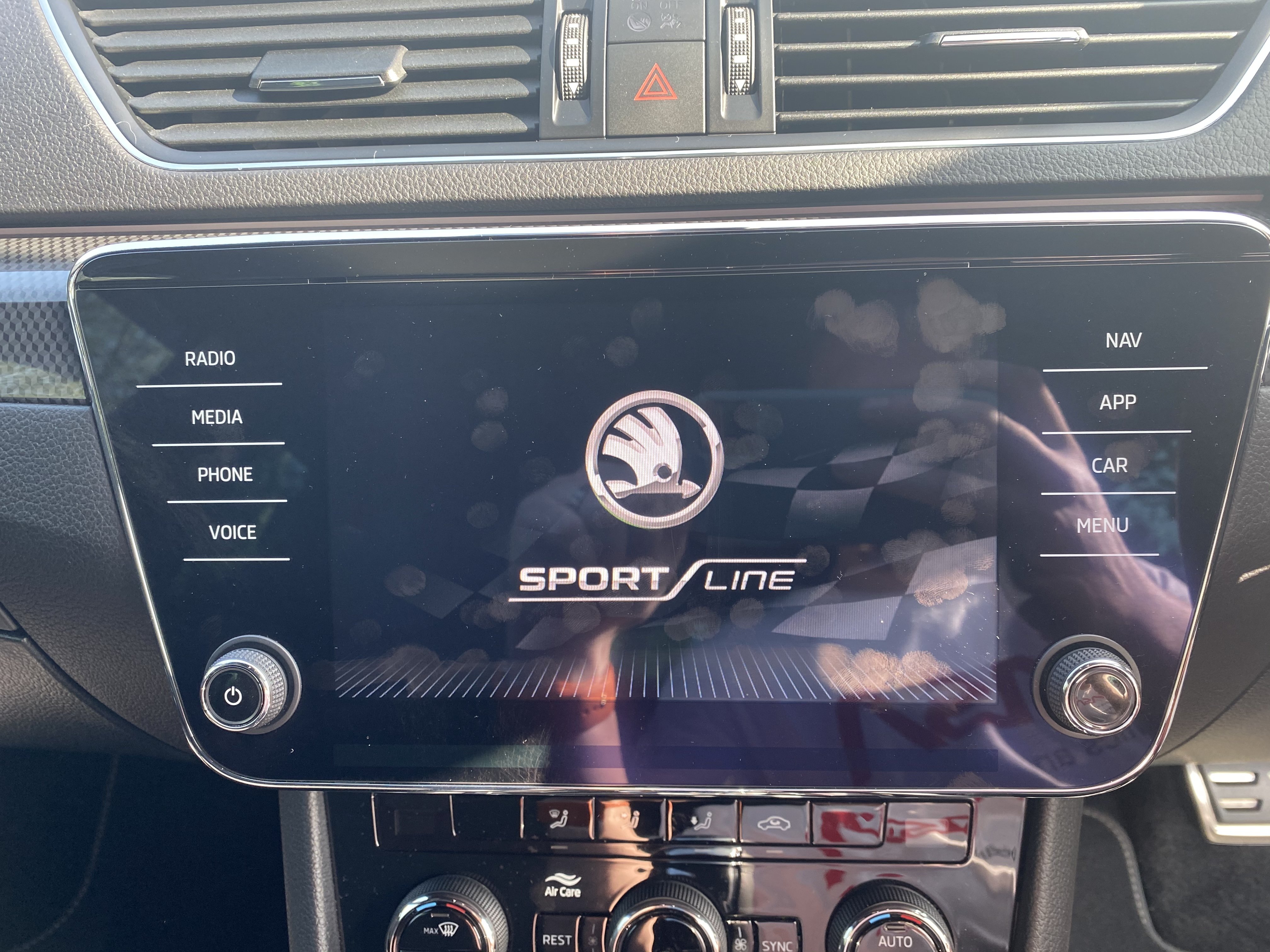

So if this affects you, coding is 5F Byte 18 and you change the value from 8 to 13 in text mode, reset the radio and boom! SportLine splash screen. You’re welcome 😁







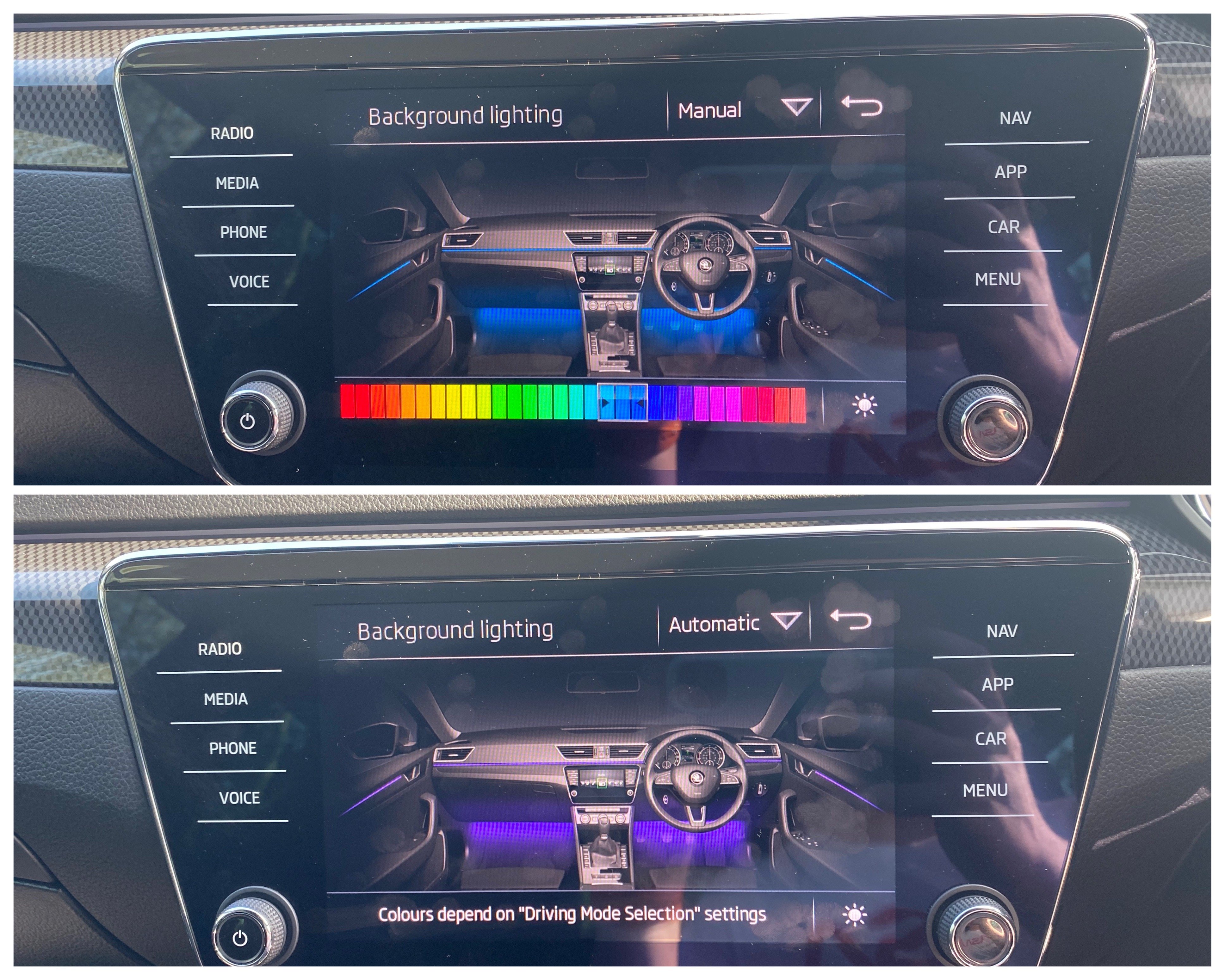

And 30 colour lighting with pre coding for RGB footwell lighting which is a retrofit that is coming soon!!



Hi Sasha, unfortunately on my superb sportline my17 with amundsen the obdeleven pro gives me error message in long encoding, I'll try again later in the morning.

Where can I find long coding for 30 colour lighting?



[SashaGrace]

1 hour ago, gianlucacarrozzo said:

Hi Sasha, unfortunately on my superb sportline my17 with amundsen the obdeleven pro gives me error message in long encoding, I'll try again later in the morning.

Where can I find long coding for 30 colour lighting?



What BCM firmware do you have? Last MY17 I had in was on 0236 which is too old, you need 0242 or newer and if you have that, I can provide the coding.


Every firmware are radio will be different, perhaps only the MIB2.5’s have the SportLine splash screen in the firmware?

[gianlucacarrozzo]

30 minutes ago, SashaGrace said:

What BCM firmware do you have? Last MY17 I had in was on 0236 which is too old, you need 0242 or newer and if you have that, I can provide the coding.


Every firmware are radio will be different, perhaps only the MIB2.5’s have the SportLine splash screen in the firmware?

Think I have 0456

https://imgur.com/43L0fLP

[langers2k]

On 21/09/2020 at 09:04, SashaGrace said:

And 30 colour lighting with pre coding for RGB footwell lighting which is a retrofit that is coming soon!!



RGB foot lighting you say... Would that be retrofittable to a MK3 Octavia?



edit:

Seems so...

Quote

The footwell lights are using same LIN like the doors do. It's the LIN5 in connector C on Pin29 of the facelifted BCM (Golf 7.5, Leon FL, Octavia FL...)



You have to replace the current connector of your footwell lights to the new 4 Pin connector and add the new wire for the LIN-Bus to Pin 3. ame procedure for the RGB footwell lights in the back. If everything is connected, start coding the new RGB lights and activate the new adresses of them: It's RGB LIN-User #14 and must be activated as "undefined14".



Things you need / Partslist'

Wires: 0,35mm² for LIN + MQS crimps



Front LEDs
1x 8W0947415A
1x 8W0947415B



Back LEDs
1x 8W0947415C
1x 8W0947415D



Connectors
4x 8K0973754A



Pin-out:
1: +
2: LIN
3: LIN (possible to use as output to right LED)
4: GND



Notice: it does not work on non facelifted MQBs or midline BCMs.
(otherwise replace BCM and retrofit a MIB2 with latest firmware)



Edited 25 September, 2020 by langers2k

[SashaGrace]

1 hour ago, gianlucacarrozzo said:

Think I have 0456

https://imgur.com/43L0fLP

Thats the radio firmware, not BCM. But it’s an MY18 onward radio so you should be good. If in 09 adaptations you can find ambient light list 1 and 2 then you can do it. Pm me and I’ll send you my colour list.

42 minutes ago, langers2k said:



RGB foot lighting you say... Would that be retrofittable to a MK3 Octavia?



edit:

Seems so...



Yeah if you have a 084DD or CG BCM then you can do it

[langers2k]

2 minutes ago, SashaGrace said:

Yeah if you have a 084DD or CG BCM then you can do it



I have:

Address 09: Cent. Elect. (J519)       Labels:. 5Q0-937-08X-V2.clb
   Part No SW: 5Q0 937 084 CQ    HW: 5Q0 937 084 CG
   Component: BCM MQBAB H   H36 0253

So if CG was a typo or being between CG and DD is suitable, I may have a chance.



Must stop planning retrofits, only had the car two days

[SashaGrace]

5 minutes ago, langers2k said:



I have:

Address 09: Cent. Elect. (J519)       Labels:. 5Q0-937-08X-V2.clb
   Part No SW: 5Q0 937 084 CQ    HW: 5Q0 937 084 CG
   Component: BCM MQBAB H   H36 0253

So if CG was a typo or being between CG and DD is suitable, I may have a chance.



Must stop planning retrofits, only had the car two days

CQ is probably the software part number, the physical part number is CG but either way if it’s a 084 it’s doable. 086 ones aren’t.


You have the exact same file I have, 084CG 0253. Coding has taken, just waiting on the hardware.

[langers2k]

I hadn't even noticed the SW and HW versions were different, noob moment

[gianlucacarrozzo]

32 minutes ago, SashaGrace said:

Thats the radio firmware, not BCM. But it’s an MY18 onward radio so you should be good. If in 09 adaptations you can find ambient light list 1 and 2 then you can do it. Pm me and I’ll send you my colour list.

Yeah if you have a 084DD or CG BCM then you can do it

Found these on VCDS diagnosis:



Indirizzo 09: Centrale elettr. (J519) Etichette:. ITT\5Q0-937-08X-V2.clb

N°. di Ricambio SW: 5Q0 937 084 CQ HW: 5Q0 937 084 CG
Componente: BCM MQBAB H H36 0253
N° di Serie: 01001715200420
Codifica: 000000000000000000000000000000000000000000000000000000000000 No Officina: WSC 33361 790 00159

Dati ASAM: EV_BCMMQB 018001 ROD: EV_BCMBOSCH_018.rod VCID: 09192823A8394BCE5D-805C



pm you later, thank you

[SashaGrace]

22 minutes ago, gianlucacarrozzo said:

Found these on VCDS diagnosis:



Indirizzo 09: Centrale elettr. (J519) Etichette:. ITT\5Q0-937-08X-V2.clb

N°. di Ricambio SW: 5Q0 937 084 CQ HW: 5Q0 937 084 CG
Componente: BCM MQBAB H H36 0253
N° di Serie: 01001715200420
Codifica: 000000000000000000000000000000000000000000000000000000000000 No Officina: WSC 33361 790 00159

Dati ASAM: EV_BCMMQB 018001 ROD: EV_BCMBOSCH_018.rod VCID: 09192823A8394BCE5D-805C



pm you later, thank you

You’re all good for 30 colours



I’ll just paste it below, you need to do this for the light colour list and LIN colour lists.



 Ambient light color list:

            Rotwert Farbe 1:

                255

            Gruenwert Farbe 1:

                0

            Blauwert Farbe 1:

                0

            Rotwert Farbe 2:

                230

            Gruenwert Farbe 2:

                0

            Blauwert Farbe 2:

                0

            Rotwert Farbe 3:

                242

            Gruenwert Farbe 3:

                80

            Blauwert Farbe 3:

                10

            Rotwert Farbe 4:

                230

            Gruenwert Farbe 4:

                100

            Blauwert Farbe 4:

                30

            Rotwert Farbe 5:

                230

            Gruenwert Farbe 5:

                160

            Blauwert Farbe 5:

                30

            Rotwert Farbe 6:

                255

            Gruenwert Farbe 6:

                190

            Blauwert Farbe 6:

                0

            Rotwert Farbe 7:

                230

            Gruenwert Farbe 7:

                230

            Blauwert Farbe 7:

                0

            Rotwert Farbe 8:

                210

            Gruenwert Farbe 8:

                238

            Blauwert Farbe 8:

                11

            Rotwert Farbe 9:

                210

            Gruenwert Farbe 9:

                255

            Blauwert Farbe 9:

                0

            Rotwert Farbe 10:

                170

            Gruenwert Farbe 10:

                255

            Blauwert Farbe 10:

                20





Ambience_lightning_color_list_2:

            Rotwert Farbe 11:

                60

            Gruenwert Farbe 11:

                255

            Blauwert Farbe 11:

                30

            Rotwert Farbe 12:

                0

            Gruenwert Farbe 12:

                235

            Blauwert Farbe 12:

                30

            Rotwert Farbe 13:

                0

            Gruenwert Farbe 13:

                235

            Blauwert Farbe 13:

                110

            Rotwert Farbe 14:

                50

            Gruenwert Farbe 14:

                255

            Blauwert Farbe 14:

                140

            Rotwert Farbe 15:

                0

            Gruenwert Farbe 15:

                225

            Blauwert Farbe 15:

                160

            Rotwert Farbe 16:

                0

            Gruenwert Farbe 16:

                225

            Blauwert Farbe 16:

                200

            Rotwert Farbe 17:

                0

            Gruenwert Farbe 17:

                200

            Blauwert Farbe 17:

                255

            Rotwert Farbe 18:

                0

            Gruenwert Farbe 18:

                160

            Blauwert Farbe 18:

                255

            Rotwert Farbe 19:

                0

            Gruenwert Farbe 19:

                120

            Blauwert Farbe 19:

                255

            Rotwert Farbe 20:

                10

            Gruenwert Farbe 20:

                90

            Blauwert Farbe 20:

                255

            Rotwert_Farbe_21:

                30

            Gruenwert_Farbe_21:

                40

            Blauwert_Farbe_21:

                255

            Rotwert_Farbe_22:

                65

            Gruenwert_Farbe_22:

                30

            Blauwert_Farbe_22:

                255

            Rotwert_Farbe_23:

                120

            Gruenwert_Farbe_23:

                30

            Blauwert_Farbe_23:

                255

            Rotwert_Farbe_24:

                195

            Gruenwert_Farbe_24:

                30

            Blauwert_Farbe_24:

                255

            Rotwert_Farbe_25:

                220

            Gruenwert_Farbe_25:

                0

            Blauwert_Farbe_25:

                255

            Rotwert_Farbe_26:

                255

            Gruenwert_Farbe_26:

                0

            Blauwert_Farbe_26:

                255

            Rotwert_Farbe_27:

                255

            Gruenwert_Farbe_27:

                0

            Blauwert_Farbe_27:

                115

            Rotwert_Farbe_28:

                255

            Gruenwert_Farbe_28:

                40

            Blauwert_Farbe_28:

                90

            Rotwert_Farbe_29:

                255

            Gruenwert_Farbe_29:

                90

            Blauwert_Farbe_29:

                70

            Rotwert_Farbe_30:

                240

            Gruenwert_Farbe_30:

                110

            Blauwert_Farbe_30:

                100





[Mbrads]

When keying those in a helper is useful, and be careful to save properly otherwise you have to start again. Guess how I know.

[gianlucacarrozzo]

@SashaGrace thank you a lot

but first i have to fix a problem i surely caused with coding by OBDeleven.

I unlocked the off road informations (compass) but now the image of the car with the distances of the park pilot has disappeared from the maxi dot.

Think I disabled Optical Park System...

someone could help me?

thank you

[Chet]

On 22/09/2020 at 17:39, SkudMissile21 said:

Also tried the instrument cluster start logo:

Type 1 - Skoda (default on mine)

Type 2 - vRS

Type 3 - Laurin & Klement

Type 4 - Scout

Type 5 - blank

Type 6 - sportline

Type 7 - Skoda

Type 8 - blank

























I managed to change my cluster startup today using OBDeleven under long coding -> Start screen. It was default "Version 1" and changing to "Version 7" gave me the Sportline one

[Chet]

On 24/09/2020 at 21:52, SkudMissile21 said:

Got invited to beta test Carista again today after sending a debug log yesterday and they have added option 8 for the infotainment startup logo.

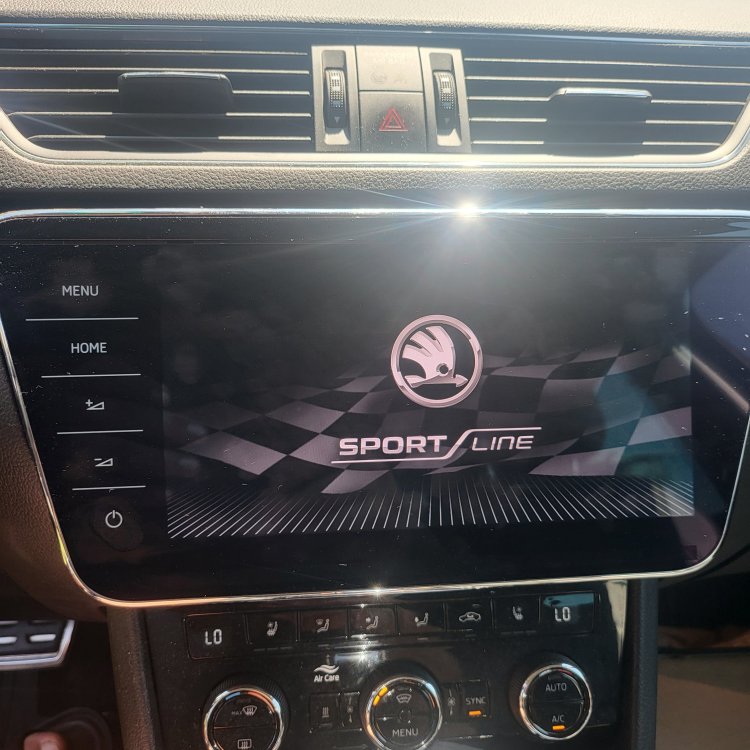

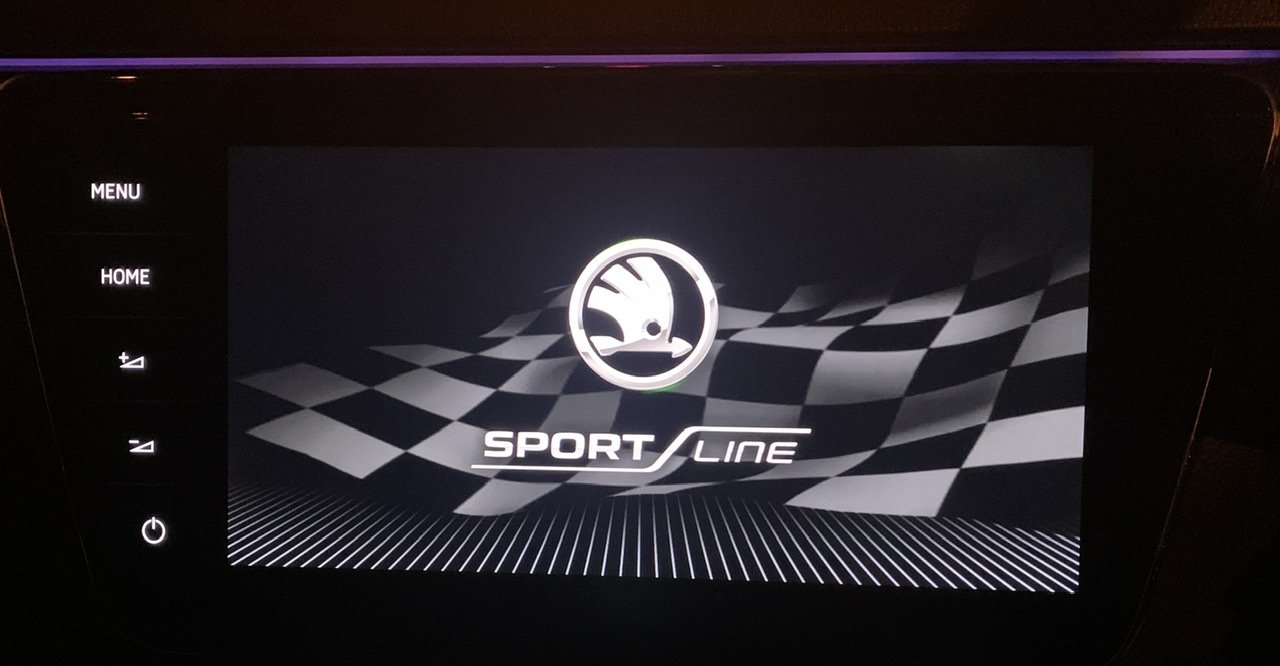

just tried it and I now have the sportline startup on there too



Brilliant!



SW version 1440 has a new option 9 for a second RS screen with a red logo

[Esseesse200]

On 21/09/2020 at 09:04, SashaGrace said:

So I could have sworn the SportLine I had in a few weeks ago had a radio splash screen that said SportLine. That car was a 2017 with MIB2 Columbus. Not sure if this only affects the cars with Amundsen but apparently there are people out there who have SportLine Superb’s and the radio splash screen just has the normal ‘Welcome to Skoda’ screen like the late 2018 (MY19) car I had in yesterday.



So if this affects you, coding is 5F Byte 18 and you change the value from 8 to 13 in text mode, reset the radio and boom! SportLine splash screen. You’re welcome 😁





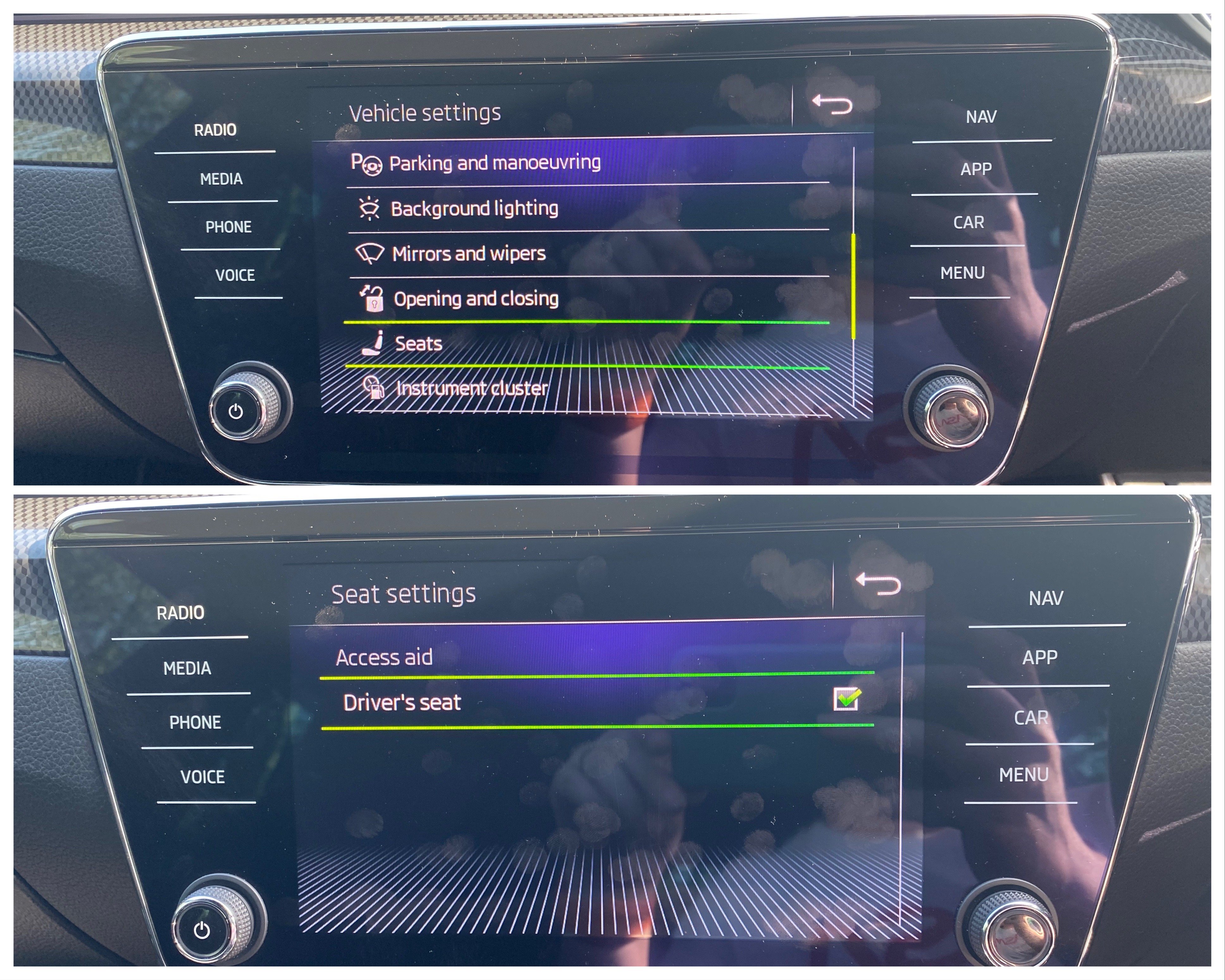

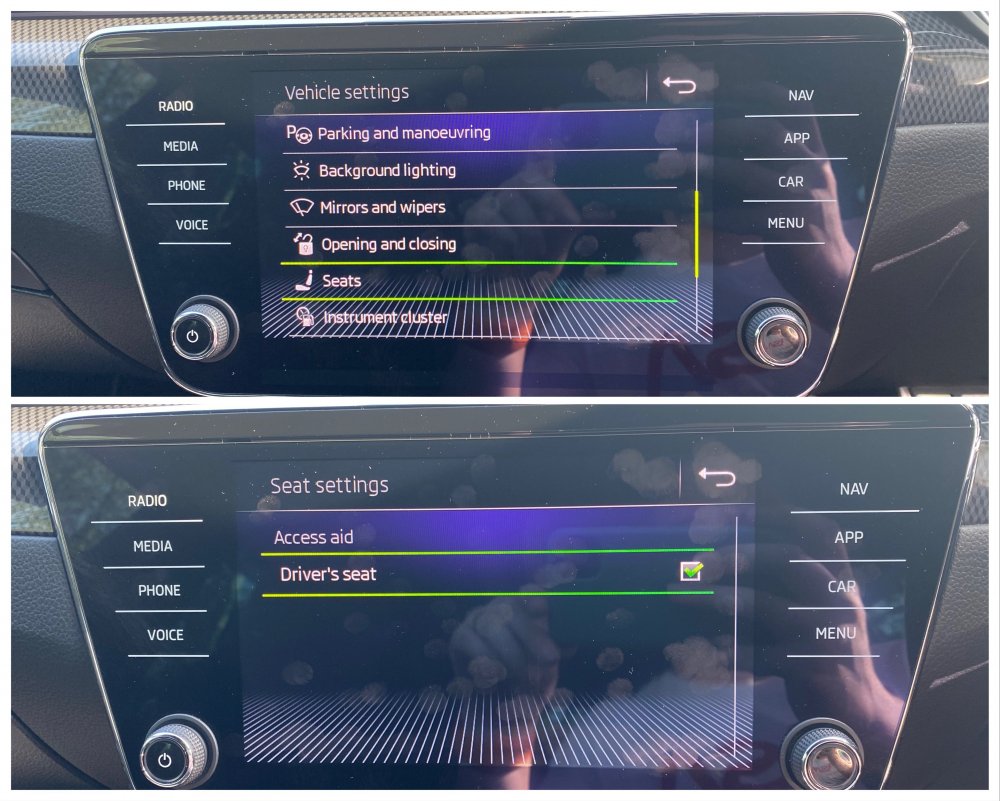

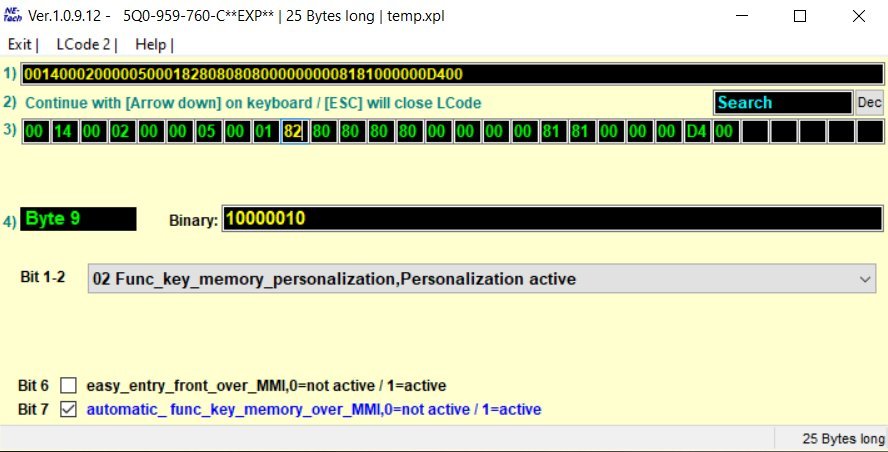

Also coded other goodies like the seat comfort access with working radio toggle





And 30 colour lighting with pre coding for RGB footwell lighting which is a retrofit that is coming soon!!



Sasha.. this is life changing stuff. Awesome. Mine is late 2016 but I’ll give it a go next week 👍🏻

[SkudMissile21]

2 hours ago, Chet said:

Brilliant!



SW version 1440 has a new option 9 for a second RS screen with a red logo

That would be cool for the vRS owners out there, pity they never made a vRS superb but then I like my 280 4x4 much more than my old mk1 vRS octy  .

the only thing missing for me is the fact the instrument cluster shows the sportline logo on every startup but the infotainment only shows the logo on a hard reset and just goes straight to playing music on mine or am I missing a simple option like “splash screen every time” somewhere?

[Toon99]

On ‎21‎/‎09‎/‎2020 at 09:04, SashaGrace said:

seat comfort access

This reminds me of Pheaton I used to own.
Such a cool feature, would love it operational on my Superb.

[AidanF]

4 hours ago, Toon99 said:

This reminds me of Pheaton I used to own.
Such a cool feature, would love it operational on my Superb.

If you have electric seats it's a quick and simple job to activate via VCDS/OBDeleven.

[SkudMissile21]

Just to update on my previous comments regarding the infotainment not showing the logo it appears to be random some days it does show the nice sportline logo and other days it goes straight to playback, no idea why but at least it works so I’m very happy with this little mod. Thanks to SashaGrace for creating the thread as I may not have investigated it had I not known the option was available with a quick email to Carista (just a pity it’s only beta at the moment but hopefully it’ll make it to commercial eventually)

[Chet]

8 minutes ago, SkudMissile21 said:

Just to update on my previous comments regarding the infotainment not showing the logo it appears to be random some days it does show the nice sportline logo and other days it goes straight to playback, no idea why but at least it works so I’m very happy with this little mod. Thanks to SashaGrace for creating the thread as I may not have investigated it had I not known the option was available with a quick email to Carista (just a pity it’s only beta at the moment but hopefully it’ll make it to commercial eventually)

Dare I tempt you with custom boot animations 😂

[SkudMissile21]

Just now, Chet said:

Dare I tempt you with custom boot animations 😂

Ha is this even possible??! I quite like the sportline one anyway and for the few seconds it’s displayed it’ll do me. I had a Kenwood upgrade in my last head unit that you could load custom images too and I just ended up with the standard “welcome to Skoda navigation” one..... boring but it looked the part!

[SashaGrace]

MIB toolbox

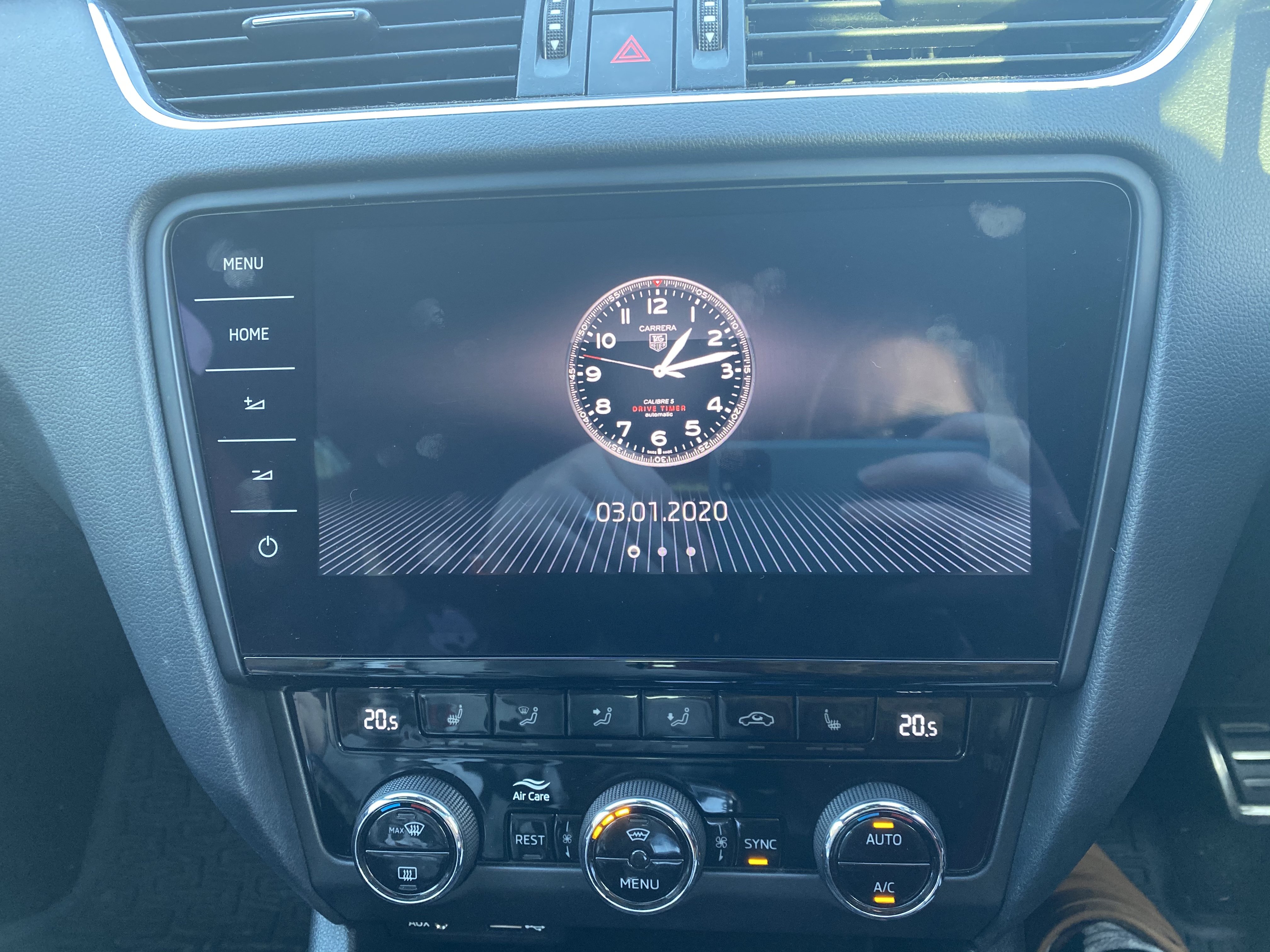

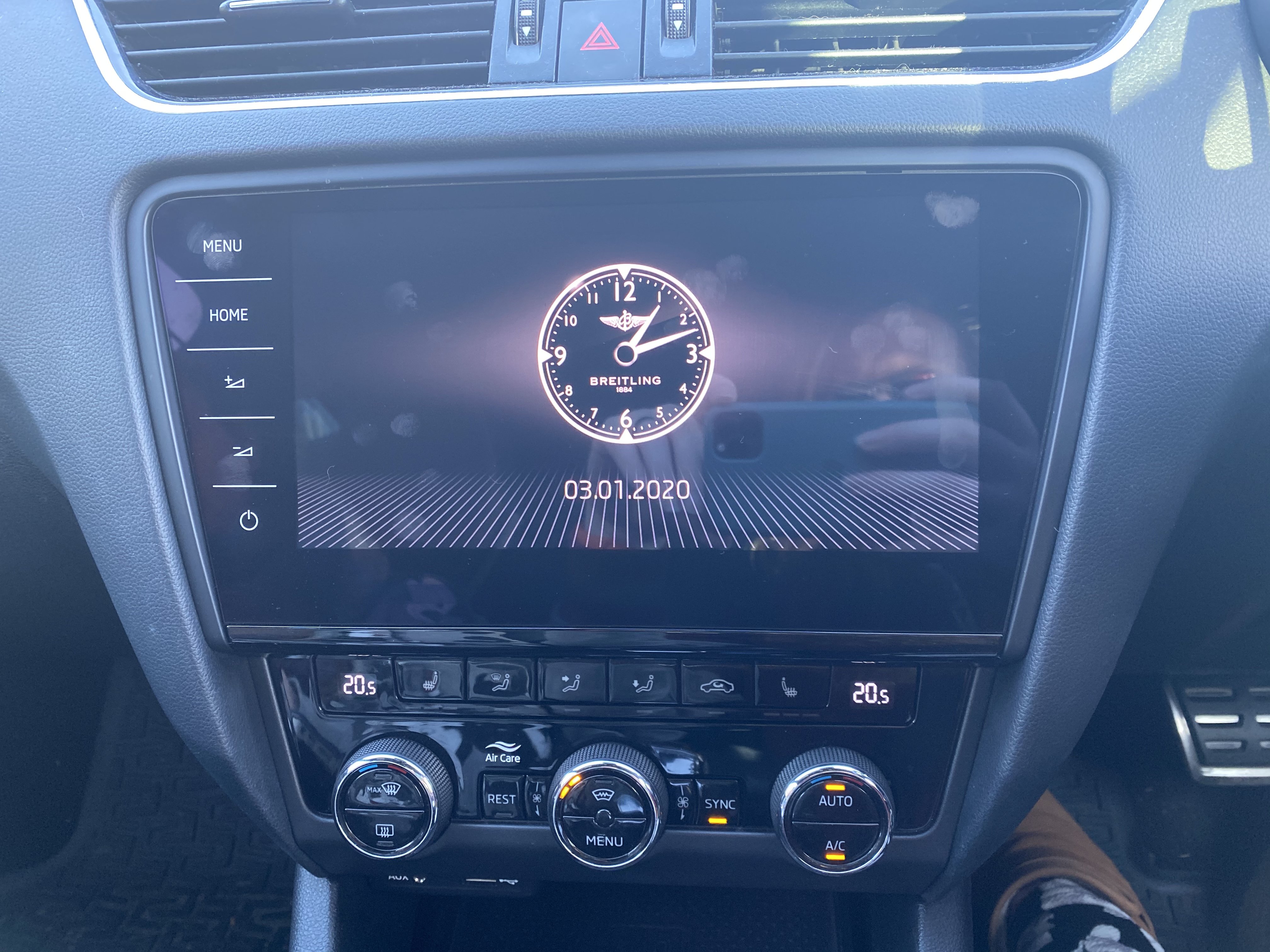

I have a Bentley Breitling and TAG Heuer clock faces on my car using it.





[Chet]

Yep MIB toolbox, I just need to get better at graphic design to do something cool with it!

[gianlucacarrozzo]

does MIB toolbox work on MIB2 Amundsen? I did know it was only for columbus 2.0 and superior

[langers2k]

Pretty sure MIB2 toolbox only supports MIB2 high, aka the Columbus or discover pro.



People have asked for Amundsen/discover media but the developer doesn't have a device to test or time to add 😟
