I had 'Christmas lights', six of them, on the dials. Suggested culprits ASR, ESC, ABS, TPM +2



(Manual P36 - 'In the event of an ABS fault, the other braking and stability systems are turned off'



AA Roadside plugged in and showed NSR ABS fault. Continuing journey cautiously lights went out only to come back following day, only to go out again en route to dealer to fix. Luckily photos taken when warning lights were up.



Sensor replaced, no further issue. AA and dealer confirmed similar issues recorded across VAG range (shared component)

Hi All,

Just an update on this issue.

I managed to speak to a friend who has VCDS today.

We managed to plug things in to take a peek at the error faults shown. There are quite a few faults, and it seems that some I believe are related to the recent issue as per this thread; whilst others might be historical?



It seems like I have a speed sensor issue on the front left. It just states "electrical fault in circuit"? Not sure if this simply translates to a faulty speed sensor that just needs replacing.



Here is a summary of the all the faults found (and full details below).



Could someone kindly have a scan across these, and let me know if my assumption is correct as per below?

Many thanks!



Address 03: ABS Brakes (J104)  => Current issue based on wheel speed sensor

Address 10: Park/Steer Assist (J791) => Assume is related to ABS Brakes i.e. Wheel speed sensor

Address 22: AWD => Assume is related to ABS Brakes i.e. Wheel speed sensor

Address 44: Steering Assist => Assume is related to ABS Brakes i.e. Wheel speed sensor

Address 02: Auto Trans => Assume is related to ABS Brakes i.e. Wheel speed sensor



Address 01: Engine (J623-CFHC) => Not sure what this one is, maybe historical?
Address 37: Navigation (J0506) => Assume is historical? (my navigations works fine just now?)

Address 56: Radio (J0506) => Assume is historical? (my radio works fine just now?)









Address 03: ABS Brakes (J104)       Labels:. 1K0-907-379-60EC1F.clb
   Part No SW: 1K0 907 379 BL    HW: 1K0 907 379 BL
   Component: ESP MK60EC1   H31 0152
   Revision: 00H31001
   Coding: 933F400E092501FBC91102EB9020808A350000
   Shop #: WSC 33361 790 00050
   VCID: 7DFA1500E40409A2BE-8028

1 Fault Found:
00283 - ABS Wheel Speed Sensor; Front Left  (G47)
            012 - Electrical Fault in Circuit
             Freeze Frame:
                    Fault Status: 01101100
                    Fault Priority: 1
                    Fault Frequency: 1
                    Reset counter: 166
                    Mileage: 116529 km
                    Time Indication: 0

             Freeze Frame:
                    Count: 3
                    Count: 14
                    Count: 4096
                    Count: 32
                    Count: 38400
                    Count: 0
                    Count: 1
                    Count: 0

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791)       Labels:. 1T0-919-475.clb
   Part No SW: 3T0 919 475 C    HW: 3T0 919 475 C
   Component: PARKHILFE PLA H08 0005
   Revision: --------    Serial number: 13961223700313
   Coding: 109106
   Shop #: WSC 33361 790 00050
   VCID: 3D7AD500A484C9A2FE-8068

1 Fault Found:
01316 - ABS Control Module
            013 - Check DTC Memory
             Freeze Frame:
                    Fault Status: 01101101
                    Fault Priority: 6
                    Fault Frequency: 2
                    Reset counter: 171
                    Mileage: 116529 km
                    Time Indication: 0
                    Date: 2015.07.09
                    Time: 12:33:25

             Freeze Frame:
                    Temperature: 8.0°C

-------------------------------------------------------------------------------
Address 22: AWD        Labels: 0AY-907-554-V1.clb
   Part No SW: 0BR 907 554 C    HW: 0BR 907 554 C
   Component: Haldex 4Motion      3018
   Coding: 0000005
   Shop #: WSC 00000 000 00000
   VCID: 458ABDE00C548162A6-8010

1 Fault Found:
00625 - Vehicle Speed Signal
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01110001
                    Fault Priority: 2
                    Fault Frequency: 57
                    Reset counter: 48
                    Mileage: 3618101 km
                    Time Indication: 4

             Freeze Frame:
                    Work Shop Code: 00768
                    Raw, Form. N/A: 000 000 000
                    Raw, Form. N/A: 000 000 000
                    Raw, Form. N/A: 000 000 000
                    Raw, Form. N/A: 000 000 000
                    Raw, Form. N/A: 000 000 000
                    Raw, Form. N/A: 000 000 000
                    Raw, Form. N/A: 000 000 000

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1K0-909-14x-GEN3.clb
   Part No: 1K0 909 144 P
   Component: EPS_ZFLS Kl. 71     3305
   Revision: 00H22000
   Shop #: WSC 33361 790 00050
   VCID: 3776C72846B8E3F224-8062

1 Fault Found:
01316 - ABS Control Module
            013 - Check DTC Memory - MIL ON
             Freeze Frame:
                    Fault Status: 11101101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 167
                    Mileage: 116529 km
                    Time Indication: 0
                    Date: 2015.07.09
                    Time: 12:33:25

             Freeze Frame:
                    Voltage: 14.38 V
                        DU
                    Temperature: 7.0°C
                    RPM: 986 /min
                    Speed: 0.0 km/h
                    Speed: 0.0 km/h
                    Count: 0

-------------------------------------------------------------------------------
Address 01: Engine (J623-CFHC)       Labels:. 03L-906-018-CFF.clb
   Part No SW: 03L 906 018 QN    HW: 03L 907 309 AG
   Component: R4 2,0L EDC   H25 3501
   Revision: 42H25---    Serial number:
   Coding: 001D0012042700080000
   Shop #: WSC 33361 790 00999

2 Faults Found:
17262 - Terminal 30
          U140A 00 [032] - Open Circuit
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Date: 2000.00.00
                    Time: 00:00:00

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 255 km/h
                    Coolant temperature: -40 °C
                    Intake air temperature: -40 °C
                    Ambient air pressure: 0 mbar
                    Voltage terminal 30: 11.140 V
                    Unlearning counter according OBD: 12
                    Engine control module reset status-Bits 0-7: 0
                    Engine control module reset status-Bits 0-7: 0
                    Limitation: torque: 0.0 Nm
                    Limitation: accelerator pedal: 0.0 Nm
                    Cruise Control System (CCS): status-Bits 0-7: 0
                    Accelerator pedal travel: 0.00 %
                    Engine torque: -500.0 Nm
                    Generator: load signal: 0.00 %

4629 - ECM Power Relay Load Circuit
          P068A 00 [032] - Opens Too Early
          Intermittent - Not Confirmed - Tested Since Memory Clear

Readiness: 0 0 0 0 0

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 02E-927-770.clb
   Part No SW: 02E 300 015 A    HW: 02E 927 770 AL
   Component: GSG DSG AG6     512 3522
   Coding: 0000020
   Shop #: WSC 33361 790 00050
   VCID: 112259B0089C1DC24A-8044

1 Fault Found:
18255 - Please check DTC Memory of ABS Controller
            P1847 - 000 -  - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 0
                    Fault Frequency: 14
                    Reset counter: 1
                    Mileage: 116529 km
                    Time Indication: 0
                    Date: 2015.07.09
                    Time: 12:33:23

-------------------------------------------------------------------------------
Address 37: Navigation (J0506)       Labels:. 1T0-035-680.clb
   Part No SW: 3T0 035 680 E    HW: 3T0 035 680 E
   Component: RNS-MID       H71 4120
   Coding: 04000402000300810000
   Shop #: WSC 33361 790 00050
   VCID: 3260F63C6DDA06DA13-8066

   Subsystem 1 - Part No: 3T0 051 859 M
   Component: EU West V9  7918

1 Fault Found:
00862 - Antenna for GPS Navigation (R50/R52)
            007 - Short to Ground - Intermittent
             Freeze Frame:
                    Fault Status: 00100111
                    Fault Priority: 5
                    Fault Frequency: 3
                    Reset counter: 210
                    Mileage: 100315 km
                    Time Indication: 0
                    Date: 2013.09.30
                    Time: 18:13:60
-------------------------------------------------------------------------------
Address 56: Radio (J0506)       Labels:. 1T0-035-680.clb
   Part No SW: 3T0 035 680 E    HW: 3T0 035 680 E
   Component: RNS-MID       H71 4120
   Coding: 04000402000300810000
   Shop #: WSC 33361 790 00050
   VCID: 3260F63C6DDA06DA13-8066

   Subsystem 1 - Part No: 3T0 051 859 M
   Component: EU West V9  7918

1 Fault Found:
00862 - Antenna for GPS Navigation (R50/R52)
            007 - Short to Ground - Intermittent
             Freeze Frame:
                    Fault Status: 00100111
                    Fault Priority: 5
                    Fault Frequency: 3
                    Reset counter: 210
                    Mileage: 100315 km
                    Time Indication: 0
                    Date: 2013.09.30
                    Time: 18:13:60

I had exactly the same issue on my Octavia - electrical fault in circuit, and one of the wires to the ABS sensors had become damaged and broken the wire.



Have a good look around the wheel arches at the wiring before thinking about replacing ABS sensors.

I appreciate that  vcds is a useful tool.in the right hands but from a layman's point of view would an obd reader not be as useful and would give an error code showing which speed sensor was faulty without bringing up other spurious faults . I am thinking about purchasing an obd reader  any advice on this would be appreciated



15 minutes ago, Cogra said:

I am thinking about purchasing an obd reader  any advice on this would be appreciated

If it just a occassional hobby interest, then you could do no worse that ODBeleven.  More serious tinkering (changing settings) - consider VCDS.



re: odderties about faults.



Low batteries voltages will cause instabilities in the CANBUS network (which - for those old enough to remember is like the old Coaxial 10Base2 networks, although running at higher speeds).  This will - in turn - come up with spurious errors as modules fail to report their status correct, because their voltage levels are low....anything less than 11.8V, your car will not really operate correctly [electrically].  Not always failing batteries - COVID means that the cars are standing idle for long periods of time; invest in a decent trickle battery charger.

14 hours ago, softscoop said:

I had exactly the same issue on my Octavia - electrical fault in circuit, and one of the wires to the ABS sensors had become damaged and broken the wire.



Have a good look around the wheel arches at the wiring before thinking about replacing ABS sensors.



I assume from your comment, that the wiring can be replaced as a separate part? I assumed that the ABS sensor was hardwired, so if the wiring was damaged you'd have to replace the full unit i.e. sensor with wiring.

I'll try and have a good look.





The sensor is not hard wired, it is a separate part.

The wiring loom for each abs sensor can be replaced, and can be bought as a spare part from Skoda

5 minutes ago, softscoop said:

The sensor is not hard wired, it is a separate part.

The wiring loom for each abs sensor can be replaced, and can be bought as a spare part from Skoda

out

Thanks that good to know.

I guess if the wiring is damaged? then it would certainly be a cheaper and easier fix to unplug and replace the relevant wiring loom.

Will have a look at the car tomorrow in the daylight. I assume access to view the area of the wiring is still possible without having to remove the wheel etc? (front left according to the logs)


On 22/02/2021 at 15:44, Cogra said:

I appreciate that  vcds is a useful tool.in the right hands but from a layman's point of view would an obd reader not be as useful and would give an error code showing which speed sensor was faulty without bringing up other spurious faults .



In my experience no, if you are really lucky it might show up a generic OBDII code for braking system, ABS etc but definitely not the detailed specific VAG fault codes contained in the relevant modules.



Another example, the airbag light comes on, a generic OBDII reader will tell you what you already know, there is a fault in the airbag system, VCDS will tell you that the drivers door crash sensor or the passenger seat airbag has an open circuit or short to ground, intermittent signal from steering wheel airbag (clockspring) failure to communicate with airbag control module etc etc etc.

On 22/02/2021 at 09:33, softscoop said:

I had exactly the same issue on my Octavia - electrical fault in circuit, and one of the wires to the ABS sensors had become damaged and broken the wire.



Have a good look around the wheel arches at the wiring before thinking about replacing ABS sensors.



Had a quick  peek behind the wheel this afternoon.

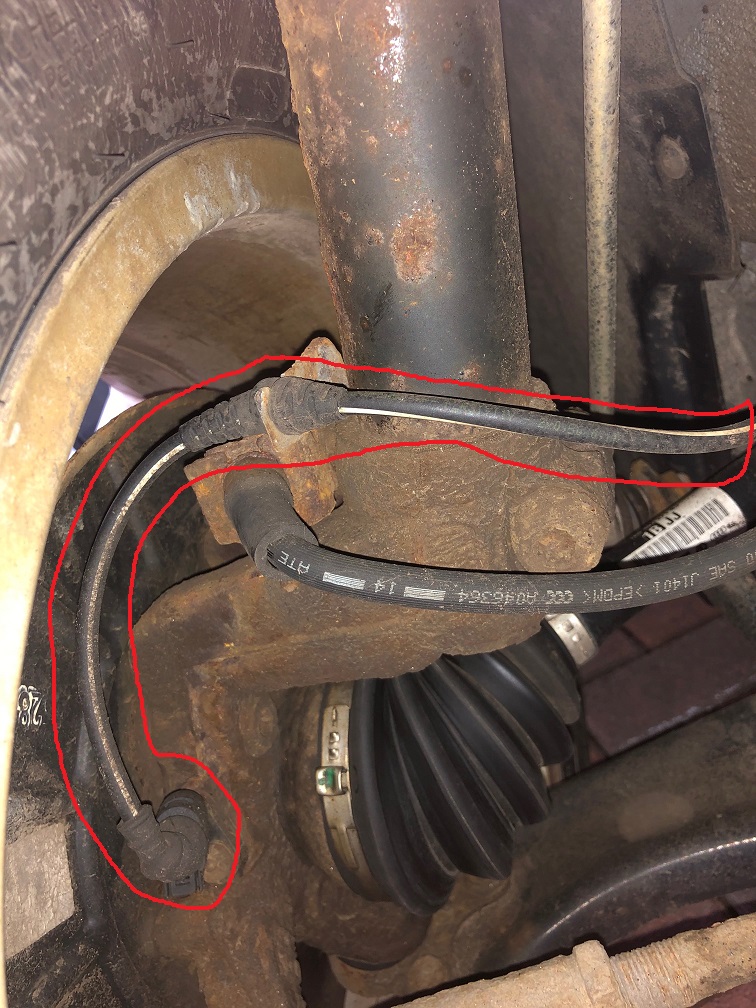

I assume the highlighted cable and attached sensor is the ABS sensor and corresponding wiring?

The wiring itself looks intact and no obvious damage. I assume it could still be an issue with the sensor itself.

Think i'll contact one or two garages for a quote. What is the expected labour/cost on the assumption its sensor replacement (i.e. £100-200?)

On 22/02/2021 at 15:05, varaderoguy said:

If it just a occassional hobby interest, then you could do no worse that ODBeleven.  More serious tinkering (changing settings) - consider VCDS.



re: odderties about faults.



Low batteries voltages will cause instabilities in the CANBUS network (which - for those old enough to remember is like the old Coaxial 10Base2 networks, although running at higher speeds).  This will - in turn - come up with spurious errors as modules fail to report their status correct, because their voltage levels are low....anything less than 11.8V, your car will not really operate correctly [electrically].  Not always failing batteries - COVID means that the cars are standing idle for long periods of time; invest in a decent trickle battery charger.

Agreed, the stop start system seemed to be stopping less and less frequently, I was advised by service manager to get a CTEC charger/ conditioner because most of us are not doing enough miles during lockdown to keep battery in peak condition. I now put it on charge every couple of weeks, it usually 'charges' for a couple of hours then goes to Condition. Stop start back to normal and everything else is good. I guess with infrequent short journeys battery is not fully charged - particularly with seat heaters, rear and front screen heaters and lighting on for most journeys of no more than 20 minutes.



If it's just the sensor, and you can get the wheel off and jack the car up safely, you can easily change them yourself.



It's only one bolt that holds them in, but they tend to be very stuck in place. Plusgas or similar releasing agent is very handy for that sort of thing.

I had similar indications a couple of years ago on the offside rear sensor, I unplugged the sensor cable at the sensor end ie bottom left in the photo and squirted some some switch/contact cleaner on the plug and socket , remade the connection tried the car, problem solved, split the joint and used some vaseline  on it, subsequently problem free!!

Might  be worth a try.

Edited 25 February, 20215 yr by Frenchtone

Had another speed wheel sensor fitted to test, and unfortunately it didn't resolve my issue. So looks like its not the sensor at fault.

Car going back in next week to review the wiring further...



I guess the log that i previously had suggested its most likely some wiring/circuit issue?

i.e.

 00283 - ABS Wheel Speed Sensor; Front Left  (G47)
            012 - Electrical Fault in Circuit



Is the internal wiring easy to get access to?
