Can anyone give me a link to a guide for carrying out this repair, please?

Any special tools required?


  • 3 months later...
  • Author

There were replies but have disappeared.  I really would like to do this myself so any advice gratefully received. Thanks.

The 'usual' tools will be sufficient; jack, stands, spanners, socket set, pliers, torque wrench.. the most important is the correct timing tool kit to lock everything. You will also need a special socket for the crank from from memory.
I personally wouldn't attempt it without the correct timing tools, if it isn't aligned correctly or the tensioner isn't right... it will get very costly!

I have only done one 1.2TSI, the rough process was:

  • Remove Covers
  • Remove Aux Belt
  • Remove Bottom Pulley
  • Remove Aux Tensioner
  • Move Alternator
  • Remove Airbox/Pipes on RH side of engine (water pump side)
  • Lock Crank/Cams
  • Swap Components
  • Reinstall

The job isn't massively expensive at a garage, so if you need to purchase tools to complete the job it would be worth weighing up the costs.

A garage will give you warranty and should something go wrong, they are equipped to deal with it. If you snap a bolt on the drive, the car is stuck there until you sort it. (I've seen this happen)

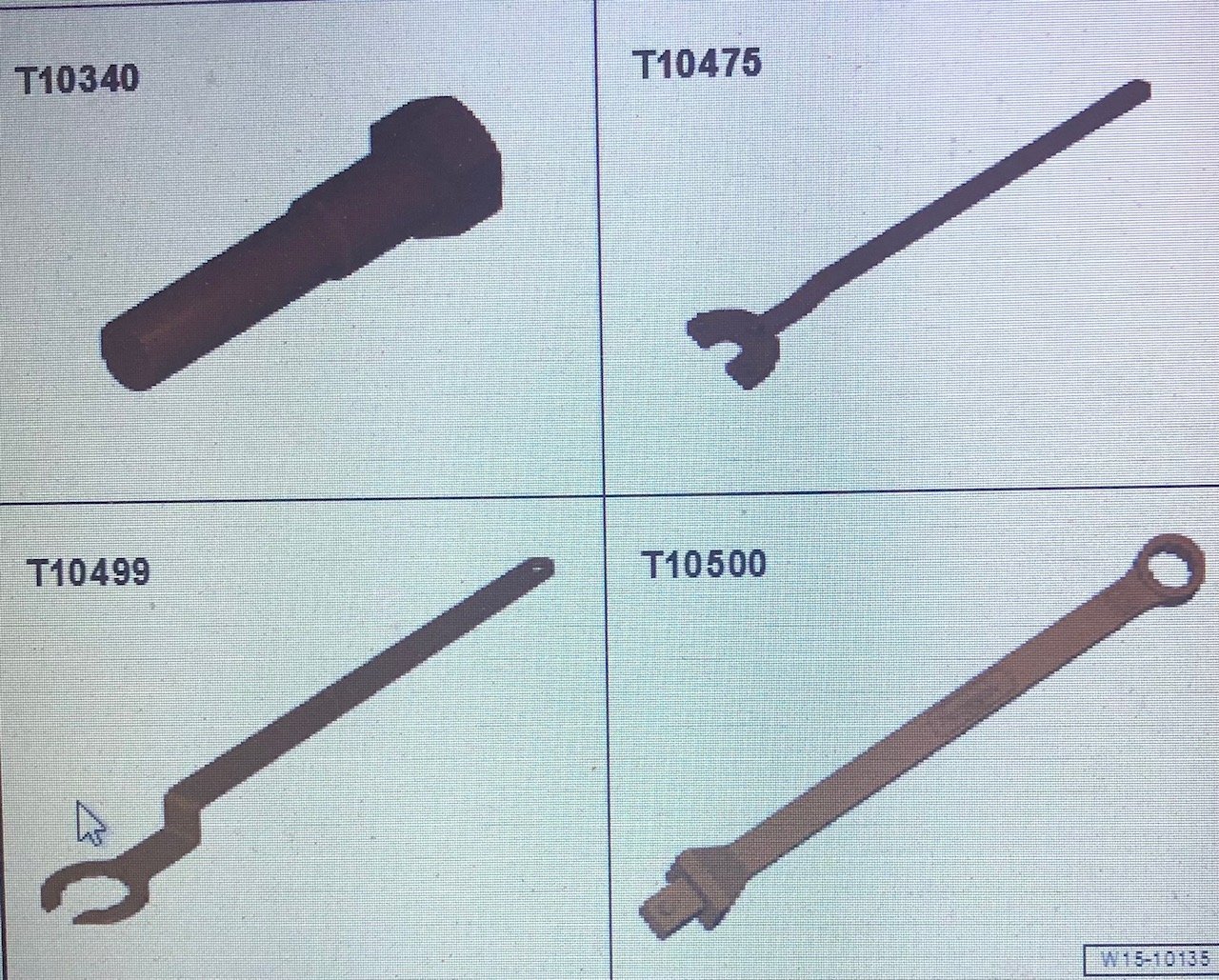

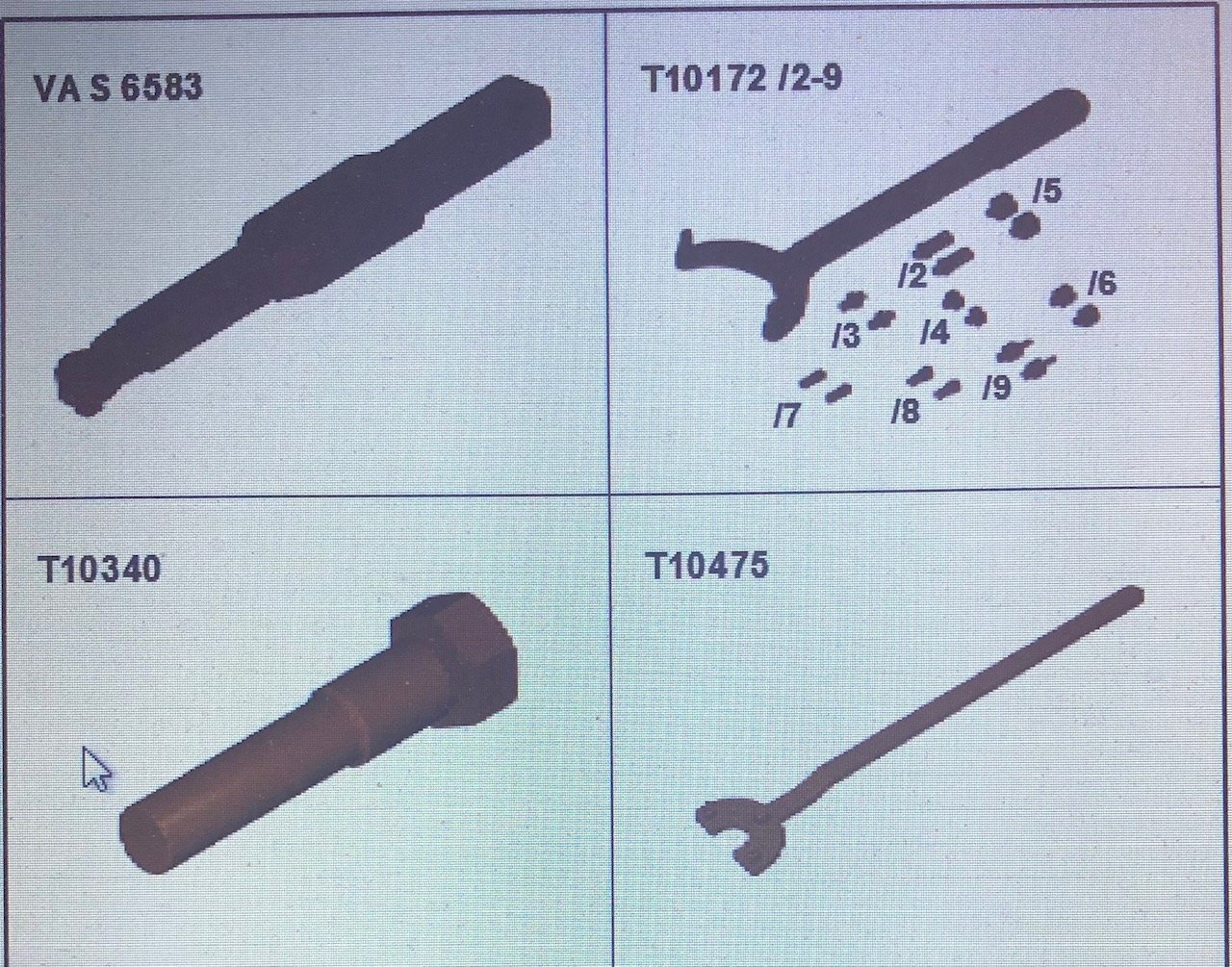

Special tools and workshop equipment required
t Torque wrench -VAS 6583-
t Counterhold -T10172- with adapter -T10172/1-
t Locking pin -T10340-
t Counterhold -T10475-
t Special wrench, 30mm -T10499-
t Socket -T10500-

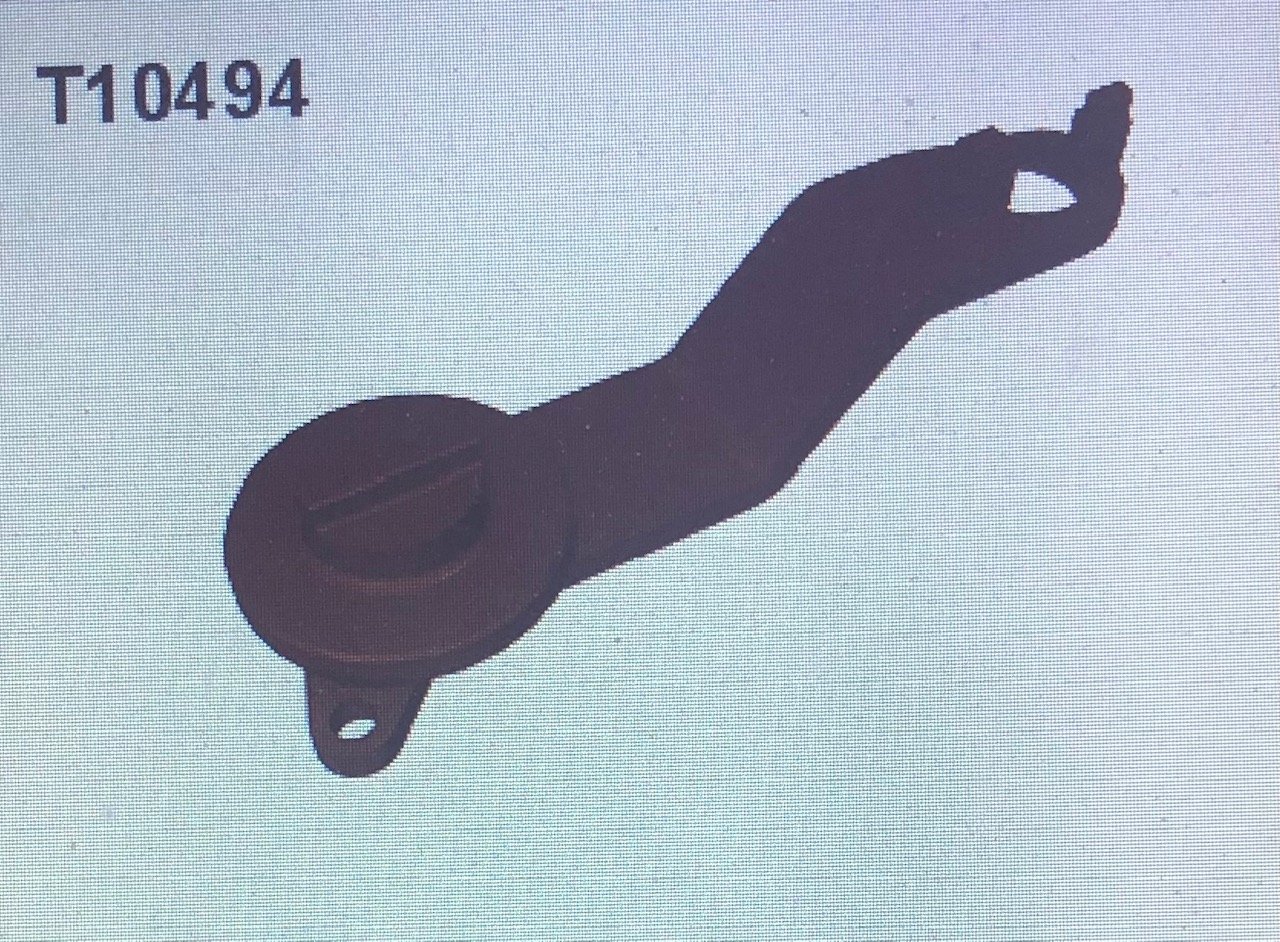

t Camshaft clamp -T10494-

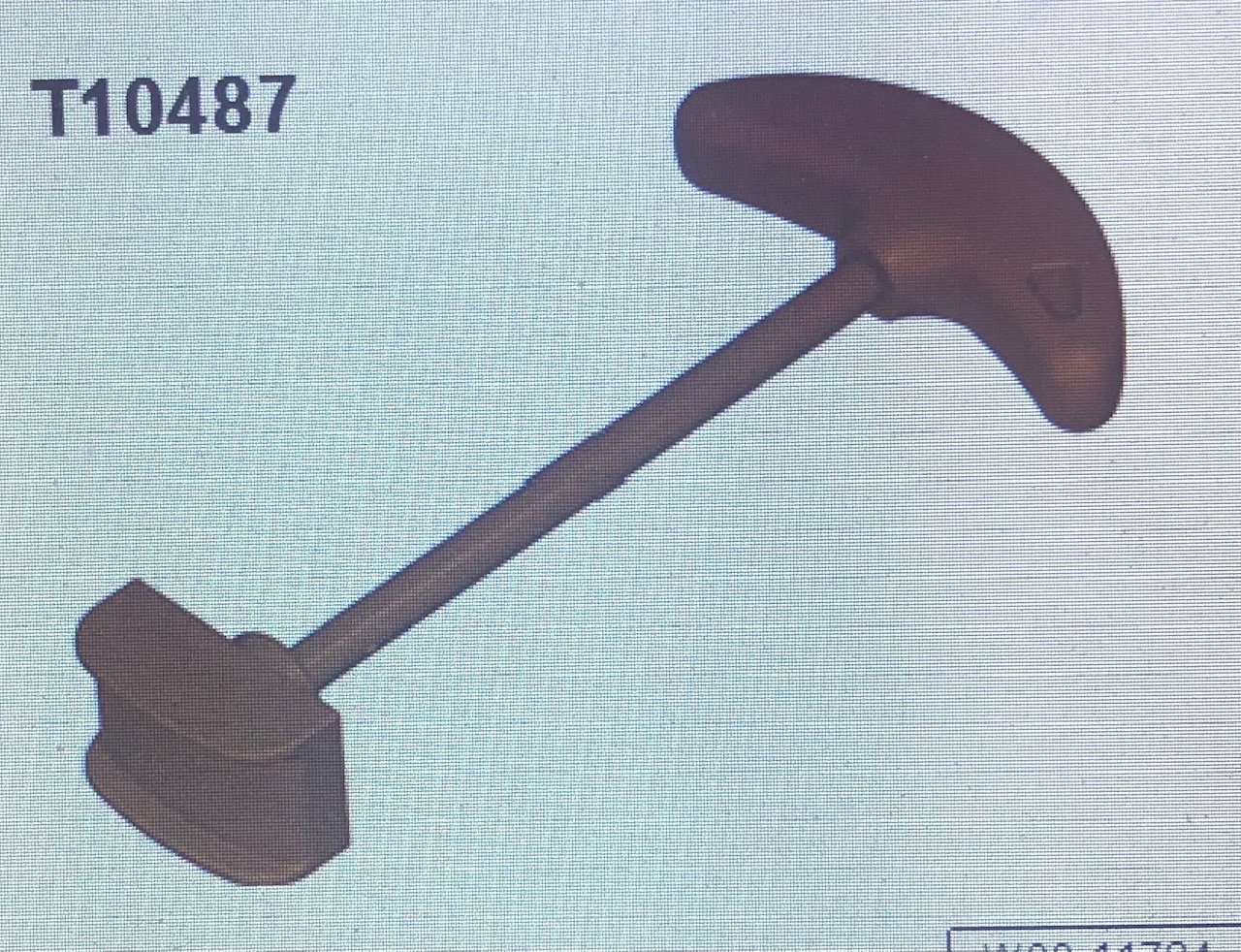

t Assembly tool -T10487-
t Release tool -T10527- and release tool -T10527/1-
t Screwdriver with minimum shaft length of 250 mm (not illustrated)









That's from the dealer manual for the same engine as fitted in a 2017 Golf

  • 2 months later...

Hi, just a bump to this thread.

Did you do your cambelt?

Mine needs doing and I'm not keen on the £499 that Skoda want to do it.

I've seen the locking set on the bay of E for £40 but do you need all these counter holding tools as well.

Thanks in advance.
