Hello everyone! I will be doing a Favorit swap with an 1.8T AGU engine from my Golf 4 GTI. I need a full pinout of original Felicia 1.6 (1997, pre-facelift) gauge cluster plugs (Black, yellow and a white one). I have already swapped in a 1.6 AFH/AVY engine hybrid, but its just still too slow for me and I always wanted a Favorit with 1.8 Turbo engine. I am going the legal route, I have all documentation from Golf 4 for TUV. So basically I have Favorit Silver line with Felicia dashboard, Felicia wiring harness (whole car), hybrid Polo engine, Felicia Power steering and Felicia AC system. Thats why I need pinouts for those 3 plugs for the Felicia 1.6 cluster I mentioned above in this post. Feel free to ask any questions!

I would advise against, car cant handle that engine

On 07/05/2024 at 19:54, vucko1011 said:

Thats why I need pinouts for those 3 plugs for the Felicia 1.6 cluster



Does this helps?

GLX, SLX - 1AV (AEE).pdf

Found this

https://epowering.cz/skoda-felicia-dilenska-prirucka-elektrika/

If you don't mind Czech, "Elektrická schémata" should be a complete bundle of wiring for all variants.

Edited 10 May, 20241 yr by Papez

3 hours ago, Papez said:

"Elektrická schémata"



"Hlektrika sxhmata" (Ηλεκτρικα σχηματα) is in Greek. 🙂

On 10/05/2024 at 14:55, Bete Noir said:

Thats the thing I was looking for, thanks!

@vucko1011

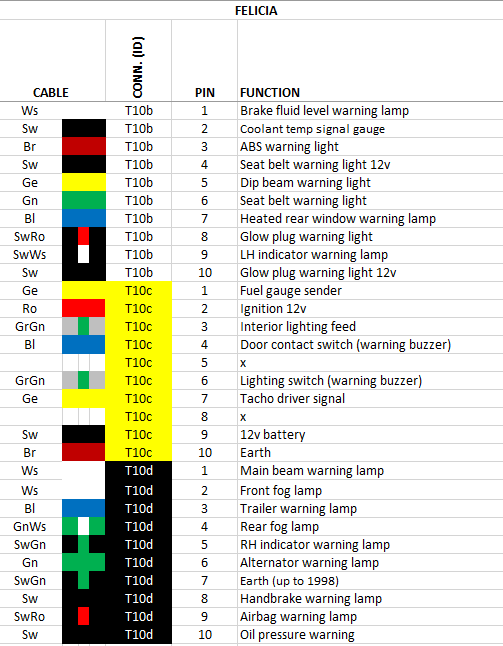

No problem. I was looking for this info myself a while back and when I could only find an incomplete list I made a test rig so I could fill-in the gaps.

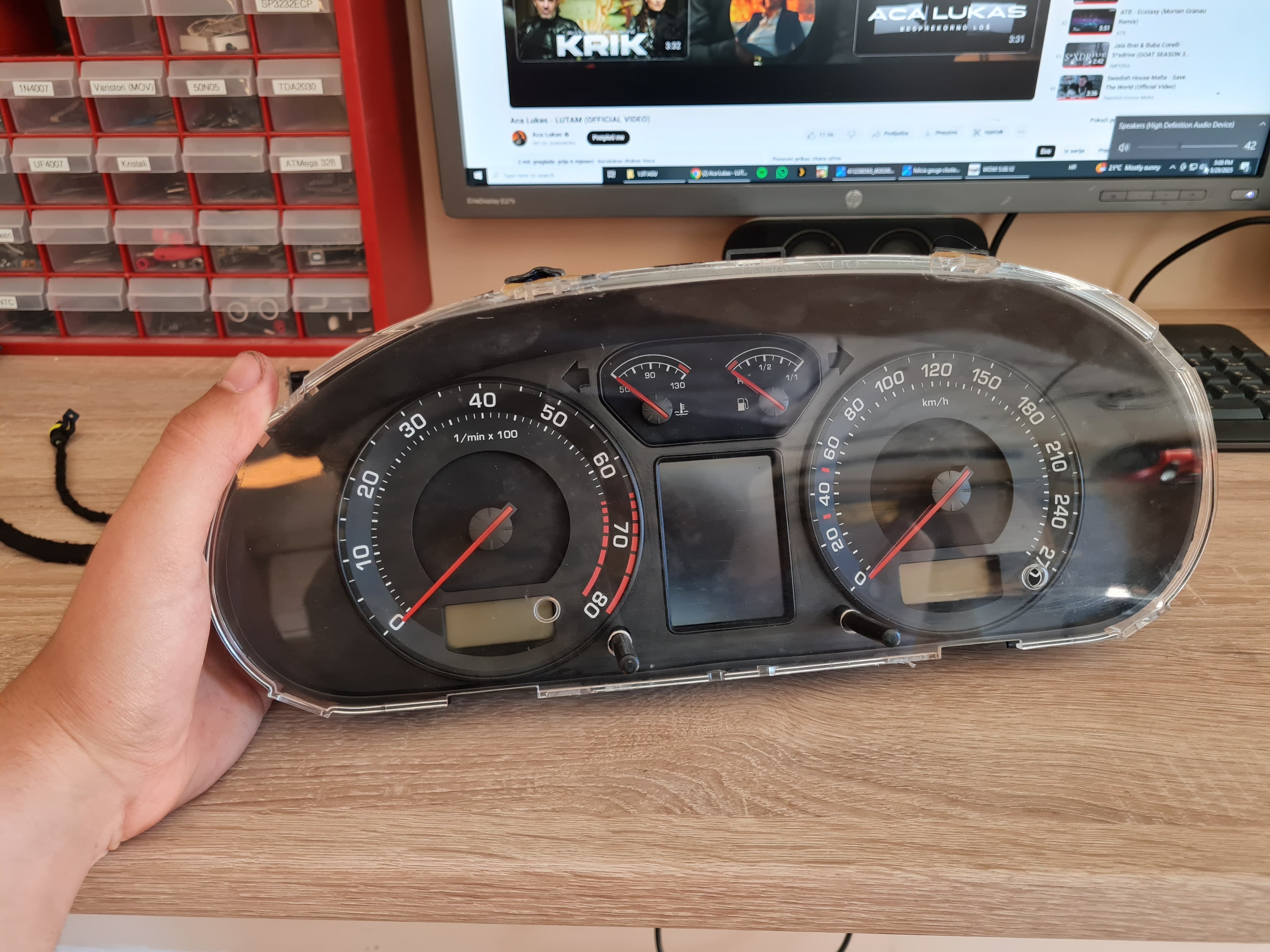

I am in the process of fitting Mk1 Octavia gauge cluster to Felicia dashboard. I already changed backlight LEDs and adapted mileage to my Favorit chassis (127 000km). More pictures soon.

I coded the cluster to have ABS and some other things, yes, I am planning on installing ABS from my Golf 4 GTI in my Favorit😃



Are you ola

5 hours ago, vucko1011 said:

yes, I am planning on installing ABS from my Golf 4 GTI in my Favorit😃



Škoda already did that 😁 Felicia with EDS used Octavia ABS unit. You can take a look into documentation for inspiration.

Are you swapping the Golf gearbox with the engine?



The instrument cluster looks great. I always wondered, why Felicia didn't get something more modern than mechanical speedo, VW instruments fit perfectly.

Edited 26 May, 20241 yr by Papez

4 hours ago, Papez said:

Are you swapping the Golf gearbox with the engine?

Yes, 02A gearbox and I am going to convert it to 02J shifter, but in the future I will try to find 02M 6 speed gearbox and swap it with that, maybe I will try to find it before I do the swap, its kind of hard to find 02M gearbox for cheap, they go for 300€ and up🙄

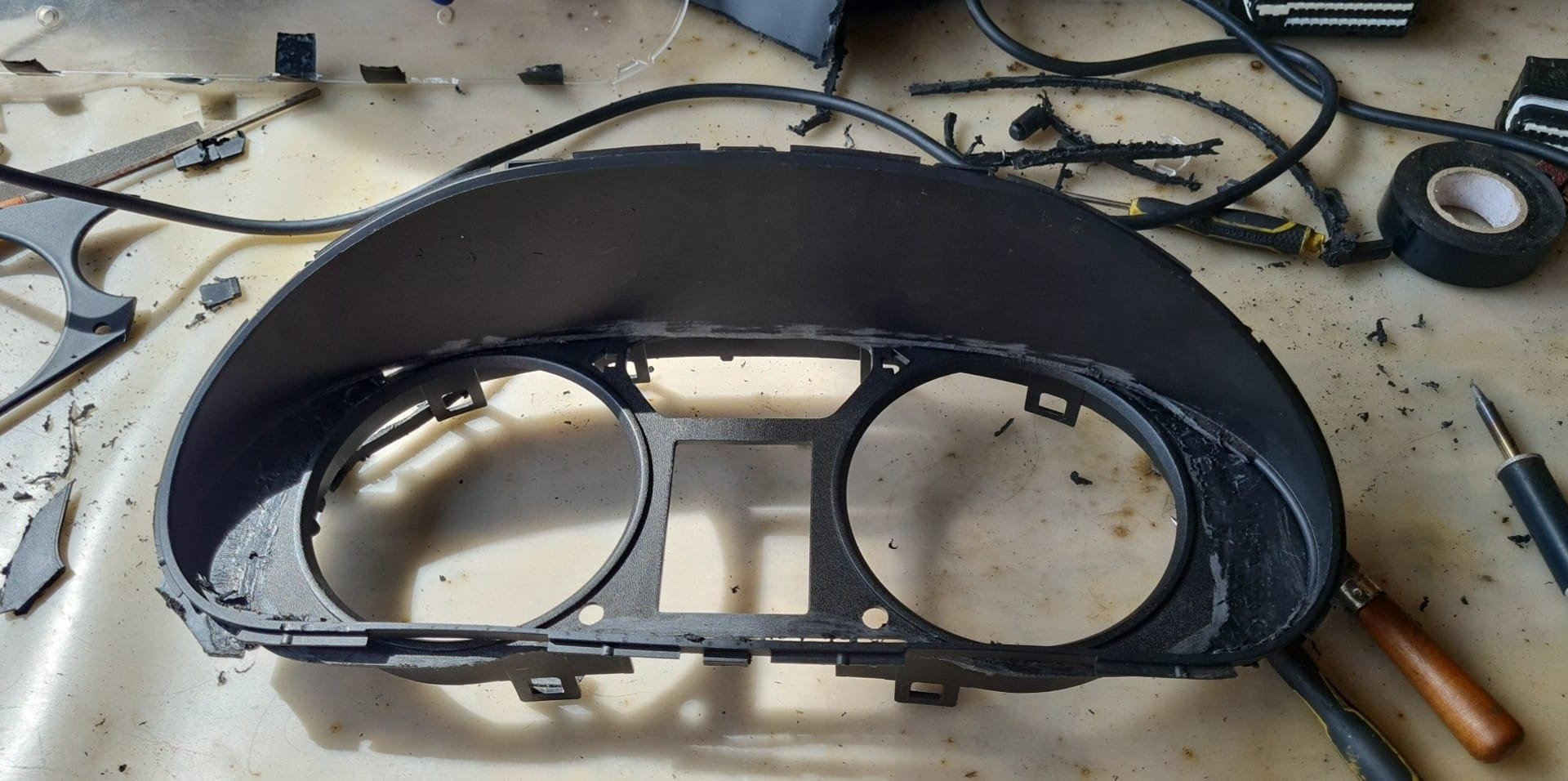

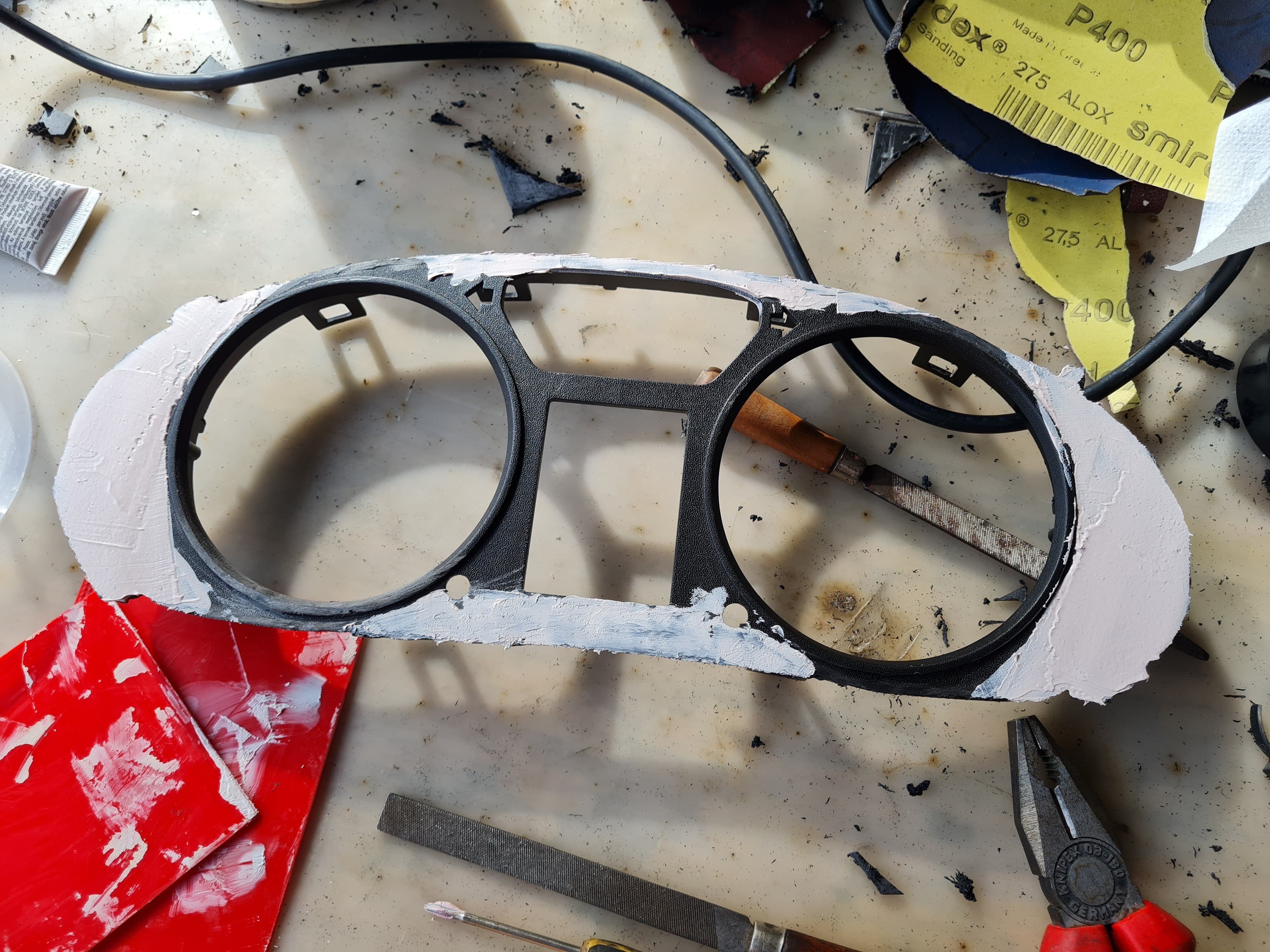

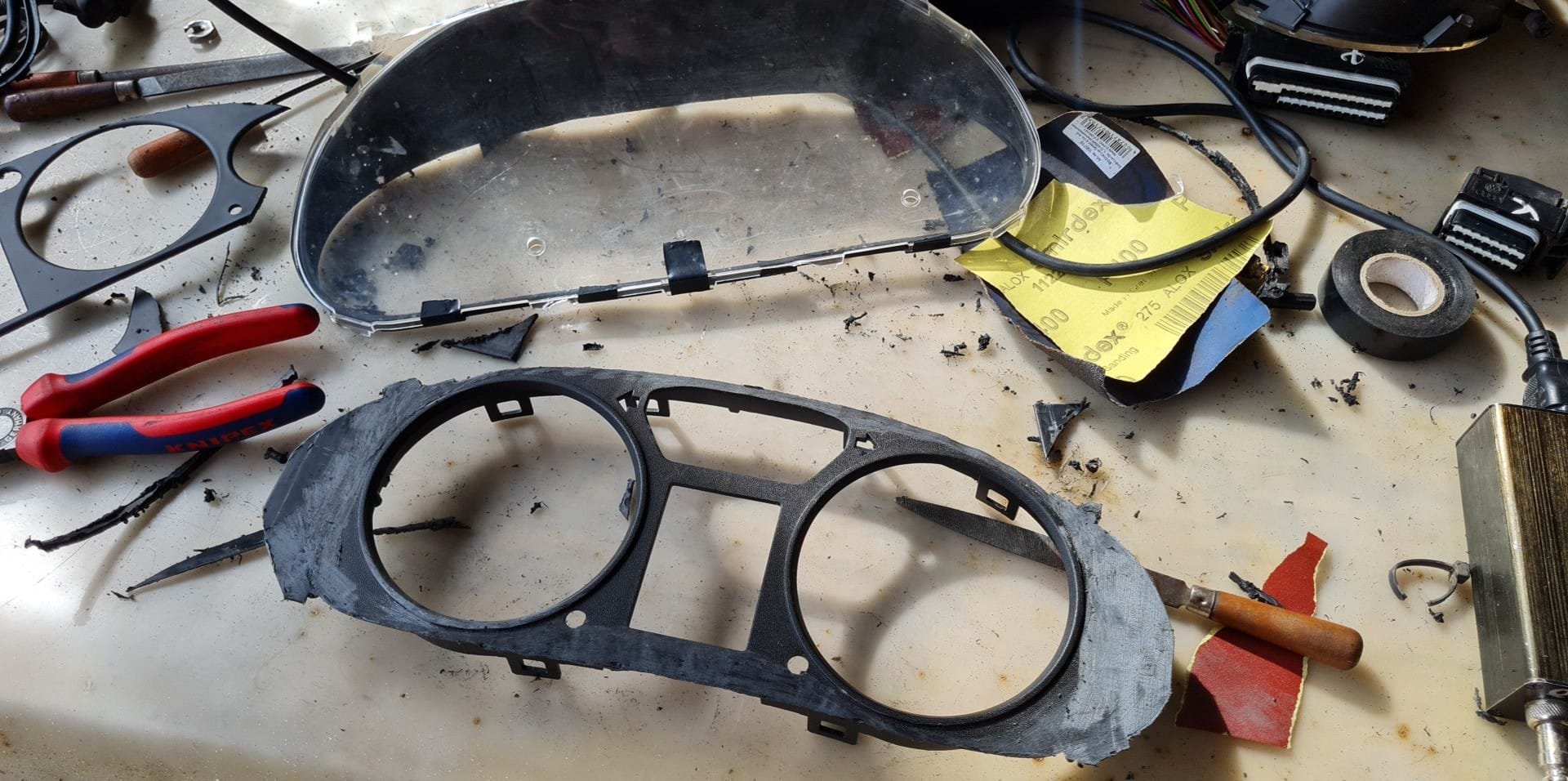

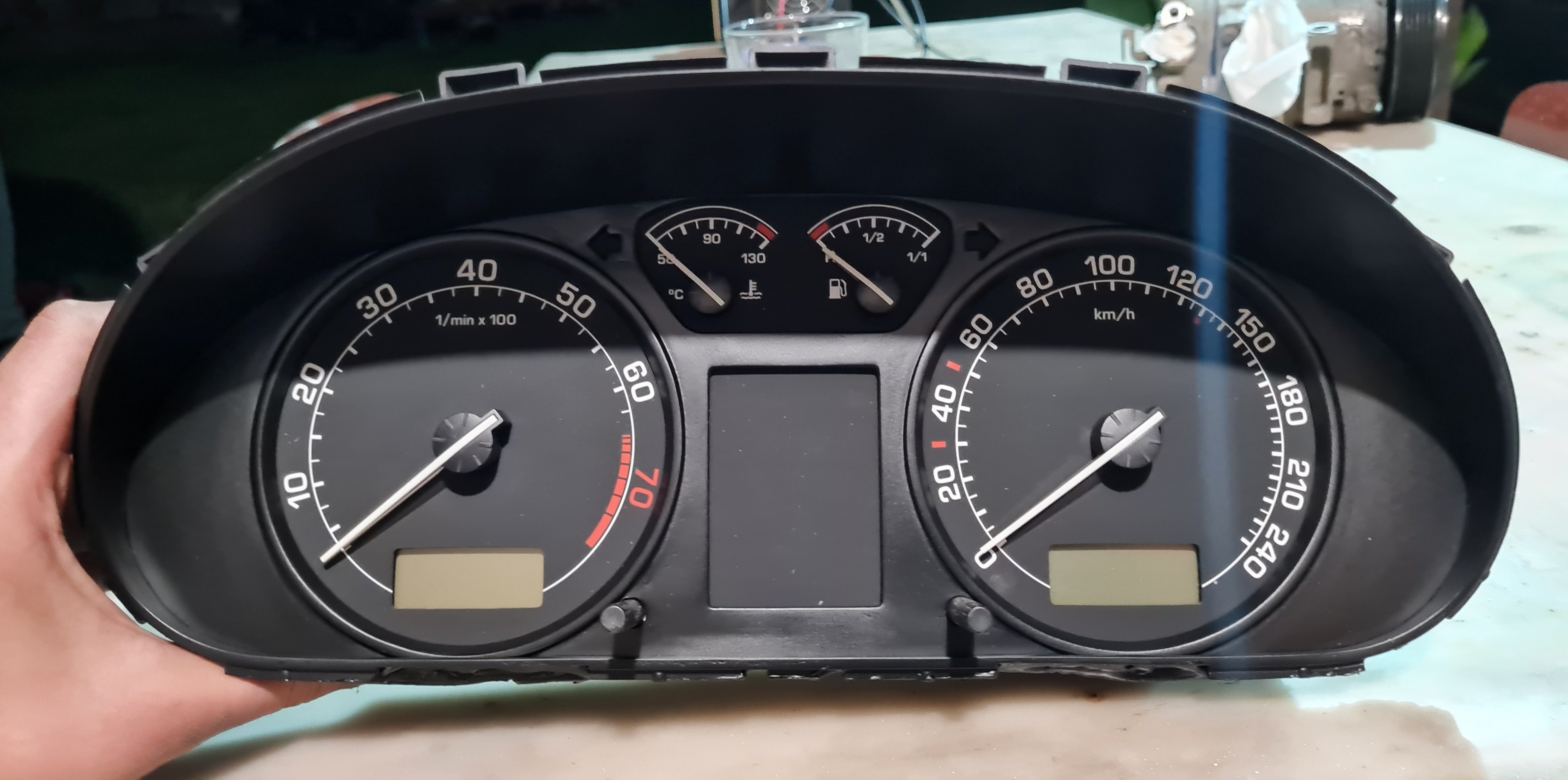

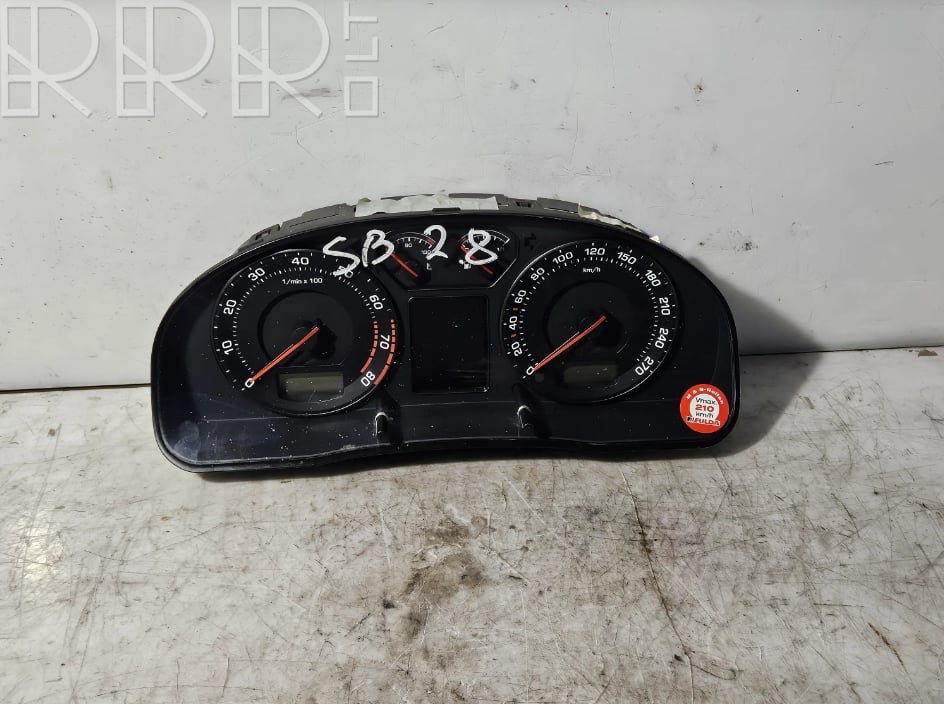

Almost finished with adapting Octavia Mk1 cluster to Felicia dashboard, I just need to do a finish black coat, also found myself a Superb Mk1 cluster with FIS display and it supports needle staging so I ordered it, it should arrive in couple of days. 3rd picture is from Superb.

So the Superb cluster arrived, I coded it to my ECU and made custom EEPROM program for needle sweep,

changed the mileage to match my Favorit and I disabled the immobilizer (Not in video, I did it later).



I also changed the backlight to white, I will post pictures in couple of days.



You can check it out on my YouTube. I still need to make it fit in Felicia cluster, but I do not have the time because I am working

on a transplant of my 1.4 AFH Hybrid engine into my friends 1991 Skoda Favorit.



Video link -



I've returned from abyss to say one word for you.



Genius!

I am so sorry I did not post anything for a while...I had other things to do and I paused the "Favorit 1.8T AGU Swap" project. THE PROJECT IS NOW RESUMED!!!😁

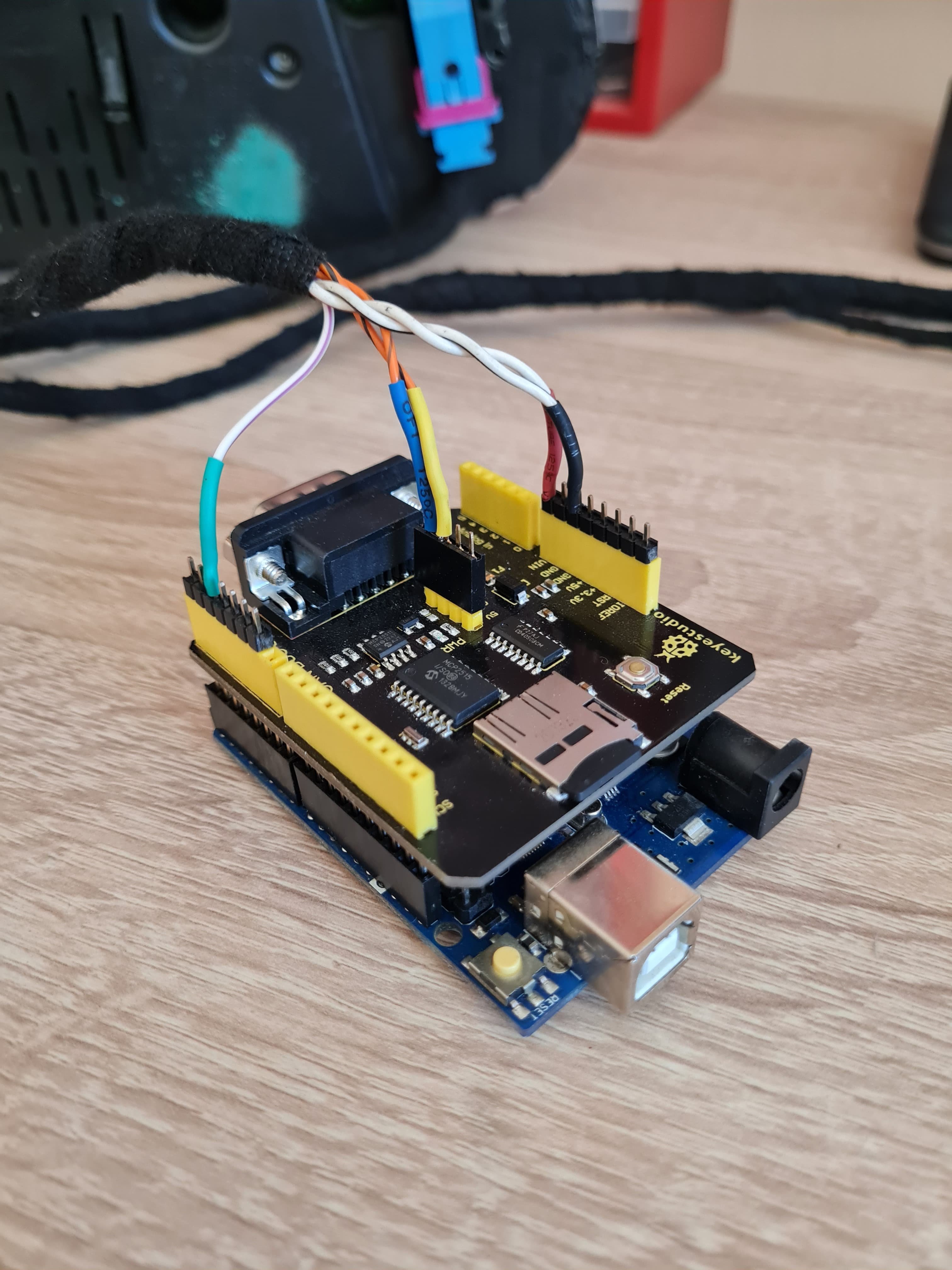

Since the last time I adapted Škoda Superb Mk1 (3U, 2.8 V6) gauge cluster on Bosch M3.8 ECU from my 1.8T AGU. Bosch ME3.8 does NOT have CAN communication with the gauge cluster, so I made my own CAN network for the cluster. I enabled some functions, converted PWM RPM signal from M3.8 to CAN network on Superb cluster.

The Superb cluster is also adapted to fit in a Felicia dashboard.

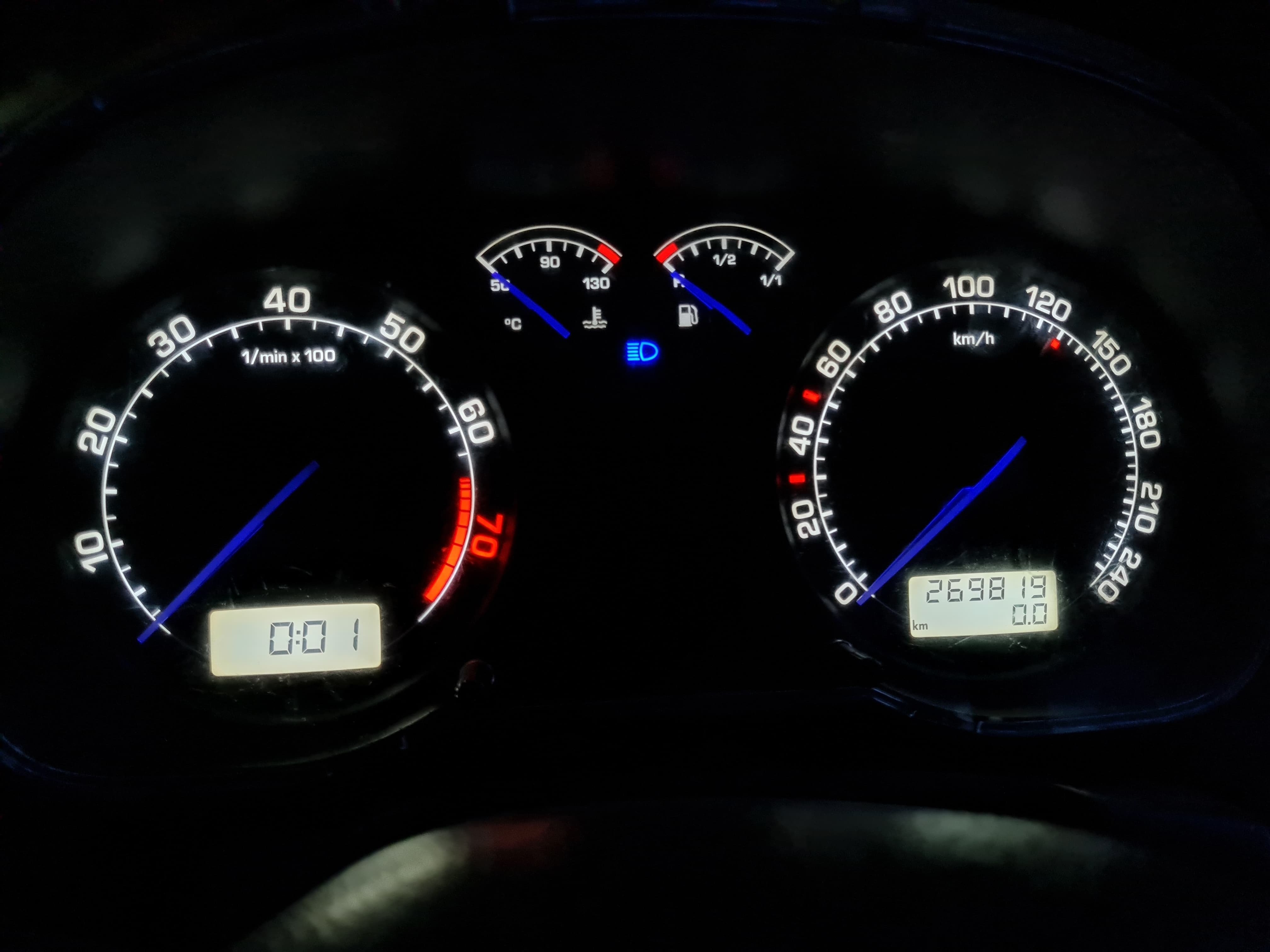

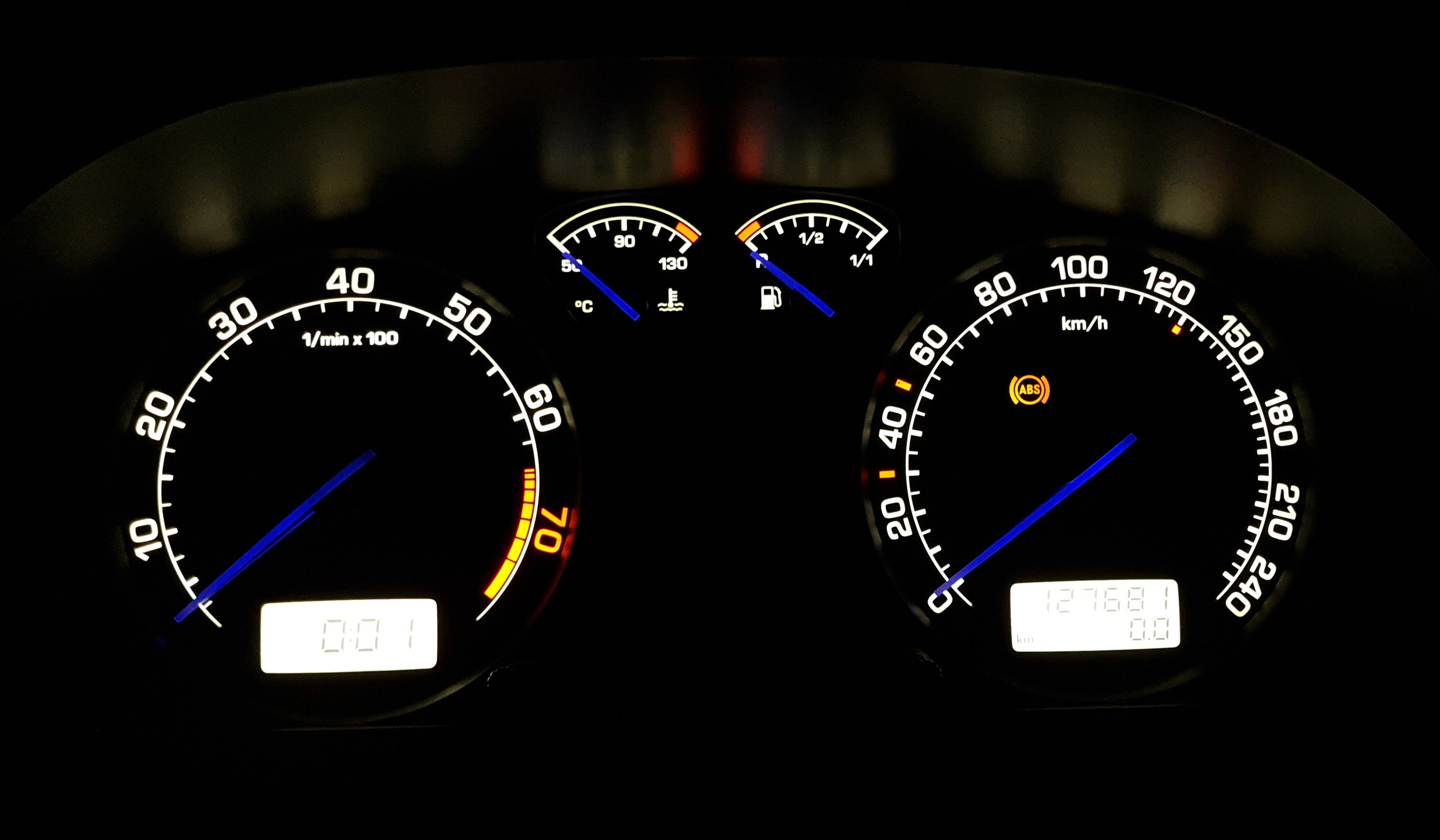

I also changed the color of the cluster backlight.

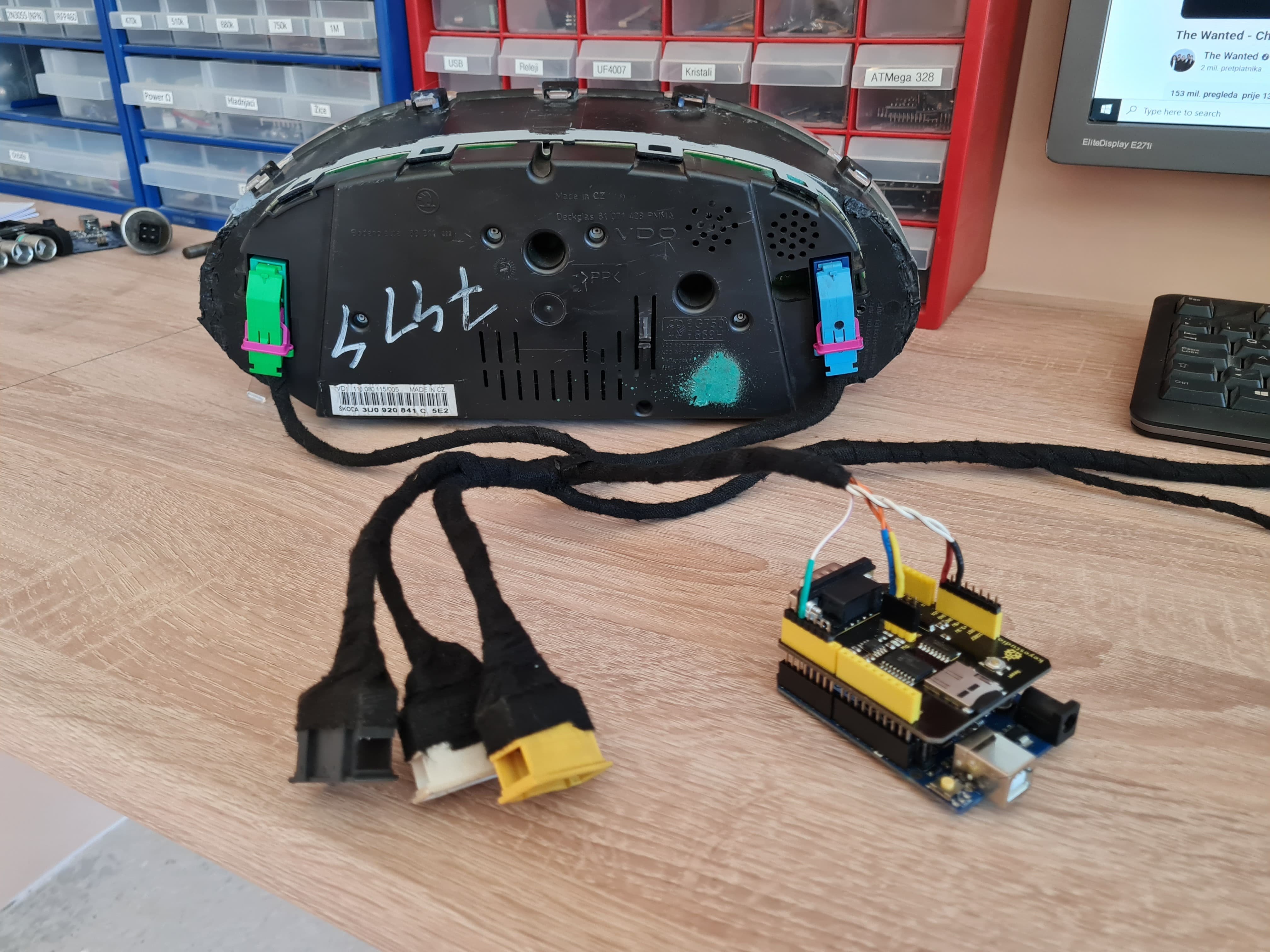

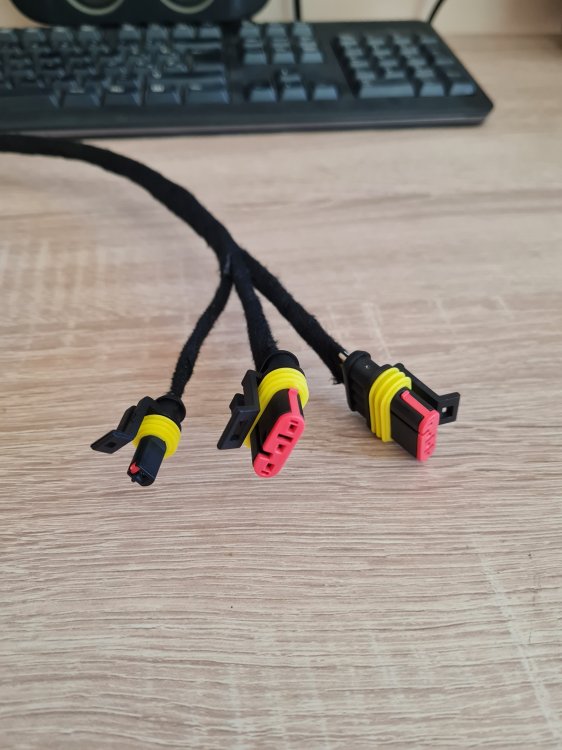

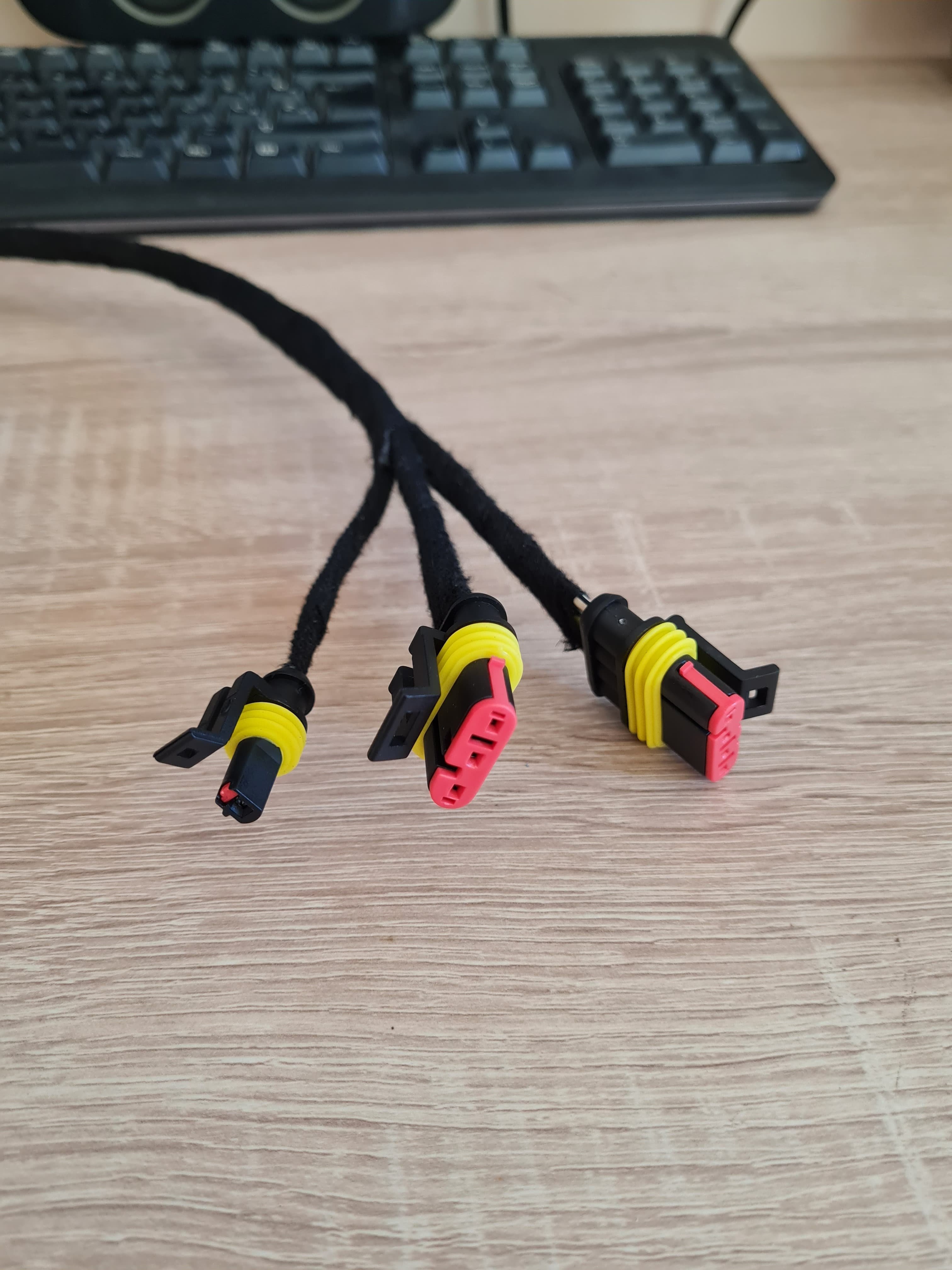

Here are some pictures of the wiring loom to use the Superb cluster on Felicia cabin wiring loom without any cutting of the existing wires.

Edited 29 May29 May by vucko1011
Wrong pictures
