Camarao69

This post showld be pinned.

Hello, Great post, If you want everything to work correctly for exemple ambiente color in virtual cockpit in 2016 cars you need newer BCM and gateway.

I had to buy mine directly from dealer, i wiil see you color code a poste here.

Has anyone tried to enable this via obd eleven in a 2.5 mib ? For what i read we have to go to 5f and enable wlan 5ghz , activate google_gal_wireless (android auto),apple_dio_wireless(carplay) . Then remove all bluetooth devices and pair the phone once again after that pair the phone with wlan too .

The correct part is 3v0857053A ( to use with virtual cockpit) the last letter A is very important , the next letters has to do with the color mine is NF8 (silver)

Hello Sorry to meddling in this post but i would really like to share my own SKODA logo Skoda_Logo.svg

I´m sorry it has been a long time, that green cable goes in the fuse box, my had it also i used a piggyback (fusetap).

My first attempt was to place the camera in the mirror like in this link https://mqb.pl/en/tutorial-retrofiting-lane-assist-sign-assist-light-assist-5q0980653/ ,but in superb it is not possible because the maximum length of cable is 20 cm and there is no space in superb roof, i even make the bracket . There was only one solution a 3d printed box, i think it came out good , you can see below.

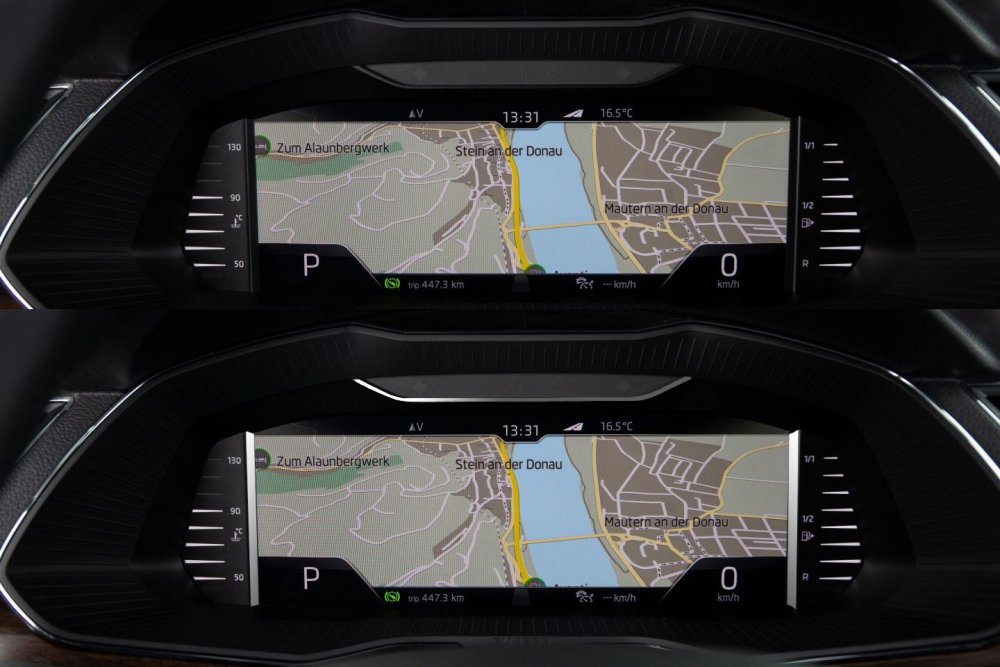

Congratulations Sasha it´s a litter bigger no ? Have been fallowing your Octavia thread and it helped in my retrofits to. Here are my Retrofits it´s a 2016 version: Lane assist - without changing windshield Virtual cockpit Columbus 2.5 with 9.2 screen BCM newer (made possible the 30 ambient colors, only had 3) GATEWAY newer (because of bcm swap) What I´m currently trying to do is in some way have the traffic information on my MIB as i can´t have skodaconnet because of VIN and there is no TCM here in Portugal.

Hello For everyone that understand how mib2 unit works , i'm trying to ask if one thing in my mind is possible to implement in our radios ( my case mib2 high). Is there any way to make the unit download traffic information from google instead of skodaconnet ? In my coutry there is no tmc and i cant enable skodaconnect. https://www.google.pt/search?biw=41...rp#sbfbu=0&pi=google maps traffic information Is there something we can do ? Maby with green menu. Thank you in advance

Vagguide was the one that did mine .

Hello you don't need to change the harness , you just need the unit and display. Depending on the case ,you may need to cut a litle bit of the plug so it fits the display.

Hello , yes i buy from ALI, it is a original part from China, but it works the same.

The attached file might help people choose color as it also helps in sorting them. The colors in it are used in vag cars from OEM. Ambie.xlsm

Hello here it is. Where can i grab color codes you posted ? Passat for exemple .

Thanks, i was wasking this too because some colors dont match, colors are diferent from Aid/mib vs doors and dash.

Hello Can some one be kind enough to share the original color codes of ambient light. The 30 color and 10 color version. Some colors i have tested are a diferent, door vs Virtual cockpit Thank you

Hello Finaly i have done it with the help of Vagguide. https://m.facebook.com/vagguide/ My car is 2016 version , i had to change BCM and GATEWAY so that everything was functional. I had to replace the trim under the dashboard was well . This retrofit depends on the MY of the car , after MY17 i think you only need virtual cockpit.

Hello mine in some colors are diferent too.

Hello I have plans to retrofit skoda superb virtual cockpit , i made the risk and bought the one from the link below, it already has arrived and i couldn´t be more happy ,i didn´t have to pay costums and the seller gave me better price . As soon as i install the cluster i will post here. https://pt.aliexpress.com/item/1005001320853346.html?gps-id=pcStoreNewArrivals&scm=1007.23409.123629.0&scm_id=1007.23409.123629.0&scm-url=1007.23409.123629.0&pvid=6be6ad9b-0d43-423d-9615-a3df8633d0a6&spm=a2g0o.store_home.smartNewArrivals_106278476.1005001320853346

Didn't find anywere so as the title says here is how to remove acc cover Remove these caps. Put a screwdriver in to the hole press it and push forward. Acc radar.

Hello This is my corrent project , i have been falowing golfmk7 forum and mqb.pl site trying to retrofit this to my superb. What i have done so far is mount the a5 camera in my own mirror. I have made the bracket with : 3 aluminium cutted pieces 5€ Laser cut file 3mx2cm screws- bought in a 3d printer mounting shop 2€ 3 spring -bought in a 3d printer mounting shop 2€ 3 precision nuts-bought in a 3d printer mounting shop 3€ 34 pin 0.5 pitch cable and Pcb You can se in the pictures below. The next thing I'm going to do is glue the camera board to the ceiling maby using velcro tape so i can remove it when ever i want, then pass the cable i have bought from alliexpress. to be continued

What do i need ,to retrofit high beam assist , i dont have front camera, can i guide myself from this diy ? http://mqb.pl/en/tutorial-retrofiting-lane-assist-sign-assist-light-assist-5q0980653/ I have bixenon lights without the led srips can I have hba without changing them ?
