deepshegde

Yes i got it done from a workshop ..so all good. Thanks for everyone's input here 👍

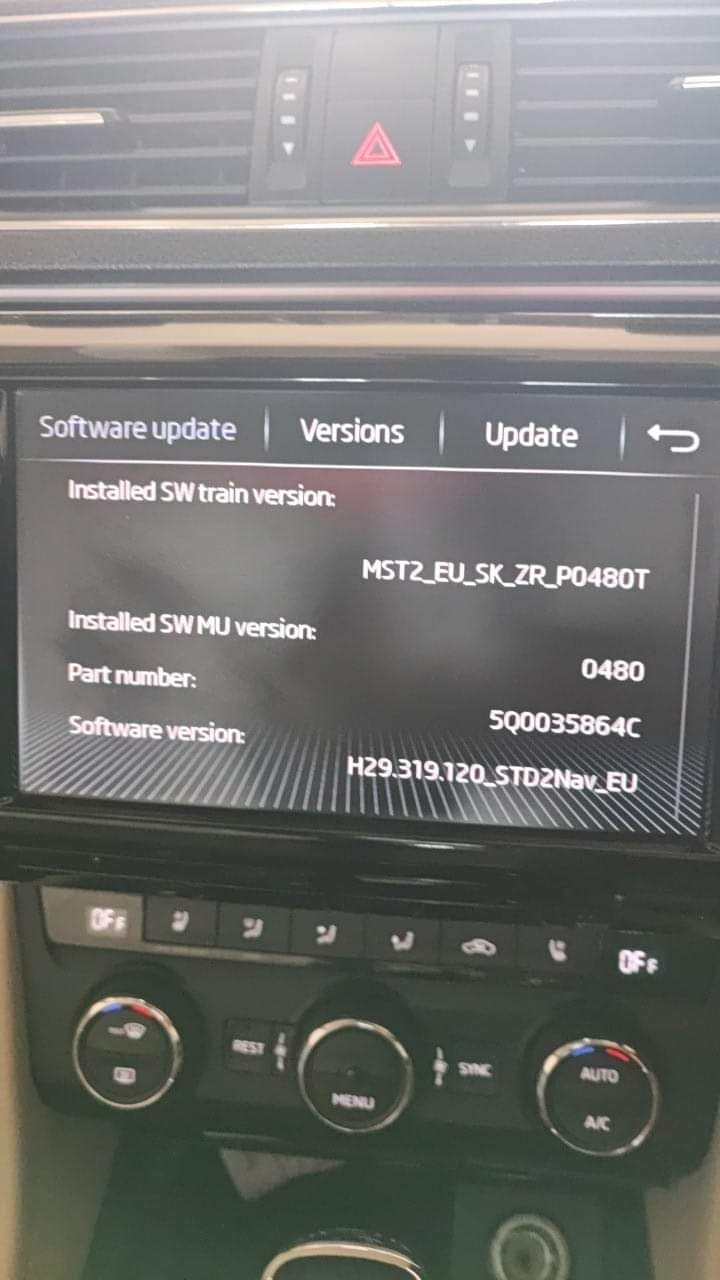

@pleasingOk. I have issues enabling adaptations above on my Ambudsen so it looks like it wont work...i did enable other settings but still not getting option to display map in my car- selection. Sharing my MIB version. I recently upgraded fw from 3x to 4x using swdl patch + metainfo update. Software update Versions Installed SW train version: Update Installed SW MU version: Part number: Software version MSTZ_EU_SK ZR P0480T 0480 500035864C H29.319.120_STD2Nav. EU

Yes i did enable MOST in coding..ok looks like i need to try different options. ODIS-E i tried entering access code too that didn't work either. Unfortunately, i dont have VCDS.

Ok it was exactly same issue ..fixed. thank you but i am unable to enable 5F adaptations for displaying maps...ODIS-E is giving "function not available" errors for some adaptations...

@Tin82I tried to enable adaption of 5F for Maps after VC retrofit of my skoda superb 2017..however i am getting "function not available". I am using ODIS-E tool to update adaptations below: ENG122230-ENG122340-Dashboard_Display_Configuration-crossroad_detail_map_compression_mode,H264 - ENG122230-ENG122344-Dashboard_Display_Configuration-crossroad_detail_map_resolution,resolution_3 - ENG122230-ENG127006-Dashboard_Display_Configuration-crossroad_detail_map_transmission_mode,MOST_streaming While I was able to successfully adapt the other settings...any idea what could be wrong?

This is the cable i bought https://a.aliexpress.com/_mORqDsS

Yes, male connector goes to mib and female to canton and another one to VC..i can see red light too at the end of connector..not sure why it isnt working

Did you manage to get this working? I bought a connector with 1 male and 2 females and my audio isnt working at all...not sure if the splitter itself is faulty..i can see optic light and no issues with that but audio isnt working.

@Tin82I ordered VC+MOST Splitter for my Skoda Superb 2017...its a 5A model. Everything works fine except for audio when splitter is hooked. Sound doesnt work. Does it require any kind of coding?

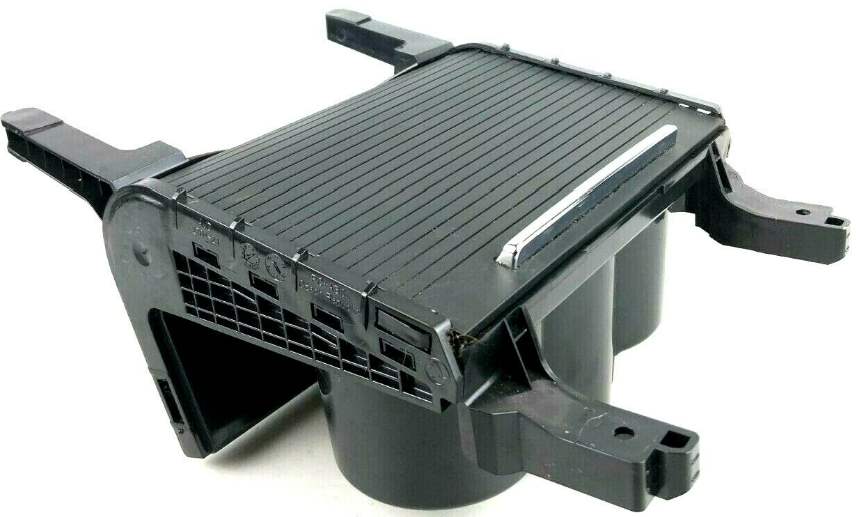

Does anyone have removed drink cup holder with shutter in Skoda Superb Mk3? My shutter is broken and got a replacement part but unable to find specific instructions to remove and install replacement.

Ok, I was able to successfully upgrade fw from 369T to 480T. Had issues the first time i realized SD card i was using was not class10. I attempted with a class 10 SD card and this time it worked.:) !

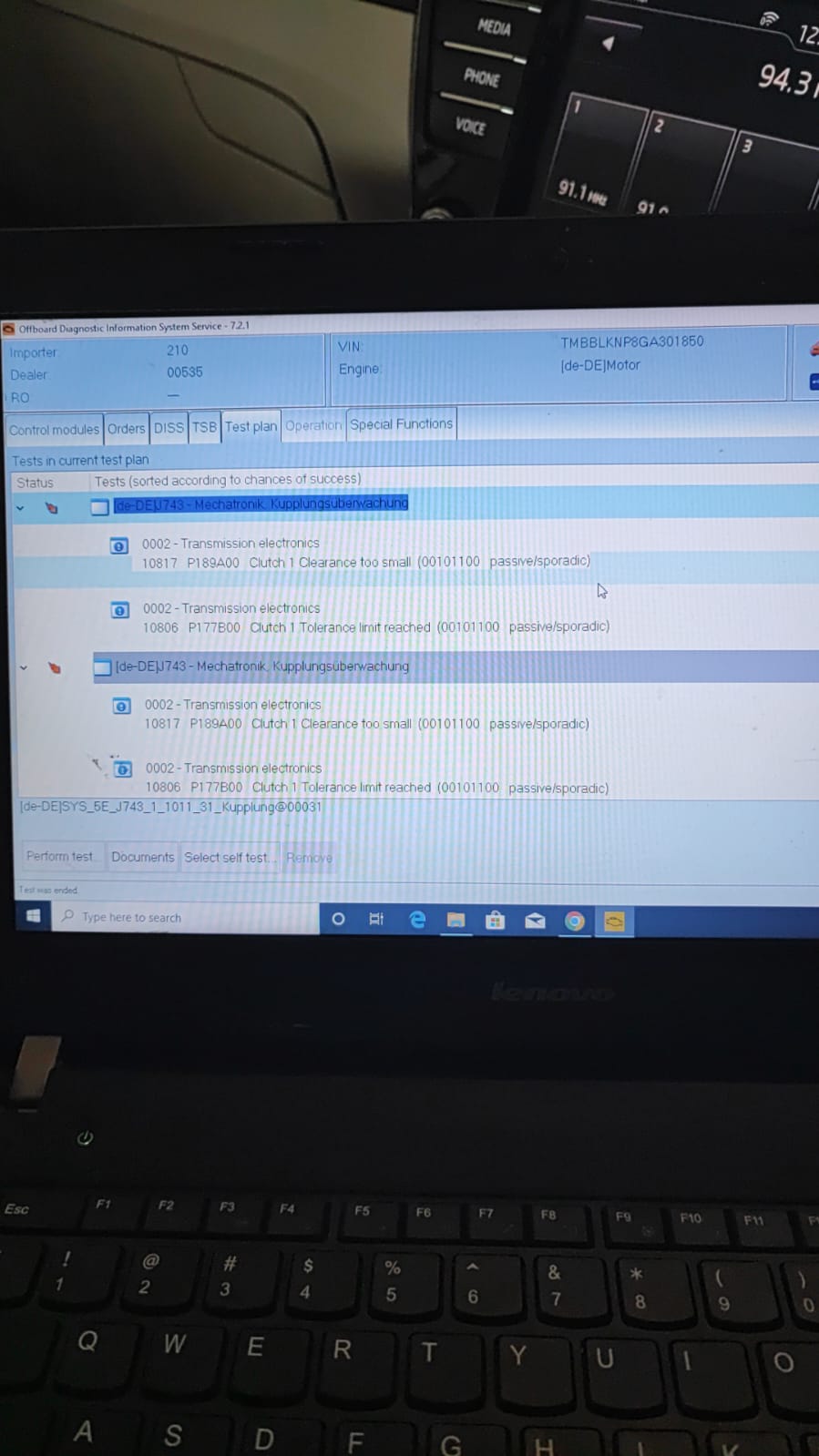

I was doing a scan of my car using a VAS5054a interface with ODIS and surprisingly found transmission related DTCs. It is very strange that recently car made a trip to skoda dealer and they didn't say a thing abt this. My luck may have run out..i wanted to get opinion on this. I did not feel difference in how the car drives so not sure this would all come down to replacing clutch. The car has run 45,000 kms and clutch replacement on such low run car is very unfortunate. Btw i spoke to a local garage guy who specialises in dsg..he is suspecting the clutch might need a replacement.

Anyone upgraded skoda superb mk3 bixenon headlight assemblies to full matrix LED which comes in new models? Would it fit direct or I would need to change body components such as bumper etc

Can I do this using ODIS too? I have ordered VAS 5054a for myself and intend to do upgrade of my MIB 2 STD(Ambudsen) 369T FW to 480T. I heard i can expect similar error code. Any guidance here would be appreciated 👍.

Latest available on ne os 369T...download from here https://mibsolution.one/ user and passwd is guest

@Tin82Do you have a wiring connection diagram of fibre cable which goes from VC to headunit? I have a Ambudsen+ Canton and In this post you spoke abt a MOST splitter needs to be connected between control unit in glove box but for that i need to remove control unit in glove box. I placed order for VC+ MOST Splitter and due to not many people specialised in retrofitting in India this may well be a DIY project for me 🙂! Any guidance from experts will be greatly appreciated

Does anyone know or have a wiring connection diagram of fibre cable which goes from VC to headunit? I have a Ambudsen+ Canton and i read in one article by @Tin82 that a MOST splitter needs to be connected but for that i need to remove control unit in glove box. I placed order for VC+ MOST Splitter and due to not many people specialised in retrofitting in India this may well be a DIY project for me 🙂! Any guidance from experts will be greatly appreciated!

You are right and even part numbers will be different because superb DRL is 2 piece and Octavia is just one tube. I am still researching a better way to get part numbers before ripping apart the headlight. From what i understood so far is that this could be simply burnt out LEDs attached to a controller and then light is projected using a transparent tube. I do not see why tube will become discouloured. I found this video on YouTube not for superb but for Audis: https://youtu.be/zELs-TY9Cy0

Ok, couldn't interpret the language but i gather he changed LED DRL Module driver part no 301 330 064. Not sure if this part is compatible with Skoda Superb Mk3. I tried to reach out to that guy on insta...so far hasnt responded.

Did you try https://mibsolution.one/#/1/9 Pls check your fw version and then navigate to different fw versions under MQB Solution folder to get right firmware for your unit. Username/ pwd : guest/guest

I am based in india. Anyway i can get parts or kit for repair?

Mine is ZR and not PQ.

My unit works like charm and latest news is that i was able to upgrade fw from 359T to 369T... Downloaded fron mibsolution.one. it worked fine.

Not really...I do have good knowledge of computers not this is a new territory for me 🙂

Any instructions on how to do this?
