Hi,

can anyone post any images of pipe coming from EGR to air filter of Octavia Mk1?

Where is it connected on the air filter?

Thank you.

Hi,can anyone post any images of pipe coming from EGR to air filter of Octavia Mk1?Where is it connected on the air filter?Thank you.

The 1.8t doesn't have EGR if your talking about the part on the side of the cylinder head that's the combi valve for the SAI system.

I think the original poster has a 1.9 tdi

I think the original poster has a 1.9 tdi





Doh missed that was on the mobile sorry about that :think:

I can't remember a pipe from the egr to the air filter. There is the VAC line which goes to the control valve on the bulkhead. The other pipe obviously goes via the intercooler.

Sent from my Nexus 4 using Tapatalk

Thank you guys... I got it...

http://workshop-manuals.com/skoda/octavia-mk1/drive_unit/1.9_ltr./66_kw_(tdi)_engine_fuel_injection_and_glow_plug_system/fuel_preparation_system_diesel_injection/checking_charge_air_pressure_system/connecting_diagram_for_charge_pressure_control/

I can't remember a pipe from the egr to the air filter. There is the VAC line which goes to the control valve on the bulkhead. The other pipe obviously goes via the intercooler.

Sent from my Nexus 4 using Tapatalk

Edited 11 February, 201412 yr by vinuchandran

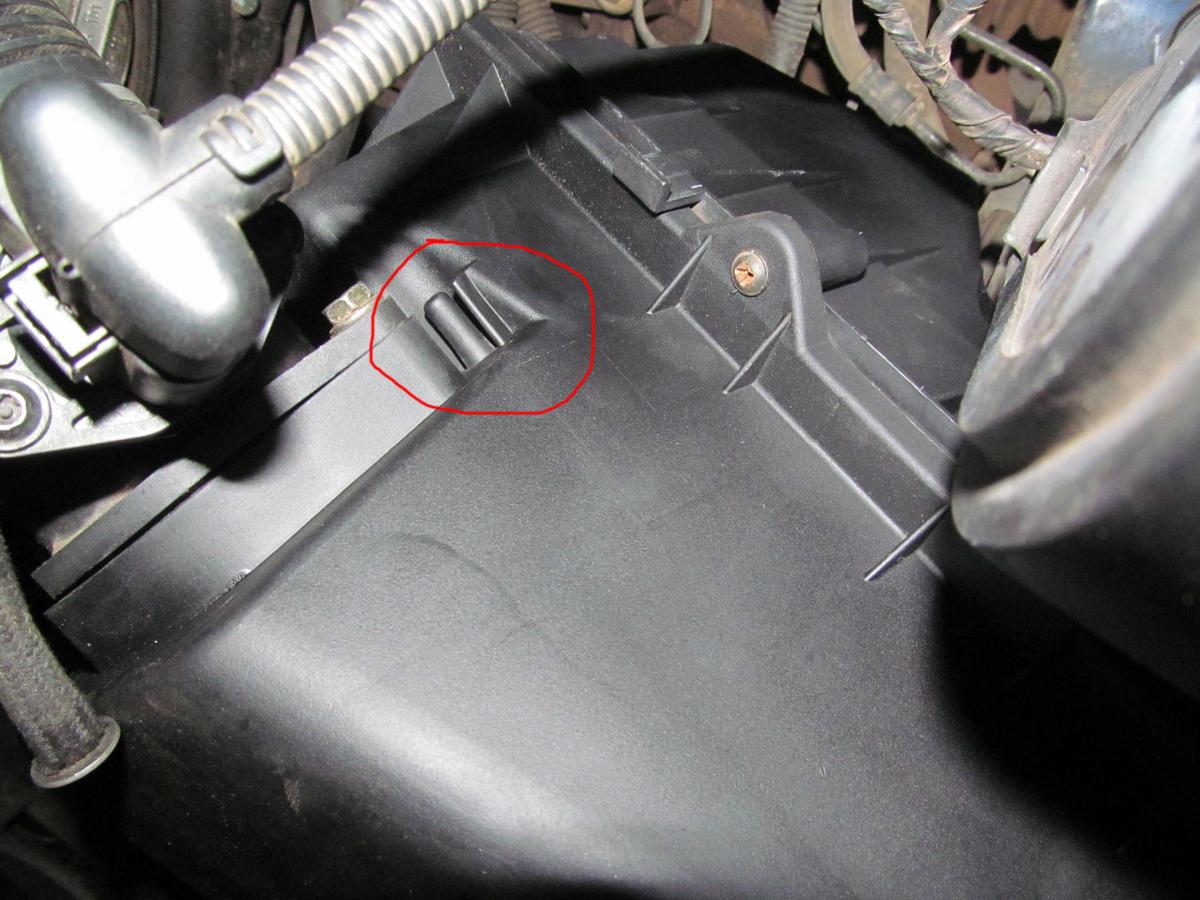

The pipe is connected in the tap, marked in red, in the above thumbnail.

Also check this out...

http://workshop-manuals.com/skoda/octavia-mk1/drive_unit/1.9_l/66_kw_tdi_engine_mechanics/exhaust_system/exhaust_gas_recirculation_system/connection_diagram_for_exhaust_gas_recirculation_control/

What engine do you have.

Sent from my Nexus 4 using Tapatalk

@trundlenut -- Mine is 1.9 tdi, 90bhp engine..

@trundlenut -- Mine is 1.9 tdi, 90bhp engine..

I had a 110 TDI and the airbox looks different to yours.

Sent from my Nexus 4 using Tapatalk

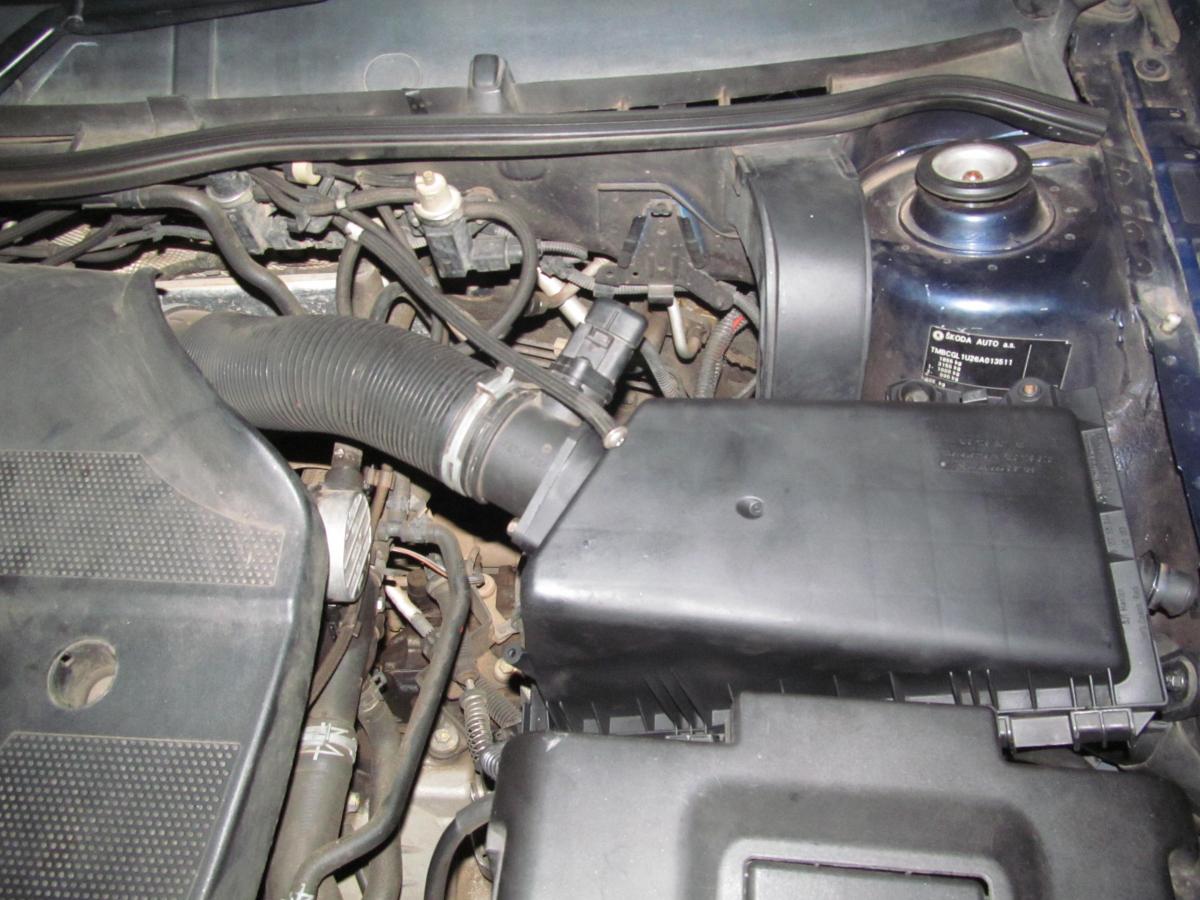

@trundlenut -- My air box's top view.

@trundlenut-- Just out of curiosity.. Can you post yours??

I can't say for definite but I'm sure the maf connection looks different.

Sent from my Nexus 4 using Tapatalk

@trundlenut-- Just out of curiosity.. Can you post yours??

I don't have a mkI anymore so no I can't.

Sent from my Nexus 4 using Tapatalk
